BAFANG DP C10.UART User manual

EN
USER MANUAL
DP C10.UART

2
USER MANUAL DP C10.UART
CONTENT
Important Notice....................................................4
For your safety........................................................5
Note.......................................................................6
Overview of Product ...........................................7
1 Specifications and Parameter of the Display..............7
2 Appearance and Dimensions....................................7
3 Funcion Overview and Key Definitions......................8
4 Normal Operation..................................................10
5 Parameter Setting...................................................12
6 Error Code Definitons.............................................19
Serive and Warranty Policy....................................20
CONTENT

3USER MANUAL DP C10.UART

4
USER MANUAL DP C10.UART
IMPORTANT NOTICE
IMPORTANT NOTICE
Make sure you have read this Dealer Manual
carefully in order to use the product properly.
•This product conforms to <<The Technical
Specification and Standard of design for
BAFANG's electrical component>> and is
based on << BAFANG Communication
Protocol-V5.6>>;The matching kits also
should be compatible with above
mentioned protocol and other BAFANG's
mpatible protocol.

5
USER MANUAL DP C10.UART

6
NOTE
HANDLING INFORMATION
USER MANUAL DP C10.UART
•Pluging or displuging the HMI with power
on is forbidden.
Please contact the seller for help when any
error codes show on the HMI or any failure
come .
Please use this product in the given
circumstance indicated in the manual.

7
1 Specifications and Parameters of the Display
• 24V / 36V / 43V / 48V Power Supply
• Rated Current: 10mA
• Maximum Operating Current: 30mA
• Power-off Leakage Current: < 1uA
• Operating Current Supplied to the Controller: 50 mA
• OperationTemperature: -20℃— +60℃
• Storage Temperature: -20℃— +60℃
• Waterproof Grade: IP65
• Storage Humidity: 30 % -- 70 %
2 Appearance and Dimensions
2.1 Materials and Dimensions
•
•
The shell is made of PC.
The liquid crystal display is made of hardened PMMA.
USER MANUAL DP C10.UART
OVERVIEW OF PRODUCT
The matching kits also should be compatible with above
mentioned protocol and other BAFANG's mpatible protocol.
•
•
This product conforms to <<The Technical
Specification and Standard of design for
BAFANG's electrical component>> and is based
on << BAFANG Communication Protocol-V5.6>>

3 Function Overview and Key Definitions
3.1 Function Overview
• Use of a two-way serial communication protocol,
simple operation of the display via the external
5-key keypad.
• Speed display: displaying the real-time speed as
SPEED, the maximum speed as MAXS, the
average speed as AVG, remaining range TO
GO, Power W, Calory C .
• km or mile: The user can choose between km
and mile.
• Intelligent battery level indication: With an
optimization algorithm, a stable display of the
battery level is ensured, and the problem of fluc-
tuant battery level indication common with other
displays is avoided.
• Automatic light-sensitive lights:The headlight,
taillight and display light will be automatically
turned on/ off depending on lighting conditions.
• 5 levels off display backlighting: Different levels
• 5-Level-Support: setting power Levels 1 to 5
• Trip distance indication:The maximum distance
displayed is 99999. Single-trip distances TRIP or
the total distance TOTAL can be displayed.
• Display of error messages
• Walk assistance
• Settings: Various parameters, e.g. mode, wheel
diameter, speed limit etc., can be set on the com
-
puter via a communication cable. See the setting
• Maintenance warning (this function can be deac -
tived): Maintenance warning information is dis-
played based on battery charge cycles and riding
distance. The display automatically estimates the
battery life and gives warnings when the number
of charge cycles exceeds the set value. A warning
will also be displayed when the accumulated total
riding distance exceeds the set value.
3.2 Information on the Display
USER MANUAL DP C10.UART
H
C
Headlight indication: only shows when headlight
or backlight are on
C
B
F
Speed display: display of the speed, km/h or mph
F
D
Error display: When a fault is detected the
symbol will be displayed.
D
E
Menu
E
A
M
N
O
P
L
K
J
G
I
ABattery level: 10-segment battery indication; the
voltage that each segment represents can be
customized
BUSB charge
GMax speed
HAvg speed
IRemaining mileage
Level indication: The chosen level 1–5 will be
displayed; if there is no numeric display, it means
that there is no assistance (by the motor). If the
rider is walking and pushing the e-bike, will
be displayed.
J
OVERVIEW OF PRODUCT
8

USER MANUAL DP C10.UART
9
J
K

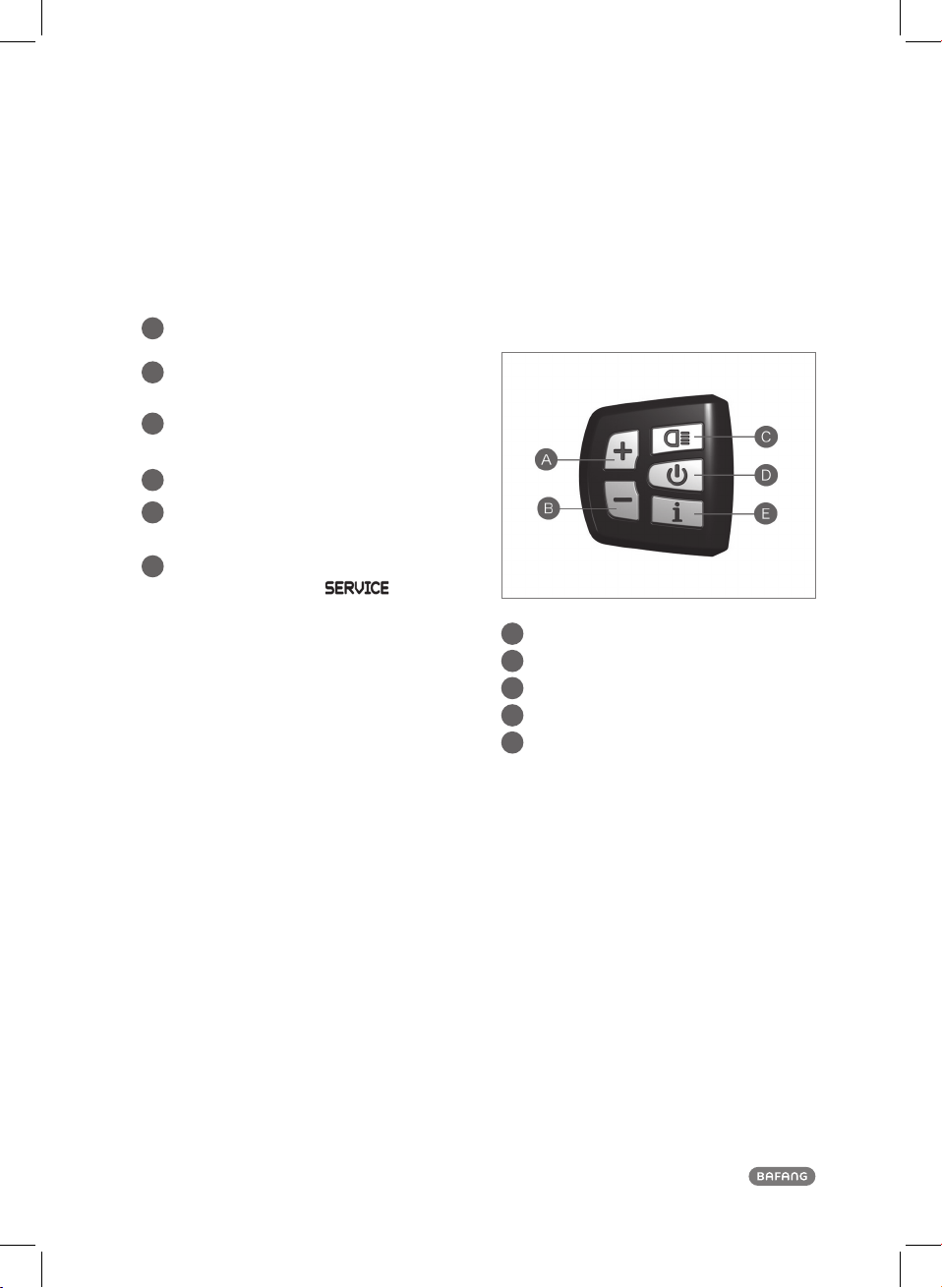

3.3 Key Definitions
A up
B down
C headlight
D on/off
E mode
Speed mode: average speed (AVG km/h), maxi-
mum speed (MAXS km/h)
O
Maintenance warning: When there is a need for
maintenance the symbol will be dis-
played (riding distance or the number of battery
charge cycles exceed the set value, function can
be deactivated)
P
NTotal mileage
Walk assistance
K
MDistance mode: display of the single-trip distance
TRIP and the total distance TOTAL
Distance indication: display of the distance
depending on the setting.
L

10
4
4.1 On/Off Switch
Turn on the device. Press and hold for 2 seconds
to power on the display. Press and hold again for
2 seconds to power off the display. If the bike is not
used, after 5 minutes (time can be set) the display will
be automatically turned off.
4.2 Assist Mode Selection
In the manual gearshift mode, press the or
to choose the desired level of support by the motor.
The lowest level is Level 1, the highest Level 5. When
the display is on, the default mode is Level 1. When
there is no numeric mode display, there is no power
assistance.
Selecting the level for motor assistance
4.3 Switch between Distance Mode
and Speed Mode
Briefly press to switch between distance and
speed. Single-trip distance (TRIP km) total distance
(TOTAL km) maximum speed (MAXS km/h)
average riding speed (AVG km/h)
successive order.
Switching between displays
DISPLAY (DP C10.UART)
USER MANUAL DP C10.UART
Remaining range
are displayed in
（TO GO km ） Power(w） Calory (c)
OVERVIEW OF PRODUCT
Normal Operation

USER MANUAL DP C10.UART
11
4.4 Headlight/ Display Backlight
Switch
Press for 2 seconds. The backlight of the display
as well as the headlight and taillight will be turned
on. Press again for 2 seconds to power off the
display backlight/headlight/taillight. (If the display is
turned on in a dark environment, the display ba-
cklight/headlight/taillight will be turned on auto-
matically. If the display backlight/headlight/taillight
are turned off manually, they also need to be turned
on manually afterwards).
Display backlight, headlight and taillight
There are 5 levels of backlight brightness
that can be selected by the user.
4.5 Walk Assistance
Press for 2 seconds. The e-bike enters the walk
assistance mode, and the symbol WALK is displayed.
Once the key is released, the e-bike will exit the
walk assistance mode.
Switch between power assistance and walk assistance mode

12
4.6 Battery Status Indication
When the battery status is normal, a certain number of the battery LCD segments as well as the border light up
according to the actual quantity of charge. If all of the 10 segments will black out with the border blinking, the
battery needs to be charged immediately.
Battery status indication
Number of
Segments
Charge in
Percentage
Number of
Segments
Charge in
Percentage
Number of
Segments
Charge in
Percentage
10 ≥90 % 6 40 % ≤C < 50 % 2 8 % ≤C < 10 %
9 75 %≤C < 90 % 5 30 % ≤C< 40 % 1 5 % ≤C < 8 %
860
%≤C < 75 % 4 20 % ≤C< 30 % border blinking C < 5 %
7 50 % ≤C < 60 % 3 10 % ≤C < 20 %
4
8
9
USER MANUAL DP C10.UART
4.7 USB Charging
When the HMI is off,please just plug the USB cable to HMI charging port and then switch on HMI for
charging; and when the HMI is on,please just plug the USB cable to HMI charging port for charging.The
maximum charging current is 500mA。
OVERVIEW OF PRODUCT

13
5.2 Setting Preparation
When the display is active, press twice (interval
< 0.3 seconds). The system will enter the MENU pa-
rameter setting state, in which the display parameters
can be set. Press twice again (interval < 0.3
seconds) to return to the main menu.
Menu for entering the parameter settings
In the parameter setting state, when the parameter
you want to set begins to flash, press
/
to adjust the parameter value. Briefly press
to switch between the parameters to be set. Press
twice (interval < 0.3 seconds) to exit the
If no operation is performed for 10 seconds, the display
will return to the normal riding display.
USER MANUAL DP C10.UART
submenu.
5.3 Data Reset
Press twice (interval < 0.3 seconds) – the
display enters the MENU state. In the speed field
tC is displayed. If you press , a y is also dis-
played. Now all temporary data, e.g. maximum
speed (MAXS), average speed (AVG) and single-
trip distance (RIP) can be cleared. Briefly press
(< 0.3 seconds) to enter the km/mile setting
If the user does not reset the data, the single trip
distance and the accumulated total riding time will
be automatically cleared when the accumulated t-
otal riding time exceeds 99 hours and 59 minutes.
The data will not be cleared when the dis-
play’s light-sensing function is set to 0 or
when it is switched off.
interface.
5 Advanced User
5.1 Items to be Set:
Data reset
km/mile
Light sensitivity
Display backlight brightness
Automatic off time
Maintenance warning settings
Wheel size indication
Speed limit indication
Battery communication indication
Error code record indication

14
5.6 Display Backlight Brightness
When the speed field displays bL1, press /
to choose a figure between 1 and 5. The figure 1
represents the lowest brightness while 5 indicates
the highest display backlight brightness.
After this setting, briefly press (< 0.3 seconds)
to enter the setting interface of automatic off time.
USER MANUAL DP C10.UART
5.5 Light Sensitivity
When the speed field displays bL0, use /
to choose a figure between 0 and 5. The higher the
chosen figure, the higher the light sensitivity.
After this setting, briefly press (< 0.3 seconds)
to enter the setting interface of backlight brightness.
OVERVIEW OF PRODUCT
5.4 km/mile
When the speed field displays S7, press / to
switch between km/h and mph, or to set km or mile.
After this setting, briefly press (< 0.3 seconds)
to enter the setting interface of light sensitivity.

15
5.7 Automatic Off Time
When the speed field displays OFF,press / to
choose a figure between 1 and 9. The figures indicate
the minutes that it takes to automatically shut down
the display.
After this setting, briefly press (< 0.3 seconds)
to enter the setting interface of maintenance
warning.
5.8 Maintenance Warning
(can be deactivated)
When the speed field displays nnA, press /
to choose either 0 or 1. 0 disables the function w-
hile 1 enables it.
After this setting, briefly press (< 0.3 seco-
nds) to enter the setting interface of password
input.
Maintenance Warning Setting
The display will prompt maintenance necessity b-
ased on such information as the accumulated rid-
ing distance and the battery charge cycles.
• When the accumulated total riding distance
exceeds 5,000 km (can be customized by the
manufacturer), the display will show the sym-
. When the display is started
up, the sign for accumulated riding distance
will flash for 4 seconds, indicating that mai-
ntenance is necessary.
• When the number of battery charge cycles ex-
ceeds 100 (can be customized by the manuf-
acturer), the display will the symbol
. When the display is started up, the sign for
USER MANUAL DP C10.UART
bol

16
battery will flash for 4 seconds, indicating that
maintenance is necessary.
• The maintenance alert function can be disa-
bled: settings maintenance alert (MA)
aintenance alert (MA) 0. (Please log in BESST
5.9
When the speed position displays Wd, you can check
the wheel size in the default. The measurements are
in inches. A wrong wheel diameter can lead to speed
anomalies.
After this setting, briefly press (< 0.3 seconds)
to enter the setting interface of speed limit. If resetting
the wheel size is needed,please log in BESST and foll-
ow the instruction to set.
USER MANUAL DP C10.UART
m-
Wheel size indication
and follow the instruction to clear the maintena-
ance.
OVERVIEW OF PRODUCT

17
5.10 Speed indication

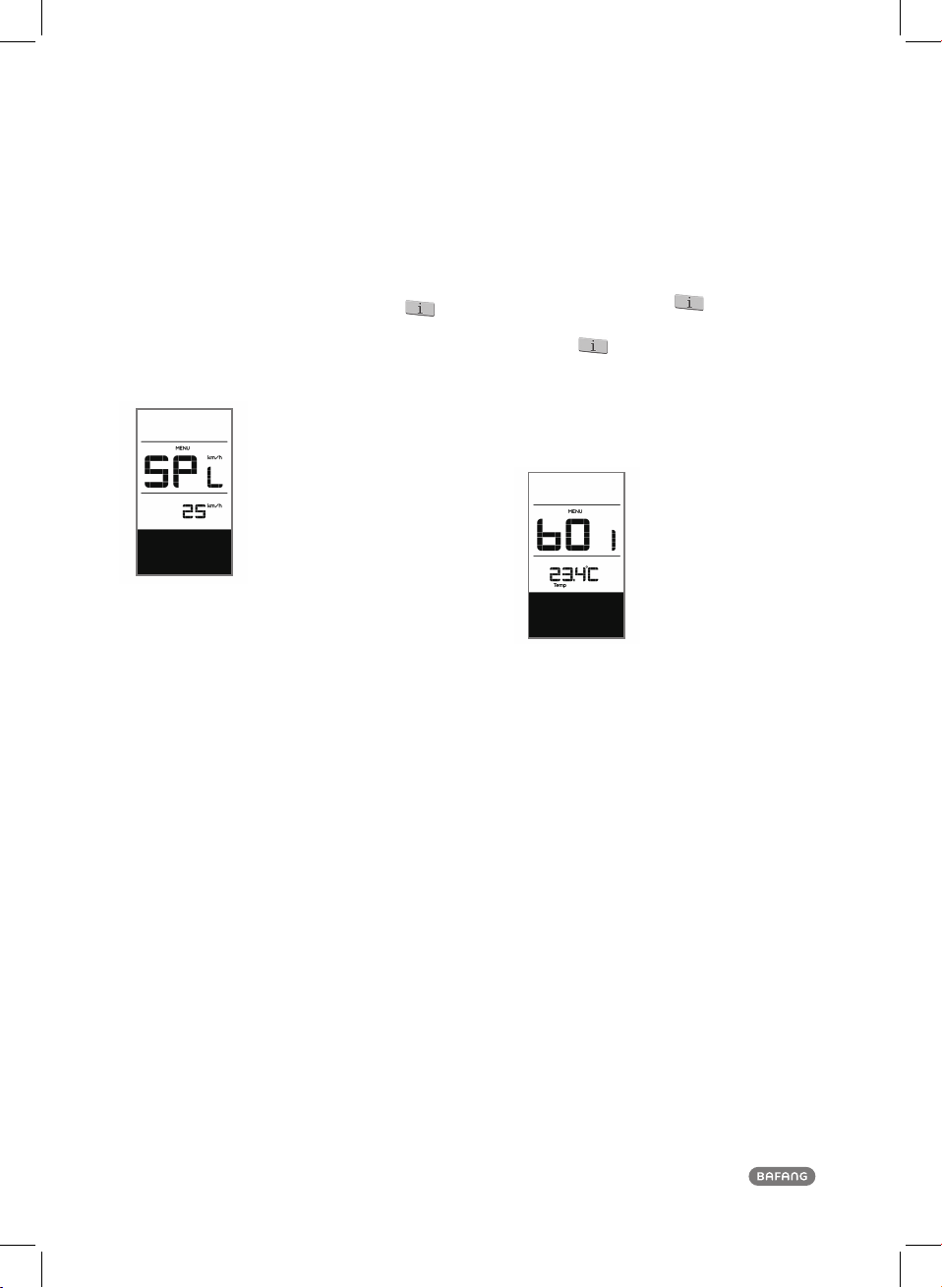

When the speed field displays SPL, the distance fi-
eld displays the value of the speed limit. Press
(< 0.3 seconds) to enter the menu of battery
communication.
5.11 Battery Communication
The speed field displays b01 and the distance field
displays the speed limit. Press (< 0.3 seconds)
to see the other information in sequence. After this
setting, press twice (< 0.3 seconds) to exit the
menu.
• Only when communication has been establis-
hed between the battery and the controller the
following information will be displayed, other-
wise the display will only show "- - - -".
USER MANUAL DP C10.UART
If resetting the speed limit is n-
eeded,please log in BESST and follow the instru-
ction to set.

18
5.12 Information on the battery menu
Information Displayed
in the Speed Field Explanation
b01 current temperature
b09 relative state of charge
b10 absolute state of charge
b11 charge/discharge cycle
b13 period since last charge
. . . . . . . . . .
USER MANUAL DP C10.UART
Unit
d00
℃
b04 total voltage V
d01 voltage cell 1 V
d02 voltage cell 1 V
dn voltage cell n V
b06 average current A
b07 remaining capacity Ah
b08 full capacity Ah
b12 longest period without charge h
h
cells amount
OVERVIEW OF PRODUCT
5.13 Error code record
E00-E09 indicate the error codes stored, and the maxium up to 10 screen shots and
E00 present the latest error.

19
6 Error Code Definitions
The DP C10.UART can show e-bike faults. When a fault is detected, the icon will
be displayed. In the speed field one of the following error codes will be displayed:
Error Code Error Description Error-shooting Method
“03” Brake enabled Check whether a brake cable is stuck
“04” The throttle has not returned home Check if throttle has returned home
“05” Throttle fault Check the throttle
“06” Low voltage protection Check the battery voltage
“07” Overvoltage protection Check the battery voltage
“08” Motor hall signal cable fault Check the motor module
“09” Motor phase cable fault Check the motor module
“11” Controller temperature sensor failure Check the controller
“12” Current sensor failure Check the controller
“13” Battery temperature fault Check the battery
“21” Speed sensor fault Check installation position of speed sensor
“22” BMS communication fault Replace the battery
“30” Communication fault Check the controller connection

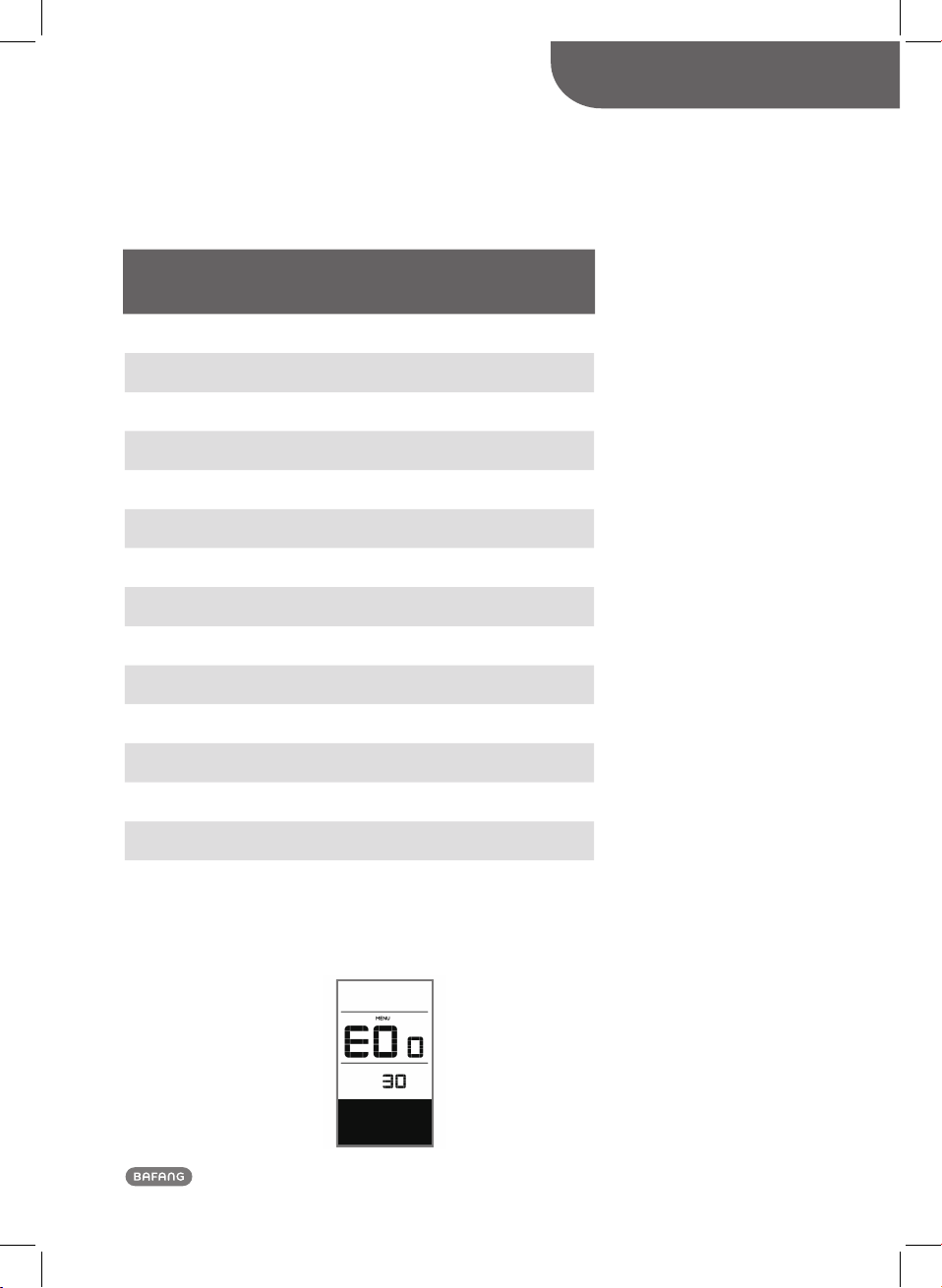

Error display
The motor temperature has
reached the threshold.
Note: Error Code 10 will probably appear on the dispaly when the
e-bike is climbling for a long time. This indicates that the motor
temperature has reached the protection value, in which case the
user needs to stop the e-bike for a rest. If the user continues to run
the e-bike, the motor will automatically cut off the power.
“10” Stop the bicycle until the error code "10"
disappears from the screen.
USER MANUAL DP C10.UART

SERVICE AND WARRANTY POLICY
Suzhou Bafang Motor Science-Technology Co., Ltd
(hereinafter referred to as the BAFANG) guarantees:
During the warranty period, BAFANG gives warranty
for products bought from BAFANG or dealers, as long
as the reclamation concerns quality defects caused
by the material or manufacture. (This only applies to
BAFANG complete drive systems; BAFANG com-
ponent parts are not covered by the warranty.)
Warranty Period and Scope
The warranty period starts from the date of leaving
factory. It is 30 months for motors, and 18 months
for controllers, displays, sensors and other electrical
components.
The following faults are not covered by the warranty:
• Damage, failure and/or loss caused by refitting,
neglect or improper maintenance, use for
competition or commercial purposes; incorrect or
improper use or accidents
• Damage, failure and/or loss due to transport by
the purchaser
• Damage, failure and/or loss on/of the product
caused by improper installation, adjustment or
repair
• Damage, failure and/or loss not caused by the
material or manufacture, but by incorrect use by
the purchaser
• Damage, failure and/or loss to the exterior of the
product that dooes not affect its function
• Damage, failure and/or loss caused by repair or
installation undertaken by repair bases or dealers
unauthorized by BAFANG
• Damage, failure or loss caused by normal wear
and tear
BAFANG reserves the right to repair or replace faulty
components, and is only obliged to repair or replace
them.
If bike manufacturers or dealers encounter quality i-
ssues when using or selling BAFANG products, they can
report the purchase order number and serial number
of the product to BAFANG service department. who
will check whether the products are under warranty
or not. For products under warranty, BAFANG will
provide free repair or give a replacement. If a repair
is necessary after the expiry of the warranty period,
BAFANG will invoice component parts, labor cost and
shipping. If the BAFANG system needs repairing on a
bike, please contact the bike manufacturer or dealer
directly.
If this warranty statement is against a current law at
the place of business of the dealer, the legislation cur -
rently in force shall prevail. BAFANG reserves the right
to modify the terms without prior announcement.
For more information, please visit the company
website: www.szbaf.com
20
USER MANUAL DP C10.UART
SERVICE AND WARRANTY POLICY
