BAFANG C966 Operation instructions

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
1
BAFANG LCD DISPLAY

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
2
For your safety
Your safety is very important, so read the following safety advices carefully. More safety tips are listed
further in the manual:
1. The LACROS Electric bike is equipped with an electromotor. It is very important that you are familiar with
the bike as soon as possible. We advise you to choose the first "practice rides" for easy roads with little
traffic and a smooth road surface.
2. When you want to ride, do not stand on the pedal, but first sit on the saddle and then start pedaling.
3. Ride the first rides preferably without electrical support to get familiar with your bike. After this you can
start with a low setting (motor support).
4. The LACROS bicycles have been tested by our employees. If you have any doubts about the bicycle
and/or the electrical installation of the bicycle, please contact us immediately.
5. Never expose the battery and the charger directly in the sun or heat surfaces. The battery is protected
against heat, but heating is better avoided.
6. Never use a charger other than the one supplied by Shinga B.V. It is very important for your safety to
always use the original charger.
7. The brakes are equipped with an "ABS" protection. As a result, the support stops when you use the
brakes.
8. We recommend wearing a helmet while cycling.
The LACROS bicycles are delivered in accordance with the most recent European guidelines (page 3), if you
have any questions or comments, do not hesitate to contact us.
We are always available for users of LACROS bicycles:
E-mail: [email protected]l
Phone: [phone]
Thank you for your trust,
Ton van den Oetelaar
Director Shinga BV

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
3
Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG
Your product is an electric folding bike. The bicycle can be folded at 2 locations, on the handlebar stem and
halfway at the frame. The bike is equipped with a pedal support system which is powered by an external
battery. The battery can be in different locations, such as on the luggage carrier or in the frame. The battery
is charged via an external charger. This external charger is a separate product and is already provided with a
CE mark (for example, the Low Voltage Directive and the EMC Directive).
The input voltage of the battery is 36V, the motor has a power capacity of 250W and the maximum speed of
the bike is 25 km/h.
Guidelines:
Based on the above product description, the following guidelines apply:
•EMC-directive: 2014/30/EU
•Machine directive: 2006/42/EG
The Low Voltage Directive does not apply because the input voltage is only 36V. The charger of the battery is
separately marked with a CE mark.
Based on the above guidelines, a number of (corresponding) standards apply.
The following relevant documents must be mentioned in this context and are also used as input for all other
documentation:
•NEN-EN 15194:2015 Cycles (Electrically power assisted cycles - EPAC Bicycles)
•NEN-EN-ISO 4210-1:2014 and
•EN ISO 12100:2010

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
4
Table of contents
For your safety...................................................................................................................................................2
Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG.......................................3
1. How to use the display......................................................................................................................................5
2. Other functions..................................................................................................................................................6
3. Safety rules .....................................................................................................................................................10
4. Warranty provisions and legal requirements ..................................................................................................11
Battery warranty ..............................................................................................................................................11
5. Technical specifications..................................................................................................................................12
9. EC declaration.................................................................................................................................................13

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
5
1.How to use the display
Function control unit
1 = increase motor support
2 = decrease motor support
(Press and hold to activate Walk Assist)
3 = on/off button
(Press 2 seconds to turn on/off)
A = light (Press 2 seconds to turn on/off)
B = mode button
Display Symbols
A = battery indication
B = lights
C = walk assist
D = service indication
E = menu
F = km/h indication
G = maintenance symbol
H = mileage
I = level motor support

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
6
2.Other functions
Known error messages
In the event of a fault, an error message will appear with the
associated error code. Do not use the bicycle and contact Shinga
as soon as possible.
03: Brake (cable) error (Contact your Shinga dealer)
04: Throttle error (Contact your Shinga dealer)
05: Throttle error (Contact your Shinga dealer)
06: Low battery voltage (Check your battery and charger connection)
07: High battery voltage (Contact your Shinga dealer)
08: Motor error (hall signal cable) (Contact your Shinga dealer)
09: Motor error (phase cable) (Contact your Shinga dealer)
11: Sensor error (controller temp.) (Contact your Shinga dealer)
12: Sensor error (current) (Contact your Shinga dealer)
13: Battery error (Check if your battery is not too hot)
21: Sensor error (speed) (Contact your Shinga dealer)
22: Battery error (BMS) (Replace battery)
30: Communication error (Controller) (Contact your Shinga dealer)

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
7
Advanced settings
Warning!! These advanced settings should only be changed by Shinga or a Shinga service dealer. Shinga is
not responsible for consequences resulting from changes made to the settings without the proper
permission of Shinga. The settings are set up in accordance with European regulations.
To access the menu
Press (A) simultaneously for 2 seconds to enter the menu. You can
navigate through the menu with short press (A).
To change the value of a setting, press (+) or (-).
Reset Trip (TC)
Data that can be deleted are Trip mode, average
speed (AVG Speed), maximum speed (MAXS).
Confirm by pressing the (i) button for 2 seconds.
Note: Data is not deleted by turning off the display!
Speed display
Change display mph to km/h by pressing the (+) or (-).
Confirm by pressing the (i) button for 2 seconds.
Light sensitivity display (BL0)
Adjust light sensitivity with the (+) or (-) button from
dark (0) to light (5).
Confirm by pressing the (i) button for 2 seconds.
Brightness backlight display (BL1)
Adjust the backlight brightness with the (+) or (-) button
from dark (1) to light (5).
Confirm by pressing the (i) button for 2 seconds.

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
8
Display auto off (OFF)
Choose a value between 1-9 minutes for it
to turn off the display automatically.
Confirm by pressing the (i) button for 2 seconds.
Maintenance notification (MMA)
0 = off / 1 = on (default inactive)
A maintenance interval can be set to show
a (service) symbol after an X-number of kilometers.
A battery charging cycle (eg. 100 times) can be set
to show a (service) symbol.
Confirm by pressing the (i) button for 2 seconds.

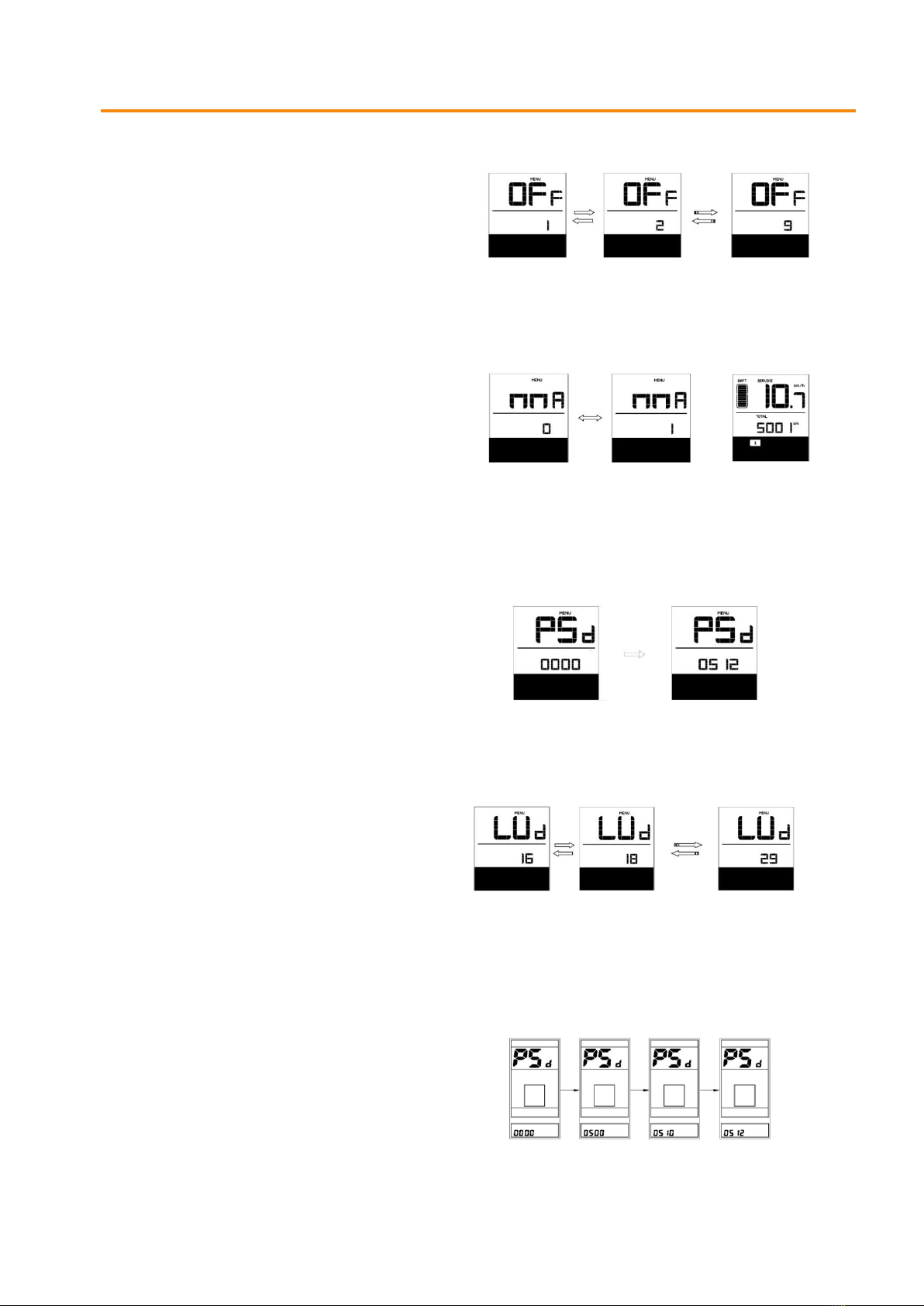

To access the secondary menu (PSD)
The password is set to 0512 by default. The value
can be set with the (+) or (-) button.
Confirm each entry by briefly pressing the (i) button.
Wheel diameter (LUD - secondary menu)
Select the correct wheel diameter with the (+) or (-)
button. Selection options are 16, 18, 20, 22, 24, 26,
700cc, 28 and 29.
Confirm by pressing the (i) button for 2 seconds.
Note: Entering the wrong value can lead to incorrect
display of data and abnormal behavior of the bicycle.
Change password (PSD - secondary menu)
With the (+) and (-) button you can enter a
values from 0-9.
Confirm each entry by briefly pressing the (i) button.
(Default password = 0512)

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
9
Set maximum speed (SPEED - secondary menu)
Set maximum speed by pressing the (+) or (-) button
from 10-45 Km/h*.
*Default = 27 Km/h
Confirm by pressing the (i) button for 2 seconds.
Note: Local traffic rules must be followed.
Battery information (if applicable)
Press the (-) + (power) buttons simultaneously for
3 seconds to enter the battery information screen.
The following information can be displayed:
1 = number of times the battery has been used (cycle)
2 = total battery capacity (AH)
3 = remaining capacity (AH)
4 = total battery voltage (V)
5 = No maximum loading time (hour)
6 = Battery temperature (Celsius)
7 = single battery string voltage (mV)
Note: When the battery information can be read
correctly, the information will be displayed. When
the information cannot be read correctly, an error
message will appear and the display will return
to normal mode.
2
1
3
4
5
6
7

CE ORIGINAL MANUAL LACROS BAFANG LCD DISPLAY
VERSION CE 1.2 EN
10
3. Safety rules
•Read your bicycle's manual carefully before your first use.
•Follow the traffic rules strictly.
•Never dismantle the bicycle yourself. Contact your Shinga B.V supplier for the device component.
•Do not lend your bicycle to people with little experience on an electric bicycle.
•Do not ride under the influence of drugs or alcohol.
•Never load the bike exceeding its maximum capacity.
•Do not modify your vehicle yourself. As a result, the warranty and liability will expire.
•The maximum speed of the vehicle is 25 Km/h.
•If the front fork, steering column or handlebars are bent after an accident, they must never be bent
back to their original position to prevent breakage. Contact your Shinga dealer or Shinga B.V directly.
to have the damaged parts replaced.
