Bake Max BMPME20 User manual

BMPME20
20 Qt Encore Planetary Mixer
Operation Manual

The BakeMax® Endurance Planetary Mixer provides durability, long life and
excellent mixing performance, all with an affordable price tag. They are safe,
easy to use and capable of a broad range of dough and food mixing applications.
Operation & Function
Standard power supply 120 V/ 60 HZ. Nema 5-15P (Please use a plug with 3 wide
contacts and good grounding.)

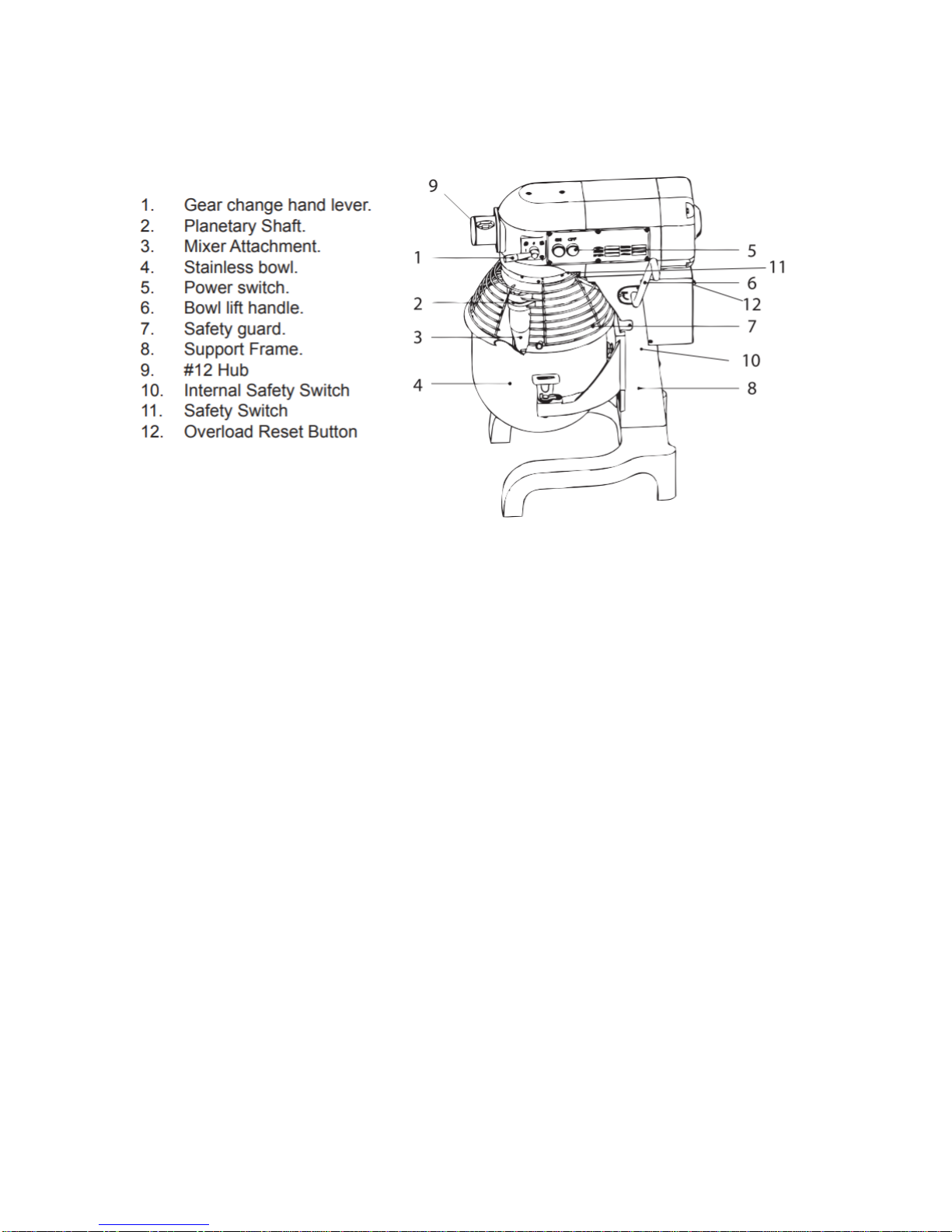

Installation of Mixer: Put the mixer attachment (#3) into the planetary shaft #2 and rotate
it in clockwise direction.
Starting Procedure: Pull the gear change hand lever (#1) to position 1 before starting;
close the safety guard and then turn on the power switch (#5).
Changing Speeds: Ensure the mixer is turned off before changing speeds. If the mixer is
turned on while changing gears you will damage the unit.
Installation procedures for meat grinder and vegetable attachment: Ensure the
machine is turned off before starting, loosen the stud bolt and lift the top cover of its
head (#9). Then put on the attachment and tighten the stud bolt. Only use on the 1st
speed as using a higher speed can damage the mixer.
Shutting Down: When the operation is completed, turn off the power switch (#5) first,
then pull the gear change hand lever (#1) to position 1, and pull back the bowl lift handle
(#6) to the lowest point and finally disconnect power supply.

NOTES:
The power socket must be provided with a good ground wire to guarantee the
mixer is grounded properly. There will be an electric shock if there is no ground
wire or if it is improperly mounted. Never connect the ground wire to gas pipes,
water pipes, lightning rods or telephone lines. Electric leakage should be
checked after installation. If the power line is damaged, it must be replaced by a
Service Company.
Moving agitator in bowl. Keep hands, clothing and utensils out of bowl while in
operation. Do not use without interlocked safety guard. Do not put your hand into the
stirring barrel during operation. Disconnect the power supply before the installation of
the mixer.
Power supply should be disconnected before installing the mixer.
Don't operate the mixer beyond the time limit or overload its capacity to prevent
reduction of its service life.
The mixer should be mounted on a stable and clean place. Keep it away from heat or
wet places and away from equipment which has strong electromagnet or can produce
strong electromagnet.
Keep the machine clean constantly. Disconnect power supply before maintenance.
Clean machine with a soft damp cloth. Do not clean it with water spray or use harsh
detergents.
Warning!
Please have all service work completed by a professional service company.
Troubleshooting Guide:

WARNING
Ensure your recipe meets the mixers capacity.
Ensure water is 70 degrees Fahrenheit or reduce capacity.
Ensure Flour is at room temperature.
Ensure mixer is turned off when changing gears
Failure to comply with these warnings will void warranty.
BMPME20

SER.NO.
PART.NO.
PART NAME
SER.NO
.
PART.NO.
PART NAME
1
SM20-0I-19
Top cover
40
SM20-01-12
Gear shaft
2
GB54
Nut
41
SM20-01-03
Case
3
GB97.1
Clamp plate
42
SM20-01-06
Worm wheel
4
SM20-01-15
Pressing plate
43
GB119
Pin
5
SM20-01-07
Transmission shaft
support
44
SM20-DQ-09
Motor
6
SM20-0I-14
Spacer-lower
45
SM20-0I-02
Back housing
7
SM20-01-13
Taper gear wheel I
46
SM20-01-01
Back Cover
8
SM20-01-18-01
Tooth gear
47
SM20-0I-25
Plug
9
SM20-0I-18-02
Gear
48
SM20-01-38
Locking bolt
10
SM20-01-20
Gear
49
SM20-0I-24
Attachment hub
11
SM20-01-21
Bushing
50
SM20-0I-26
Ring
12
SM20-01-22
Sleeve
51
SM20-01-23
Taper gear wheel 2
13
SM20-01-I6
Main shaft
52
SM20-01-30
Front housing
14
SM20-01-44
Plunger-shifter yoke
53
SM20-01-32
Internal gear
15
SM20-01-43
Spring
54
SM20-01-34
Hood ring
16
SM20-0I-42
Retainer-spring
55
SM20-06-01
Flat Beater
17
SM20-01-2I
Bushing
56
SM20-04-00
Bowl assembly
18
201
Bearing
57
GB591.1
Nut
19
SM20-01-09
Shaft worm gear
58
SM20-01-33
Gear
20
SM20-01-08
Gear
59
203
Bearing
21
201
Bearing
60
SM20-01-35
Operating shelf
22
SM20-01-27
Claw type gear
wheel
61
SM20-01-36
Working shaft
23
205
Bearing
62
204
Bearing
24
HG-692
Oil seal
63
HG4-692
Oil seal
25
GB54
Nut
64
SM20-01-39-01
Cam-gear shifter
26
GB54
Nut
65
SM20-01-39-02
Plate-shifter index
27
201
Bearing
66
SM20-01-39-04
Handle-shifter
28
SM20-06-02
Wire whip
67
SM20-05-01
Stud
24
SM20-01-11
Gear
68
SM20-05-12
Crank lever
30
SM20-01-05
Bushing
69
SM20-05-11
Connecting rod
31
SM20-01-04
Gear
70
SM20-05-13
Lift handle
32
201
Bearing
71
GB97.1
Ring
33
SM20-06-03
Spiral dough hook
72
GB97.1
Ring
34
SM20-01-44
Plunger-shifter yoke
73
SM20-05-10
Spring
35
SM20-01-43
Spring
74
Gb6171
Nut
36
SM20-01-42
Retainer Spring
(shifter yolk)
75
SM20-05-05
Support
37
SM20-01-41
Shifting yoke
76
SM20-05-06
Base
38
SM20-01-40
Declutch shift shaft
77
203
Bearing
39
GB6171
Nut
78
SM20-03-00
Safety guard
