Baldor VS1SP User manual

STATUS STOPLOCAL
DIAG 0r MAIN
0.0V
0RPM
0.0A
0.0HZ
BASIC
STATUS F1601T1 BACK
CONTROL TYPE
V/F Control
MOTOR CONTROL
LEVEL 1 BLOCKS
LEVEL 2 BLOCKS
LEVEL 3 BLOCKS
MODIFIED PARAMS
LINEAR LIST
EV. LOG
ECARTSUTATS
LOW INITIAL BUS
0 4-Jul-06 09:35:00
LOCALSTOP
EV. LOG0.00r MAIN
OPTION B OARDS
OPTION 1 Ethernet
OPTION 2 None
FEEDBACKNone
DIAG STOPLOCAL
PROG KEYPAD SETUP
DIAG F1313T1 BACK
KEYPAD CONTRAST
50%
Status
Basic
Params
Advanced
Prog
Event Log
Diagnotics
Display
Options
See other side for Control Connections
KCABGAID
STATUS
BASIC PARAMS
ADVANCED PROG
EVENT LOG
DIAGNOSTICS
DISPLAY OPTIONS
Keypad Display - Displays status information during
Local or Remote operation. It also displays information
during parameter setup and fault or Diagnostic
Information.
Display Diagnostics -
I/O Status
I/O Function configuration
Modified parameters
Control Operation Data
Custom Units
Fault Display - 10 Faults with Time stamp
F1 - Alternates or “Toggles” between last two menu
choices or function indicated by text displayed directly
above key.
F2 - Clear faults or undo parameter edit changes or
function indicated by text displayed directly above key.
p(Up Arrow), q(Down Arrow)
t(Left Arrow), u(Right Arrow)
Moves cursor to select menu choices.
ENTER - Press ENTER to save parameter value changes.
In the display mode the ENTER key is used to directly
set the local speed reference. It is also used to select
other operations when prompted by the keypad display.
MENU - Selects the Menu display.
The following menu items are shown: Status,
Diagnostics, Fault Log, Advanced Programming, and
Basic Params.
LOCAL REMOTE - Changes between local and remote
modes.
HELP - Provides help at each display screen, setup
parameter and fault. Press to view/close help
information.
REV - When pressed, initiates a reverse direction run
command.
JOG - Initiates Jog mode when pressed. Press
FWD or REV for motion. Only active in local mode.
FWD - When pressed, initiates a forward direction run
command.
STOP - Initiates a stop command. MS764
9/09
WARNING: Be sure that you are completely familiar with the safe operation of this equipment. Refer to MN764.
This equipment may be connected to other machines that have rotating parts or parts that are controlled by this equipment.
Improper use can cause serious or fatal injury. Only qualified personnel should attempt the start-up procedure or to operate or
troubleshoot this equipment.
VS1SP
Open Vector Drive
3/4 to 450 hp
Quick Start Guide
Wiring / Power Up
Parameter Setting
Open Loop (Encoderless) Vector
V/Hz Inverter
Indicator Light -
(On when indicated Key is active)
FWD key with green light indicator.
REV key with green light indicator.
JOG key with green light indicator.
STOP key with red light indicator.
F1601T1 CONTROL TYPE V/F Control
F2401T1 MOTOR RATED VOLT
F2402T1 MOTOR RATED AMPS
F2405T1 MOTOR MAG AMPS
F2403T1 MOTOR RATED SPD
F2404T1 MOTOR RATED FREQ
F2413T1 CALC MOTOR MODEL
F2901T1 ANA OFFSET TRIM
F1401T1 OPERATING MODE
F1101T1 ACCEL TIME 1
F1104T1 DECEL TIME 1
F2002T1 MIN OUTPUT SPEED
F2003T1 MAX OUTPUT SPEED
F1601T1 CONTROL TYPE Open Vector
F2401T1 MOTOR RATED VOLT
F2402T1 MOTOR RATED AMPS
F2405T1 MOTOR MAG AMPS
F2403T1 MOTOR RATED SPD
F2404T1 MOTOR RATED FREQ
F2901T1 ANA OFFSET TRIM
F2902T1 ONE-STEP TUNING
F1401T1 OPERATING MODE
F1101T1 ACCEL TIME 1
F1104T1 DECEL TIME 1
F2002T1 MIN OUTPUT SPEED
F2003T1 MAX OUTPUT SPEED

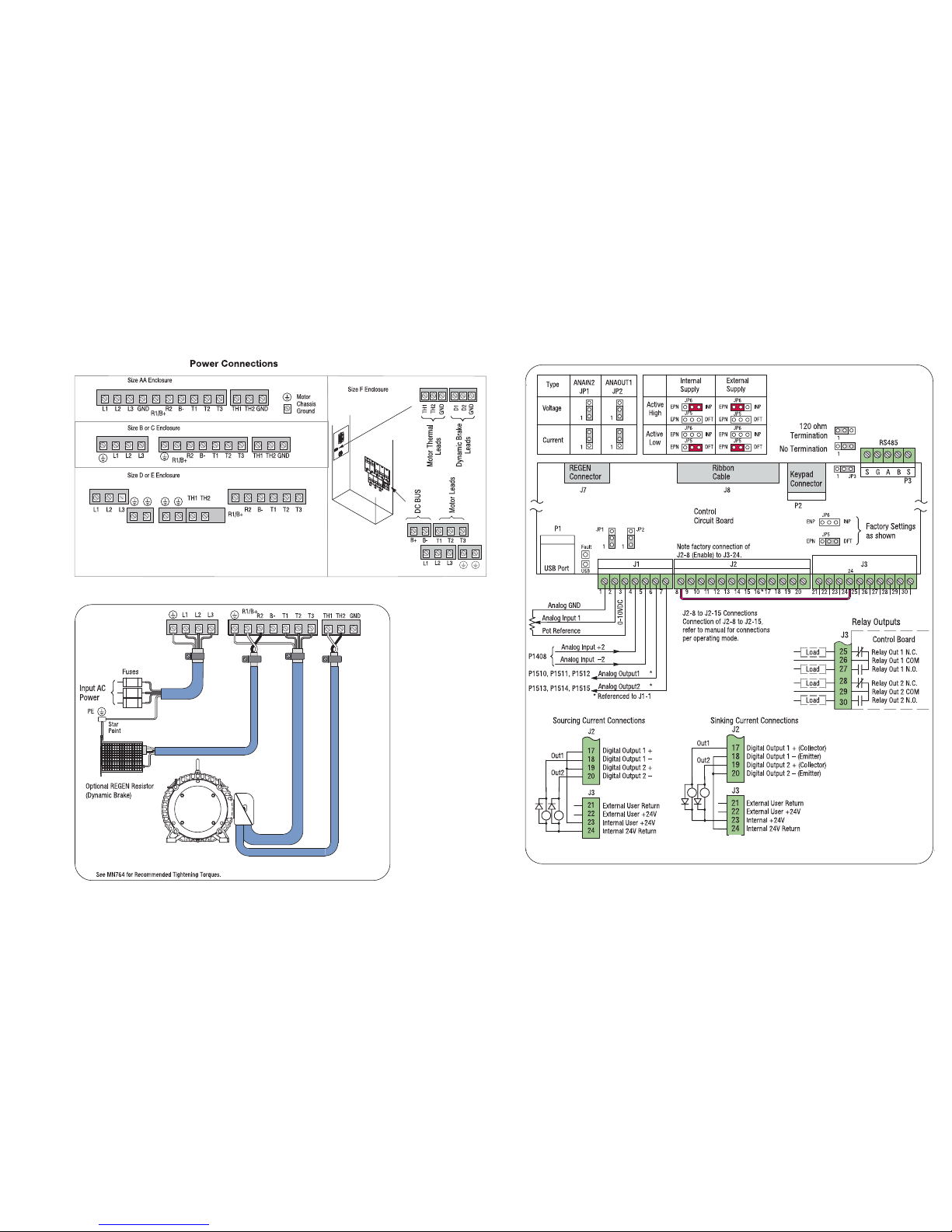

Control Connections
Note: Digital Outputs are rated to 24VDC @ 60mA resistive (non-inductive).
Relay Outputs are rated to 10-30VDC or 240VAC @ 5A resistive (non-inductive).
Digital Outputs
