Balkene Home ARCADIA 64012 User manual

ARCADIA
MEDIA CONSOLE
Item#: 64012
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
09302021
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live Chat www.balkenehome.com 9 am – 6 pm, EST, Monday – Friday

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿ ¿¿¿¿¿¿Ç
INFORMATION
BEFORE YOU BEGIN
Before beginning assembly, make sure all parts are present. Compare parts
received with the "Parts List." If any part is missing or damaged, do NOT attempt
to assemble the product. Please read and understand this entire manual before
attempting to assemble this product. If you have any questions regarding the
product, please contact Customer Service.
GENERAL INFORMATION
This product is made of particle board and MDF. For safe assembly, work on a
dry, soft, secure, and clean surface. Do not clean with detergents or chemicals.
Do not sit or stand on the unit. Do not place damp or hot items such as coffee
cups directly on the surface of this item. Keep away from direct sunlight and
water. Do not drag the unit. For indoor use only.
SAFETY INFORMATION
WARNING
DO NOT sit or stand, or allow children to sit or stand on the assembled product.
Make sure connectors are securely in place. Perform periodic checks to ensure
the connectors remain secure and adjust if needed. Keep unassembled parts and
hardware away from children and infants. This package contains small parts and
sharp edges. Adult assembly required.
CAUTION
READ all instructions before beginning assembly. Failure to do so may result in
faulty assembly and potential injury. Assemble the item on a soft, nonabrasive
surface such as carpet or cardboard to avoid damaging the item.
Max safe load limit:
Top: 20 KG / 44 LB
Top Open Shelves: 10 KG / 22 LB (each)
Lower Open Shelves: 8 KG / 17.5 LB
End Compartments: 8 KG / 17.5 LB (per shelf)
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live Chat www.balkenehome.com 9 am – 6 pm, EST, Monday – Friday

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿ ¿¿¿¿¿¿Ã

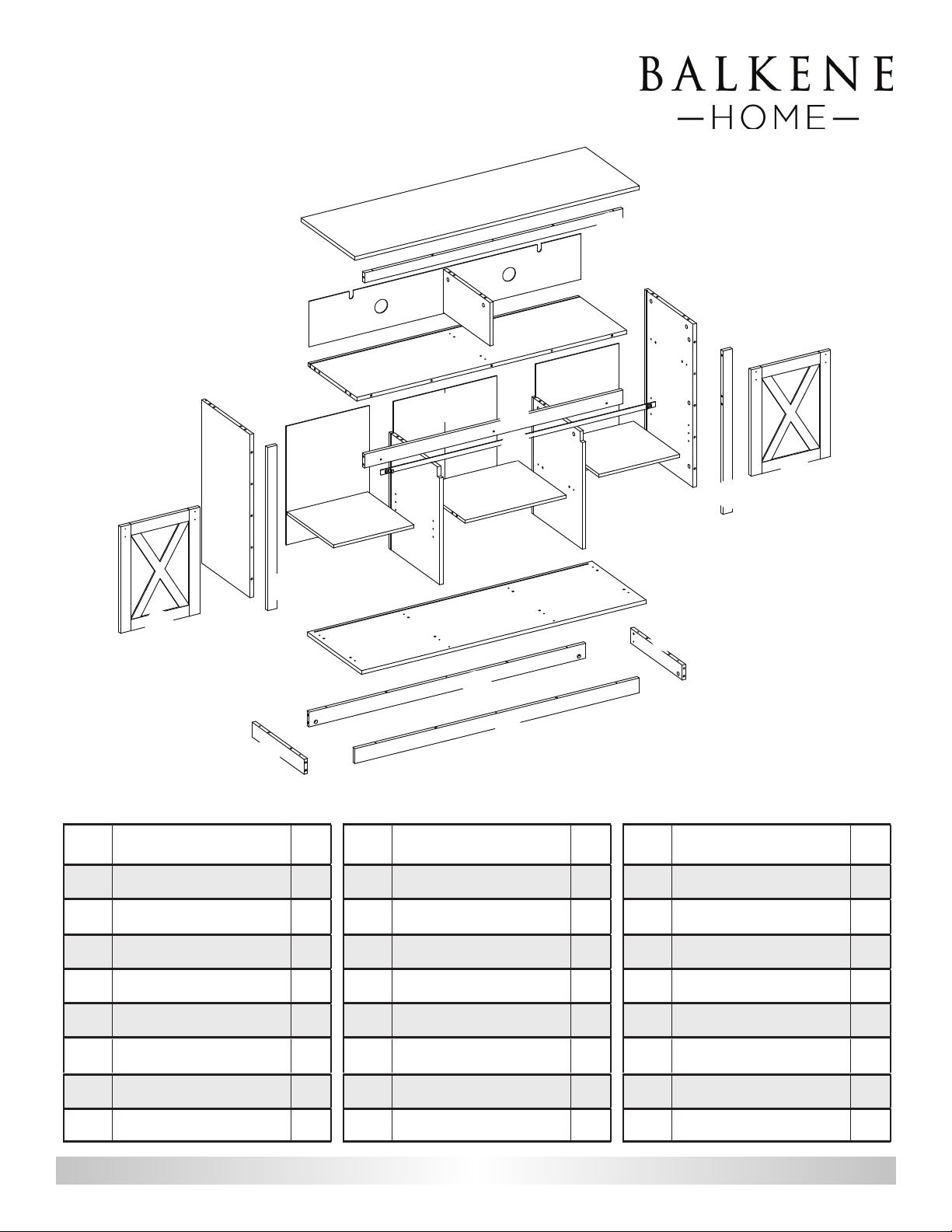

PARTS LIST
PART DESCRIPTION QTY
ATop Panel
B
Left Side
C
Right Side
D
Center Divider
E
Top Backer
1
1
1
1
1
F
G
HLeft Divider
1
1
1
PART DESCRIPTION QTY
JInterior Shelf
KCenter Shelf
LSide Backer
MCenter Backer
NCenter Face Frame
2
1
2
1
1
OLeft Face Frame
PRight Face Frame
1
1
PART DESCRIPTION QTY
SBase Left Side
TBase Right Side
UBase Back
VDoor
WDoor Rail
1
1
1
2
1
Top Face Frame
I
A
C
D
B
F
G
H
MN
O
Q
R
U
S
V
V
W
T
P
E
K
L
L
J
J
Top Shelf
QBase Panel 1
RBase Front 1
IRight Divider 1

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿4

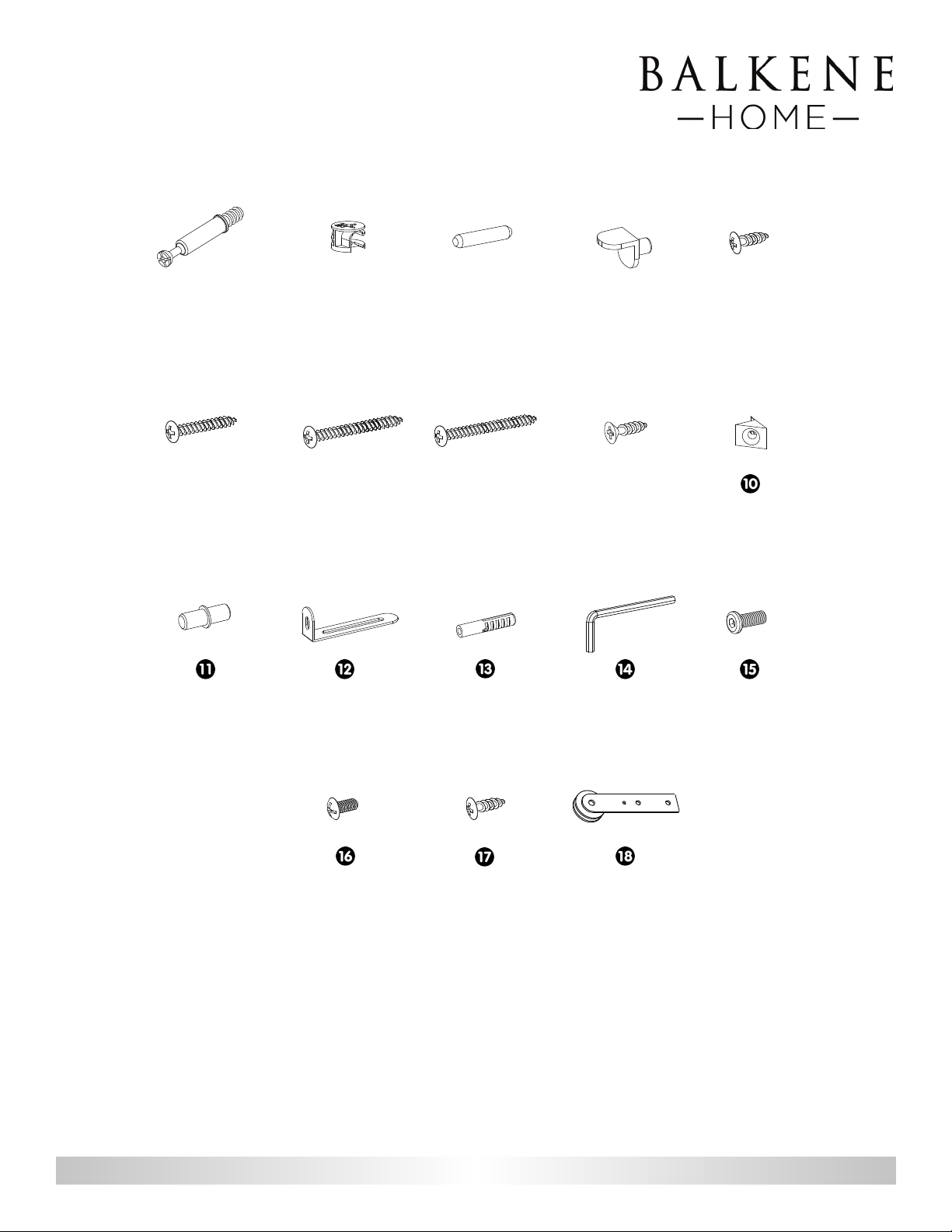

HARDWARE CONTENTS
1
Cam Bolt
6x35mm
Qty: 31
YOU WILL NEED FOR ASSEMBLY:
(not included)
Phillips-head screwdriver
Mallet or hammer
Power drill (to anchor unit to wall)
2
Cam Nut
Qty: 31
3
Dowel
6x30mm
Qty: 54
4
Shelf Bracket
Qty: 8
5
Screw
4x12mm
Qty: 2
6
Screw
4x35mm
Qty: 12
7
Screw
4x50mm
Qty: 3
9
Screw
4x12mm
Qty: 16
Backer Bracket
Qty: 16
Track Pin
Qty: 2
Hex Wrench
Qty: 1
Hex Bolt
6x18mm
Qty: 3
Qty: 4
Anchor Bracket
Qty: 2
Drywall Anchor
Qty: 2
3x16mm
Screw
Hanger Roller
Qty: 4
Screw
4x12mm
Qty: 8
8
Screw
4x65mm
Qty: 10

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿5

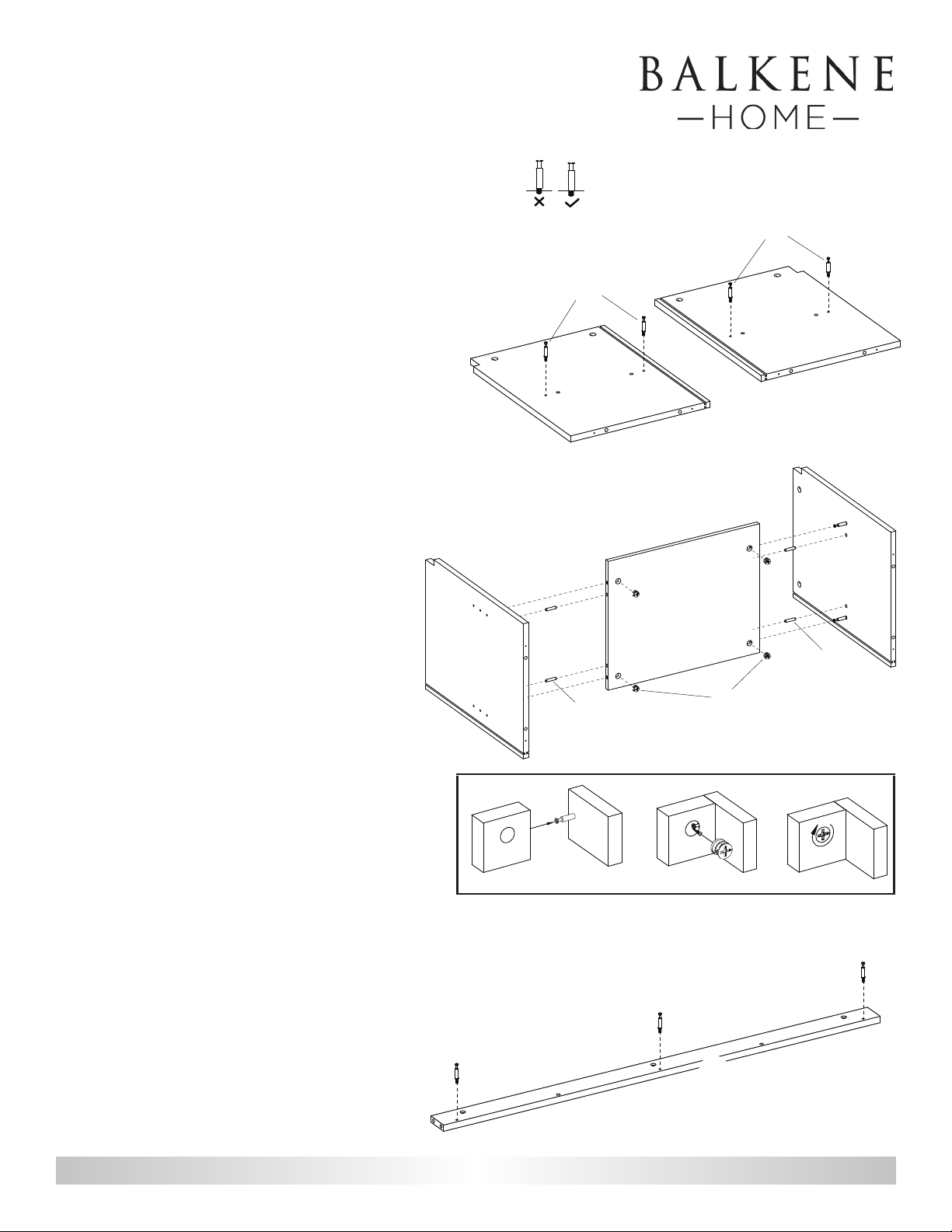

ASSEMBLY
1
2
Insert Cam Bolts 1 into the indicated holes in the
Left/Right Dividers H/I. Use a Phillips-head
screwdriver to tighten.
Hardware Required: 1 Cam Bolt x4
Place Dowels 3 in the 2 holes between each
pair of Cam Bolts 1 installed in Step 1.
Insert the Cam Bolts and Dowels installed in
the Left Divider H into the corresponding holes
in the left edge of the Center Shelf K as shown.
Secure by inserting a Cam Nut 2 into each of
the adjoining holes in the underside of the
Center Shelf. Use a Phillips-head screwdriver to
turn the Cam Nuts clockwise to secure the
Cam Bolts.
Attach the Right Divider I to the right edge of
the Center Shelf using the same method.
Hardware Required: 2 Cam Nut x4
3 Dowel x4
→→
2
ASSEMBLY NOTE: Use a Phillips-head
screwdriver to tighten each Cam Bolt you
install until its threads are fully inserted.
1
1
H
I
2
3
3
H
I
K
3Insert 3 Cam Bolts 1 as indicated in the Center
Face Frame N. Use a Phillips-head screwdriver to
tighten.
Hardware Required: 1 Cam Bolt x3
1
N

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿6
ASSEMBLY
4
5
Attach the Door Rail W to the Center Face Frame N
with 3 Hex Bolts ?. Use the Hex Wrench ? to
tighten the Hex Bolts.
Hardware Required: ? Hex Wrench
? Hex Bolt x3
Place Dowels 3 in the 2 holes between the Cam
Bolts 1 on the Center Face Frame N.
Insert the Cam Bolts and Dowels installed in the
Center Face Frame into the corresponding holes in
the front edge of the Top Shelf F as shown. Secure
by inserting a Cam Nut 2 into each of the
adjoining 3 holes in the underside of the Shelf. Use
a Phillips-head screwdriver to turn the Cam Nuts
clockwise to secure the Cam Bolts.
Insert 4 Cam Bolts 1 as indicated in the underside
of the Top Shelf.
Hardware Required:
6Place 2 Dowels 3 in the bottom edge of the
Center Divider E. Insert the Dowels into the
holes at the center of the Top Shelf F.
Affix the 2 panels together by inserting 2
Screws 6 through the bottom of the Top Shelf
and into the edge of the Center Divider. Use a
Phillips-head screwdriver to tighten.
Hardware Required: 3 Dowel x2
6 Screw (4x35mm) x2
N
W
2
3
N
F
1
1 Cam Bolt x4
2 Cam Nut x3
3 Dowel x2
3
F
E
6
N

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿7

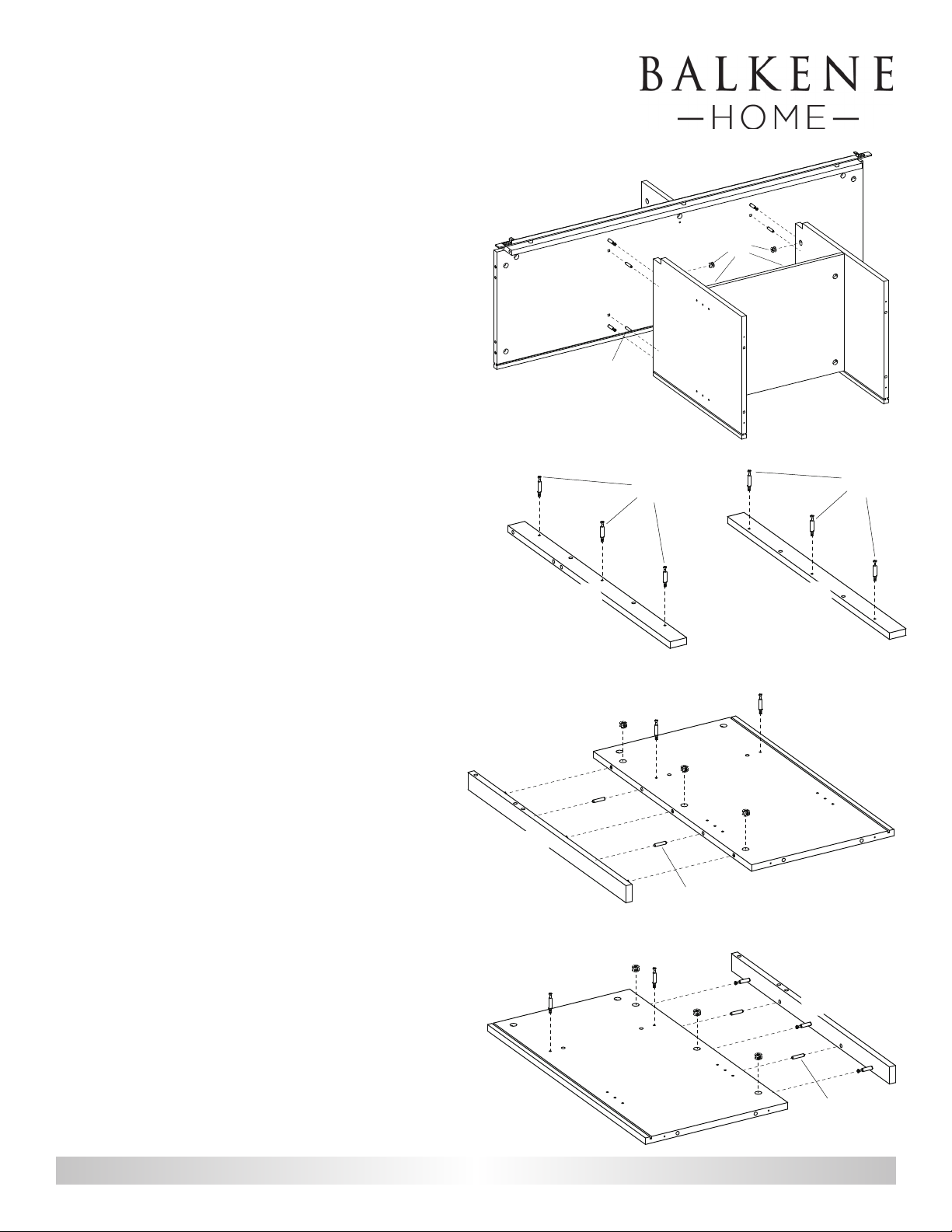

ASSEMBLY
7
8
Insert Dowels 3 in the top edges of the Left/Right
Dividers H/I.
Insert the Cam Bolts 1 installed in the underside of
the Top Shelf F into the holes in the top edges of
the Dividers. Secure by inserting a Cam Nut into
each of the adjoining holes in the insides of the
Dividers. Use a Phillips-head screwdriver to turn
the Cam Nuts clockwise to secure the Cam Bolts.
Hardware Required: 2 Cam Nut x4
3 Dowel x4
9
F
H
I
2
3
1
1
OP
Insert 3 Cam Bolts 1 per panel as indicated in the
Left/Right Face Frames O/P. Use a Phillips-head
screwdriver to tighten.
Hardware Required: 1 Cam Bolt x6
2
2
3
3
O
P
1
1
C
D
Place Dowels 3 in the 2nd and 4th holes on the
front edges of the Left/Right Sides C/D.
Insert the Cam Bolts 1 previously installed in
the Left Face Frame O into the corresponding
holes in the edge of the Left Side as shown.
Secure by inserting a Cam Nut 2 into each of
the adjoining holes in the Left Side. Use a
Phillips-head screwdriver to turn the Cam Nuts
clockwise to secure the Cam Bolts.
Attach the Right Face Frame P to the Right
Side D using the same method.
Insert 2 Cam Bolts 1 in each Side as indicated.
Hardware Required: 1 Cam Bolt x4
2 Cam Nut x6
3 Dowel x4

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿8

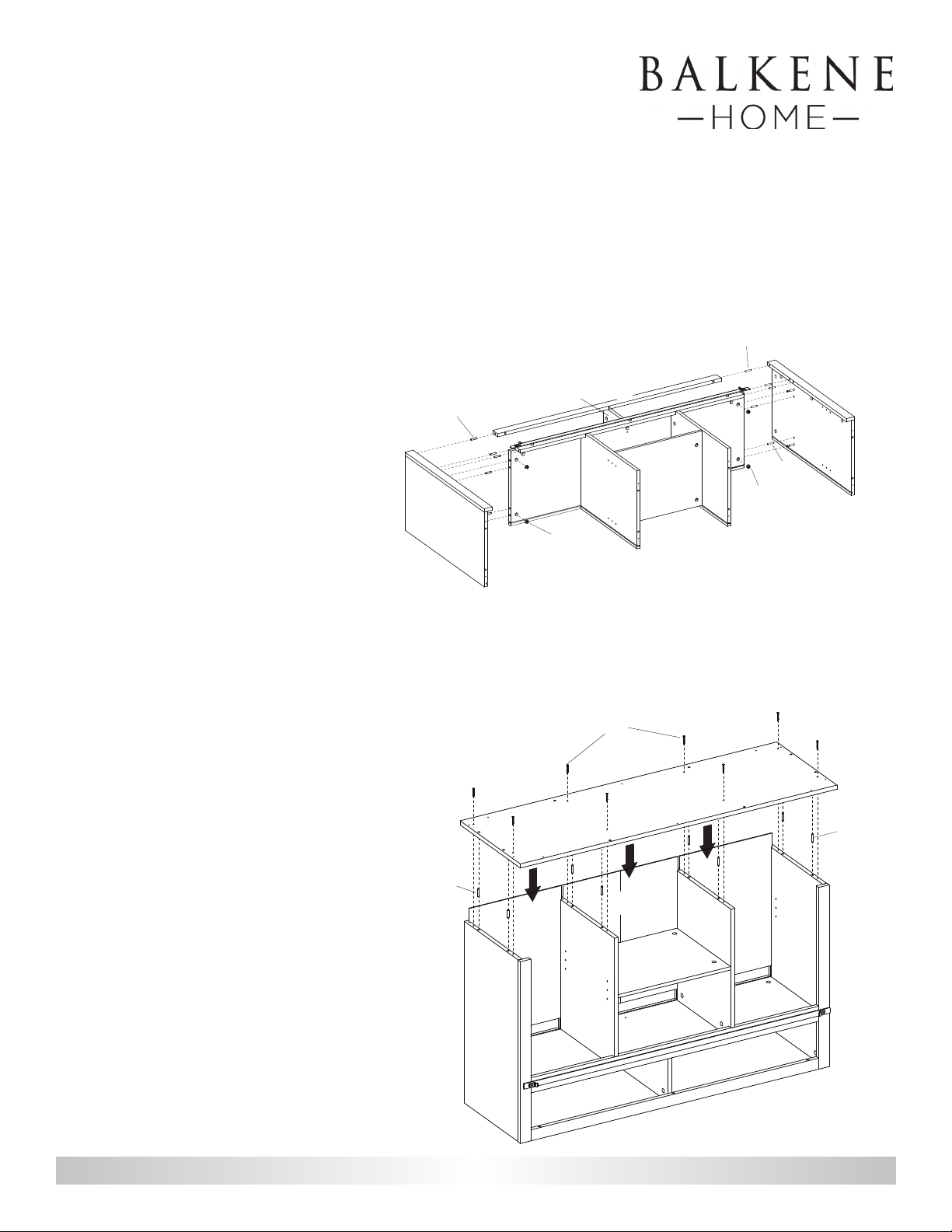

ASSEMBLY
10
11
Insert 5 Dowels 3 into the indicated holes on the Left Side C.
Hardware Required:
Slide the Side Backers L and Center Backer M into the grooves along the back of the unit.
Insert 8 Dowels 3 into the bottom edges of the vertical panels C/H/I/D.
Hardware Required: 3 Dowel x8
6 Screw (4x35mm) x8
F
2
2
3
3
3
C
D
B
E
2 Cam Nut x4
3 Dowel x10
Top Shelf F/Center Face Frame N.
Secure by inserting a Cam Nut 2 into each of the 2 adjoining holes in the underside of the Top Shelf. Use a Phillips-
head screwdriver to turn the Cam Nuts clockwise to secure the Cam Bolts.
Lay the Top Face Frame B in place across the front of the Center Divider E as shown, sliding the left end onto the
remaining Dowel in the Left Side.
Follow the above steps to attach the Right Side D to the right end of the unit.
F
H
I
3
3
6
C
D
L
L
Q
M
Insert the Dowels and Cam Bolts 1 installed in the Left Side into the corresponding holes in the left edge of the
UNIT SHOWN
UPSIDE-DOWN
FOR EASIER
COMPONENT
INSTALLATION.
Secure the Base Panel Q in place using 8 Screws 6 as shown.

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿9
ASSEMBLY
12
Install a Cam Bolt 1 in each Base Side S/T.
Hardware Required: 1 Cam Bolt x2
2 Cam Nut x2
3 Dowel x2
13
Install 2 Cam Bolts 1 in the Base Front R.
Hardware Required: 1 Cam Bolt x2
2 Cam Nut x2
3 Dowel x2
Place 8 Dowels 3 in the top edge of the
assembled base.
Hardware Required: 3 Dowel x8
8 Screw (4x65mm) x10
Place a Dowel 3 into either end of the Base
Back U. Insert the Cam Bolt installed in the Left
Base Side S into the left edge of the Base Back.
Insert a Cam Nut 2 in the adjoining hole and
turn clockwise to secure the Cam Bolt.
Attach the Right Base Side T by the same
method.
Place a Dowel 3 into the edge of the Left/
Secure the base to the unit by inserting 10
Screws 8 through the bottom edge of the
joined base pieces and into the bottom of the
Base Panel Q.
14
3
32
2
1
1
U
S
S
T
T
2
2
3
3
1
1
U
S
T
R
R
Right Sides S/T. Insert the Cam Bolts in the Base
Front into the base Sides.
Insert a Cam Nut 2 into each of the adjoining holes
and turn clockwise to secure the Cam Bolts.
3
8
3
R
S
T
Q
U

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿10
ASSEMBLY
1 Cam Bolt x6
5 Screw (4x12mm) x2
? Anchor Bracket x2
2 Cam Nut x6
3 Dowel x8
7 Screw (4x50mm) x3
Install the Corner Brackets ? at each corner
of the Top/Side/Center Backers G/L/M.
Hardware Required: 9 Screw (3x16mm) x16
? Corner Bracket x16

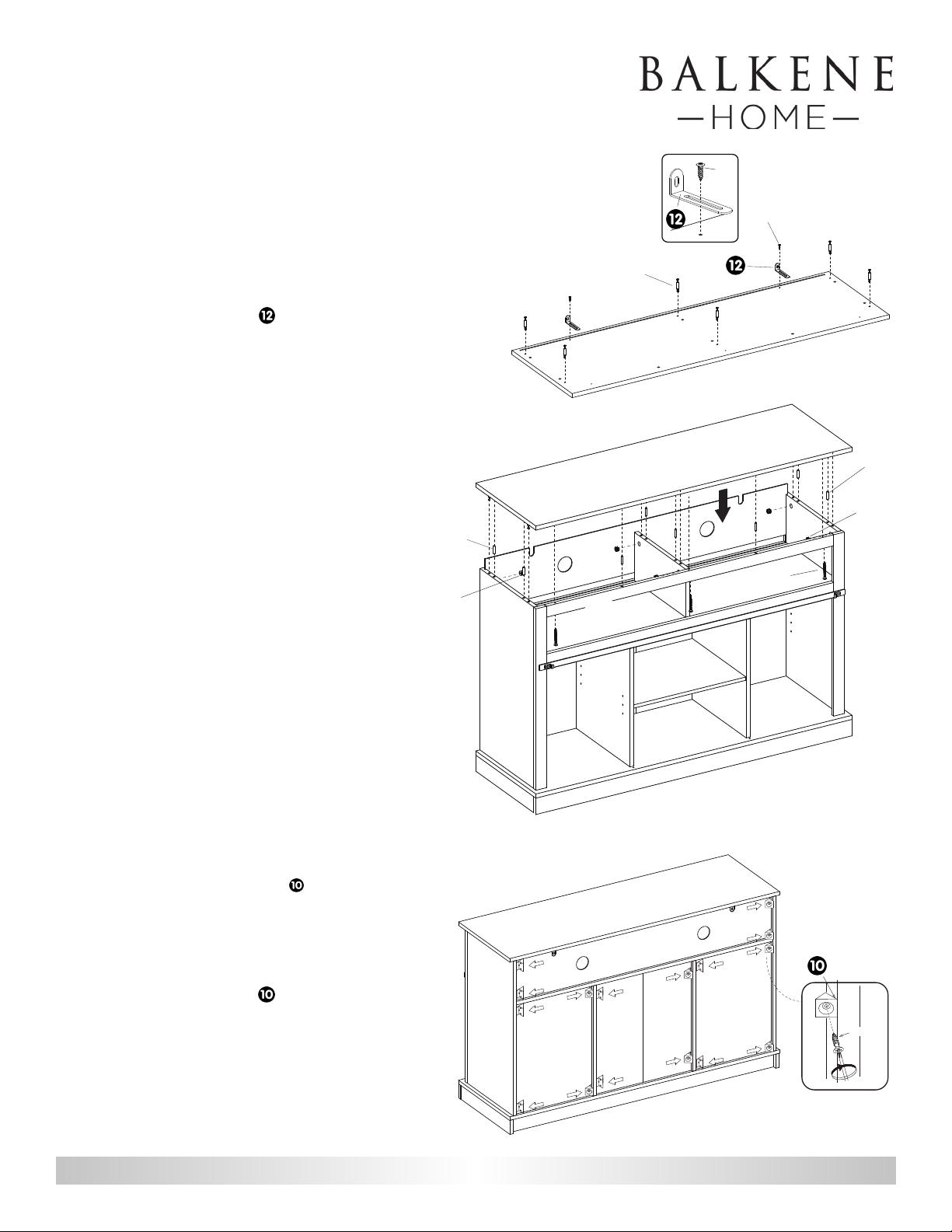

Insert a total of 6 Cam Bolts into the indicated
holes in the underside of the Top Panel A.
Attach each Anchor Bracket ? near the back
edge of the Top Panel using a Screw 5.
Place 10 Dowels 3 as indicated in the top
edges of the Left Side C, Center Divider E,
Fasten each Corner Bracket using a Screw 9.
17
Right Side D and Top Face Frame B.
Slide the Top Backer G into place in the groove at
the top rear of the unit.
Insert the Cam Bolts in the Top Panel A into the
top edges of the vertical panels. Insert a Cam Nut 2
into each of the adjoining holes and turn clockwise
to secure the Cam Bolts.
Insert 3 Screws 7 through the bottom of the Top
Face Frame and into the Top Panel. Tighten with a
Phillips-head screwdriver.
1
5
5
A
3
7
2
3
2
C
D
A
GE
B
9
D
16
15
Hardware Required:
Hardware Required:

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿11

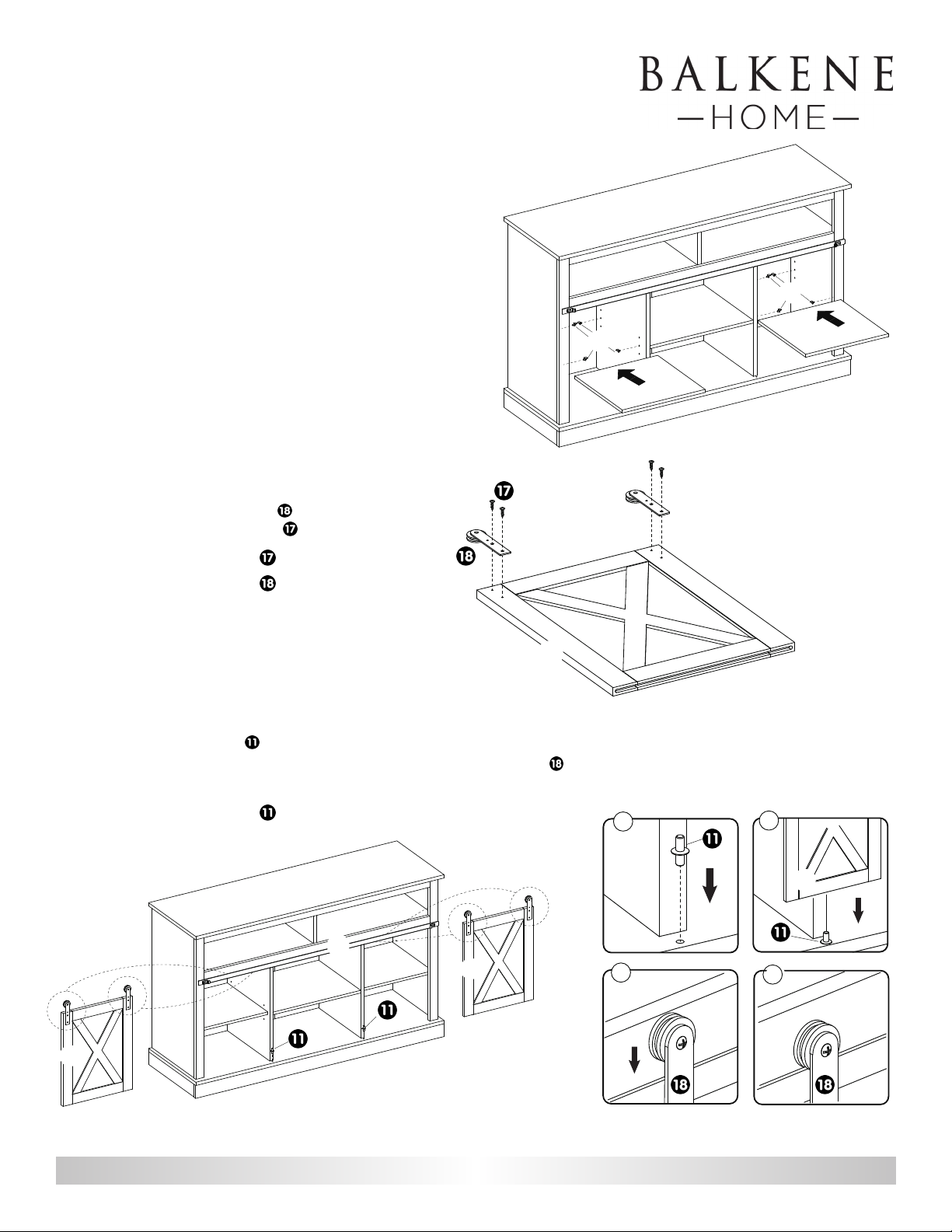

ASSEMBLY
4 Shelf Bracket x8
? Screw (4x12mm) x8
? Hanger Roller x4
Choose the desired installation height for
each Shelf J. Insert the peg of each Shelf
Bracket 4 into the appropriate holes in the
interior of the left and right compartments of
the unit, with the horizontal tab rotated to
the top.
Slide the Shelves into place in the left and
right compartments.
Attach 2 Hanger Rollers ? to each Door V
as shown using 2 Screws ? per Roller.
20
19
18
Hardware Required:
Hardware Required:
H
I
C
D
J
J
4
4
x2
V
Insert a Track Pin ? into the holes in the Base Panel Q just in front of the Left/Right Dividers H/I.
Hang the Doors V by resting the wheels of the Hanger Rollers ? on top of the Door Rail W and settling the
track on the bottom edge of each door onto a Track Pin.
Hardware Required: ? Track Pin x2
V
V
b
a
V
cd
WW
W

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿12
ASSEMBLY
22
21
6 Screw (4x35mm) x2
? Drywall Anchor x2

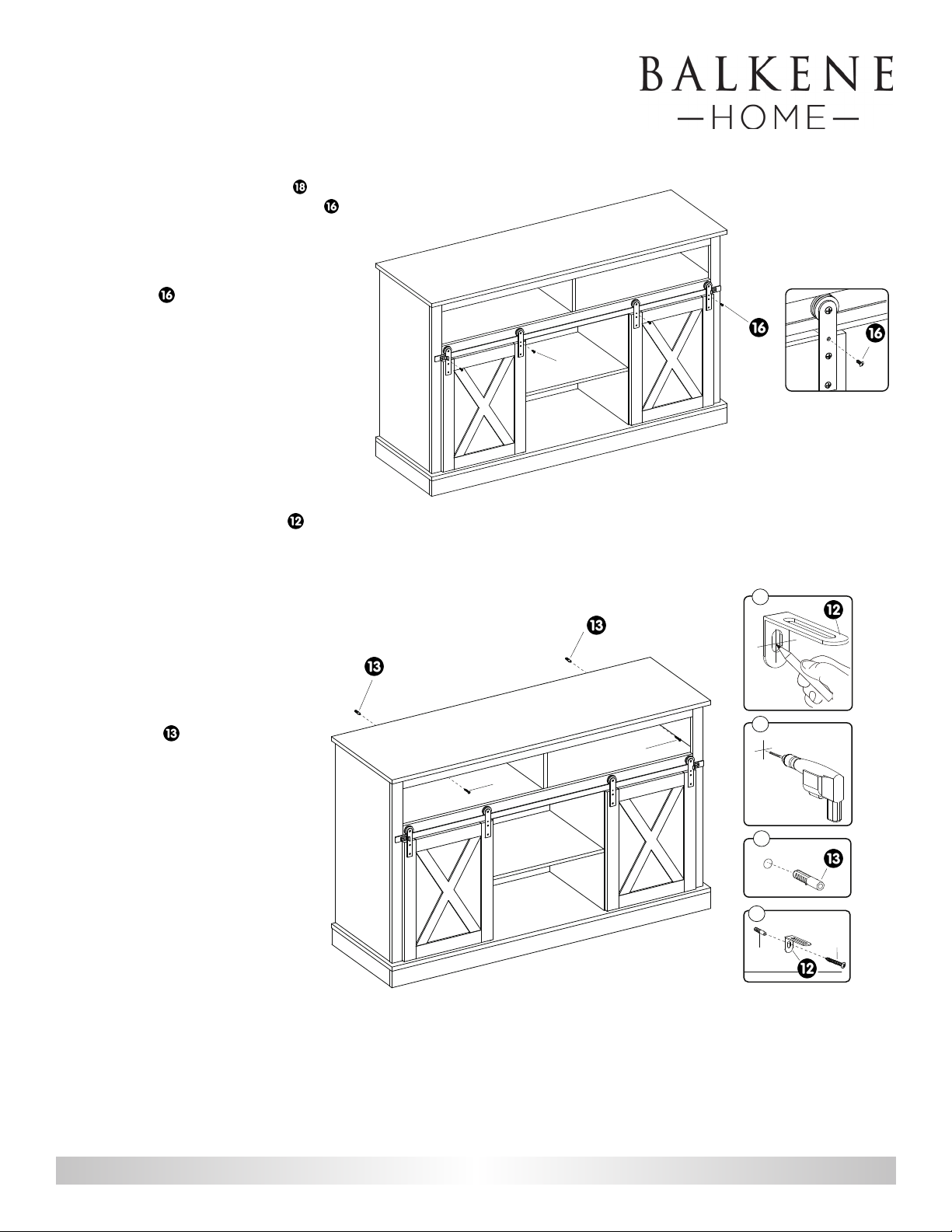

Use the Anchor Brackets ? to
anchor the unit to the wall for
safety. The included hardware is
appropriate for drywall installation and
requires the use of a drill. If needed,
consult a qualified tradesperson or
online resources to safely anchor this
unit.
Hardware Required:
6
6
a
b
c
d
6
Secure each Hanger Roller ? to the
Door Rail C using a Screw Bolt ? as
shown.
Hardware Required:
? Screw Bolt (4x12mm) x4
Your Arcadia Media Console is ready for use!

LIMITED WARRANTY
Customers in the Contiguous US
With proof of purchase from an authorized retailer, this product is warranted
for a period of 1 year from original purchase date against defects in materials
and workmanship under normal use. This warranty does NOT cover normal
wear/weathering, exposure to water, freezing temperatures, oils, fluids, or
chemicals OR use in a commercial context if the unit is not designated as a
commercial model. At Well Traveled Living’s sole discretion, products under
warranty will be repaired and/or replaced at no charge to the customer.
Returns sent back to Well Traveled Living must be sent via prepaid freight in
the original retail packaging.
For warranty service, contact Balkene Home/Well Traveled Living at the
address, phone numbers or website and email listed in this owner’s manual.
Be sure to have your sales receipt, date of purchase and catalogue/model
numbers available when calling. All warranty service will be coordinated by
Well Traveled Living's Amelia Island, Florida service center. This warranty is
extended only to the original owner. Proof of purchase will be required before
warranty service is rendered. The sales receipt is the only valid proof of
purchase. This warranty only covers failures due to defects in materials or
workmanship which occur during normal use. Failures and/or damage which
result from accident, negligence, misuse, abuse, neglect, mishandling,
alteration or modification, failure to maintain, improper assembly or
maintenance, service by unauthorized agency or use of unauthorized
components or damage that is attributable to acts of God are NOT covered.
This limited warranty gives you specific legal rights and you may also have
other rights which vary from jurisdiction to jurisdiction. The provisions of the
United Nations Convention on Contracts for the Sales of Goods shall not apply
to this limited warranty or the sale of products covered by this limited
warranty.
• THERE ARE NO EXPRESS WARRANTIES EXCEPT AS
LISTED.
• PURCHASER ASSUMES ALL RISKS IN THE
ASSEMBLY AND OPERATION OF THIS UNIT.
• FAILURE TO FOLLOW WARNINGS AND
OPERATIONAL INSTRUCTIONS CONTAINED IN
THIS MANUAL CAN RESULT IN SEVERE PROPERTY
DAMAGE AND/OR PERSONAL INJURY.
• IN NO EVENT WILL WELL TRAVELED LIVING, OR
ITS DIRECTORS, OFFICERS OR AGENTS BE LIABLE
TO THE PURCHASER OR ANY THIRD PARTY,
WHETHER IN CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR
INCIDENTAL LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF WELL TRAVELED LIVING OR
ITS DIRECTORS, OFFICERS OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS,
OR DAMAGES ARE FORESEEABLE. IN NO EVENT
WILL WELL TRAVELED LIVING, OR ITS OFFICERS,
DIRECTORS, OR AGENTS BE LIABLE FOR ANY
DIRECT LOSSES, COSTS OR DAMAGES THAT
EXCEED THE PURCHASE PRICE OF THE PRODUCT.
• SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
Important Notice
Do NOT return to place of purchase—for customer service and warranty issues: Distributed by:
Well Traveled Living
716 S 8th Street, Amelia Island, FL 32034
balkenehome.com
[email protected]
[phone]
Fire Sense®, Patio Sense,® Avalon Home,® Mojave Sun®, Vulcan®, Balkene Home® and Well Traveled Living® are registered trademarks of
Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.
® and are protected by
U.S. copyrights and trademarks. All rights reserved.
EXTEND YOUR WARRANTY
When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace
of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year
when you review your item at balkenehome.com within 365 days of purchase.
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live chat balkenehome.com 9 am – 6 pm, EST, Mon – Fri
