INFORMATION
BEFORE YOU BEGIN
Before beginning assembly, make sure all parts are present. Compare parts
received with the "Parts List." If any part is missing or damaged, do NOT attempt
to assemble the product. Please read and understand this entire manual before
attempting to assemble this product. If you have any questions regarding the
product, please contact Customer Service.
GENERAL INFORMATION
This product is made of particle board and MDF. For safe assembly, work on a
dry, soft, secure, and clean surface. Do not clean with detergents or chemicals.
Do not sit or stand on the unit. Do not place damp or hot items such as coffee
cups directly on the surface of this item. Keep away from direct sunlight and
water. Do not drag the unit. For indoor use only.
SAFETY INFORMATION
WARNING
DO NOT sit or stand, or allow children to sit or stand on the assembled product.
Make sure connectors are securely in place. Perform periodic checks to ensure
the connectors remain secure and adjust if needed. Keep unassembled parts and
hardware away from children and infants. This package contains small parts and
sharp edges. Adult assembly required.
CAUTION
READ all instructions before beginning assembly. Failure to do so may result in
faulty assembly and potential injury. Assemble the item on a soft, nonabrasive
surface such as carpet or cardboard to avoid damaging the item.
Max safe load limit:
Top: 25 KG / 55 LB
Center Open Shelves: 10 KG / 22 LB (each)
Drawer: 5 KG / 11 LB
Cabinet Shelves: 8 KG / 17.5 LB (each)
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live Chat www.balkenehome.com 9 am – 6 pm, EST, Monday – Friday

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿ ¿¿¿¿¿¿Ã
PARTS LIST
PART DESCRIPTION QTY
ATop Panel
BLeft Side
CRight Side
DLeft Divider
ERight Divider
1
1
1
1
1
F
FInterior Shelf
GCenter Top Shelf
HCenter Bottom Shelf
2
1
1
IHinge Mount Block 4
A
E
DG
H
J
K
B
I
PART DESCRIPTION QTY
JCabinet Backer
KCord Backer
LBottom Panel
MTop Face Frame
NBottom Backer
2
1
1
1
1
OFront Left Leg
PFront Right Leg
QBack Left Leg
1
1
1
RBack Right Leg 1
PART DESCRIPTION QTY
SDrawer Front
TLeft Drawer Side
URight Drawer Side
VDrawer Back
WDrawer Bottom
1
1
1
1
1
XLeft Door
YRight Door
ZBottom Face Frame
1
1
1
+Support Leg 2
+
+
J
F
M
Q
C
I
I
I
O
Z
U
P
R
N
L
V
T
S
XW
Y

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿4
HARDWARE CONTENTS
1
Cam Bolt
6x35mm
Qty: 35
YOU WILL NEED FOR ASSEMBLY:
(not included)
Phillips-head screwdriver
Mallet or hammer
Power drill (to anchor unit to wall)
2
Cam Nut
Qty: 35
3
Dowel
6x30mm
Qty: 36
4
Shelf Bracket
Qty: 12
5
Screw
4x12mm
Qty: 2
6
Screw
4x35mm
Qty: 18
7
Screw
4x45mm
Qty: 3
8
Drawer Runner
Qty: 2
9
Screw
3x12mm
Qty: 6
Hinge
Qty: 4
Screw
4x14mm
Qty: 24
Screw
2.5x10mm
Qty: 33
Screw Bolt
4x10mm
Qty: 2
Handle
Qty: 3
Screw Bolt
4x20mm
Qty: 6
Screw
5x40mm
Qty: 2
Anchor Bracket
Qty: 2
Drywall Anchor
Qty: 2
Bumper
Qty: 2
Foot Pad
Qty: 6

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿5

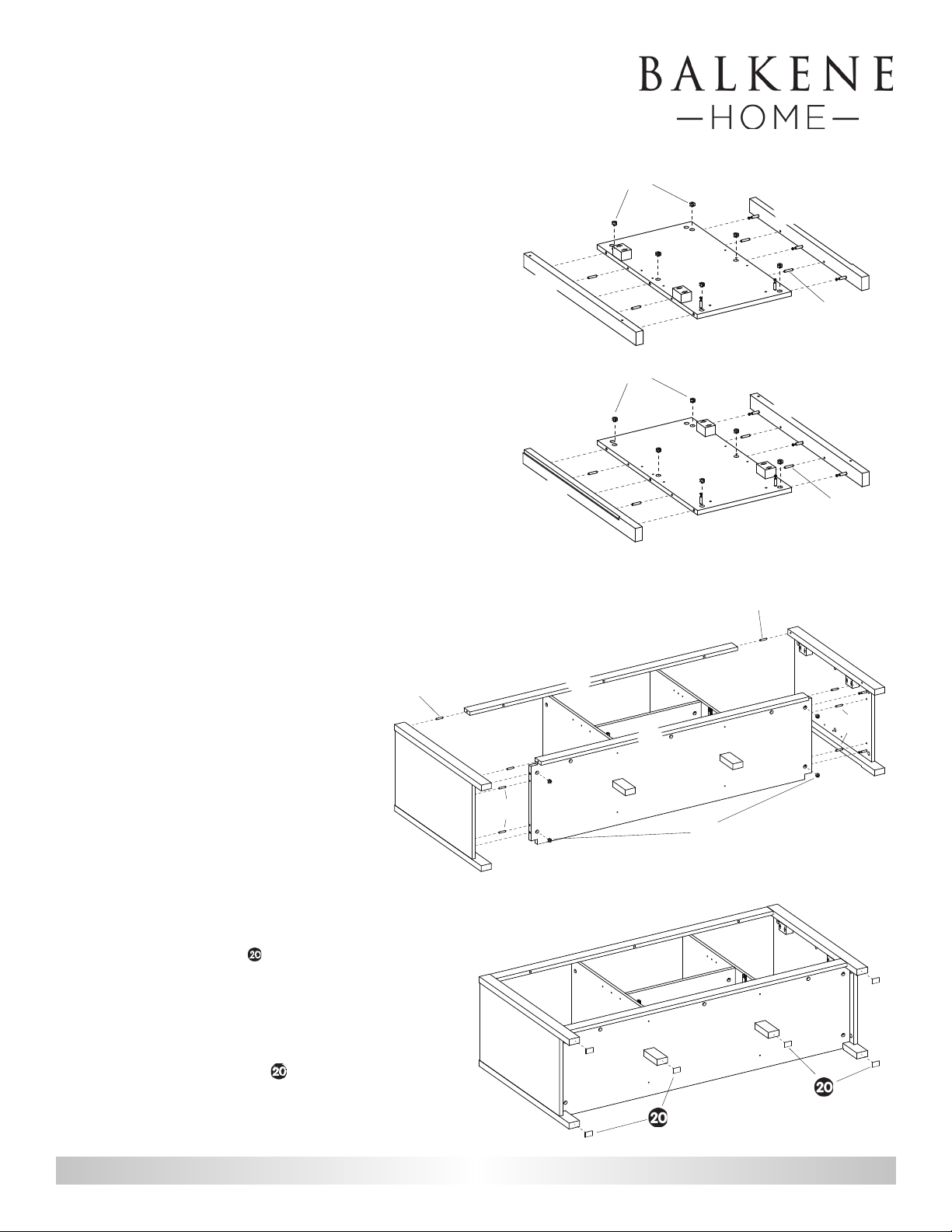

ASSEMBLY
1
2Place Dowels 3 in the 2 innermost holes on either
side of the Bottom Shelf H.
Insert the Cam Bolts 1 previously installed in the
Left Divider D into the corresponding holes in the
edge of the Bottom Shelf as shown. Secure by
inserting a Cam Nut 2 into each of the adjoining
holes in the underside of the Bottom Shelf. (HINT:
the small arrow on the flat side of the Cam Nut
should point toward the adjoining panel.) Use a
Phillips-head screwdriver to turn the Cam Nuts
clockwise to secure the Cam Bolts.
Attach the Right Divider E to the Bottom Shelf
using the same method.
Install the Drawer Runners 8 on the Left and Right Dividers D/E.
Hardware Required: 2 Cam Nut x4
3 Dowel x4
8
9
FRONT BACK
Fully extend the runner to uncover the
mounting holes. After attaching the
runner to the panel, push runner back
into the closed position.
9 9
8
9
FRONT
BACK
99
FRONT
BACK
1
D98
ASSEMBLY NOTE: Use a Phillips-
head screwdriver to tighten each
Cam Bolt you install until its
threads are fully inserted.
1
E9
FRONT
BACK
8
Hardware Required: 1 Cam Bolt x4
8 Runner x2
9 Screw (3x12mm) x6
Fully extend one Runner and align the inner section along the 3 small holes on the Left Divider. Verify that the
orientation of the Runner matches the diagram, then fasten the Runner to the Divider using 3 Screws 9
positioned as shown. Once the Runner is attached, slide it back to the closed position.
Attach the second Runner to the Right Divider E following the same method, checking orientation before
inserting Screws.
Insert a total of 4 Cam Bolts 1 into the indicated holes above the Runners on each Divider.
→→
2
H
D
E
3
2
23

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿6
ASSEMBLY
3
4
1
5
Hardware Required: ? Screw (5x40mm) x2
Install the Support Legs + on the bottom of the
Bottom Panel L using 2 Screws ? as shown.
Insert Cam Bolts 1 into the indicated holes in the
Bottom Face Frame Z. Use a Phillips-head
screwdriver to tighten the threads fully into the
panels.
Hardware Required: 1 Cam Bolt x3 Z
Z
L
3
2
Place Dowels 3 in the 2nd and 4th holes on the
edge of the Bottom Panel L.
Insert the Cam Bolts 1 previously installed in the
Bottom Face Frame Z into the corresponding
holes in the edge of the Bottom Panel as shown.
Secure by inserting a Cam Nut 2 into each of the
adjoining holes in the underside of the Bottom
Shelf. Use a Phillips-head screwdriver to turn the
Cam Nuts clockwise to secure the Cam Bolts.
Hardware Required: 2 Cam Nut x3
3 Dowel x2
+
+
L
Z

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿7
ASSEMBLY
6
7
Place Dowels 3 in the 2 center-most holes in the
bottom edges of both the Left and Right Dividers
D/E.
Insert the installed Dowels into the corresponding
holes on the top of the Bottom Panel L.
Secure the components together by inserting 4
Screws 6 through the bottom of the Bottom
Panel and into the Dividers.
8
E
3
3
L
6
D
Hardware Required: 3 Dowel x4
6 Screw (4x35mm) x4
Insert Cam Bolts 1 into the indicated holes in the
frame Legs O/P/Q/R. Use a Phillips-head
screwdriver to tighten the threads fully into the
Legs.
Hardware Required: 1 Cam Bolt x12
O P Q R
1 1 11
Install the Hinge Mount Blocks I on the Left and Right Sides B/C using 2 Screws 6 per Block.
Insert a Cam Bolt 1 into the 2 indicated holes in each Side.
6
6
I
I
B
C
I
I
1
1
Hardware Required: 1 Cam Bolt x4
6 Screw (4x35mm) x8

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U l
ASSEMBLY



#
!



$
"


Place D
Dowels
in the holes between the previously-
installed C
Ca
m
m Nuts
in each frame
Le
g
g
!"#$.
Insert the C
Ca
m
m Bolts
and D
Dowels
in F
Fron
t
t Lef
t
t Leg
!
into the edge of L
Left Sid
e
e
adjacent to the H
Hing
e
e
Moun
t
t Block
s
s
. Secure by inserting a C
Ca
m
m Nut
into
each of the 3 adjoining holes on the inner face of the
Lef
t
t Side
. Use a Phillips-head screwdriver to turn the
Ca
m
m Nuts
clockwise to secure the C
Ca
m
m Bolts
.
Repeat to attach the B
Bac
k
k Lef
t
t Leg
#to the L
Lef
t
t Side
.
Attach the F
Fron
t
t Righ
t
t Leg
"and B
Bac
k
k Righ
t
t Leg
$
to the R
Righ
t
t Side
using the same method described
above.
Hardwar
e
e Required:

Ca
m
m Nu
t
t
x12

Dowel
x8

Apply the F
Foo
t
t Pads
to the bottom of each frame
Leg
!"#$. and S
Suppor
t
t Leg
. Press firmly to
adhere.
Hardwar
e
e Required:

Foo
t
t Pa
d
d
x16







































,









Insert 4 D
Dowel
s
s
into the assembled
Righ
t
t Sid
e
e
component as indicated.
Attach the
Righ
t
t Side
to the partially-
assembled unit by inserting the D
Dowels
and C
Ca
m
m Bolts
into the corresponding
holes in the right ends of the T
To
p
p Fac
e
e
Frame
and B
Botto
m
m Pane
l
l
. Secure
by inserting a C
Ca
m
m Nut
into the 2 holes
at the underside of the right end of the
Botto
m
m Panel
. Use a Phillips-head
screwdriver to turn the C
Ca
m
m Nuts
to
secure the C
Ca
m
m Bolts
.
Attach the L
Lef
t
t Side
component to the
Botto
m
m Panel
and T
To
p
p Fac
e
e Frame
using
the same method described above.
Hardwar
e
e Required:

Ca
m
m Nu
t
t
x4

Dowel
x8

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿9
ASSEMBLY
in the underside of the Top Panel A.
Attach each Anchor Bracket ? near the back edge of
the Top Panel using a Screw 5.
Hardware Required: 1 Cam Bolt x8
5 Screw (4x12mm) x2
? Anchor Bracket x2
A
1
5
1
5
Left Side B, Left Divider D, and Right
13
Insert 10 Dowels 3 in the top edges of the
Divider E, Right Side C, and Top Face
Frame M.
Lower the Top Panel A into place by
inserting the Cam Bolts 1 into the top edges
of the vertical panels. Secure by inserting a
Cam Nut 2 into each of the adjoining holes
near the tops of the vertical panels. Use a
Phillips-head screwdriver to turn the Cam
Nuts clockwise to secure the Cam Bolts.
Insert 3 Screws 7 through the bottom of
the Top Face Frame and into the Top Panel.
Tighten with a Phillips-head screwdriver.
3
3
A
2E
7
BD
3
C
Hardware Required: 2 Cam Nut x8
3 Dowel x10
7 Screw (4x45mm) x3
12Insert a total of 8 Cam Bolts 1 into the indicated holes

Insert Cam Bolts 1 into the indicated holes
in the Drawer Front S. Use a Phillips-head
screwdriver to tighten the threads fully
into the panels.
Attach the Handle ? to the outside of the
Drawer Front using 2 Screw Bolts ? as
shown.
1 Cam Bolt x4
? Handle x1
? Screw Bolt (4x20mm) x2
Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿10
ASSEMBLY
14 Carefully turn the unit to lay face-
down. Position the Cabinet Backers J
to cover the back of the compartments
at either end of the unit. Be sure to

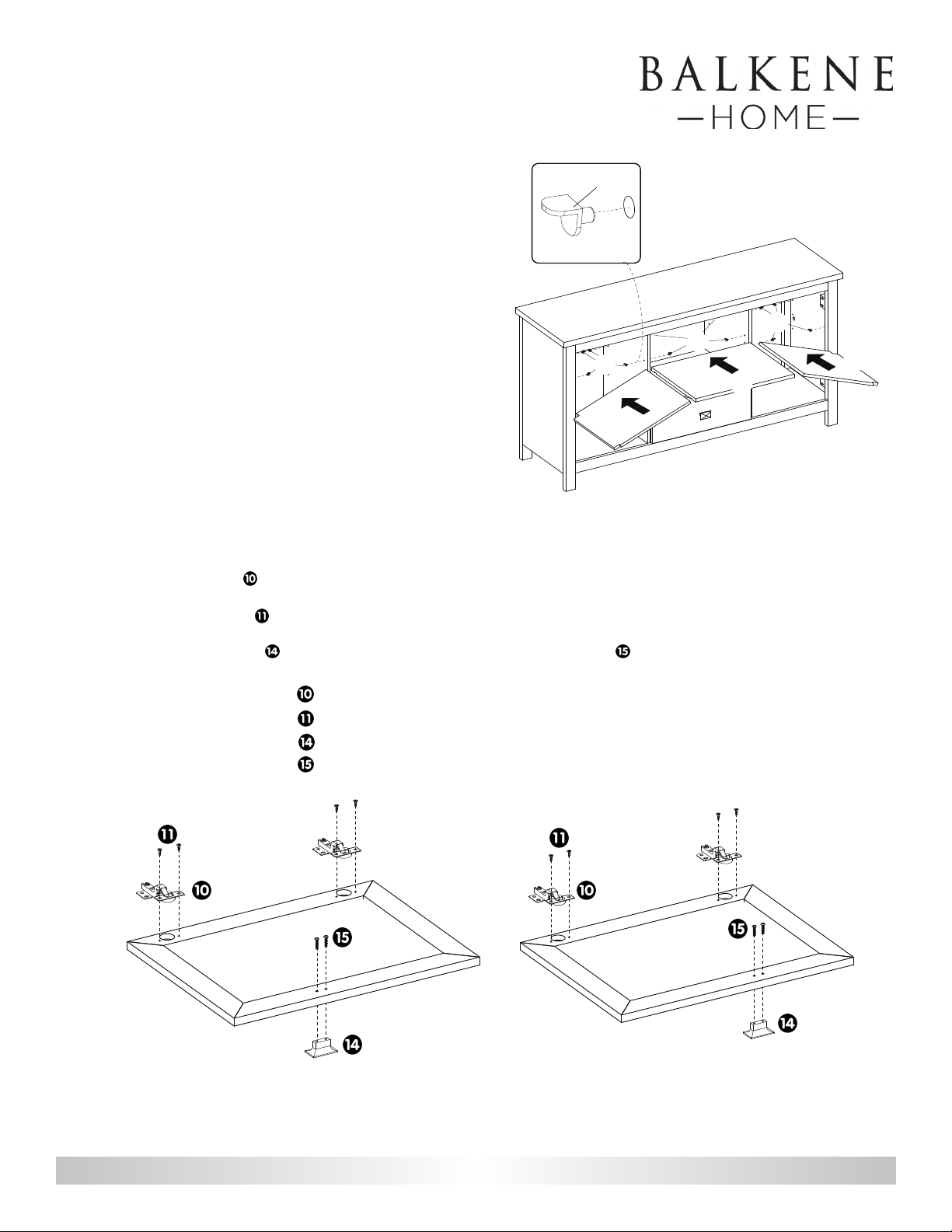

leave the Anchor Brackets ? exposed.
Position the Cord Backer K to cover
the top center compartment. Place the
Bottom Backer N to cover the back of
the bottom center compartment.
Use Screws ? to secure all edges of
the Backers as shown.
?Screw (2.5x10mm) x33
JQ
N
K
L
R
J
U
V
6
T
6
With runner side facing out, attach the Left
Drawer Side T to the Drawer Back V using
2 Screws 6. Ensure that the narrow
groove at the bottom runs continuously
along the inside of both pieces.
Repeat to attach the Right Drawer Side U
to the Drawer Back.
15
Hardware Required: 6 Screw (4x35mm) x4
1
1
S
16
Hardware Required:
Hardware Required:

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿11
ASSEMBLY
17 Slide the Drawer Bottom W into place in the
groove in the drawer panels.
Insert the Cam Bolts in the Drawer Front S
into the front edges of the Drawer Sides.
Secure by inserting a Cam Nut 2 into each of
the adjoining holes on the outside of the
Drawer Sides. Use a Phillips-head screwdriver
to turn the Cam Nuts clockwise to secure the
Cam Bolts.
Fully extend both Drawer Runners 8 and
slide the drawer into place between
them. Secure the Runners to the sides of
the Drawer using 2 Screw Bolts ?.
18
Hardware Required:
? Screw Bolt (4x10mm) x2
U
W
2
2
S
T
S
8
S
Hardware Required: 2 Cam Nut x4

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿12
ASSEMBLY
19
Choose the desired height to install each shelf. Insert
the peg of each Shelf Bracket 4 into the appropriate
holes in the interior of each compartment of the
unit, with the horizontal tab rotated to the top.
Slide the Interior Shelves F into place in the left and
right compartments. Slide the Center Top Shelf G
into place in the center compartment.

4Shelf Bracket x12
Install the Hinges ?: insert the hinge cups into the round bores near the edge of each Door X/Y.
Align the hinge eyelets with the 2 small holes drilled adjacent to each bore. Secure each Hinge by
inserting 2 Screws ?through the eyelets and into the Door.
Attach the Handles ? to the outside of each Door using 2 Screw Bolts ? as shown.
20
Hardware Required: ? Hinge x4
? Screw (4x14mm) x8
? Handle x2
? Screw Bolt (4x20mm x4
4
F
F
G
4
4
4
Y
X
Hardware Required:

Á>UÁ¿É¸¿tµ¿>¸¸¸Á>Ug[¿¿£l½½¤¿lu¼l¼¼¿¿N¿¿ÑÑѦL>ggg¦U¿13
ASSEMBLY

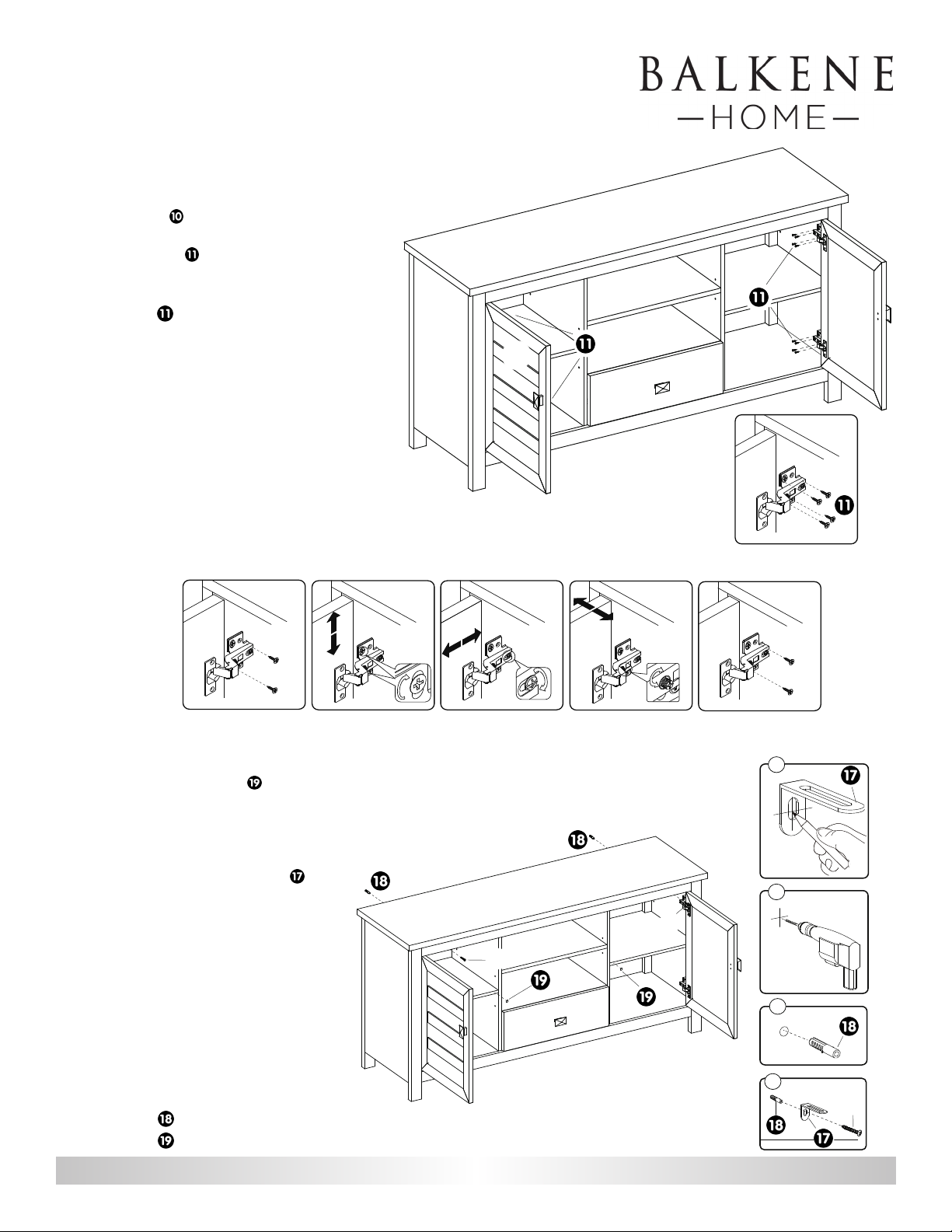

21 Hang the Doors X/Y by attaching the
Hinges ? to the Hinge Mount Blocks
I as shown. Fasten each Hinge using
4 Screws ?.
?Screw (4x14mm) x16
Apply the Bumpers ? to the front
edge of each Interior Shelf F near
the corner closest to the Dividers
D/E. Press firmly to adhere.
Use the Anchor Brackets ? to
anchor the unit to the wall for
safety. The included hardware is
appropriate for drywall
installation and requires the use
of a drill. If needed, consult a
qualified tradesperson or online
resources for the appropriate
steps to safely anchor this unit.
22
Hardware Required:
6 Screw (4x35mm) x2
? Drywall Anchor x2
? Bumper x2
Remove
indicated screws.
If necessary for correct door alignment, it is
possible to adjust the hinges. See diagrams below:
Vertical
Adjustment
Forward/Back
Adjustment
Left/Right
Adjustment
Replace
indicated screws.
Hardware Required:
X
Y
6
6
a
b
c
d
6

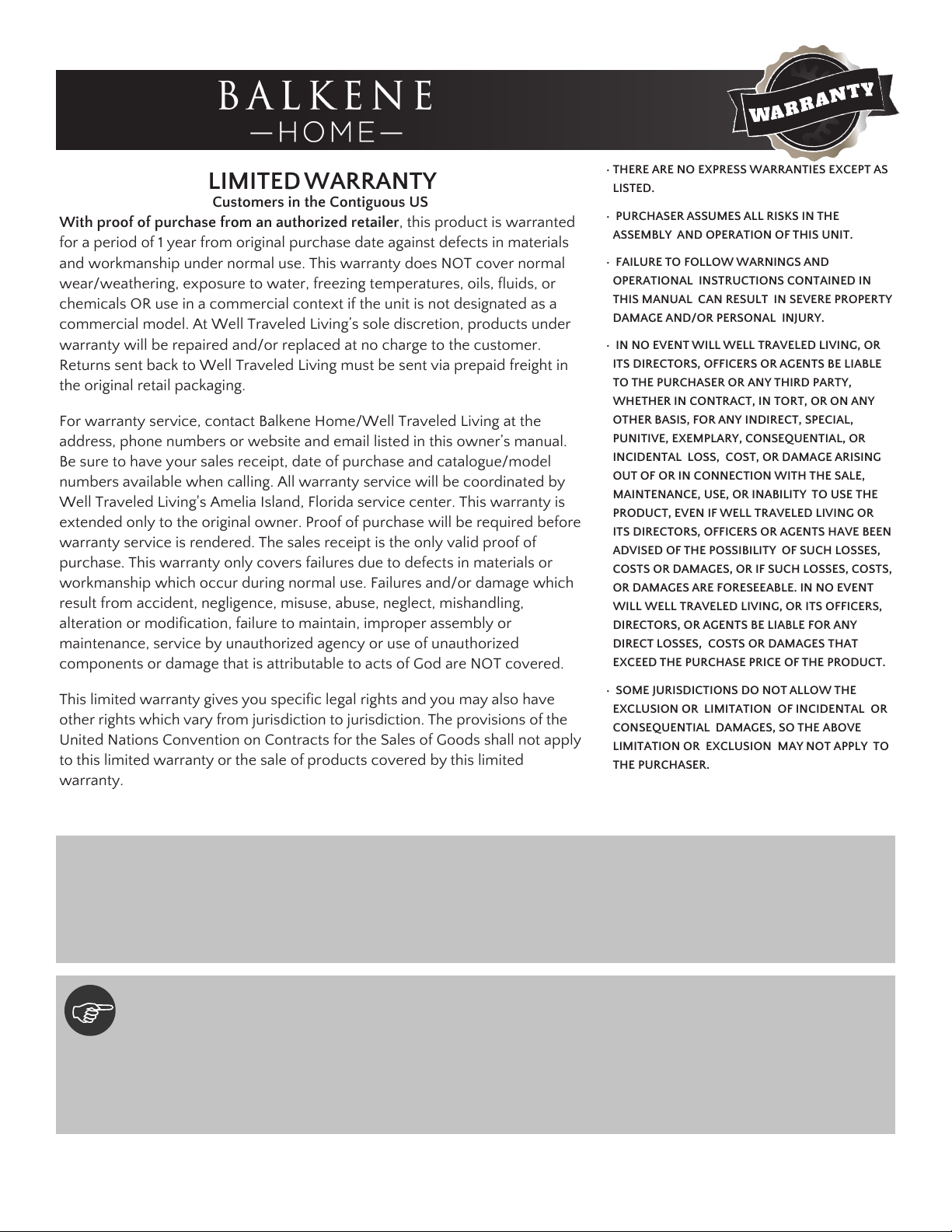

LIMITED WARRANTY
Customers in the Contiguous US
With proof of purchase from an authorized retailer, this product is warranted
for a period of 1 year from original purchase date against defects in materials
and workmanship under normal use. This warranty does NOT cover normal
wear/weathering, exposure to water, freezing temperatures, oils, fluids, or
chemicals OR use in a commercial context if the unit is not designated as a
commercial model. At Well Traveled Living’s sole discretion, products under
warranty will be repaired and/or replaced at no charge to the customer.
Returns sent back to Well Traveled Living must be sent via prepaid freight in
the original retail packaging.
For warranty service, contact Balkene Home/Well Traveled Living at the
address, phone numbers or website and email listed in this owner’s manual.
Be sure to have your sales receipt, date of purchase and catalogue/model
numbers available when calling. All warranty service will be coordinated by
Well Traveled Living's Amelia Island, Florida service center. This warranty is
extended only to the original owner. Proof of purchase will be required before
warranty service is rendered. The sales receipt is the only valid proof of
purchase. This warranty only covers failures due to defects in materials or
workmanship which occur during normal use. Failures and/or damage which
result from accident, negligence, misuse, abuse, neglect, mishandling,
alteration or modification, failure to maintain, improper assembly or
maintenance, service by unauthorized agency or use of unauthorized
components or damage that is attributable to acts of God are NOT covered.
This limited warranty gives you specific legal rights and you may also have
other rights which vary from jurisdiction to jurisdiction. The provisions of the
United Nations Convention on Contracts for the Sales of Goods shall not apply
to this limited warranty or the sale of products covered by this limited
warranty.
• THERE ARE NO EXPRESS WARRANTIES EXCEPT AS
LISTED.
• PURCHASER ASSUMES ALL RISKS IN THE
ASSEMBLY AND OPERATION OF THIS UNIT.
• FAILURE TO FOLLOW WARNINGS AND
OPERATIONAL INSTRUCTIONS CONTAINED IN
THIS MANUAL CAN RESULT IN SEVERE PROPERTY
DAMAGE AND/OR PERSONAL INJURY.
• IN NO EVENT WILL WELL TRAVELED LIVING, OR
ITS DIRECTORS, OFFICERS OR AGENTS BE LIABLE
TO THE PURCHASER OR ANY THIRD PARTY,
WHETHER IN CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR
INCIDENTAL LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF WELL TRAVELED LIVING OR
ITS DIRECTORS, OFFICERS OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS,
OR DAMAGES ARE FORESEEABLE. IN NO EVENT
WILL WELL TRAVELED LIVING, OR ITS OFFICERS,
DIRECTORS, OR AGENTS BE LIABLE FOR ANY
DIRECT LOSSES, COSTS OR DAMAGES THAT
EXCEED THE PURCHASE PRICE OF THE PRODUCT.
• SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
Important Notice
Do NOT return to place of purchase—for customer service and warranty issues: Distributed by:
Well Traveled Living
716 S 8th Street, Amelia Island, FL 32034
balkenehome.com
[email protected]
[phone]
Fire Sense®, Patio Sense,® Avalon Home,® Mojave Sun®, Vulcan®, Balkene Home® and Well Traveled Living® are registered trademarks of
Well Traveled Imports, Inc®. All assembly instruction presentations are the property of Well Traveled Imports, Inc.
® and are protected by
U.S. copyrights and trademarks. All rights reserved.
EXTEND YOUR WARRANTY
When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace
of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year
when you review your item at balkenehome.com within 365 days of purchase.
Call toll-free [phone] 9 am – 9 pm, EST
Email [email protected]
Live chat balkenehome.com 9 am – 6 pm, EST, Mon – Fri
