Bamo BAMOPHAR 759 User manual

BAMOPHAR 759
Flow calculator
USER MANUAL
DEB
21-12-2018 M-759.03-EN-AB 759-03/1
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

SUMMARY
1. 3DESCRIPTION
2. 3TECHNICAL FEATURES
3. 3DIMENSIONS
4. 4ELECTRICAL CONNECTIONS
4.1 5TERMINAL STRIP ASSIGNMENTS
5. 7DISPLAY MENU
5.1 7WITHOUT EXTENSION UNIT
5.2 7WITH EXTENSION UNIT
6. 8ICONS FUNCTIONS
7. 8DISPLAY SETTINGS
7.1 8SCREEN INFORMATION
7.2 8SCREENSAVER
7.3 8LANGUAGE SELECTION
7.4 9DESIGNATION
8. 9CONSULTATION / MODIFICATION
9. 9SETTINGS
9.1 9SETTING OF MEASUREMENT PARAMETERS
9.2 10THRESHOLD S1 AS ON/OFF MODE
9.3 10THRESHOLD S3 SET AS ON/OFF MODE AND ASSIGNMENT TO EXTERNAL SENSOR
9.4 10SETTING THE SAMPLER CONTROL (Relay S2)
9.5 10SETTING THE TEMPERATURE
9.6 11mA OUTPUT SETTINGS FOR THE MEASUREMENT
9.7 11mA OUTPUT SETTINGS FOR THE TEMPERATURE
9.8 11SIMULATION ON RELAYS
9.9 11RESET THE DAILY VOLUME TO ZERO
DEB
21-12-2018 M-759.03-EN-AB 759-03/2
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

1. DESCRIPTION
The reading is easy on the 4.3" color touch screen for flow-rate or height of liquid, as well as for totalization.
Through a user friendly menu, settings are easy for threshols, alarms, sampler monitoring and all parameters.
BAMOPHAR 759 converts the input signal directly into flow rate, through a calculator and using formulas and calibration tables of our Venturi
channels (ISO 4359) and our standard V or U channel weirs.
2. TECHNICAL FEATURES
End-user interface Color touch screen 4.3'', resolution 480x272 pixels
Display of measurements, flow rate, temperature, height of liquid, daily volume and totalization,
status of relays
Programming - Settings protection by keyword
Measuring scales Water column (mm); Resolution of 1 mm
Flow rate (m³/h); Resolution of 0.1 m³/h
Totalization (m³); Resolution of 1 m³
Counters - Totalization Daily volume; Capacity 8 digits - Reset to 0 by menu
Totalization; Capacity 8 digits - No reset available
Signal inputs 4-20 mA proportionnal to water column
Temperature Pt 100 Ω ( -20 ... +160 °C )
Calculation formulas Standard types in memory: Venturi channels, V-shaped and U-shaped weirs
Thresholds S1and S3 2 contacts, potential free, N.O.; Dedicated to flow rate measurement
or to temperature, or to function of relay S3
Adjustable hysteresis from 0 to 100 %; Adjustable delay from 0 to 9999 s
Sampler control S2 Programming in m³ on volume (counter)
1 contact, N.O., potential free.
Adjustable timer from 0 to 9999 s
Pulse output S4 For a remote counter; 1 pulse/m³
1 contact, N.O., potential free
Contact initial resistance 100 mΩ max. (voltage drop 6 V DC 1 A)
Poles material Silver alloy
Switching power 3 A, 277 V AC; 3 A, 30 V DC (nominal)
Switching capacity (min.) 100 mA, 5 V DC (depends of frequency, ambient conditions)
Analogue output (measurement) 0/4 - 20 mA (load max. 600 Ω) proportionnal to flow rate - Adjustable on any scale.
Temperature ( °C )
Analogue output (temperature) 0/4-20 mA (load 600 Ohm max.); any scale between 0 & 100 °C
Main power supply 230 V - 50/60 Hz - Other supplies on request - Consumption 10 VA
Models Panel mounting, 96x144 mm, Front IP65, rear back screw terminal IP40
Wall mounting, IP65, cable glands, screw terminals
OPTION (RS 422 + Logger)
Interface RS422 output, J-BUS link - Binary slave mode - 2400 to 9600 bauds
Data Logger Record of cycle average measurement, programmable cycle time, 150 000 records max. on
memory card
EC Conformity: The instrument meets the legal requirements of the current European Directives

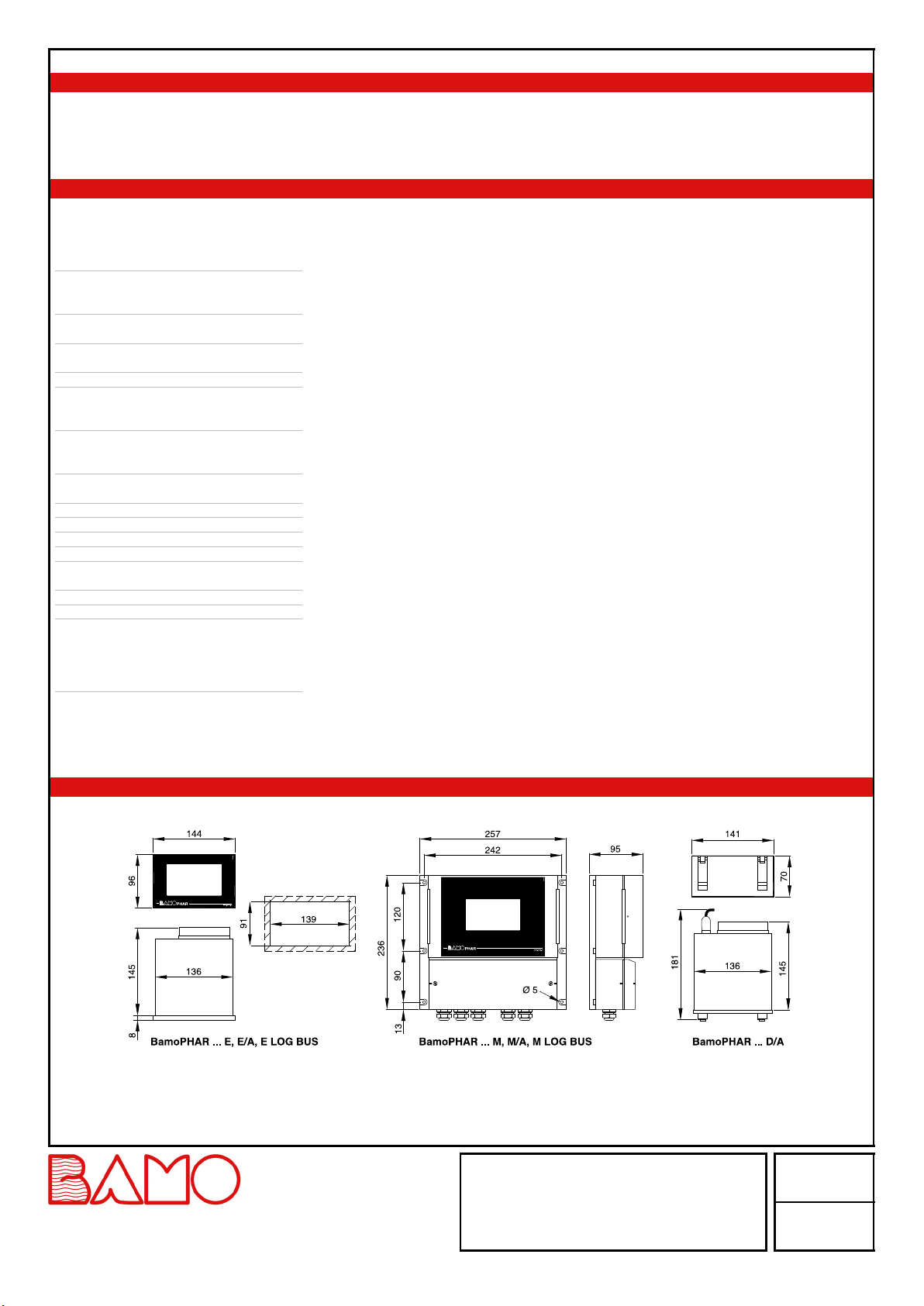

3. DIMENSIONS
DEB
21-12-2018 M-759.03-EN-AB 759-03/3
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

4. ELECTRICAL CONNECTIONS
PANEL MOUNT MODEL
WALL MOUNT MODEL
OPTION : LOGGER & RS 422
(On wall mount model,
access to slot by
removing the cover)
Signal input 4-20 mA
Signal input 4-20 mA
DEB
21-12-2018 M-759.03-EN-AB 759-03/4
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

4.1 TERMINAL STRIP ASSIGNMENTS
Description Terminal Connection
Output signal, mA, flow rate (A) 1+ mA
2- mA
Output signal, mA, temperature (B) 3- mA
4+ mA
To block the regulation External sensor: 5+ 24 V
- Inductive sensor (194 831) 60V
Power 20 mA to sensor (2-wire) - Potential free switch 70V
8+ 24 V
Temperature signal input: Pt 100 Ω sensor at 0 °C, (3-wire)
9+
10 +
11 -
12 Shielding
Connection with extension unit (blind version)
13 Y
14 Z
15 B
16 A
Relay S4 / Pulse output 1 pulse/m³ 17 S4
18
Threshold 2 (N.O. contact) / Sampler control 19 S2
20
Threshold S1 (N.O. contact) / Measurement of flow rate or temperature 21 S1
22
Threshold S3 (N.O. contact) / Flow rate or temperature measurement 23 S3
Available for assignment to external sensor: becomes a N.C. contact 24
25
Main power supply
26 PE = Earth (equipotential)
27 N = Neutral
28 L = Live
Level transmitter (2 or 4 wire)
29 NC
30 - mA
31 + mA

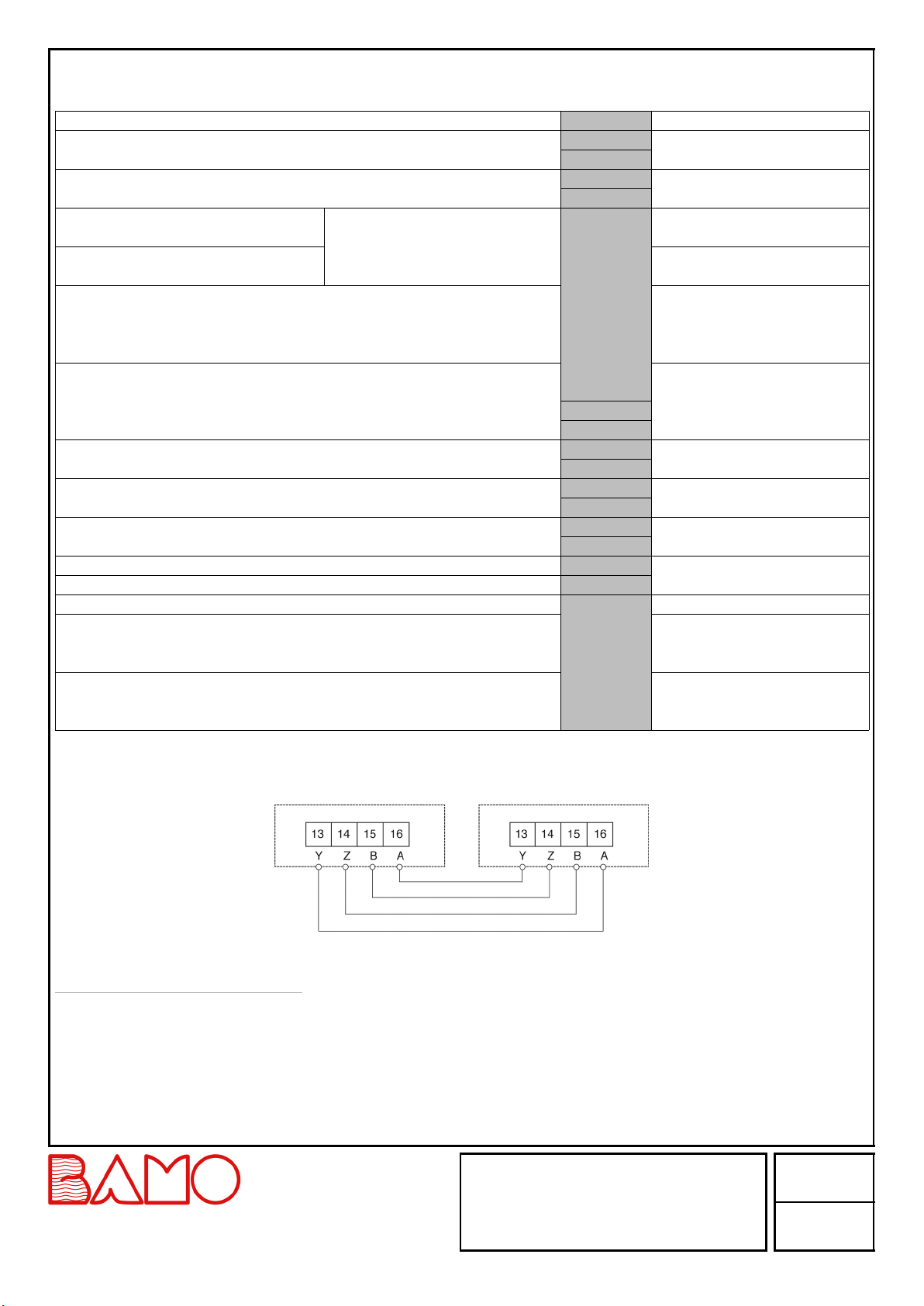

Connections to extension unit
Main unit Extension unit
Distance max. 500 m
Required cable Network cable or shielded 4-wire cable ( ≥ 0.25 mm² )
DEB
21-12-2018 M-759.03-EN-AB 759-03/5
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

Connection of a 2-wire transmitter
(Power to sensor 2-wire, through the 4-20 mA
loop)
Connection of a 4-wire transmitter
(External power supply)
External power supply
Brown
Brown
Blue
Black
Brown → +
Blue → -
Black → Output
Inductive sensor(194 831), NPN, N.C.
Connection of a N.C. flow controller; NPN
(code 194831)
DEB
21-12-2018 M-759.03-EN-AB 759-03/6
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

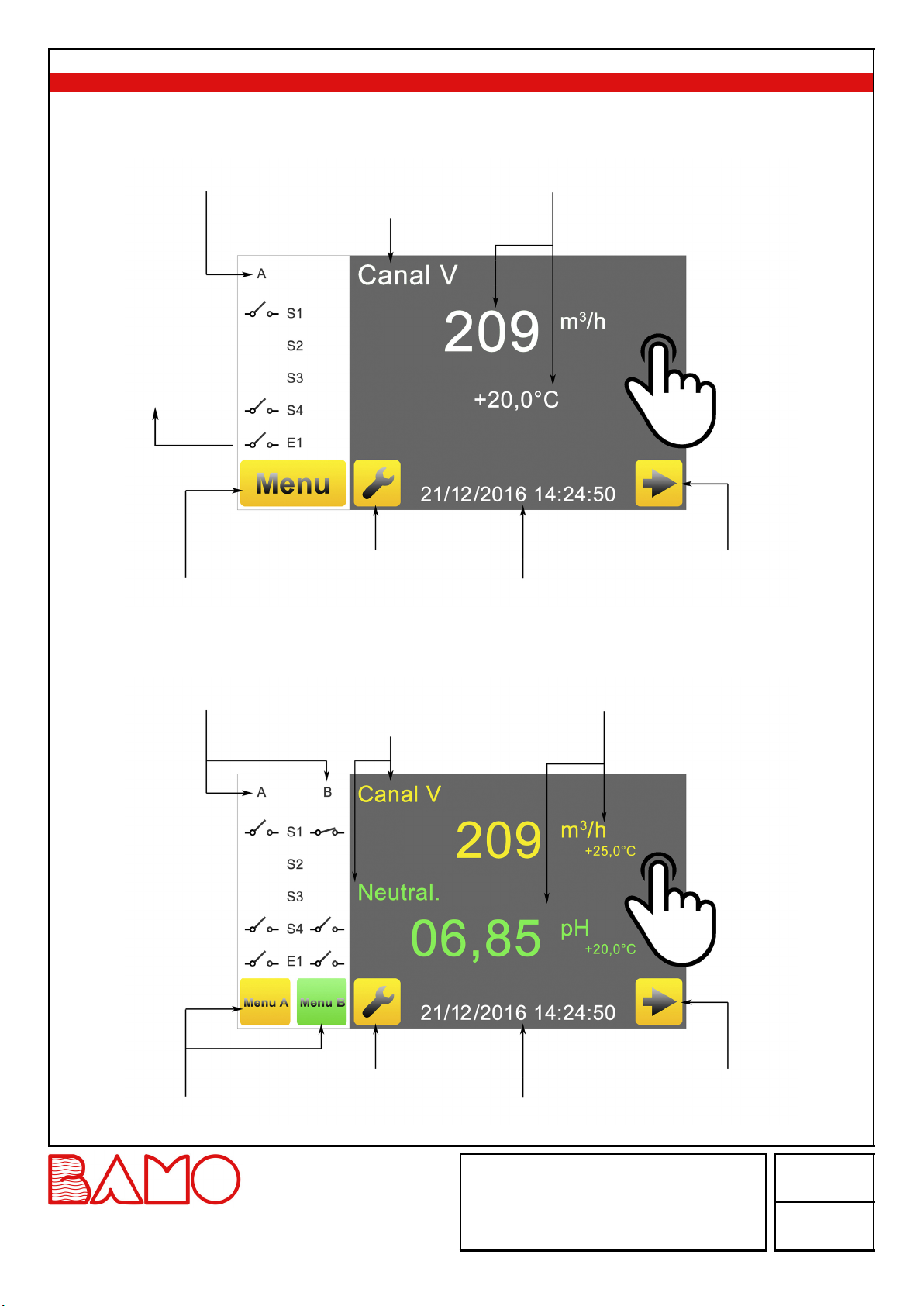

5. DISPLAY MENU
5.1 WITHOUT EXTENSION UNIT
Switching status of relays S1, S2, S3, S4
(Contact symbol appears if relay is set up)
Measured values display
m³/h and température
Designation
Parameters settings
Display settings
Date and time
(Only for the versions with data-logger)
Measurement details
E1 Status
Closed =
Actuated; Open =
Not active
5.2 WITH EXTENSION UNIT
Switching status of relays S1, S2, S3, S4
(Contact symbol appears if relay is set up)
Designation of each measuring systems
Measured values display
Main unit: flow and temperature; Extension: example with pH and temperature
Monitor A is shown in yellow (main unit)
Monitor B is shown in green (extension unit)
Date and time
(Only for the versions with data-logger)
Display settings Measurements details
Parameters settings of each monitor
DEB
21-12-2018 M-759.03-EN-AB 759-03/7
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

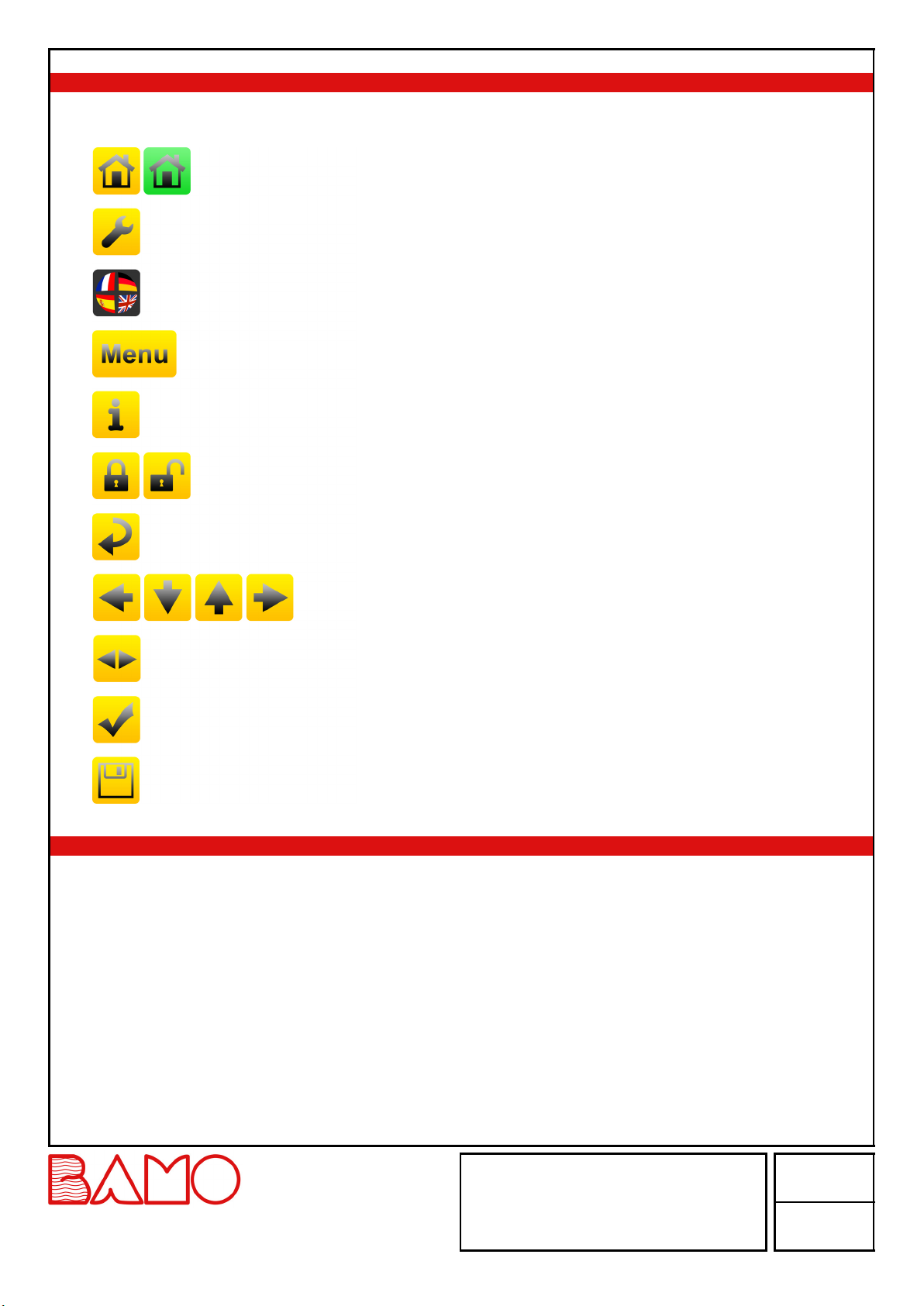

6. ICONS FUNCTIONS
Use the touch screen to navigate through the menus and set the display according to your application.
For each yellow button dedicated to the main unit, there is a green variant dedicated to the extension unit.
ARROWS
Display cursor for navigating within the menus
MAIN MENU
Return to main menu
Example with green icon for the extension unit
SETTINGS
Access to the display settings (language and monitor designation)
LANGUAGES
Language selection
MENU
Access to monitoring parameters
SELECTION
Scroll through the selection list
INFO
Access to serial number and version of your BAMOPHAR
PADLOCK
Open = MODIFICATION MODE
Closed = CONSULTATION MODE (Query
mode)
RETURN KEY
Return to previous screen
CONFIRM
Access to the next line of menu
SAVE
Save settings
7. DISPLAY SETTINGS
Note: To access to the display settings, BAMOPHAR must be in MODIFICATION mode (See § CONSULTATION /
MODIFICATION).
7.1 SCREEN INFORMATION
Screen identification number and its version are available in this menu.
7.2 SCREENSAVER
Screensaver brightness is adjusted by moving the cursor: decreasing by the left, increasing by the right.
7.3 LANGUAGE SELECTION
Select the flag of your choice.
The display automatically returns to previous view.
Press icon "HOME" to go back to MENU.
DEB
21-12-2018 M-759.03-EN-AB 759-03/8
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

7.4 DESIGNATION
It is recommended to name each channel (main unit A and Extension unit B):
1) Press on icon A or B according to the instrument you wish to rename.
2) A keyboard appears, enter the new name.
3) Save to record the new designation.
8. CONSULTATION / MODIFICATION
CONSULTATION mode allows the operator to check out all working parameters.
This mode is represented by the closed padlock icon.
To change the settings of the BAMOPHAR, you need to enter in the MODIFICATION mode.
This mode is protected by a password identical to the last 4 digits of the serial number.
On the main display, press MENU icon.
Press the padlock icon and type the 4 last digits of Serial Number.
To confirm, press "OK"; BAMOPHAR is now in MODIFICATION mode (padlock open)
If the entered keyword is wrong, an error message appears (****), pending correct keyword.
After 30 minutes the mode MODIFICATION switches back to CONSULTATION mode.
Where can we find the serial number?
The serial number (SN) is written on the identification label of the BAMOPHAR.
It appears as well in "MENU", icon " i " (INFORMATION).
9. SETTINGS
9.1 SETTING OF MEASUREMENT PARAMETERS
Calculation tables in
memory:
V ISO 28°4 Memorized flow rate tables (Venturi
channels, Weirs, ...)
(A specific flow rate table -on request-
will be indicated as SPECIFIQUE N° -
- - - )
Select one table, then confirm.
LEVEL SENSOR Confirm to access to next step
LOWER : 04.00 mA Enter the value in mA of current from
sensor for lowest level, then confirm.
HIGHER : 20.00 mA Enter the value in mA of current from
sensor for highest level, then confirm.
(With a transmitter BAMOBUL, currents
min. and max. are respectively 4 and
20 mA)
SCALE 0365 mm This step allows to enter the scale of the
level sensor associated with your
BAMOPHAR.
Enter the value, then confirm
SAVE ? To record the settings, press the icon
SAVE
DEB
21-12-2018 M-759.03-EN-AB 759-03/9
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

9.2 THRESHOLD S1 AS ON/OFF MODE
ALARM 1 ON / OFF To set in function the relay, select the ON mode, then confirm.
To disable the relay, select OFF mode, then confirm and save (Icon SAVE)
ALARM 1 MEASUREMENT / TEMP. MEASUREMENT: Threshold dedicated to the flow rate measurement
TEMP.: Threshold dedicated to the temperature measurement
Select your mode, then confirm.
ALARM HIGH / LOW HIGH: Triggering takes place as soon as measurement is greater than the threshold
LOW: Triggering takes place as soon as the measurement is lower than the threshold
Select the right triggering mode, then confirm
ON 1000 m³ Enter the value at which relay S1 will be actuated, then confirm.
OFF 0950 m³ Enter the value at which relay S1 will be deactivated, then confirm.
DELAY UP ON / OFF With (ON) or without (OFF) pick-up delay for relay; then confirm.
TIME 0000 Sec Enter a delay duration for relay S1, then confirm.
DELAY DOWN ON / OFF With or without dropout delay for relay S1
TIME 0000 Sec Enter a delay duration for relay; then confirm.
SAVE ? To record the settings, press the icon SAVE
9.3 THRESHOLD S3 SET AS ON/OFF MODE AND ASSIGNMENT TO EXTERNAL SENSOR
Go to the menu ALARM 3
Setting sequences of S3 are identical to settings of S1 (see previous chapter)
THRESHOLD S3 has a second function: assignment to an external sensor (see further on)
ALARM 3 ON / OFF Select the “ON” mode in order to activate the relay; Then confirm.
EXTERN NO / YES NO: Setting will follow same sequences as per relays S1 in mode ON/OFF
YES = assignment of signal from external sensor to relay S3
The relay S3 becomes a N.C. contact; It will open when the function Regulation is in standby.
SAVE ? To record the settings, press the icon SAVE
9.4 SETTING THE SAMPLER CONTROL (Relay S2)
Go to the menu SAMPLER CONTROL
SAMP. CONT. ON / OFF To set the sampler control select ON ; then confirm.
ON 005.0 m³ Enter the value at which relay S2 will be actuated (sampling begins); then confirm.
PULSE SIGNAL Confirm
TIME 0001 Sec Enter the value at which relay S2 keeps actuated (pulse duration), then confirm and SAVE.
9.5 SETTING THE TEMPERATURE
Go to the menu TEMPERATURE
MEASURE : AUTO / MANUAL AUTO : Temperature is displayed if a Pt 100 sensor is connected
MANUAL : Without Pt 100 sensor connected, enter the temperature manually.
Confirm
FLUID T. +025.0 °C In the MANUAL mode, enter the temperature of the liquid, then confirm.
SAVE ? To record the settings, press the icon SAVE
DEB
21-12-2018 M-759.03-EN-AB 759-03/10
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL

9.6 mA OUTPUT SETTINGS FOR THE MEASUREMENT
Go to the menu OUTPUT mA FLOW
HIGHER 0360 m3 Enter the measured value for which the output is 20 mA, then confirm.
LOWER 0000 m3 Enter the measured value for which the output is 0 or 4 mA, then confirm.
OUTPUT 4/20 mA or 0/20 mA Select the output signal type, then confirm.
SAVE ? To record the settings, press the icon SAVE
9.7 mA OUTPUT SETTINGS FOR THE TEMPERATURE
Go to the menu OUTPUT mA TEMP.
HIGHER +160.0 °C Enter the temperature value for which the output is 20 mA, then confirm.
LOWER +000.0 °C Enter the temperature value for which the output is 0 or 4 mA, then confirm.
OUTPUT 4/20 mA or 0/20 mA Select the output signal type, then confirm.
SAVE ? To record the settings, press the icon SAVE
9.8 SIMULATION ON RELAYS
With the menu FORCED RELAY, it is possible to manually test (force) relays S1, S2, S3 and S4.
Last one, S4, is N.O. by default.
The test begins by relay S1.
The respective relay can be switched from OFF (open) to ON (closed).
Confirm to go to the next relay, then to go back to previous menu.
9.9 RESET THE DAILY VOLUME TO ZERO
Go to the menu RAZ Volume Jour = Rest daily volume to zero.
RESET D.V. YES / NO Sélect YES to reset the counter to 0 on daily volume, then confirm, and SAVE.
DEB
21-12-2018 M-759.03-EN-AB 759-03/11
Flow calculator
BAMOPHAR 759
22, Rue de la Voie des Bans · Z.I. de la gare · 95100 ARGENTEUIL
Tel
Fax
[phone]
[phone]
Web
E-mail
www.bamo.eu
[email protected]
INTERNATIONAL
