B&R MAAP9x3-ENG User manual

1
Automation Panel 9x3
User's Manual
Version: 1.00 (December 2013)
Model no.: MAAP9x3-ENG
All information contained in this manual is current as of its creation/publication. B&R reserves the right to change
the contents of this manual without notice. The information contained herein is believed to be accurate as of
the date of publication; however, Bernecker + Rainer Industrie-Elektronik Ges.m.b.H. makes no warranty, ex-
pressed or implied, with regard to the products or documentation contained within this manual. In addition,
Bernecker + Rainer Industrie-Elektronik Ges.m.b.H. shall not be liable for any incidental or consequential damages
in connection with or arising from the furnishing, performance or use of the product(s) in this documentation. Soft-
ware names, hardware names and trademarks are registered by their respective companies.

2
Chapter 1: General information
Chapter 2: Technical data
Chapter 3: Installation
Chapter 4: Standards and certifications
Chapter 5: Accessories
Chapter 6: Maintenance and service
Appendix A

Table of contents
Table of contents
Automation Panel 9x3 User's Manual V1.00 3
Chapter 1 General information................................................................................... 6
1 Manual history....................................................................................................................................................6
2 Safety guidelines................................................................................................................................................7
2.1 Intended use.................................................................................................................................................7
2.2 Protection against electrostatic discharge....................................................................................................7
2.2.1 Packaging................................................................................................................................................7
2.2.2 Guidelines for proper ESD handling.......................................................................................................7
2.3 Policies and procedures...............................................................................................................................7
2.4 Transport and storage..................................................................................................................................8
2.5 Installation.....................................................................................................................................................8
2.6 Operation...................................................................................................................................................... 8
2.6.1 Protection against touching electrical parts............................................................................................8
2.6.2 Environmental conditions - Dust, humidity, aggressive gases............................................................... 8
2.6.3 Viruses and dangerous programs.......................................................................................................... 8
2.7 Environmentally friendly disposal................................................................................................................. 9
2.7.1 Separation of materials...........................................................................................................................9
3 Organization of safety notices......................................................................................................................... 10
4 Guidelines.........................................................................................................................................................10
5 Overview...........................................................................................................................................................11
Chapter 2 Technical data.......................................................................................... 12
1 Introduction.......................................................................................................................................................12
1.1 About this user's manual............................................................................................................................12
1.2 Description of individual modules...............................................................................................................12
1.2.1 Display units..........................................................................................................................................12
1.2.2 Link modules.........................................................................................................................................12

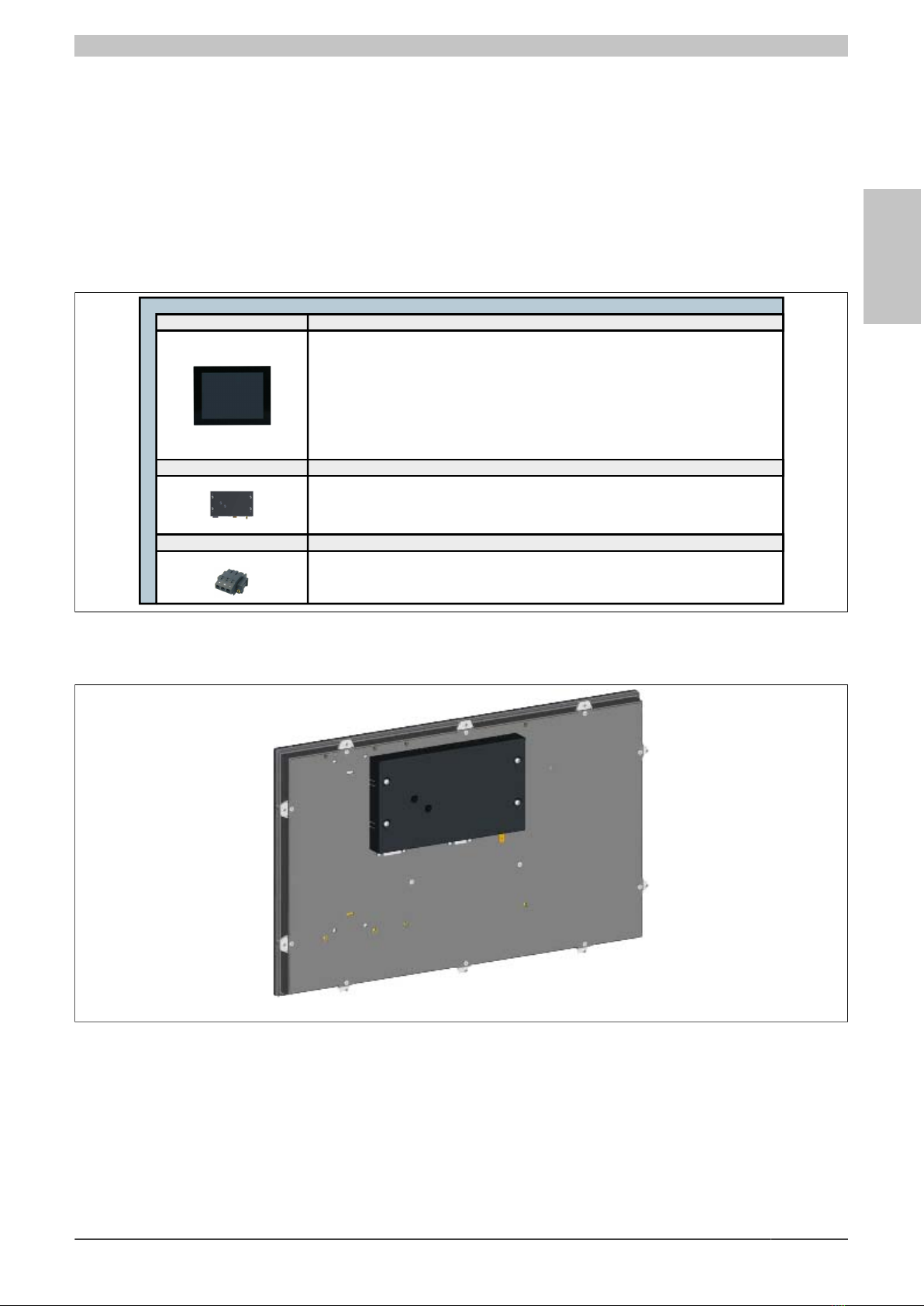

1.3 Structure/Configuration............................................................................................................................... 13
1.3.1 Configuration......................................................................................................................................... 13
2 Complete system............................................................................................................................................. 14

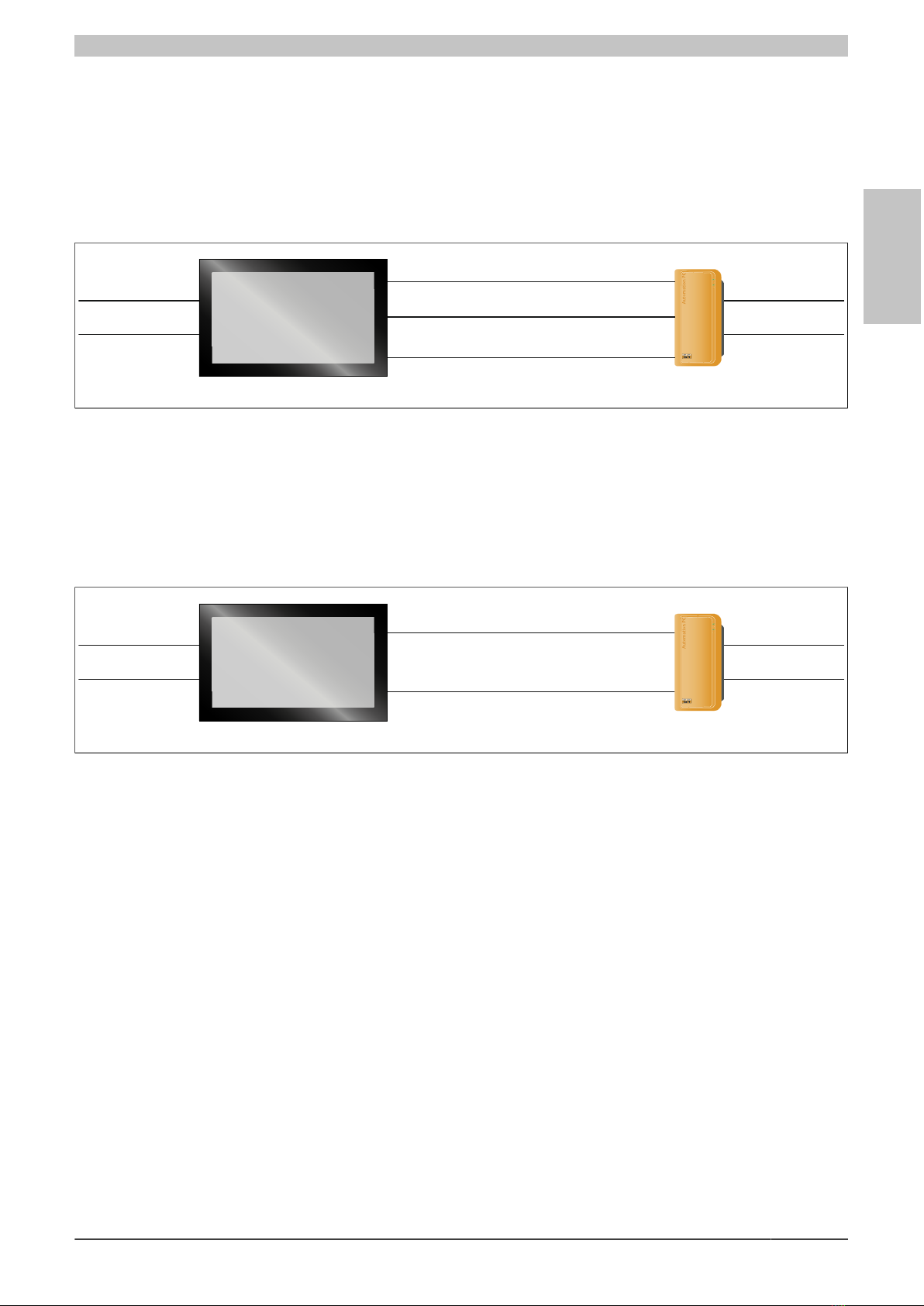

2.1 Connection options.....................................................................................................................................14
2.1.1 SDL operating mode.............................................................................................................................14
2.1.2 DVI operating mode..............................................................................................................................15
2.2 Mechanical characteristics..........................................................................................................................16
2.2.1 Dimensions............................................................................................................................................16
2.2.2 Installation diagrams............................................................................................................................. 17
2.2.3 Spacing for air circulation..................................................................................................................... 18
2.2.4 Mounting orientations............................................................................................................................19
2.2.5 Weight specifications............................................................................................................................ 20
2.3 Environmental characteristics.....................................................................................................................21
2.3.1 Temperature specifications................................................................................................................... 21
2.3.2 Humidity.................................................................................................................................................22
2.3.3 Vibration................................................................................................................................................ 23
2.3.4 Shock.....................................................................................................................................................23
2.3.5 Protection.............................................................................................................................................. 23
2.4 Electrical characteristics............................................................................................................................. 24
2.4.1 +24 VDC supply voltage.......................................................................................................................24
2.4.2 Power calculation.................................................................................................................................. 24
2.4.3 Block diagram....................................................................................................................................... 25
2.5 Device interfaces - 5DLSDL.1001-00 - SDL/DVI receiver......................................................................... 26
2.5.1 Overview................................................................................................................................................26
2.5.2 +24 VDC supply voltage.......................................................................................................................27
2.5.3 Panel In interface..................................................................................................................................28
2.5.4 USB interfaces...................................................................................................................................... 30
2.5.5 USB In interface....................................................................................................................................30
2.5.6 COM serial interface............................................................................................................................. 31
2.5.7 Brightness controls................................................................................................................................31
3 Individual components..................................................................................................................................... 32

Table of contents
4 Automation Panel 9x3 User's Manual V1.00
3.1 Display units............................................................................................................................................... 32
3.1.1 5AP923.1215-00....................................................................................................................................32
3.1.2 5AP923.1505-00....................................................................................................................................34
3.1.3 5AP923.1906-00....................................................................................................................................36
3.1.4 5AP933.156B-00................................................................................................................................... 38
3.1.5 5AP933.185B-00................................................................................................................................... 40
3.1.6 5AP933.215C-00................................................................................................................................... 42
3.1.7 5AP933.240C-00................................................................................................................................... 44
3.2 Link modules.............................................................................................................................................. 46
3.2.1 5DLSDL.1001-00...................................................................................................................................46
Chapter 3 Installation.................................................................................................47
1 Installation........................................................................................................................................................ 47
1.1 Mounting an Automation Panel 9x3...........................................................................................................47
1.2 Replacing link modules.............................................................................................................................. 49
2 Connecting to the power mains.......................................................................................................................50
2.1 Installing the DC mains cable.................................................................................................................... 50
2.1.1 Wiring.................................................................................................................................................... 50
2.2 Connecting the power supply to a B&R device......................................................................................... 51
2.3 Grounding concept functional ground........................................................................................................ 52
3 Cable connections............................................................................................................................................53
4 Switching on for the first time..........................................................................................................................54
4.1 General information before switching on................................................................................................... 54
4.2 Switching on the Automation Panel........................................................................................................... 54
5 Touch screen calibration.................................................................................................................................. 55
5.1 Single-touch (analog resistive)................................................................................................................... 55
5.1.1 Windows 7 Professional / Ultimate.......................................................................................................55
5.1.2 Windows Embedded Standard 7 Embedded / Premium......................................................................55
5.1.3 Windows XP Professional.....................................................................................................................55
5.1.4 Windows Embedded Standard 2009.................................................................................................... 55
5.2 Multi-touch (PCT - Projected capacitive)................................................................................................... 55
5.2.1 Windows 7 Professional / Ultimate.......................................................................................................55
5.2.2 Windows Embedded Standard 7 Premium...........................................................................................55
6 Adjusting the display brightness...................................................................................................................... 56
6.1 Adjusting in SDL mode.............................................................................................................................. 56
6.2 Adjusting in DVI mode............................................................................................................................... 56
Chapter 4 Standards and certifications................................................................... 57
1 Standards and guidelines................................................................................................................................ 57
1.1 CE mark......................................................................................................................................................57
1.2 EMC directive............................................................................................................................................. 57
1.3 Low voltage directive..................................................................................................................................57
2 Certifications.....................................................................................................................................................58
2.1 UL certification............................................................................................................................................58
Chapter 5 Accessories.............................................................................................. 59
1 Power connectors............................................................................................................................................ 59
1.1 0TB103.9x...................................................................................................................................................59
1.1.1 General information...............................................................................................................................59
1.1.2 Order data.............................................................................................................................................59
1.1.3 Technical data.......................................................................................................................................59
2 USB flash drives.............................................................................................................................................. 61
2.1 5MMUSB.xxxx-01....................................................................................................................................... 61
2.1.1 General information...............................................................................................................................61
2.1.2 Order data.............................................................................................................................................61
2.1.3 Technical data.......................................................................................................................................61
2.1.4 Temperature humidity diagram.............................................................................................................62

Table of contents
Table of contents
Automation Panel 9x3 User's Manual V1.00 5
3 Cables.............................................................................................................................................................. 63
3.1 DVI cables.................................................................................................................................................. 63
3.1.1 5CADVI.0xxx-00.................................................................................................................................... 63
3.2 SDL cables................................................................................................................................................. 66
3.2.1 5CASDL.0xxx-00................................................................................................................................... 66
3.3 SDL cables with 45° male connector.........................................................................................................69
3.3.1 5CASDL.0xxx-01................................................................................................................................... 69
3.4 SDL flex cables.......................................................................................................................................... 72
3.4.1 5CASDL.0xxx-03................................................................................................................................... 72
3.5 SDL flex cables with extender................................................................................................................... 75
3.5.1 5CASDL.0xx0-13...................................................................................................................................75
3.6 USB cables.................................................................................................................................................79
3.6.1 5CAUSB.00xx-00.................................................................................................................................. 79
3.7 RS232 cables............................................................................................................................................. 80
3.7.1 9A0014.xx............................................................................................................................................ 80
Chapter 6 Maintenance and service.........................................................................82
1 Cleaning........................................................................................................................................................... 82
2 Tips for extending the service life of the display.............................................................................................83
2.1 Backlight..................................................................................................................................................... 83
2.1.1 How can the service life of the backlight be extended?.......................................................................83
2.2 Screen burn-in............................................................................................................................................ 83
2.2.1 What causes screen burn-in?...............................................................................................................83
2.2.2 How can screen burn-in be avoided?...................................................................................................83
3 Pixel errors....................................................................................................................................................... 83
Appendix A ................................................................................................................ 84
1 Abbreviations....................................................................................................................................................84
2 Viewing angles.................................................................................................................................................84

General information • Manual history
6 Automation Panel 9x3 User's Manual V1.00
Chapter 1 • General information
1 Manual history
Version Date Change
1.00 10-Dec-13 •First version
Table 1: Manual history

General information • Safety guidelines
Chapter 1
General information
Automation Panel 9x3 User's Manual V1.00 7
2 Safety guidelines
2.1 Intended use
Programmable logic controllers (PLCs), operating/monitoring devices (industrial PCs, Power Panels, Mobile Pan-
els, etc.), and B&R uninterruptible power supplies have been designed, developed and manufactured for conven-
tional use in industrial environments. They were not designed, developed and manufactured for any use involving
serious risks or hazards that could lead to death, injury, serious physical damage or loss of any kind without the
implementation of exceptionally stringent safety precautions. In particular, such risks and hazards include the use
of these devices to monitor nuclear reactions in nuclear power plants, their use in flight control or flight safety sys-
tems as well as in the control of mass transportation systems, medical life support systems or weapons systems.
2.2 Protection against electrostatic discharge
Electrical components that can be damaged by electrostatic discharge (ESD) must be handled accordingly.
2.2.1 Packaging
•Electrical components with a housing
...Do not require special ESD packaging but must be handled properly (see "Electrical components with
a housing").
•Electrical components without a housing
…Must be protected by ESD-suitable packaging.
2.2.2 Guidelines for proper ESD handling
Electrical components with a housing
•Do not touch the connector contacts on connected cables.
•Do not touch the contact tips on circuit boards.
Electrical components without a housing
The following applies in addition to the points listed under "Electrical components with a housing":
•Any persons handling electrical components or devices with installed electrical components must be
grounded.
•Components may only be touched on their narrow sides or front plate.
•Components should always be stored in a suitable medium (ESD packaging, conductive foam, etc.). Metal-
lic surfaces are not suitable storage surfaces!
•Components should not be subjected to electrostatic discharge (e.g. through the use of charged plastics).
•Ensure a minimum distance of 10 cm from monitors and TV sets.
•Measurement devices and equipment must be grounded.
•Measurement probes on potential-free measurement devices must be discharged on sufficiently grounded
surfaces before taking measurements.
Individual components
•ESD protective measures for individual components are thoroughly integrated at B&R (conductive floors,
footwear, arm bands, etc.).
•These increased ESD protective measures for individual components are not necessary for customers
handling B&R products.
2.3 Policies and procedures
Electronic devices are never completely fail-safe. If the programmable control system, operating/monitoring device
or uninterruptible power supply fails, the user is responsible for ensuring that other connected devices, e.g. motors,
are brought to a secure state.

General information • Safety guidelines
8 Automation Panel 9x3 User's Manual V1.00
When using programmable logic controllers or operating/monitoring devices as control systems together with a Soft
PLC (e.g. B&R Automation Runtime or comparable product) or Slot PLC (e.g. B&R LS251 or comparable product),
safety precautions relevant to industrial control systems (e.g. the provision of safety devices such as emergency
stop circuits, etc.) must be observed in accordance with applicable national and international regulations. The same
applies for all other devices connected to the system, such as drives.
All tasks such as the installation, commissioning and servicing of devices are only permitted to be carried out by
qualified personnel. Qualified personnel are those familiar with the transport, mounting, installation, commissioning
and operation of devices who also have the appropriate qualifications (e.g. IEC 60364). National accident preven-
tion regulations must be observed.
The safety notices, connection descriptions (nameplate and documentation) and limit values listed in the technical
data are to be read carefully before installation and commissioning and must be observed.
2.4 Transport and storage
During transport and storage, devices must be protected against undue stress (mechanical loads, temperature,
humidity, aggressive atmospheres, etc.).
2.5 Installation
•Installation must be performed according to this documentation using suitable equipment and tools.
•Devices may only be installed by qualified personnel without voltage applied. Before installation, voltage
to the control cabinet must be switched off and prevented from being switched on again.
•General safety guidelines and national accident prevention regulations must be observed.
•Electrical installation must be carried out according to applicable guidelines (e.g. line cross sections, fuses,
protective ground connections).
2.6 Operation
2.6.1 Protection against touching electrical parts
To operate programmable logic controllers, operating/monitoring devices or uninterruptible power supplies, it is
necessary for certain parts to carry dangerous voltage levels over 42 VDC. Touching one of these parts can result
in a life-threatening electric shock. This could lead to death, severe injury or damage to equipment.
Before turning on the programmable logic controller, operating/monitoring devices or the uninterruptible power
supply, the housing must be properly grounded (PE rail). Ground connections must be established even when
testing or operating operating/monitoring devices or the uninterruptible power supply for a short time!
Before turning the device on, all parts that carry voltage must be securely covered. During operation, all covers
must remain closed.
2.6.2 Environmental conditions - Dust, humidity, aggressive gases
The use of operating/monitoring devices (e.g. industrial PCs, Power Panels, Mobile Panels, etc.) and uninterruptible
power supplies in very dusty environments should be avoided. Dust collection on the devices can affect functionality
and may prevent sufficient cooling, especially in systems with active cooling systems (fans).
The presence of aggressive gases can also lead to malfunctions. When combined with high temperature and
humidity, aggressive gases – e.g. with sulfur, nitrogen and chlorine components – can induce chemical reactions
that can damage electronic components very quickly. Signs of the presence of aggressive gases are blackened
copper surfaces and cable ends on existing equipment.
For operation in dusty or humid conditions, correctly installed (e.g. cutout installations) operating/monitoring devices
like the Automation Panel or Power Panel are protected on the front. The back of all devices must be protected
from dust and humidity and cleaned at suitable intervals.
2.6.3 Viruses and dangerous programs
This system is subject to potential risk each time data is exchanged or software is installed from a data medium
(e.g. diskette, CD-ROM, USB flash drive, etc.), a network connection or the Internet. The user is responsible for
assessing these dangers, implementing preventive measures such as virus protection programs, firewalls, etc. and
making sure that software is only obtained from trusted sources.

General information • Safety guidelines
Chapter 1
General information
Automation Panel 9x3 User's Manual V1.00 9
2.7 Environmentally friendly disposal
All B&R programmable controllers, operating/monitoring devices and uninterruptible power supplies are designed
to inflict as little harm as possible on the environment.
2.7.1 Separation of materials
It is necessary to separate different materials so the device can undergo an environmentally friendly recycling
process.
Component Disposal
Programmable logic controllers
Operating/monitoring devices
Uninterruptible power supply
Batteries and rechargeable batteries
Cables
Electronics recycling
Cardboard box / paper packaging Paper / cardboard recycling
Plastic packaging Plastic recycling
Table 2: Environmentally friendly separation of materials
Disposal must comply with applicable legal regulations.

General information • Guidelines
10 Automation Panel 9x3 User's Manual V1.00
3 Organization of safety notices
Safety notices in this manual are organized as follows:
Safety notice Description
Danger! Disregarding these safety guidelines and notices can be life-threatening.
Warning! Disregarding these safety guidelines and notices can result in severe injury or substantial damage to equipment.
Caution! Disregarding these safety guidelines and notices can result in injury or damage to equipment.
Information: This information is important for preventing errors.
Table 3: Description of the safety notices used in this documentation
4 Guidelines
E
European dimension standards apply to all dimension diagrams in this document.
All dimensions are specified in mm.
Range of nominal sizes General tolerance according to
DIN ISO 2768 (medium)
Up to 6 mm ± 0.1 mm
For 6 to 30 mm ± 0.2 mm
For 30 to 120 mm ± 0.3 mm
For 120 to 400 mm ± 0.5 mm
For 400 to 1000 mm ± 0.8 mm
Table 4: Range of nominal sizes

General information • Overview
Chapter 1
General information
Automation Panel 9x3 User's Manual V1.00 11
5 Overview
Product ID Short description on page
DVI cable
5CADVI.0018-00 DVI-D cable, 1.8 m 63
5CADVI.0050-00 DVI-D cable, 5 m 63
5CADVI.0100-00 DVI-D cable, 10 m 63
RS232 cable
9A0014.02 RS232 extension cable for remote operation of a display unit with touch screen, 1.8 m 80
9A0014.05 RS232 extension cable for remote operation of a display unit with touch screen, 5 m 80
9A0014.10 RS232 extension cable for remote operation of a display unit with touch screen, 10 m 80
SDL cable - 45° connector
5CASDL.0018-01 SDL cable with 45° male connector, 1.8 m 69
5CASDL.0050-01 SDL cable with 45° male connector, 5 m 69
5CASDL.0100-01 SDL cable with 45° male connector, 10 m 69
5CASDL.0150-01 SDL cable with 45° male connector, 15 m 69
SDL cables
5CASDL.0018-00 SDL cable, 1.8 m 66
5CASDL.0050-00 SDL cable, 5 m 66
5CASDL.0100-00 SDL cable, 10 m 66
5CASDL.0150-00 SDL cable, 15 m 66
5CASDL.0200-00 SDL cable, 20 m 66
5CASDL.0250-00 SDL cable, 25 m 66
5CASDL.0300-00 SDL cable, 30 m 66
SDL flex cable
5CASDL.0018-03 SDL flex cable, 1.8 m 72
5CASDL.0050-03 SDL flex cable, 5 m 72
5CASDL.0100-03 SDL flex cable, 10 m 72
5CASDL.0150-03 SDL flex cable, 15 m 72
5CASDL.0200-03 SDL flex cable, 20 m 72
5CASDL.0250-03 SDL flex cable, 25 m 72
5CASDL.0300-03 SDL flex cable, 30 m 72
5CASDL.0300-13 SDL flex cable with extender, 30 m 75
5CASDL.0400-13 SDL flex cable with extender, 40 m 75
5CASDL.0430-13 SDL flex cable with extender, 43 m 75
Terminal blocks
0TB103.9 Connector, 24 VDC, 3-pin female, 3.31 mm² screw clamp, protected against vibration by the screw flange 59
0TB103.91 Connector, 24 VDC, 3-pin female, 3.31 mm² cage clamp, protected against vibration by the screw flange 59
USB accessories
5MMUSB.2048-01 USB 2.0 flash drive, 2048 MB, B&R 61
5MMUSB.4096-01 USB 2.0 flash drive, 4096 MB, B&R 61
USB cable
5CAUSB.0018-00 USB 2.0 connection cable type A - type B, 1.8 m 79
5CAUSB.0050-00 USB 2.0 connection cable type A - type B, 5 m 79
Undefined
5AP923.1215-00 Automation Panel 12.1" XGA TFT - 1024 x 768 pixels (4:3) - Single-touch (analog resistive) - IP65 protection
(front)
32
5AP923.1505-00 Automation Panel 15.0" XGA TFT - 1024 x 768 pixels (4:3) - Single-touch (analog resistive) - IP65 protection
(front)
34
5AP923.1906-00 Automation Panel 19.0" SXGA TFT - 1280 x 1024 pixels (4:3) - Single-touch (analog resistive) - IP65 protection
(front)
36
5AP933.156B-00 Automation Panel 15.6" HD TFT - 1366 x 768 pixels (16:9) - Multi-touch (projected capacitive) - IP65 protection
(front)
38
5AP933.185B-00 Automation Panel 18.5" HD TFT - 1366 x 768 pixels (16:9) - Multi-touch (projected capacitive) - IP65 protection
(front)
40
5AP933.215C-00 Automation Panel 21.5" Full HD TFT - 1920 x 1080 pixels (16:9) - Multi-touch (projected capacitive) - IP65
protection (front)
42
5AP933.240C-00 Automation Panel 24.0" Full HD TFT - 1920 x 1080 pixels (16:9) - Multi-touch (projected capacitive) - IP65
protection (front)
44
5DLSDL.1001-00 Automation Panel Link module SDL/DVI - Receiver - For Automation Panel 923/933 46

Technical data • Introduction
12 Automation Panel 9x3 User's Manual V1.00
Chapter 2 • Technical data
1 Introduction
1.1 About this user's manual
This user's manual contains all relevant information about a functioning Automation Panel 9x3 rack-mounted de-
vice.
This user's manual applies to the modular Automation Panel 9x3 product generations. Information about Automa-
tion Panel 920, 980, 981 and 982 systems can be found in the Automation Panel 900 user's manual.
1.2 Description of individual modules
1.2.1 Display units
Display units consist of a display and touch screen and form the basis for each Automation Panel 9x3 and Panel
PC 900 System. Different display sizes and touch screen technologies are available. These display units can be
operated exclusively as a complete system together with a link module (Automation Panel 9x3) or CPU board and
system unit (Panel PC 900).
Model numbers for display units with single-touch technology begin with 5AP923.xxxx-xx; those for display units
with multi-touch technology begin with 5AP933.xxxx-xx.
1.2.2 Link modules
Link modules have various graphics interfaces and connections. A functioning Automation Panel 9x3 is put together
by installing a link module in a display unit. Automation Panel 9x3 systems are mounted using retaining clips.
A link module cannot function without a display unit.

Technical data • Introduction
Chapter 2
Technical data
Automation Panel 9x3 User's Manual V1.00 13
1.3 Structure/Configuration
Automation Panel 9x3 and Panel PC900 systems can be assembled to meet individual requirements and operating
conditions. Automation Panel 9x3 and Panel PC 900 systems are so flexible that an Automation Panel can be
rebuilt into a Panel PC and a Panel PC into an Automation Panel.
1.3.1 Configuration
The following components are absolutely essential for operation as an Automation Panel 9x3:
•Display unit
•Link module
Display unit
Configuration - Base system
Select 1
5DLSDL.1001-00 SDL/DVI receiver
Link module Select 1
Select 1
Terminal blocks
5AP923.1215-00 12.1" XGA single-touch
5AP923.1505-00 15.0" XGA single-touch
5AP923.1906-00 19.0" SXGA single-touch
5AP933.156B-00 15.6" HD multi-touch
5AP933.185B-00 18.5" HD multi-touch
5AP933.215C-00 21.5" FHD multi-touch
5AP933.240C-00 24.0" FHD multi-touch
0TB103.9
0TB103.91
Power connectors
Figure 1: Automation Panel 9x3 - Configuration
Configuration options
Automation Panel 9x3 with SDL / DVI link module
Figure 2: Automation Panel 9x3 - Display unit and link module

Technical data • Complete system
14 Automation Panel 9x3 User's Manual V1.00
2 Complete system
2.1 Connection options
The Automation Panel 9x3 / 9xD can be connected to a B&R Industrial PC in SDL and DVI operating modes. The
connection options listed below provide an overview of the operating modes and possible limitations.
2.1.1 SDL operating mode
2.1.1.1 SDL Operating Mode 1
SDL operating mode 1 allows all communication between the Automation Panel and a B&R Industrial PC to be
handled using a SDL single cable.
This not only includes the display data, but also touch screen, matrix key, LED, service and diagnostic data. The
Automation Panel can be installed up to 40 m from the B&R Industrial PC. USB 1.1 is fully integrated in SDL and
transferred over this distance as well without the need for external modules.
The brightness of the display can be configured using the ADI Control Center.
Automation Panel 9x3 / 9xD
with SDL / DVI receiver
B&R Industrial PC
SDL cables
SDL operating mode 1
Supply voltage
Grounding
Supply voltage
Grounding
Availability of interfaces on the Automation Panel 9x3 / 9xD:
Panel In interface ✓USB In xSupply voltage ✓Brightness controls x
USB1, USB2 ✓ USB 1.1 COM touch interface xGrounding ✓
Maximum cable length: 40 m
2.1.1.2 SDL Operating Mode 2
In SDL operating mode 2, communication between the Automation Panel and the B&R Industrial PC takes place
using an SDL cable connected to the Panel In interface and a USB type B cable connected to the USB In interface.
Data from the display, resistive touch screen, matrix keys and service/diagnostic data is transferred via the SDL
cable. Multi-touch touch screen data is transferred over the USB cable. The Automation Panel can be installed up
to 5 m (USB specification) away from the B&R Industrial PC. This distance allows USB 2.0 data to be transferred
over the USB cable. External modules are not necessary.
The brightness of the display can be configured using the ADI Control Center.
SDL cables
USB type B cable
Automation Panel 9x3 / 9xD
with SDL / DVI receiver
SDL operating mode 2
B&R Industrial PC
Supply voltage
Grounding
Supply voltage
Grounding
Availability of interfaces on the Automation Panel 9x3 / 9xD:
Panel In interface ✓USB In ✓ USB 2.0 Supply voltage ✓Brightness controls x
USB1, USB2 ✓ USB 2.0 COM touch interface xGrounding ✓
Maximum cable length: 5 m

Technical data • Complete system
Chapter 2
Technical data
Automation Panel 9x3 User's Manual V1.00 15
2.1.2 DVI operating mode
In DVI operating mode, all signals necessary to operate the Automation Panel are each transferred over a separate
cable. The brightness of the display can be configured using the brightness button.
2.1.2.1 DVI operating mode with AP923 / AP92D single-touch
If an Automation Panel 923 / 92D with a resistive touch screen (single-touch) is operated with DVI, then a DVI,
USB type B and RS232 cable must be connected.
Automation Panel 923 / 92D single-touch
with SDL / DVI receiver
USB type B cable
DVI operating mode single-touch
RS232 cables
DVI cables
Industrial PC
Supply voltage
Grounding
Supply voltage
Grounding
Availability of interfaces on the Automation Panel 923 / 92D:
Panel In interface ✓USB In ✓ USB 2.0 Supply voltage ✓Brightness controls ✓
USB1, USB2 ✓ USB 2.0 COM touch interface ✓Grounding ✓
Maximum cable length: 5 m
2.1.2.2 DVI operating mode with AP933 / AP93D / AP99D multi-touch
If an Automation Panel 933 / 93D / 99D with PCT touch screen (multi-touch) is operated with DVI, then a DVI and
USB type B cable must be connected.
DVI cables
USB type B cable
Automation Panel 933 / 93D / 99D multi-touch
with SDL / DVI receiver
DVI operating mode multi-touch
Industrial PC
Supply voltage
Grounding
Supply voltage
Grounding
Availability of interfaces on the Automation Panel 933 / 93D / 99D:
Panel In interface ✓USB In ✓ USB 2.0 Supply voltage ✓Brightness controls ✓
USB1, USB2 ✓ USB 2.0 COM touch interface xGrounding ✓
Maximum cable length: 5 m

Technical data • Complete system
16 Automation Panel 9x3 User's Manual V1.00
2.2 Mechanical characteristics
2.2.1 Dimensions
B
A
K
E
J
GH
F
C
D
I
Figure 3: Automation Panel 9x3 + link module - Dimensions
All dimensions are specified in mm.
Display type Model number A B C D E F G
12" single-touch 5AP923.1215-00 315 239 302 48 9 226 13.5
15" single-touch 5AP923.1505-00 370 288 357 84.5 9 275 14.5
19" single-touch 5AP923.1906-00 440 358 427 149 9 345 23
15" widescreen multi-touch 5AP933.156B-00 414 258.5 401 105.5 9 245.5 20
18" widescreen multi-touch 5AP933.185B-00 475 295 462 166.5 9 282 18
21" widescreen multi-touch 5AP933.215C-00 541.5 333 528.5 199.75 9 320 18
24" widescreen multi-touch 5AP933.240C-00 598.5 364 585.5 228.25 9 351 18
Table 5: Display unit - Dimensions
Link module type Model number H I J K
SDL/DVI receiver 5DLSDL.1001-00 23.6 13.5 110 190
Table 6: Link modules - Dimensions
Information:
3D diagrams are available upon request or can be downloaded from the B&R website www.br-
automation.com.

Technical data • Complete system
Chapter 2
Technical data
Automation Panel 9x3 User's Manual V1.00 17
2.2.2 Installation diagrams
Information:
When installing the Automation Panel 9x3, spacing for air circulation as well as additional clearance
for device operation and maintenance must be taken into consideration.
Y
X
Z
Figure 4: Automation Panel 9x3 + link module - Installation diagram
All dimensions are specified in mm.
Display type Model number X Y Z min Z max Number of retaining clips
12" single-touch 5AP923.1215-00 304 228 1 6 10 pcs.
15" single-touch 5AP923.1505-00 359 277 1 6 10 pcs.
19" single-touch 5AP923.1906-00 429 347 1 6 12 pcs.
15" widescreen multi-touch 5AP933.156B-00 403 247.5 1 6 10 pcs.
18" widescreen multi-touch 5AP933.185B-00 464 284 1 6 10 pcs.
21" widescreen multi-touch 5AP933.215C-00 530.5 322 1 6 14 pcs.
24" widescreen multi-touch 5AP933.240C-00 587.5 353 1 6 14 pcs.
Table 7: Display units - Installation diagrams
The "Z" dimension indicates the thickness of the wall or control cabinet panel.
A hex-head screwdriver is needed to tighten and loosen the screws on the retaining clips. The maximum torque
for the retaining clips is 1 Nm.

Technical data • Complete system
18 Automation Panel 9x3 User's Manual V1.00
2.2.3 Spacing for air circulation
In order to guarantee sufficient air circulation, the specified amount of space above, below, to the side and behind
the device must be provided. The minimum specified spacing is indicated in the following diagram. This applies
to all variants.
Information:
The following image and table provides a thermal examination of the complete system. If additional
space is needed to operate or maintain the device, this must be taken into consideration during instal-
lation.
Rear view Side view
S1S1
S4
S2S2
S3 S3
Figure 5: Automation Panel 9x3 - Spacing for air circulation
S1: ≥20 mm
S2: ≥50 mm
S3: ≥50 mm
S4: ≥50 mm
Caution!
The spacing specifications for air circulation are based on the worst-case scenario for operation at
the maximum specified ambient temperature. The maximum specified ambient temperature must not
be exceeded!
If the spacing specifications for air circulation cannot be adhered to, then the maximum specified
temperatures for the temperature sensors (see "Temperature sensor locations" on page 22) must
be monitored by the user and appropriate measures taken if they are exceeded.

Technical data • Complete system
Chapter 2
Technical data
Automation Panel 9x3 User's Manual V1.00 19
2.2.4 Mounting orientations
The following diagrams show the approved mounting orientations for the Automation Panel 9x3. The AP9x3 must
be mounted as described in the following sections.
C
D
A
B
0° 0°
Figure 6: Automation Panel 9x3 - Mounting orientation
Mounting orientation Ambient temperature limitation
0° 0° None
A -90° (counterclockwise) None
B +90° (clockwise) None
C, D ±180° (interfaces on top) None
C -45° None
D +90° (display downwards) None
Table 8: Mounting orientations in operation
In order to facilitate natural air circulation, devices must be mounted according to the spacing indicated in the
section "Spacing for air circulation" on page 18.

Technical data • Complete system
20 Automation Panel 9x3 User's Manual V1.00
2.2.5 Weight specifications
All weights are specified in g (grams).
Display type Model number Weight
12" single-touch 5AP923.1215-00 2200
15" single-touch 5AP923.1505-00 3700
19" single-touch 5AP923.1906-00 5800
15" widescreen multi-touch 5AP933.156B-00 3850
18" widescreen multi-touch 5AP933.185B-00 4850
21" widescreen multi-touch 5AP933.215C-00 5400
24" widescreen multi-touch 5AP933.240C-00 7800
Table 9: Display units - Weight
Link module type Model number Weight
SDL/DVI receiver 5DLSDL.1001-00 538
Table 10: Link modules - Weight
