Barco Vision 708 9002357 User manual

INSTALLATION MANUAL
R9002357
R9002358
VISION
708

BARCO PROJECTION SYSTEMS
Date :
200499
INSTALLATION MANUAL
Art. No. :
R5976026A
R9002357
R9002358
VISION
708

Due to constant research, the information in this manual is subject to change without notice.
Produced by BARCO N , April 1999.
All rights reserved.
Trademarks are the rights of their respective owners.
BARCO nv/Projection Systems
Noordlaan 5
B-8520 Kuurne
Belgium
Tel : [phone]
Fax : [phone]
E-mail : [email protected]
Visite Barco at the web : http://www.barco.com
Printed in Belgium

Table of Contents
i-1
5976026A BARCO ISION 708 200499
TABLE OF CONTENTS
i
WARNINGS .............................................................................................................................................................................................. 1-1
SAFETY INSTRUCTIONS ......................................................................................................................................................................... 1-1
On safety ......................................................................................................................................................................................... 1-2
On installation ................................................................................................................................................................................... 1-2
On servicing ..................................................................................................................................................................................... 1-2
On cleaning ...................................................................................................................................................................................... 1-2
On repacking .................................................................................................................................................................................... 1-2
On illumination ................................................................................................................................................................................... 1-2
UNPACKING & DIMENSIONS .................................................................................................................................................................... 2-1
Unpacking ......................................................................................................................................................................................... 2-1
Projector dimensions ........................................................................................................................................................................ 2-2
INSTALLATION GUIDELINES ................................................................................................................................................................... 3-1
* Environment ................................................................................................................................................................................... 3-1
* What about ambient light ? ............................................................................................................................................................ 3-1
* Which screen type? ...................................................................................................................................................................... 3-1
* What image size? How big should the image be? ....................................................................................................................... 3-1
* Where to install the projector? ...................................................................................................................................................... 3-2
* How to install the projector? ......................................................................................................................................................... 3-2
INSTALLATION SET UP ........................................................................................................................................................................... 4-1
Access to controls .......................................................................................................................................................................... 4-1
Scan adaptation ............................................................................................................................................................................... 4-2
PROJECTOR SET UP ................................................................................................................................................................................ 5-1
Projector Set Up ............................................................................................................................................................................... 5-1
Password mode ............................................................................................................................................................................... 5-1
POWER (MAINS) CONNECTION ............................................................................................................................................................... 6-1
Input power (mains) voltage adaptation. ......................................................................................................................................... 6-1
Power (mains) cord connection ...................................................................................................................................................... 6-1
Fuses ............................................................................................................................................................................................... 6-2
Switching on/off .............................................................................................................................................................................. 6-2
INSTALLATION ADJUSTMENTS .............................................................................................................................................................. 7-1
Entering the adjustment mode .......................................................................................................................................................... 7-1
Overview flow chart installation mode. .......................................................................................................................................... 7-2
Installation mode start up ................................................................................................................................................................. 7-2
Scheimpfug adjustment .................................................................................................................................................................... 7-4
Optical lens focusing ....................................................................................................................................................................... 7-5
Electrical focusing ............................................................................................................................................................................ 7-5
Raster centering .............................................................................................................................................................................. 7-6
CRT projection angle adjustment ..................................................................................................................................................... 7-6
Alignment of the projector. .............................................................................................................................................................. 7-9
Appendix A : G2 adjustment .................................................................................................................................................................. A-1

Table of Contents
i-2 5976026A BARCO ISION 708 200499

Safety Instructions
1-1
5976026A BARCO ISION 708 200499
WARNING
TO PREVENT FIRE OR ELECTRICAL SHOC
HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE
FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT)
This equipment has been tested and found to comply with the limits
of a class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Note :
The use of shielded cables is required to comply within the limits of
Part 15 of FCC rules and EN55022.
* All the safety and operating instructions should be read before using
this unit.
* The safety and operating instructions manual should be retained for
future reference.
* All warnings on the equipment and in the documentation manuals
should be adhered to.
* All instructions for operating and use of this equipment must be
followed precisely.
On safety
1. This product should be operated from an AC power source.
This projector may be connected to an IT-power system.
Operating AC power voltage of the projector:
1SAFETY INSTRUCTIONS
Notice on Safety
This equipment is built in accordance with the requirements of the
international safety standards EN60950, UL 1950 and CSA C22.2
No.950, which are the safety standards of information technology
equipment including electrical business equipment.
These safety standards impose important requirements on the use
of safety critical components, materials and isolation, in order to
protect the user or operator against risk of electric shock and energy
hazard, and having access to live parts.
Safety standards also impose limits to the internal and external
temperature rises, radiation levels, mechanical stability and strength,
enclosure construction and protection against the risk of fire.
Simulated single fault condition testing ensures the safety of the
equipment to the user even when the equipment's normal operation
fails.
INSTALLATION INSTRUCTIONS
Before operating this equipment please read this manual
thoroughly, and retain it for future reference.
Installation and preliminary adjustments should be
performed by qualified BARCO personnel or by author-
i ed BARCO service dealers.
OWNERS RECORD
The part number and serial number are located at the back side of the
projector. Record these numbers in the spaces provided below.
Refer to them whenever you call upon your BARCO dealer regarding
this product.
PART NUMBER
SER. NUMBER
DEALER
The lightning flash with an arrowhead within a
triangle is intended to tell the user that parts inside this
product may cause a risk of electrical shock to
persons.
The exclamation point within a triangle is intended to
tell the user that important operating and/or servicing
instructions are included in the technical documen-
tation for this equipment.
Consult your dealer to switch over from 230 ac to 120 ac or from
120 ac to 230 ac.
If you are not sure of the type of AC power available, consult your
dealer or local power company.
2. This product is equipped with a 3-wire grounding plug, a plug
having a third (grounding) pin. This plug will only fit into a grounding-
type power outlet. This is a safety feature. If you are unable to insert
the plug into the outlet, contact your electrician to replace your
obsolete outlet. Do not defeat the purpose of the grounding-type plug.
WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE
GROUNDED (EARTHED) via the supplied 3 conductor AC power
cable.
(If the supplied power cable is not the correct one, consult your
dealer.)
BARCO ISION 708
Art.No. R9002357 (120V AC)
Art. No R9002358 (120V AC)

Safety Instructions
1-2 5976026A BARCO ISION 708 200499
B. Power cord with ANSI 73.11 plug:
The wires of the power cord are colored in
accordance with the following code.
Green/yellow:ground
White: neutral
Black: line (live)
3. Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
4. If an extension cord is used with this product, make sure that the
total of the ampere ratings on the products plugged into the extension
cord does not exceed the extension cord ampere rating. Also make
sure that the total of all products plugged into the wall outlet does not
exceed 15 amperes.
5. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electrical shock.
Never spill liquid of any kind on the product. Should any liquid or solid
object fall into the cabinet, unplug the set and have it checked by
qualified service personnel before resuming operations.
6. Lightning - For added protection for this video product during a
lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will prevent damage
to the projector due to lightning and AC power-line surges.
On installation
On servicing
Do not attempt to service this product yourself, as opening or
removing covers may expose you to dangerous voltage potentials
and risk of electric shock!
Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following condi-
tions
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the equipment.
c.If the product has been exposed to rain or water.
d. If the product does not operate normally when the operating
instructions are followed.
Note : Adjust only those controls that are covered by the operating
instructions since improper adjustment of the other controls may
result in damage and will often require extensive work by a qualified
technician to restore the product to normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. If the product exhibits a distinct change in performance, indicating
a need for service.
Replacement parts - When replacement parts are required, be
sure the service technician has used original BARCO replacement
parts or authorized replacement parts which have the same char-
acteristics as the BARCO original part. Unauthorized substitutions
may result in degraded performance and reliability, fire, electric shock
or other hazards. Unauthorized substitutions may void warranty.
Safety check - Upon completion of any service or repairs to this
projector, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
On cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
- To keep the cabinet looking brand-new, periodically clean it with a
soft cloth. Stubborn stains may be removed with a cloth lightly
dampened with mild detergent solution. Never use strong solvents,
such as thinner or benzine, or abrasive cleaners, since these will
damage the cabinet.
- To ensure the highest optical performance and resolution, the
projection lenses are specially treated with an anti-reflective
coating, therefore, avoid touching the lens. To remove dust on the
lens, use a soft dry cloth. Do not use a damp cloth, detergent
solution, or thinner.
On repacking
Save the original shipping carton and packing material; they will come
in handy if you ever have to ship your equipment. For maximum
protection, repack your set as it was originally packed at the factory.
On illumination
In order to obtain the best quality for the projected image, it is essential
that the ambient light which is allowed to fall on the screen be kept
to an absolute minimum.
When installing the projector and screen, care must be taken to avoid
exposure to ambient light directly on the screen. Avoid adverse
illumination on the screen from direct sunlight or fluorescent lighting
fixtures.
The use of controlled ambient lighting, such as incandescent spot light
or a dimmer, is recommended for proper room illumination. Where
possible, care should also be taken to ensure that the floors and walls
of the room in which the projector is to be installed are non-reflecting,
dark surfaces. Brighter surfaces will tend to reflect and diffuse the
ambient light and hence reduce the contrast of the projected image
on the screen.
CAUTION FIRE HAZARD
WARNING: DO NOT PLACE FLAMMABLE OR
COMBUSTIBLE MATERIALS NEAR PROJECTOR !
BARCO large screen projection products are designed and manufactured to
meet the most stringent safety regulations. This projector radiates heat on
its external surfaces and from ventilation ducts during normal operation,
which is oth normal and safe.
Exposing flamma le or com usti le materials into close proximity of this
projector could result in the spontaneous ignition of that material, resulting
in a fire. For this reason, it is a solutely necessary to leave an exclusion
zone around all external surfaces of the projector where y no flamma le or
com usti le materials are present. The exclusion zone must e not less
than 10 cm (4) for BARCO Retro Projectors and not less than 40 cm (16)
for all other BARCO projectors. Do not cover the projector with any material
while the projector is in operation.
Keep flamma le and com usti le materials away from the projector at all
times. Mount the projector in a well ventilated area away from sources of
ignition and out of direct sun light. Never expose the projector to rain or
excessive moisture. In the event of fire, use sand, CO2, or dry powder fire
extinguishers; never use water on an electrical fire.
Always have service performed on this projector y authorized BARCO
service personnel. Always insist on genuine BARCO replacement parts.
Never use non-BARCO replacement parts as they may degrade the safety
of this projector.
This product complies to standards set by Underwriters Laboratories, Inc., Canadian
Standards Association, and meets all applicable U.S. Canadian and European
government regulations or directives.
1. Do not place this equipment on an unstable cart, stand, or table.
The product may fall, causing serious damage to it.
2. Do not use this equipment near water.
3. Slots and openings in the cabinet and the back or bottom are
provided for ventilation; to ensure reliable operation of the product
and to protect it from overheating, these openings must not be blocked
or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register.
The projector should not be placed in a built-in installation or enclosure
unless proper ventilation is provided.
4. Do not block the projector cooling fans or free air movement under
and around the projector. Loose papers or other objects may not be
nearer to the projector than 4" on any side.

Unpacking and Dimensions
2-1
5976026A BARCO ISION 708 200499
2UNPACKING AND DIMENSIONS
Unpacking
Take the projector out of its shipping carton and place it on a table.
Save the original shipping carton and packing material, they will come in handy if you ever have to ship your projector. For maximum protection,
repack your projector as it was originally packed at the factory.
To open de banding, pull on the clip as shown in the first drawing.
Contents of the shipped box :
- 1 BARCO ISION 708.
- 1 remote control + 2x 1.5 battery
- 1 power cable with outlet plug type ANSI 73.11.
- 1 owner's manual.
- 1 installation manual.
- 1 CDROM

Unpacking and Dimensions
2-2 5976026A BARCO ISION 708 200499
Projector dimensions
(mm)

Installation Guidelines
3-1
5976026A BARCO ISION 708 200499
3INSTALLATION GUIDELINES
Installation guidelines
Careful consideration of things such as image size, ambient light level,
projector placement and type of screen to use are critical to the
optimum use of the projection system.
* Environment
Do not install the projection system in a site near heat sources such
as radiators or air ducts, or in a place subject to direct sunlight,
excessive dust or humidity. Be aware that room heat rises to the
ceiling; check that the temperature near the installation site is not
excessive.
* What about ambient light ?
The ambient light level of any room is made up of direct or indirect
sunlight and the light fixtures in the room. The amount of ambient light
will determine how bright the image will appear. So, avoid direct light
on the screen.
Windows that face the screen should be covered by opaque drapery
while the set is being viewed. It is desirable to install the projecting
system in a room whose walls and floor are of non-reflecting material.
The use of recessed ceiling lights and a method of dimming those
lights to an acceptable level is also important. Too much ambient light
results in a wash out of the projected image. This appears as less
contrast between the darkest and lightest parts of the image. With
bigger screens, the wash out becomes more important. As a general
rule, darken the room to the point where there is just sufficient light
to read or write comfortably. Spot lighting is desirable for illuminating
small areas so that interference with the screen is minimal.
* Which screen type?
There are two major categories of screens used for projection
equipment. Those used for front projected images and those for rear
projection applications.
Screens are rated by how much light they reflect (or transmit in the
case of rear projection systems) given a determined amount of light
projected toward them. The GAIN of a screen is the term used. Front
and rear screens are both rated in terms of gain. The gain of screens
range from a white matte screen with a gain of 1 (x1) to a brushed
aluminized screen with a gain of 10 (x10) or more. The choice
between higher and lower gain screens is largely a matter of
personal preference and another consideration called the iewing
angle.
In considering the type of screen to choose, determine where the
viewers will be located and go for the highest gain screen possible.
A high gain screen will provide a brighter picture but reduce the
viewing angle.
For more information about screens, contact your local screen
supplier.
* What image size? How big should the image
be?
The projector is designed for projecting an image width from 1.4m
(4.6') to 7m (23') with an aspect ratio of 4 to 3. It leaves the BARCO
factory, adjusted as a ceiling front projector for a screen width of
2.4m. Changing the image size from the factory preset requires a
realignment of the projector.

Installation Guidelines
3-2 5976026A BARCO ISION 708 200499
* Where to install the projector?
To indicate a correct installation position it is necessary to know the
distance :
- projector - ceiling
- projector - screen
To find this correct position for the projector, equipped with TAC4
lenses, formulas are given in the next paragraph.
Abbreviations used on drawin and dia rams on next pa es
B = Distance between ceilin and top of the screen.
A = Correction Value, extra value to be added to B to obtain the
correct installation position. (In some cases the A value can be
ne ative.)
CD = Total distance between projector and ceilin .
CD = A + B (When the result is ne ative, enlar e the distance
between ceilin and top of the screen, mount screen lower, until
CD becomes zero or positive)
SW = Screen width.
PD = Perpendicular distance between screen and projector.
Formulas for Projector to screen distance and correction value A with
regard to the screen width for TAC4 lenses (metric).
Formulas (metric)
PD[m] = 1.2642 x SW[m] + 0.2156
A[cm] = 12 x SW[m] - 22.88
Formulas for Projector to screen distance and correction value A with
regard to the screen width for TAC4 lenses (inch).
Formulas (inch)
PD = 1.2642 x SW + 8.48
A = 0.12 x SW - 9
* How to install the projector?
Ceiling mount or table mount?
To install the projector, apply always the BARCO kits which are
specially designed for this function.
BARCO ceilin support.
Always use the BARCO ceiling support to attach your projector to
the ceiling. (BARCO order number : R9827990)
The installation instruction for this support is enclosed in the packet
of the set.
BARCO projection table.
Height adaptable projection table provides a stable stand for your
projector, and makes it possible to adapt the projector perfectly to the
local requirements. (BARCO order number R9827740).
Max phosphor width on CRT = 11 cm Max phosphor width on CRT = 4.33 inch
$&'
3'
%
SURMHFWRU
FHLOLQJ
VFUHHQZLGWK
6:
)URQWYLHZ
7RSYLHZ

Installation Set Up
4-1
5976026A BARCO ISION 708 200499
4INSTALLATION SET UP
Access to controls
Opening procedure :
During the projector set up and installation it is neces-
sary to open the top cover.
To gain access, procede as follow :
*Turn both lock screws with a screwdriver or a coin
counter clockwise.
* Lift up and pivot the top cover.
* Support the top cover with the hand, no support is
incorporated.
During some installations it will become handy to
remove the top cover totally.
Therefore,
- pivote the top cover ± 60°
- push the top cover to the front side of the projector
until it jumps out of its hinges.
- Turn the top cover till 90° and lift it up.
Re-install the cover :
Hook the top cover into the cabinet hinges. Pivot the top cover 30°
and pull it backwards until it fits in the hinges. Close the cover and
secure the lock screws by turning clockwise with a screwdriver or
coin.

Installation Set Up
4-2 5976026A BARCO ISION 708 200499

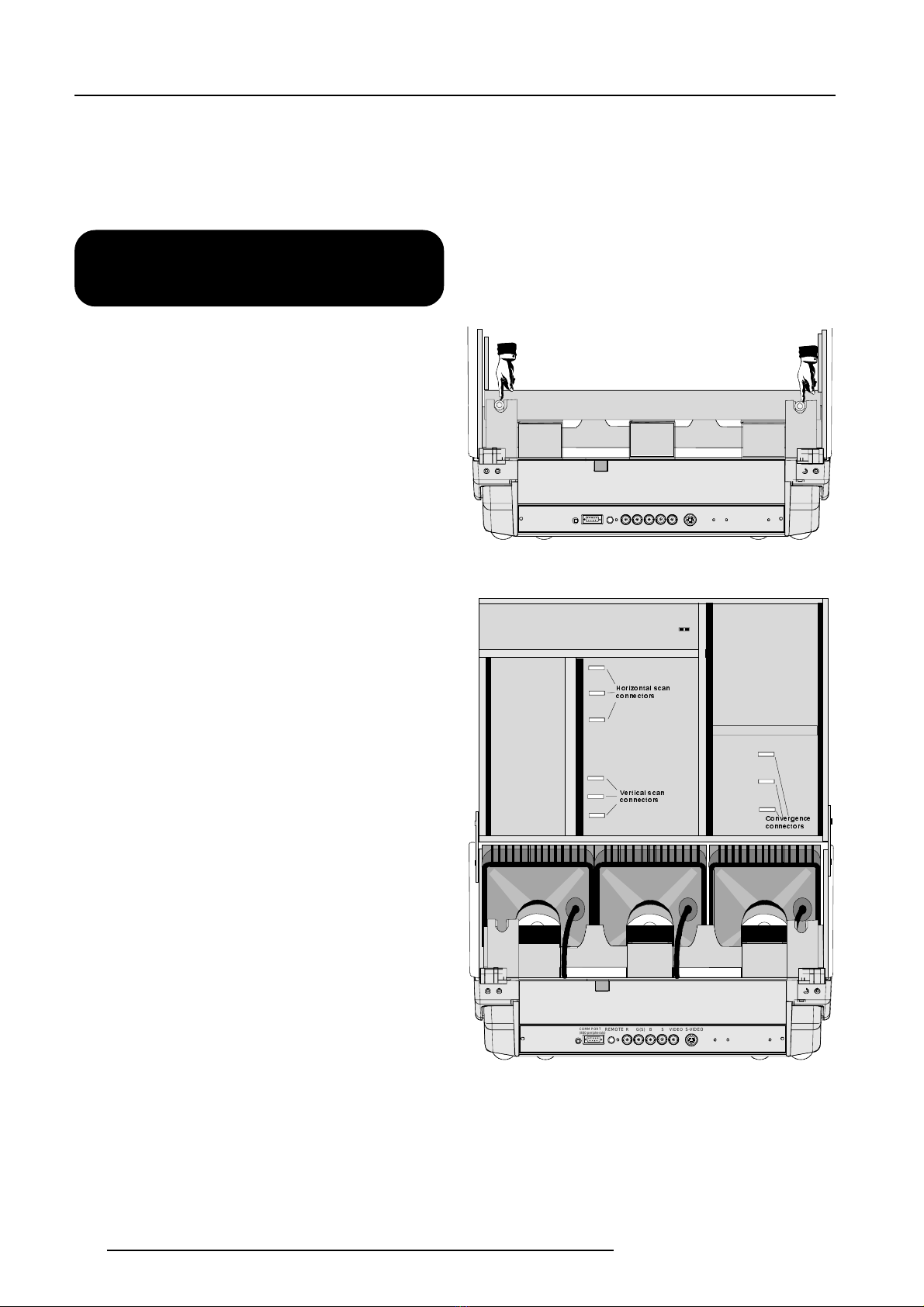

Scan adaptation
The scanning can be switch by turning the Horizontal and ertical
scan connectors and the convergence connectors.
To change the scanning, it is necessary to open the projector top
cover and to rotate the chassis.
For opening the projector's top cover, see Getting access to controls.
WARNING
TURN OFF PROJECTOR AND UNPLUG THE POWER CORD
BEFORE CHANGING THE SCAN DIRECTION.
Gaining access to the scan connectors and the convergence
connectors.
- Open the top cover (to remove it, see 'Gaining access to controls'.
- To open the chassis, loosen both indicated retaining screws.
Turn the chassis to the front of the projector until it grips in its locks.
COMMPORT
(800peripherals) REMOTE R G(S) B SVIDEO S-VIDEO
+RUL]RQWDOVFDQ
FRQQHFWRUV
9HUWLFDOVFDQ
FRQQHFWRUV
&RQYHUJHQFH
FRQQHFWRUV
COMM PORT
(800 peripherals)REMOTE RG(S)B SVIDEO
S-VIDEO

Installation Set Up
4-3
5976026A BARCO ISION 708 200499
ADJUSTMENT MODE
Select a path from below :
IRIS
GUIDED
RANDOM ACCESS
INSTALLATION
SERVICE
Source 1
Select with or
then <ENTER>
<EXIT> to return.
A : Horizontal scan inversion
Three connectors are used, one for each horizontal
deflection coil. When changing the horizontal scan,
insure that all three connectors are set in the same
position. See position of the connectors for the
corresponding projector configuration.
B : Vertical scan inversion
Three connectors are used, one for each vertical
deflection coil. When changing the vertical scan,
insure that all three connectors are set in the same
position. See position of the connectors for the
corresponding projector configuration.
Top view of the connectors; upper three connectors
for horizontal scan inversion, lower three for vertical
scan inversion.
C : Conver ence connectors
Three connectors are used. The position of these connectors has
to be changed when switching from one configuration to another.
With an open chassis, for a front-table or a rear ceilin configuration,
the connectors must be plugged in with the contacts upwards (away
from the tubes). For a front-ceilin or rear-table configuration, the
connectors must be plugged in with the contacts facin the tubes
After scan inversion, close the chassis and close the top cover. Reconnect the power
cord to the wall outlet.
Note
Switching over from floor to ceiling or vice versa requires a complete readjustment of
picture geometry and convergence.
Check of the correct connector position
Note : this check procedure can only be done after power (mains) connection. So, first
continue with the projector set up and the connections and then return to this checking
procedure.
To start the checking procedure :
1. Switch on the projector
2. Press ADJUST to start up the adjustment mode.
3. Push the cursor key é or ê to select 'Service'
4. Press ENTER. The service menu will be displayed.
5. Push the cursor key é or ê to select 'PROJECTOR SET UP'
6. Press ENTER.
7. Push the cursor key é or ê to select 'IDENTIFICATION'
8. Press ENTER. On this screen, information is given about the projectors configuration.
Configuration when leaving the factory : ceiling/front configuration.
Select with or
then <ENTER>
<EXIT> to return.
SERVICE MODE
PROJECTOR SET-UP
MEMORY MANAGEMENT
COMMON SETTINGS
I2C DIAGNOSTICS
PROJECTOR SET-UP
IDENTIFICATION
TOTAL RUN TIME
CHANGE PASSWORD
CHANGE LANGUAGE
CHANGE PROJECTOR ADDRESS
CHANGE BAUDRATE
POWER UP MODE : operating
BARCO LOGO
)URQW7DEOH )URQW&HLOLQJ
5HDU7DEOH 5HDU&HLOLQJ
Horizontal
scan
connectors
Vertical scan
connectors
&RQWDFWVLGH
Proj. address : 1
Soft. Version : 6.
Config. : Ceiling
Front
Baudrate PC : 96
Text : ON
Serial No. : 1 3589552
VISION 708

Installation Set Up
4-4 5976026A BARCO ISION 708 200499

Projector Set Up
5-1
5976026A BARCO ISION 708 200499
+RUL]RQWDOVFDQ
FRQQHFWRUV
9HUWLFDOVFDQ
FRQQHFWRUV
&RQYHUJHQFH
FRQQHFWRUV
COMM PORT
(800 peripherals)REMOTE RG(S)B SVIDEO
S-VIDEO
5PROJECTOR SET UP
Projector Set Up
The strap on the controller unit allow a set up of the password mode.
Gaining access to the strap
- Open the top cover (see installation set up)
- Open the chassis (see installation set up)
strap
Password mode
With a strap on the controller unit, the important projector adjustments
can be protected with a password. When the password feature is
enabled (strap mounted on both legs), the customer has to enter a
password before he can enter the specific adjustment.
When the password menus are disabled (strap mounted only on one
leg), all adjustments are free. This position of the strap is useful for
qualified service technicians because they do not need a password
during service.
Position of the strap :
ON : password disabled
OFF : password enabled
Socket for strap

Projector Set Up
5-2 5976026A BARCO ISION 708 200499

Power Connection
6-1
5976026A BARCO ISION 708 200499
6POWER CONNECTION
Power (mains) cord connection
Use the supplied power cord to connect your projector to the wall
outlet. Plug the female power connector into the male connector at
the front of the projector.
Input power (mains) voltage adaptation.
Attention
The BARCO ISION 708 - R9002351/52 leaves the factory to operate
on a mains (power) input of 230 ac.
Adaptation of the power input of the projector from 230 AC to 120
AC or vice versa is possible. Follow the procedure as described
below.
Procedure
- Unplug the power cord from the power input on the front panel.
- Loosen the 2 retaining screws of the front panel.
- Pull out the module.
OFF ON
See installation instructions before
connecting to the supply V NOM 120/230 Volt
I MAX 5/2.5 AMP
FREQ 60/50 Hz
OFF ON
See ins talla tion inst ructi ons befor e
connect ing to the supply
VN OM 120/230 Vo lt
I MAX 5/2.5AMP
FREQ 60/50Hz
See installation instructions before
connecting to the supply
V NOM 120/230 Volt
I MAX 5/2.5 AMP
FREQ 60/50 Hz
OFF ON

Power Connection
6-2 5976026A BARCO ISION 708 200499
- Loosen both screws of the protective cover and take off the cover.
- Pull out the 'power selector plug' and re-insert it as illustrated,
depending on the wall outlet in the room.
- Re-mount the protective cover and secure with both screws.
- Re-insert the module.
- Fasten the front panel with the 2 retaining screws.
Fuses
Warnin
For continued protection a ainst fire hazard :
- replace with the same type of fuse
- refer replacement to qualified service personnel
Fuse type : 2 x T5A/250 (Barco order number : R314104)
Switching on/off
The projector is switched ON and OFF using the power (mains)
switch ON/OFF.
Pressed : ON
Not pressed : OFF
The projector can start now in the 'operational mode' (image dis-
played) or in the 'stand by mode', depending on the setting of the
power up mode in the projector set-up menu in the service mode.
Stand by indication lamp :
no light up : projector in operational mode
red : projector is in stand by.
-9V SF
HOLD DOWN EHT
STANDBY
-CONV
-17V
+17V
+HTHD
+CONV
+9V
+210V
+30V
123
123
123
COINC
HOLD DOWN HD
Leds on the front plate of the projector
9
9
