Baroness LS60 Operation manual

Standard Mower Unit
Owner's Operating Manual
Serial No. LS60: 10001-・LS62: 10231-・LS66: 11252-
"Required reading"
Read this manual before using the machine.
Original Instructions Ver.2.0

Thank you for purchasing the Baroness product.
This manual describes the proper handling,
adjustment, and inspection of your product.
We hope you will use the product safely, and take
advantage of its best performance.
For details on the handling, adjustment and
inspection of the main vehicle, refer to the
Owner's Operating Manual for the main vehicle.
QR Code
A QR code for this mower unit is printed on the
serial number plate.
1
AA1B932E
QR Code_001
1QR code
Scan the QR code with your smartphone for
easy access to Baroness Manual Reference
Service where you can browse Owner's
Operating Manual and Parts Catalog.
LS60: https://doc.baroness-international.com/
manuals/LS60
57634638
QR Code_002
LS62: https://doc.baroness-international.com/
manuals/LS62
㻭㼀㼀㻭㻯㻴㻹㻱㻺㼀
㼀㼅㻼㻱
㻿㻱㻾㻵㻭㻸
㻺㻻㻚
9DFBEAC4
QR Code_003
LS66: https://doc.baroness-international.com/
manuals/LS66
㻭㼀㼀㻭㻯㻴㻹㻱㻺㼀
㼀㼅㻼㻱
㻿㻱㻾㻵㻭㻸
㻺㻻㻚
5FDC7036
QR Code_004
LS60・LS62・LS66
Greeting

Read this manual carefully to ensure that you thoroughly understand how to properly operate and maintain the
product, and to avoid causing injury to yourself or others.
The operator is responsible for operating the product properly and safely.
Maintenance service for this machine should be performed by a mechanic with expertise.
If you have any questions concerning maintenance or genuine parts, please contact a Baroness dealer or
Kyoeisha.
When making inquiries about your product, please specify the model and serial number.
When loaning or transferring the product, please also provide this manual together with the product.
Kyoeisha Co., Ltd.
Warning Symbols
This manual uses the following warning symbols for handling precautions that are important for your
safety.
696cq5-001
Warning symbol
This symbol indicates the articles regarding “Danger,” “Warning,” or “Caution.”
Those articles describe important safety precautions and so read them carefully to understand completely before
operating the machine.
Failure to adequately follow these safety precautions may cause an accident.
Danger
Danger
This symbol indicates that serious injury or death will occur if the warning is ignored.
Warning
This symbol indicates that serious injury or death may occur if the warning is ignored.
Caution
This symbol indicates that injury or damage to property may occur if the warning is ignored.
Important
This symbol indicates precautions on the mechanism of the machine.
LS60・LS62・LS66
Introduction

Precautionary Statement
Caution
The information described in this manual is
subject to change for improvement without
prior notice.
When replacing parts, be sure to use genuine
Baroness parts or parts designated by
Kyoeisha.
Note that the Baroness product warranty may
not apply to defects caused by the use of
parts from other companies.
Prior to use, carefully read the following
manuals to thoroughly understand the contents
for safe and correct operation.
Baroness Owner's Operating Manual
Purpose
This mower unit is intended for cutting turf grass
at golf courses.
Do not use this machine in any way other than
its intended purpose, and do not modify the
machine.
Operating this mower unit for other purposes
and modifying it may be very dangerous and
may cause damage to the machine.
･
LS60・LS62・LS66
Introduction

Safety .............................................................. Page 1-1
Safe Operating Practices ...............................Page 1-2
Disposal .......................................................... Page 2-1
Recycle and Waste Disposal ......................... Page 2-2
Product Overview .......................................... Page 3-1
Specifications .................................................Page 3-2
Names of Each Section ................................. Page 3-4
Regulation Decals ..........................................Page 3-4
Safety Signs and Instruction Signs ................ Page 3-5
Handling Instructions .................................... Page 4-1
Handling Precautions .....................................Page 4-2
Inspection and Cleaning ................................ Page 4-2
Maintenance ................................................... Page 5-1
Precautions for Maintenance ......................... Page 5-2
Greasing ........................................................ Page 5-2
Adjustment and Replacement ........................Page 5-4
Storage ........................................................ Page 5-15
Appended Table ............................................. Page 6-1
Tightening Torques ........................................Page 6-2
Daily Check List ............................................. Page 6-5
Maintenance Schedule .................................. Page 6-6
List of Adjusted Values .................................. Page 6-6
LS60・LS62・LS66
Contents

LS60・LS62・LS66
Contents

Safe Operating Practices ...................... Page 1-2
Safety
LS60・LS62・LS66
Safety
Page 1-1

Failure to adequately follow these safety
precautions may cause an accident resulting in
injury or death.
Danger
Danger
This product is designed to ensure safe
operation and has been tested and inspected
thoroughly before shipment from the factory.
The product is equipped with safety devices to
prevent accidents.
However, whether the product demonstrates
its original performance level depends on the
manner in which it is operated and handled,
as well as the manner in which it is managed
on a daily basis.
Inappropriate use or management of the
product may result in injury or death.
Observe the following safety instructions to
ensure safe operation.
Safe Operating Practices
Read Safe Operating Practices described in the
Owner's Operating Manual of Baroness main
vehicle equipped with this mower unit
thoroughly.
LS60・LS62・LS66
Safety
Page 1-2 Safe Operating Practices

Recycle and Waste Disposal ................ Page 2-2
About Recycle ........................................Page 2-2
About Waste Disposal ........................... Page 2-2
Disposal
LS60・LS62・LS66
Disposal
Page 2-1

Recycle and Waste Disposal
About Recycle
Recycling battery etc. is recommended for
environmental conservation and economical
use of resources.
It may be required by local laws.
About Waste Disposal
Make sure that waste generated when
servicing or repairing the machine is disposed
of in accordance with local regulations.
(e.g. waste oil, antifreeze, rubber products, and
wires etc.)
LS60・LS62・LS66
Disposal
Page 2-2 Recycle and Waste Disposal

Specifications ........................................ Page 3-2
Specifications List ..................................Page 3-2
Features of the STD Mower Unit ........... Page 3-3
Names of Each Section ......................... Page 3-4
Regulation Decals ..................................Page 3-4
Positions of Regulation Decals ..............Page 3-4
Description of Regulation Decals .......... Page 3-4
Safety Signs and Instruction Signs ..... Page 3-5
About Safety Decals and Instruction
Decals ....................................................Page 3-5
Positions of Safety Decals and
Instruction Decals .................................. Page 3-5
Description of Safety Decals and
Instruction Decals .................................. Page 3-5
Product Overview
LS60・LS62・LS66
Product Overview
Page 3-1

Specifications
Specifications List
LS60
Model LS60
Name Standard Mower Unit
Type Base unit (incl. one weight) With CR brush
Dimensions
Total length 420 mm 16.54 in ← ←
Total width 965 mm 37.99 in 987 mm 38.89 in
Total height 233 mm 9.17 in ← ←
Weight
Mower Unit 61.0 kg 134.48 lb 65.4 kg 144.18 lb
Weight (one
piece) 2.0 kg 4.41 lb - -
CR brush - - 4.4 kg 9.70 lb
Operating width (Mowing
width) 766 mm 30 in ← ←
Operating
height
(Mowing
height)
Roller Type 10.0 - 46.0 mm 0.39 - 1.81 in ← ←
Wheel Type 20.0 - 50.0 mm 0.79 - 1.97 in ← ←
Number of Blades 5,7 ←
Diameter of the reel cutter 163 mm 6.4 in ← ←
LS62
Model LS62
Name Standard Mower Unit
Type Base unit (incl. one weight) With CR brush
Dimensions
Total length 420 mm 16.54 in ← ←
Total width 755 mm 29.72 in 776 mm 30.55 in
Total height 233 mm 9.17 in ← ←
Weight
Mower Unit 50.0 kg 110.23 lb 52.0 kg 114.64 lb
Weight (one piece) 2.0 kg 4.41 lb - -
CR brush - - 2.0 kg 4.41 lb
Operating width (Mowing width) 557.5 mm 22 in ← ←
Operating
height
(Mowing
height)
Roller Type 10.0 - 46.0 mm 0.39 - 1.81 in ← ←
Wheel Type - - - -
Number of Blades 9 ←
Diameter of the reel cutter 163 mm 6.4 in ← ←
LS60・LS62・LS66
Product Overview
Page 3-2 Specifications

LS66
Model LS66
Name Standard Mower Unit
Type Base unit (incl. one weight) With CR brush
Dimensions
Total length 420 mm 16.54 in ← ←
Total width 857 mm 33.74 in 879 mm 34.61 in
Total height 233 mm 9.17 in ← ←
Weight
Mower Unit 53.0 kg 116.84 lb 56.0 kg 123.46 lb
Weight (one piece) 2.0 kg 4.41 lb - -
CR brush - - 3.0 kg 6.61 lb
Operating width (Mowing width) 557.5 mm 22 in ← ←
Operating
height
(Mowing
height)
Roller Type 10.0 - 46.0 mm 0.39 - 1.81 in ← ←
Wheel Type 20.0 - 50.0 mm 0.79 - 1.97 in ← ←
Number of Blades 5,7,9 ←
Diameter of the reel cutter 163 mm 6.4 in ← ←
Features of the STD Mower Unit
Equipped with a 6.4-inch (163 mm) -
diameter reel cutter (cutting cylinder).
Blade engagement can be adjusted by
changing the reel cutter (cutting cylinder)
position without changing the position and
angle of the bed knife (bottom blade), and
therefore the bed knife attitude does not
change due to wear of the reel cutter.
The front roller is a grooved roller that will
not press down the lawn.
Grass clippings can be discharged either
forward or backward.
The grass catcher can be installed.
The CR brush can be installed onto the rear
roller.
The scraper can be installed on the front and
rear roller.
1.
2.
3.
4.
5.
6.
7.
Product Overview
LS60・LS62・LS66
Product Overview
Page 3-3
Specifications

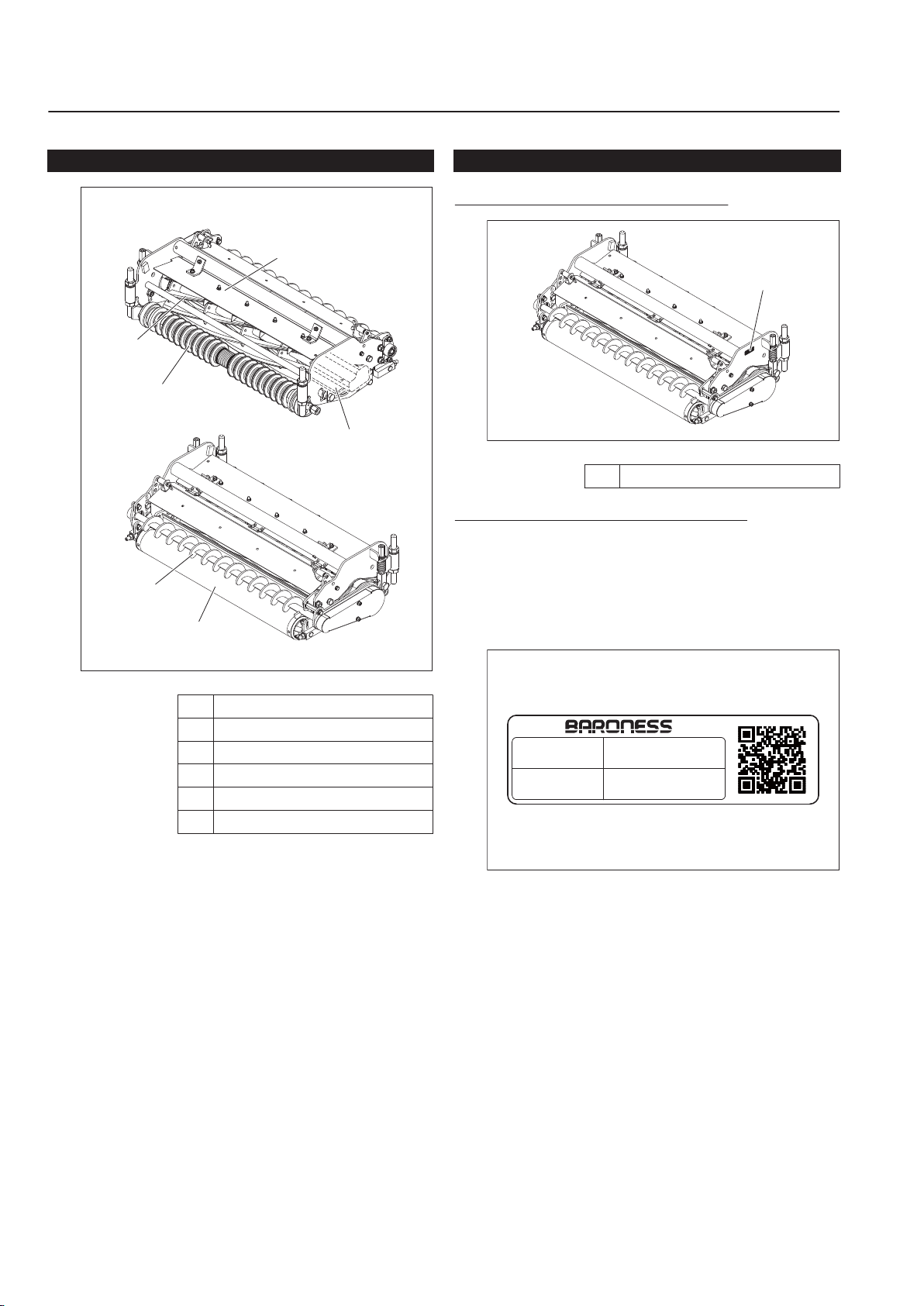

Names of Each Section
1
2
4
6
5
3
quwxcl-137
Names of Each Section_001
1Reel cover
2 Reel cutter
3 Bed knife
4 Front roller
5 Rear roller
6 CR brush
Regulation Decals
Positions of Regulation Decals
A
quwxcl-138
Positions of Regulation Decals_001
ASerial number plate
Description of Regulation Decals
Serial Number Plate
The serial number plate indicates the model
and serial number of the machine.
A QR code is also printed for browsing
Owner's Operating Manual and Parts Catalog.
㻭㼀㼀㻭㻯㻴㻹㻱㻺㼀
㼀㼅㻼㻱
㻿㻱㻾㻵㻭㻸
㻺㻻㻚
5395CB08
Serial Number Plate_001
LS60・LS62・LS66
Product Overview
Page 3-4 Names of Each Section

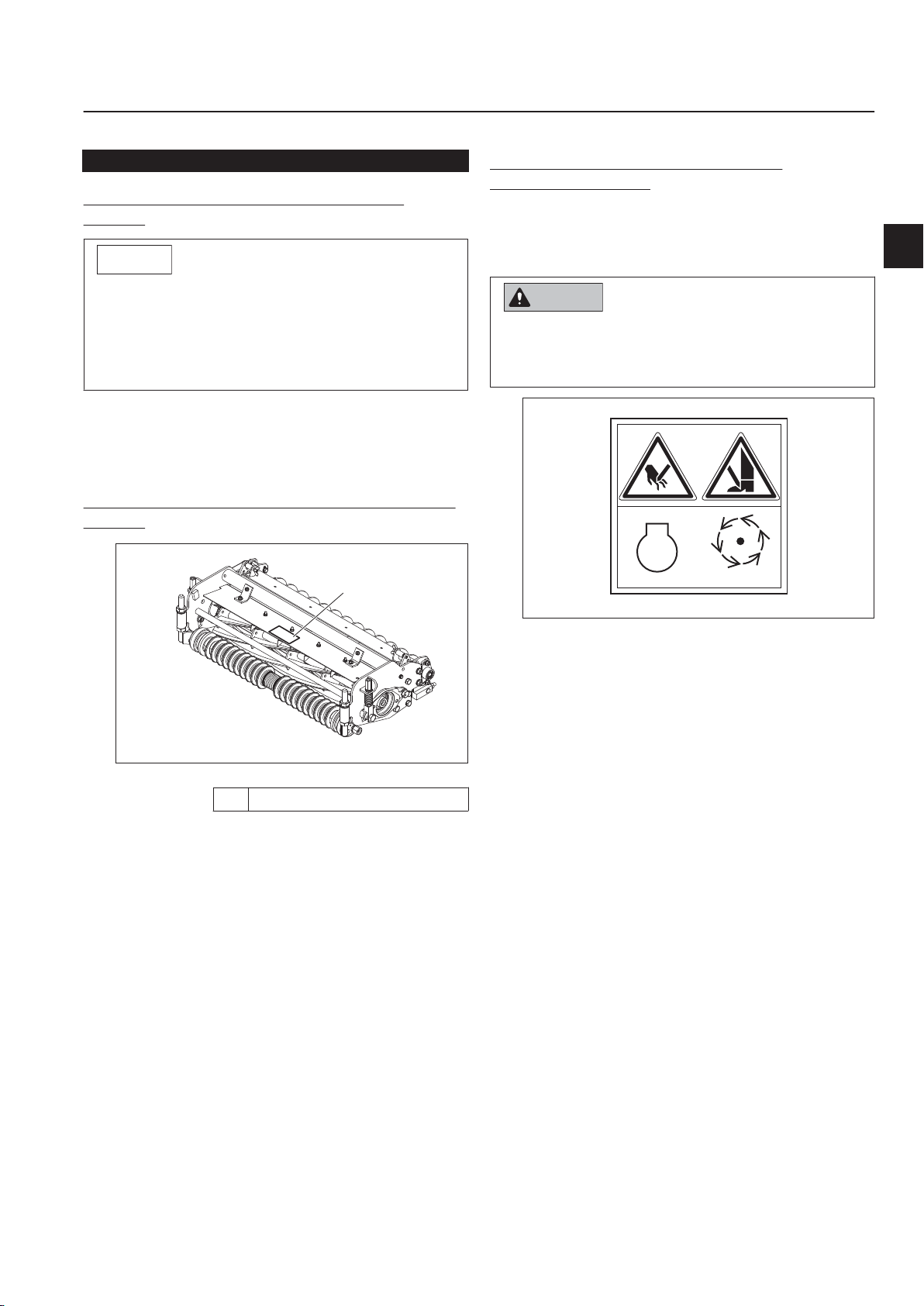

Safety Signs and Instruction Signs
About Safety Decals and Instruction
Decals
Important
Safety decals and instruction decals are
attached to this mower unit.
Make sure that decals are preserved in their
entirety. If they are damaged, become dirty, or
peel off, replace them with new ones.
Part numbers for decals that need to be
replaced are listed in the parts catalog.
Order them from a Baroness dealer or
Kyoeisha.
Positions of Safety Decals and Instruction
Decals
1
6iul4h-107
Positions of Safety Decals and Instruction Decals_001
1Caution to mutilation decal
Description of Safety Decals and
Instruction Decals
Caution to Mutilation Decal
K4205001600
DECAL, CAUTION TO MUTILATION
Warning
May cut your hand or leg - Stop the cutter
rotation and engine. Otherwise you may get
injured.
STOP
STOP
wyikja-001
Caution to Mutilation Decal_001
Product Overview
LS60・LS62・LS66
Product Overview
Page 3-5
Safety Signs and Instruction Signs

LS60・LS62・LS66
Product Overview
Page 3-6 Safety Signs and Instruction Signs

Handling Precautions ............................Page 4-2
Inspection and Cleaning ....................... Page 4-2
Reel Cutter (Cutting Cylinder) and
Bed Knife (Bottom Blade) ...................... Page 4-2
Cover ..................................................... Page 4-2
Belt .........................................................Page 4-2
Roller ..................................................... Page 4-3
Wheel .....................................................Page 4-3
CR brush ................................................Page 4-3
Scraper .................................................. Page 4-3
Bolts and Nuts ....................................... Page 4-3
Mower Unit .............................................Page 4-4
Handling Instructions
LS60・LS62・LS66
Handling Instructions
Page 4-1

Handling Precautions
Important
This manual contains descriptions for handling
the mower unit.
For details on handling the main vehicle, refer
to this manual and the Owner's Operating
Manual for the main vehicle.
Inspection and Cleaning
Inspect and clean the machine with the goals of
the followings.
Accident prevention
Failure prevention
Performance retention
Make efforts for early detection of the machine
failure and prevention of the sudden occurrence
of trouble.
Perform maintenance and repair works
immediately if any abnormality is found in the
machine.
Reel Cutter (Cutting Cylinder) and Bed
Knife (Bottom Blade)
Inspection of Reel Cutter (Cutting Cylinder) and
Bed Knife (Bottom Blade)
Caution
Wear gloves when touching edged tools to
avoid cutting your hands.
Check to see whether or not the edge of
the reel cutter (cutting cylinder) and the bed
knife (bottom blade) are too blunt to cut.
Make sure that the reel cutter (cutting
cylinder) and the bed knife (bottom blade)
are not cracked.
Check to see how much the reel cutter
(cutting cylinder) and the bed knife (bottom
blade) are worn.
Make sure that the reel cutter (cutting
cylinder) and the bed knife (bottom blade)
have not changed color due to heat from
grinding.
Check to see whether or not the second
edge face (relief) remains at the point of
reel cutter (cutting cylinder).
Make sure that the welding between the
reel cutter (cutting cylinder) and the disc
has not come off.
･
･
･
1.
2.
3.
4.
5.
6.
Cover
Inspection of Covers
Warning
If you have removed the covers during
inspection, be sure to securely install them in
their original positions.
If a cover remains removed, the operator may
come into contact with rotating parts or belts
and foreign objects may fly off, possibly
resulting in injuries.
Make sure that there is no wear or
deterioration of the reel cover and all other
covers.
Make sure that there is no damage to the
reel cover and all other covers.
Make sure that there is no interference with
moving parts due to deformation of the reel
cover and all other covers.
Make sure that the reel cover and all other
covers are installed in their appropriate
positions.
Belt
Inspection of Belt
Caution
The engine must be stopped when the belt is
inspected.
Caution
If you have removed the cover during
inspection, make sure that you replace it in
the original position securely.
If the cover remains removed, the operator
may come in contact with the rotating objects
or belt, possibly resulting in injuries.
Press the middle of the belt with your finger
to check the belt tension.
Make sure that there are no cracks,
damage or abnormal wear.
1.
2.
3.
4.
1.
2.
LS60・LS62・LS66
Handling Instructions
Page 4-2 Handling Precautions

Roller
Inspection of Rollers
Make sure that there is no abrasion nor
adhesion of the roller.
Make sure that there is no wear of the roller
shaft.
Make sure that there is no wear nor
damage of the oil seal.
Make sure that there is no wear nor rust of
the bearing.
Make sure that there is no play in the roller
shaft.
Wheel
Inspection of Wheel
Make sure that there is no wear and
adhesion of the wheels.
Make sure that there is no play of the wheel
shaft.
Make sure that there is no wear, damage
and rust of the wheel shaft.
CR brush
Inspection of CR Brush
Note:
Depending on the specifications, this function
may not be available.
Make sure that there is no abrasion nor
adhesion of the brush.
Make sure that there is no wear of the
brush shaft.
Make sure that there is no abnormality in
the brush.
Make sure that there is no play in the fit of
the bearing and the housing.
Make sure that there is no play in the brush
shaft.
1.
2.
3.
4.
5.
1.
2.
3.
1.
2.
3.
4.
5.
Scraper
Inspection of Scraper
Inspection of Front Scraper
Note:
Depending on the specifications, this
function may not be available.
Make sure that there is no damage nor
deformation of the scraper.
Make sure that there is no contact
between the scraper and roller.
Inspection of Rear Scraper (Wire Type)
Note:
Depending on the specifications, this
function may not be available.
Make sure that there are no breaks or
sagging in the scraper (wire).
Make sure that there is no contact
between the scraper and roller.
Bolts and Nuts
Inspection of Bolts and Nuts
Important
The bolts and nuts may be loosened at the
earlier stage of the use.
Be sure to retighten or replace before
operating the machine whenever there is any
abnormality.
Check the bolts and nuts for looseness and
coming off.
Check the bolts and nuts for cracks and
damages.
Check the bolts and nuts for rust.
Check around the bolts and nuts for traces
of rust fluid.
Check for unequal bolt length.
Check the bolts and nuts for stripped
threads and abrasion.
￭
1.
2.
￭
1.
2.
1.
2.
3.
4.
5.
6.
Handling Instructions
LS60・LS62・LS66
Handling Instructions
Page 4-3
Inspection and Cleaning

Mower Unit
Cleaning of Mower Unit
Important
While cleaning, do not allow water on the
sealed parts of the reel shaft. (Avoid high-
pressure water cleaning.)
Otherwise, it may cause damage to the
machine.
Be sure to clean the mower unit after use.
Stop the engine.
Carefully clean the front and back of the
mower unit with water or compressed air.
Remove any grass wrapped around the reel
cutter (cutting cylinder).
1.
2.
3.
LS60・LS62・LS66
Handling Instructions
Page 4-4 Inspection and Cleaning
