Andamiro HAMMER DX User manual

3
PRECAUTIONS FOR USE
Be sure to read the following
The following safety precautions are given throughout this manual. They must be strictly followed to protect those
who install, use or maintain this product as well as to protect players, visitors and property.
For safty reasons.
• The following suggestions should be adhered to:
• The following graphic suggestions describe the types of precautions to be followed.
• Precautions to be followed:
CAUTION
Disregarding could result in injury or product damage.
WARNING
Disregarding could result in serious injury.
Indicates a matter which must be performed.
Indicates a care should be taken.
Certain procedures require a qualified in-shop maintenance person or industry specialist. For such
instructions, a qualified person must take care of the jobs.
• Otherwise an electric shock, machine trouble, or a serious accident may result.
• Replacing the machine parts, inspecting and maintaining the machines, and troubleshooting must be assigned only
to a qualified in-shop maintenance person or industry specialist. This booklet gives instructions that hazardous jobs in
particular must be handled by an industry specialist. Qualified in-shop maintenance person and industry specialist are
defined as follows.
Qualified in-shop maintenance person
• A service staff shall have experience in operations of game machines. The staff shall be responsible for assembly,
installation, inspection and maintenance of the machine.
Industry specialist
• An industry specialist must be engaged in designing, manufacturing, inspecting and servicing amusement machines.
He or she must have an education in electrical, electronic and mechanical engineering, and routinely maintain and
repair amusement machines.
Forbidden.

4
PRECAUTIONS FOR USE
Setting Up
Be sure to consult an industry specialist when setting
up, moving or transporting this product.
• This product should not be set up, moved or transported
by any one other than an industry specialist.
• When installing this product, set the 4 leg levelers evenly
on the floor and make sure that the product is installed
stably in a horizontal position. Unstable installation may
result in injury or accident.
• When installing this product, do not apply undue force on
movable parts. Otherwise, injury and accident may result,
or the product may be damaged.
The machine for indoor usage only does not
install outside.
Do not set the game machine up near
emergency exits.
Protect the game machine from:
• Rain or moisture.
• Direct sunlight.
• Direct heat from air-conditioning and heating equipment,
etc..
• Hazardous flammable substances.
• Otherwise an accident or malfunction may result.
Do not place containers holding chemicals or
water on or near the game machine.
Do not place objects near the ventilating holes.
Do not bend the power cord by force or place
heavy objects on it.
Never plug or unplug the power cord with wet
hands.
Never unplug the game machine by pulling the
power cord.
Be sure to use indoor wiring within the specified
voltage requirements. For extension cord, use the
specified rating or more.
Be sure to use the attached power cord.
Never plug more than one cord at a time into
the electrical receptacle.
Do not lay the power cord where people
walk through.
Be sure to ground this product.
Do not exert excessive force when moving
the machine.
For proper ventilation, keep the game machine
100mm(4″) away from the walls.
Do not alter the system related dipswitch settings.
WARNING CAUTION

5
PRECAUTIONS FOR USE
Operation
If there is any abnormality such as smoke,
bad smell or abnormal noise being emitted
from the machine, immediately turn OFF the
main power switch and unplug the power cord from
the receptacle to stop operating it.
• Using the machine in abnormal conditions could result
in fire or accidents.
Do not leave the power cord plugged in
improperly or covered with dust.
• Doing so could result in electrical shock or fire,
so inspect the power cord periodically.
CAUTIONWARNING
Do not use this product anywhere other than
industrial areas.
• Using in a residential area or an area next to a
residential area could affect signal reception of radios,
television sets, telephones, etc..
• Do not give shock the surface of glass products.
Do not plug or unplug the power cord with wet
hands.
In handling the power cord, follow the
instructions below.
If the power cord or power plug becomes damaged,
stop using the machine immediately and ask your
nearest dealer to replace the parts.
1. Turn OFF the main power switch.
2. Unplug the power cord from the receptacle.
3 . Contact your nearest dealer.
In case of abnormality
• Please do not play this game if
• When you do drinking;
• When your physical condition is not normal;
• When you are in pregnancy;
• When you have on a pulse controller;
• When you have recently experienced a cramp or fainting
away while watching TV.
• Avoid excessive force/shock while playing/moving the
game.
• While do games, pay attention to surrounding.
• Do not damage the power
cord.
• Do not bend the power
cord excessively.
• Do not heat the power
cord.
• Do not bind the power
cord.
• Do not sandwich the
power cord.
• Do not modify the power
cord.
• Do not twist the power
cord.
• Do not pull the power
cord.
• Do not stand on the power
cord.
• Do not drive a nail into the
power cord.

6
PRECAUTIONS FOR USE
Inspection and cleaning Moving and transportation
CAUTIONWARNING
Components in the game are sensitive to
vibrations and impact. Care should be used
when moving and transporting the game
machine.
Be sure not to let the machine tip over.
Before moving the machine, be sure to turn
OFF the main power switch, unplug the
power cord from the receptacle and remove
the power cord form the machine.
Before moving take the machine, off the levelers and
move it on the casters.
Avoid excessive force while moving the machine.
PRECAUTIONS
IN HANDLING
• When setting up, inspecting, maintaining, moving or
transporting this product, follow the procedures and
instructions set forth in this manual and perform such
work safely.
• Do not set up, handle, inspect, maintain, move or
transport this product under conditions equivalent to
the condition of "WARNING" or "CAUTION" specified
in this manual.
• If a new owner is to have this product as a result of
transfer, etc., be sure to give this manual to the new
owner.
Be sure to turn OFF the main power switch
and unplug the power cord from the
receptacle before inspecting or cleaning the
machine.
When replacing parts, be sure to use parts of
the correct specifications. Never use parts
other than the specified ones.
Opening inside the machine shall be done by
machine specialist only as high electric
current is being sent inside. For game machine with
monitor, a care should be taken while opening its
back door. If not, a damage to the inside parts or the
monitor may occur.
If the sub power switch of the service panel
is turned OFF without turning OFF the main
power switch of the power supply unit, some
parts in the units remain live. When opening the
back door, be sure to turn OFF the main power
switch and unplug the power cord from the
receptacle.
Strictly refrain from disassembly and repair
of parts which are not indicated in this
manual, as well as settings and remodeling.
To clean the game machine, wipe it with a soft cloth
dampened in a neutral detergent.
• Using thinner of other organic solvent or alcohol may
decompose the material.
• Electrical shock or equipment failure could be caused
by water entering the inside of the machine.

7
CONTENTS
1. SPECIFICATION AND DIMENSIONS
1-1. DIMENSIONS⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯8
1-2. SPECIFICATIONS ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯8
2. NAME OF PARTS
2-1. EXTERNAL PARTS ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯9
2-2. INTERNAL PARTS ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯9
2-2-1. COIN DOOR AND MONITOR CONTROLER⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯10
2-2-2. SMPS AND TRANSFORMER ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯10
2-2-3. MAIN AND I/O PCB ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯11
2-2-4. MONITOR PCB ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯11
2-2-5. CRT⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯11
3. HOW TO ASSEMBLE
3-1. CONNECTOR CONNECTION ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯12
3-2. CABINET ASSEMBLY ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯13
4. GAME SETUP AND TEST MODE ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 14~15
5. DETAILS OF SETUP MODE
5-1. SETUP 1 ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯16~17
5-2. SETUP 2 ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯18~19
5-3. SETUP 3 (ONLY FOR THE TICKET MODE) ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯20
5-4. LOAD DEFAULT⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯21
5-5. SCREEN TEST ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯22
5-6. SENSOR SETTING ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯23
5-7. DATA BANK ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯24
5-8. DATA BANK CLEAR⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯25
6. A/S MODE
6-1. SENSOR PROBLEM ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 26~27
6-2. MODE FOR CHECKING CAPSULE DISPENSER ASS'Y ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 28~29
6-3. MODE FOR CHECKING THE TIKCET DISPENSER ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 30~31
7. TROUBLE SHOOTING
7-1. CHECK POINTS IN CASE OF NO VIDEO AND NO SOUND⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯33
7-2. CHECK POINTS IN CASE OF NO VIDEO⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯33
7-3. CHECK POINTS IN CASE OF NO SOUND ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯33
7-4. PROBLEMS OF CAPSULE SUPPLYER ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯34
8. OPTION
8-1. TICKET DOOR OPTION ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯35
8-2. COIN DOOR OPTION ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯35
9. DIP S/W DESCRIPTION ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯36
10. ASSEMBLY DRAWING AND PARTS LIST
10-1. ASSEMBLING CABINET LOW(1) ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯37
10-2. ASSEMBLING CABINET LOW(2) ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯38
10-3. ASSEMBLING CABINET LOW(3) ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯39
10-4. ASSEMBLING CABINET LOW(4) ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯40
10-5. ASSEMBLING CABINET UP(1) ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯41
10-6. ASSEMBLING CABINET UP(2) ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯42
10-7. ASSEMBLING CAPSULE DISPENSER ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯43
11. GENERAL WIRING DIGRAM⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 44~45
12. SCHEMATIC FOR MAIN BOARD ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 46~59
13. SCHEMATIC FOR I/O BOARD⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 60~62
14. SCHEMATIC FOR MONITOR BOARD⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 63

8
1. Specification and Dimensions
DIMENSIONS
POWER CONSUMPTION
DISPLAY
WEIGHT
APPROPRIATE POWER SOURCE
163 (Watts)
29 (Inches)
150 (Kgs)
AC 120 / 220 (V), 50~60(Hz)
SPECIFICATION
1-1
1-2

9
2. Name of Parts
EXTERNAL PARTS
UPPER CABINET TOP DOOR
SPEAKER HOLES
PRIZE OUT
LOWER CABINET
HAMMER HANGER
HAMMER REAR LOWER
DOOR
REAR UPPER
DOOR
ROCKER
SWITCH
FUSE
CAPSULE
DISPENSER
MAIN,
I/O PCB
S.M.P.S
TERMINAL BLOCK
TRANSFORMER
NOISER FILTER
MONITOR
CONTROLER
COIN DOOR
(OPTION)
TICKET DOOR
(OPTION)
COIN SELECTOR MONITOR PCB
CRT
CRT
INTERNAL PARTS
2-1
2-2

10
Name of Parts
COIN DOOR AND MONITOR CONTROLER
2-2-1.
S.M.P.S AND TRANSFORMER
2-2-2.
① ② ③ ④
①②③
④
⑤⑥
⑦⑧
※DATA BANK(5-7) SHOWS PRIZE OUT COUNTER
CONNECT THE WIRE ACCORDING TO INPUT VOLTAGE.
VOLTAGE
CONTROL V/R
OUTPUT
INPUT
110V
YELLOW
220V
BLACK

12
3. How to Assemble
CONNECTOR CONNECTION
SPEAKER CONNECTOR (2p)
CONNECTION SPEAKER CONNECTOR (2p)
CONNECTION
MOTOR & SWITCH CONNECTOR (4p)
CONNECTION - 2EA
CCFL LAMP CONNECTOR(2P)
CONNECTION
3-1

13
CABINET ASSEMBLY
BLOTS
BLOTS
HAMMER HANGER
CODE NO.: MHATOACRO004
3-2

14

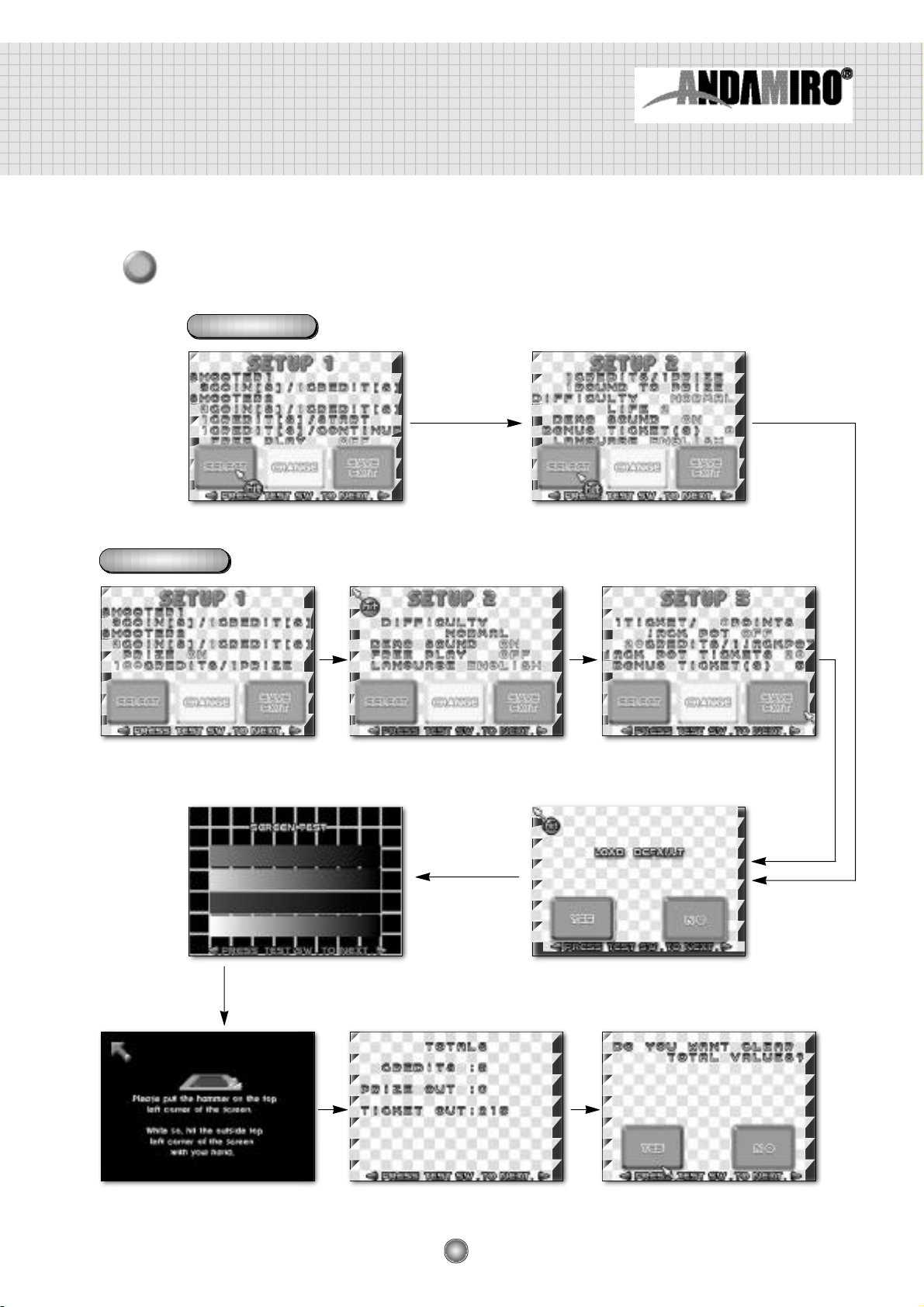

4. Game setup and test mode
When you push the TEST S/W, “SETUP 1” is dispalyed as below. You can setup the game as
you want.
When you push TEST S/W once again, the SETUP 1 disappears and SETUP 2 is displayed.
1
2
PRIZE MODE TICKET MODE
PRIZE MODE TICKET MODE

15
3
Various setup displays appear each time you push the TEST S/W, as shown in the figure below.
PRIZE MODE
TICKET MODE
SETUP 1 SETUP 2
SETUP 1 SETUP 2 SETUP 3
SENSOR SETTING DATA BANK DATA BANK
SCREEN TEST LOAD DEFAULT

16
5. Detailed of setup mode
Each designated function in the setup mode can be set by hitting the figure on the screen
with your hammer.
SETUP 1
• The SETUP 1 display allows you to change coin settings.
• You can change the setting values by hitting the “SELECT” button with your hammer as much as you want.
• The location of setup values are changed when you the “CHANGE” button with your hammer.
• Hit the “SAVE EXIT” to save the values you set.
❖SHOOTER1 - COIN(S) / CREDIT(S)
• This is related to the number of coins players insert. You can set how many coins are needed for a
credit (game).
• You can change each of the coin or credit values to equal anywhere from 1~9.
❖SHOOTER 2 - BILL(S) / CREDIT(S)
• This is used when you have a bill-validator installed.
• The details are the same as for those of SHOOTER 1.
❖CREDIT[S] / START
• Set how many credits are required to play the game.
• The setting range is from 1 to 9.
❖CREDIT[S]/CONTUNUE
• Set how many credits are required to continuously play the game.
• The setting range is from 1 to 9.
❖FREE PLAY
•Set up the possibility of free play.
•Setting may be changed to ON/OFF
PRIZE MODE
5-1

17
❖SHOOTER 1 - COIN[S]/CREDIT[S]
•This is related to the number of coins players insert. You can set how many coins are needed for a
credit (game).
•You can change each of the coin or credit values to equal anywhere from 1~9.
❖SHOOTER 2 -BILL[S]/CREDIT[S]
•This is used when you have a bill-validator installed.
•The details are the same as for those of SHOOTER 1.
❖PRIZE
•Set whether prize will be provided or not.
•Setting can be changed to ON / OFF.
❖CREDITS/PRIZE
•Players can win the prize according to how many credits are accumulated.
•This is activated when “PRIZE ON” is set.
(Prize never come out if “PRIZE OFF” is set)
•Setting may be changed to 20 / 50 / 100 / 150 / 200
TICKET MODE

18
Detailed of setup mode
SETUP 2
• The degree of difficulty and language of game are set on the SETUP 2 screen.
• You can change the setting values by hitting the “SELECT” button with your hammer as much as
you want.
• The location of setup values are changed when you the “CHANGE” button with your hammer.
• Hit the “SAVE EXIT” to save the values you set.
❖CREDITS/PRIZE
• Players can win the prize according to how many credits are accumulated.
The higher credits are, the lower the winning percentage is.
• The setting range is from 1 to 400.
❖ROUND TO PRIZE
• Set the number of the play round for getting to the prize out chance.
• The setting range is from 1 to 6.
❖DIFFICULTY
• Set up the degree of difficulty.
• Setting may be changed to EASY / NORMAL / HARD / VERY HARD
❖LIFE
• Set the number of LIFE a play.
• The setting range is from 1 to 9.
❖DEMO SOUND
• Set up demo sound ouput.
• Setting may be changed to ON / OFF.
PRIZE MODE
5-2

19
❖BONUS TICKET(S)
• Set the number of ticket(s) regardless of scores.
• The setting range is from 1 to 9.
❖LANGUAGE
• Set up the language to be used in the menu display, etc.
• Setting may be changed to ENGLISH / KOREAN.
❖DIFFICULTY
• Sets up the game’s difficulty.
• Setting may be changed to EASY / NORMAL / HARD / VERY HARD.
❖DEMO SOUND
• Set up demo sound output.
• Setting may be changed to ON / OFF
❖FREE PLAY
• Set up the possibility of free play
• Setting may be changed to ON / OFF
❖LANGUAGE
• Set up the language to be used in the menu display, etc.
• Setting may be changed to ENGLISH / KOREAN.
TICKET MODE

20
❖TICKET/POINTS
• Players can win ticket/s according to how many scores players obtain.
• Scores that you can obtain in the play of a game is approximately 1000 points.
(Example : 3 tickets will come out as 1000 ÷ 300 = 3.33333... If setting 300 points.)
• The scope of setting change ranges from 10 through 600.
❖JACK POT
• Set whether JACK POT exists or not.
• Setting may be changed to ON/OFF.
❖CREDITS/JACK POT
• Set how many of credits are needed to win a JACK POT.
• The scope of setting change ranges from 5 through 200.
❖JACK POT TICKETS
• Set how many ticket will come out in JACK POT.
• The scope of setting ranges is from 5 through 200.
❖BONUS TICKET(S
• Set the number of ticket(s) regardless of scores.
• The setting range is from 1 to 9.
Detailed of setup mode
SETUP 3 (Only for the TICKET MODE)
• Setting may be changed for the ticket on the SETUP 3 screen.
• You can change the setting values by hitting the “SELECT” button with your hammer as much as you want.
• The location of setup values are changed when you the “CHANGE” button with your hammer.
• Hit the “SAVE EXIT” to save the values you set.
5-3

21
LOAD DEFAULT
• All the manufacturer's default setup values can be saved.
• When you hit the YES button with your hammer, the manufacturer's default values are saved and you
are returned to the game display.
• When you hit the NO button with your hammer, the existing setup values are kept and you are
returnded to the game display.
5-4
