NAMCO ACE DRIVER DELUXE User manual

Part No. 90500019
ACE DRIVER
DELUXE
Operators Manual
ITIS THE RESPONSIBILITY OF THE OPERATOR TO MAINTAIN CUSTOMER SAFETY
AT ALL TIMES, AND IT IS IMPERATIVE THAT THE DETAILS SET OUT IN THIS
MANUAL ARE FOLLOWED PRECISELY.

SAFETYWARNING
In Order to Use This Machine Safely
In order to use this machine safely, be sure to read this Operators Manual and the
Installation and Commissioning manual carefully before installation and use of the
machine.
Whenever the owner of this machine entrusts disassembly, installation,
adjustment, routine maintenance or trouble shooting to another person, the owner
should ensure that they read the appropriate precautions and relevant sections of this
manual before starting work.
In order that no accidents occur when the machine is in operation, strictly
follow the notes on safety described below. Also, carefully read section 3,
"Precautions".
Warnings for Operation
NOTE: Only operate this machine after checking that it has been installed correctly
and in accordance with the Installation and Commissioning manual.
NOTE: Parts of this machine move during game play, so there are places where
the distance between the stationary section and moveable section changes.
There are warning stickers to keep hands and feet clear of moving parts,
however if the operator feels that a customer playing the game is in any
danger, he should warn the customer accordingly.
NOTE: The warning stickers must always be kept in good condition and replaced if
worn so that the customer can read them clearly.
NOTE: If there is an error or problem with this machine, operation must be
stopped immediately. (If the Drive Castor is worn out, it should be handled
according to section 6-9, "Handling Drive Castor Wear".)
Warnings for Disassembly, Installation, Routine Maintenance and Troubleshooting
DANGER: Namco Ltd. bears absolutely no responsibility for accidents or injuries
resulting from unauthorized changes to the machine.
DANGER: Ensure that the machine has been turned OFF before making adjustments
or carrying out maintenance. Also ensure only qualified personnel carry out
maintenance or turn the power ON to this machine.
DANGER: The power supply and inside the monitor will remain hot and have areas of
high voltage even though the machine has been turned OFF, and there is a
possibility of burns or electric shock. Be careful not to touch these areas.
DANGER: In order to avoid injuries due to mis-operation, be sure that the voltage of
the power supply is within the prescribed limits. Also to prevent possible
electric shocks due to failure, this machine MUST be fitted with a securely
connected earthed plug.
NOTE: Do not turn the main power switch ON until the machine has been installed
correctly.

© 1994 Ltd - all rights reserved.
Published by:
BRENT LEISURE Ltd.
Unit 1 Brent Crescent,
London. NW10 0QT
Phone:- 0181-965-0550
Fax:- 0181-961-0574
No part of this publication may be reproduced by any mechanical, photographic or electronic
process, or in the form of phonographic recording, nor may it be stored in a retrieval system,
transmitted or otherwise copied for public or private use, without permission from namco
Ltd.
While the information contained in this manual is given in good faith and was accurate at the
time of publication, BRENT LEISURE LIMITED reserve the right to make changes and
alterations without notice.
This machine has been manufactured in accordance with European Community directives
(1st. January 1995), and as such bears the marking. Any changes or modifications to
this machine must be in accordance with European Community directives (1st. January
1995).
If you make any unauthorised changes to this product, you may contravene European
Community directives (1st. January 1995)

Contents
1. HOW TO PLAY ............................................................................................................... 1
2. SPECIFICATIONS .......................................................................................................... 2
3. PRECAUTIONS ..............................................................................................................4
3-1. Notes on Operation .............................................................................................4
3-2 Notes on Installation ...........................................................................................5
3-3. Notes on Moving and Shipping..........................................................................6
3-4 Notes on Handling...............................................................................................7
4. MAJOR COMPONENTS ................................................................................................8
5 ADJUSTMENTS .............................................................................................................9
5-1 Turning on the Power .........................................................................................9
5-2 Adjustment Switches ..........................................................................................9
5-3 Test Mode...........................................................................................................10
5-3-1 Coin Options ......................................................................................... 11
5-3-2 Game Options......................................................................................12
5-3-3 I/O Test ..................................................................................................14
5-3-4 Switch Test ............................................................................................15
5-3-5 Motor Test..............................................................................................16
5-3-6 Motion Stop Test ...................................................................................16
5-3-7 Lamp Test..............................................................................................17
5-3-8 LED Test................................................................................................17
5-3-9 Sound Test ............................................................................................18
5-4 Linking Two or More Machines. .......................................................................19
5-4-1 Setting the Link Switches .....................................................................20
5-5 Adjustments When Replacing Parts (Initialization)........................................21
6. MAINTENANCE ............................................................................................................22
6-1 Cleaning the Under Base..................................................................................22
6-2. SignAssembly ...................................................................................................23
6-2-1. Replacing the Fluorescent Tube and Reflector Lamp .........................23
6-2-2. Replacing the LED Drive PCB..............................................................23
6-3. Main tower Assy.................................................................................................24
6-3-1. Replacing Fluorescent Lamp and Reflector Lamp...............................24
6-3-2. Removing the Game PCB ....................................................................24
6-3-3. Removing the Shield Case ...................................................................25
6-3-4. Removing the I/O Board .......................................................................25
6-3-5 Replacing the Switch Mode Power Supply and Fuses. .......................26
6-3-6 Replacing the Amplifier. ........................................................................26

6-4. Removing the Monitor.......................................................................................27
6-5. Steering and Shift Lever ...................................................................................29
6-5-1. Replacing the Steering Wheel..............................................................29
6-5-2. Shift Assembly Maintenance ................................................................29
6-5-3. Replacing the Steering Drive PCB .......................................................30
6-5-4. Replacing the Time Belt........................................................................31
6-5-5. Replacing the Motor and Motor Brush..................................................32
6-5-6 Replacing the Pulley .............................................................................33
6-5-7. Replacing the Fuse...............................................................................34
6-5-8. Replacing the Control Pot.....................................................................34
6-6. Replacing the Seat ............................................................................................35
6-6-1. Removing the Seat ...............................................................................35
6-6-2. Installing the Seat .................................................................................37
6-7. Under Base Assembly.......................................................................................38
6-7-1. Removing the Rear Covers (L), (R)......................................................38
6-7-2. Names of Under Base Parts.................................................................39
6-7-3. Replacing the Drive Castor...................................................................39
6-7-4. Replacing the Drum Drive PCB and Motion Stop PCB ........................42
6-7-5. Replacing the V Belts ...........................................................................43
6-7-6. Replacing the Motor and Motor Brushes..............................................44
6-7-7. Replacing the Motor Fuse.....................................................................44
6-8. AB PedalAssembly ...........................................................................................45
6-8-1. Removing the AB Pedal Assembly .......................................................45
6-8-2. Replacing the Control Pots...................................................................45
6-9. Handling Drive Castor Wear.............................................................................46
6-9-1. Checking drive Castor Wear.................................................................46
6-9-2. Action When the Drive Castor is Worn Out .........................................46
7. TROUBLESHOOTING .................................................................................................47
8. PARTS ..........................................................................................................................48
9. SCHEMATICS ...............................................................................................................90

Page 1
1. HOW TO PLAY
• This machine is a multi-player racing game that allows several people to play at
the same time, up to a maximum number of eight.
• When two or three players are competing against each other, the computer car
is included and competition is between four cars.
When four or more players compete against each other, competition is amongst
those players only.
When only one player is playing, he/she competes against the computer cars.
[Game Summary]
• The object of the game is to complete the set number of laps as fast as possible
within the set time.
• The game is over after completing the set number of laps. The finishing position,
lap time, and total time are displayed at the end of the game.
• If the set time runs out (becomes "0") before the laps are completed, the game
is over.
[Starting the Game]
• Insert a coin/s. Move the shift lever up or down to select the method of shifting,
AT (auto) or MT (manual) and then depress the accelerator.
• Next, move the shift lever up or down to select the level of difficulty (beginner,
expert, expert (pro)) and then depress the accelerator. Expert (pro) is selected
by selecting expert and depressing the accelerator while at the same time
pressing the view change button. In a linked game expert (pro) class is set only
if all participating players select it.
• After making selections, wait for the empty seat entry.
• A linked game starts when all of the connected seats have been entered, or
when another player enters from another seat within twenty seconds after the
coin/s have been inserted.
If there is no entry by another person within the twenty seconds, the game starts
as a single player.
• A single player game can be started without waiting for other players by inserting
a coin/s while pressing the view change button.

Page 2
2. SPECIFICATIONS
POWER SUPPLY :- 220/240volts AC
POWER CONSUMPTION:- 720W
MONITOR :- Hantarex 28" Polo Colour Monitor with auto degauss.
DIMENSIONS :-

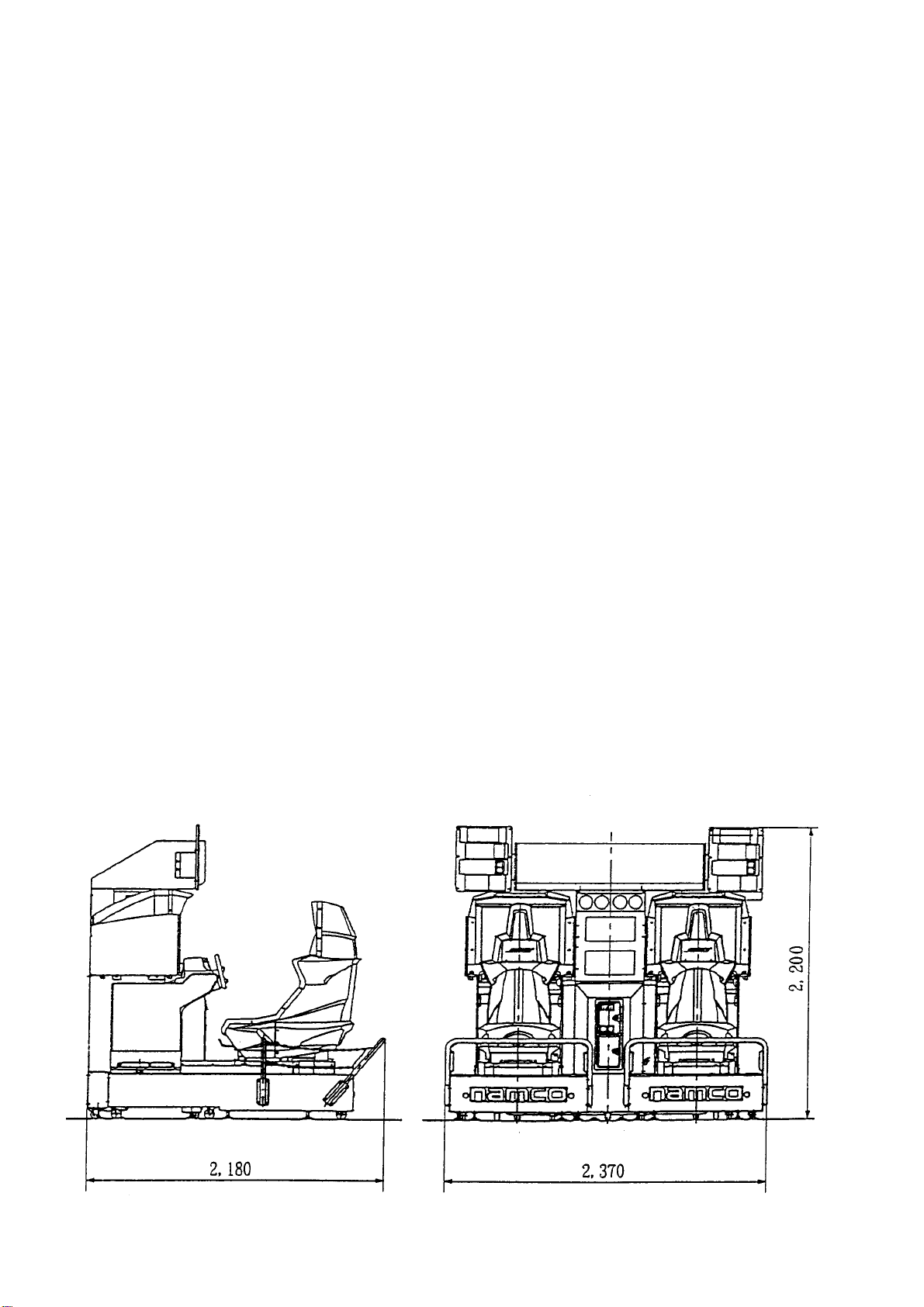

- Assembled: 2,370mm(w) x 2,180mm(d) x 2,200mm(h)
- Separated: Seat Assy 1,070mm(w) x 2,030mm(d) x 1,640mm(h)
Tower Assy 2,100mm(w) x 850mm(d) x 1,760mm(h)
Header Assy 1,380mm(w) x 842mm(d) x 325mm(h)
Sign Boards 440mm(w) x 170mm(d) x 490mm(h)
WEIGHT:-
- Assembled: 1,112kg
- Separated: Seat Assy 360kg (x2)
Tower Assy 348kg
Header Assy 32kg
Sign Boards 6kg (x2)

Page 3
ACCESSORIES :-
Keys: (Cash Door).....................................................2
(Coin Door)......................................................2
(Back Door).....................................................2ea
IEC Mains Lead ..................................................................1
Operators Manual...............................................................1
Installation & Commissioning Manual ................................1
Monitor Manual...................................................................1
Car Number Decal Set - Large ..........................................2
Car Number Decal Set - Small...........................................1
M10 Security Wrench.........................................................1
M8 Security Wrench...........................................................1
M6 Security Wrench...........................................................1
M5 Security Wrench...........................................................1
Link Cable 6 metre .............................................................1
Steering Control Pot (Cont. Rotation) ................................1
Header Sign Board - LHS ..................................................1
Header Sign Board - RHS..................................................1
Seat Base Extension Brkt - LHS/RHS ...............................4
Floor Safety Mat - LHS.......................................................1
Floor Safety Mat - RHS ......................................................1
Floor Safety Mat - Centre...................................................1
Rear Guard Fence..............................................................1
Rear Guard Fence Securing Brkt.......................................4
Safety Skirt ........................................................................2
Safety Skirt Stay.................................................................2
M10x25 Hex Head Screw ............................................... 12
M10 Flat Washer - H/Duty............................................... 12
M10 Spring Washer Type B ............................................ 12
M8x20 Security Button Head Screw ............................... 40
M8 Flat Washer - H/Duty................................................. 40
M8 Spring Washer Type B .............................................. 40
M6x20 Security Button Head Screw ................................. 4
M5x16 Security Button Head Screw ................................. 6
M5x12 Security Button Head Screw ................................. 4
No6x½" Pozi Flange Head Screw..................................... 4

Page 4
3. PRECAUTIONS
Be sure to read this section carefully
3-1. Notes on Operation
NOTE: Only operate this machine after checking that it has been installed correctly
and in accordance with the Installation and Commissioning manual.
NOTE: The supplied guard fence is to ensure customers do not get too close to the
machine or get injured. Make sure that the fence is fitted to the machine
correctly and the rubber safety mats are in place.
NOTE: Parts of this machine move during game play, so there are places where
the distance between the stationary section and moveable section changes.
There are warning stickers to keep hands and feet clear of moving parts,
however if the operator feels that a customer playing the game is in any
danger, he should warn the customer accordingly.
NOTE: Ensure customers do not get hurt by leaning or climbing on the seat base or
fence. Be especially careful in the case of young children.
NOTE: The warning stickers must always be kept in good condition and replaced if
worn so that the customer can read them clearly.
NOTE: If there is an error or problem with this machine, operation must be
stopped immediately.
Parts of this machine move to the left and right during the game. In order to maintain
the customer's safety, the operator should strictly follow the appropriate precautions.
NOTE: Ensure no items are placed on the seat base next to the seat
assemblies to prevent damage to the machine.

Page 5
3-2 Notes on Installation
1. This machine is designed for indoor use only. Do not install the machine in the
following places:

Page 6
2. If this machine is installed next to walls or other machines, ensure there is
plenty of space between them
NOTE: So that customers are not crushed or injured while the machine is
moving, ensure that it is separated from walls or other machines by at
least 30cm.
NOTE: In order that the PCB rack or power supply can be removed for service,
make sure that the rear of the machine is separated from a wall or
other machine by a distance of at least 50cm or more.
3-3. Notes on Moving and Shipping
NOTE: If the seat assembly is not secured to the seat base, there is a danger of the
seat assembly moving left or right during shipping. Ensure that the shipping
brackets (two for each seat assembly) are fitted securely.
NOTE: The tower assembly has a high centre of gravity and is unstable when
standing alone. Do not use a forklift when moving or shipping.
• Take care not to damage the machine when moving or shipping.
• Take care not to rope moulded (plastic) parts when shipping.
• Ensure that the levellers are raised fully when moving the machine, even for
short distances.
• The seat assy, tower assy and side boards must be separated when shipping.
• If a forklift is used to move the machine, use it only to move the seat assembly
and only insert the forks in the places indicated on the side of the assembly.

Page 7
3-4 Notes on Handling
DANGER The Mains voltage to this machine should be within the range of
220 to 240v AC and the transformer input matched accordingly.
DANGER Be sure that the power is turned OFF when replacing parts and
connecting/disconnecting connectors.
DANGER to prevent possible electric shocks due to failure, this machine MUST
be fitted with a securely connected earthed plug.
DANGER The monitor and power supply contain areas of very high voltage. Be
extremely careful when inspecting or making adjustments.
DANGER When unplugging the game from an electrical outlet, always grasp the
plug, not the mains lead.
NOTES:
• Always return PC Boards to your dealer for repair. Never test the PCB for
continuity with a multimeter or similar device. The PCB contains sensitive
devices which could be damaged or even destroyed by the internal voltage of
such test equipment.
• Adjustments are required after replacing the game PCB, ROM, Steering Assy,
AB Pedal Assy and control pots.
Adjustments should be performed as described in section 5-4, "Adjustments
when Replacing Parts" (page 19).
• After initial installation or if the number of machines linked together changes, it
may be necessary to use the test mode to change the settings and link switch
settings. (Refer to section5-4, "Linking Two or More Machines" (page 19).

Page 8
4. MAJOR COMPONENTS

Page 9
5 ADJUSTMENTS
5-1 Turning on the Power
After the machine has been installed, turn ON the power.
The Power switch is located on the rear of the upper tower
section. (See section 4"Major Components" (page 8).)
5-2 Adjustment Switches
The adjustment switches are located inside the coin door.
1. Service Switch
Press this switch to obtain game credits without incrementing the play
meters.
2. Test Switch
Slide this switch "ON" to enter test mode.
Test mode allows game testing and the changing of game settings. (Refer to
section 5-3 "Test Mode" (page 10).)
Service Bracket

Page 10
5-3 Test Mode
1. Open the coin door and slide the test switch "ON". The "Menu Screen" will be
displayed on the monitor.
2. Select the test required by moving the shift lever up or down. The colour of
the selected test will change.
3. Enter the selected test by stepping on the accelerator. Select "EXIT" to
return to the "Menu Screen" (step on the accelerator when using the monitor
test screen).
4. After testing is completed, ensure that the test switch is returned to the
"OFF" position to return to game mode.
The Test Switch must always be in the "OFF" position for normal game mode.
MENU
COIN OPTIONS------(1)Setsthe price of play. (See 5-3-1)
GAME OPTIONS------(2)Setsthe game options.(See 5-3-2)
I/O TEST ------ (3) Used for testing the switches and motor.
(See 5-3-3)
MONITOR TEST ------ (4) Used for adjusting the monitor.
SOUND TEST ------ (5) Used for adjusting the speaker volume.
(See 5-3-9)
ADS DATA ------ (6) Displays the accumulated game data.
OTHERS ------ (7) Used for testing the PC boards and for
initializing all of the settings.
GAS: ENTER SHIFT: CHOOSE

Page 11
5-3-1 Coin Options
a. Select item (1)
"COIN OPTIONS"
on the menu screen,
to set the game cost
and related settings.
b. Use the shift lever to
select the required
item then step on
the accelerator.
c. Use the shift lever to
change the settings
then step on the
accelerator to store
the new values.
d. Select "EXIT" to
return to the menu
screen.
METISTNETNOCYROTCAF TES
tsoCemaG)a( 9-1elbattes------tiderc1rofderiuqersnioC1
eulaVhceM1nioC)b( 9-1elbattes------niocrepretemnoseslupforebmuN1
eulaVhceM2nioC)c( 9-1elbattes------niocrepretemnoseslupforebmuN1
nioCsunoB)d(nisniocdeificepstaeslupniocartxEENON
yalPeerF)e( oN/seY------rotareleccagnisserpybdetratsemaGON
COIN OPTIONS [DEFAULT IN GREEN]
GAME COST
1 COIN 1 CREDIT ........... (a)
COIN1 MECH VALUE
1 COIN COUNT AS 1 COIN ........... (b)
COIN MECH 2 VALUE
1 COIN COUNT AS 1 COIN ........... (c)
BONUS FOR QUANTITY BUY IN
NONE ........... (d)
FREE PLAY
OFF ........... (e)
EXIT
GAS: ENTER SHIFT: CHOOSE
Note:- The price of play on this machine is set within the Cashflow Coin Mech. Ensure that
the Coin Options on the screen are set as shown in the following table.

Page 12
5-3-2 Game Options
a. Select item (2) "GAME
OPTIONS" on the
menu screen to set the
game options.
b. Use the shift lever to
select the required item
then step on the
accelerator.
c. Use the shift lever to
change the settings
then step on the
accelerator to store the
new values.
d. Select "EXIT" to return
to the menu screen.
Note: Race Class (c) must
be set first before
changing items (d),
(e), or (f).
NOTES
•The rank (level of difficulty) and number of laps must be set the same
on all positions that are linked.
•The PCB number of the seat furthest left (when facing the front of the
machine) should be set to 1, and the other seats set to 2, 3, 4 and so
on in order from left to right. The PCB number of the farthest right
position should equal the number of positions linked.
•Settings other than those described will cause the machine to operate
incorrectly.
GAME OPTIONS [DEFAULT IN GREEN]
PCB ID NUMBER ................. (a)
TEAM COLOUR BLUE3 ................. (b)
RACE CLASS BEG EXP PRO ................. (c)
DIFFICULTY B B B ................. (d)
LAPS [LINK] 3 3 4 ................. (e)
LAPS [SOLO] 3 3 4 ................. (f)
SPEED DISPLAY KM/H ................. (g)
SOUND IN ATTRACT ON ................. (h)
EXIT
GAS: ENTER SHIFT: CHOOSE
(See page 13 for descriptions)

Page 13
METINOITPIRCSEDTESYROTCAF
rebmuNBCP)a( emasehtevahsnoitisopdeknilehtfoenontahtostesebdluohsrebmunBCPehT rebmun
ruoloCmaeT)b(DER62ro52
EULB4ro3
WOLLEY81ro71
NEERG21ro11
ebdluohssrebmunecartnereffid,deknilera)staes6(steseerhtnahteromnehW* .sruolocmaetemasehtrofdesu
ecaR)c( ssalC GEB )emit(levelytluciffidemaG)d()trohs(Dot)gnol(A B
)emagdeknil(spalforebmuN)e(6ot3 3
)yalpolos(spalforebmuN)f(6ot3 3
PXE )emit(levelytluciffidemaG)d()trohs(Dot)gnol(A B
)emagdeknil(spalforebmuN)e(6ot3 3
)yalpolos(spalforebmuN)f(6ot3 3
ORP )emit(levelytluciffidemaG)d()trohs(Dot)gnol(A B
)emagdeknil(spalforebmuN)e(6ot3 4
)yalpolos(spalforebmuN)f(6ot3 4
stinUodeepS)g( HPM/H/MK HPM
dnuoStcarttA)h( FFO/NO NO

Page 14
5-3-3 I/O Test
1. Select item (3) "I/O TEST" on the menu screen.
2. Use the shift lever to select the required item then step on the accelerator.
I/O TEST
DIP 2 12345678 ........... (a) Option Switch (CPU-PCB Sw2)
3 12345678 ........... (b) Option Switch (CPU-PCB Sw1)
LINK ON 2 COUNT 0 ........... (c) Link Check
SWITCH ........... (d) Switch Test
MOTOR ........... (e) Motor Test
LAMP ........... (f) Lamp Test
LED ........... (g) LED Test
EXIT
GAS: ENTER SHIFT: CHOOSE
(a) Displays the state of the option switch, SW2, on the game PC board (CPU-
PCB).
(b) Displays the state of the option switch, SW3, on the game PC board (CPU-
PVB). For both items (a) and (b), the switch is ON when the numbers are shown
in red.
(c) Displays the number of positions linked. If there is a link error, "ERROR" is
displayed. The numbers to the right of "COUNT", display the number of link
errors detected during the I/O test.
(d)Tests the switches.(See 5-3-4.)
(e)Tests the motors.(See 5-3-5.)
(f)Tests the lamps.(See 5-3-7.)
(g)Tests the LEDs.(See 5-3-8.)

Page 15
5-3-4 Switch Test
The following screen is displayed when "SWITCH" is selected on the I/O
screen.
I/O TEST
DIP 2 12345678
3 12345678
LINK ON 2 COUNT 0
SWITCH
(a) Accelerator ................ GAS: *0000 COIN 1: OFF ..............(e) Coin 1 switch
(b) Brake ................ BRAKE *0000 COIN 2: OFF ..............(f) Coin 2 switch
(c) Steering ................ STEER *0000 SERVICE: OFF ..............(g) Service switch
(d) Shift ................ SHIFT CENTRE VIEW: OFF ..............(h) View change switch
TO EXIT, STEP ON GAS AND SHIFT UP
(a) When the accelerator is stepped on, the number increases in the + direction.
(b) When the brake is stepped on, the number increases in the + direction.
(c) When the steering wheel is turned to the right, the number increases in the +
direction, and when it is turned to the left, it increases in the - direction.
When items (a), (b), and (c) are in their middle position, "0000" is displayed. (It is
normal for the last digit to change.) Just before the steering wheel is as far as it
will go, or just before stepping on the accelerator or brake as far as they will go,
"OK" will be displayed to the right of the number if everything is correct.
(d) Displays the position of the shift lever (CENTRE, UP, DOWN) and the state of
the switches.
When the shift lever is pressed forward, switch 1 goes "ON" and "DOWN" is
displayed, and when it is pulled back, switch 2 goes "ON" and "UP" is displayed.
(e) When coin 1 switch is operated, "ON" is displayed.
(f) Unused.
(g) Goes "ON" when the service switch inside the coin door is pressed.
(h) Goes "ON" when the view change button is pressed
To return to the menu screen, move the shift lever up and step on the accelerator.
