1. General Information 14
1.1 Information about the instruction manual 14
1.2 Key to symbols 14
1.3 Liability and Warrantees 15
1.4 Copyright protection 15
1.5 Declaration of conformity 15
2. Safety 16
2.1 General information 16
2.2 Safety instructions for use of the device 16-17
2.3 Intended use 17
3. Delivery, packaging and storage 18
3.1 Delivery check 18
3.2 Packaging 18
3.3 Storage 18
4. Technical data 19
4.1 Overview of parts 19
4.2 Technical specification 20
5. Installation and operation 20
5.1 Safety instructions 20-21
5.2 Installation and connection 21
5.3 Operating 22-23
6. Cleaning and maintenance 23
6.1 Safety advice 23
6.2 Cleaning 23
6.3 Safety instructions for maintenance 24
7. Waste disposal 24
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
GB/UK

- 14 -
1. General information
1.1 Information about the instruction manual
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device and
easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards, which could lead to injury.
Please follow the instructions very carefully and proceed with particular attention
in these cases.
WARNING! Electrical hazard!
This symbol draws attention to potential electrical hazards. If you do not follow
the safety instructions, you may risk injury or death.
CAUTION!
This symbol highlights instructions, which should be followed to avoid any risk of
damage, malfunctioning and/or breakdown of the device.
NOTE!
This symbol highlights tips and information, which have to be followed for
an efficient and trouble-free operation of the device.
WARNING! Hot external surface!
This symbol is a warning that the unit surface is hot when in use. Ignoring this
warning may result in burns!

- 15 -
1.3 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology. If you have any
questions, you should contact the manufacturer.
NOTE!
Read the instruction manual carefully before using the device. The manufacturer
does not accept liability for any damage or malfunction resulting from not
following the instructions for use.
The instruction manual should be kept near the device, easily accessible for anyone
wishing to work with or using it. We reserve the right to make technical changes for
purposes of developing and improving the useful properties.
1.4 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any form
or by any means without permission in writing from the manufacturer. Any person who
commits any unauthorized act in relation to this publication shall be liable to claims for
damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are copyright
and subject to other protection rights. Any person unlawfully using this
publication is liable to criminal prosecution.
1.5 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity.
If required we will be glad to send you the according declaration of conformity.

- 16 -
2. Safety
This section provides an overview of all important safety aspects.
In addition every chapter provides precise safety advice for the prevention of dangers
which are highlighted by the use of the above mentioned symbols.
Furthermore, attention should be paid to all pictograms, markers and labels on the
device, which must be kept in a permanent state of legibility.
By following all the important safety advice you gain an optimal protection against all
hazards as well as the assurance of a safe and trouble-free operation.
2.1 General Information
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
Knowing the contents of the instruction manual as well as avoiding mistakes and thus
operating this device safely and in a fault-free manner is very essential to protect
yourselves from the hazards.
To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the device that are not explicitly approved by the manufacturer may be undertaken.
This device may only be operated in technically proper and safe condition.
2.2 Safety instructions for use of the device
The specifications regarding the industrial safety are based on the Regulations of the
European Union applicable at the time of manufacturing the device.
If the device is used commercially, the user is obliged to ensure that the said industrial
safety measures concur with the state of the rules and regulations applicable at the time
in question for the entire period of use of the device and to comply with the new
specifications.
Outside the European Union, the industrial safety laws applicable at the place of
installation of the device and the regional territorial provisions must be complied with.
Besides the industrial safety instructions in the instruction manual, the general safety and
accident prevention regulations as well as environment protection regulations applicable
for area of application of the device must be followed and complied with.

- 17 -
CAUTION!
oThe unit is not intended for use by individuals (including children) with physical or
mental disabilities, insufficient experience, and/or insufficient knowledge unless
such persons are under the care of a person responsible for their safety or have
received instructions regarding appropriate use of the unit.
oChildren should be observed to ensure that they are not playing with the unit.
oPreserve this manual safely. When passing on/selling the device to a third party, the
manuals must be handed over along with the device.
oEvery person using the device must act in accordance to the manuals and under
consideration of the safety advice.
oThe device is to be used indoors only.
2.3 Intended use
ATTENTION!
This device has been designed and built for commercial use only and should be
operated by qualified personnel only.
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made by a
qualified customer service only.
The crêpe maker should be used only for frying batter and flour-based products.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the device
is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use are
impossible.
The operator is liable for all damages resulting from inappropriate use.

- 18 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately after
receipt.
In case of visible damage do not accept or accept the delivery with reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in your
country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-Do not store outdoors.
-Keep it dry and dust-free.
-Do not expose it to aggressive media.
-Do not expose it to direct sunlight.
-Avoid mechanical shocks and vibration.
-In case of longer storage (> 3 months) make sure you check the state of the
packaging and the parts regularly. If required refresh or renew.

- 19 -
4. Technical data

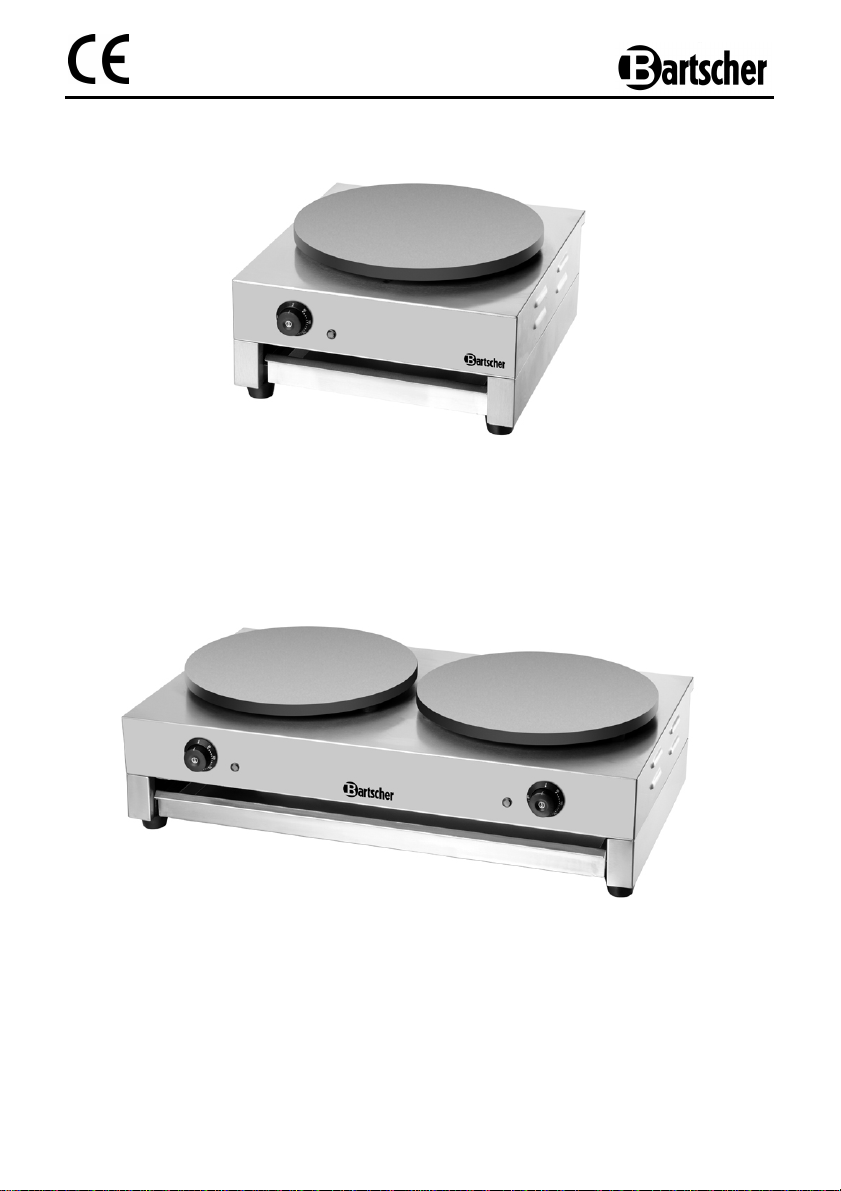

4.1 Overview of parts
104.446
104.447
Crêpe plate
Crêpe plate
Heat plate
Temperature dial
Crêpe spatula Crêpe spreader
Temperature dial
Feet
Standby light
(orange)
Standby light
(orange)
Crêpe spreader
Crêpe spatula
Crêpe plate
Feet
Casing
Casing
Temperature dial
Standby light
(orange)
Heat plate

- 20 -
4.2 Technical specification
Name Electric crêpe maker
Single Double
Art. No.:
104.446 104.447
Construction: Stainless steel and iron
Power: 230V ~ 50 Hz 3.0 kW 230V ~ 50 Hz 2 x 3.0 kW
Temperature range: 0°C – 300°C
Dimensions: W 450 x D 510 x H 246 mm W 870 x D 510 x H 246 mm
Crêpe plates
dimension: Ø 400 mm
Weight: 21.5 kg 40.0 kg
Accessories: 1 crêpe spreader, 1 crêpe spatula
We reserve the right to make technical changes!
5. Installation and operation
5.1 Safety instructions
WARNING! Electrical hazard!
The device must only be connected to a properly installed single socket with
protective contact.
Never yank cord to disconnect from outlet.
Cable must not touch any hot parts.
•See that the cable does not touch any heat sources or sharp edges. Do not let the
cable dangle over the counter edge.
WARNING! Hot external surface!
During operation some elements of the unit very become hot. To avoid burns, do
not touch hot elements!
•Do not use the device in case it does not function properly, has been damaged or
dropped.
•Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the device
or personal injury, and further, the warranty expires.

- 21 -
•Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep
away the cable from operating range and do not dunk it into water.
•Do not wrap the power cord around the unit and do not bend it.
•Do not place any objects on the crêpe plates when in use.
•Do not place any pots or pans on the griddle surface.
•Protect the unit from rain and moisture.
•Do not move or tilt the device when in operation.
WARNING! Hazard via electrical current!
The device can cause injuries due to improper installation!
Before installation the local power grid specification should be compared with
that of the device (see type label).
Connect the device only in case of compliance!
Take note of the security advice!
5.2 Installation and connection
CAUTION!
The installation and maintenance of the appliance should only be carried out by
trained personnel!
•Unpack the unit and remove all packing material. Remove the protective film from
the unit. If any glue remains, remove it with an appropriate solvent.
•Mount the adjustable legs and adjust them so that the unit stands in a stable position.
•Place the unit on a level, stable surface which can support the weight of the unit and is
not heat sensitive.
•NEVER place the unit on a flammable surface (e.g. carpet, tablecloth, etc.)
•Do not place the unit near an open flame, electric ovens, heating ovens and other
sources of heat.
•Do not place the unit near flammable or easily ignitable materials.
•Maintain a minimum distance of 20 cm from all sides.
•Two separate electrical outlets are necessary for the double crêpe maker.
•The electrical circuit in the socket must be secured to at least 16A. Only connect the
unit directly to the wall socket; do not use any extension cords or power strips.
•Place the unit so that the plug is easily accessible and can be quickly removed from
its socket in case of necessity.

- 22 -
5.3 Operating
•Prior to first use, clean the crêpe plates with a cloth soaked with cooking oil, in order
to remove any industrial greases remaining after the production process.
•Connect the unit to an appropriate electrical outlet.
•Prior to first use, turn on the unit for one hour and set it to a temperature of 180°C –
200°C. Some smoke may be produced. This is not a problem, and will not reoccur
during future use.
NOTE!
Always pre-heat the electric crepe maker before frying crepes!
•Heat the unit at the highest setting (300°C). After approx. 15 minutes set the unit to
the desired temperature.
•The standby light will come on after the desired temperature has been set, to show
that the unit is heating up.
•After the desired temperature has been reached, the light will go off. If the
temperature falls, the light will come on again and the unit will re-heat to the set
temperature.

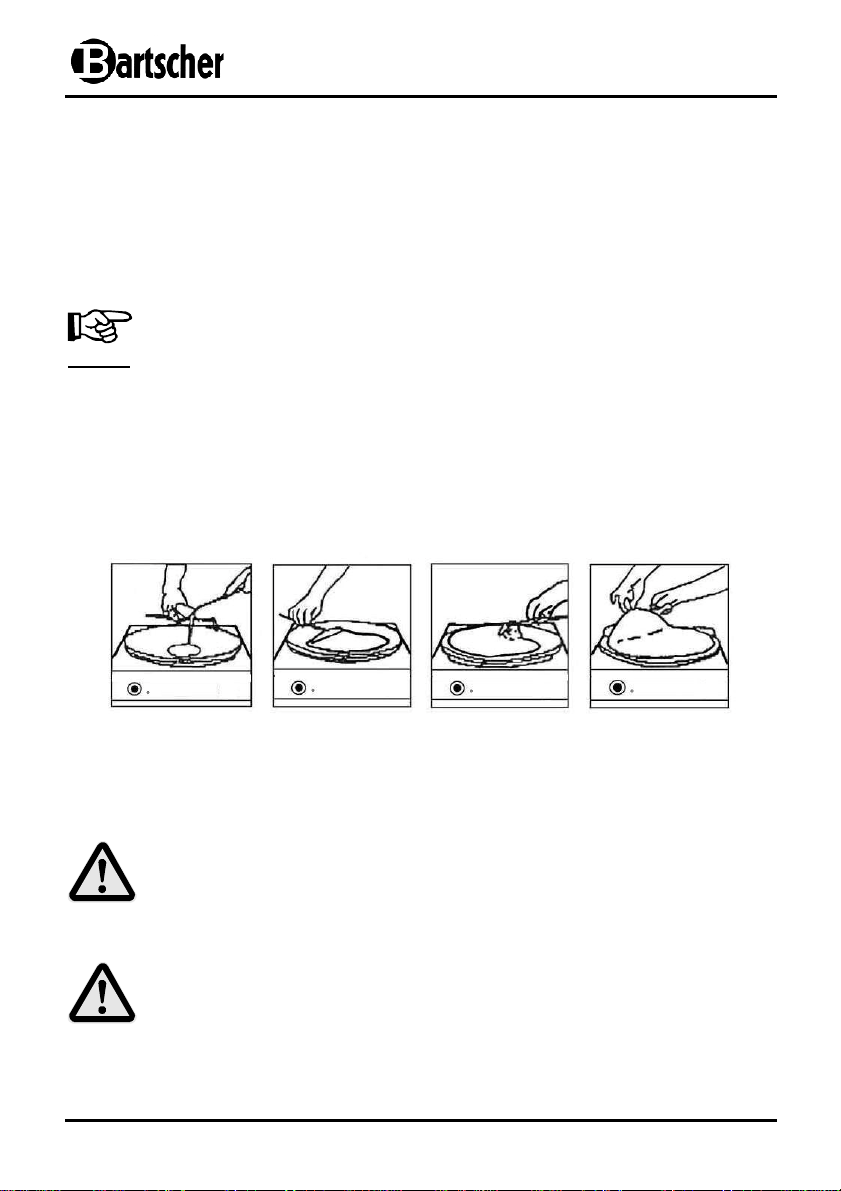

•Pour the batter on the crêpe plate and distribute it evenly using the crêpe spreader.
•Pay attention to the amount of batter used, as excess batter will overflow.
•For the pancake to be flat and even, keep the crêpe spreader in water.
•Use the enclosed crêpe spatula to turn crêpes over on the crêpe plate.
WARNING! Danger of burns!
When in use the crêpe plates is very hot. Do not touch with bare hands.
Always wear protective gloves extending beyond the elbow joint.
WARNING! Danger of burns!
Touching hot food products with bare hands will lead to burns! To remove prepared
pancakes use the turner delivered with the unit!

- 23 -
6. Cleaning and maintenance
6.1 Safety advice
oBefore beginning with repair or cleaning works make sure the device has been
disconnected from power socket (pull the power plug!!!) and has cooled down.
oDo not use any acid agents and make sure no water ingresses the device.
oTo protect yourself from electric shock, never immerse the device, its cables and the
plug in water or other liquids.
CAUTION!
The device is not suited for direct washing via water jets. Therefore, you must not
use any kind of pressure water jet for cleaning the device!
6.2 Cleaning
oClean the unit regularly.
oDisconnect the unit from its power source by removing the plug, and leave it to cool.
oIf the unit is still warm, remove any leftover food with a paper towel or soft, moist
cloth.
oClean the crêpe plates with a paper towel or soft, moist cloth. Ensure that no water,
oil or grease gets inside the unit.
ATTENTION!
Do not use water to wash a hot plates!
oClean the casing with a soft cloth and mild cleaning agent.
oClean the crêpe spreader and crêpe spatula regularly in warm water and with a mild
cleaning agent.
oNever use metallic or sharp objects to clean the unit. Scratches to the surface will
have a negative effect on the unit’s performance.
oUse only soft cloths, and never cleaners which may scratch the unit’s surface.
oEnsure the unit is thoroughly washed prior to placing it in a dry place.

- 24 -
6.3 Safety instructions for maintenance
oCheck the mains connection cable for damage from time to time. Never operate the
device when the cable is damaged. A damaged cable must immediately be replaced
by customer service or a qualified electrician to avoid dangers.
oIn case of damage or malfunction, please contact your stockist or our customer
service centre.
oOnly a qualified technician and using original spare parts and accessories should
carry out repairs and maintenance of the device. Do not attempt to repair the
device yourself.
7. Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for
use before disposal. For that purpose disconnect device from mains supply and
remove mains connection cable from the device.
NOTE!
For the disposal of the device please consider and
act according to the national and local rules and
regulations.
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
