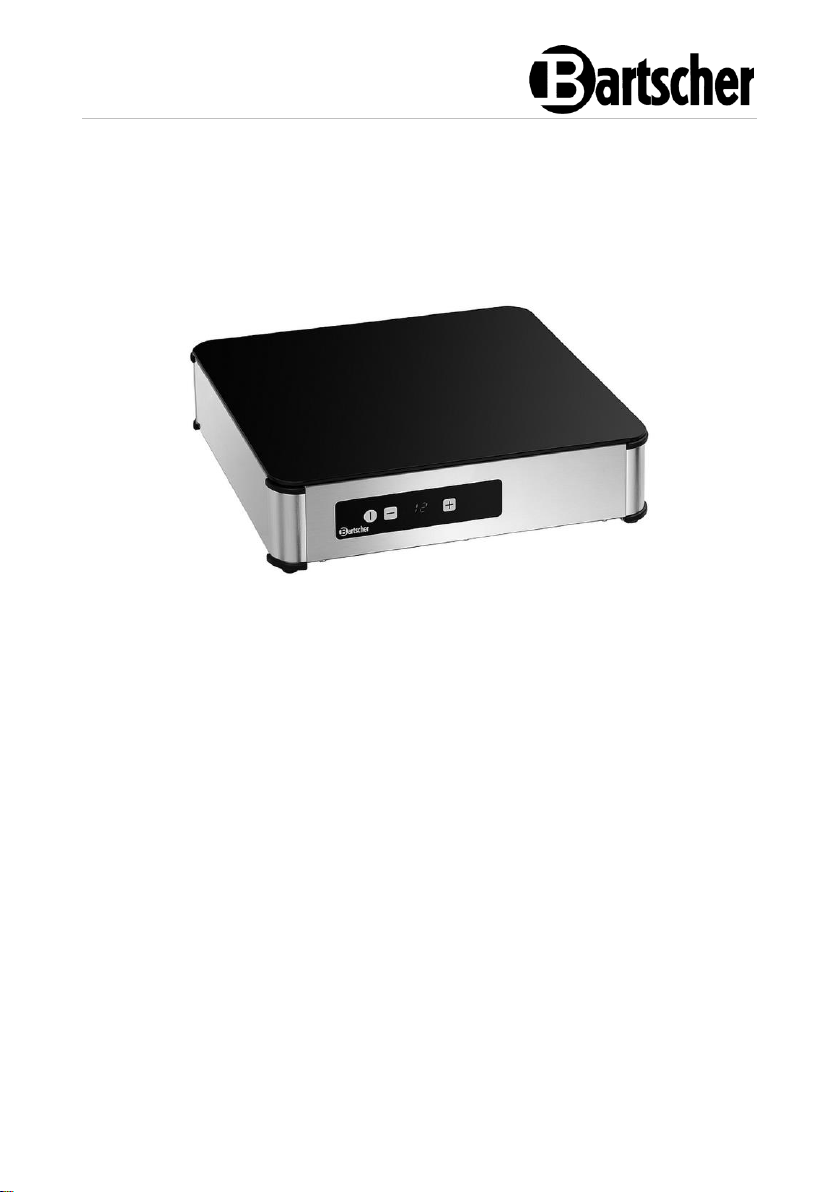

Bartscher IW3 User manual

IW3
105865

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2022-10-28
EN
2

105865 1 / 20
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................6
1.4 Unintended Use.......................................................................................6
2General information.......................................................................................7
2.1 Liability and Warranty ..............................................................................7
2.2 Copyright Protection ................................................................................7
2.3 Declaration of Conformity ........................................................................7
3Transport, Packaging and Storage................................................................8
3.1 Delivery Check.........................................................................................8
3.2 Packaging................................................................................................8
3.3 Storage....................................................................................................8
4Technical Data...............................................................................................9
4.1 Technical Specifications ..........................................................................9
4.2 Functions of the Appliance.....................................................................10
4.3 List of Components of the Appliance .....................................................11
5Installation and operation ............................................................................12
5.1 Installation..............................................................................................12
5.2 Operation...............................................................................................14
6Cleaning ......................................................................................................17
6.1 Safety Instructions for Cleaning.............................................................17
6.2 Cleaning.................................................................................................18
7Possible Malfunctions..................................................................................19
8Disposal....................................................................................................... 20

Safety
2 / 20 105865
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu ndH andlungs anweisungen schafft die V oraussetzung für d as sichere und sac hgerechte Arbeite n mitd emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Un fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eingehalt en werden. Diese Bedi enungsanleitung ist Bestandt eild es Produkts und muss i n unmittelbarer Nähe d es Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
105865 3 / 20
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 20 105865
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Flammable Materials
•Never subject the appliance to contact with high temperature sources, e.g.:
oven, furnace, open flame, heat generating devices, etc.
•To avoid fire hazard, clean the appliance regularly.
•Do not cover the appliance with, e.g., aluminium foil or cloths.
•Use the appliance only with materials designated to this end and with correct
temperature settings. Materials, groceries and left-overs remaining in the
appliance may catch fire.
•Never use the appliance near flammable or inflammable materials, e.g.: petrol,
spirit, alcohol, etc. High temperature triggers evaporation of these materials,
and, as a result of contact with sources of ignition, an explosion may occur.
•In case of fire, disconnect the appliance from the power supply before
attempting suitable fire-extinguishing actions.
•Never attempt to extinguish fire with water if the appliance is connected to the
power supply. Following extinction of fire, ensure sufficient fresh air inflow.
Electromagnetic Fields
•Magnetized items, e.g. credit cards, data storage devices or calculators, may
not be placed in an immediate vicinity of the switched on appliance. Magnetic
field might damage them.
•Do not open the bottom cover!
•Cookware should always be placed in the middle of the cooking area, so that
pot bottom covered the electromagnetic field to the maximum extent.
•Scientific researches proved that induction cookers pose no threat.
Nevertheless, people with cardiac pacemaker should keep a distance of at least
60 cm from the working appliance.
Safety of Induction Plate Operation
•During operation, the heating area is getting very hot.
Information: Induction cooker does not generate heat in the process of
cooking. Nevertheless, the temperature of cookware heats up the heating

Safety
105865 5 / 20
EN
area and the surface remains hot after use. Do not touch any hot surfaces
of the appliance.
•You may transport and clean the appliance after it cools down entirely.
•It is prohibited to sprinkle hot surfaces with cold water or flammable liquids.
•Do not put metal kitchen utensils, lids, knifes nor any other metal objects on the
heating area. These objects might heat up after switching the appliance on.
•Remember that wearable items, e.g. rings, watches etc., may heat up when they
are close to the cooker’s plate.
•In order to avoid overheating, do not place any aluminium foil or metal plates on
the heating surface of the appliance.
•Do not heat up sealed containers, e.g. canned food, on the heating area of the
induction cooker. Resulting overpressure may cause explosion (rupture) of a
container or a can. The canned food is best to open it, put it in a pot filled with
water and place the pot on a heating area in order to heat it up.
•The heating area is made of a temperature-resistant glass. In case of damage,
even if it is only a small fracture, the device should be immediately disconnected
from the power supply and you should contact the service company.
Operating Personnel
Halten Sie Verpac kungsmateriali en und Styropor teile von Kindern fern. Mogł yby one się w ni e zaplątać i udusi ć.
•The appliance may be used by people with reduced physical, sensory or mental
abilities and those with limited experience/knowledge as long as they are under
supervision or have been instructed on safe use of the appliance and possible
risks. Do not leave the appliance unattended during operation.
•Keep children away from the appliance and power supply cable.
•Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.

Safety
6 / 20 105865
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Heating-up foods and keeping them warm with the use of suitable plates.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Heating-up flammable, hazardous to health and volatile, etc. liquids and
materials.

General information
105865 7 / 20
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
8 / 20 105865
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
105865 9 / 20
EN
4 Technical Data
4.1 Technical Specifications
Name:
Induction warming plate IW3
Art. No.:
105865
Material:
steel
Heating plate material:
glass
Number of heating plates:
1
Max. pot diameter, in mm:
200 - 380
Glass hob dimensions (W x D), in mm:
390 x 390
Max. power, in W:
300
Temperature range, min.–max., in °C:
40 - 95
Number of temperature levels:
12
Temperature setting intervals, in °C:
5
Connected load:
0,3 kW | 220-240 V | 50-60 Hz
Dimensions (W x D x H), in mm:
395 x395 x 100
Weight, in kg:
5,5
We reserve the right to implement technical modifications.

Technical Data
10 / 20 105865
EN
Version / Design
•Colour:
–silver
–black
•Type of heating plate: induction
•Control: power output
•Control panel: on the appliance
•Possibility of combining: 4 appliances may be connected in sequence in 1 power
circuit
•Cookware detection
•Digital display
•Overheating protection
•ON/OFF switch
•Control: electronic, touch
•Appliance connection: ready to plug in
4.2 Functions of the Appliance
Dishes are kept warm on the induction heating plate at the set temperature with the
use of suitable cookware.
There is a possibility of combining 4 appliances in one power circuit owing to
optionally available cord.

Technical Data
105865 11 / 20
EN
4.3 List of Components of the Appliance
Fig. 1
1. Glass hob
2. Control elements
3. Housing
4. IEC socket for additional appliances
5. Power cord with mains plug
6. Appliance power cord plug-in socket
7. Ventilation openings
8. Ventilation openings
9. Feet (4x)

Installation and operation
12 / 20 105865
EN
5 Installation and operation
5.1 Installation
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•Do not place the appliance in the vicinity of devices or objects that are sensitive
to magnetic fields (e.g. radio, television, etc.).
•Leave at least 5 -10 cm clearance from flammable walls and other objects.

Installation and operation
105865 13 / 20
EN
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Do not use the appliance with an external timer or remote control.
•The appliance is connected to the electric power supply using the supplied
power cord to the corresponding plug-in socket of the appliance.
•The appliance also has an integrated IEC socket for powering another induction
heating plate that can be installed in series (up to 4 units). The corresponding
cable must be purchased separately.
Fig. 2

Installation and operation
14 / 20 105865
EN
5.2 Operation
Method of operation of heating plates
In induction cookers the electric voltage is applied to a conductive coil under the
glass. This generates magnetic field, which being a physical effect, heats the
bottom of a cookware directly.
This translates to savings of time and energy, as —contradictory to traditional
heating areas —there is no heating up of a heater and then of the glass heating
plate.
Another advantage of the technical features described above is the very short
cooking time.
Additionally, inflow of heat changes instantly with every change of settings and it
may be controlled precisely. The induction heating plate reacts to changes in
settings as fast a gas cooker, for the energy is delivered immediately to a pot,
without the need to prior heating up of other materials.
The induction technology combines the speed of reaction with a basic benefit of the
current, making it possible to precisely control heat inflow.

Installation and operation
105865 15 / 20
EN
Cookware Pieces
The induction appliance is equipped with a cookware detection mechanism.
To check if a cookware piece is suitable for induction, perform the following test:
–place a cookware piece on the hob of the appliance,
–use the control unit to select level 4,
–if the display does not blink, the cookware piece is compatible;
–if the display blinks, the cookware piece is not recognised and thus it
cannot be used.
The compatibility of cookware pieces can also be checked with a magnet: if a
magnet sticks to the bottom of a cookware piece, such cookware piece is suitable
for induction appliances.
Suitable Cookware:
•Iron cookware
•Enamelled iron cookware
•Steel or enamelled cast iron pots/pans
•Cast iron pots/pans
•Stainless steel cookware
•Aluminium cookware with special bottom
Unsuitable Cookware:
•Glass, ceramic or clay cookware
•Aluminium cookware without special bottom
•Bronze or copper cookware
•Cookware with feet
•Containers with bulged bottoms
ATTENTION!
Do not place plastic containers onto a hot hob of the appliance.
To obtain better results, use only cookware/containers with a diameter of 200–
380 mm.

Installation and operation
16 / 20 105865
EN
Control elements
Fig. 3
1. ON/OFF key
2. Setting value decrease key
3. Digital display
4. Setting value increase key
Before Use
1. Before the first use, clean the appliance observing indications in section 6.
'Cleaning'.
2. Place an appropriate cookware / container with food on the hob.
3. Plug the appliance into a suitable single socket.
Settings
1. Switch the appliance on with the ON/OFF key
2. Use the '+' or '-' keys and select a temperature level from the range of 1–12, as
suitable for a given dish.
The temperature may be set with 5 °C increments.
The set temperature level will be shown in the digital display.

Cleaning
105865 17 / 20
EN
The below table contains temperature values suitable for individual levels.
Temperature level
Temperature (°C)
Temperature (°F)
1
40
104
2
45
113
3
50
122
4
55
131
5
60
140
6
65
149
7
70
158
8
75
167
9
80
176
10
85
185
11
90
194
12
95
203
3. When the intended effect is obtained or when the appliance will not be used any
more, switch it off with the ON/OFF key.
4. Disconnect the appliance from the mains socket (pull the plug out).
6 Cleaning
6.1 Safety Instructions for Cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.

Cleaning
18 / 20 105865
EN
6.2 Cleaning
1. Clean the appliance daily; more often should it be needed.
2. Clean the lightly soiled glass hob, housing and control panel with a soft, damp
cloth and a mild, non-scouring, cleaning agent. Wipe with a clean cloth.
3. For burnt stains, proceed as follows:
–moisten the soiled area with warm water,
–remove the soiling with a special glass scraper,
–wipe the place with the scrubbing side of a sponge for cleaning sensitive
surfaces,
–finally, wipe the surface dry with a soft cloth.
4. For limescale stains, apply warmed wine vinegar or commercially available
descaling agent to the area, wait for it to work, and then wipe off with a soft,
damp cloth.
5. For deposits caused by spilled sugar, melted plastic or aluminium, apply a
special glass/ceramic glass cleaner (with silicone if possible) to the surface, then
wipe the surface.
6. After cleaning, dry cleaned surfaces thoroughly with a soft cloth.
7. Ventilation openings at the bottom of the appliance should not be obstructed
with dirt nor dust. Clean them regularly with a brush or vacuum cleaner.
