Bartscher 101923 User manual

1,2kg/7L AS
101923
Original-Gebrauchsanleitung
V1/0718

- 21 -
ENGLISH
Table of contents
1.Safety ........................................................................................................................ 22
1.1 Key to symbols..................................................................................................... 22
1.2 Safety instructions................................................................................................ 23
1.3 Proper use............................................................................................................ 26
2. General information................................................................................................ 27
2.1 Liability and Warrantees....................................................................................... 27
2.2 Copyright protection ............................................................................................. 27
2.3 Declaration of conformity...................................................................................... 27
3. Transport, packaging and storage......................................................................... 28
3.1 Delivery check...................................................................................................... 28
3.2 Packaging............................................................................................................. 28
3.3 Storage................................................................................................................. 28
4. Technical data ......................................................................................................... 29
4.1 Overview of parts ................................................................................................. 29
4.2 Technical specification ......................................................................................... 31
5. Installation and operation....................................................................................... 32
5.1 Installation............................................................................................................ 32
5.2 Operation.............................................................................................................. 33
6. Cleaning and maintenance..................................................................................... 38
7. Waste disposal........................................................................................................ 40
Bartscher GmbH phone: [phone]
Franz-Kleine-Str. 28 fax: [phone]
33154 Salzkotten Service-Hotline: [phone]
Germany www.bartscher.com
GB/UK

- 22 -
Read this instruction manual before using and
keep them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Please keep these instructions and give them to future owners of the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions
in this instruction manual.
1.1 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
DANGER!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.

- 23 -
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.2 Safety instructions
The device is not intended for use by individuals (including
children) with physical or mental disabilities, insufficient
experience, and/or insufficient knowledge unless such persons
are under the care of a person responsible for their safety or
have received instructions regarding appropriate use of the
device.
Children should be observed to ensure that they are not playing
with or starting the device.
Never leave the device unattended when in use.
Only use the device indoors.
The device must be operated in correct and safe technical
condition only. In case of operational problems disconnect the
device from the power supply (pull the plug from the socket) and
contact the service company.
Prevent access of children to the package materials like plastic
bags and foamed polystyrene elements. Suffocation hazard!

- 24 -
Only a qualified technician and using original spare parts and
accessories should carry out repairs and maintenance of the
device. Do not attempt to repair the device yourself.
Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous
for the user or lead to damages of the device or personal injury,
and further, the warranty expires.
To prevent hazards and to ensure optimum efficiency, no
modifications or alterations to the device that are not explicitly
approved by the manufacturer may be undertaken.
DANGER! Electric shock hazard!
To avoid the hazard results please follow the safety instructions
below.
Never allow the power cable to come into contact with heat
sources or sharp edges. The power cable should not hang over
the side of the working surface. Ensure that no one can step on
or trip over the cable.
The power cable must not be folded, bent or tangled, and must
always remain fully unrolled. Never place the device or other
objects on the power cable.
Do not cover the cable. Keep away the cable from operating
range and do not immerse it into water.
Check the power cord regularly for damage. Do not use the
device if the power cord is damaged. If this cable is damaged,
it must be replaced by customer service or a qualified
electrician in order to avoid dangers.

- 25 -
The supply cable must be disconnected from the socket
only by pulling the plug.
Never carry or lift the device by the supply cable.
In any case do not open the device housing. In case of
electrical or mechanical modifications the electric shock
hazard will occur.
Do not use any acid agents and make sure no water ingresses
the device.
Never operate the device with moist hands or standing on wet
floor.
Remove the plug from its socket:
-when the device is not used,
-in case of anomalies during operation,
-before cleaning.
WARNING! Injury hazard!
To avoid the hazard results please follow the safety instructions
below.
To prevent the injury, keep the hands, hair, clothing, as well
as spatulas or similar kitchen utensiles away from the mixing
bowl or stirrers during operation.
Change the stirrers only when the motor, which rotates still
for a short time after you switch off the power, has stopped
completely. Attaching or removing the stirrers when the
motor is still working can result in finger or hand injury.

- 26 -
1.3 Proper use
The operational safety of the device is assured only in case of proper use, according
to the operation manual.
All technical activities like installation and maintenance must be performed by the
qualified service personnel only.
The kitchen machine is intended only for kneading bread dough and mixing
baking dough, whipping batter, making pastry, buttercreams, whipped
cream and for whisking eggs.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use
are impossible.
The operator is liable for all damages resulting from inappropriate use.

- 27 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-violation of advice concerning operation and cleaning;
-use other than designed;
-alterations made by user;
-use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.

- 28 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
If you liked to dispose the packing, consider the regulations applicable
in your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-do not store outdoors,
-keep it dry and dust-free,
-do not expose it to aggressive media,
-do not expose it to direct sunlight,
-avoid mechanical shocks and vibration,
-in case of longer storage (> 3 months) make sure you check the state
of the packaging and the parts regularly, if required refresh or renew.

- 29 -
4. Technical data
4.1 Overview of parts
1
Body
2
Control panel
3
Mixing bowl lift handle
4
Shaft
5
Mixing bowl support
6
Base unit
7
Shield holder
8
Mixing bowl
9
Mixing bowl shield
10
Flat stirrer
11
Dough hook
12
Whisk
9
7
10
2
1
3
4
5
6
8
11
12

- 30 -

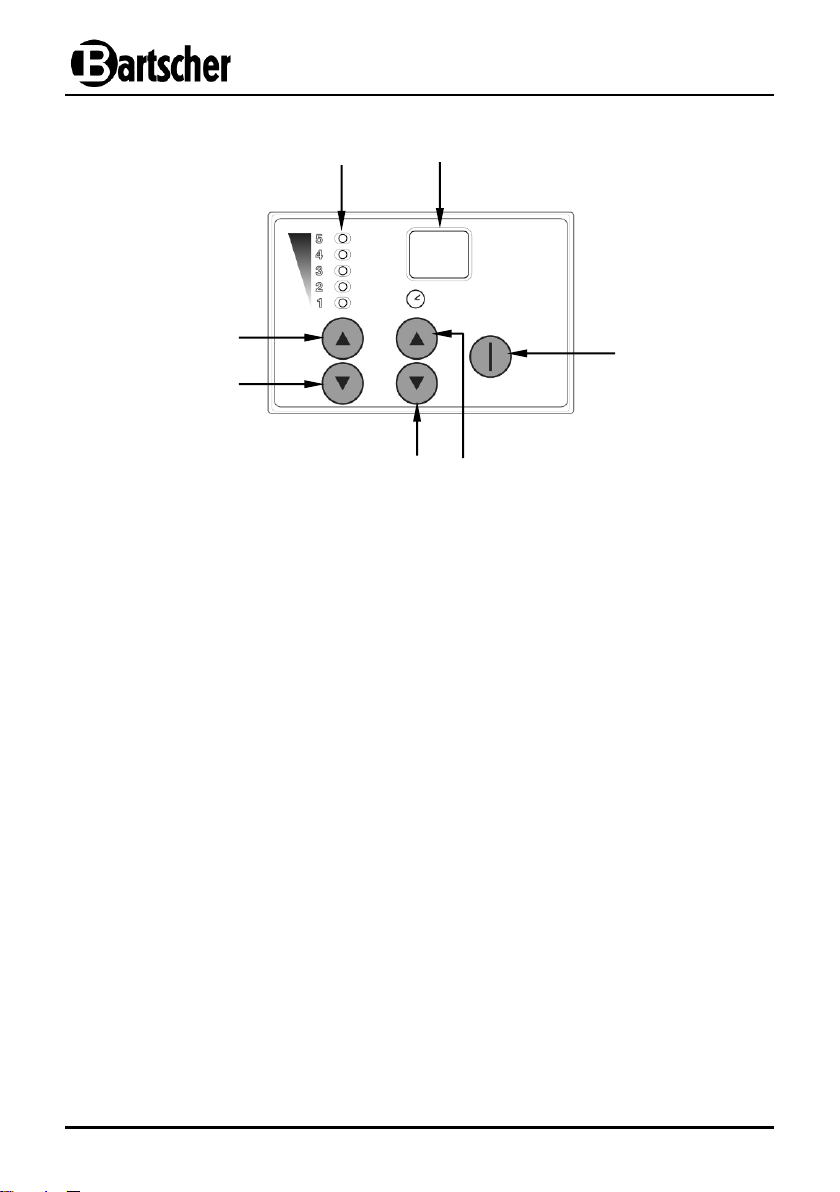

Control panel
13
Speed level LED indicator
17
Time down button
14
Digital display
18
Speed down button
15
ON/OFF switch
19
Speed up button
16
Time up button
Protective devices
The kitchen machine is equipped with the safety protection against starting the
device when:
-the mixing bowl shield is not attached,
-the feed chute in the shield is not closed,
-the mixing bowl is not attached in the support,
-the mixing bowl lift handle is not in the top position.
To provide additional protection, the device is equipped with the power cut
protection. It means that in the case of power outage the device may be restarted
only after you press the power switch button. The system protects the device from
self-starting after the power supply has recovered.
In the case of overload, the overheating protection turns on and stops the device
automatically. In such a case, switch off the device using the power switch and
reduce the amount of dough when the motor has stopped completely.
15
13
14
19
18
17
16

- 31 -
4.2 Technical specification
Name
Kitchen machine 1.2 kg/7L AS
Code-No.:
101923
Material:
Device: aluminium, enameled
Mixing bowl: stainless steel
Realization:
Equipment connection: pluggable
Mixing bowl detachable
Safety switch
Digital display
Timer
ON/OFF switch
Output dough:
1.2 kg / 7 litres
Speed control:
5 levels
Time setting
1 –30 minutes, interval: 1 minute
Power supply:
0.65 kW / 230 V 50 Hz
Dimensions:
W 315 x D 430 x H 495 mm
Weight:
19.3 kg
Accessories (included):
1 x whisk, stainless steel
1 x dough hook, stainless steel
1 x flat stirrer, stainless steel
We reserve the right to make technical changes!

- 32 -
5. Installation and operation
5.1 Installation
Positioning
Unpack the device and remove all package materials according to the valid
environment protection regulations.
CAUTION!
Never remove the nameplate and warning signs from the device.
Put the device on an even, stable, dry and waterproof surface which is resistant to
high temperature.
Never place the device on an inflammable surface.
Place the device on the surface that supports the weight of the device also
when fully loaded (min. 25 kg).
Leave enough space around the device to ensure efficient operation and to be able
to attach or remove the mixing bowl or stirrers.
To protect the device from overheating, do not cover the ventilation slots at the
rear panel.
Never put the device in a moist or wet area.
Place the device so that the plug is easily accessible so as to quickly disconneet the
device if the need arises.
Connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid
specification should be compared with that of the device
(see rating plate). Connect the device only in case of
compliance!
The power supply circuit with the socket must be protected by the fuse of at least 16A.
Connect the device directly to a single grounded socket. Do not use any power bar or
multiple socket.

- 33 -
5.2 Operation
Before the first use
Before the first use, thoroughtly clean the device and accessories with warm water
and mild cleaning agent. Follow the instructions in point 6 “Cleaning and
maintenance “.
Thoroughly rinse the cleaned elements with clean water and then dry.
Assemble the device according to the instructions.

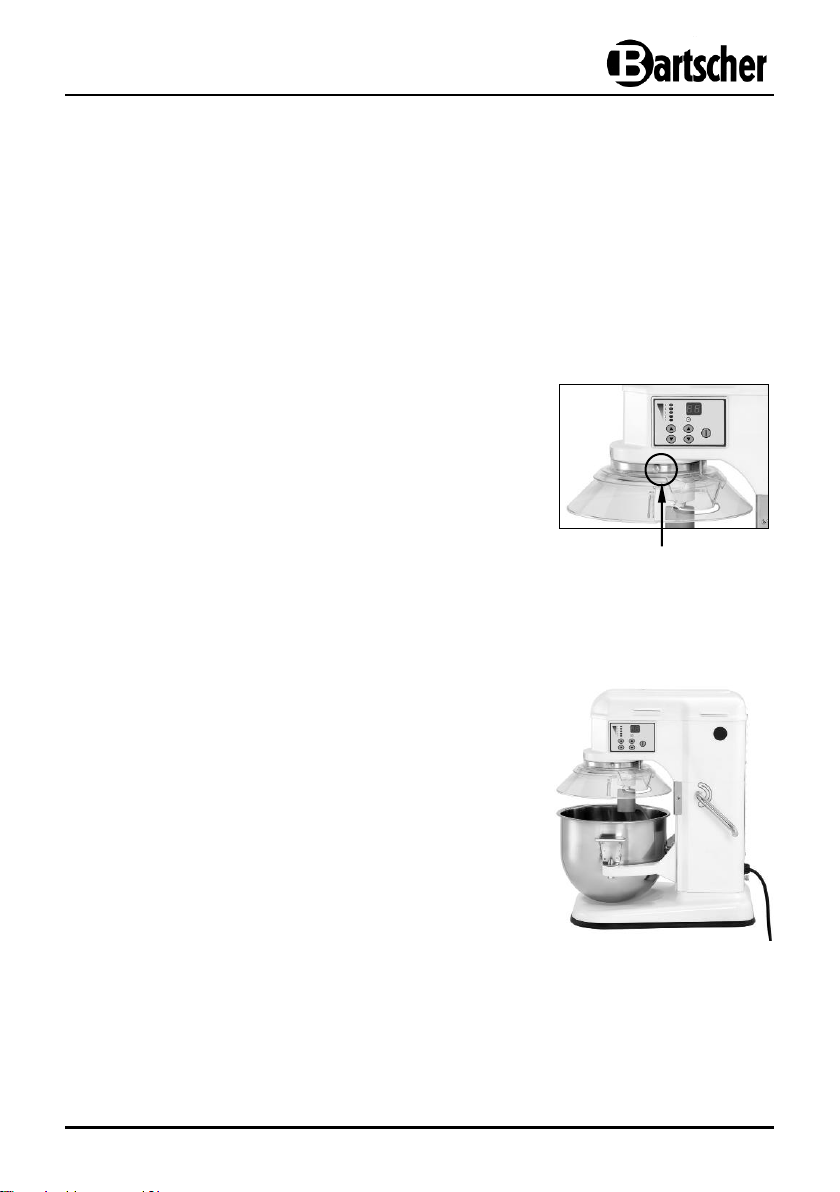

Attaching the mixing bowl shield
Fit the mixing bowl shield to the holder in the body
of the device. Place the mixing bowl shield above
the stirrer holder and fasten using the two included
fixing screws.
Attaching the mixing bowl
Before attaching the mixing bowl, switch off the device and place the fixing element of
the mixing bowl in the down position.
Fit the selected stirrer in the mixing bowl and
attach it to the holder.
There are three attaching points in the mixing bowl:
a) locking shaft (pin) at the rear of the mixing
bowl, to fit the relevant fastening notch in
the mixing bowl;
b) two pins at the left and right of the mixing
bowl support to catch the notches at the
mixing bowl handles.
Fixing screw

- 34 -
Select stirrers
The flat stirrer, whisk and dough hook are intended only for specified tasks according
to their intended use. Do not use the flat stirrer to knead heavy dough, the whisk to
other tasks than whipping, whisking, or mixing light mixtures.
Dough hook
is indended for heavy mixtures, for example
bread dough;
recommended speed level: 1
Flat stirrer
usually used for light cakes, cookies,
fillings, and vegetable purée;
recommended speed levels: 2 - 3
Whisk
useful for light mixtures, such as whipped
cream, mayonnaise, eggs, egg whites,
souflets or pancakes;
recommended speed levels: 4 - 5
Attaching stirrers
Slide the shaft of the selected stirrer to the holder and turn anticlockwise until locked.
CAUTION!
Make sure that the stirrer is fastened firmly to the spindle of the
device.
To remove the stirrer, push it slightly towards the holder, turn clockwise and pull down.

- 35 -
Pour the ingredients
When the selected stirrer is fastened, fill the mixing bowl with the ingredients of the
mixture. Do not fill over the maximum filling level.
Output (amounts)
The table below presents the recommended baking loads (volumes after mixing
refer to usual mixtures).
The device is able to mix larger loads, however it may result in premature wear and
possible damage of the device. Also, the device overload causes longer
mixing/kneading time and unsatisfactory results.
In the case of the overload of the motor, stop the device and immediately reduce the
volume in the mixing bowl.
Product
Stirrer
Max. filling level
Egg white
Whisk
700 g
Potato mash
Flat stirrer
1500 g
Mayonnaise
Flat stirrer
3 litres
Meringue
Whisk
1 litre
Whipped cream
Whisk
3 litres
Pancake/waffle batter
Flat stirrer
2 litres
Puff pastry
Flat stirrer
2000 g
Sponge cake
Whisk
1000 g
Sweet pastry
Flat stirrer
2500 g
Bread dough or roll dough
(light /60% moisture)
Dough hook,
speed level1
Water
500 g
Flour
800 g

- 36 -
Mixing bowl lift handle and mixing bowl shield
When the ingredients are added, lift up
the mixing bowl holder using the lift
handle (fig. at the right).
The mixing bowl lift handle is located at the
right of the device. Turn it by180° anticlockwise
to lift up the mixing bowl holder. Turn the lift
handle by180° clockwise to lower the mixing
bowl holder. Pay attention to the information at
the lift handle.
The mixing bowl holder and the shield are electrically interconnected and the device
is active only when the mixing bowl is placed in the holder, the shield is property
fastened and the mixing bowl holder is in the top lifted position. When the mixing
bowl is lifted by the lift handle, you can safely turn on the device.
Device start-up
Connect the device to the single grounded socket.
Press ON/OFF switch on the control panel to turn on the device.
Settings
Select the suitable speed and/or time level.
Speed levels
The device is provided with 5 speed levels.
Level 1
for slow beating, mixing and kneading yeast dough
Level 2
for light mixtures, fillings and vegetable purée
Level 3
for mixinign and beating mixtures
Level 4
for whipping cream, egg white
Level 5
for whipping small amount of cream, egg white

- 37 -
The speed level selection depends primarily on the amount and texture of the mixing
ingredients.

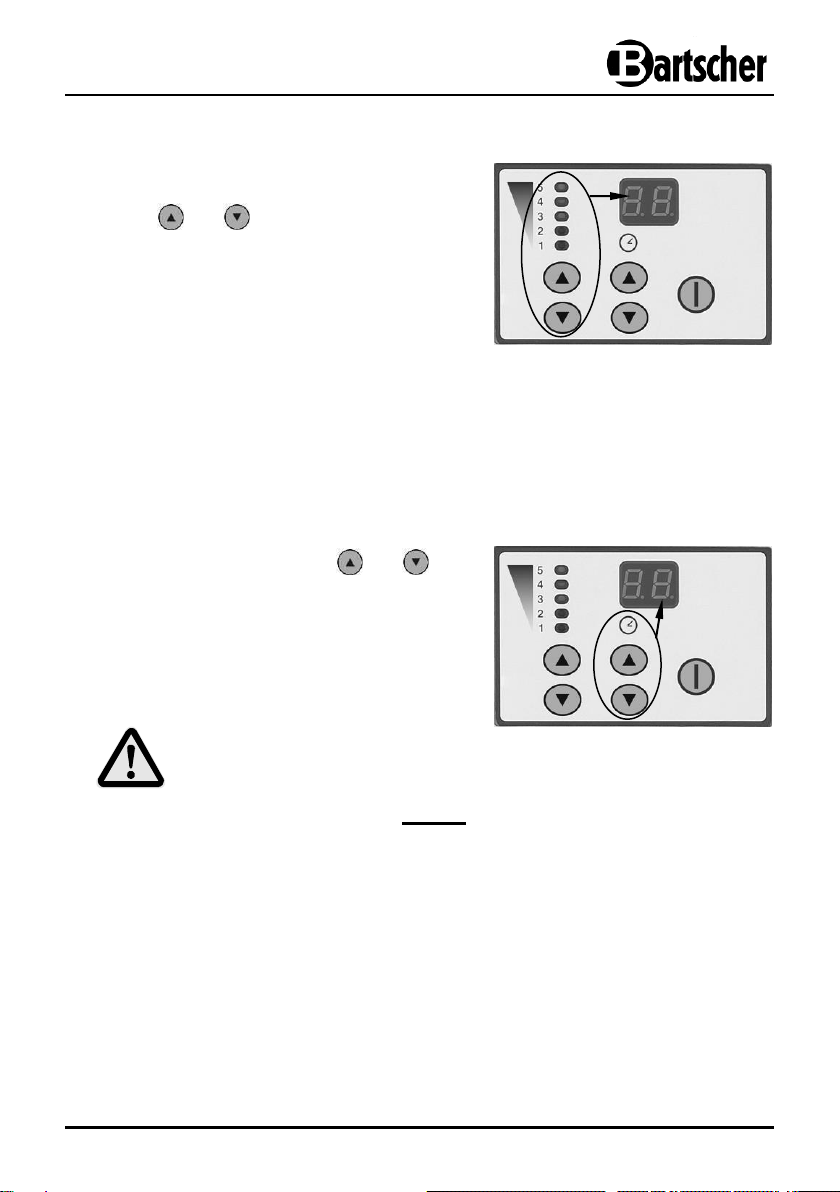

Select the speed level using the
buttons and in the left zone
of the control panel.
Always start from the lowest level,
then gradually select higher levels to
obtain the required level.
The selected speed level is indicated by the LED light.
In the left zone of the control panel, the selected speed level is indicated
additionally (e.g. 3).
Time
You can control operation time with 1-minute intervals (no time set = 0) in the range
from 1 to 30 minutes.
Select the required time using and
buttons in the central zone of the w control
panel.
The set time value will appear in the right
zone of the digital panel. When the time is
not selected, “0” will appear .
WARNING! Risk of injury caused by rotating stirrers!
When the device is in use, never insert any hard kitchen
utensils through the feed chute or shield opening. The tools
may be drawn inside by the rotating stirrers that may result
in finger or hand injury.
To prevent the injury, first disconnect the device from the
mains (unplug!) and then scrape the mixing bowl or
remove the mixture from the mixing bowl.

- 38 -
During mixing, you can add further
ingredients through the feed chute or
opening in the shield. You can easily
uncover the opening in the shield and
close it after you added the ingredients.
Caution:
-Carefully pour ingredients from the sachets. Slide the opening of the sachet
possibly dip into the feet chute or opening in the shield to prevent dusting from
the flour for example.
6. Cleaning and maintenance
WARNING!
Before cleaning the device, disconnect it from the
mains (unplug!).
Do not clean the device with pressurized water!
Protect the device from water penetration.
Cleaning
oClean all the elements of the device after each use.
oTo lower the lift handle of the mixing bowl, turn the lift handle by 180oclockwise.
oAlways, remove the stirrer for cleaning by pushing it slighly towards the holder
and turning clockwise. Place it in the mixing bowl.
oThen, remove the mixing bowl together with the stirrer from the holder by lifting the
mixing bowl.
oLoosen both fixing screws and remove the shield from the body.
Feed chute
Shield opening

- 39 -
oRemove any food residues from the disassembled elements.
oClean the disassembled accessories (mixing bowl, stirrers, shield) thoroughly in
warm sudsy water. Rinse the cleaned elements with clean water and leave to dry or
wipe with a dry cloth that does not leave lint.
oUse only a soft cloth for cleaning, never use any abrasive cleaning agents that may
scratch the device.
CAUTION!
Never clean the stirrers or shield in the dishwasher. The dishwasher cleaning
agents may damage the surface of the elements.
oThoroughly clean the accessories holder, mixing bowl holder and the body of the
device with a soft, damp cloth and mild cleaning agent.
oPay particular attention not to leave any mixture residues, etc., on the pins of the
mixing bowl holder as they may disturb the correct location of the mixing bowl.
oRinse the cleaned surfaces with clean water and dry.
Maintenance
oThe regular (annual) servicing should be performed by a qualified service technician
or electrician.
oWhen the motor has stopped during operation, the motor brushes should be
changed by the service technician.
Storing the device
oIf the device is not used for a long time, clean it according to the above description
and store in a dry, clean place, protected against cold, sun and, children.
Do not place any heavy objects on the device.
