Bartscher 135.100 User manual

- 1 -
Bedienungsanleitung
Barmixer
Seite 3 bis 14
Instruction manual
Bar mixer
from page 15 to 26
Mode
d’emploi
Mixeur de bar
de page 27 à page 38
Bedieningshandleiding
Barmixer
blz. 39 t/m 50
Instrukcja obsługi
Mikser barowy
strony od 51 do 62
135.100
V
2
/
0910
D/A/CH
GB/UK
F/B/CH
NL/B
PL
www.food-service.com.ua

- 15 -
1. General Information 16
1.1 Information about the instruction manual 16
1.2 Key to symbols 16
1.3 Liability and Warrantees 17
1.4 Copyright protection 17
1.5 Declaration of conformity 17
2. Safety 18
2.1 General information 18
2.2 Safety instructions for use of the device 18-19
2.3 Intended use 19
3. Delivery, packaging and storage 20
3.1 Delivery check 20
3.2 Packaging 20
3.3 Storage 20
4. Technical data 21
4.1 Technical specification 21
4.2 Overview of parts 21
5. Installation and operation 22
5.1 Safety instructions 22
5.2 Installation and connection 23
5.3 Operating 23-24
6. Cleaning and maintenance 25
6.1 Safety advice 25
6.2 Cleaning 25
6.3 Safety instructions for maintenance 26
7. Waste disposal 26
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
GB/UK
Keep this instruction manual
ready to hand at the product!
www.food-service.com.ua

- 16 -
1. General information
1.1 Information about the instruction manual
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
1.2 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards, which could lead to injury.
Please follow the instructions very carefully and proceed with particular attention
in these cases.
WARNING! Electrical hazard!
This symbol draws attention to potential electrical hazards. If you do not follow
the safety instructions, you may risk injury or death.
CAUTION!
This symbol highlights instructions, which should be followed to avoid any risk of
damage, malfunctioning and/or breakdown of the device.
NOTE!
This symbol highlights tips and information, which have to be followed for
an efficient and trouble-free operation of the device.
www.food-service.com.ua

- 17 -
1.3 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology. If you have any
questions, you should contact the manufacturer.
NOTE!
Read the instruction manual carefully before using the device. The manufacturer
does not accept liability for any damage or malfunction resulting from not
following the instructions for use.
The instruction manual should be kept near the device, easily accessible for anyone
wishing to work with or using it. We reserve the right to make technical changes for
purposes of developing and improving the useful properties.
1.4 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are copyright
and subject to other protection rights. Any person unlawfully using this
publication is liable to criminal prosecution.
1.5 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity.
If required we will be glad to send you the according declaration of conformity.
www.food-service.com.ua

- 18 -
2. Safety
This section provides an overview of all important safety aspects.
In addition every chapter provides precise safety advice for the prevention of dangers
which are highlighted by the use of the above mentioned symbols.
Furthermore, attention should be paid to all pictograms, markers and labels on the
device, which must be kept in a permanent state of legibility.
By following all the important safety advice you gain an optimal protection against all
hazards as well as the assurance of a safe and trouble-free operation.
2.1 General Information
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
Knowing the contents of the instruction manual as well as avoiding mistakes and thus
operating this device safely and in a fault-free manner is very essential to protect
yourselves from the hazards.
To prevent hazards and to ensure optimum efficiency, no modifications or alterations to
the device that are not explicitly approved by the manufacturer may be undertaken.
This device may only be operated in technically proper and safe condition.
2.2 Safety instructions for use of the device
The specifications regarding the industrial safety are based on the Regulations of the
European Union applicable at the time of manufacturing the device.
If the device is used commercially, the user is obliged to ensure that the said industrial
safety measures concur with the state of the rules and regulations applicable at the time
in question for the entire period of use of the device and to comply with the new
specifications.
Outside the European Union, the industrial safety laws applicable at the place of
installation of the device and the regional territorial provisions must be complied with.
Besides the industrial safety instructions in the instruction manual, the general safety and
accident prevention regulations as well as environment protection regulations applicable
for area of application of the device must be followed and complied with.
www.food-service.com.ua

- 19 -
CAUTION!
oThe device is not intended for use by individuals (including children) with physical
or mental disabilities, insufficient experience, and/or insufficient knowledge unless
such persons are under the care of a person responsible for their safety or have
received instructions regarding appropriate use of the device.
oChildren should be observed to ensure that they are not playing with the device.
oPreserve this manual safely. When passing on/selling the device to a third party,
the manuals must be handed over along with the device.
oEvery person using the device must act in accordance to the manuals and under
consideration of the safety advice.
oThe device is to be used indoors only.
2.3 Intended use
Safe operation is only guaranteed when using the device for its intended purpose.
Any technical interventions, as well as assembly and maintenance are to be made by a
qualified customer service only.
The bar mixer is meant for the preparation of milk shakes and cocktails only.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use are
impossible.
The operator is liable for all damages resulting from inappropriate use.
www.food-service.com.ua

- 20 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately after
receipt.
In case of visible damage do not accept or accept the delivery with reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in your
country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-Do not store outdoors.
-Keep it dry and dust-free.
-Do not expose it to aggressive media.
-Do not expose it to direct sunlight.
-Avoid mechanical shocks and vibration.
-In case of longer storage (> 3 months) make sure you check the state of the
packaging and the parts regularly. If required refresh or renew.
www.food-service.com.ua

- 21 -
4. Technical data
4.1 Technical specifications
Description: Bar mixer
Item no.:
135.100
Model: Housing, chromed;
Stirring staff, stainless steel; Blending disk, plastic
Connection: 230 V ~ 50 Hz 85 W
Dimensions: W 135 x D 185 x H 365 mm
Shaker: made of chromium nickel steel, capacity: 700ml
Weight: 1,3 kg
Subject to technical changes and alterations!
4.2 Overview of parts
1. Swivel head
2. Cup/shaker clamp
3. Detachable stirring staff for
blending and frothing up of drinks.
4. Cup support
5. Switch with 2 speed levels
O - OFF
1- slow
2- fast
6. Safety switch
7. Shaker with 700 ml capacity.
8. Mark for maximum filling quantity
(approx. 350 ml)
9. Mark for minimum filling quantity
(approx. 150 ml)
www.food-service.com.ua

- 22 -
5. Installation and operation
5.1 Safety instructions
WARNING! Electrical hazard!
The device must only be connected to a properly installed single socket with
protective contact.
Never yank cord to disconnect from outlet.
Cable must not touch any hot parts.
•See that the cable does not touch any heat sources or sharp edges. Do not let the
cable dangle over the counter edge.
•Do not use the device in case it does not function properly, has been damaged or
dropped.
•Do not use any accessory or spare parts that have not been recommended by the
manufacturer. These can be dangerous for the user or lead to damages of the
device or personal injury, and further, the warranty expires.
•Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep
away the cable from operating range and do not dunk it into water.
•Do not leave the device unattended in the presence of children.
•Do not move or tilt the device when in operation.
WARNING! Hazard via electrical current!
The device can cause injuries due to improper installation!
Before installation the local power grid specification should be compared with
that of the device (see type label).
Connect the device only in case of compliance!
Take note of the security advice!
www.food-service.com.ua

- 23 -
5.2 Installation and connection
•Discard the complete packing material after unpacking the device.
•Place the device on an even, safe spot which is dry and supports the weight of the
device.
•Do not set up the device near containers filled with water or other liquids.
•Not at any time should you place the device on an inflammable surface (such as:
table cloth).
•You must not position the device near open fireplaces, electric ovens/arc furnaces,
furnaces/electric heaters or other heat sources.
•The electrical circuit in the socket must be secured to at least 16A. Only connect the
device directly to the wall socket; do not use any extension cords or power strips.
•Place the device so that the plug is easily accessible and can be quickly removed
from its socket in case of necessity.
5.3 Operating
•Insert the stirring staff by tilting the swivel head upwards and pushing the stirring
staff into the fixture until it snaps in.
•Clean the stirring staff and the shaker before use (see chapter 6.2 „Cleaning“).
•Wipe the device from the outside using a damp, soft cloth.
•Insert the power plug of the device into a grounded single socket.
•Make sure the switch is set to position „O“.
•Fill the desired ingredients into the shaker.
ATTENTION!
When filling the shaker, make sure the mark for maximum filling quantity is not
exceeded (upper mark, approx. 350 ml).
Make sure the shaker is filled at least up to the minimum filling mark (lower mark,
approx. 150 ml) as the stirring staff does not reach the ingredients otherwise!

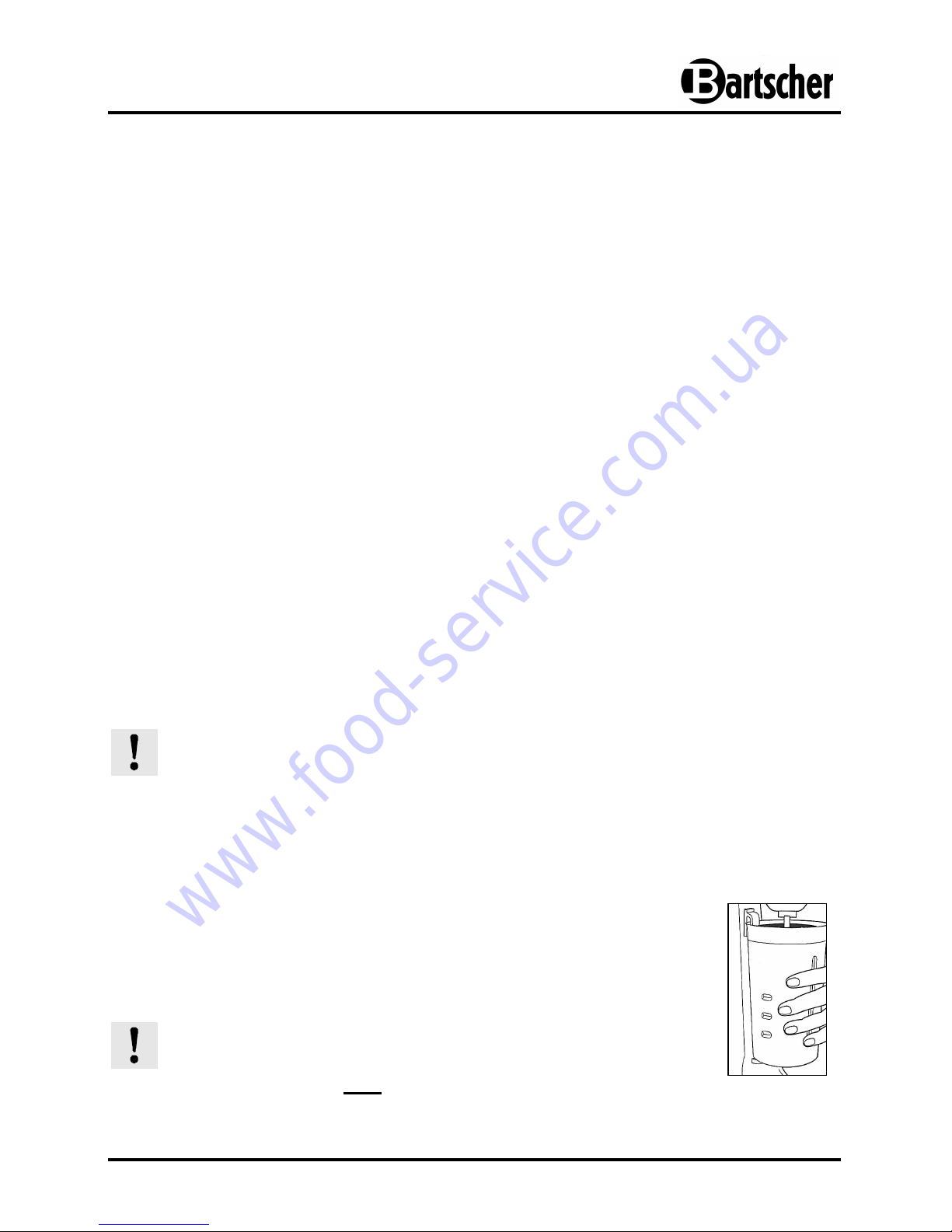

•Mount the shaker to the device. Make sure the upper part of
the shaker is behind the cup/ shaker clamp.
•The bottom edge of the shaker must be mounted firmly on top
of the cup support as only this way the stability and the contact
of the shaker to the safety switch is ensured.
ATTENTION!
User the delivered shaker only!
www.food-service.com.ua

- 24 -
•After having ascertained yourself that the stirring staff is placed firmly in the fixture,
you may activate the Bar Mixer using the switch. Make sure you always start with
the switch set to speed level „1“ (slow) and change into speed level „2“ (fast) only
afterwards.
•Mix the drink until it reaches the desired consistency (1-2 minutes).
•When the drink is mixed properly set the switch back to position „O“ (OFF), push
the swivel head upwards and lift the shaker from the cup support.
•Fill the contents of the shaker into glasses or cups and serve.
•When using hard ice cream or preparing viscous shakes you may as well lift the
shaker with your hand and manually move it around the stirring staff in order to
achieve a more even mixing result.
WARNING! Risk of injury!
Do not touch any moving parts at any time!
•Disconnect the device from the power socket (pull the power plug!) when it is not
used.
Notes and Hints
•Most drinks can be mixed in less than two minutes.
•For preparation of fruit drinks do not use whole fruits but chopped or pureed fruits.
•The shaker must always be filled up to the minimum filling mark so the fluid reaches
the stirring staff.
•When preparing thin/non-viscous drinks make sure the maximum filling mark is not
exceeded, in order to prevent the contents from spilling over during mixing.
•Best results may be achieved using preferably cold ingredients. Milk shakes e.g.
taste best when prepared with ice cold milk. The colder the milk, the more viscous
and foamy the drink becomes.
•Sirups and powders should only be added shortly before mixing so they do not sink
to the bottom of the shaker immediately.
•Always add the liquid ingredients to shaker first and fill in the solid ingredients
afterwards.
•Start mixing at speed level „1“ (slow) before increasing to speed level „2“ (fast).
•The bar mixer is not meant for ice crushing. Always use ready-crushed ice for
drinks that require ice.
www.food-service.com.ua

- 25 -
6. Cleaning and maintenance
6.1 Safety advice
oBefore beginning with repair or cleaning works make sure the device has been
disconnected from power socket (pull the power plug!!!) and has cooled down.
oDo not use any acid agents and make sure no water ingresses the device.
oTo protect yourself from electric shock, never immerse the device, its cables and the
plug in water or other liquids.
CAUTION!
The device is not suited for direct washing via water jets. Therefore, you must not
use any kind of pressure water jet for cleaning the device!
6.2 Cleaning
oClean the device on a regular basis.
oIn order to clean the stirring shaft, simply fill the shaker with approx. 250 ml of a
warm soap-water solution, insert it into the device and set the switch for about 30
seconds to speed level „1“ (slow). Afterwards, set the switch to position „O“ (OFF)
and pour away the soap-water solution. Repeat the procedure with warm water
only in order to rinse the stirring staff. Dry the stirring staff with a soft, dry cloth.
oRinse the shaker with warm water and dry it thoroughly.
oFor thorough cleaning you may as well put the shaker and the stirring staff into the
dishwasher. For this purpose, detach the stirring staff (pull off downwards).
NOTE!
Stirring staff and shaker are dishwasher-proof!
oWipe the housing of the device with a soft, damp cloth and dry off thoroughly
afterwards.
oOnly use a soft cloth and make sure you never use any kind of abrasive agents or
pads which could scratch the surface.
oAfter the cleaning procedure, you should use a soft and dry cloth to wipe dry and
polish the surface.
oMake sure the device has been cleaned properly before storing it in a dry place.
www.food-service.com.ua

- 26 -
6.3 Safety instructions for maintenance
oCheck the mains connection cable for damage from time to time. Never operate the
device when the cable is damaged. A damaged cable must immediately be replaced
by customer service or a qualified electrician to avoid dangers.
oIn case of damage or malfunction, please contact your stockist or our customer
service centre.
oOnly a qualified technician and using original spare parts and accessories should
carry out repairs and maintenance of the device. Do not attempt to repair the
device yourself.
7. Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with
the national regulations. It is advisable to contact a company which is specialized in
waste disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for
use before disposal. For that purpose disconnect device from mains supply and
remove mains connection cable from the device.
NOTE!
For the disposal of the device please consider and
act according to the national and local rules and
regulations.
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten phone: [phone]
Germany fax: [phone]
www.food-service.com.ua
