Bat-caddy X4 User manual

X4 Pro
X4R
ATTENTION: Please follow all assembly instructions. READ the
instructions carefully to understand the operating procedures BEFORE
you operate your caddy.
X4 Classic
X4 Sport
X4 Series
User Manual

2
TABLE OF CONTENTS
Packing List.........……………….............................…............................……3
Parts Glossary.................................................................................………..4
Assembly Instructions.....................………………..................................5, 6
Operating Instructions.................................................................…............7
Imporatant Safety Notes..............................................................................8
Synchronizing Your Remote..............................................................................8
Additional Instructions
Braking System, Tracking, USB...............................................................9
TestingYourCaddy......……………….....................................................……......10
Recommendations ....................................................................................10
GeneralMaintenance........................................................................…...…10
Trouble Shooting Guide...........................................................................11
Technical Specications............................................................................12

3
PACKING LIST
X4 Classic, X4 Sport
• Caddy Frame with front wheel
• 2 Rear Wheels (Left & Right)
• 1 Battery Pack (Battery, Bag, Leads)
• 1 Charger
• 1 Tool Kit
• Operational Instructions
• User Manual, Warranty, Terms & Conditions
X4R, X4 Pro
• 1 Caddy Frame with front wheel
• 1 Anti-Tip Wheel & Pin
• 2 Rear Wheels
• 1 Battery Pack, SLA or LI (Battery, Bag, Leads)
• 1 Charger
• 1 Tool Kit
• 1 Remote Control (X4R Only) (2 AAA Batteries included)
• Operational Instructions
• User Manual, Warranty, Terms & Conditions
NOTE:
This device complies with part 15 of the FCC Rules and with Industry Canada license-exempt
RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT
SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT
Bat-Caddy X4R
FCC ID: QSQ-REMOTE
IC ID: 10716A-Remote

4

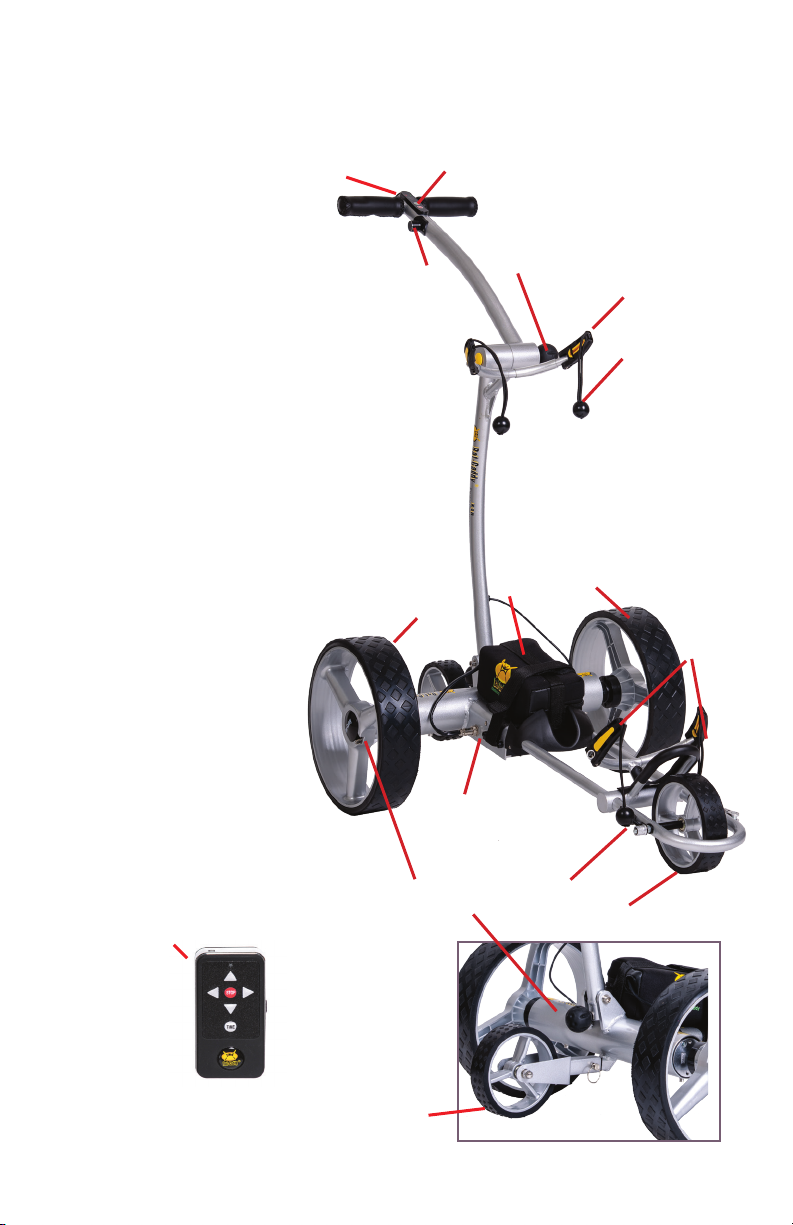

1. T- Handle w/power button & control
2. Manual Rheostat Speed Control
3. USB Port
4. Upper Bag Support
5. Bag Support Strap
6. Upper Frame Locking Knob
7. Battery w/Bag & Lead
(charger not pictured)
8. Battery Connection Plug
9. Rear wheel
10. Rear Wheel Spring Clip Release & Lock
11. Dual Motors (within housing tube)
12. Lower Bag Support
& Strap
13. Front Wheel
14. Front Wheel
Tracking Adjustment
15. Remote (X4R only)
16. Anti-tip wheel & Pin (X4 Pro, X4R)
PARTS GLOSSARY
X4 Series
4
2
5
7
913
12
1
11
9
6
8
14
15
9
16
3

5
ASSEMBLY INSTRUCTIONS
X4 Series

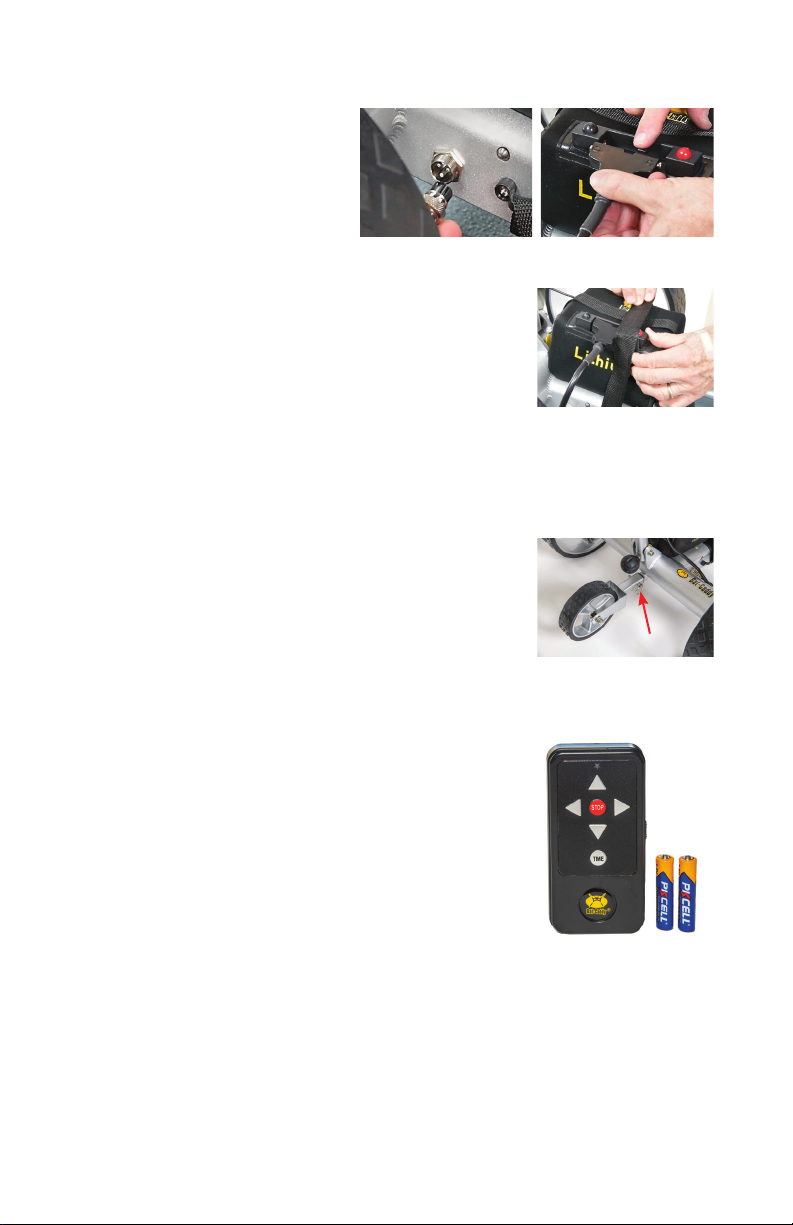

1. Unpack all items carefully and check inventory. Place frame structure (one piece)
on soft clean ground to protect the frame from being scratched.
2. Attach rear wheels to axles by pushing the wheel locking button (Pic-1) on the
outside of the wheel and inserting the axle extension in to the wheel. Make sure
to keep the spring clip (PIC-2) on the outside of the wheel depressed during
this process, in order to enable the wheel to be inserted fully onto the axle
sprocket. If you have inserted the wheel correctly onto the wheel when you
release the spring clip it will lock onto a groove on the end of the axle. If not locked
properly, the wheel will not be connected to the axle and will not be propelled! Test
the lock by trying to pull the wheel out.
Pic-3
Pic-2
Pic-1
3. The X4 Classic & X4 Sport caddies have a specic right (R) and a left (L)
wheel (Pic-3), as seen from behind in driving direction. Please make sure
that the wheels are assembled on the correct side, otherwise the clutches
will not engage. To disassemble the wheels, proceed in reverse order.
Note: The X4 Pro & X4R rear wheels are interchangeable. They t on either side.
4. Erect Frame by unfolding and connecting the main frame tubes together
at the two frame locks. On the lower frame lock screw (Pic-2) make sure
the middle frame piece sets securely against the lower frame so the screw
line up with the threaded insert. One the upper locking screw (Pic-3) you
have a range of adjustment to the height depending on your preference.
5. Proceed in reverse for folding the caddy.
Pic-2 Pic-3
Left, Right Markers

6
ASSEMBLY INSTRUCTIONS (Continued)
7. For X4R and X4 Pro insert anti-tip wheel into holding bar
on motor housing and secure with pin.
6. Place the battery pack on the
battery tray. Insert the 3-prong
battery plug into the caddy outlet
so the notch aligns properly and
attach T-connector onto the battery.
(SLA Battery lead is attached to battery)
Then attach Velcro strap. Tightly fasten the Velcro strap
underneath the battery tray and around the battery. It is
recommended that you DO NOT fasten the screw on the
plug to the outlet, so in case of tip-over, the cable can
unplug from the socket.
X4R Only
8. Unpack remote control and install batteries with plus and
minus poles as indicated in the diagram in the battery
compartment of the unit.
Note: BEFORE CONNECTING make sure that caddy power is OFF, the Rheostat
Speed Control is in OFF position and the remote control is stored securely!
Pin

7
1. POWER Switch: Slide up to turn on the Remote-Control. Slide down to
turn off. It is recommended to turn the Remote-Control off when not
actively operating your Caddy. This will avoid accidental button pushes
when not paying attention to your Caddy.
2. Speed Control Dial:
A. The dial on the side of the handle controls the forward speed of your
Bat-Caddy. This dial should always be turned off prior to power-
ing on your Caddy. This is done by turning the dial counterclockwise un til it
clicks. Once you have powered on your Caddy, slowly turn the dial clockwise
until the Caddy matches your preferred walking speed. Once your desired
speed is set you can use the Start/Stop button as described above to stop
and start your Caddy for the rest of the round. Speed can be adjusted on the
fly at any time by turning the dial up or down while in motion.

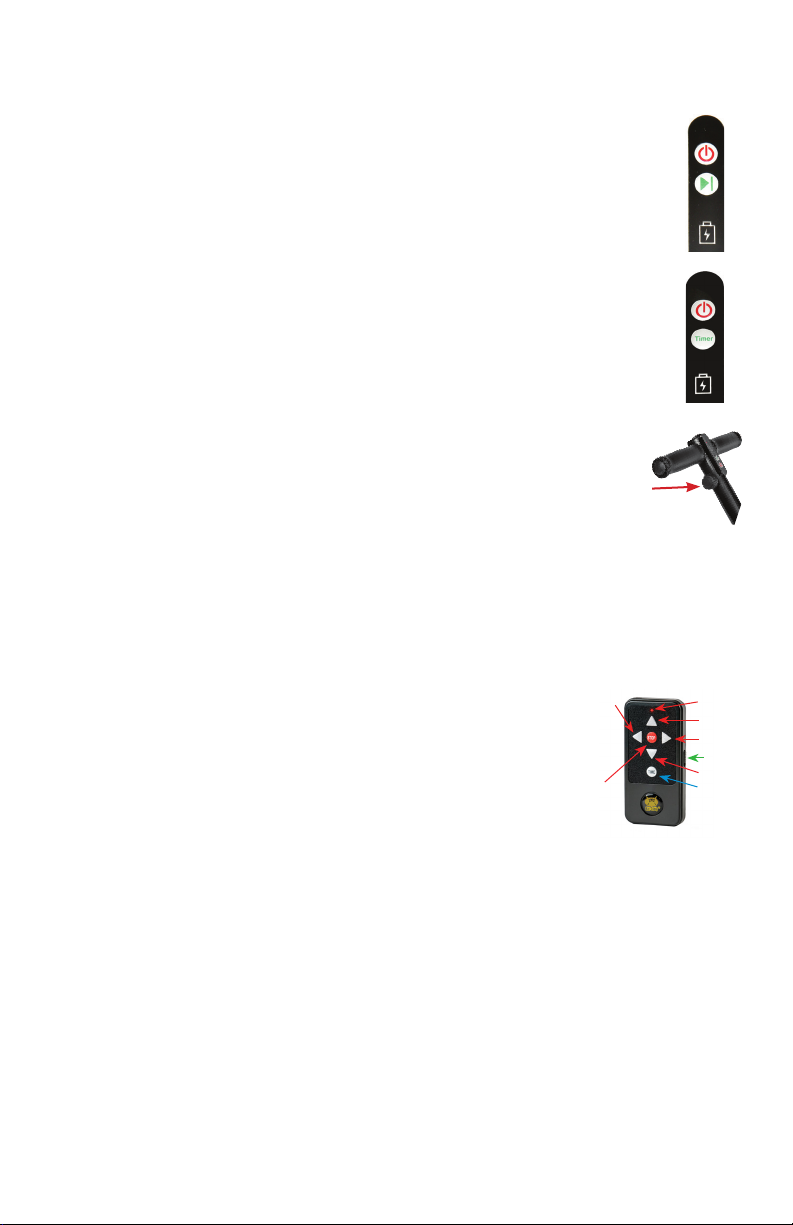

1. Control Panel:
A. Power Button – Holding down the button for 3-5 seconds will turn your
Bat-Caddy on or off. A green/red LED light will turn on behind the battery
icon (On Bat-Caddys equipped with a Timer Button, the Power Button also acts
as the Start/Stop button)
B Start/Stop Button – (on select models) Pushing the button while the
Caddy is in motion will stop the Caddy. Pushing the button again will
start the Caddy again and resume at the same speed when stopped.)
*NOTE -This is not a parking brake. Caddys need to be properly angled
when parking on slopes to keep them from drifting.
C. Timer Button (on select models) – When your Bat-Caddy is stopped
pressing this button once will advance the Caddy approximate-
ly 10 yards and it will stop on its own. Pressing the button twice will
advance it 20 yards, and pressing 3 times will advance it 30 yards.
OPERATING YOUR Bat-Caddy
Manual Controls (located on the upper handle)
Remote-Control LED LIGHT
2. LED Light: Lights up when Remote-Control is turned on and a button is
pushed. This indicates that the remote is sending a signal to the Caddy.
3. STOPPING: The STOP button will stop the Caddy
4. GOING FORWARD: Pressing the UP BUTTON while the Caddy is standing still will
start the Caddy in forward motion. Pushing the UP BUTTON again will increase the
Caddy’s forward speed one level. Your Caddy has 9 forward speeds. Pushing the
DOWN BUTTON will lower the forward speed one level.
3. GOING BACKWARD: Pressing the DOWN BUTTON while the Caddy is standing
still will start the Caddy in reverse motion. Pushing the DOWN BUTTON again will increase
the Caddy’s reverse speed one level. Your Caddy has 9 reverse speeds. Pushing the UP
BUTTON will lower the reverse speed one level.
4. TURNING RIGHT: Press and hold the RIGHT BUTTON and the Caddy will turn to the
right (from a stop and while in motion) until the button is released.
5. TURNING LEFT: Press and hold the LEFT BUTTON and the Caddy will turn to the left
(from a stop and while in motion) until the button is released.
POWER
UP
LEFT
STOP TIMER
RIGHT
DOWN
POWER
POWER -
START/STOP
START/STOP
TIMER
LED

8
SYNCHRONIZING YOUR REMOTE:
If your Bat-Caddy will not respond to your Remote-Control it may need to be re-synched.
A. Power off your Bat-Caddy for 5 seconds.
B. Turn on your Remote-Control
C. Press and hold down the STOP button on the Remote-Control
D. Press and hold down the ON/OFF button on the Control Panel until the green LED light
under the battery symbol begins to blink.
E. Release both buttons
F. Your Caddy and Remote-Control are now synched and ready to go.
IMPORTANT SAFETY NOTES:
1. Your Bat-Caddy comes with an automatic shut-down feature to help prevent “run-away”
Caddys when operating remotely. If the caddy does not receive a signal from the Re-
mote-Control after the last button push for approximately 40 seconds, it will assume the
caddy has lost contact and stop automatically. If this happens simply push any button on
the Remote-Control to resume operation.
2. While the maximum range for your Bat-Caddy to receive a signal from your Remote-
Control is 80-100 yards, this range is in perfect “laboratory” conditions. It is strongly
recommended that you operate your Bat-Caddy at a maximum of 20-30 yards. This will
help prevent any signal interference and/or loss of control.

9
USB port is available for charging GPS and/or cell phones. It is located
in the end cap of the upper frame above the handle control.
Additional Functions
BrakingSystem:Thecaddydrivetrainisdesignedtokeepthewheelsengagedwiththe
motor/gearbox, thus acting as a brake that will maintain the caddy’s speed while going
downhill.
TrackingAdjustment*: Tracking behavior of all electric caddies is strongly dependent
on equal weight distribution on the caddy and slope/topography of the golf course. Test
your caddy’s tracking by operating it on a level surface without the bag. If changes are
necessary,youcanadjustthetrackingofyourcaddybylooseningthefrontwheelaxleand
theAdjustment bar on the right side of the from wheel and shifting the axle accordingly.
After such adjustment fasten screws in-reverse order but do not over tighten.
*Tracking - there is a video on the website that shows
how to adjust tracking
AXLE
ADJUSTMENT BAR

10
Testing Your Caddy
Test Environment
Make sure that you perform your rst test of the caddy in a wide and safe area, free of
obstructions or valuables, such as people, parked automobiles, owing trafc, bodies of
water (rivers, swimming pools, etc.), steep hills, cliffs or similar hazards.
General Maintenance
All of these recommendations, along with common sense, will help keep your Bat-Caddy in
top condition and ensure that it remains your reliable partner, both on and off the links.
• The Bat-Caddy has been designed so that the user can concentrate on playing golf, while
the caddy does the work of carrying your bag. In order to keep your Bat-Caddy looking its
best, wipe any mud or grass from the frame, wheels and chassis after every round using
a damp cloth or paper towel.
• NEVER use water hoses or high-pressure jet washers to clean your caddy to prevent
moisture from entering the electronic systems, motors, or gear boxes.
• Remove the rear wheels every few weeks and clean out any debris that may cause the
wheels to drag. You may apply some lubricant, such WD-40, to keep moving parts smooth
and corrosion-free.
• A 4 to 5 hour round of golf played once a week for 12 months is equivalent to approximately
four years’ use of a lawn mower. Thoroughly inspect your cart at least once a year, and if
you notice any symptoms of wear, contact your Bat-Caddy Service Center. Alternatively,
you can have your caddy inspected and tuned at our Service Centers, so it’s always in
great shape for the new season.
Note: Bat-Caddy reserves the right to modify/upgrade any components during a model year, so
illustrations on our website, brochures and manuals may slightly vary from the actual product
shipped. However, Bat-Caddy guarantees that specications and functionality will be always equal
to or better from the advertised product. Promotional accessories may also vary from illustrations
shown on our website and other publications.
Recommendations for Efcient and Safe Operation
• Be alert and act responsibly at all times while operating your caddy, just as you would
when operating a riding cart, motor vehicle, or any other type of machinery. We absolutely
do not recommend the consumption of alcohol or any other impairing substances
while operating our caddies.
• DO NOT operate the caddy carelessly or in narrow or dangerous places. Avoid using your
caddy in places where people may gather, such as parking lots, drop-off areas, or practice
areas, to avoid damage to people or valuables. We recommend operating your caddy
manually in crowded areas with or without power. Please make sure to always switch off
the power and secure the caddy when you are through or when not in use.

11
TROUBLE SHOOTING GUIDE
Caddy does not have power • Make sure battery is plugged correctly into
caddy and battery lead plug is damage free.
• Make sure battery is sufciently charged
• Depress and hold power button for at least
5 seconds
• Make sure battery leads are connected to
proper poles (red on red & black on black)
• Make sure power button is engaging circuit
board (you should hear a click)
Motor is running but wheels don’t
turn
• Check if wheels are attached correctly.
Wheels must be locked in.
• Wheels must be on the correct side (X4
Classic, X4 Sport)
• Check wheel axle pins.
Caddy pulls to left or right • Check if wheels are rmly latched to axle
• Check if both motors running
• Check tracking on level ground without bag
• Check weight distribution in golf bag
• If necessary adjust tracking on front wheel
Problems attaching wheels • Adjust quick release catch
CUSTOMER SERVICE AND TECHNICAL SUPPORT
Call/text us at [phone]
or email us at [e-mail]

12
Series 4 Features
X4 Classic X4 Sport X4 Pro X4 R
Dual-Lock Z-Fold Frame ✓ ✓ ✓ ✓
Single 200w Quiet Motor ✓ ✓
Dual 200w Quiet Motor ✓ ✓
Simple Handle Operation ✓ ✓ ✓ ✓
Speed-Recall Cruise Control ✓ ✓ ✓ ✓
Fully Directional Remote Control ✓
Upgradeable to Remote Control
Battery Level Indicator ✓ ✓ ✓ ✓
USB Charging Port ✓ ✓ ✓
Single Anti-Tip Wheel (Upgradeable to Dual)
✓ ✓
Dual Anti-Tip Wheel “The Mountain Slayer”
Power-off Freewheel ✓ ✓ ✓ ✓
Auto-Timed Distance Control ✓ ✓ ✓
Downhill Speed Control ✓ ✓
Seat Compatible ✓ ✓ ✓ ✓
Weight & Measurements
X4 Classic / X4 Sport X4 Pro / X4R
Open Dimensions
Length: 45.0”
Width: 23.5”
Height: 36-44”
Open height varies due to adjustable handle.
Length: 45.0”
Width: 23.5”
Height: 36-44”
Open height varies due to adjustable handle.
Folded Dimensions
Length: 33.0”
Width: 23.5”
Height: 13.0”
Length: 38.0”
Width: 23.5”
Height: 14”
Shipping Box Dimensions
Length: 33.0”
Width: 24.0”
Height: 11.0”
Length: 33.0”
Width: 24.0”
Height: 11.0”
Weight
(Excluding Battery & Accessories) 20.0 Lbs 23.3 LBS
BC-81721
