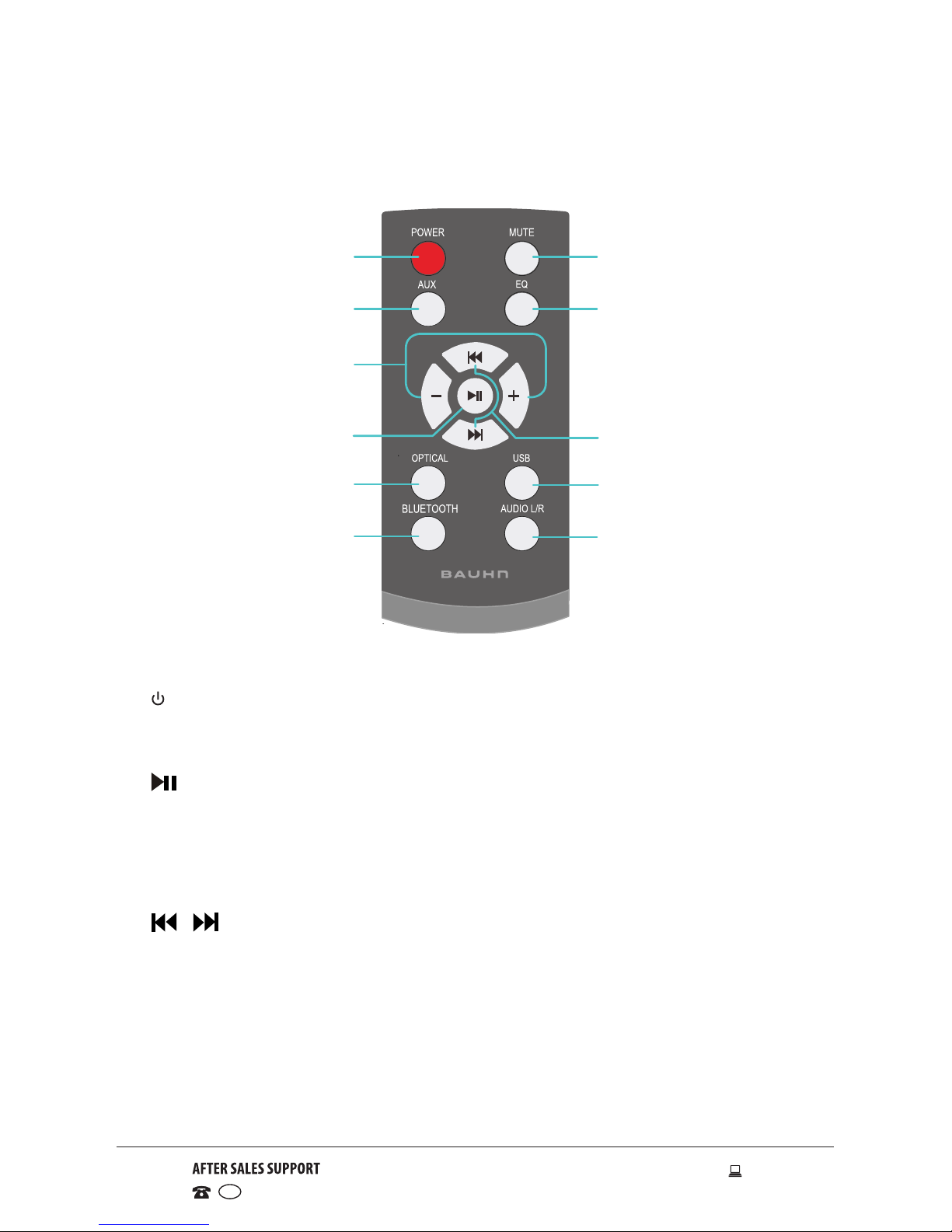

Remote Control
1 POWER: Switch the unit between On and Standby mode.
2 AUX: Select this mode for 3.5mm audio inputs.
3 - / +: Increase/decrease the volume level.
4 : In Bluetooth and USB mode, start or pause playback.
5 OPTICAL: Select this mode for optical inputs.
6 BLUETOOTH: Select to enter Bluetooth mode.
7 MUTE: Mute or resume the sound.
8 EQ: Select a preset sound effect.
9 / : In Bluetooth mode, skip to the previous/next audio file.
10 USB: Select this mode for USB playback.
11 AUDIO L/R: Select this mode for RCA audio inputs.
1
2 8
4 9
5 10
6 11
7
7
3

iii
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Remote Control (Cont.)
Remote Control Battery
The remote control comes with 2 x AAA batteries.
First Time Use
• To install the batteries, slide down the battery compartment cover on the back of
remote control and insert the batteries according to the illustrations in the battery
compartment.
Battery Replacement
• If the remote control unit is no longer working even when it is operated near the
Soundbar, you will need to replace the battery with a new battery of the same type.
• Follow the First Time Use Instruction to replace the old batteries with new ones.

iv
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Using the Remote Control
• The remote control has a range of up to 6 metres from the Soundbar. Point the
remote control directly towards the sensor at the front of the Soundbar.
• Make sure no obstacles are blocking its path. The remote control will not operate
if its path is blocked.
• Handle the remote control with care. Do not drop, apply shock or step on the
remote control. Do not spill water on the unit.
• Do not use the remote control while simultaneously operating a remote control
unit of any another unit, which may result in interference.
• If the remote control is operated near other products which generate infra-red
rays, or if other remote control devices using infra-red rays are used near the unit,
it may operate incorrectly. Conversely, the other products may operate incorrectly.
• If you do not intend to use the remote control for an extended period of time
(more than a month), remove the batteries to prevent possible damage from
battery leakage and corrosion.
Battery Precautions
• Do not use any other batteries than the ones specified in this manual.
• Danger of explosion if the batteries are incorrectly replaced. Replace only with the
same or equivalent type.
• Do not carry or store batteries with other metallic objects. Doing so could cause
the batteries to short-circuit, leak or explode.
• Do not expose the batteries to excessive heat such as sunshine, fire or the like.
• Do not attempt to short-circuit, disassemble or throw batteries into a fire.
• Never recharge a batteries unless it is confirmed to be a rechargeable type.
• Dispose of batteries promptly and properly, observing any local hazardous waste
regulations. Do not burn or bury them.
Remote Control (Cont.)

v
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Congratulations on choosing to buy a BAUHN® product.
All products brought to you by BAUHN®are manufactured to the highest standards
of performance and safety and, as part of our philosophy of customer service and
satisfaction, are backed by our comprehensive 1 Year Warranty. We hope you will
enjoy using your purchase for many years to come.
Welcome

vi
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Contents
Remote Control ii
Welcome v
Warranty Details vii
General Safety Instructions 1
Product Overview 3
Controls and Connections 4
Getting Started 5
Instructions 7
Other Useful Information 11
Specifications 12
Repair and Refurbished Goods or Parts Notice 13

vii 1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
2.0 Channel Soundbar
with Bluetooth®Wireless Technology
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for
a period of 12 months from the date of purchase. Defects that occur within this
warranty period, under normal use and care, will be repaired, replaced or refunded at
our discretion, solely at our option with no charge for parts and labour. The benefits
conferred by this warranty are in addition to all rights and remedies in respect of
the product that the consumer has under the Competition and Consumer Act 2010
and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and to compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.

1
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
General Safety Instructions
Electrical Safety and Cord Handling
• Protect from moisture: Do not expose this equipment, the power supply cord
and adaptor to rain or moisture. Do not use it anywhere near water or where water
splashes or drips, such as in a wet basement or near a swimming pool. Do not touch
the power adaptor with wet hands.
• Voltage: Before connecting this equipment to the mains power supply, make sure
your outlet voltage corresponds to the voltage stated on the appliance rating label.
• Mains power connection: When connecting this equipment to the mains power
supply, only use power adaptor supplied. Align the plug properly and insert it fully. Do
not overload the power outlet.
• Damaged adaptor: When the power adaptor is damaged, it must be replaced by the
manufacturer or similarly qualified personnel in order to avoid a hazard.
• Protect the power cord: Do not let the cord hang over the edge of a table or counter,
or touch any hot surface. Do not allow anything to rest on or roll over the power cord.
Run any cords so no one steps on or trips over them. Do not run the cord near heat-
producing appliances such as radiators or stoves.
• Disconnect: Switch off and unplug the unit during lightning storms, and when
it is not going to be used for a while. Grasp the adaptor, not the cord, when
disconnecting.
• Disconnect device: This equipment must be unplugged for complete disconnection
from the mains power supply. Ensure the mains plug remains readily accessible for
disconnection.
Read this manual thoroughly before first use and keep it in a safe place for future
reference, along with the warranty card, purchase receipt and carton. The safety
precautions enclosed herein reduce the risk of fire, electric shock and injury when
correctly adhered to. Follow all instructions and take notice of all warnings to
reduce the risk of re or electric shock.
Important Warnings and Cautions!
• Do not open: To prevent contact with high voltage
components inside, do not attempt to open the
equipment. There are no user-serviceable parts inside.
• Do not repair: If the unit requires service, call our after
sales support line for advice. Do not repair the unit
yourself; only have it serviced by qualified personnel.

2
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Usage Conditions and Restrictions
• Instructions: Follow the instructions in this manual when installing and adjusting this
equipment. Only adjust those controls that are covered in this instruction manual, as
improper adjustment of other controls may result in damage. If this happens, unplug
the equipment and have it serviced by appropriately qualified personnel.
• Location: When using the equipment, make sure to place it:
• In a well ventilated area, keeping a clearance of at least 20cm above and 5cm on
each side of the unit to ensure proper ventilation.
• Away from heat sources such as radiators, heat registers, stoves or other
equipment (including amplifiers) that produce heat.
• Away from areas with high temperatures, high humidity or direct sunlight.
• Away from excess dirt and dust.
• Away from open windows and any place where water or metal objects may get into
the equipment and damage it.
• Away from strong magnetic fields.
• Accessories: Only use attachments/accessories specified by the manufacturer
or sold with the apparatus. Use of the Soundbar with accessories that are not
recommended in this manual may cause injury or damage, and will void the warranty.
• Usage restriction: The equipment is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children: Supervise young children to ensure they do not play with the equipment.
Close supervision is always necessary when an appliance is used by or near children.
• Protect the equipment: Prevent metal objects falling onto the equipment. Do not
place heavy objects on top of the equipment or step on it. Do not place objects
filled with water (such as vases), or naked flame sources (such as candles), near
the equipment. If liquid or metal parts enter the system, unplug the power cable
immediately and call our after sales support centre to arrange a service before
further use.
• Ventilation: Openings on the cabinet are provided for ventilation and to protect the
unit from overheating. To ensure proper operation, do not cover them with things such
as newspapers, tablecloths, curtains etc.
• Cleaning: Unplug the equipment from the power outlet before cleaning. Clean the
equipment only with a clean, dry or slightly damp cloth. Do not use liquid or aerosol
cleaners or volatile solvents.
• Service: Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the unit, it has
been exposed to rain or moisture, does not operate normally, or has been dropped.
• Liability: We accept no liability for any damage or lost data caused by non-
compliance with these instructions or mishandling of the equipment.
General Safety Instructions (Cont.)

3
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Product Overview
1. Speakers
2. Remote Control Sensor
3. Led Indicators
• Optical: Will illuminate when Optical mode is
selected.
• USB:Will illuminate when the USB drive is
connected and USB mode is selected.
• Bluetooth: When the speaker is in Bluetooth
pairing mode the light will flash. When the
speaker is paired and in playing mode the
light will stay illuminated.
• AUX: Will illuminate when an AUX cable is
connected and AUX mode is selected.
• Audio L/R:Will illuminate when Audio L/R
mode is selected.
4. /Mode: Press this button to turn the speakers
on or long press to put it on Standby mode.
Press this button when the unit is ON to change
the mode.
5. Vol+/ and Vol-/ :Increase or decrease the
volume or skip to next/previous track.
6. Pair/ : Press this button to Play/Pause music
playback. Press and hold it on Bluetooth mode
to go to Pairing mode.
7. USB: Connect your USB drive for USB music
playback.
8. AUX: Connect your 3.5mm jack to play music
through your music player.
Front View
Right View
1
2
3
4
5 6 7 8

4
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
9 10 1211
Product Overview

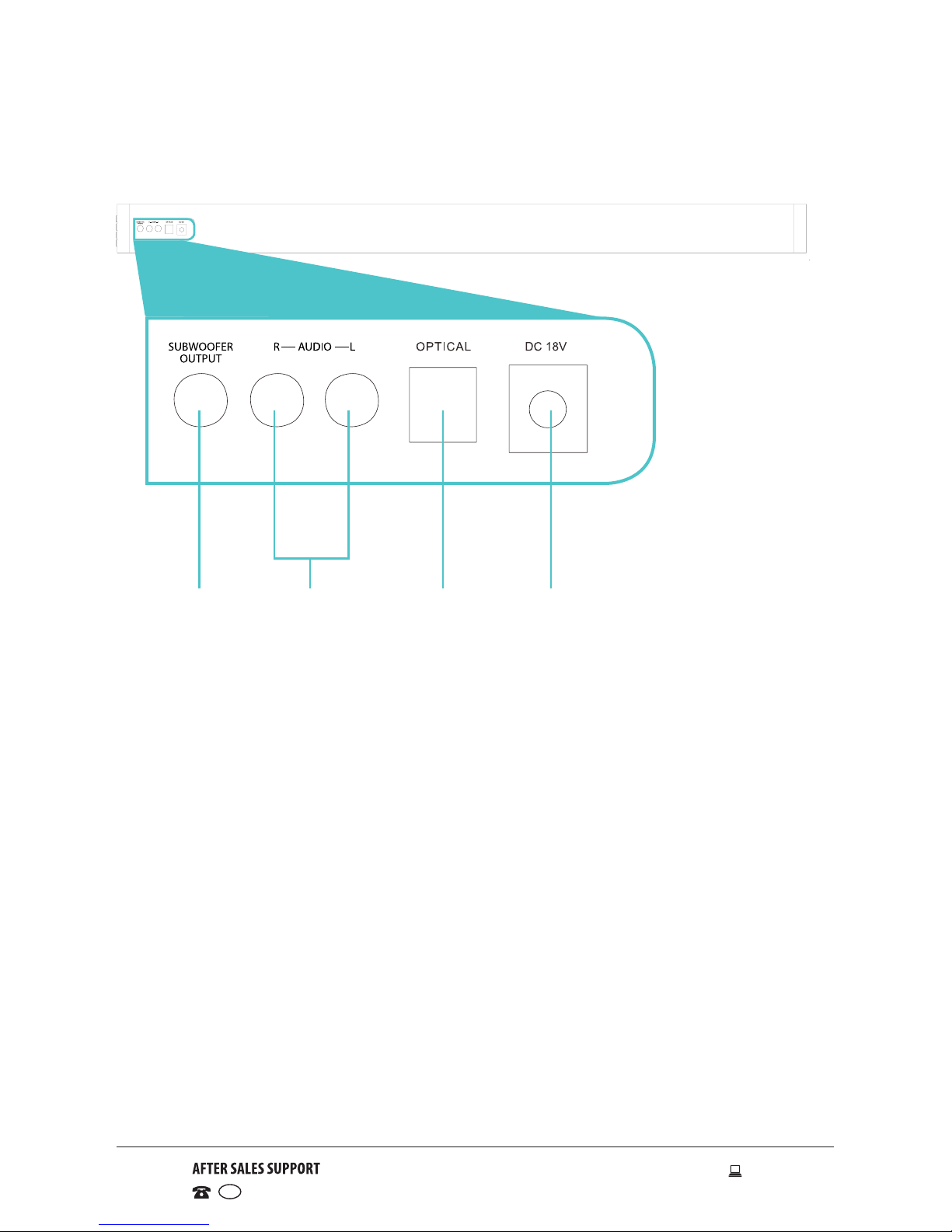

9. Subwoofer Socket
10. Audio L/R
11. Optical Input
12. DC IN

5
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS

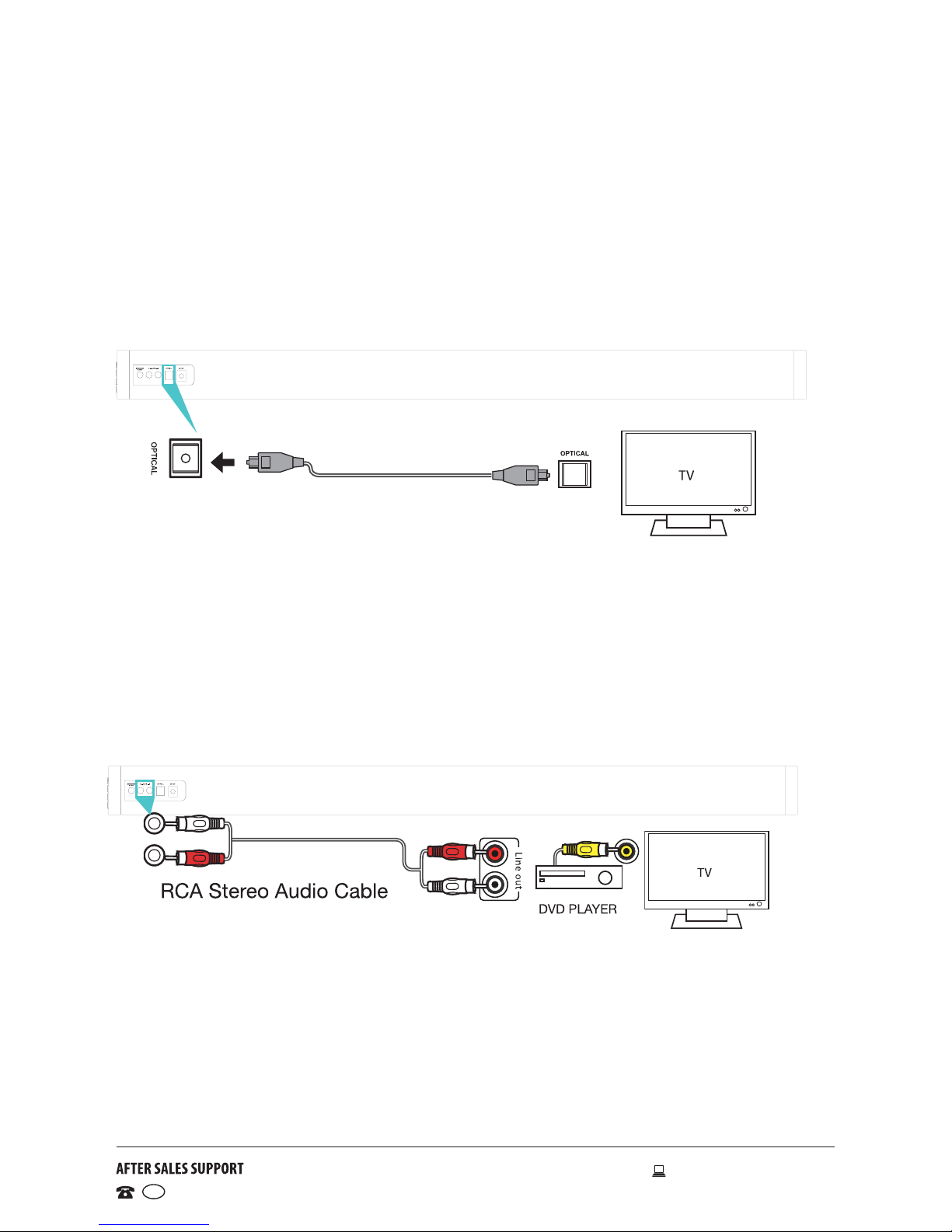

Optical Socket
Remove the Protective cap from the opening of the Optical socket. Connect
an Optical Cable (not supplied) to the Optical Out socket on the back of
your TV and to the Optical Socket on the unit. Change the mode to Optical
via the Mode button on the Soundbar or remote control.
NOTE: If there is no sound coming out of the Soundbar and the light is
flashing rapidly, make sure that the audio settings on your TV are set to the
correct mode.
Audio L/R Socket
Use the supplied RCA Stereo Audio Cable to connect your TV's audio
output socket to the Audio L/R socket on the unit.
Alternatively you can use an RCA to 3.5mm audio cable (not included) to
connect your TV's headphone socket to the Audio L/R socket on the unit.
Select AUX mode via the Mode button on the Soundbar or remote control.
NOTE: Some TVs do not have the Audio L/R Audio output.
Adding a Subwoofer
In order to add a subwoofer to your Soundbar, connect the
subwoofer input to the subwoofer output on the back of the
Soundbar.
NOTE: The subwoofer input should be an RCA connector to be
compatible with the Soundbar.
Controls and Connections
OPTICAL CABLE

6
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Getting Started
Standby/ON
When you first connect this unit to the mains power supply it will enter into
Standby mode and the light will illuminate Red.
• Press the /Mode button on the unit or the Power button on the remote
control to turn the unit On. The status indicator of the last mode will
illuminate.
• Press and hold the /Mode button on the main unit or press the Power
button on the remote control to turn the unit to Standby mode. The
indicator will turn off.
• Disconnect the power plug from the main socket if you want to switch the
unit off completely.
Changing the Mode
Press the /Mode button on the main unit or the appropriate button on
the remote control to switch between AUX, AUDIO L/R, USB, Optical and
Bluetooth mode.
Adjusting the Volume
• Press and hold the Vol+/ and Vol-/ button on the unit to adjust the
volume. Alternatively use the Vol+/- buttons on the remote control to
change the volume.
• If you want to turn the sound off, press the Mute button on the remote
control. Press the Mute button again or press the Vol + button to unmute
the unit.
NOTE: You cannot change the preset volume limits.
Select a Preset Sound Eect
You can change the equliser to get the best output result. To do this, press
the EQ button on the remote control to select between the preset equalisers.

7
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Instructions
AUX/Audio L/R
1. Ensure that the unit is connected to the TV or the external audio device.
2. While the unit is turned on, press the /Mode button repeatedly on
the main unit or the relevant mode on the remote control to select the
appropriate mode.
Pairing with a Bluetooth Enabled Device
Before you can play music from your Bluetooth enabled device, you need to
pair it to the Soundbar.
1. When the unit is on, press the /Mode button repeatedly on the unit or
the Bluetooth button on the remote control to enter Bluetooth mode. The
Bluetooth indicator light will flash slowly.
2. The system has now entered pairing mode. Alternatively you can press
and hold the Pair button for 2 seconds on the unit to activate Bluetooth
pairing mode.
3. On your Bluetooth enabled device select the search mode.
4. Select ASB2-0316 in the pairing list. The Bluetooth indicator light will
illuminate solidly when the connection is successful.
5. To disconnect the Bluetooth function, switch to another mode on the unit
or disable the Bluetooth function from your Bluetooth enabled device.
NOTES:
• The operation range between this unit and a Bluetooth enabled device
is approximately 6 meters (without any obstacles between the devices).
Obstacles will reduce the operational range.
• Before you connect a Bluetooth device, ensure you are familiar with your
devices capabilities.
• This unit may not be compatible with all Bluetooth enabled devices.
• If the signal strength is weak, your Bluetooth receiver may disconnect,
but it will re-enter Bluetooth mode automatically when the signal is
stronger.
• If a password is required, enter 0000.
• If there is already a connection to the unit, press and hold the Pair button
for 2 seconds on the unit to go to Paring mode, the current connection
will be disconnected.
• If no other Bluetooth device pairs with this player within two minutes, the
player will recover its previous connection.

8
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Listen to Music on your Bluetooth Enabled Device
1. Pair your device with the unit.
2. Play music through your Bluetooth enabled device.
3. Use the supplied remote control to control the music playback.
NOTE: If the device supports Audio Video Remote Control Profile (AVRCP),
you can use the units remote control to skip to next or previous music stored
on the device or pause and resume music playback.
Optical Mode Operation
Ensure that the unit is connected to the TV via an Optical cable. While the
unit is turned on, press the /Mode button repeatedly on the main unit or the
Optical button on the remote control to select Optical mode.
USB Music playback
In order to play music from your USB drive, connect your USB drive to the
Soundbar. The Soundbar will change the mode to USB and start music
playback. Use the buttons on the unit or remote control to select your desired
track and volume or pause or resume music playback. Alternatively use the
mode button on the main unit or the USB button on the remote control to
select USB mode.
Installation (Cont.)

9
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Instructions (Cont.)

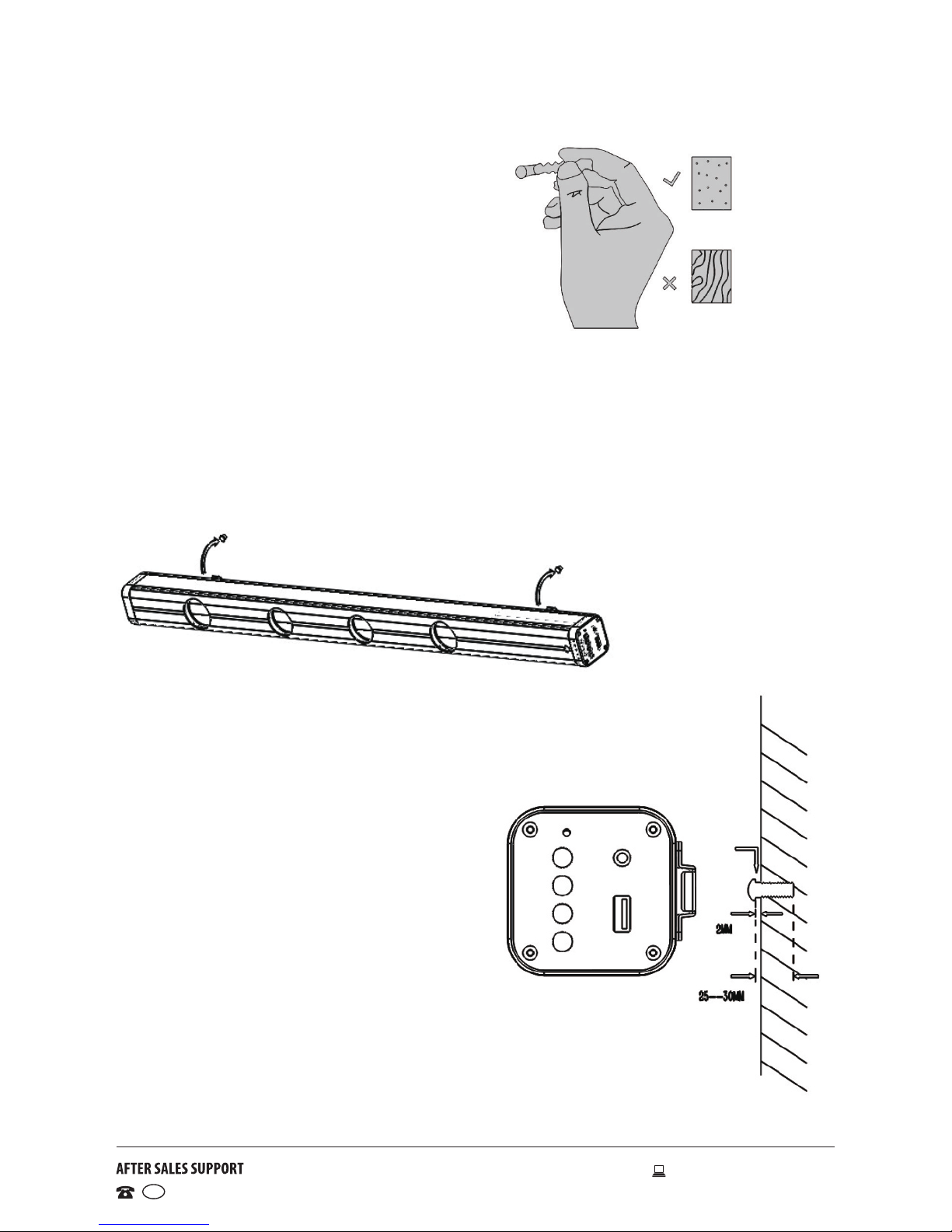

Wall Mounting Instructions
1. Remove the screws from the
back of the unit.
2. Attach the wall brackets to
the main unit with the screws
removed from the main unit.
3. Drill 2 parallell holes (3-8mm
each according to the wall
type) in the wall.

10
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Instructions (Cont.)
4. Firmly fix 1 dowel into each
hole in the wall if necessary.
5. Leave a 5mm gap between the wall and the head of the screw. Lift the unit with
the attached wall brackets over the heads of the screws and slot into place.
solid wall(i.e,solid brick,
solid concrete,solid wood,
solid wooden bottens)
Drywall,plaster wall,
Lath wall,etc

11
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Other Useful Information
Problem Possible Solution
No power Ensure that the power adaptor of the
unit is properly connected.
Ensure that the power is turned on
at the outlet.
Press the Standby button to turn
the unit on.
Remote control does not work Before you press any mode button,
select the correct mode first.
Reduce the distance between the
remote control and the unit.
Make sure that the batteries are
inserted correctly.
Replace the batteries.
Aim the remote control directly at the
sensor on the front of the unit.
No response from the unit Disconnect and reconnect the power
adaptor, then turn the unit on again.
Bluetooth name does not appear Ensure the Bluetooth function is
activated on your Bluetooth enabled
device.
Ensure you have paired the unit with
your Bluetooth enabled device.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.,
and any use of such marks by Hands (IP) Holdings Pty Ltd is under license. Other trademarks
and trade names are those of their respective owners.
Responsible disposal
At the end of its working life, do not throw this device out with your
household rubbish. Electrical and electronic products contain substances
that can have a detrimental effect on the environment and human health
if disposed of inappropriately. Observe any local regulations regarding the
disposal of electrical consumer goods and dispose of it appropriately for
recycling. Contact your local authorities for advice on recycling facilities in
your area.

12
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
Specications
General
Power Requirements 18V/2A DC adapter
Output Power RMS 15 W x 2
Frequency Response 20Hz-20KHz
Bluetooth Version V2.1+EDR
Operating Range Up to 10M
Supported Profiles A2DP, AVRCP
USB Port Max Storage Capactiy 32 GB
Supported File Type MP3
Speakers
Drive Size 50mm
Total Impedence 8 Ω
Remote Control
Distance Up to 6m
Angle 30°

13
1300 886 649 Model: ASB2-0316 Product Code: 52616 01/2016
www.tempo.org
AUS
2.0 Channel Soundbar
with Bluetooth®Wireless Technology
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to
be returned to the supplier for repair.
Please be aware that if your product is capable of retaining user-generated data
(such as files stored on a computer hard drive, telephone numbers stored on
a mobile telephone, songs stored on a portable media player, games saved on
a games console or files stored on a USB memory stick) during the process of
repair, some or all of your stored data may be lost. We recommend you save this
data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them
with refurbished goods of the same type or use refurbished parts in the repair
process.
Please be assured though, refurbished parts or replacements are only used
where they meet ALDI’s stringent quality specications.
If at any time you feel your repair is being handled unsatisfactorily, you may
escalate your complaint. Please telephone us on 1300 886 649 or write to us at:
Tempo (Aust) Pty Ltd ABN 70 106 100 252
PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086
Tempo Help Desk: 1300 886 649 (Aust)
(Operating Hours: Mon-Fri 08:30AM to 06:00PM EST)
Email: [email protected]g
