Bauhn ASBB-114 User manual

INSTRUCTION MANUAL
2.0 Channel Soundbar
with Bluetooth®Wireless Technology
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS

ii
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Remote Control
1 POWER: Switch the unit between on and standby mode.
2 SOURCE: Select the play function.
3 VOL+ / VOL-: Increase/decrease the volume level.
4 / : In Bluetooth mode, skip to the previous/next audio file.
5 : In Bluetooth mode, start or pause playback.
6 PAIR: In Bluetooth mode, activate the pairing function and disconnect
the existing paired Bluetooth device.
7 MUTE: Mute or resume the sound.
8 EQ: Select a preset sound effect.

iii
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Remote Control (Cont.)
Remote control battery
The remote control comes with a CR2025 3V button cell pre-installed.
First time use

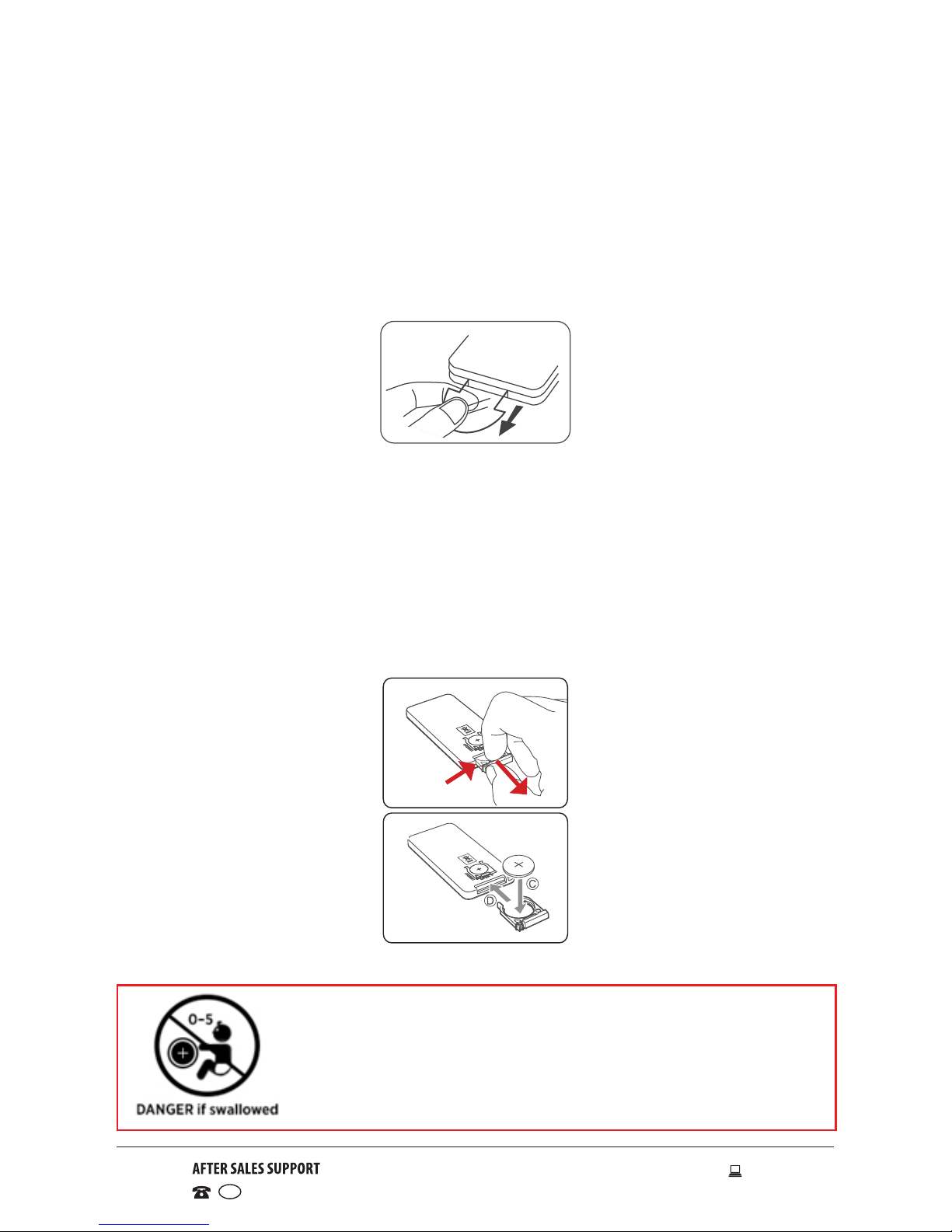

• To activate the battery and use the remote control, pull out the plastic tab that
separates the battery from the contacts inside the compartment.
Battery replacement
• If the remote control unit is no longer working even when it is operated near the
soundbar, you will need to replace the battery with a new battery of the same type.
• Push in the tab and pull out the battery tray. Remove the old battery.
• Insert a fresh CR2025 battery with the (+) marking facing upwards. Then push the
battery tray with the battery back into the slot.
WARNING!
Keep batteries out of reach of children. Swallowing may lead
to serious injury or death in as little as 2 hours due to internal
burns. If swallowed, go straight to a hospital emergency
room. Dispose of used batteries immediately.

iv
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Using the remote control
• The remote control has a range of up to 6 metres from the soundbar. Point the
remote control directly towards the sensor at the front of the soundbar.
• Make sure no obstacles are blocking its path. The remote control will not operate
if its path is blocked.
• Handle the remote control with care. Do not drop, apply shock or step on the
remote control. Do not spill water on the unit.
• Do not use the remote control while simultaneously operating a remote control
unit of any another unit, which may result in interference.
• If the remote control is operated near other products which generate infra-red
rays, or if other remote control devices using infra-red rays are used near the unit,
it may operate incorrectly. Conversely, the other products may operate incorrectly.
• If you do not intend to use the remote control for an extended period of time
(more than a month), remove the battery to prevent possible damage from battery
leakage and corrosion.
Battery precautions
• Do not use any other battery than specified.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
• Do not carry or store batteries with other metallic objects. Doing so could cause
batteries to short-circuit, leak or explode.
• Do not expose the battery to excessive heat such as sunshine, fire or the like.
• Do not attempt to short-circuit, disassemble or throw batteries into a fire.
• Never recharge a battery unless it is confirmed to be a rechargeable type.
• Dispose of batteries promptly and properly, observing any local hazardous waste
regulations. Do not burn or bury them.
Remote Control (Cont.)

v
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Congratulations on choosing to buy a BAUHN® product.
All products brought to you by BAUHN®are manufactured to the highest standards
of performance and safety and, as part of our philosophy of customer service and
satisfaction, are backed by our comprehensive 1 Year Warranty. We hope you will
enjoy using your purchase for many years to come.
Welcome

vi
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Contents
Remote Control ii
Welcome v
Warranty Details vii
General Safety Instructions 1
Parts List 3
Product Overview 4
Controls and Connections 5
Installation 7
Instructions 10
FAQs 14
Other Useful Information 15
Repair and Refurbished Goods or Parts Notice 16

vii 1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
2.0 Channel Soundbar
with Bluetooth®Wireless Technology
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for
a period of 12 months from the date of purchase. Defects that occur within this
warranty period, under normal use and care, will be repaired, replaced or refunded at
our discretion, solely at our option with no charge for parts and labour. The benefits
conferred by this warranty are in addition to all rights and remedies in respect of
the product that the consumer has under the Competition and Consumer Act 2010
and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and to compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.

1
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
General Safety Instructions
Electrical safety and cord handling
• Protect from moisture: Do not expose this equipment, the power supply cord and
plug to rain or moisture. Do not use it anywhere near water or where water splashes
or drips, such as in a wet basement or near a swimming pool. Do not touch the power
plug with wet hands.
• Voltage: Before connecting this equipment to the mains power supply, make sure
your outlet voltage corresponds to the voltage stated on the appliance rating label.
• Mains power connection: When connecting this equipment to the mains power
supply, only use cord and plug supplied. Align the plug properly and insert it fully. Do
not overload the power outlet.
• Damaged cord: When the power cord is damaged, it must be replaced by the
manufacturer or similarly qualified personnel in order to avoid a hazard.
• Protect the power cord: Do not let the cord hang over the edge of a table or counter,
or touch any hot surface. Do not allow anything to rest on or roll over the power cord.
Run any cords so no one steps on or trips over them. Do not run the cord near heat-
producing appliances such as radiators or stoves.
• Disconnect: Switch off and unplug the unit during lightning storms, and when it is
not going to be used for a while. Grasp the plug, not the cord, when disconnecting.
• Disconnect device: This equipment must be unplugged for complete disconnection
from the mains power supply. Ensure the mains plug remains readily accessible for
disconnection.
• Class II equipment: This equipment is a Class II or double insulated electrical
appliance. It has been designed in such a way that it does not require a safety
connection to electrical earth.
Read this manual thoroughly before first use and keep it in a safe place for future
reference, along with the warranty card, purchase receipt and carton. The safety
precautions enclosed herein reduce the risk of fire, electric shock and injury when
correctly adhered to. Follow all instructions and take notice of all warnings to
reduce the risk of re or electric shock.
Important Warnings and Cautions!
• Do not open: To prevent contact with high voltage
components inside, do not attempt to open the
equipment. There are no user-serviceable parts inside.
• Do not repair: If the unit requires service, call our after
sales support line for advice. Do not repair the unit
yourself; only have it serviced by qualified personnel.

2
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Usage conditions and restrictions
• Instructions: Follow the instructions in this manual when installing and adjusting this
equipment. Only adjust those controls that are covered in this instruction manual, as
improper adjustment of other controls may result in damage. If this happens, unplug
the equipment and have it serviced by appropriately qualified personnel.
• Location: When using the equipment, make sure to place it:
• In a well ventilated area, keeping a clearance of at least 20cm above and 5cm on
each side of the unit to ensure proper ventilation.
• Away from heat sources such as radiators, heat registers, stoves or other
equipment (including amplifiers) that produce heat.
• Away from areas with high temperatures, high humidity or direct sunlight.
• Away from excess dirt and dust.
• Away from open windows and any place where water or metal objects may get into
the equipment and damage it.
• Away from strong magnetic fields.
• Accessories: Only use attachments/accessories specified by the manufacturer
or sold with the apparatus. Use of the soundbar with accessories that are not
recommended in this manual may cause injury or damage, and will void the warranty.
• Usage restriction: The equipment is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children: Supervise young children to ensure they do not play with the equipment.
Close supervision is always necessary when an appliance is used by or near children.
• Protect the equipment: Prevent metal objects falling onto the equipment. Do not
place heavy objects on top of the equipment or step on it. Do not place objects
filled with water (such as vases), or naked flame sources (such as candles), near
the equipment. If liquid or metal parts enter the system, unplug the power cable
immediately and call our after sales support centre to arrange a service before
further use.
• Ventilation: Openings on the cabinet are provided for ventilation and to protect the
unit from overheating. To ensure proper operation, do not cover them with things such
as newspapers, tablecloths, curtains etc.
• Cleaning: Unplug the equipment from the power outlet before cleaning. Clean the
equipment only with a clean, dry or slightly damp cloth. Do not use liquid or aerosol
cleaners or volatile solvents.
• Service: Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the unit, it has
been exposed to rain or moisture, does not operate normally, or has been dropped.
• Liability: We accept no liability for any damage or lost data caused by non-
compliance with these instructions or mishandling of the equipment.
General Safety Instructions (Cont.)

3
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS

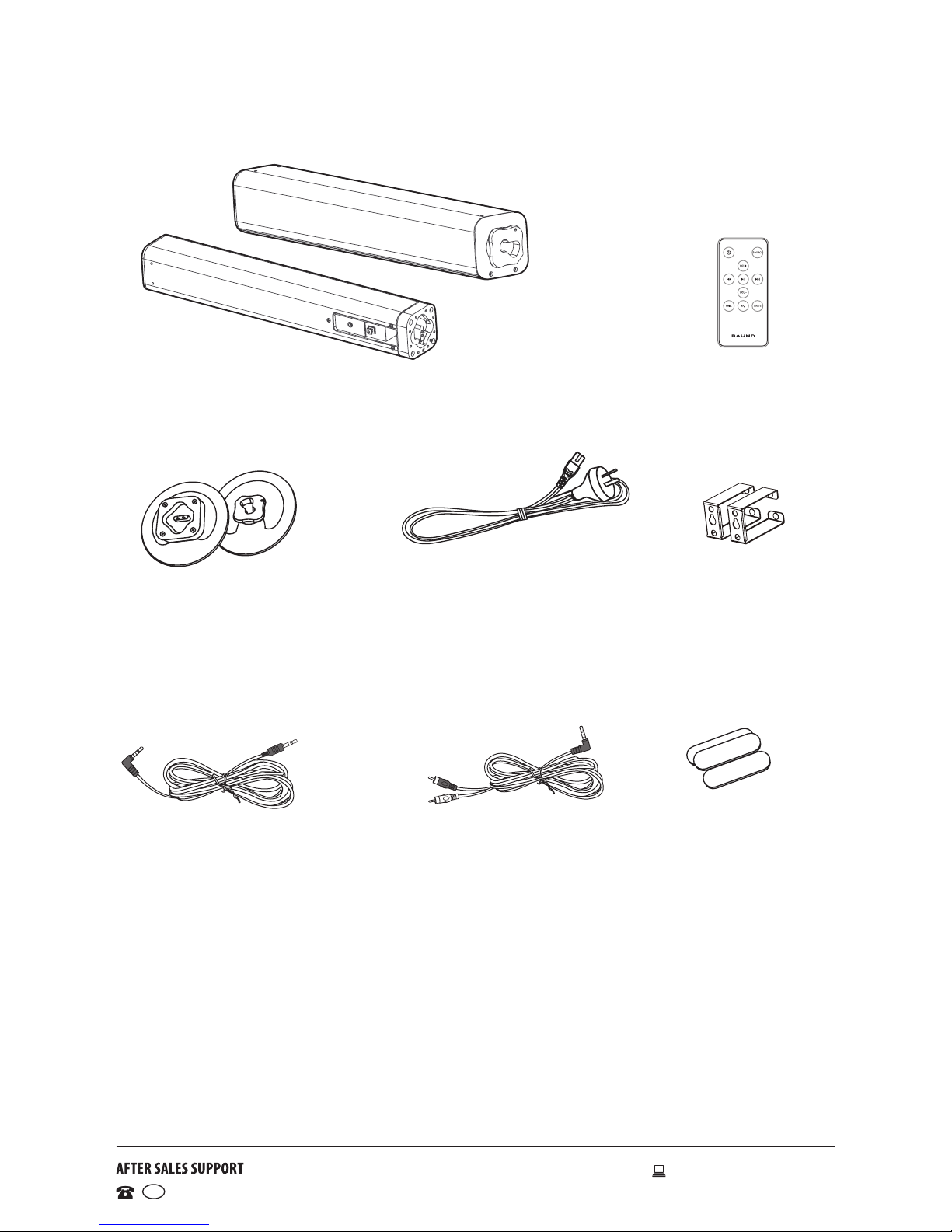

Parts List
1 Main Soundbar Unit (left/right)
2 Remote Control
3 Stand x 2
4 AC Power Cord
5 Wall Bracket x 2
6 3.5mm to 3.5mm Audio Cable
7 RCA to 3.5mm Audio Cable
8 Rubber Feet x 3
1
4
7
2
5
8
3
6

4
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
1 NFC (Near Field Communication) Sensor
2 Speakers
3 Power switch: press to switch the unit between on and standby mode
4 SOURCE: select the play function
5 LED Indicators
• Red indicator: in STANDBY mode
• Green indicator lights up: in AUX mode
• Green indicator flashes: in HDMI ARC mode
• Orange indicator: in OPTICAL mode
• Blue indicator:
(Bluetooth indicator flashing slowly: in Bluetooth mode)
(Bluetooth indicator flashing fast: in Bluetooth pairing mode)
• Indicator flashes: adjust the volume / select a preset sound effect
6 VOL+/VOL-: Increase/decrease the volume level.
7 Remote Control Sensor
8 Stand
9 AC Power Socket
10 HDMI (ARC ) Socket
11 OPTICAL Socket
12 AUX Socket: Connect to an external audio device.

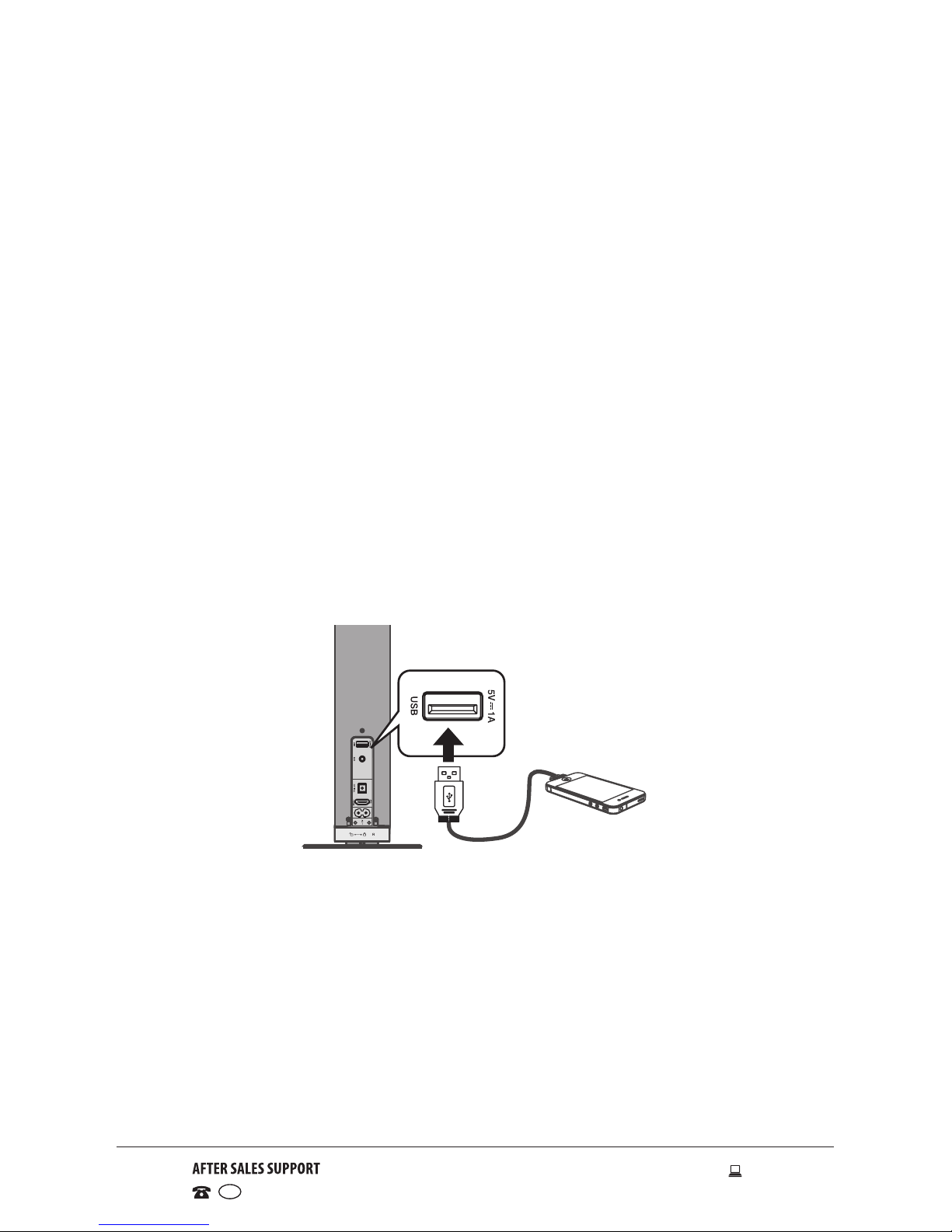

13 USB Charging Port: 5V 1A
Product Overview
Main Unit
(right)

5
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Controls and Connections
AUX socket
A Use the supplied 3.5mm to 3.5mm audio cable to connect the headphone socket of
the connected audio device, such as a media player, to the AUX socket on the unit.
B Use the supplied RCA to 3.5mm audio cable to connect the TV’s audio output
sockets to the AUX socket on the unit.
Optical socket
C Remove the protective cap from the OPTICAL socket, then connect an OPTICAL
cable (not included) to the TV’s OPTICAL OUT socket and the OPTICAL socket
on the unit.
TIP: If no sound is coming out of the soundbar and the indicator light flashes fast,
make sure the audio setting of your source player (e.g. DVD player, game
player, TV) is set to PCM with optical output.
HDMI (ARC) socket
D The ARC (Audio Return Channel) function allows you to send audio input from an
ARC-compliant TV to an ARC-compliant audio device (e.g. soundbar) without the
need for an additional audio cable connection.
To enjoy the ARC function, make sure the soundbar main unit's HDMI OUT socket
is connected via HDMI cable to the HDMI (ARC) socket of your ARC-compliant
TV. Then just use your TV remote control to adjust the volume output (VOL +/–
and MUTE) of the connected audio device.
Back Panel Connections

6
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Controls and Connections (Cont.)
NOTE:
• Your TV must support the HDMI-CEC and ARC, and the HDMI-CEC and ARC
must be set to On.
• The setting method of HDMI-CEC and ARC may differ depending on the TV. For
details about ARC function, please refer to the TV's instruction manual.
• Make sure the HDMI cable you use can support the ARC function.
• HDMI-CEC will be called different names by different manufacturers. Please refer
to your TV's instruction manual for details on setting up HDMI-CEC and ARC.
USB charging
Connect a USB cable (not supplied) to the USB charging socket to charge your
smartphone or tablet PC.
NOTE:
• The maximum output of the USB charging port is 5V DC 1A. Please refer to your
mobile device’s manual regarding the charging power
• This product is suitable for charging mobile devices only.
Power connection
• Before connecting the AC power cord, ensure you have completed all other
connections.
• Risk of product damage! Ensure that the power supply voltage corresponds to
the voltage printed on the back or the underside of the unit.
• Connect the mains plug to the main unit and a mains socket.

7
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Installation
This soundbar unit can be used either as a single soundbar or as 2-piece tube speakers.
Installation options include:
Option A:
Two tube speakers
installed on stands
Option B:
Single soundbar mounted
horizontally with rubber feet
Option C:
Single soundbar
wall-mounted
Stand mounting (if using option A)
Attach a stand each to the two separate pieces and twist to secure, as illustrated
below.

8
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS

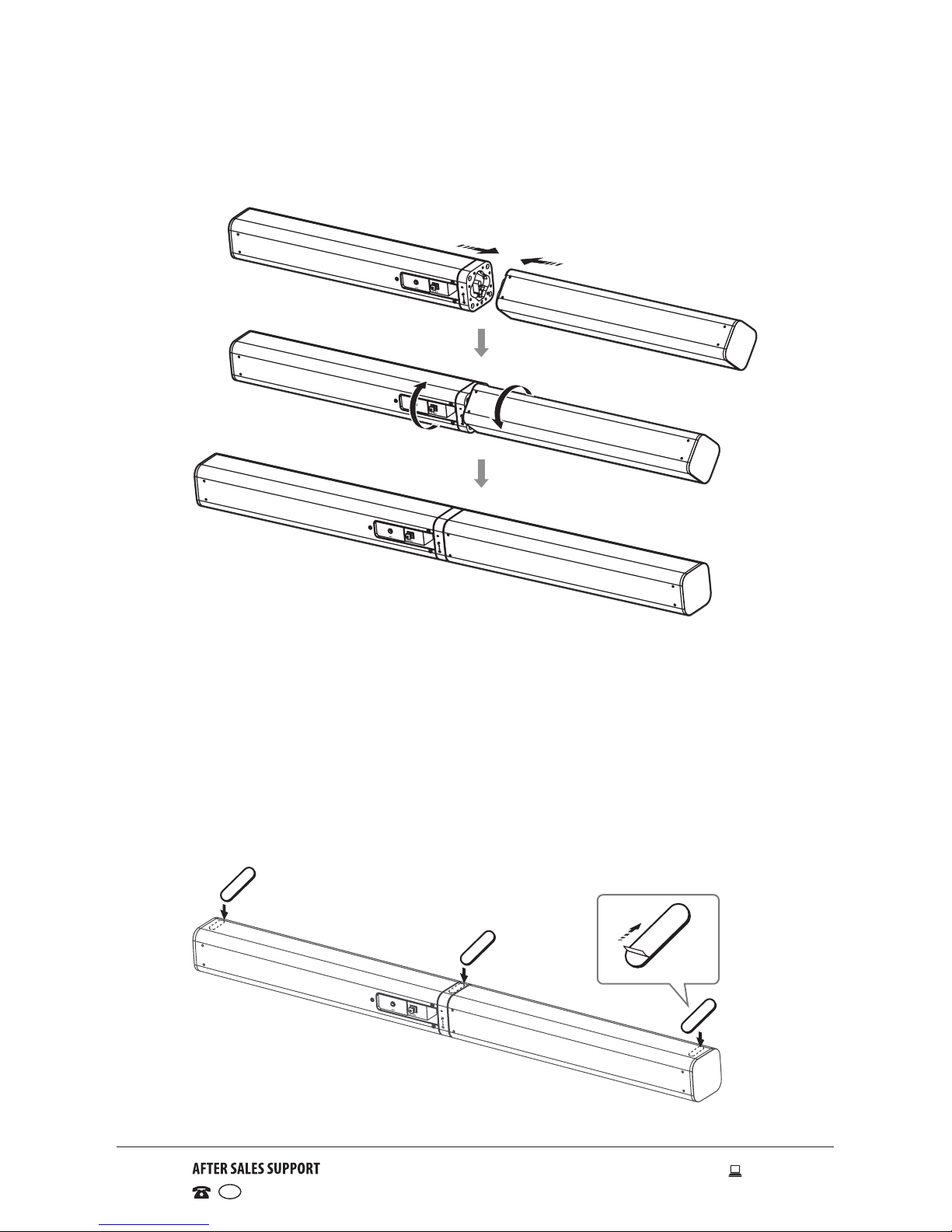

Horizontal mounting
Align the two separate pieces and twist to secure, as illustrated below.
Rubber feet installation (if using option B)
You can extend the height of the unit, if required. To do so, attach the supplied rubber
feet as follows.
• Ensure the surface of the soundbar is clean prior to attaching the rubber feet.
• Turn the unit upside down.
• Remove the backing paper from the rubber feet.
• Stick the rubber feet to the bottom of the unit, as illustrated below.
Installation (Cont.)

9
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
Installation (Cont.)

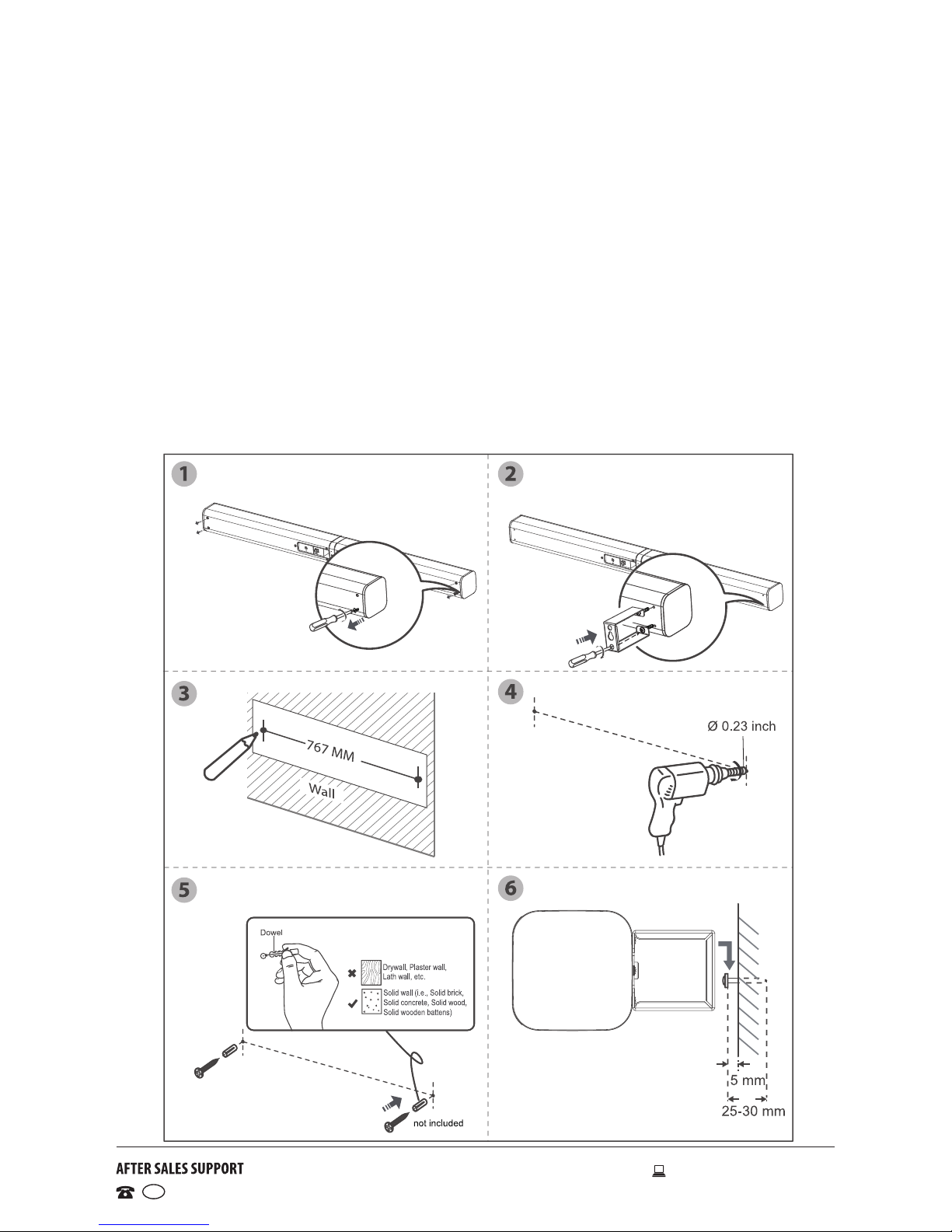

Wall mounting (if using option C)
• Wall-mountedinstallationmustbecarriedoutbyqualiedpersonnelonly.
Incorrect assembly can result in severe personal injury and property damage!
(If you intend to install this product yourself, you must check for installations such as
electrical wiring and plumbing, which may be hidden inside or behind the wall.)
• Itistheinstaller’sresponsibilitytoverifyandconrmthatthewallwillsafely
support the total load of the unit and wall brackets.
• Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Use an electronic stud finder to check the wall type before drilling and mounting.
* Only install this soundbar on a
strong, structurally sound wall.
Recommendation *

10
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
General Operation
Standby/ON
• When you first connect the main unit to the mains socket, the main unit will be in
Standby mode.
• Press the POWER button on the unit or on the remote control to switch the unit ON.
• Press the POWER button again to switch the unit back to Standby mode. The
power indicator will light up red.
• Disconnect the mains plug from the mains socket if you want to switch the unit OFF
completely.
• When there is no input signal (or weak input signal) in HDMI, AUX, Optical and
Bluetooth mode (Stop or Pause) for more than 15 minutes, the unit will automatically
switch to Standby mode.
Mode Selection
Press the SOURCE button repeatedly on the unit or the button on the remote control to
switch between HDMI (ARC), AUX, Optical and Bluetooth modes.
• In AUX mode: the status indicator lights up green.
• In HDMI (ARC) mode: the green status indicator flashes.
• In Optical mode: the status indicator lights up orange.
• In Bluetooth mode: the status indicator lights up blue.
Volume Adjustment
• Press the VOL+ / VOL- buttons on the unit or on the remote control to adjust the
volume.
• If you wish to turn the sound off, press the MUTE button on the remote control. Press
this button again or press the VOL+ / VOL- buttons to resume normal listening.
• While adjusting the volume, the status indicator flashes quickly.
• When the volume level reaches its maximum level, if you press the VOL+ button
again, the status indicator flashes once. When the volume level reaches its minimum
level, if you press the VOL- button again, the status indicator flashes once.
PresetSoundEectSelection
• Press the EQ button on the remote control to select between preset equalisers: Movie
(recommended for viewing movies), Music (recommended for listening to music).
• Music EQ: the status indicator will flash twice.
• Movie EQ: the status indicator will flash four times.
Instructions

11
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
HDMI (ARC) / AUX / Optical Operation
• Ensure that the unit is connected to a TV or audio device.
• While in ON mode, press the SOURCE button repeatedly on the unit or on the remote
control to select HDMI (ARC), AUX or Optical mode.
• Operate your audio device directly for playback features.
• Press the VOL +/– button to adjust the volume to your desired level.
Tip: If no sound is coming out of the unit and the orange light flashes fast, make
sure the audio setting of your source player (e.g. DVD player, game player, TV)
is set to PCM with optical input.
Playing Bluetooth®Enabled Devices
You can listen to tracks from a media device if connected to the unit via Bluetooth
wireless technology.
Pairing Bluetooth®Enabled Devices
The first time you connect your Bluetooth device to this player, you need to pair your
device to this player.
1. During ON mode, press the SOURCE button repeatedly on the unit or the remote
control to select Bluetooth mode. The blue indicator will flash slowly, indicating
that the system has entered pairing mode.
2. Alternatively, press the PAIR button on the remote control to be searchable. The
blue indicator will flash fast.
3. Activate your Bluetooth enabled device and select the search mode. “BAUHN
ASBB-114” will appear on your Bluetooth device list.
4. Select “BAUHN ASBB-114” in the pairing list. The blue indicator will light up
solidly if pairing succeeds.
5. To disconnect the Bluetooth function, switch to another function on the unit or
disable the function from your Bluetooth enabled device. The blue indicator will
flash slowly.
Important notes
• The operational range between this player and a Bluetooth device is approximately
8m (without any object between the Bluetooth enabled device and the unit). Any
obstacle between the devices can reduce the operational range.
• Before you connect a Bluetooth enabled device to this unit, ensure you know the
device’s capabilities. Compatibility with all Bluetooth devices is not guaranteed.
• If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-
enter pairing mode automatically.
Instructions (Cont.)

12
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
TIPS
• If you are prompted for a password, enter "0000".
• If there is an existing connection, press the PAIR button on the remote control to
re-activate the pairing mode, the connection will be interrupted. The blue indicator
will flash slowly.
• If no other Bluetooth device pairs with this player within two minutes, the player will
recover its previous connection.
• The player will also be disconnected when your device is moved beyond the
operational range.
• If you want to reconnect your device to this player, place it within the operational
range.
• If the device is moved beyond the operational range, when it is brought back,
please check if the device is still connected to the player.
• If the connection is lost, follow the instructions above to pair your device to the
player again.
Music playback from Bluetooth Enabled Devices
1. Pair and connect your Bluetooth enabled device with the soundbar.
2. Play audio on your Bluetooth enabled device.
3. Use the remote control to control playback.
Important notes
• To stream audio via Bluetooth wireless technology, the playback device should
support A2DP (Advanced Audio Distribution Profile).
• To use the playback buttons (Previous/Next, Vol+/-, Play/Pause) on the remote
control, the playback device should support AVRCP (Audio Video Remote Control
Profile).
Instructions (Cont.)

13
1300 886 649 Model: ASBB-114 Product Code: 47722 04/2015
www.tempo.org
AUS
NFC (Near Field Communication) Operation
Pair your NFC enabled mobile device directly with this unit with just a single tap.
1. Activate NFC on your mobile device.
2. Tap the mobile device on the icon of the
unit.
3. Confirm the Bluetooth connection.
4. To disconnect, tap the mobile device
on the icon of the unit to disconnect
or disable NFC from your mobile device.
NOTE: This NFC function only works with mobile
devices that support NFC technology.
TIPS:
Some NFC enabled mobile devices cannot pair directly with the unit via NFC. In such
a case, please try either one of the solutions below:
• Please download the App “Tap-and- Pair” from Google Play Store (https://play.
Google. com) and install.
• Pair with the unit manually first, then touch again on the NFC sensing area.
Instructions (Cont.)
