Bauhn JN-1032 User manual

User Guide
Manual
del usuario

Important Safeguards ............................................................................03
Parts List...................................................................................................05
Remote Control........................................................................................06
Product Overview ....................................................................................09
Controls and Connections ..................................................................... 10
Installation................................................................................................13
Instructions.............................................................................................. 16
Other Useful Information........................................................................20
Contents

866-235-5029 [email protected]
Soundbar with Wireless Subwoofer
3
Important Safeguards
Electrical Safety and Cord Handling
• Protect from moisture: Do not expose this equipment, the power supply cord and
plug to rain or moisture. Do not use it anywhere near water or where water splashes or
drips, such as in a wet basement or near a swimming pool. Do not touch the power plug
with wet hands.
• Voltage: Before connecting this equipment to the mains power supply, make sure your
outlet voltage corresponds to the voltage stated on the appliance rating label.
• Mains power connection: When connecting this equipment to the mains power
supply, only use cord and plug supplied. Align the plug properly and insert it fully. Do
not overload the power outlet.
• Damaged cord: When the power cord is damaged, it must be replaced by the
manufacturer or similarly qualied personnel in order to avoid a hazard.
• Protect the power cord: Do not let the cord hang over the edge of a table or counter,
or touch any hot surface. Do not allow anything to rest on or roll over the power cord.
Run any cords so no one steps on or trips over them. Do not run the cord near heat-
producing appliances such as radiators or stoves.
• Disconnect: Switch o and unplug the unit during lightning storms, and when it is
not going to be used for a while. Grasp the plug, not the cord, when disconnecting.
• Disconnect device: This equipment must be unplugged for complete disconnection
from the mains power supply. Ensure the mains plug remains readily accessible for
disconnection.
• Class II equipment: This equipment is a Class II or double insulated electrical
appliance. It has been designed in such a way that it does not require a safety
Read this manual thoroughly before rst use and keep it in a safe place for future
reference, along with the warranty card, purchase receipt and carton. The safety
precautions enclosed herein reduce the risk of re, electric shock and injury when
correctly adhered to. Follow all instructions and take notice of all warnings to
reduce the risk of fire or electric shock.
Important Warnings and Cautions!
• Do not open: To prevent contact with high voltage
components inside, do not attempt to open the
equipment. There are no user-serviceable parts inside.
• Do not repair: If the unit requires service, call our
after sales support line for advice. Do not repair the unit
yourself; only have it serviced by qualified personnel.
Important Safeguards

866-235-5029
[email protected]
Soundbar with Wireless Subwoofer
4
Important Safeguards
Usage Conditions and Restrictions
• Instructions: Follow the instructions in this manual when installing and adjusting this
equipment. Only adjust those controls that are covered in this instruction manual, as
improper adjustment of other controls may result in damage. If this happens, unplug
the equipment and have it serviced by appropriately qualied personnel.
• Location: When using the equipment, make sure to place it:
• In a well ventilated area, keeping a clearance of at least 20cm above and 5cm on
each side of the unit to ensure proper ventilation.
• Away from heat sources such as radiators, heat registers, stoves or other equipment
(including amplifiers) that produce heat.
• Away from areas with high temperatures, high humidity or direct sunlight.
• Away from excess dirt and dust.
• Away from open windows and any place where water or metal objects may get into
the equipment and damage it.
• Away from strong magnetic elds.
• Accessories: Only use attachments/accessories specified by the manufacturer or sold
with the apparatus. Use of the soundbar with accessories that are not recommended in
this manual may cause injury or damage, and will void the warranty.
• Usage restriction: The equipment is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
• Children: Supervise young children to ensure they do not play with the equipment.
Close supervision is always necessary when an appliance is used by or near children.
• Protect the equipment: Prevent metal objects falling onto the equipment. Do not
place heavy objects on top of the equipment or step on it. Do not place objects lled
with water (such as vases), or naked ame sources (such as candles), near the equipment. If
liquid or metal parts enter the system, unplug the power cable immediately and call
our after sales support centre to arrange a service before further use.
• Ventilation: Openings on the cabinet are provided for ventilation and to protect the
unit from overheating. To ensure proper operation, do not cover them with things such
as newspapers, tablecloths, curtains etc.
• Cleaning: Unplug the equipment from the power outlet before cleaning. Clean the
equipment only with a clean, dry or slightly damp cloth. Do not use liquid or aerosol
cleaners or volatile solvents.
• Service: Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the unit, it has
been exposed to rain or moisture, does not operate normally, or has been dropped.
• Liability: We accept no liability for any damage or lost data caused by non-compliance
with these instructions or mishandling of the equipment.
Important Safeguards (Cont.)

866-235-5029 [email protected]
Soundbar with Wireless Subwoofer
5

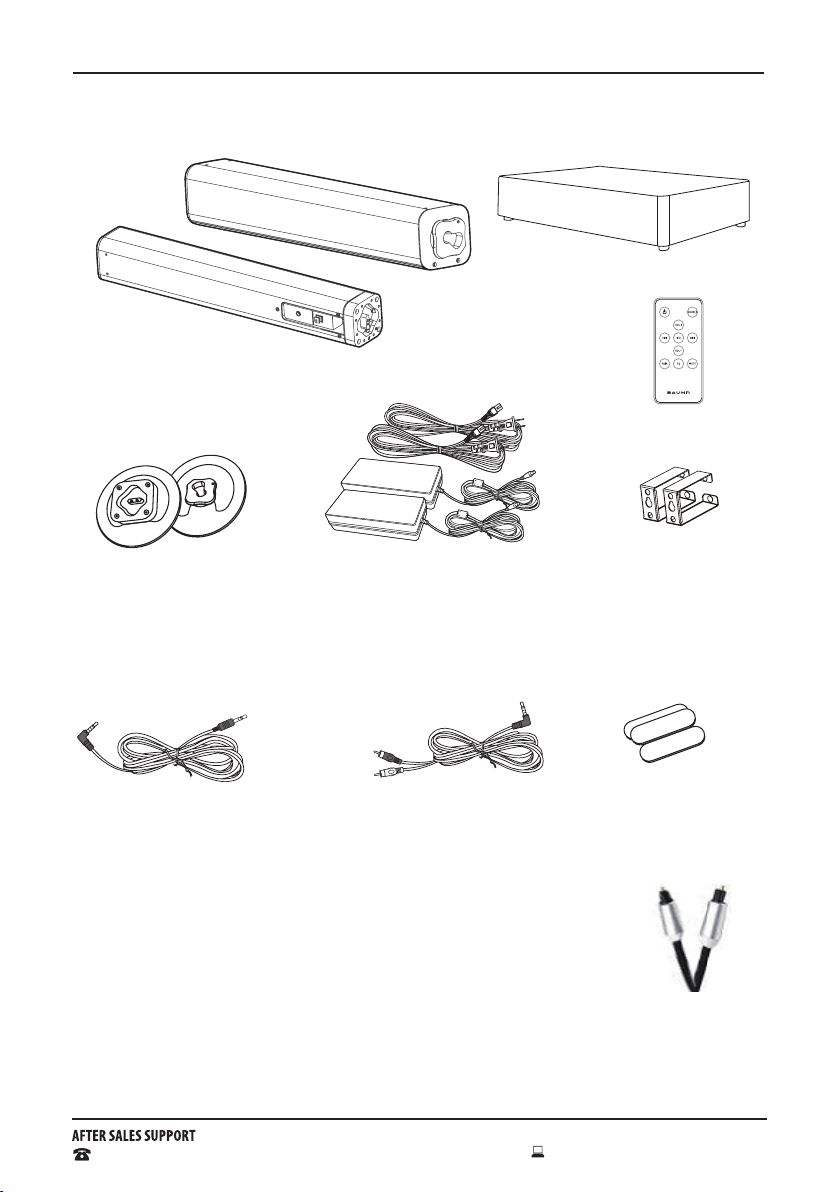

Parts List
Parts List
1 Main Soundbar Unit (left/right)
2 Subwoofer
3 Remote Control
4 Stand x 2
5 Power Adaptor x 2
6 Wall Bracket x 2
7 3.5mm to 3.5mm Audio Cable
8 RCA to 3.5mm Audio Cable
9 Rubber Feet x 3
10 Optical Cable
1
8
2
3
6
9
10
4
7
5

866-235-5029
[email protected]
Soundbar with Wireless Subwoofer
6

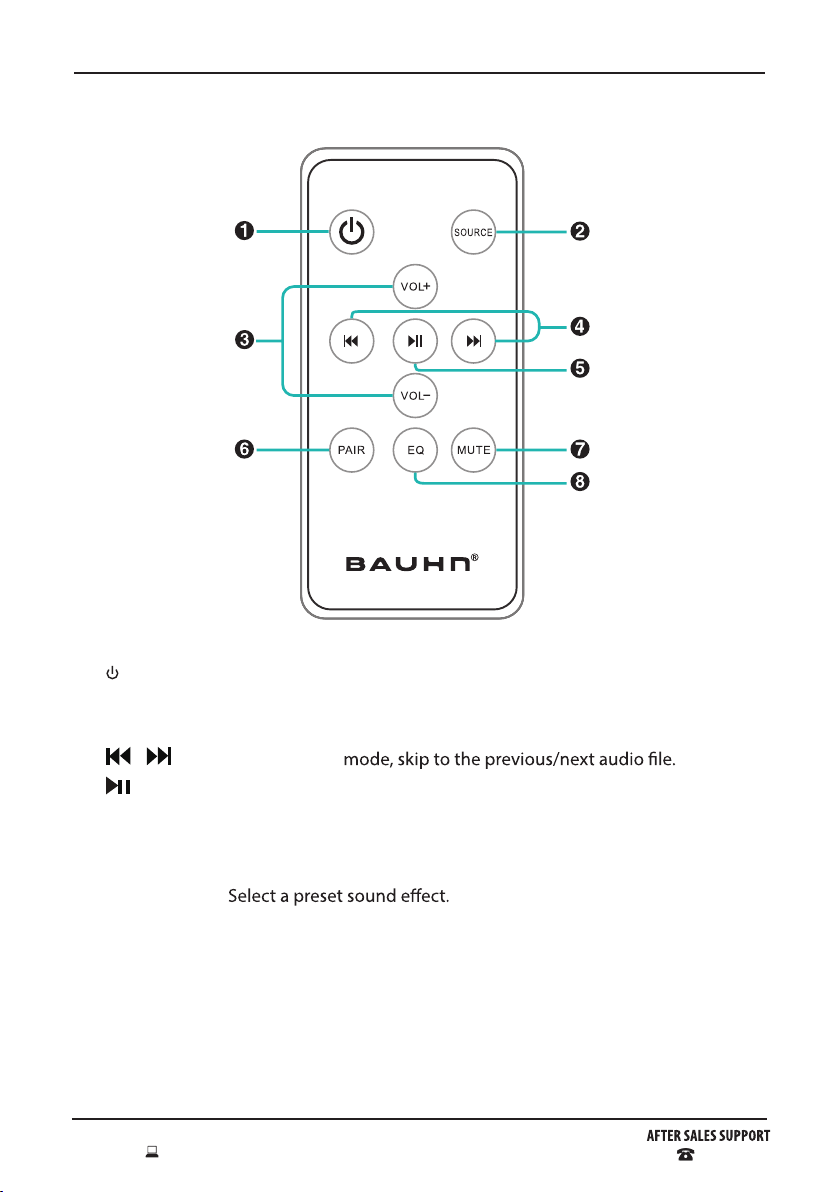

Remote Control
1 POWER: Switch the unit between on and standby mode.
2 SOURCE: Select the play function.
3 VOL+ / VOL-: Increase/decrease the volume level.
4 / : In Bluetooth ®
5 : In Bluetooth ®mode, start or pause playback.
6 PAIR: In Bluetooth ®mode, activate the pairing function and disconnect
the existing paired Bluetooth ®device.
7 MUTE: Mute or resume the sound.
8 EQ:
Remote Control

866-235-5029 [email protected]
Soundbar with Wireless Subwoofer
7
Remote Control (Cont.)

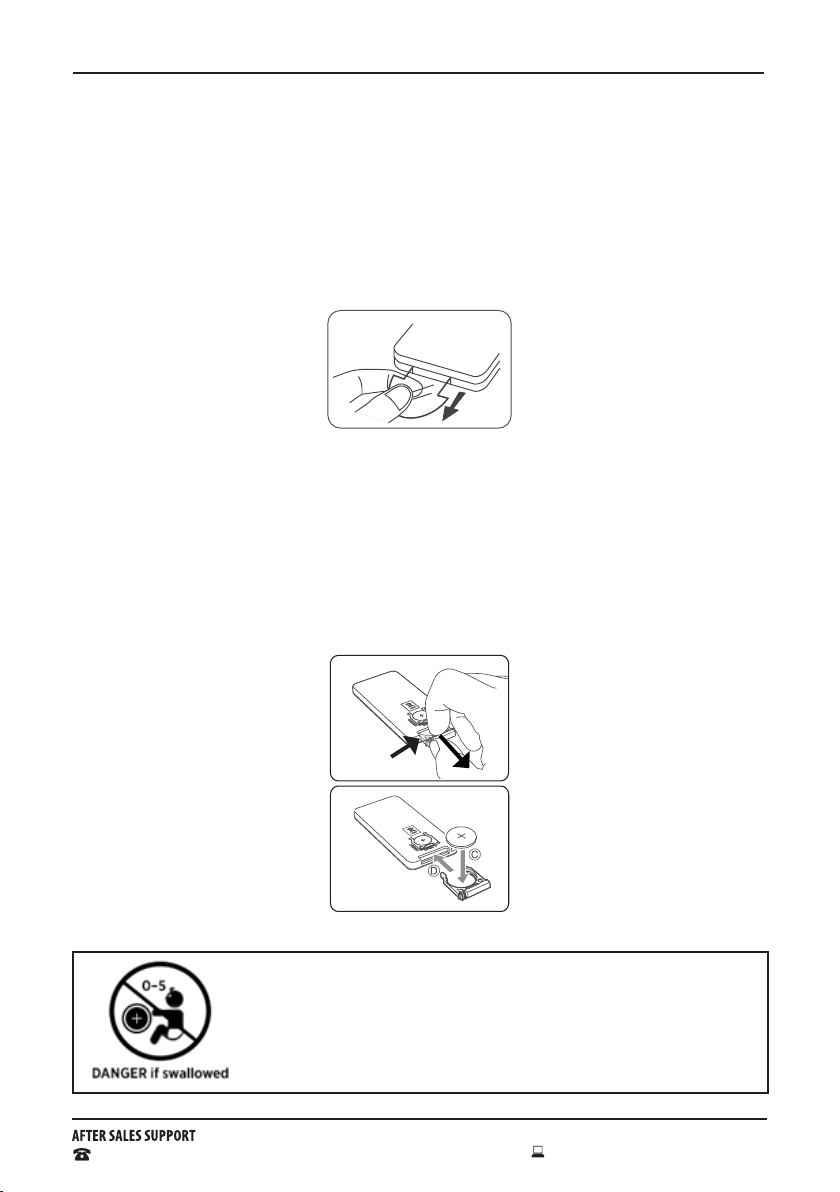

Remote Control Battery
The remote control comes with a CR2025 3V button cell battery pre-installed.
First Time Use
• To activate the battery and use the remote control, pull out the plastic tab that
separates the battery from the contacts inside the compartment.
Battery Replacement
• If the remote control unit is no longer working even when it is operated near the
soundbar, you will need to replace the battery with a new battery of the same type.
• Push in the tab and pull out the battery tray. Remove the old battery.
• Insert a fresh CR2025 battery with the (+) marking facing upwards. Then push the
battery tray with the battery back into the slot.
WARNING!
Keep batteries out of reach of children. Swallowing may lead to
serious injury or death in as little as 2 hours due to internal burns.
If swallowed, go straight to a hospital emergency room.
Dispose of used batteries immediately.
Remote Control

866-235-5029
[email protected]
Soundbar with Wireless Subwoofer
8
Using the Remote Control
• The remote control has a range of up to 6 metres from the soundbar. Point the
remote control directly towards the sensor at the front of the soundbar.
• Make sure no obstacles are blocking its path. The remote control will not operate if
its path is blocked.
• Handle the remote control with care. Do not drop, apply shock or step on the remote
control. Do not spill water on the unit.
• Do not use the remote control while simultaneously operating a remote control
unit of any another unit, which may result in interference.
• If the remote control is operated near other products which generate infra-red rays,
or if other remote control devices using infra-red rays are used near the unit, it may
operate incorrectly. Conversely, the other products may operate incorrectly.
• If you do not intend to use the remote control for an extended period of time
(more than a month), remove the battery to prevent possible damage from battery
leakage and corrosion.
Battery Precautions
• Do not use any other battery than the ones specied.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
• Do not carry or store batteries with other metallic objects. Doing so could cause
batteries to short-circuit, leak or explode.
• Do not expose the battery to excessive heat such as sunshine, re or the like.
• Do not attempt to short-circuit, disassemble or throw batteries into a re.
• Never recharge a battery unless it is conrmed to be a rechargeable type.
• Dispose of batteries promptly and properly, observing any local hazardous waste
regulations. Do not burn or bury them.
Remote Control (Cont.)
Remote Control

866-235-5029 [email protected]
Soundbar with Wireless Subwoofer
9

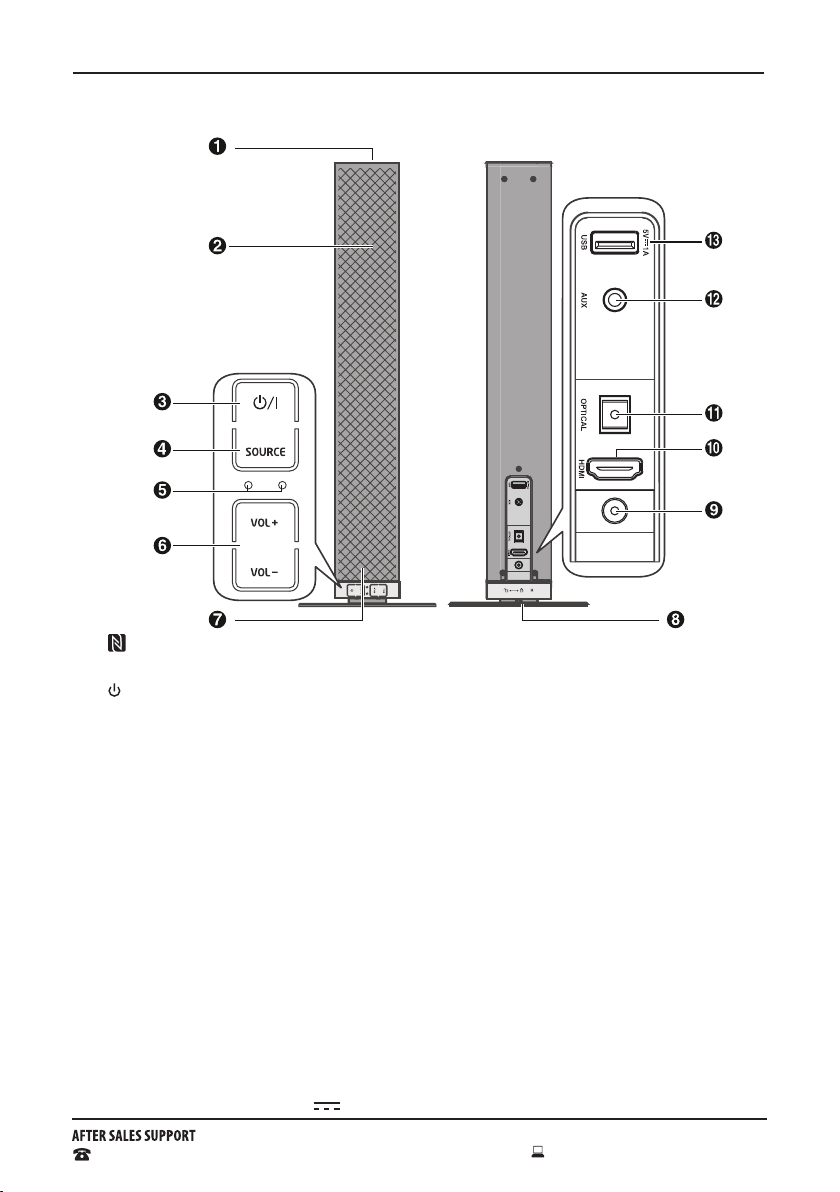

1 NFC (Near Field Communication) Sensor
2 Speakers
3 Power Switch: Press to switch the unit between on and standby mode.
4 SOURCE: Select the play function.
5 LED Indicators
• Red Indicator: In STANDBY mode.
• Green Indicator Lights Up: In AUX mode.
• Green Indicator Flashes: In HDMI ARC mode.
• Orange Indicator: In OPTICAL mode.
• Blue Indicator:
(Bluetooth®indicator ashing slowly: in Bluetooth®mode.)
(Bluetooth®indicator ashing fast: in Bluetooth®pairing mode.)
• Indicator Flashes: Adjust the volume / select a preset sound eect.
6 VOL+/VOL-: Increase/decrease the volume level.
7 Remote Control Sensor
8 Stand
9 Power Socket
10 HDMI (ARC) Socket
11 OPTICAL Socket
12 AUX Socket: Connect to an external audio device.
13 USB Charging Port: 5V 1A
Product Overview
DC 21V 3A
DC 21V 3A
Main Unit
(right)
Front View Rear View
Product Overview

DC 21V 3A
866-235-5029
[email protected]
Soundbar with Wireless Subwoofer
10

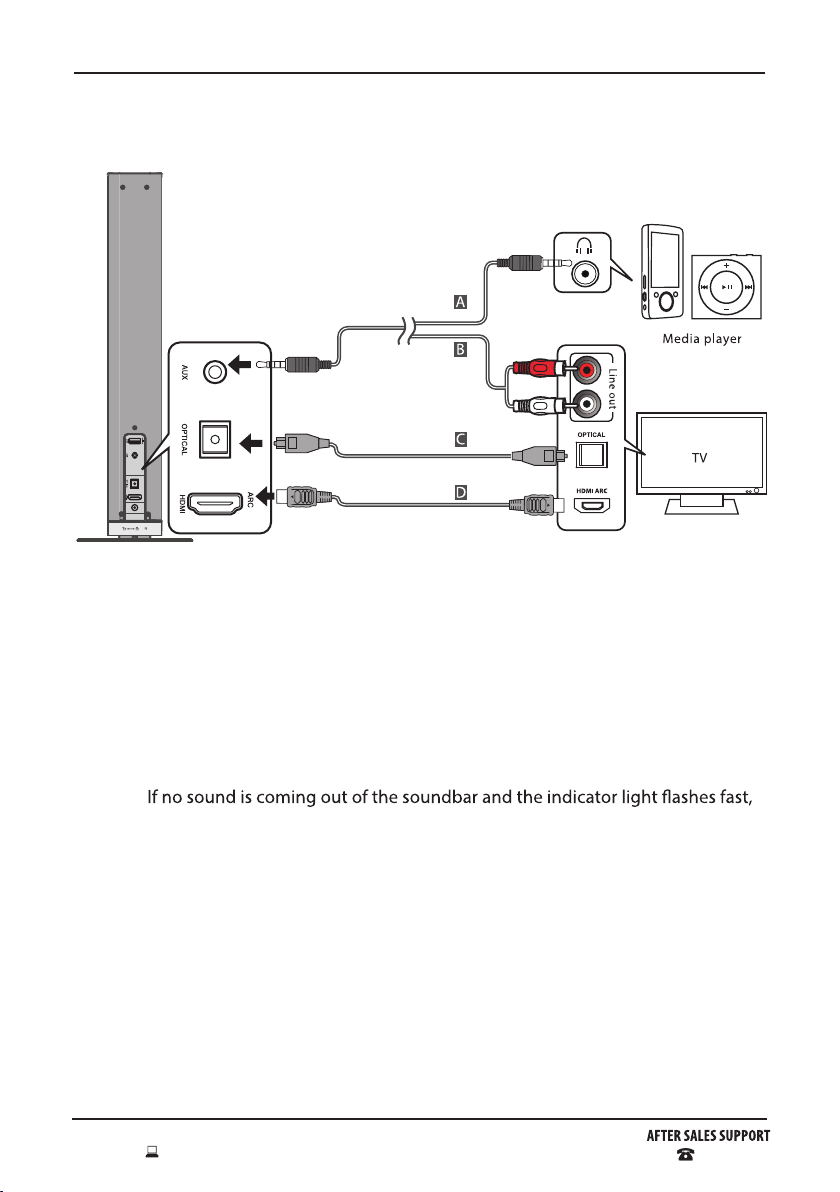

Controls and Connections
AUX Socket
A Use the supplied 3.5mm to 3.5mm audio cable to connect the headphone socket of
the connected audio device, such as a media player, to the AUX socket on the unit.
B Use the supplied RCA to 3.5mm audio cable to connect the TV’s audio output
sockets to the AUX socket on the unit.
Optical Socket
C Remove the protective cap from the OPTICAL socket, then connect an OPTICAL
cable to the TV’s OPTICAL OUT socket and the OPTICAL socket on the unit.
TIP:
make sure the audio setting of your source player (e.g. DVD player, game
player, TV) is set to PCM with optical output.
HDMI (ARC) Socket
D The ARC (Audio Return Channel) function allows you to send audio input from an
ARC-compliant TV to an ARC-compliant audio device (e.g. soundbar) without the
need for an additional audio cable connection.
To enjoy the ARC function, make sure the soundbar main unit's HDMI OUT socket
is connected via HDMI cable to the HDMI (ARC) socket of your ARC-compliant TV.
Then just use your TV remote control to adjust the volume output (VOL +/– and
MUTE) of the connected audio device.
Back Panel Connections
Controls and Connections

DC 21V 3A
866-235-5029 [email protected]
Soundbar with Wireless Subwoofer
11
Controls and Connections (Cont.)
NOTE:
•Your TV must support the HDMI-CEC and ARC, and the HDMI-CEC and ARC must be
set to On.
•
details about ARC function, please refer to the TV's instruction manual.
•Make sure the HDMI cable you use can support the ARC function.
•
your TV's instruction manual for details on setting up HDMI-CEC and ARC.
Power Connection
•Before connecting the power adapter, ensure you have completed all other
connections.
•Risk of product damage! Ensure that the power supply voltage corresponds to the
voltage printed on the back or the underside of the unit.
•Connect the mains plug to the main unit and a mains socket.
USB Charging
Connect a USB cable (not supplied) to the USB charging socket to charge your
smartphone or tablet PC.
NOTE:
•The maximum output of the USB charging port is 5V DC 1A. Please refer to your
mobile device’s manual regarding the charging power.
•This product is suitable for charging mobile devices only.
Control and Connections

866-235-5029
[email protected]
Soundbar with Wireless Subwoofer
12
Controls and Connections (Cont.)

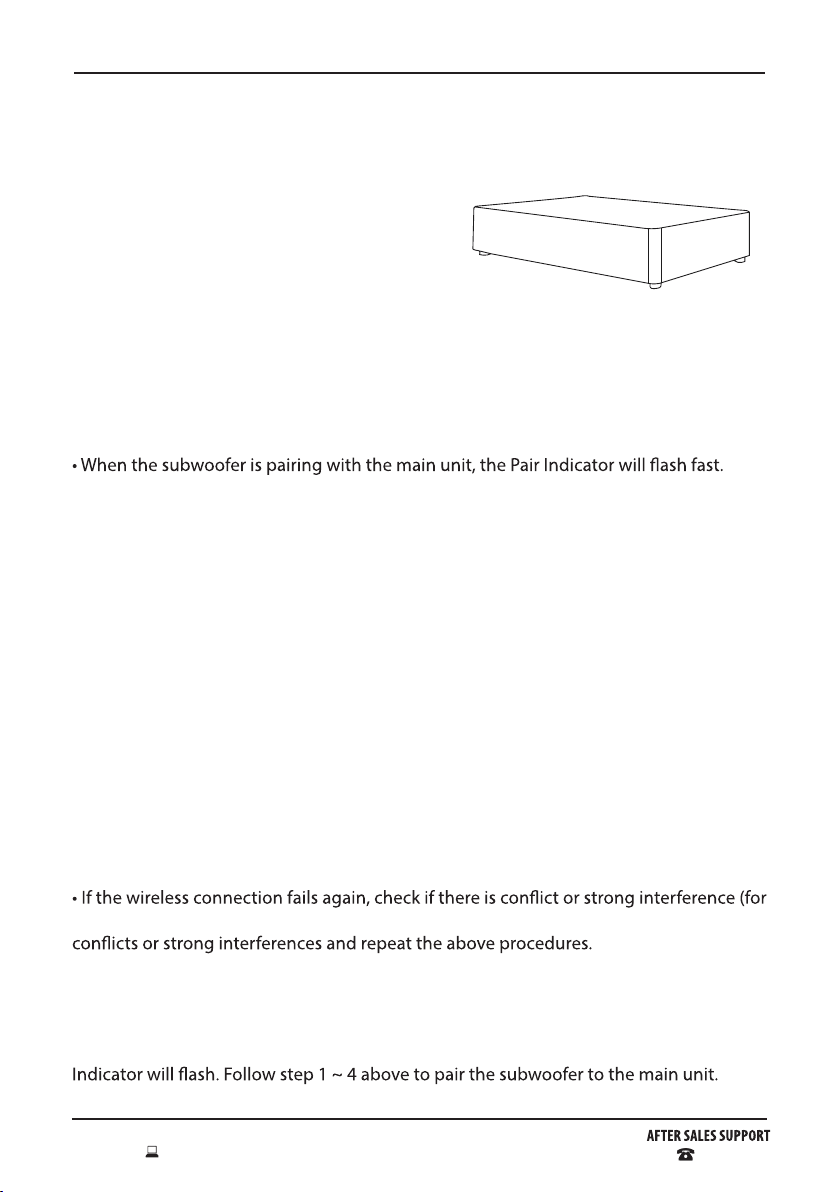

Pairing the Wireless Subwoofer With the Main Unit
Automatic pairing
The subwoofer and soundbar will automatically pair when both units are plugged into
the mains sockets and turned on. No cable is needed for connecting the two units.
•When the subwoofer is paired with the main unit, the Pair Indicator will light up.
NOTE:
- Do not press the Pair button on the rear of the subwoofer, except for manual pairing.
- If the automatic pairing fails, pair the subwoofer with the main unit manually.
Manual Pairing
1. Ensure that all the cables are well connected and the main unit is in Standby mode.
3. Press and hold the Pair button on the rear of the subwoofer for a few seconds. The
subwoofer will enter the pairing mode and the Pair Indicator will blink quickly. At the
same time, press and hold the pair button on the remote control.
2. Press the (power icon) button on the main unit or on the remote control to switch the
main unit on and go to AUX mode.
4. After the wireless connection succeeded, the Pair Indicator will light up.
5. If the Pair indicator blinks, the wireless connection has failed. Unplug the cable of the
subwoofer and then reconnect the main cable after 3 minutes. Repeat step 1 ~ 4.
NOTE:
example,interference from an electronic device) around your location. Remove these
•The subwoofer should be within 6m of the soundbar in an open area.
• If a TV or an external device is connected, the main unit and the subwoofer will switch
on automatically when the TV or the external device is switched on.
• If the main unit is not connected with the subwoofer and it is in On mode, the POWER
Wireless Subwoofer
PAIR Indicator: Lights up solidly when the
pairing is successful.
Pair Button: Connect to the main unit.
Power Socket: Connect to power.
Controls and Connections

866-235-5029 [email protected]
Soundbar with Wireless Subwoofer
13

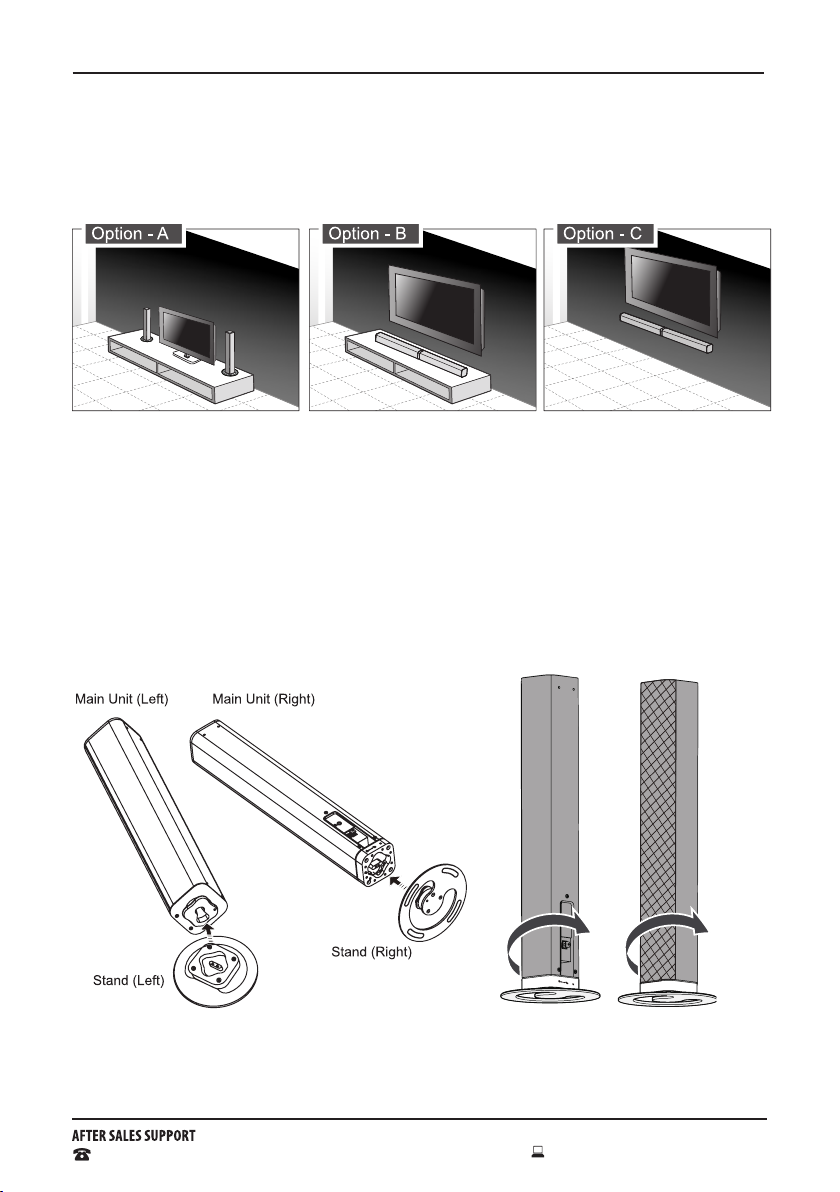

Installation
This soundbar unit can be used either as a single soundbar or as 2-piece tube speakers.
Installation options include:
Option A:
Two tube speakers
installed on stands
Option B:
Single soundbar mounted
horizontally with rubber feet
Option C:
Single soundbar
wall-mounted
Stand Mounting (if using option A)
Attach one stand each to the two separate pieces and twist to secure, as illustrated
below.
Installation

866-235-5029
[email protected]
Soundbar with Wireless Subwoofer
14
Horizontal Mounting
Align the two separate pieces and twist to secure, as illustrated below.
Rubber Feet Installation (if using option B)
You can extend the height of the unit, if required. To do so, attach the supplied rubber feet
as follows.
• Ensure the surface of the soundbar is clean prior to attaching the rubber feet.
• Turn the unit upside down.
• Remove the backing paper from the rubber feet.
• Stick the rubber feet to the bottom of the unit, as illustrated below.
Installation (Cont.)
Installation

866-235-5029 [email protected]
Soundbar with Wireless Subwoofer
15
Installation (Cont.)

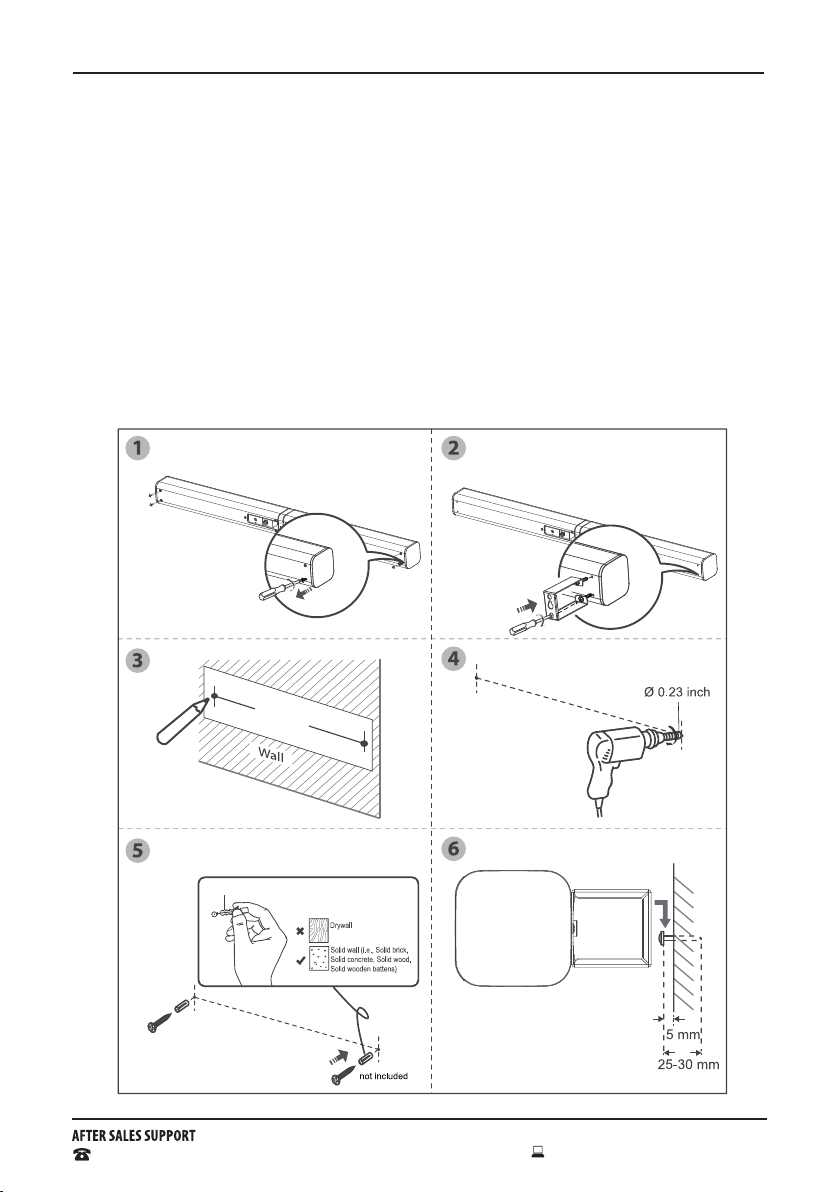

Wall Mounting (if using option C)
• Wall-mounted installation must be carried out by qualified personnel
only. Incorrect assembly can result in severe personal injury and property
damage! (If you intend to install this product yourself, you must check for installations
such as electrical wiring and plumbing, which may be hidden inside or behind the wall.)
• It is the installer’s responsibility to verify and confirm that the wall will safely
support the total load of the unit and wall brackets.
• Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Use an electronic stud nder to check the wall type before drilling and mounting.
* Only install this soundbar on a strong,
structurally sound wall.
Recommendation *
Installation
30.19 inch
Plastic Anchor

866-235-5029
[email protected]
Soundbar with Wireless Subwoofer
16
General Operation
Standby/ON
• When you rst connect the main unit to the mains socket, the main unit will be in
Standby mode.
• Press the POWER button on the unit or on the remote control to switch the unit ON.
• Press the POWER button again to switch the unit back to Standby mode. The power
indicator will light up red.
• Disconnect the mains plug from the mains socket if you want to switch the unit OFF
completely.
• When there is no input signal (or weak input signal) in HDMI, AUX, Optical and
Bluetooth®mode (Stop or Pause) for more than 15 minutes, the unit will automatically
switch to Standby mode.
Mode Selection
Press the SOURCE button repeatedly on the unit or the button on the remote control to
switch between HDMI (ARC), AUX, Optical and Bluetooth®modes.
• In AUX mode: the status indicator lights up green.
• In HDMI (ARC) mode: the green status indicator ashes.
• In Optical mode: the status indicator lights up orange.
• In Bluetooth®mode: the status indicator lights up blue.
Volume Adjustment
• Press the VOL+ / VOL- buttons on the unit or on the remote control to adjust the
volume.
• If you wish to turn the sound o, press the MUTE button on the remote control. Press
this button again or press the VOL+ / VOL- buttons to resume normal listening.
• While adjusting the volume, the status indicator ashes quickly.
• When the volume level reaches its maximum level, if you press the VOL+ button again,
the status indicator ashes once. When the volume level reaches its minimum level, if
you press the VOL- button again, the status indicator ashes once.
Preset Sound Effect Selection
• Press the EQ button on the remote control to select between preset equalisers: Movie
(recommended for viewing movies), Music (recommended for listening to music).
• Music EQ: the status indicator will ash twice.
• Movie EQ: the status indicator will ash four times.
Instructions
Instructions

866-235-5029 [email protected]
Soundbar with Wireless Subwoofer
17
HDMI (ARC) / AUX / Optical Operation
•Ensure that the unit is connected to a TV or audio device.
•While in ON mode, press the SOURCE button repeatedly on the unit or on the remote
control to select HDMI (ARC), AUX or Optical mode.
•Operate your audio device directly for playback features.
•Press theVOL +/–button to adjust the volume to your desired level.
Playing Bluetooth®Enabled Devices
You can listen to tracks from a media device if connected to the unit via Bluetooth ®
Wireless Technology.
Pairing Bluetooth®Enabled Devices
Bluetooth ®device to this player, you need to pair your
device to this player.
1. During ON mode, press the SOURCE button repeatedly on the unit or the remote
control to select Bluetooth®
that the system has entered pairing mode.
2. Alternatively, press the PAIR button on the remote control to be searchable. The
3. Activate your Bluetooth®enabled device and select the search mode.
“BAUHN SB-1”will appear on your Bluetooth®device list.
4. Select “BAUHN SB-1”in the pairing list. The blue indicator will light up solidly if
pairing succeeds.
5. To disconnect the Bluetooth®function, switch to another function on the unit or
disable the function from your Bluetooth®enabled device. The blue indicator will
Important Notes
•The operational range between this player and a Bluetooth®device is approximately
8m (without any object between the Bluetooth®enabled device and the unit). Any
obstacle between the devices can reduce the operational range.
•Before you connect a Bluetooth®enabled device to this unit, ensure you know the
device’s capabilities. Compatibility with all Bluetooth®devices is not guaranteed.
•If the signal strength is weak, your Bluetooth®receiver may disconnect, but it wil
re-enter pairing mode automatically.
Instructions (Cont.)
Instructions

866-235-5029
[email protected]
Soundbar with Wireless Subwoofer
18
TIPS
• If you are prompted for a password, enter "0000".
• If there is an existing connection, press the PAIR button on the remote control to
re-activate the pairing mode, the connection will be interrupted. The blue indicator
will ash slowly.
• If no other Bluetooth®device pairs with this player within two minutes, the player
will recover its previous connection.
• The player will also be disconnected when your device is moved beyond the
operational range.
• If you want to reconnect your device to this player, place it within the operational
range.
• If the device is moved beyond the operational range, when it is brought back, please
check if the device is still connected to the player.
• If the connection is lost, follow the instructions above to pair your device to the player
again.
Music Playback From Bluetooth®Enabled Devices
1. Pair and connect your Bluetooth®enabled device with the soundbar.
2. Play audio on your Bluetooth®enabled device.
3. Use the remote control to control playback.
Important Notes
• To stream audio via Bluetooth®Wireless Technology, the playback device should
support A2DP (Advanced Audio Distribution Prole).
• To use the playback buttons (Previous/Next, Vol+/-, Play/Pause) on the remote
control, the playback device should support AVRCP (Audio Video Remote Control
Prole).
Instructions (Cont.)
Instructions

866-235-5029 [email protected]
Soundbar with Wireless Subwoofer
19
NFC (Near Field Communication) Operation
Pair your NFC enabled mobile device directly with this unit with just a single tap.
1. Activate NFC on your mobile device.
2. Tap the mobile device’s NFC antenna area on
the icon of the unit.
3. Conrm the Bluetooth®connection.
4. To disconnect, tap the mobile device
on the icon of the unit to disconnect
or disable NFC from your mobile device.
NOTE: This NFC function only works with mobile
devices that support NFC technology.
TIPS:
Some NFC enabled mobile devices cannot pair directly with the unit via NFC. In such a
case, please try either one of the solutions below:
• Please download the App“Tap-and- Pair”from Google Play Store (https://play.
Google. com) and install.
• Pair with the unit manually rst, then touch again on the NFC sensing area.
Instructions (Cont.)
Instructions

866-235-5029
[email protected]
Soundbar with Wireless Subwoofer
20
To keep the warranty valid, never try to repair the system yourself. If you encounter
problems when using this unit, check the following points before requesting service.
Problem Solution
No power
Ensure that the power cord of the apparatus is
properly connected.
Ensure that there is power at the outlet.
Press the POWER button to turn the unit on.
Remote control does not work
Reduce the distance between the remote
control and the unit.
Insert the battery with its polarities (+/-)
aligned as indicated. Please check the battery
is installed correctly (refer to page 7).
Replace the battery.
Aim the remote control directly at the sensor
on the front of the unit.
No response from the unit Disconnect and reconnect the power adapter,
then turn the unit on again.
Unable to nd the soundbar in the
Bluetooth®device list when pairing
Ensure you have paired the unit with your
Bluetooth®enabled device.
Ensure the Bluetooth®function is activated on
your Bluetooth®enabled device.
No connection beween the main
unit and the Subwoofer
Ensure the main cables of the main unit and
the subwoofer are both connected securely to
the mains power socket.
pair the main unit with the subwoofer
manually. Please refer to "Pairing the Wireless
Subwoofer with the Main Unit" above.
Troubleshooting
Other Useful Information
Other Useful Information
