Welcome
Congratulations on choosing to buy a BAUHN®product.
All products brought to you by BAUHN®are manufactured to the highest
standards of performance and safety and, as part of our philosophy of
customer service and satisfaction, are backed by our comprehensive 1 Year
Warranty. We hope you will enjoy using your purchase for many years to come.

iii
SoundMax 3
Warranty Details
The product is guaranteed to be free from defects in workmanship and
parts for a period of 12 months from the date of purchase. Defects that
occur within this warranty period, under normal use and care, will be
repaired, replaced or refunded at our discretion. The benefits conferred
by this warranty are in addition to all rights and remedies in respect of the
product that the consumer has under the Competition and Consumer Act
2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and to compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AFTER SALES SUPPORT
AUS

iv 1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
Welcome ii
Warranty Details iii
General Safety Instructions 1
Product Overview 4
Getting Started 6
Instructions 11
Troubleshooting/FAQs 15
Specifications 17
Repair and Refurbished Goods or Parts Notice 18
Contents

1
1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
General Safety Instructions
Read this manual thoroughly before first use and keep it in a safe place for future
reference, along with the warranty card, purchase receipt and carton. The safety
precautions enclosed herein reduce the risk of fire, electric shock and injury when
correctly adhered to. Follow all instructions and take notice of all warnings to
reduce the risk of fire or electric shock.
Important Warnings and Cautions!
To prevent contact with high voltage components inside,
do not attempt to open the cover or the back of the
speaker. There are no user-serviceable parts inside this
product.
Do not repair the unit yourself.
Only have it serviced by qualified personnel.
Do not expose this product to water, rain or moisture.
Do not immerse it water. Do not use it near water or where
water splashes or drips.
Do not touch the power plug with wet hands.
Do not put the product near heat sources or in direct
sunlight as this may cause the battery to explode.
Electrical Safety and Cord Handling
• Voltage: Before plugging in the power cord, make sure your outlet voltage and
circuit frequency correspond to the voltage stated on the product rating label
and the outlet socket is properly earthed and readily accessible.
• Electrical circuit: Do not overload wall outlets, extension cords, or power
boards as this can result in a risk of fire of electric shock.
• Protect the power adaptor: Do not kink, bend, strain or damage the supply
cord and protect it from sharp edges and heat. Do not run the cord near heat-
producing appliances such as radiators, stoves or irons. The excessive heat
could melt the insulation and expose live wires.
• Cord connection: Run the cord in such a way that there will be no risk of
anyone pulling it inadvertently, tripping over it or stepping on it. Make sure
nothing is placed upon or against the cord.
• Damaged cord: If the supply cord is damaged, contact our after sales support
centre. A damaged cord must be replaced by qualified personnel in order to
avoid a hazard.
• Disconnect: Unplug the power cord from the wall outlet and disconnect the
speaker if it is not going to be used for an extended period of time. When
disconnecting, always grip the adaptor, do not pull on the adaptor cord.
• Power Adapter: This device will remain on while connected to a live power
socket. To turn off, please unplug the device.
• Danger of explosion: If the battery is incorrectly replaced, there is a danger of
an explosion. Only replace the battery with the same or equivalent type.
• Batteries: A battery pack or batteries are installed in this device, Do not
exposed this device to radiant heat or naked flames such as direct sunshine or
fire.

21300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
General Safety Instructions (Cont.)
Usage Conditions and Restrictions
• Installation and adjustments: The product must be installed in
accordance with local laws. Follow the instructions in this manual when
installing and adjusting the product. Only adjust those controls that are
covered in this manual, as improper adjustment of other controls may result
in damage and/or expose you to danger. We assume no liability for any
eventual damages caused by improper use or incorrect handling.
• Avoid installation in the following locations:
• Places exposed to direct sunlight or close to heat radiating appliances.
• Dusty, humid or moist places.
• Places subject to constant vibration.
• Attachments: Only use attachments sold with the product or
recommended by the product distributor. Only use the power adapter that
is supplied with this unit.
• Usage restriction: This product is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the product by a person responsible for
their safety.
• Children: Supervise young children to ensure they do not play with the
product. Children may not comprehend the presence of potential risks.
Batteries and small parts represent potential choking hazards. Keep
batteries out of reach of children. If a battery is swallowed, seek medical
help immediately. Keep packaging materials away from children as there is
danger of suffocation.
Safe Usage
• Placement: Place the product on a straight, rigid and stable surface. Do not
place anything underneath the product.
• Protect from heat and interference: Do not place the product near heat
sources such as radiators, stoves or other appliances that produce heat.
Keep the unit away from sources of electrical noise such as fluorescent
lamps or motors.
• Prevent overheating: Place the product in a sufficiently ventilated place.
Allow at least 5cm spacing around the unit to prevent overheating. Do not
place the product on top of another appliance that may cause overheating
(for example, a receiver or amplifier).

3
1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
General Safety Instructions (Cont.)
• Holes, slots and openings: Do not push any objects into holes, slots or
openings on the unit. This could result in fatal electric shock.
• Handle with care: Press the buttons gently; pressing them too hard can
damage the speaker. Do not drop the product or subject it to harsh impacts
or excessive vibrations.
• Climatic conditions: Take special care when using this product in tropical/
moderate climatic conditions. Do not use it in extremely dry environments
as this could lead to static discharge, which can damage the speaker.
• Prevent damage: Do not place the product near other items that may
damage it, such as naked flame sources (lit candles) or objects containing
water (a vase). Take care that no objects fall and no liquids are spilled into
any openings or vents.
• Damage: Do not operate the unit if it is not working normally or has been
damaged in any way. Turn the unit off, unplug the power plug and contact
our after sales support centre for advice.
Care and Cleaning
• Dusting only: Clean the unit only with a soft, dry cloth. Do not use chemical
cleaning agents on any part of the product.
• Do not open: Do not remove the cover or the back of this product. There
are no user-serviceable parts inside this product.
• Repair: Do not attempt to repair or service the unit beyond those methods
described in this instruction manual. Service methods not covered in the
operating instructions should be referred to qualified service personnel.
• Service: Contact the after sales support line and arrange a service by
qualified service personnel in the following circumstances:
• The power adaptor has been damaged.
• Objects have fallen into or liquid has been spilled into the product.
• The unit has been exposed to rain.
• The unit has been dropped or damaged.
• The unit exhibits a marked change in performance or does not operate
normally.

41300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS

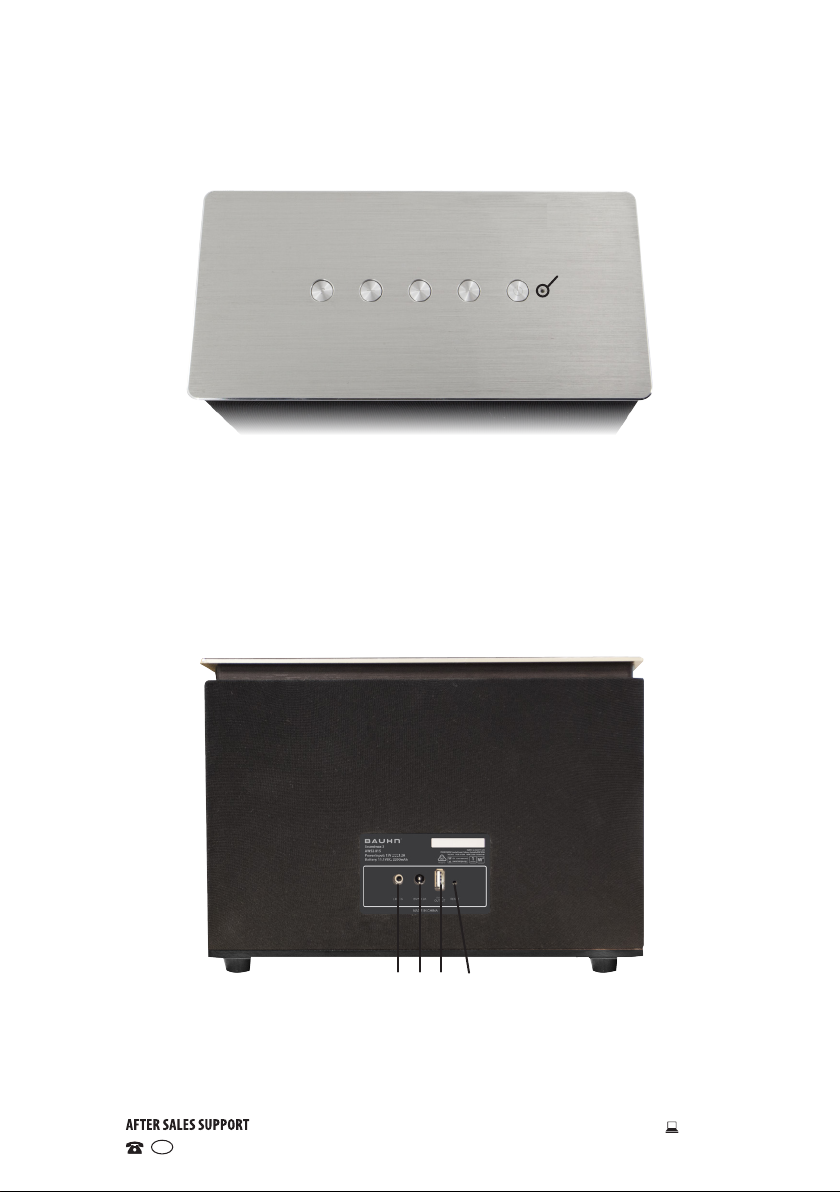

Product Overview
Top View
Back View
4. Play/Pause
5. Power ON/OFF
6. Indication Light
7. Line-IN
8. Adapter 15V-1.2A
9. USB (USB Charger Function)
10. Reset
1. Wi-Fi
2. Vol-/Previous
3. Vol+/Next
1 2 3 4
7 8 9 10
5 6

5
1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
Product Overview (Cont.)
Buttons and Functions
Wi-Fi: Switch between Wi-Fi mode, Bluetooth mode, Line-In mode and USB
charging mode.
Vol-/Previous: Decrease the volume. Double press to go to the previous
track in Bluetooth and Wi-Fi mode.
Vol+/Next: Increase the volume. Double Press to go to the next track in
Bluetooth and Wi-Fi mode.
Play/Pause: Play/Pause music media. Mute music in Line-In mode.
Power ON/OFF: Power ON/OFF the speakers.
Indication Lights:
Mode Product Status LED Light Indication
Charging
adapter
connected
Power off Slow Flash Red
Charging input while
the speaker power
is on
Slow Flash Red (while paired slave
speaker, blue light flash quickly and
red light off)
Charging complete
while the speaker
power is off
Solid Red
Charging complete
while the speaker
power is on
Red light off (Blue light maintain the
same status under current mode)
Wi-Fi
Disconnected Flash Blue
Connected Solid Blue
Pairing Quick Flash Blue
Line-In Insert the “line in
cable” Solid Blue
USB Charging output Solid Blue
Bluetooth Disconnected Flash Blue
Connected Solid Blue
Line-IN: To play music through an AUX cable.
Adapter 15V-1.2A: To connect the DC adapter.
Reset: To restart the unit.
USB: Charge your Smart Phone or Tablet via the USB port.

61300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
Getting Started
Turning ON
To turn this unit ON, press and hold the Power ON/OFF button. When the unit
turns on, a welcome voice will be heard and the indicator light will flash Blue.
In order to connect this device to your Wi-Fi, you need to know your network
credentials.
Charging
To power and charge this unit, plug your DC adaptor into a power outlet, plug
the other end into the DC Port of the speaker and turn on the power switch.
This unit can also be powered on the go with the built-in rechargeable battery.
NOTE: The Unit will remain on while charging through the adapter.
USB Charging
You can charge your Smartphone or Tablet through the USB port on the back
of this unit. Turn the unit on and press the Wi-Fi button on the top of the unit
and select ‘Charging Out’ mode. Your devices will still charge if the unit is
turned off and plugged into the mains power outlet via the DC adapter. If the
unit is being powered by the built-in battery, the charging function is only
available if the unit is turned on and USB charge mode is selected.
NOTE: You will need your device’s USB charging cable. The charging function
may not be compatible with some products.
Minimum Requirements
This device is compatible with iPhone, iPod Touch and iPad devices running
on iOS 6.0 or later and Android 2.3.3 or later. Certain features will require
higher versions of the iOS and Android software.
Your Home Network
To access music services, Internet radio and any digital music stored on your
smart device or Network-Attached Storage (NAS) device, your home network
must meet the following requirements:
Home Network Requirements
NOTE: If you want to stream music through built-in App features such as
Spotify, you will need to have a high speed internet connection. (Playback
experience may differ depends on your internet connection speed.)
• If you are going to use the SoundMax controller App on Android or iOS
devices. A Wi-Fi Network will be required for operating the SoundMax
Speaker and the SoundMax App
• You need to have your Wi-Fi network SSID and password.
• Your network configuration should not be in isolation mode.

7
1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
Getting Started (Cont.)
Installing the SoundMax App
For Android Devices
• Open the Google Play Store on your Smartphone
or Tablet and search for the SoundMax App .
• Install the App to your Android device.
• When you open the App for the first time, it will
search for the available SoundMax units that are
connected to the Wi-Fi network.
• The names of the found devices will be displayed
under the ‘Device List’ menu.
• In the ‘Device list’ you can change the volume, the
stereo mode and the device name. You can also
check your SoundMax 3 device information, set a
password for its built-in Wi-Fi network and reset
the unit back to its original factory settings.
NOTE: This App is subjected to change due to
updates without prior notice.

81300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS

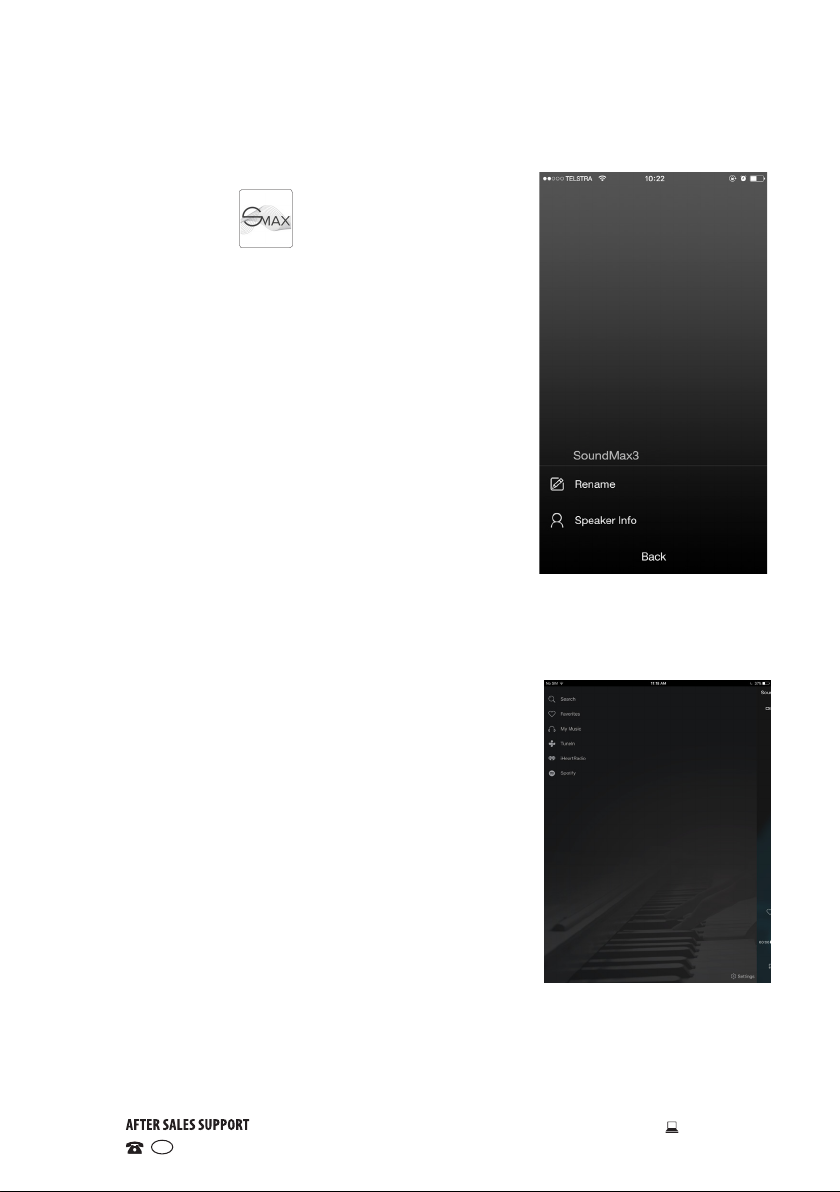

For iOS Devices
• Open the App store and search for the
SoundMax App .
• Install the App to your iOS device.
• When you open the App for the first time, it will
search for available SoundMax units connected
to the home Wi-Fi network.
• The names of the devices found will be
displayed under the ‘Device List’ menu.
• In the ‘Device List’ you can change the volume,
the stereo mode and the device name from this
menu. You can also check your SoundMax 3
device information, set a password for its built-in
Wi-Fi network and reset it to the original factory
settings. In addition you can set an alarm on
your SoundMax unit and set a sleep timer for it
to turn off.
NOTE: This App is subjected to change due to
updates without prior notice.
Playing Music
Your SoundMax unit has the ability to play music
wirelessly through the SoundMax App. You can
play the music that you have stored on your iOS
or Android device, or you can stream music from
iHeartRadio or Spotify. Swipe right twice from the
Device List screen on the App to access the menu.
Getting Started (Cont.)

9
1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
• Turn on your SoundMax 3
speaker.
• Install the SoundMax App
to your Smartphone or
Tablet. (Refer to pages 7
and 8 for instructions.)
• Ensure that your
Smartphone is connected
to the same network that
you are connecting your
SoundMax unit to.

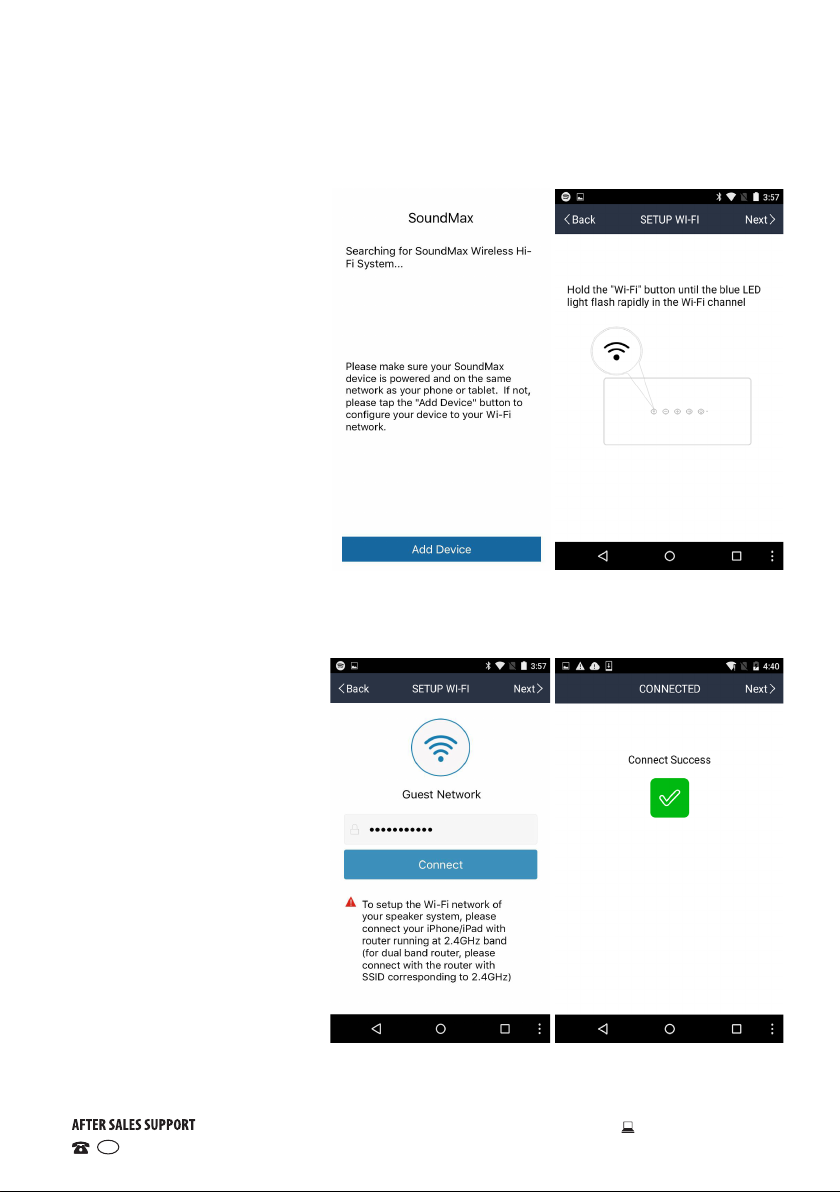

• Open the SoundMax App
and you will see screen 1,
as illustrated on the right.
• Hold the “Wi-Fi” button
until the blue LED light
flashes rapidly in the Wi-Fi
channel. (Screen 2).
• The App will then ask you
to input the password
of the Wi-Fi network
that your Smartphone is
connected to. (Screen 3)
• Press next and the App
will then start to search
for your SoundMax unit
and will configure it
accordingly, as illustrated
in screen 2 on the right.
• If your enter your
Wi-Fi network password
correctly, you will see
screen 4, as illustrated on
the right.
Getting Started (Cont.)
Connect your SoundMax Device to your Home Network
Screen 1 Screen 2
Screen 3 Screen 4

10 1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
NOTE: You cannot have two units with same name in the SoundMax app.
When you open the app for first time, after setting up a unit a pop up menu
will come up and you can select the name from pre-defined names or write
desired name for your unit. This will help you to easily differentiate units from
each other on different location.
Advanced Network Setup
• Turn on your SoundMax 3 speaker.
• Open the Wi-Fi discovery menu on your Smartphone or Tablet and look for
the SoundMax 3 Service Set Identifier (SSID).
• Select ‘SoundMax 3’ to connect your device to the SoundMax 3 network.

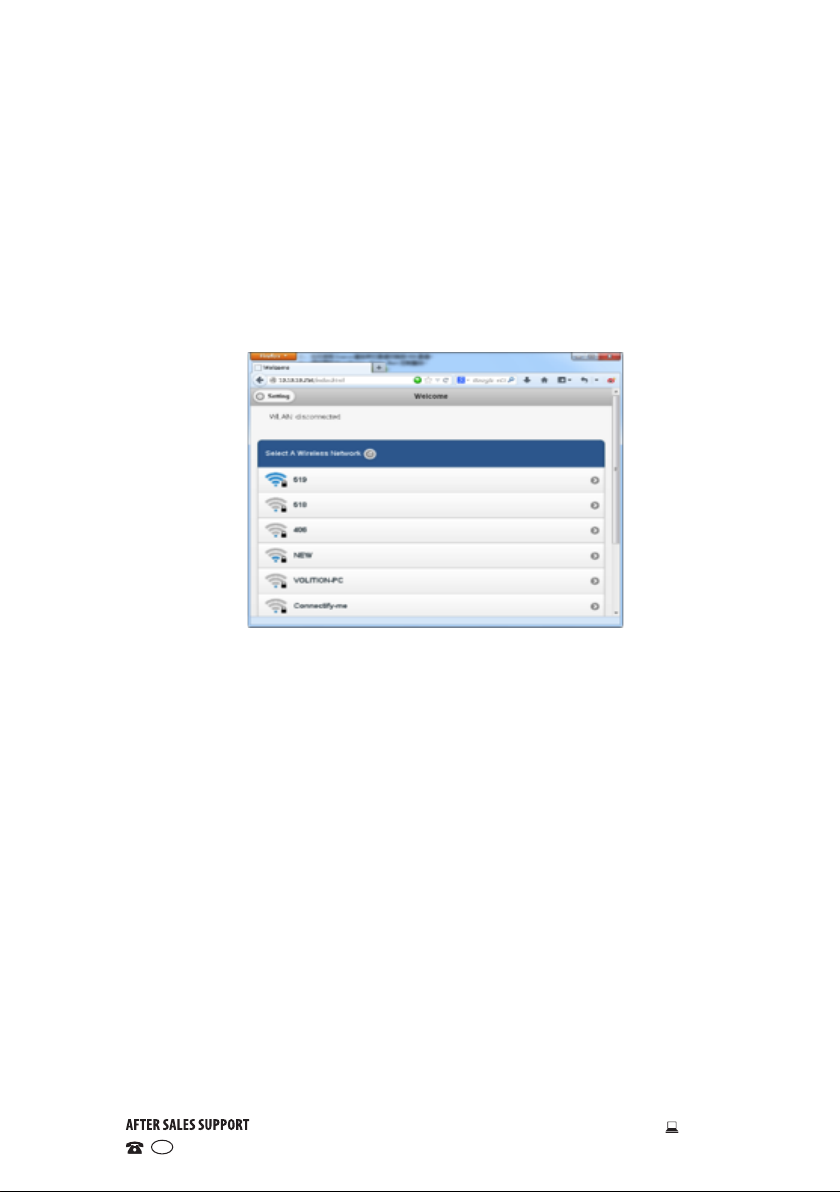

• Open the web browser on your Smartphone or Tablet and input
‘10.10.10.254’ into the URL bar.
• This will lead you to the SoundMax 3 Wi-Fi setup page.
• Select your network from the list of available networks and input your home
Wi-Fi password.
• Your device will disconnect from the SoundMax 3 network and the
SoundMax 3 speaker will connect to your home Wi-Fi network.
• Your device will say “Connected” to indicate that your SoundMax 3 speaker
has successfully connected to your home Wi-Fi network.
NOTE: When you have two units with the same model number, you need
to configure them separately. Simply turn on one of the SoundMax units,
connect it to your Wi-Fi network and turn it off. Then follow the same
instruction for the second unit.
Getting Started (Cont.)

11
1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
My Music
Through ‘My Music’ you can access the music that you have saved on
your iOS or Android device’s internal storage. Once you enter the ‘My Music’
menu you will see the following options:
• iPhone or Phone
• Home Music Share
• Playlist
• Recently Played
Select the desired option to listen to your music.

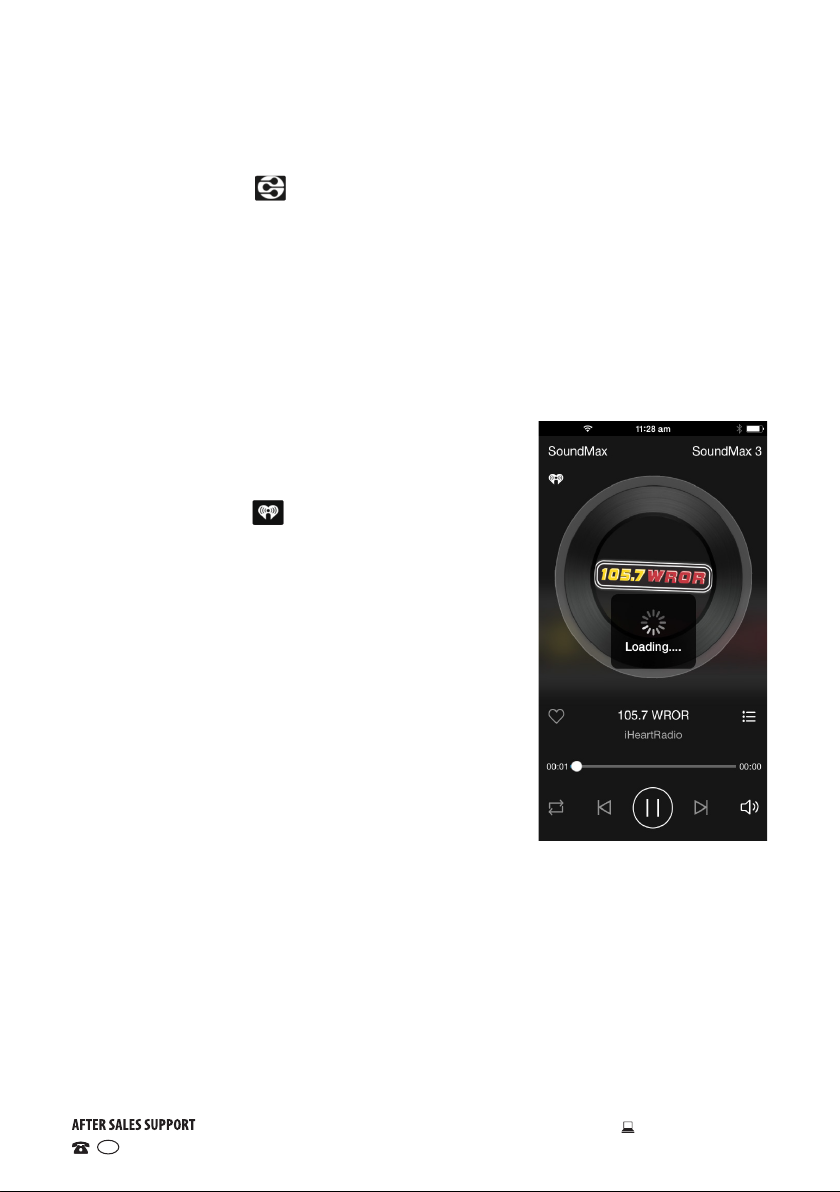

iHeartRadio
iHeartRadio allows you to stream radio stations
to your SoundMax 3 device. Enter the menu and
select ‘iHeartRadio’ . Select ‘Genre’ to choose
the genre of radio you would like to listen to or
select ‘Country’ and then the ‘Region’ to select
localised radio stations.
Instructions

12 1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
Instructions (Cont.)
Spotify
In order to use Spotify on your SoundMax speakers
you need to install Spotify on your connected
Smartphone or Tablet. Go to the App Store or the
Play Store and search for the Spotify App. Install
the App and login into your account. If you do not
have an account you will need to set one up.
NOTE: In order to use Spotify on your
SoundMax 3 unit, you need to subscribe to
a premium Spotify account.
“The Spotify software is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses”

13
1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
AirPlay
You can play music through AirPlay on your iOS
device. To do this you need to ensure that your
iOS device and the SoundMax 3 speakers are
connected to the same Wi-Fi network. Swipe up
from the bottom of your iOS device and select
‘AirPlay’. Select ‘SoundMax 3’ and start playing
your music.
NOTE: On multi-channel mode when you have two
or more SoundMax units together, selecting AirPlay
will play the selected music on all the speakers.
Ensure that you increase the volume on the unit
when listening to music on AirPlay.
Bluetooth
To use the Bluetooth feature, press the Wi-Fi button once and your unit will
go to Bluetooth mode. Search for Bluetooth devices on your Bluetooth enabled
device and select ‘SoundMax 3’. Your device will be paired with ‘SoundMax
3’ and you can play music via Bluetooth.
Line-In Jack
You can connect your music player to the
SoundMax speakers via the 3.5mm stereo analogue
audio cable. Connect one end to the Line-In socket
on your SoundMax 3 speakers and the other end to
the headphone jack on your Smartphone or Tablet
to play music.
Factory Reset
To factory reset your SoundMax 3 speakers, open
the App on your Smartphone or Tablet and select
Settings . Then select “Speaker Info” and
choose “Restore Factory Settings”.
Instructions (Cont.)

14 1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
Instructions (Cont.)
Adding to an Existing SoundMax System
You can connect two or more SoundMax speakers
together to create a surround sound and multi-room
listening experience. In order to do this you need to
ensure that all your SoundMax units are connected
to the same Wi-Fi network.

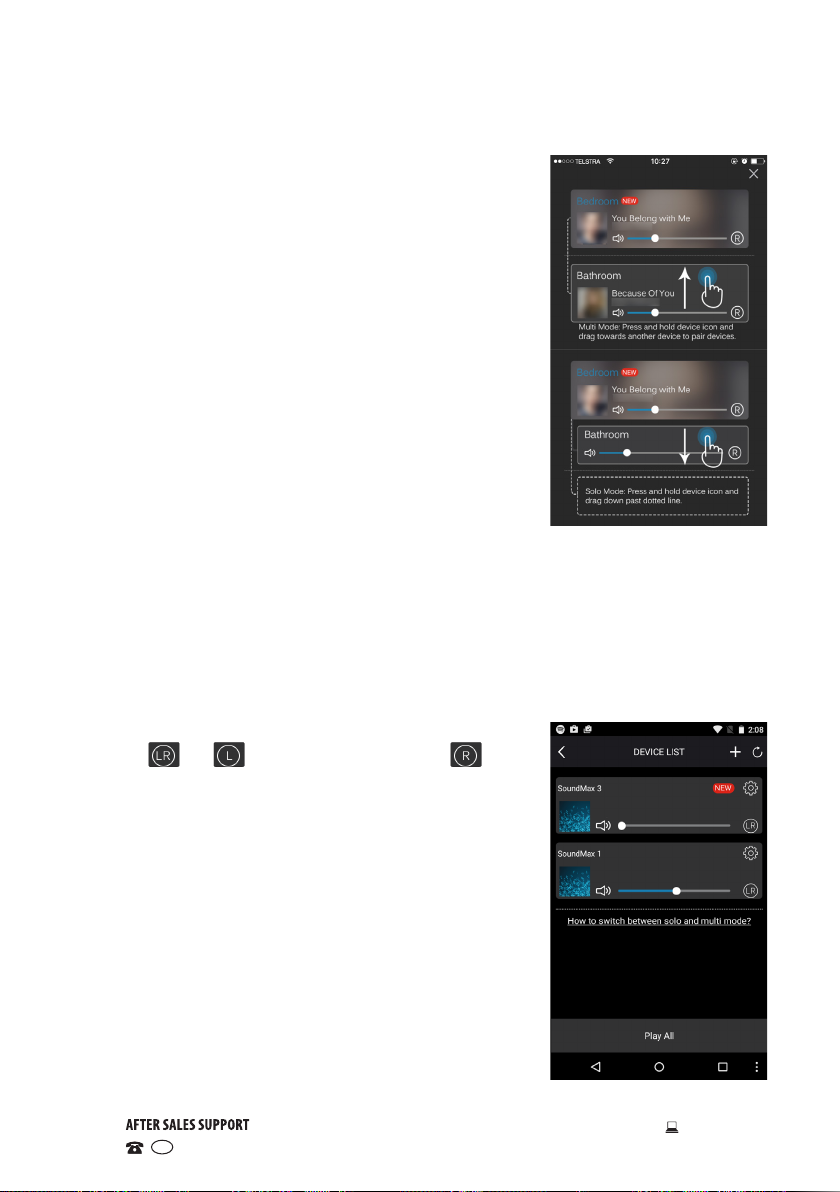

In the SoundMax App, go to “Device List” and
drag one SoundMax device on top of the other
(repeat for additional SoundMax speakers), once
connected the speakers on the device list illustrate
a connection with a joint line.
NOTE: Drag one device towards another until you
see the words “Release to multi mode with (device
name).”
NOTE: While paired to more than one device in
multi-room mode, Bluetooth and AUX modes
are not available. To connect using these modes, first unpair the devices
connected in multi-room mode.
Create a Stereo Pair
You can use two SoundMax units to create a wireless stereo experience.
In order to do this you need to connect your SoundMax speakers together
following the steps for “Adding to an existing SoundMax”. Then go to the
‘Device List’ menu on the App and change the left
speaker to and the right speaker to
create the stereo experience.
Firmware update
If you see a “New” icon next to the setting button,
it means a new firmware is available for your unit. In
order to apply this firmware tap on “New” and you
will see a pop up message. Plug the adapter to you
SoundMax unit, turn it on and select upgrade and
wait until the device upgrade process finishes.
NOTE: Do not conduct any other operation via the
phone or the SoundMax unit while the firmware
update is in progress.

15
1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
Troubleshooting / FAQ’s
Symptom Solution
Unable to detect
SoundMax
Speakers
Check to make sure that the power cord is properly
seated.
Network issues may be preventing the product from
connecting to your SoundMax system. Try moving the
SoundMax components closer to the modem router.
Check your modem router configuration and make sure
it is not on isolation mode.
Check the firewall as the firewall software on your
modem router may be blocking the ports that
SoundMax uses to operate. First, disable all your
firewalls and try connecting again. If this solves the
problem, you should configure your firewall to work
with the SoundMax controller.
Temporarily remove any other components that are
connected to your network.
When you make a change to your network
configuration, you may need to power cycle the
SoundMax unit by unplugging the power cord and then
plugging it back in and turn it back on.
Troubleshooting Guide

16 1300 886 649 Model: AWS2-815 Product Code: 53994 07/2016
www.tempo.org
AUS
Troubleshooting / FAQ’s
Symptom Solution
SoundMax
Player is not
Operating
Properly
If the status indicator is not lit and no sound is
produced when the unit is plugged in, check to ensure
that the power cord is properly seated.
Check to ensure there are no obstacles that will
impede wireless operation.
Check your network connections.
The SoundMax player may need to be restarted.
Disconnect the power cord for 5 seconds, and then
reconnect. Wait for the SoundMax speakers to restart.
Connection
Issues
If you have any interference with your Wi-Fi network
you should connect your NAS drive that contains your
music library to your home network router using an
Ethernet cable.
If you forget your SoundMax Wi-Fi password, press
“play”, “vol+”, “power”, “play” and “power”. This will
reset the wireless password on your SoundMax device.
I Have a New
Router
Follow the instructions under the “Connect your
SoundMax device to your home network” section.
I want to Change
my Wireless
Network
Password
Follow the instruction under the “Connect your
SoundMax device to your home Network” section.
Troubleshooting Guide
