Baumatic BAO6001-P User manual

1
BAO6001-P/BAO6003-P
fan built-in oven
BAO6005-P multifunction
built-in oven

1
User Manual for your Baumatic
BAO6001-P 4 function fan oven
BAO6003-P 7 function fan oven
BAO6005-P 9 function multifunction oven
The Smart Choice
NOTE:This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.

2
Contents
Environmental note 4
Important safety information 5-8
Specifications 9
Product specifications 9
Standard accessories 10
Electrical details 10

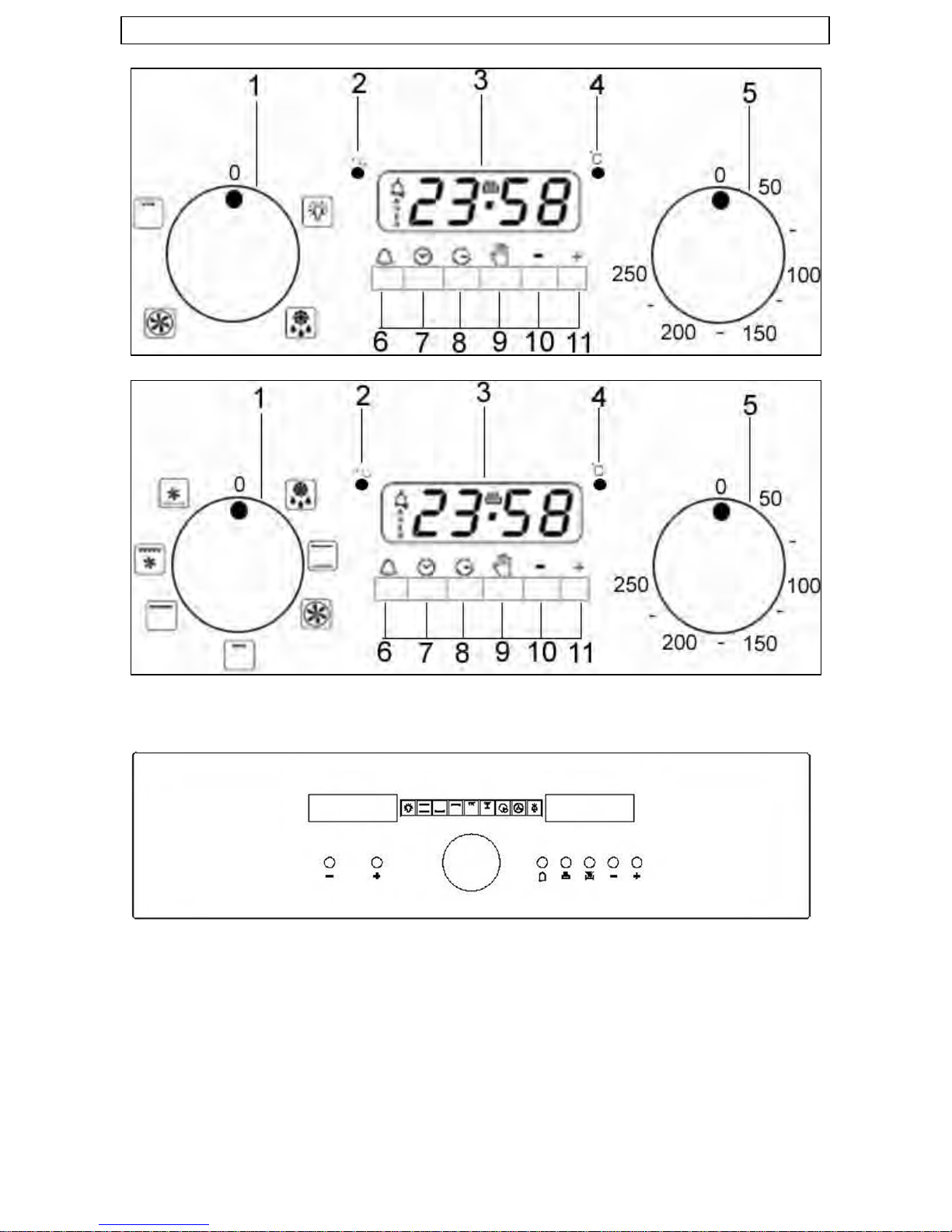

Control panel 11

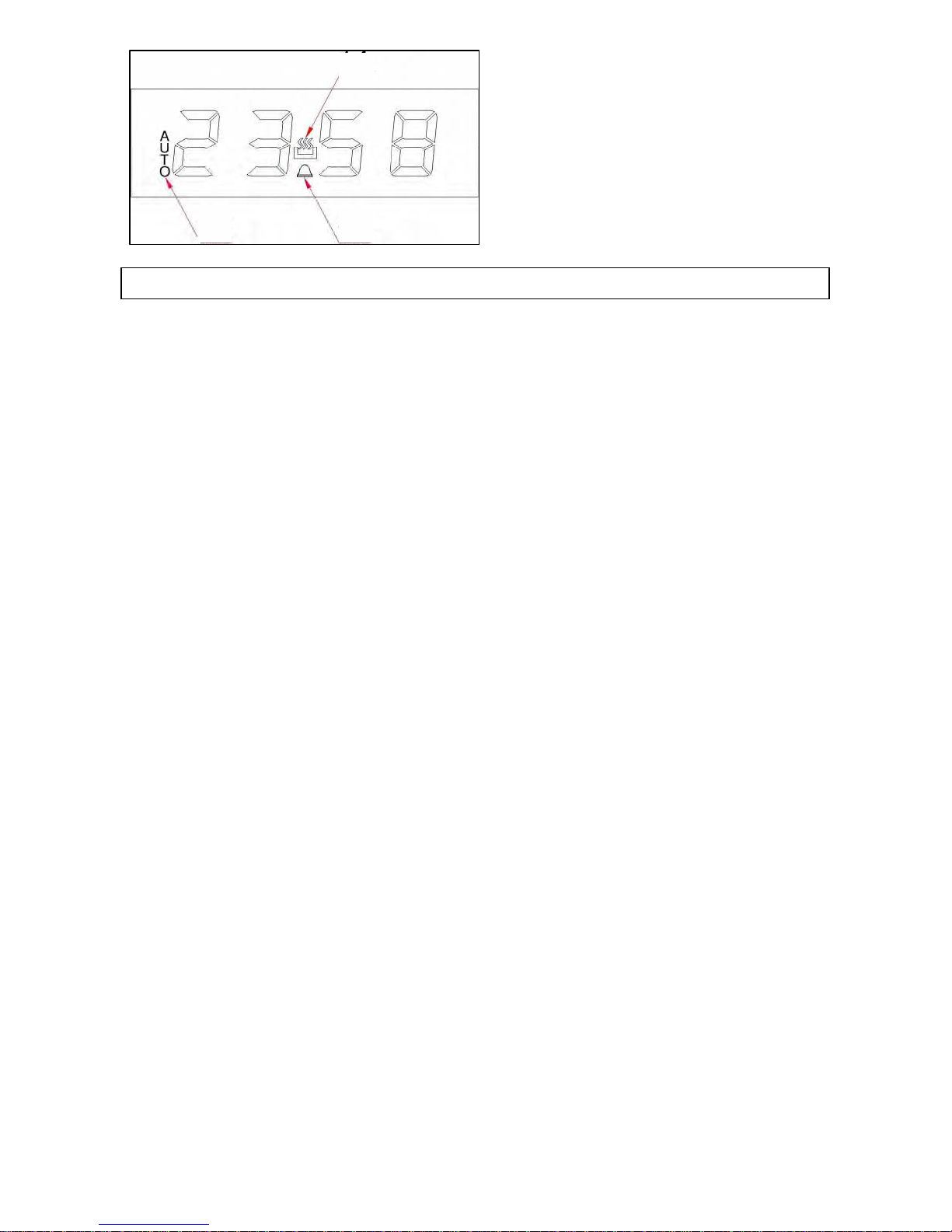

Oven programmer/timer display 12
Setting and using the oven programmer/timer (BAO6001-P,BAO6003-P) 12
Setting the time of day 12
Setting the minute minder function 12
Setting the duration function 13
Setting the end cook function 14
Setting the start and end time function 15
Adjusting the audible signal 16
Selecting a cooking function and temperature (BAO6001-P,BAO6003-P) 16
Selecting manual operation mode 16
Selecting an oven function 16
BAO6001-P,BAO6003-P standard oven functions 17
BAO6001-P additional functions 17
BAO6003-P additional functions 17
Thermostat control knob 18
Oven operating light 18
BAO6005-P electronic programmer and cooking functions 19-22
Cooking guidelines 23
Warnings 24
Cleaning and maintenance 25
Removable oven roof liner (BAO6003-P only) 26
Replacing the oven bulb 26
Removing the oven door for cleaning 26-27
Removing the inner door glass for cleaning 27
Installation 28
Electrical connection 28
Installing the oven into the kitchen cabinet 29
Positioning the appliance 29
Ventilation requirements 30
My appliance isn’t working correctly 31-32
Contact details 33
Welcome to Think Appliances letter 3

Dear Customer,
Congratulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your
warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For
example, should you want to learn more about recommended cooking temperatures, the
various cooking functions available, how to set and program your LED clock, and importantly
taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to
familiarize yourself with the installation and operation requirements of your appliance to
ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts
enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look
forward to being of service to you.
Kind regards
Management
Think Appliances

4
Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Technical
Department.
General Information
oThis appliance is designed for domestic indoor household use only
and can be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oFor use in leisure accommodation vehicles, please refer to
the appropriate information given in the installation instructions
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic Service
Engineers or their authorised service agent.

WARNING
To ensure the oven shelves operate safely, correct placement of the shelves between the side rails
(items 1 to 4) is imperative. This will ensure that during removal of the shelf or tray, hot food
items should not slide out completely.
6

7
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be turned off before
following the cleaning procedure.

8
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
o Please consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
oIn the parts destined to come into contact with foodstuffs, this
appliance is in accordance with the requirements of the EC
directive 89/109 transposed in the Italian Legislative Decree No.
108 of 25/01/92.
oCE: Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
parts 1 and 2.6
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.
o The appliance conforms to Australian Standards AS/NZS60335,

9

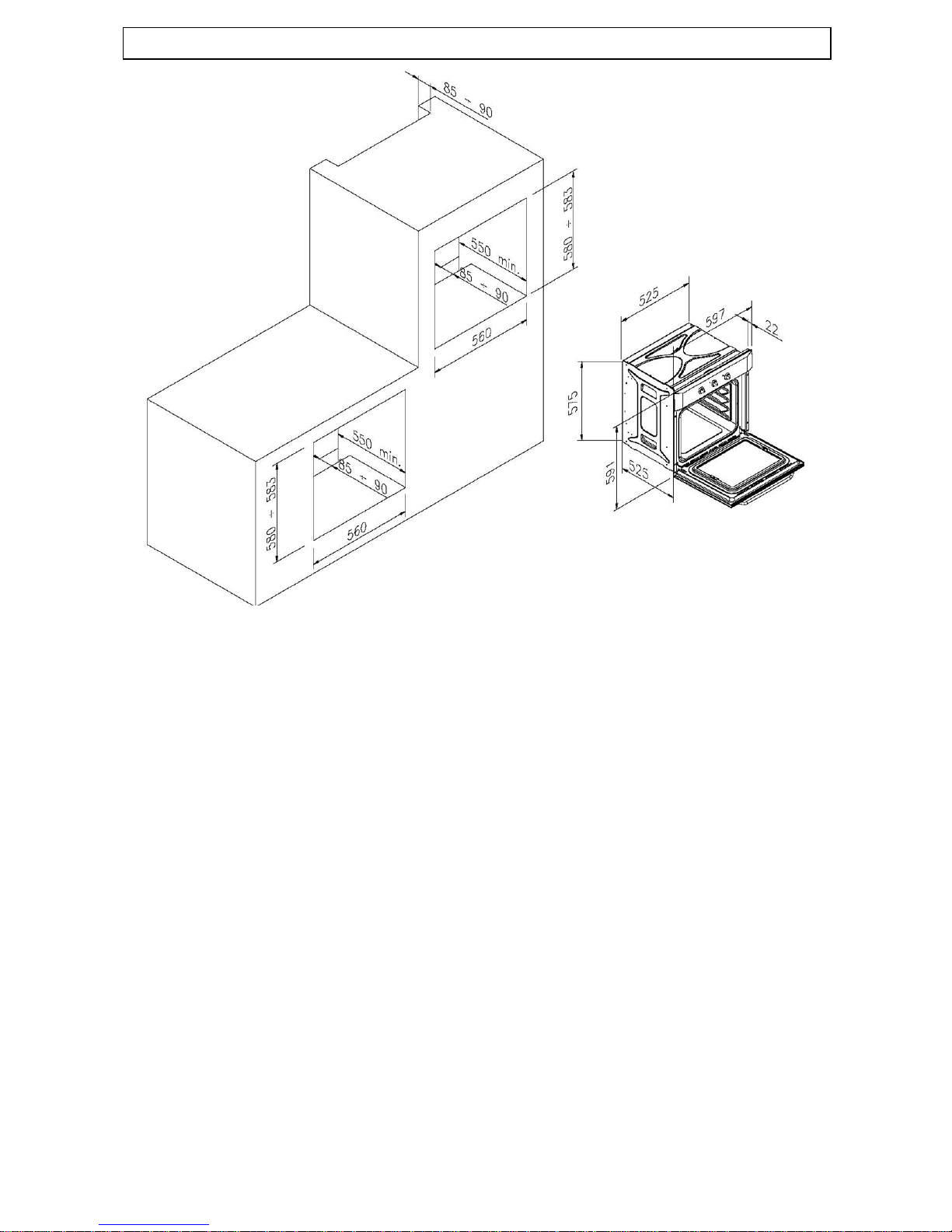

Specifications
Product Dimensions Aperture Dimensions
Height: 591 mm 580 mm – 583 mm
Width: 597 mm 560 mm
Depth: 525 mm 550 mm
Cooling fan
oA tangential cooking fan is fitted inside of this appliance, to make
the internal temperature of the oven stable and the external
surface temperature lower.
Product specifications
o4 oven functions (BAO6001-P)
o7 oven functions (BAO6003-P)
o9 oven functions (BAO6005-P)
oEnergy efficiency class: A
oOven capacity: 57 litres
oOven light
oLED full programmer
oCooling fan
oThermostatically controlled grill
oTriple-glazed removable door
