Baumatic P619BS User manual

1
P619-BS/ SS
60 cm Built-in fan oven
P629-BS/ SS & P639-BS/ SS
60cm Built-in multifunction oven.

User Manual for your Baumatic
P619-BS/ SS 60 cm 4 Function fan oven
P629-BS/ SS 60 cm 7 Function multifunction oven
P639-BS/ SS 60 cm 9 Function multifunction oven
NOTE: This User I nstruction Manual contains important
inform ation, including safety & installation points, w hich w ill
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar w ith the operation of the appliance.
GS 04/09/13
2

3
Contents
Environmental note 4
I mportant safety information 5 – 7
Specifications 8 - 14
P619-BS/ SS 8-9
P629-BS/ SS 9-10
P639-BS/ SS 10-11
Coolingfan 12
Controlpanel 13-14
Oven programmer/timer display 14
Setting and using the oven programmer/ timer 14 - 20
Selecting manual operation mode 14
Setting the time of day 14
Theoventimer 14
Before first use 15
Setting the minute minder function 16
Setting the duration function 17
Setting the end cook function 18
Setting the start and end time function 19
Adjusting the audible signal 20
Selecting a cooking function and temperature 20 - 25
Selecting manual operation mode 20
Selectinganovenfunction 20
P619BS/SS oven functions 21
P629BS/SS oven functions 21 – 22
P639BS/SS oven functions 22 - 23
Thermostatcontrolknob 23
Ovenoperatinglight 23
Cooking guidelines 24
Warnings 25
Shelf levels 25 - 26
Cleaning and maintenance 26 - 28
Removable oven roof liner (P629BS/SS and P639BS/SS only) 27
Replacing the oven bulb 27
Removing the oven door for cleaning 28
Removing the inner door glass for cleaning 29
Installation 30 - 33
Electricalconnection 30
Installing the oven into the kitchen cabinet 31
Positioning the appliance 31
Ventilation requirements 32 - 33
My appliance isn’t w orking correctly 33 -35
Baumaticconsumables 36
Contact details 37

Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard
4

5
I MPORTANT SAFETY I NFORMATI ON
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
ooklet, please contact the Baumatic Advice Line.
eneral I nformation
and can
ambient temperature
scolouration at
han 4mm to the appliance, w ill be the
t of Baumatic Ltd.
Guarantee. The foregoing does not
affect your statutory rights.
atic service
arning and safety instructions
ill
become hot during use and retain heat after operation.
b
G
oThis appliance is designed for domestic household use
be built into a standard kitchen cabinet or housing unit.
oI MPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer t
liability of the ow ner.
oThe use of this appliance for any other purpose or in any other
environment without the express agreemen
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of
oRepairs may only be carried out by Baum
engineers or their authorised service agent.
W
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces w

6
oThis appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oI MPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.

I nstallation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
w ith the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
This appliance complies with the following European Directives:
- 2006/95/EC regarding “low voltage”
- 2004/108/EC regarding “electromagnetic disturbances”
- Regulation (EC) N° 1935/2004 regarding “materials in contact
with food”
oThe above directives comply with 93/68/EEC regarding CE
marking.
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
7

Specifications
P619BS/ SS

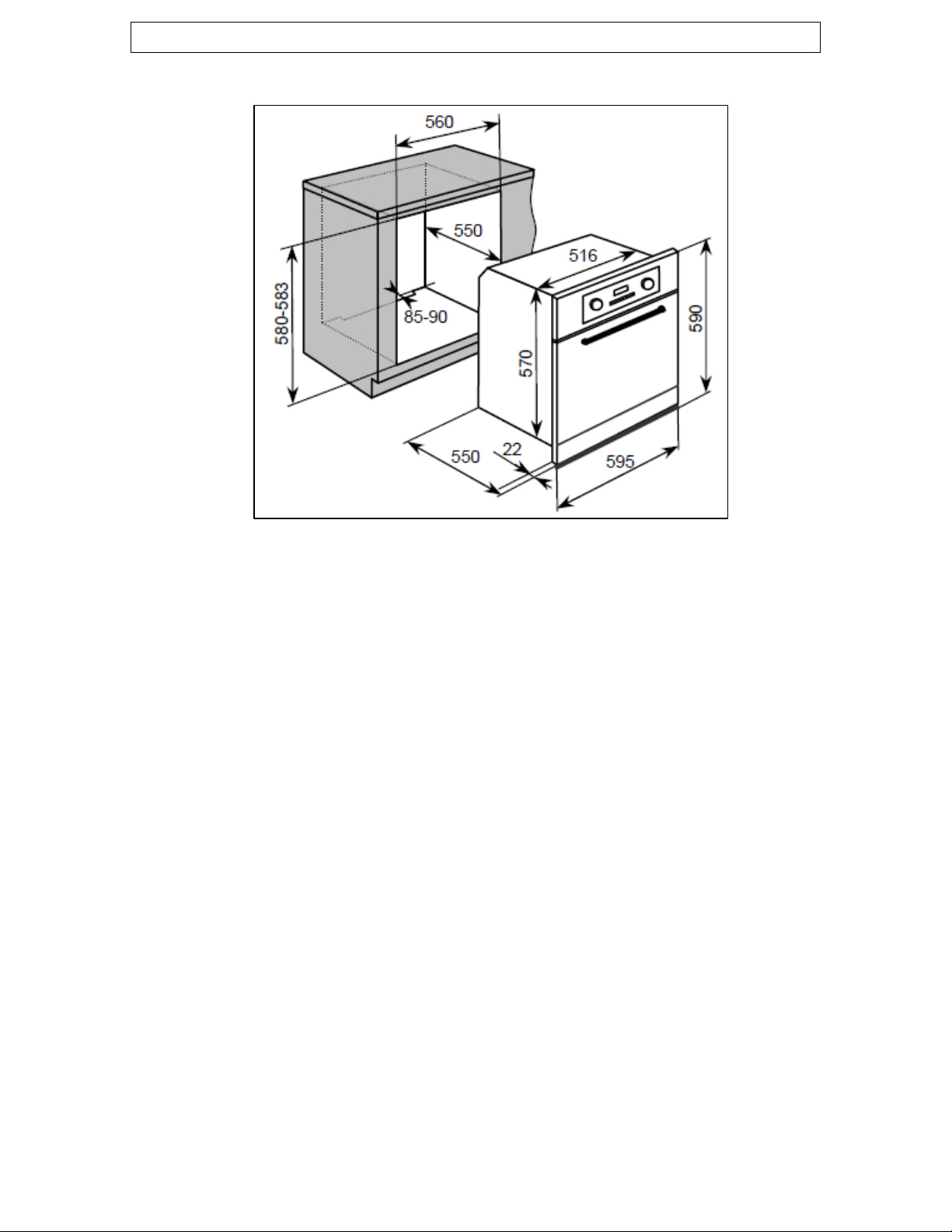

Product Dimensions Aperture dimensions
Height: 590 mm Height: 580 – 583 mm
Width: 595 mm Width: 560 mm
Depth: 550 mm Depth: 550 mm
Product specifications
o4 oven functions
oEnergy efficiency class: A
oGross oven capacity: 59 litres
oNet oven capacity: 50 litres
oOven light
oLED full programmer
oCooling fan
oThermostatically controlled grill
oTriple-glazed removable door
oRemovable inner door glass
oMark resistant coating
Standard accessories
oEnamelled baking tray with handle
oSafety shelf
oTrivet
oRemovable side racks
8

Optional extras
oTEL2KIT Telescopic runners kit
oSCL7KIT Stay-clean liners kit
oBPS2 Pizza stone
Electrical details
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 13A (double pole switched fused
outlet with 3mm contact gap)
Max Rated I nputs: 2.35 kW
Mains Supply Lead: 3 x 1.5mm²
Oven Light Bulb: 25 W/300°C screw type pygmy
P629BS/ SS

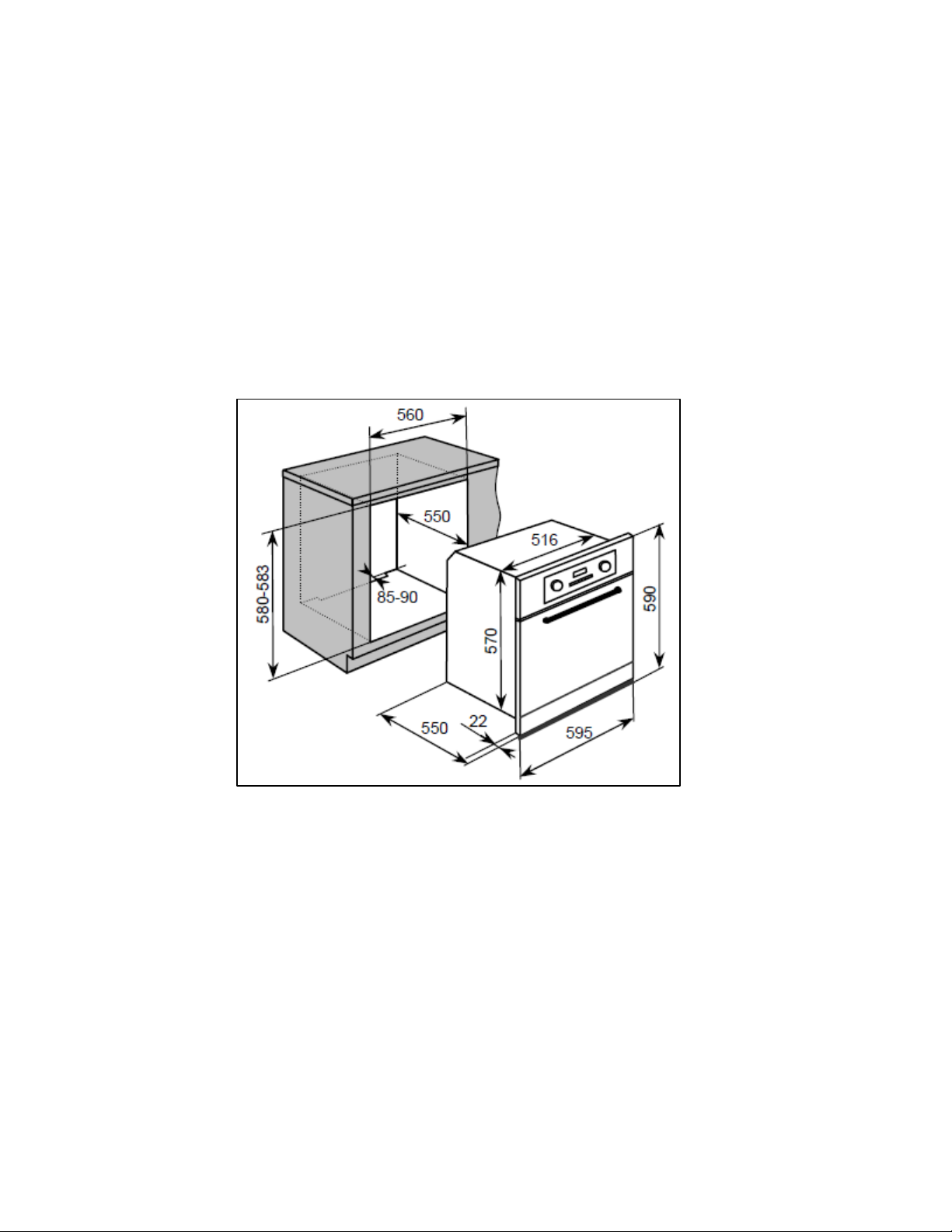

Product Dimensions
Height: 590 mm
Width: 595 mm
Depth: 550 mm
Aperture dimensions
Height: 580 – 583 mm
Width: 560 mm
Depth: 550 mm
Product specifications
o7 oven functions
oEnergy efficiency class: A
oGross oven capacity: 59 litres
oNet oven capacity: 50 litres
oOven light
oLED full programmer
9

oCooling fan
oThermostatically controlled grill
oTriple-glazed removable door
oRemovable inner door glass
oMark resistant coating
Standard accessories
oEnamelled baking tray with handle
o2 x Safety shelves
oTrivet
oRemovable side racks
oRemovable roof liner
oTelescopic runners- 1 level
Optional extras
oSCL7KIT Stay-clean liners kit
oBPS2 Pizza stone
Electrical details
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 13A (double pole switched fused
outlet with 3mm contact gap)
Max Rated I nputs: 2.40 kW
Mains Supply Lead: 3 x 1.5mm²
Oven Light Bulb: 25 W/300°C screw type pygmy
P639BS/ SS
10

11
Product Dimensions
Height: 590 mm
Width: 595 mm
Depth: 550 mm
Aperture dimensions
Height: 580 – 583 mm
Width: 560 mm
Depth: 550 mm
Product specifications
o9 oven functions
oEnergy efficiency class: A
oGross oven capacity: 59 litres
oNet oven capacity: 50 litres
oOven light
oLED full programmer
oCooling fan
oThermostatically controlled grill
oTriple-glazed removable door
oRemovable inner door glass
oMark resistant coating
Standard accessories
oEnamelled baking tray with handle
o2 x Safety shelves
oTrivet
oDeep baking tray
oRemovable side racks
oRemovable roof liner
oBPS2 Pizza stone
oTelescopic runners – 2 levels
Optional extras
oSCL7KIT Stay-clean liners kit
Electrical details
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 16A (double pole switched fused
outlet with 3mm contact gap)
Max Rated I nputs: 3.35 kW
Mains Supply Lead: 3 x 1.5mm²
Oven Light Bulb: 25 W/300°C screw type pygmy

12
Cooling fan
oA tangential cooling fan is fitted inside of these appliances, to
make the internal temperature of the oven stable and the
external surface temperature lower.
oAfter you have finished cooking and switched off the oven, the
cooling fan will continue to run for a period of time afterwards.
The length of time will depend on how long the oven has been
switched on for and at how high a temperature.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the oven door and looking on the right hand side of
the oven chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

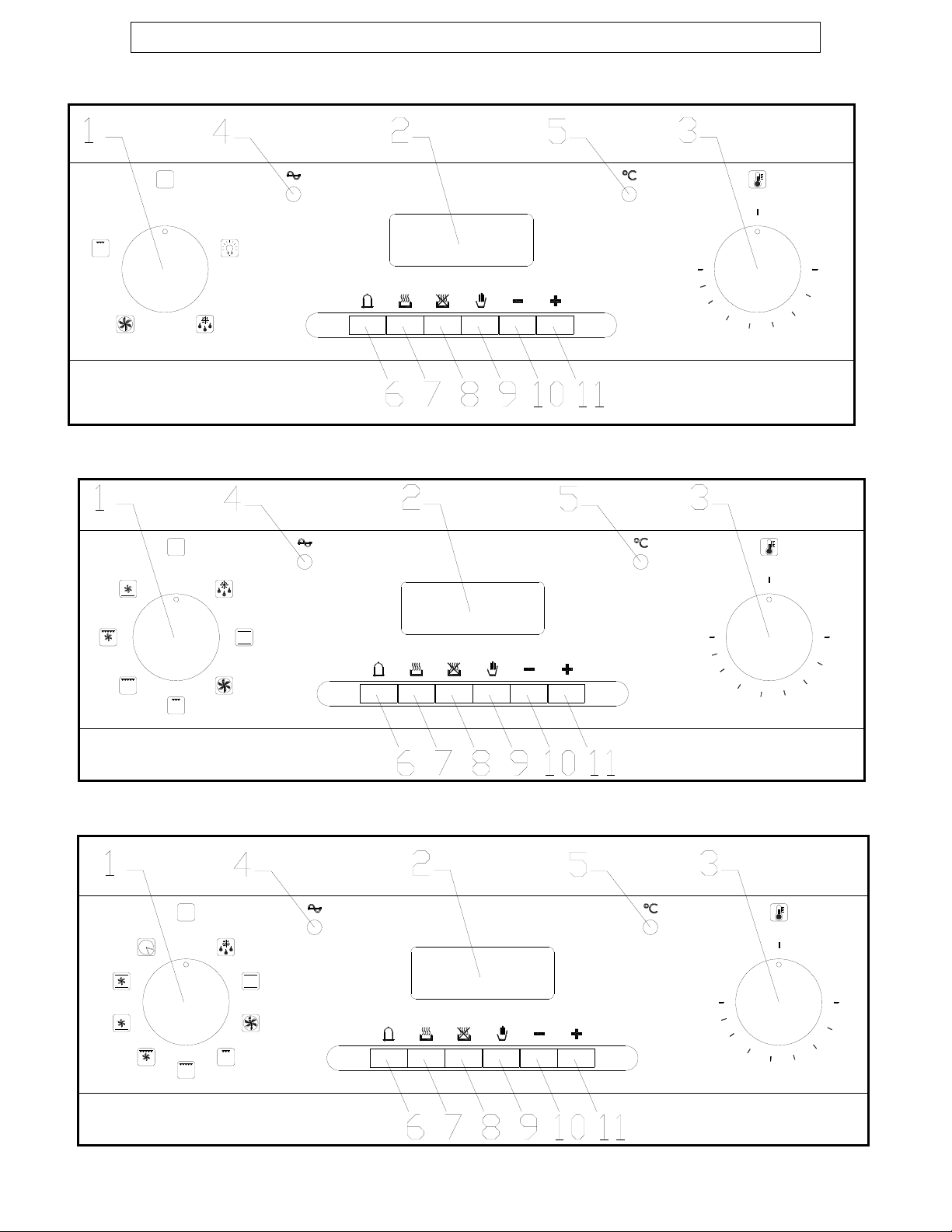

Control Panel
P619BS/ SS
0
50
100
150
200
250
P629BS/ SS
0
50
100
150
200
250
P639BS/ SS
0
50
100
150
200
250
13

1) Oven function selector knob
2) LED display
3) Thermostat control knob
4) Power indicator light
5) Oven operating light
6) Timer minute minder button
7) Timer duration button
8) Timer end cook button
9) Timer manual operation button
10) Timer minus button
11) Timer plus button
Oven programmer/ timer display
12) Auto function symbol
13) Minute minder symbol
14) Manual operation symbol.
Setting and using the oven programmer/ timer
Selecting manual operation mode
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display w ill flash. Before
you can select a cooking function or set a temperature, you
must set the appliance into “manual operation” mode.
oTo select manual operation mode, press the manual operation
button ( 9) on the control panel.
Setting the time of day
After setting your oven for manual operation, you should also
set the time of day.
oAfter pressing the manual operation button ( 9) , use the minus
button ( 10) and plus button ( 11) to adjust the time that
appears in the display. After getting the display to the correct
time, release the minus and plus buttons. After a few seconds
the time will fix in the display and you will be able to use your
oven.
The oven timer
oOnly the minute minder can be used with the defrost oven
function. None of the other timer modes will work with the
defrost function.
14

15
Before first use
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should select the fan oven
function and set the thermostat to its maximum temperature
setting.
oIt is perfectly normal for a smell to be produced during this
process.
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave the oven on maximum setting for 30 – 40
minutes.
oAfter the oven cavity has cooled, it should then be cleaned with
warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used.
oOuter parts of the oven should be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
should be used.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.

16
Setting the minute minder function
You are able to set the minute minder at any time, regardless
of w hether an oven function has been selected. You can set a
period of time using the minute minder function and an alarm
w ill sound w hen that period of tim e has elapsed.
oPress the minute minder button ( 6) , the display will show a
value of 00:00. Set the period of time that you wish the minute
minder to countdown for, by using the minus ( 10) and plus
( 11) buttons.
oOnce the display has got to your desired countdown time, let go
of the minus and plus buttons. The minute minder symbol ( 13)
will appear on the timer display.
oOnce a countdown time has been set, it is possible to shorten or
lengthen the time by using the minus or plus buttons.
oAn alarm will sound when the countdown time has elapsed. The
alarm can be silenced by pressing the minute minder button.
oI mportant: The oven will continue to heat once the alarm has
been silenced. If you have finished cooking, then you should turn
the oven function selector and thermostat control knob to 0.

17
Setting the duration function
This function will allow you to set a countdow n time similar to
the minute minder function. How ever the oven w ill no longer
continue to heat, once the countdow n period has elapsed.
oUse the thermostat control knob ( 3) to set the temperature that
you require. The manual operation symbol ( 14) will appear on
the display.
oUse the oven function selector knob ( 1) to select the mode of
cooking that you require.
oIt is then possible to set the duration of the cooking time that
you require.
oPress the duration button ( 7) and the display will show a value
of 00:00. Set the period of time that you wish the duration
function to countdown for, by using the minus ( 10) and plus
( 11) buttons.
oOnce the display has got to your desired countdown time, let go
of the minus and plus buttons. The countdown will start
immediately and the word AUTO will appear on the timer display.
oOnce a countdown time has been set, it is possible to shorten or
lengthen the time by using the minus or plus buttons.
oAn alarm will sound when the countdown time has elapsed and
the oven will switch off. The word AUTO will flash and the
heating symbol will disappear. The alarm can be silenced by
pressing the duration button.
oYou will need to return the oven to manual operation mode, once
the duration function has been used. To do this you should press
the “manual operation” button, the word AUTO will disappear
from the display and the manual operation symbol will appear
instead.
oI mportant: If you do not turn the thermostat control knob and
oven function selector knob to 0, then the appliance will continue
to operate as soon as you press the manual operation button.

18
Setting the end cook function
This function is similar to the duration function, how ever
instead of selecting a period of time that you w ish the oven to
sw itch off after. You select the tim e of day that you w ish the
oven to sw itch off at.
oUse the thermostat control knob ( 3) to set the temperature that
you require. The manual operation symbol ( 14) will appear on
the display.
oUse the oven function selector knob ( 1) to select the mode of
cooking that you require.
oPress the end cook button ( 8) and the display will show the
current time of day. Set the time of day that you wish the oven
to stop cooking at by using the minus ( 10) and plus ( 11)
buttons. The timer will calculate how long the cooking time will
be, based on the time of day that you have selected and show it
on the display.
oOnce the display has got to the time of day that you want the
oven to stop cooking at, let go of the minus and plus buttons.
The countdown will start immediately and the word AUTO will
appear on the timer display.
oWhen the time is set, it can be modified by pressing the minus
and plus buttons.
oWhen the time of day reaches the end of cooking time that you
set, the oven will switch off and an alarm will sound. The word
AUTO will flash and the heating symbol will disappear. The
alarm can be silenced by pressing the “end cook” button.
oYou will need to return the oven to manual operation mode, once
the end cook function has been used. To do this you should
press the manual operation button, the word AUTO will
disappear from the display and the manual operation symbol will
appear instead.
oI mportant: If you do not turn the thermostat control knob and
oven function selector knob to 0, then the appliance will continue
to operate as soon as you press the “manual operation” button.

19
Setting the start and end time function
This function w ill allow you to set a time in the future that the
oven sw itches on at and a time that the oven w ill sw itch off at.
oUse the thermostat control knob ( 3) to set the temperature that
you require. The manual operation symbol ( 14) will appear on
the display.
oUse the oven function selector knob ( 1) to select the mode of
cooking that you require.
oPress the duration button ( 7) and the display will show a value
of 00:00. Set the period of time that you wish to cook for, by
using the minus ( 10) and plus ( 11) buttons. The word AUTO
will appear on the timer display.
oI mmediately press the end cook button ( 8) and the timer
display will show a calculated end of cooking time. Set the time
of day that you want the oven to switch off at, using the minus
and plus buttons.
oThe oven will calculate what time it needs to switch on at, so
that your food will cook for the length of time that you selected.
It will automatically switch itself on, once it reaches the time of
day that it has calculated.
oWhen the time of day reaches the end of cooking time that you
set, the oven will switch off and an alarm will sound. The word
AUTO will flash and the heating symbol will disappear. The alarm
can be silenced by pressing the end cook or duration button.
oYou will need to return the oven to manual operation mode, once
the start and end time function has been used. To do this you
should press the manual operation button, the word AUTO will
disappear from the display and the manual operation symbol will
appear instead.
oI mportant: If you do not turn the thermostat control knob and
oven function selector knob to 0, then the appliance will continue
to operate as soon as you press the manual operation button.

Adjusting the audible signal
oThe audible signal has three different settings, low, medium and
high.
oTo adjust the level of the audible signal, make sure that the
timer is in manual mode. Then press and hold the minus button
and you will hear the current level that is set.
oPress the minus button again and the audible signal will adjust to
the next level.
oWhen the required level of audible signal is reached, release the
minus button and it will be set.
Selecting a cooking function and temperature
Selecting manual operation mode
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display w ill flash. Before
you can select a cooking function or set a temperature, you
must set the appliance into “manual operation” mode.
oTo select manual operation mode, press the manual operation
button ( 9) on the control panel.
Selecting an oven function
P619BS/ SS P629BS/ SS P639BS/ SS
0
0
0
oThe oven function selector knob should be used to select the
particular mode of cooking that you require. The appliance will
utilise different elements within the oven cavity, depending on
the oven function that you select. When a function is selected,
the power indicator light will come on.
20
