Baumatic POM9651SS User manual

u 1
POM9651SS 60 cm
Multifunction built in
oven with joystick
control

User Manual for your Baumatic
POM9651SS 60 cm
Multifunction built in oven with
joystick control
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 18/05/10
2

3
Contents
Environmentalnote 4
Important safety information 5 – 7
Specifications 8 - 12
Product and aperture dimensions 8
Productspecifications 8
Standardaccessories 8
Electricaldetails 9
Coolingfan 9
Controlpanel 10-11
The joystick control knob 11 - 12
Before first use 12-13
Setting the time of day 12
Ovenburn-off 12-13
Selecting a cooking function and temperature 13 - 18
Switchingtheovenon 13
Selecting an oven function 13 - 14
Adjusting the oven temperature 14
Ovenfunctions 15-17
PRH (Rapid pre-heating) function 17 - 18
Rapiddefrostfunction 18
Switchingofftheoven 18
Timer functions 19-23
Setting the minute minder function 19
Setting the duration function 20 - 21
Setting the end cook function 21 - 22
Cancelling a countdown period 22 - 23
Adjusting the volume of the audible signal 23
Recipe function 24-27
How to select a preset recipe 24 - 25
Recipetable 25-26
How to add a personal recipe to the preset recipes 26 - 27
Restoring the factory preset recipes 27
Cookingguidelines 28 - 29
Warnings 28-29
Shelfpositions 29
Cleaning and maintenance 30 - 35
Removing the side racks 31
The SteamClean process 32
Replacing the oven bulb 33
Removing the oven door for cleaning 33 - 34
Removing the inner door glass for cleaning 34 - 35
Installation 36 - 38
Electricalconnection 36
Installing the oven into the kitchen cabinet 37
Positioning the appliance 37
Ventilation requirements 38
My appliance isn’t working correctly 39 - 41
Contact details 42

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
General Information
oThis appliance is designed for domestic household use and can
be built into a standard kitchen cabinet or housing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, or by placing adjacent
cabinet materials closer than 4mm to the appliance, will be the
liability of the owner.
oFor use in leisure accommodation vehicles,please refer to
the appropriate information given in the installation instructions
for this appliance.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oRepairs may only be carried out by Baumatic Service
Engineers or their authorised service agent.
5

6
Warning and safety instructions
oThis appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
General Safety
oDo not place heavy objects on the oven door or lean on the
oven door when it is open, as this can cause damage to the oven
door hinges.
oDo not leave heated oil or fat unattended, as this is a fire risk.
oDo not place pans or baking trays directly on the base of the
oven cavity, or line it with aluminium foil.
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
oDo not use the appliance to heat the room it is located in or to
dry clothing.
oDo not install the appliance next to curtains or soft furnishings.
oDo not attempt to lift or move cooking appliances by using the
oven door or handle, as this may cause damage to the appliance
or result in injury to the person lifting the appliance.
Cleaning
oCleaning of the oven should be carried out on a regular basis.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.

Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oHeat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
oPlease consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
oIn the parts destined to come into contact with foodstuffs, this
appliance is in accordance with the requirements of the EC
directive 89/109 transposed in the Italian Legislative Decree No.
108 of 25/01/92.
oCE:Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
oThe manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
*The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.
7

Specifications
Product Dimensions
Height: 600.3 mm
Width: 598 mm
Depth: 565.5 mm
Aperture dimensions
Height: 583 - 585 mm
Width: 560 mm
Depth: 560 mm
Product specifications
o12 Oven functions
oEnergy efficiency class: A
oOven capacity (net): 61 litres
oOven capacity (gross): 68 litres
oJoystick operation
oSteamClean function
o20 Preset recipes
o16 Personal recipes
oLED full programmer with temperature and function display
oElectronically controllable thermostat
oWipe clean enamelled cavity
oCooling fan
oFlush mounted installation
oTriple-glazed removable door
oMark resistant coating
oMirror glass door
Standard accessories
o2 x safety shelves
oTrivet
oWipe clean enamelled baking tray with handle
oRemovable side racks
oPizza stone
oTelescopic runners – 1 level
8

9
Electrical details
Rated Voltage: 220-240 Vac 50-60 Hz
Supply Connection: 20 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 2.7-3.25 kW
Mains Supply Lead: 3 x 1.5 mm²
Oven Light Bulb: 25 W/300°C screw type pigmy
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the oven door and looking on the right hand side of
the oven chassis.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….
Cooling fan
oA tangential cooling fan is fitted inside of this appliance, to make
the internal temperature of the oven stable and the external
surface temperature lower.
oAfter you have finished cooking and switched off the oven, the
cooling fan will continue to run for a period of time afterwards.
The length of time will depend on how long the oven has been
switched on for and at how high a temperature.

Control Panel

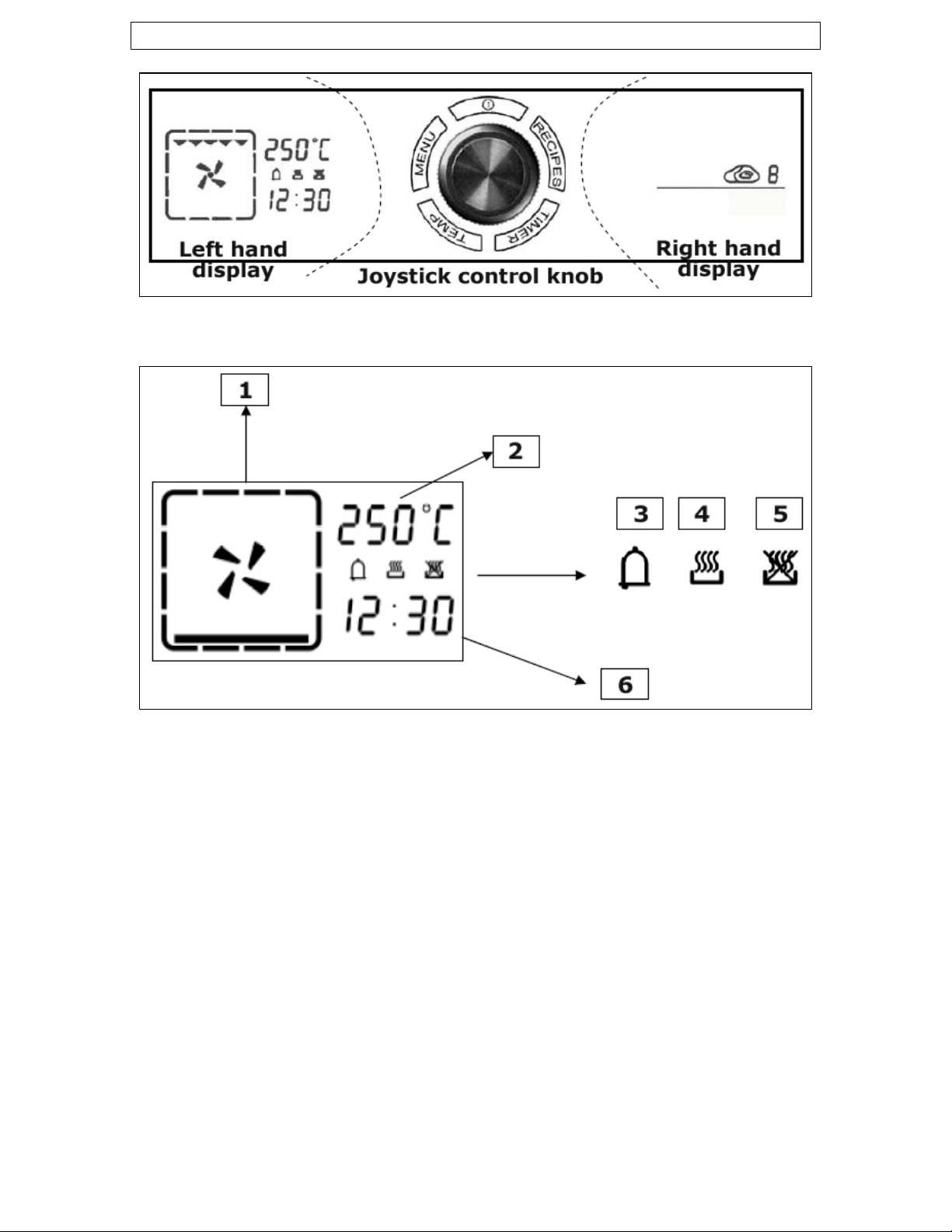

Left hand display
1) Oven function display
2) Oven temperature display
3) Minute minder symbol
4) Duration symbol
5) End cook symbol
6) Timer display
10

Right hand display
7) Recipe number
8) Flan recipes
9) Fish recipes
10) Bread/pizza recipes
11) Meat recipes
The joystick control knob
12) ON/OFF segment
13) Recipe segment
14) Timer segment
15) Oven temperature segment
16) Cooking function segment
11

12
oThe joystick control knob should be used to access the various
setting options that appear in the segments around it.
oYou should press the oven selector control knob once to activate
it.
oAs you turn the joystick control knob, the segments around the
outside of it will light.
oTo confirm the menu that you want to access, you should press
the joystick control knob once when the relevant segment is lit.
Before first use
Setting the time of day
oAfter your appliance is connected to your mains supply for the
first time, all of the segments around the joystick control knob
will light up for approximately 3 seconds.
oThe numbers on the timer display (6) will flash 00:00. Before
you can select a cooking function or set a temperature, you must
set the appliance into manual operation mode and set the time
of day.
oTurn the joystick control knob clockwise and the numbers on the
timer display (6) will increase. Turn the joystick control knob
anti-clockwise and the numbers on the timer display (6) will
decrease.
oWhen the correct minute time shows on the timer display (6),
press the joystick control knob once.
oTurn the joystick control knob until the correct hour time shows
on the timer display (6). When it does, press the joystick control
knob again.
oIf you have successfully set the time of day, then the correct
time of day will appear on the timer display (6). If you have not
successfully set the time of day, then “00:00” will reappear and
you will need to follow the above process again.
Oven burn-off
oTo remove any residue from the oven that may have been left
from the manufacturing process, you should select either the fan
or conventional oven function and set the thermostat to its
maximum temperature setting.

oIt is perfectly normal for a smell to be produced during this
process.
oYou should make sure that any windows in the room are left
open during this process.
oIt is advisable for you not to remain in the room whilst the
burning off process is taking place.
oYou should leave the oven on maximum setting for 30 – 40
minutes.
oAfter the oven cavity has cooled, it should then be cleaned with
warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used.
oOuter parts of the oven should be cleaned with warm soapy
water, using either a sponge or soft cloth. No abrasive cleaners
should be used.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.
Selecting a cooking function and temperature
Switching the oven on
oPress the oven selector control knob once, the ON/OFF segment
will light.
oThe left hand display will switch on; showing the time of day and
the oven light symbol.
oIf no option is selected within 5 minutes, the oven will
automatically switch off.
Selecting an oven function
oOnce the oven is switched on, turn the joystick control knob until
the cooking function segment (MENU) is lit.
oPress the joystick control knob once to select the MENU
segment. The oven function display (1) will show the cooking
function that is currently selected.
oTo select a different cooking function, turn the joystick control
knob until the cooking function symbol that you require appears
on the oven function display (1).
13

oThe frame around the cooking function symbol will flash, to
confirm the cooking function, press the joystick control knob
again.
oIf you do not confirm the cooking function within 20 seconds, the
oven will reset itself and the ON/OFF segment will light.
oIf you do not touch the joystick control knob for a further 20
seconds, the oven will switch off automatically.
Adjusting the oven temperature
oEach cooking function has a preset temperature assigned to it.
However it is possible to adjust the oven temperature.
oOnce you have confirmed the cooking function that you require,
turn the joystick control knob until the oven temperature
segment (TEMP) is lit.
oPress the joystick control knob once to select the TEMP segment.
oTurn the joystick control knob to increase or decrease the oven
temperature. The temperature will adjust in 5°C increments and
appear on the oven temperature display (2).
oYou can adjust the temperature between 50 and 250°C.
oWhen the temperature that you require appears on the oven
temperature display (2), you should stop turning the joystick
control knob.
oPress the joystick control knob once to confirm the temperature.
If you do not turn the joystick control knob for more than 5
seconds, the temperature will confirm automatically.
oWhilst the oven is heating to the temperature that you have set,
the letter “C” and the “°” symbol will flash. When these symbols
remain fixed, the oven has reached temperature.
oYou should not place food inside of the oven cavity until the
appliance has reached the temperature that you set.
oIMPORTANT: For the PRH (preheating) and ETC (cleaning)
functions, it is not possible to adjust the temperature.
14

Oven functions
Cooking
function name
and symbol
Cooking
function
description
Min. – max.
oven cavity
temperature
Default oven
cavity
temperature
OVEN LIGHT
Separate light
control which
allows the light to
be switched on,
even when the
oven is not
heating.
N/A N/A
PRH –
PREHEATING
This function uses
the grill, the lower
element and fan. It
is intended for pre-
heating the oven
rapidly to a
temperature of
210°C.
N/A 210°C
DEFROST
The fan runs
without heat to
reduce the
defrosting time of
frozen foods. The
time required to
defrost the food
will depend on the
room temperature,
the quantity and
type of food.
Always check food
packaging for the
defrosting
instructions.
N/A N/A *
*Unless using
the rapid
defrost function.
CONVENTIONAL
OVEN
This method of
cooking provides
traditional cooking,
with heat from the
top and lower
elements. This
function is suitable
for roasting and
baking on one shelf
only.
50 - 250°C 190°C
BOTTOM
ELEMENT
This method of
cooking uses the
lower element to
direct heat
upwards to the
food. This function
is suitable for slow-
cooking recipes or
for warming up
meals.
50 - 250°C 80°C
15

CONVENTIONAL
OVEN + FAN
This method of
cooking provides
traditional cooking
with heat from the
top and the lower
element. The
running of the
circulation fan
ensures a fast and
even distribution of
the heat. Suitable
for light and
delicate baking,
such as pastries.
50 - 250°C 200°C
BOTTOM
ELEMENT + FAN
This method of
cooking uses the
bottom element
only while the fan
is circulating the
heat. For delicate
dishes and heating
pre-cooked food. It
is also suitable for
sterilising
preserving jars.
50 - 250°C 165°C
PIZZA SETTING
This method of
cooking uses the
lower and fan
element, whilst the
heat is distributed
by the fan. This
reproduces the
same conditions as
a traditional clay
wood-fire stove.
50 - 250°C 210°C
FAN OVEN
This method of
cooking uses the
circular element
while the heat is
distributed by the
fan. This results in
a faster and more
economical cooking
process. The fan
oven allows food to
be cooked
simultaneously on
different shelves,
preventing the
transmission of
smells and tastes
from one dish onto
another.
50 - 250°C 165°C
16

CENTRE GRILL
This cooking
method is normal
grilling, utilising the
inner part only of
the top element,
which directs heat
downwards onto
the food. Suitable
for grilling small
portions of bacon,
toast, meat etc.
50 - 250°C 200°C
GRILL WITH
FAN
This cooking
method uses the
top element in
conjunction with
the fan, to help
give a fast
circulation of heat.
Suitable where
quick browning is
required and
“sealing” the juices
in, such as with
steaks,
hamburgers, some
vegetables etc.
50 - 250°C 165°C
STEAMCLEAN
This function allows
easy cleaning of
the oven interior.
See the
SteamClean section
of this manual for
further information.
N/A 80°C
PRH (Rapid pre-heating) function
oOnce the oven is switched on, turn the joystick control knob until
the cooking function segment (MENU) is lit.
oPress the joystick control knob once to select the MENU
segment. The oven function display (1) will show the cooking
function that is currently selected.
oTurn the joystick control knob until the pre-heating
symbol appears on the oven function display (1).
oThe appliance will switch on the grill element and lower element,
as well as running the fan. This combination will allow rapid pre-
heating of the oven cavity to 210°C.
oWhen the oven has reached 210°C, an audible signal will sound
and the rapid pre-heating function will switch off.
17

oAt this point, you should place your food in the oven and select
an appropriate cooking function and temperature.
oIMPORTANT: Please note that it is not possible to adjust the
temperature that the oven is heating to during the rapid pre-
heating function.
Rapid defrost function
oOnce the oven is switched on, turn the joystick control knob until
the cooking function segment (MENU) is lit.
oPress the joystick control knob once to select the MENU
segment. The oven function display (1) will show the cooking
function that is currently selected.
oTurn the joystick control knob until the defrost symbol
appears on the oven function display (1).
oOnce you have confirmed the defrost function, turn the joystick
control knob until the oven temperature segment (TEMP) is lit.
oPress the joystick control knob once to select the TEMP segment.
oThe oven temperature display will show 80°C.
oPress the joystick control knob again to activate the rapid defrost
function.
Switching off the oven
oTo switch the oven off, the symbol must be lit. If it isn’t lit,
then turn the joystick control knob until the ON/OFF segment
( ) is lit.
oPress the joystick control knob once.
oThe word “OFF” will appear on the left hand display and there
will be a brief audible signal.
18

Timer functions
Setting the minute minder function
This function allows you to set a countdown time. When this period of
time has elapsed, an audible alarm will sound. The countdown time
can be set, before or after a cooking function and temperature have
been selected.
oOnce the oven is switched on, turn the joystick control knob until
the timer segment (TIMER) is lit.
oPress the joystick control knob once to select the TIMER segment
and the three timer symbols will flash.
oTurn the joystick control knob until the bell symbol ( ) is the
only timer symbol lit. Press the joystick control knob again and
the timer display (6) will show “00:00”.
oTurn the joystick control knob clockwise and the numbers on the
timer display (6) will increase. Turn the joystick control knob
anti-clockwise and the numbers on the timer display (6) will
decrease.
oWhen the correct minute time for the countdown time shows on
the timer display (6), press the joystick control knob once.
oTurn the joystick control knob until the correct hour time for the
countdown time shows on the timer display (6). When it does,
press the joystick control knob again.
oThe maximum countdown time that can be set is 23 hours and
59 minutes.
oThroughout the countdown period, the timer display (6) will
show the time of day.
oIf you want to check how long the countdown time has to run,
turn the joystick control knob until the TIMER segment is lit.
Press the joystick control knob and the remaining time will
appear on the timer display (6).
oAt the end of the countdown time, an audible signal will sound.
oImportant: If you have set a cooking function and temperature,
then the oven will not switch off at the end of the countdown
time. If you have finished cooking, then you should switch off
the oven (please refer to the section entitled “Switching off the
oven” on page 18).
19

Setting the duration function
This function will allow you to set a countdown time similar to the
minute minder function. However the oven will no longer continue to
heat, once the countdown period has elapsed.
oSelect a cooking function and oven temperature (as described in
previous sections of this manual).
oWhen the oven has started to heat, turn the joystick control
knob until the timer segment (TIMER) is lit.
oPress the joystick control knob once to select the TIMER segment
and the three timer symbols will flash.
oTurn the joystick control knob until the duration symbol ( ) is
the only timer symbol lit. Press the joystick control knob again
and the timer display (6) will show “00:00”.
oTurn the joystick control knob clockwise and the numbers on the
timer display (6) will increase. Turn the joystick control knob
anti-clockwise and the numbers on the timer display (6) will
decrease.
oWhen the correct minute time for the duration countdown time
shows on the timer display (6), press the joystick control knob
once.
oTurn the joystick control knob until the correct hour time for the
duration countdown time shows on the timer display (6). When
it does, press the joystick control knob again.
oThe maximum duration countdown time that can be set is 10
hours.
oTo exit the TIMER menu, turn the joystick control knob until the
word ESC is highlighted and then press the joystick control knob.
oThroughout the duration countdown period, the timer display (6)
will show the time of day.
oIf you want to check how long the duration countdown time has
to run, turn the joystick control knob until the TIMER segment is
lit. Press the joystick control knob and the remaining time will
appear on the timer display (6).
oAt the end of the countdown time, an audible signal will sound
and the oven will stop heating.
20
