BBB TERREPOWER EASY BATTERY 6048 User manual

EASY BATTERY
6 kWh 24 V / 48 V
INSTRUCTION MANUAL

2Manual EASY BATTERY 6 kWh 24 V / 48 V

3Manual EASY BATTERY 6 kWh 24 V / 48 V
MANUAL EASY BATTERY 6 kWh 24V / 48V
It is mandatory to read this manual before installing the battery.
Version 1.0
This manual presents the batteries Easy Battery 6 kWh 24 V / 48 V with CATL NMC Pouch cells.
Read this manual before attempting to install the battery and follow the instructions carefully during the installation process.
If you have any questions, please contact your dealer immediately for advice and clarication.
INCLUDED IN BATTERY NOT INCLUDED IN BATTERY
•Battery •Connecting cables • Rack cabinet mounting kit (sold separately)
INDEX
1. Introduction .............................................................................4
1.1 Features .............................................................................4
1.2 Specications and dimensions ..........................................................5
1.3 Front panel ...........................................................................6
2. Installation diagram ......................................................................6
2.1 Installation example ...................................................................6
3. Safety ..................................................................................7
4. Installation..............................................................................8
5. Connection to the BMS ...................................................................8
6. Emergency situations....................................................................10
7. Warranty...............................................................................10
7.1 Warranty coverage....................................................................10
7.2 Limitation of liability...................................................................11

4Manual EASY BATTERY 6 kWh 24 V / 48 V
1. Introduction
The Easy Battery lithium battery is a product of TerrePower for energy storage, manufactured in Spain.
Easy Battery 6 kWh is manufactured in 24V and 48V. It is specially designed for both off-grid and grid-connected photovoltaic
applications.
Easy Battery includes a management system (BMS) for the cells that make up the battery, this BMS is congured and it is strictly
forbidden to modify the conguration (it can cause irreparable damage to the lithium ion cells).
This battery is compatible with the inverters that can be congured the working voltages. (Operating range 24 V:
23.75 - 30 Vdc ; 48 V: 47.50 - 60 Vdc)
1.1 Characteristics
The case is made of high quality cold rolled steel in black color.
Each unit is delivered with 2 handles, 1.5 meter red and black 25mm copper cable set2with quick connectors for connection to
the battery and 25/8 copper terminal.
Lithium ion cells CATL type Pouch NMC are used, which are characterized by high power and a very high cycle life.
The battery management system (BMS) has protection functions for over-discharge, over-charge, over-current and high/low
temperature.

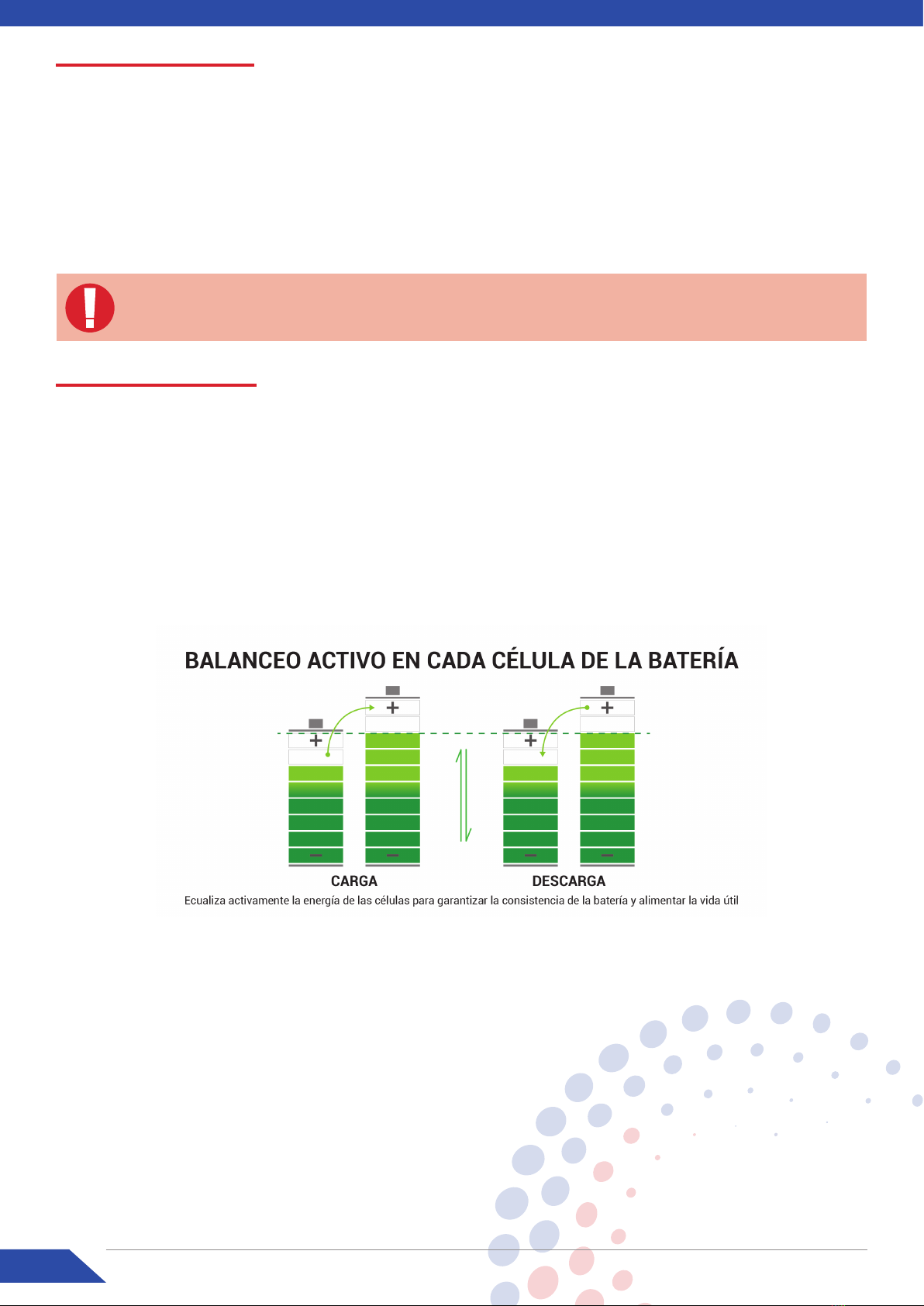

The system automatically manages the charging and discharging and balances the voltage of each cell.
Easy Battery is delivered with the BMS congured and can work with several battery modules in parallel to expand capacity. In
order to install multiple batteries in parallel it is important that you contact your distributor for installation instructions. The Easy
Battery can only be congured in parallel with other units of the same model and voltage.
The module has a very low self-discharge, up to 6 months without charging; no memory effect, excellent charge-discharge per-
formance; the working temperature range is -10° to 45°.
The battery has a standard 19" rack cabinet size.

5Manual EASY BATTERY 6 kWh 24 V / 48 V
1.2 Specications and dimensions
Main parameters Easy Battery 6 kWh 24 V Easy Battery 6 kWh 48 V
Capacity 6 kWh
Current 240 Ah 120 Ah
Nominal Voltage 25.55 Vdc 51,1 Vdc
Operating Voltage Range 23,75 - 30 Vdc 47,50 - 60 Vdc
Maximum charge or discharge current 125 A
Maximum power 3000 W 6000 W
Life expectancy >10 years
BMS technical data
Protections:
•Active Balancing
• Vmax / Vmin
• Short circuit
• Imax
• Temp
Operating temperature -10ºC to 45ºC
Optimal temperature 0ºC to 30ºC
Humidity <85%
Dimensions (mm) L x W x H 430 x 480 x 145
Rack mounting 4U horizontal with handle
BMS communication Bluetooth
Monitoring parameters by BMS
•System voltage
and cell voltage
•Current
•Temperature
•Delta
•Power
•SoC
•Load cycles
Positive and negative connection cables Included
Certications CE, UN38.3
Warranty 3 Years 2 optional
Dimensions
•(H x B) 480 x 145
•(W x D x D) 430 x 480 x 145mm

6Manual EASY BATTERY 6 kWh 24 V / 48 V
1.3 Front panel
The battery connectors are connected
by snapping and disconnected by pressing
a small button on each connector.
To avoid damage to the connectors,
the circuit must be open when
is connected or disconnected to the battery
2. Installation diagram
It is mandatory to use the battery with inverters that allow re-
gulating the minimum cut-off voltage, also if it is a hybrid you
will need to congure the charge voltages according to the mo-
del specication.
If solar regulators are used, these must not exceed the charge
value indicated according to the model.
A wrong load conguration can cause the battery BMS to give a
stop order and the battery will have to be serviced and restarted
again.
A fuse must be installed between battery and in-
verter with the following characteristics:
Part number 422063
Manufacture dF electric
DC cut-off current (A) 125
Interrupting capacity (kA) 80
2.1 Example of installation

7Manual EASY BATTERY 6 kWh 24 V / 48 V
3. Safety
1. It is mandatory to read the battery instructions before use to avoid possible damage.
2. Keep the battery away from high voltage and out of the reach of children.
3. Before connecting make sure that the polarity is correct between the battery and the inverter or solar controller.
4.
Use safety equipment such as:
•Insulating gloves.
•Safety goggles.
•Safety shoes.
5. Use only cables with connectors in good condition.
6. It is recommended to use 125A fuses and fuse holders.
7. If the ambient temperature is outside the range indicated in section 1.2, the battery will stop working for safety re-
asons.
8. Parallel connections of several batteries should be made using copper plates.
9.. The battery is shipped fully activated and ready for operation.
10. Make sure that there is no short circuit in the external elements.
11. The battery cannot be connected to the AC power supply directly.
12. Connect the battery to ground.
13. Make sure that the battery is compatible with external equipment.
14. Keep the battery away from re and water.
15. The battery may only be connected in parallel with another battery of exactly the same type and voltage.
16. Do not connect the battery with other batteries of different types or brands and models.
17. Do not start the battery operation with defective or incompatible inverters.
18.. Tampering with the inside of the battery is prohibited.
19. In case of re, only dry powder re extinguishers may be used, liquid extinguishers are prohibited.
20. Do not open, repair, or disassemble the battery.
21. Only Easy Battery personnel may repair the battery. We do not assume any consequence or related liability that is
due to violation of safety operation or violation of design, production and equipment safety standards.
22. If the battery is stored for a long time, it is advisable to charge it every six months.
23. The battery must be recharged within 12 hours after complete discharge.
24. Contact the supplier as soon as possible if you notice anything abnormal.
25.. Warranty claims are excluded for direct or indirect damage due to the above items.
26. During handling, be very careful to avoid knocks/drops to the battery.
27. Be careful not to touch the two contacts at the same time, there may be a risk of electric shock.
28. The battery, at the end of its useful life, requires a process of valorization, do not disassemble it.
29. Avoid to locate the batteries in humid places to avoid risks.
30. If the battery has liquid leaks, avoid the contact with this one totally.

8Manual EASY BATTERY 6 kWh 24 V / 48 V
4. Installation
When installing the batteries TerrePower 6 kWh 24v/48v, the charge/discharge parameters to be entered in the inver-
ters and regulators, as well as the temperature values (see section 1.1) must be taken into account.
The battery EASY BATTERY 6 kWh 24v/48v, has no communication with external elements and may require special conguration
of these devices for operation.
Each battery power cable can carry a maximum of 125A.
•With the 24 V system, the use of an inverter greater than 3000 W per battery is not recommended.
•With the 48 V system it is not advisable to use an inverter higher than 6000 W per battery.
It is advisable to install the battery inside a 19" communication rack.
Install the battery in a place where it cannot fall and where there are no flammable or explosive materials nearby.
It is advisable to use 125 A fuses and fuse holders that cut off the power supply between the battery and external elements.
5. Connection to the BMS
In order to connect to the BMS and monitor the battery data, the app for mobile devices must be installed. Scan the QR code to
download and install the app.
The QR code can be found on the battery packaging and below:
DOWNLOAD YOUR IOS APP DOWNLOAD YOUR ANDROID APP
Connection:
First turn on the cell phone's Bluetooth and then open the app. It must be within a distance of less than 1 meter to connect.
Click on the icon in the upper left corner to scan the device. The rst time you connect to the APP,
you will be prompted to enter a password. The default password for the device is "1234".
Once the device is connected to the application it will automatically register the password. You will not need to enter the password
again the next time you connect.

9Manual EASY BATTERY 6 kWh 24 V / 48 V
Real-time Status interface
Control interface
- Remaining capacity
- Remaining current
- Number of cycles perfor-
med
- Difference between the hi-
Switch status display
Total battery voltage
- Current power
- Battery capacity
- Cycle capacity
- Average cell voltage
Voltage of each cell
Cell resistance
Swing intensity
Temperatures
click scan device

10 Manual EASY BATTERY 6 kWh 24 V / 48 V
6. Emergency situations
1. Leaking battery
If you detect a liquid leak, avoid contact. If you are exposed to the leaked substance, immediately perform the actions des-
cribed below in each case:
•Inhalation: Evacuate the contaminated area and seek medical attention.
•Eye contact: Flush eyes with plenty of running water for 15 minutes and seek medical attention.
•Skin Contact: Wash affected area thoroughly with soap and water and seek medical attention.
•Ingestion: Induce vomiting and seek medical attention.
2. Fire
DO NOT USE WATER! Only dry powder re extinguishers may be used; If possible, move the battery to a safe place before it
catches re.
3. Wet battery
If the battery pack is wet or submerged in water, do not allow anyone to access it and contact your installer or an authorized
dealer for technical assistance.
4. Damaged battery
Damaged battery is dangerous and should be handled with extreme care. It would be unt for use and may present a danger
to persons or property. If the battery pack appears to be damaged, pack it in its original carton and then return it to your ins-
taller or an authorized dealer.
NOTE
Damaged batteries may leak electrolyte or release flammable gas. If such damage occurs, contact your installer or an au-
thorized dealer.
7. Warranty
7.1 Warranty coverage
The warranty TerrePower 6 kWh 24 V / 48 V, has a 3-year warranty against manufacturing defect.
TerrePower warrants that the product is free from defects caused by workmanship or materials.
The claim will always be made to the invoicing company.
The 3-year warranty starts from the purchase invoice and must be presented to Easy Battery's technical service.
The battery will be repaired if it presents any manufacturing defect.
The warranties with respect to the product only apply if:
1. It has the ofcial serial number of TerrePower 6 kWh 24 V / 48 V.
2. Is properly installed.
3. Operates and is maintained in accordance with the instruction manual.
4. Used on a daily cycle and only for the energy storage system.
5. The purchase invoice is presented.

11Manual EASY BATTERY 6 kWh 24 V / 48 V
7.2 Limitation of Liability
Warranty would be inapplicable, if the defect or failure in product performance is attributable to misuse, abuse, accident or failure
to comply with the conditions of the manual.
TerrePower may request complete product testing, photos and installation videos.
If you contest the verication of the claim by TerrePower, the product must be evaluated by an EU certied testing laboratory or a
certied third party testing company. You will bear the cost of any expenses for the evaluation service.
If any verication of product capability is required, the test must be performed under the following conditions:
a) The ambient temperature of the Product must be -10 ºC to 45 ºC
b) The initial temperature of the cells must be 25 ºC ± 1 ºC
c) The Product must discharge power at 10 A measured from a 100% load capacity.
If the Product is no longer available, TerrePower may, at its discretion, replace the Product with a reconditioned one or different
parts with equivalent functions and performance according to the latest available technical information.
TerrePower excludes all liability for the Product to the extent that any damage or defect has been caused or contributed to by the
following:
1. Charger or inverter failure.
2. The product is installed with inverters or chargers that are not compatible.
3. You have treated the product improperly, negligently or in any other improper manner, including using the product outside the
ambient temperature condition recommended by the instruction manual.
4. Improper transportation, including but not limited to dropping, trampling, deforming, impacting or piercing with a sharp object.
5. Abuse, misuse, neglect, accidents or acts of God, lightning, flood, re, extreme cold or hot weather.
6. Any attempt to prolong or reduce the useful life of the product by physical, programming or other means.
7. Water, conductive dust or corrosive gas.
8. The product has been connected with battery modules of different types.
9. Failure to have the product in accordance with the instructions.
10. Normal wear, deterioration or surface defects, dents or marks that impact the performance of the product.
11.. Theft or vandalism of the Product or any of its components.

EASY BATTERY 6 kWh
24 V / 48 V
INSTRUCTION MANUAL
TERREPOWER
Pol. Ind. Can Vinyalets
C/ Can Vinyalets 17 ( Nave Roja )
08130 Santa Perpètua de Mogoda,
Barcelona
VAT Nº ES-B91011510
