BCP SKY6818 User manual

SKY6818 + SKY6819 + SKY6820 + SKY6821 + SKY6822
Ver. 1
INSTRUCTION
MANUAL
6V Kids Ride On ATV 4-Wheeler

bestchoiceproducts.com
Charge for 12 hrs
before initial use.
After initial charge,
follow the normal
recommended
charging time.

Please retain these instructions for future reference.
SAFETY
This vehicle must be assembled by an adult who has read and understood the instructions in this manual.
Keep the packaging and bags away from children and dispose of all packaging before use. Always use
common sense and safe practices when operating this vehicle. This product contains or emits chemicals
known in the state of California to cause cancer or birth defects or other reproductive harm.
NOTE: For best performance, only use this vehicle on flat and hard surfaces.
AGE RANGE: 1.5 - 3 years old
WEIGHT CAPACITY: 44 lbs.
The following safety hazards may result in serious injury or death:
• This product contains small parts. Keep children away during assembly. Make sure to remove all packaging
material and parts from underneath the vehicle body.
• Never open the battery. Batteries contain lead and lead compounds (acids) that are toxic and corrosive,
and known to the state of California to cause cancer and reproductive harm.
• Limbs, hair, and clothing can get caught in moving parts. Always wear shoes, keep limbs away from
moving parts, and do not wear loose clothing while operating this vehicle.
• This vehicle does not have brakes or braking capability. Do not leave a child unattended during operation.
Do not use this in a location that may require braking capability, as this could result in loss of control,
which may cause serious injury or death.
• Use of this vehicle near streets, motor vehicles, steps, bodies of water, sloped surfaces, hills, wet areas,
flammable vapors, in alleys, at night, or in the dark could result in an unexpected accident.
• Use of this vehicle in unsafe conditions such as snow, rain, loose dirt, mud, sand, or gravel may result in
an unexpected accident such as tipping over, and could damage the electrical system or battery.
• Do not operate this vehicle in an unsafe manner. Examples include but are not limited to:
- Pulling the vehicle with another vehicle or similar device
- Allowing more than one rider
- Pushing the user
- Traveling at an unsafe speed
• This product is intended for residential use only.
BATTERY WARNINGS
The following safety hazards may result in serious injury or death:
• Use of a battery or charger other than the supplied rechargeable battery and charger may cause a fire or
explosion. Only use the supplied battery and charger.
• Use of the rechargeable battery and charger for any other product may result in overheating, fire, or
explosion. Never use the supplied rechargeable battery and charger with another product.
• Explosive gases are created during charging. Charge the battery in a well-ventilated area. Do not charge
the battery near heat or flammable materials.
• Contact between the positive and negative terminals may result in fire or explosion. Avoid direct contact
between the terminals. Picking up the battery by the wires or charger can cause damage to the battery
and may result in a fire. Always pick up the battery by its case or handles.
• Liquids on the battery may cause fire or electric shock. Always keep all liquids away from the battery and
keep the battery dry. Contact or exposure to battery leakage (lead acid) may cause serious injury. If
contact or exposure occurs immediately call your physician. If the chemical is on the skin or in the eyes,
flush with cool water for 15 minutes. If the chemical was swallowed, immediately give the person water or
milk. Do not give water or milk if the patient is vomiting or has a decreased level of alertness. Do not
induce vomiting.
• Battery posts, terminals, and related accessories contain lead and lead compounds (acid) – chemicals
known to the State of California to cause cancer, reproductive harm, and are toxic and corrosive. Never
open the battery.
• Tampering or modifying the electric circuit system may cause a shock, fire or explosion and permanently
damage the system. Exposed wiring and circuitry in the charger may cause electric shock. Always keep
the charger housing closed.
4 |

To reduce the risk of injury, adult supervision is required. Never use on roadways, near motor vehicles, on
or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never
allow more than one rider.
• RISK OF FIRE. Do not bypass. Replace only with 3A fuse.
• Never leave a child unattended.
• Always sit in the seat when using this vehicle.
• Keep your hands, hair, and clothes away from moving parts.
• Children under 1.5 years of age cannot use the vehicle.
• Only drive on level ground.
• Do not drive the vehicle into loose dirt, mud, sand, fine gravel, or on wet surfaces.
SPECIFICATIONS
Overall Dimensions
Weight
Weight Capacity
Age Range
Max Speed
Charging Time
Run Time
Battery Type
Electric Motor
Charger Input
Charger Output
27"(L) x 17.5"(H) x 17.8"(H)
12.1 lbs.
44 lbs.
1.5 - 3 years old
1.8 mph.
8 – 12 hours
Initial Charge Time 12 hours
1 – 2 hours
6V 4.5AH
DC 6V
100-240V AC
DC 6V 500mA
Material PP Plastic, Metal
| 5
WARNING

6 |
APPROXIMATELY
45 MIN.
ASSEMBLY
2 PERSON
ASSEMBLY
TOOLS REQUIRED
PARTS
PLASTIC
WRENCH
(2, PROVIDED)
1 PC
ATV BODY
1 PC 1 PC
HANDLEBARS
4 PCS
WHEEL COVER
D
1 PC
REAR AXLE
AB
F
E
1 PC
REAR SUPPORT
MOTOR
C
PHILLIPS
SCREWDRIVER
HARDWARE
1
4 PCS
SELF-TAPPING
SCREW

| 7
DIAGRAM ON/OFF BUTTON
CHARGING PORT
J
1 PC
6V CHARGER
PARTS
1 PC
FRONT AXLE
G
4 PCS
WHEEL IH
2 PCS
FRONT BUMPER

8 |
PRODUCT ASSEMBLY
1Place the part A ATV body on a flat, covered surface to prevent scratches, then locate the part
I front axle.
Remove the pre-assembled hardware: two nuts, two washers, and two square tube covers.
2On the bottom of the part A ATV body, place the square tube covers onto the square pipe.
Insert the part I front axel through the square pipe then secure by replacing the hardware.
I
A
I

| 9
PRODUCT ASSEMBLY
3Locate the part D rear axle and remove the pre-assembled hardware, set this hardware aside.
NOTE :Leave the bushings on the axle in place.
4Remove the pre-assembled hardware from the part I front axle, then set aside.
Locate the part C motor and plug the adapter into the receiver at the back of the part A ATV
body.
Push the part D rear axle through the opening in the back of the ATV body and the part C
motor.
D
C
D

10 |
PRODUCT ASSEMBLY
5Attach two part G wheels to the part D & I axles, secure with each axle’s respective hardware,
then ax four part F wheel covers.
G
x4
F
x4

| 11
PRODUCT ASSEMBLY
6Attach the part E rear support to the part A ATV body with four part 1 self-tapping screws.
1x4
E

12 |
PRODUCT ASSEMBLY
7Flip the ATV body upright so all four wheels touch the ground.
Locate the part B handlebars and remove the pre-assembled hardware, insert the handlebars
into the ATV body, then thread the handlebar shaft through the hole on the part I front axle.
Reattach the hardware to secure.
B

| 13
PRODUCT ASSEMBLY
8Attach two part H front bumpers to the front of the ATV.
9Locate knob on the seat of the ATV body. Turn the knob counterclockwise to open the seat.
H
x2

14 |
PRODUCT ASSEMBLY
10 Thread the handlebar’s wire through opening and into the recess under the seat.

| 15
PRODUCT ASSEMBLY
11 Connect the handlebar wire to the motor wire, then connect the power terminal as shown.
Replace the seat.

B
16 |
Please retain these instructions for future reference.
USER INSTRUCTIONS
1. After completing the initial charge (see charging instructions), have the user sit on the designated seat.

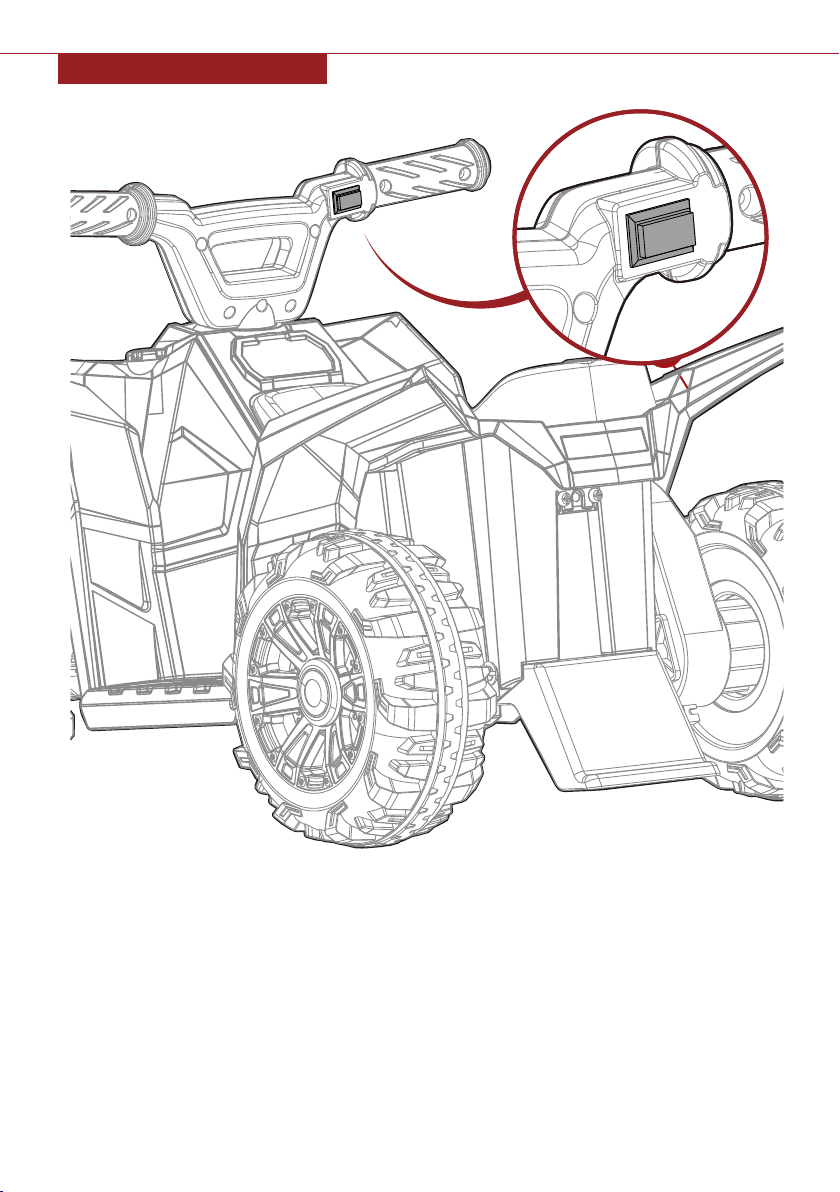

2. Locate the on/o switch on the handlebar.
3. This product has no braking capabilities, press and hold the on/o switch to make the ride on move
forward; release the button to stop.

| 17
CARING FOR YOUR RIDE-ON
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Do not leave the vehicle in the sun for long periods of time or fading may occur. Store in shade or cover with tarp.
• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap.
• Charge battery at least once a month to prolong the life of the battery.
CHARGING INSTRUCTIONS
1. Charging connector is located at the rear of the seat.
2. Insert part J charger into the charging port and plug the other end into a wall outlet.
3. Charge the battery 12 hours before initial use.
4. When fully charged, unplug part J charger from the wall outlet, then place it under the seat.

18 |
TROUBLESHOOTING
Reason
Low battery
Electrical protection
Switch not in the correct position
Battery connectors disconnected
Low battery
Overloaded vehicle
Uneven or sloped road
Loose connection to motor
Handle bars is not properly
connected
Battery connectors disconnected
Charger not connected to socket
or outlet
Battery does not have a full charge
Normal
Problem
Battery is warm and makes
a slight noise while charging
Slow speed
Vehicles shakes while
driving
Vehicle is silent
Battery does not last
Battery does not recharge
Vehicle does not move
Solution
Fully charge the battery
Stop use for several minutes and restart
Completely press in switches
Plug in battery connectors
Fully charge the battery
Reduce the weight on the vehicle
Drive on flat pavement
Ensure the motor is properly connected to
the battery
Properly connect the handle bars
Plug in battery connectors
Completely plug in the charger
Fully charge the battery
Normal
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This product may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Responsible party (contact for FCC matters only):
Quality Control Dept.
15101 Red Hill Ave.
Tustin, CA 92780
FCC COMPLIANCE STATEMENT

CALIFORNIA PROPOSITION 65
WARNING: Battery posts, terminals, and related accessories can expose you to chemicals including
lead and lead compounds, which are known to the State of California to cause cancer and birth defects or
other reproductive harm, and are toxic and corrosive. Wash hands after handling. For more information go
to www.P65Warnings.ca.gov

All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long
as the item is returned in its original product packaging and all accessories from its original shipment are
included. All returned items will receive a full refund back to the original payment method. All returned
items will not be charged a re-stocking fee.
All returned items require an RA (Return Authorization) number, which can only be provided by a Best
Choice Products Customer Service Representative when the return request is submitted. Items received
without an RA may not be accepted or may increase your return processing time. Once an item has been
received by Best Choice Products, refunds or replacements will be processed within 5 business days.
All returns must be shipped back to the Best Choice Products Return Center at the customer’s expense. If
the reason for return is a result of an error by Best Choice Products then Best Choice Products will provide
a pre-paid shipping label via email. Boxes for return shipping will not be provided by Best Choice Products,
and is the customer’s responsibility to either use the original shipping boxes or purchase new boxes.
Pictures may be required for some returns to ensure an item is not damaged prior to its return. Items
returned are not considered undamaged until they are received by Best Choice Products and verified as
such. All damages to items are the customer’s responsibility until the item has been received by and
acknowledge by Best Choice Products as undamaged.
PRODUCT WARRANTY INFORMATION
Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or
loss, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use,
inadequate maintenance, unapproved modification, or neglect of this product.
HELP CENTER
Product Assembly
Product InquiryChat Support Returns & Refunds
Orders FAQ
WARNING
Question about your product? We're here to help. Visit us at:
help.bestchoiceproducts.com
CHAT
US!
