Beef Eater DISCOVERY BMG1231BBE User manual

Assembly and Operating Instructions
FOR OUTDOOR USE ONLY
DISCOVERY
SERIES
1000 MOBILE
NATURAL GAS (METHANE)
BMG1231BBE BMG1231SBE
BMG1241BBE BMG1241SBE
BMG1251BBE BMG1251SBE
EUROPE
BMAN_Discovery1000_EU_NG_Sep20

2
Dear customer,
Congratulations and thank you for choosing our barbecue.
We are sure you will find it a pleasure to use. Before you use
the barbecue, we recommend that you read through the
relevant sections of this manual, which provide a description
of your appliance and its functions.
To avoid the risks that are always present when you use
an appliance, it is important that the appliance is installed
correctly and that you read the safety instructions carefully to
avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the appliance, please check it is not
damaged. If in doubt, do not use the appliance but contact
your local customer care centre.
This appliance complies with requirements of
EN 498:2012 & EN484:2019.
Conditions of use
These important notes apply to your appliance, failure to
adhere to these conditions of use may affect your ability to
make a claim under the manufacture’s warranty.
• This appliance must be serviced only by a qualified
licenced person.
• This product is intended for personal, domestic or
household use only, not commercial use.
• This product is intended for outdoor use only.
• This product must be installed, operated and maintained
as per the instructions.
• Ventilation holes in the unit must not be obscured by the
installation.
Please ensure you read the instruction manual fully
before you call for service, or a full service fee could
be applicable.
Record model and serial number here:
Model number: ...............................................................................
Serial number: ................................................................................
PNC: ................................................................................................
CONTENTSCONGRATULATIONS
IMPORTANT INFORMATION THAT MAY
IMPACT YOUR MANUFACTURER’S WARRANTY
Adherence to the directions for use in this manual
is extremely important for health and safety. Failure
to strictly adhere to the requirements in this manual
may result in personal injury, property damage
and affect your ability to make a claim under the
BeefEater manufacturer’s warranty provided with
your product. Products must be used, installed and
operated in accordance with this manual. You may
not be able to claim on the BeefEater manufacturer’s
warranty in the event that your product fault is due to
failure to adhere this manual.
CONTENTS
Important safety instructions .......................................................3
Gas cylinder safety information ...................................................6
Product description ..................................................................... 8
Product dimensions .................................................................... 9
Trolley assembly ........................................................................ 10
Using your barbecue ................................................................. 21
Technical information ................................................................ 23
Locating your barbecue............................................................. 26
Installation options .................................................................... 27
Cleaning and storing your barbecue ........................................ 28
Maintenance .............................................................................. 29
Troubleshooting ......................................................................... 30
Warranty .....................................................................................31
Please read the user manual carefully and store in a handy
place for later reference.
The symbols you will see in this booklet have these
meanings:
WARNING
WARNING
This symbol indicates information concerning your
personal safety.
WARNING
CAUTION
This symbol indicates information on how to avoid damaging
the appliance.
TIPS & INFORMATION
IMPORTANT
This symbol indicates tips and information about use
of the appliance.
ENVIRONMENTAL TIPS
ENVIRONMENT
This symbol indicates tips and information about economical
and ecological use of the appliance.

3
Please read the user manual carefully and store in a handy
place for later reference.
TIPS & INFORMATION
IMPORTANT
Important – check for any damages or marks
If you find the barbecue is damaged or marked, you must
report it within 7 days if you wish to claim for damage/marks
under the manufacturer’s warranty. This does not affect
your statutory rights.
ENVIRONMENTAL TIPS
ENVIRONMENT
Information on disposal for users
• Most of the packing materials are recyclable.
Please dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.
• If you wish to discard this product, please contact
your local authorities and ask for the correct method
of disposal.
WARNING
WARNING
This appliance must be serviced only by a qualified
licensed person.
Improper installation, adjustment, alteration or
maintenance can cause injury or property damage and
may affect your ability to claim under the manufacturer’s
warranty.
Please contact your nearest BeefEater Service
Department for additional information or assistance
for an approved installer.
Note to the installer
This manual must remain with the owner for future reference.
WARNING
WARNING
• Accessible parts may be very hot. Keep young
children away.
• Read instructions before using the appliance
• Do not move the appliance during use
• Turn off the gas supply at the cylinder after use.
• Use protective gloves when handling particularly hot
components.
• Do not lean over barbecue when lighting.
• Do not leave the barbecue unattended when alight.
• Do not delay lighting once the gas has been turned on.
• Do not place articles on or against this appliance
• Do not spray aerosols in vicinity of this appliance while
it is in operation.
• Do not use or store flammable materials in or near
this appliance.
• Do not use caustic or abrasive based cleaners on
the barbecue.
• Do not attempt to dismantle or adjust the control valves.
• Do not attempt to dismantle or adjust the regulator.
• Do not test for leaks with a naked flame.
• Do not modify this appliance.
• Do not obstruct any ventilation of the barbecue.
• Parts sealed by the manufacturer or his agent shall not
be manipulated by the user.
• Check whether the venturis of burners are blocked
before using the appliance.
Failure to adhere to the above warnings may cause injury
or property damage and affect your ability to make a claim
under the manufacturer’s warranty.
WARNING
CAUTION
This appliance is set up for Naural Gas and is labelled
accordingly.
TIPS & INFORMATION
IMPORTANT
BeefEater Barbecues are approved for OUTDOOR USE ONLY
and must not be used in a building, garage or any other
enclosed area.
• BeefEater Barbecues must not be used inside
recreational vehicles or boats.
• Read instructions thoroughly before operating this
Barbecue.
• Save this manual for future reference.
• Always use the Barbecue on a flat, level surface.
• Some foods produce flammable fats and juices. Regular
cleaning is essential.
• Attend an operating barbecue at all times. Damage
caused by fat & grease fires is not covered by warranty.
• When not in use keep Barbecue dry and covered.
WARNING
WARNING
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open hood.
4. If odour continues, immediately call your gas supplier
or your fire department.
For your safety
1. Do not store or use gasoline or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. An LPG cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
IMPORTANT SAFETY INSTRUCTIONS
SAFETY

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING
WARNING
Failure to follow these instructions and observe the
warnings provided in this operations manual could result in
fire, explosion or burn hazard, which could cause property
damage, personal injury or death.
Gas vapour is highly explosive and can cause serious bodily
injury or damage to property if allowed to accumulate in a
confined space and ignited.
This appliance must not be installed under or on any
combustible material. Minimum clearance from combustible
materials to all sides of the appliance is 450mm (18”).
These instructions must be left with the owner.
NOTE:
1. Do not use gas other than the type specified on the
Data Plate.
2. The appliance is designed for use by adults, keep
children away from the barbecue at all times.
3. Use only on a flat, level, stable non-combustible surface.
Do not use this appliance on any surface that can burn
or melt.
4. When in use, gas cylinder should be kept at designated
mountings of barbecue, and supply hoses kept away
from any hot surfaces.
5. To prevent accidental fires, before using the appliance
ensure that there is no apparent damage to hose and
regulator and all joint connections are in good order and
not leaking.
6. Use a soapy water solution on all joints in order to check
for leaks. If bubbles appear, it indicates that there is a
leak and the appliance must not be used.
7. LPG cylinder, regulator and hose must comply with
national standards.
8. Do not move or attempt to move the appliance while in
operation.
9 Do not operate this appliance before leak checking
hoses and gas cylinder connection.
To the installer
• For fixed installations, this appliance must be installed
in accordance with local authority and any relevant
statutory regulations.
• For fixed installations, refer to relevant statutory
regulations for pipe sizing details.
• Consult other trades. Where required, consult a
bricklayer or an electrician for parts of the installation
that could have an effect on these areas.
• Allow a 20mm gap from back of barbecue body for
ventilation and air access.
• Test appliance for correct operation before leaving, and
instruct user on its use.
• If correct operation cannot be achieved, disconnect
barbecue from gas supply, and contact your nearest
BeefEater dealer.
• Please only use BeefEater supplied hose(s) to connect
this appliance. Natural Gas conversion kits are available
from your nearest BeefEater dealer.
• Australia only (applies to all gas types) : Where a mobile
appliance is to be connected to a fixed gas supply via a
flexible hose connection, a retaining tether of adequate
strength shall be fixed to the appliance and be suitable
to be fixed to the wall within 50mm of each connection
point. The length of the tether shall not exceed 80%
of the length of the hose assembly. In this way, if the
barbecue is accidentally moved, the tether stops the
barbecue from stretching the hose.
Do not
• Lean over barbecue when lighting.
• Leave cooking food unattended.
• Delay lighting burners after turning gas on.
• Spray or store aerosols in vicinity of barbecue whilst
in operation.
• Place articles on or against this appliance
• Store combustible materials, gasoline or flammable
liquids or vapours within 450mm (18”) of barbecue.
• Use caustic based cleaning agents on the barbecue.
• Operate barbecue with any cover on.
• Use plastic or glass utensils on the barbecue.
• Operate barbecue in strong winds.
• Attempt to dismantle control valves.
• Attempt to dismantle or adjust regulator.
• Test for gas leaks with a naked flame.
• Store gas cylinder indoors, or in any enclosed area.
• Lay the gas cylinder down. Always keep it upright.
• Use barbecue indoors.
• Expose hose to direct sunlight.
• Modify the construction of this appliance or the size of
any burner or valve orifice.
SAFETY

5
IMPORTANT SAFETY INSTRUCTIONS
• Move the appliance during use.
• Obstruct any ventilation of barbecue or the cylinder.
• Allow the flexible gas supply hose or any electrical cord
to come in contact with hot surface of the appliance.
• Allow children to operate this appliance.
• Use charcoal or any other solid fuel in this appliance.
• Disconnect any gas fittings while the appliance
is operating.
• Use a rusty or dented gas cylinder or cylinder with a
damaged gas valve.
• Fill the gas cylinder beyond 80% capacity.
• Touch some accessible parts, other than the ones meant
for handling. They may be hot.
Do
• Spanner tighten all gas fittings as per instructions.
• Check all gas hoses and line connections for damage,
cuts or cracks each time the appliance is about to
be used.
• Always leak test with a solution of soapy water.
• Check main opening, throat and venturi to each burner
and pilot flame tube regularly for insect nests (eg. wasp,
ants or spiders). Nests are dangerous and must be
cleaned out thoroughly.
• Visually check burner flames to confirm lighting.
• Use your barbecue only on a level surface.
• Attend barbecue whilst cooking food.
• Preheat the barbecue for up to 10 minutes.
• After cooking turn barbecue to high for up to 10 minutes
to burn off excess grease.
• Let the barbecue cool before replacing any lid or cover.
• Regularly replace foil material in grease/drip tray.
• Keep children away from barbecue at all times.
• Have the gas cylinder filled by an authorised
LPG supplier.
• Refer to this instruction manual if in doubt concerning
assembly, installation, or operation.
• Use protective gloves when handling hot components.
• Close the gas cylinder valve after each use.
• Clean the grease/drip tray regularly and clean the
appliance at least twice annually.
• Always remove any lid or cover off the appliance
before lighting.
• Carefully follow the instructions relating to the hose/
regulator connection.
• Keep the barbecue area free from combustible
materials, gasoline, flammable liquids or vapours.
TIPS & INFORMATION
IMPORTANT
Should the appliance go out for any reason, turn off all
control knobs and the cylinder gas valve. Wait 5 minutes
before attempting to relight the appliance.
• If a grease or fat fire should occur, immediately turn off
all control knobs and the gas cylinder valve until the fire
is out. Remove all food from the appliance.
• A leak test must be carried out prior to using the
appliance for the first time and whenever the gas
cylinder is refilled or whenever the gas hose and
regulator have been disconnected from the gas cylinder
or appliance.
SAFETY

6
GAS CYLINDER SAFETY INFORMATION
Gas cylinders must be stored outdoors, out of reach of
children and must not be stored in a building, garage or any
other enclosed area.
• This appliance is designed to be used with a gas cylinder
not exceeding 9kg (20lbs) capacity. The overall size of the
gas bottle should not exceed 315mm in diameter and
460mm in height.
• The Gas cylinder must be constructed and marked in
accordance with specifications for LP Gas Cylinders.
• Ensure gas cylinder is within the expiration date, it is not
advised to use or attempt to refill a gas cylinder that is
outside of it’s expiration date.
• The gas cylinder supply valve must be turned off when
the appliance is not in use.
• The gas cylinder used must incorporate a safety collar to
protect the valve assembly.
• The gas cylinder must always be kept and used in the
upright position.
TIPS & INFORMATION
IMPORTANT
When disconnecting and removing the gas cylinder for
the purpose of refilling, always observe the following
procedure:
• Ensure that all gas control valves on the appliance and
the gas cylinder are turned off before disconnecting the
gas line from the cylinder.
• Do not smoke or use a naked flame near the appliance
or gas cylinder while disconnecting the gas line between
the appliance and gas cylinder.
• Remove the gas cylinder from the enclosure before
disconnecting the gas line from the appliance.
• Tighten all connections before placing the gas cylinder
back in its enclosure.
The Gas Leak Testing Procedure should be conducted every
time the gas cylinder is refilled and reconnected to the
appliance – before using the appliance.
Regulator Connection
1. Check that all control knobs are in the ‘Off’ position.
2. Make sure the cylinder valve is off by turning the valve
knob all the way clockwise.
3. Remove the protective cap from the cylinder if present.
4. Make connection as described in figures 1 and 2.
5. Leak-test the connection with a soapy water solution.
(See Gas Leak Testing Procedure).
Hose and regulator replacement must be a genuine part
specified for this appliance and is obtainable from your
nearest BeefEater stockist.
FIG 1
Standard POL regulator
FIG 2
Quick connect regulator
Gas Leak Test Procedure
Use the following procedure to check for gas leaks.
Never use a naked flame to check for gas leaks.
1. In a small container, mix up a solution of water and
detergent or soap. Mix the solution well.
2. Make sure that the gas supply valve on the gas cylinder
is turned on.
3. Make sure that the gas control valves on the appliance
are all turned off.
4. Using a brush or spray bottle apply the solution to the
gas line and each join in the gas line.
5. Bubbling of the solution will indicate that there is a leak
present.
6. Re-tighten or re-seal any joints that are leaking.
7. If a leak persists then contact your distributor or the
manufacturer for assistance.
GAS CYLINDER SAFETY INFORMATION

7
LPG safety information
• Use only gas cylinders, which meet national and
regional codes. The minimum cylinder size for this
barbecue is 6kg. Ensure that the cylinder can provide
enough fuel to operate the appliance. If in doubt, check
with your local gas supplier.
• Pay attention that when changing the gas cylinder which
shall be carried our away from any source of ignition.
• Never connect a cylinder, which does not meet
local codes.
• All cylinders 7kg or larger that do not sit in the location
provided inside the trolley must be placed on the ground
at the rear of the barbecue.
• Cylinders smaller than 7Kg (maximum size 465mm
high x 306mm wide) may be placed on the hook on the
right side of the barbecue.
• The isolation valve must be turned off when the
appliance is not in use.
• Gas cylinders must be stored in an approved housing out
of reach of children.
• When disconnecting the gas bottle ensure that all the
control valves are in the ‘OFF’ position.
• When reconnecting the hose to the bottle, ensure that
all connections are tight before replacing in storage
compartment.
• Carry out a leakage check as detailed below after each
reconnection.
• Only regulator which complies with EN 16129
can be used.
• The length of hose cannot exceed 1.5m. In Finland, the
length of hose cannot exceed 1.2m.
• It’s necessary to change the flexible tube when the
national conditions require it, and/or depending on
its validity.
• Make sure that the flexible tube is not subjected to
twisting when the appliance is in operation.
LPG SAFETY INFORMATION
LPG SAFETY INFORMATION

8
PRODUCT DESCRIPTION
1 Rack
2 Grill plate
3 Vaporiser x2
4 Burner x2
5 LH side table
6 Spill tray
7 LH side panel
8 Doors
9 Door catches
10 Door striker plate
11 Door catch
12 Hotplate
13 Burner box and hood
14 RH side burner assy
15 Side burner hose
16 Separation panel
17 Brace
18 Grommet
19 RH side panel
20 Gas bottle holder
21 Base panel
22 Caster x2
23 Brake caster x2
1
12
13
14
18
19
20
21
22
23
15
17
16
2
3
4
5
6
7
8
10
11
9
4 burner mobile barbecue
4 burner shown
PRODUCT DESCRIPTION
18

9
PRODUCT DIMENSIONS
4 burner mobile barbecue shown
3 burner 1377mm
4 burner 1527mm
5 burner 1697mm
3 burner 687mm
4 burner 837mm
5 burner 1007mm
887mm
1217mm
930mm
1360mm
27mm
Hood closed
Hood open
550mm
602mm
PRODUCT DIMENSIONS

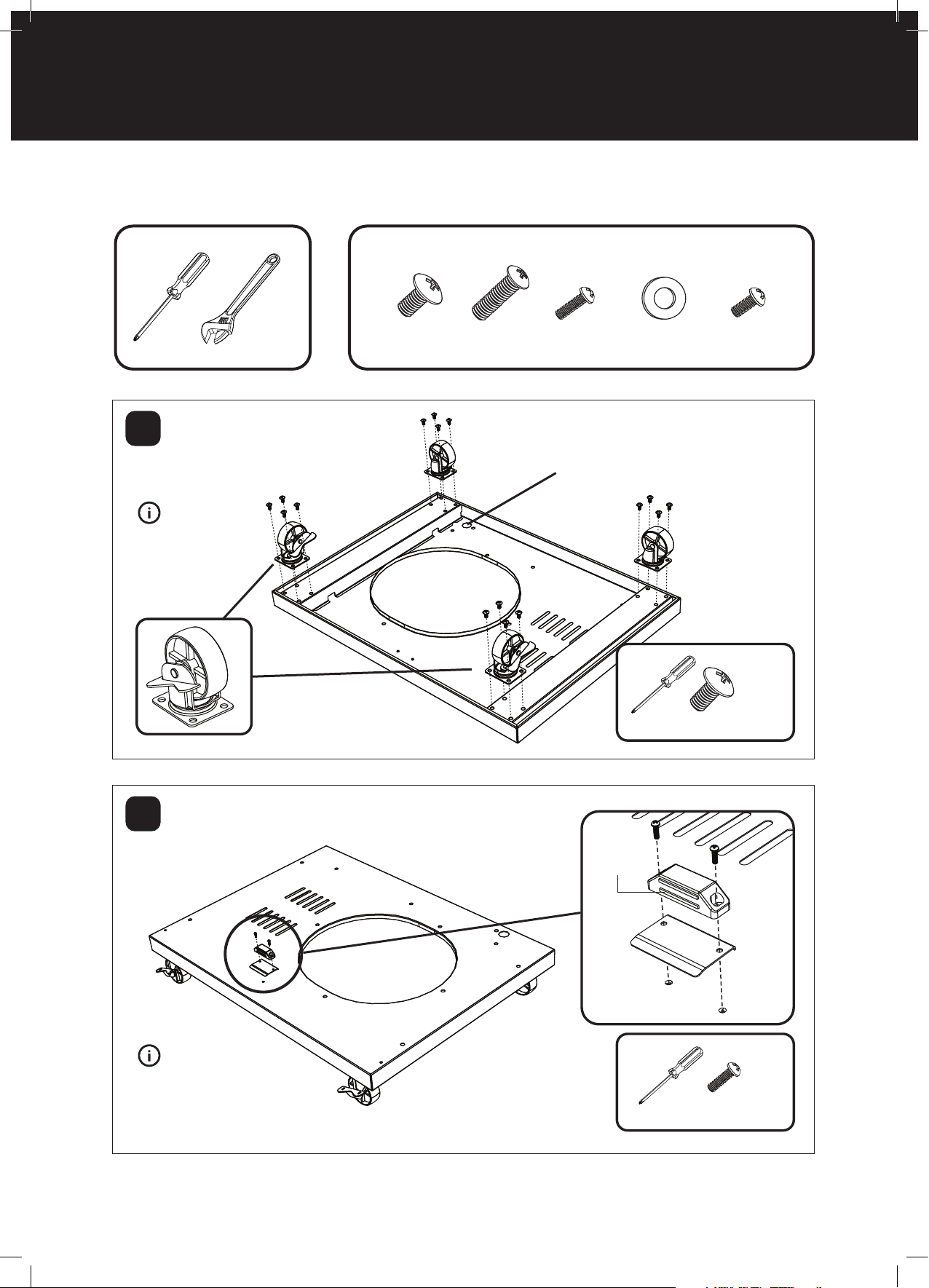

ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE10
Tools required: Fasteners supplied:
x2
x 16
x 2
1
2
TIPS & INFORMATION
IMPORTANT
Ensure the locking type
castors are fitted to the
front of the trolley,
with locks facing outward
This hole indicates the rear side of trolley
TIPS & INFORMATION
IMPORTANT
Install with magnets facing
the front (i.e. toward the
direction
of the locking castors)
Magnets
Large head M6x12mm
M3x10mm
45 x large head
M6x12mm
4 x M6x20mm 2 x M3x10mm 4 x M4x8mm12 x fibre washers

11
ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
x 2

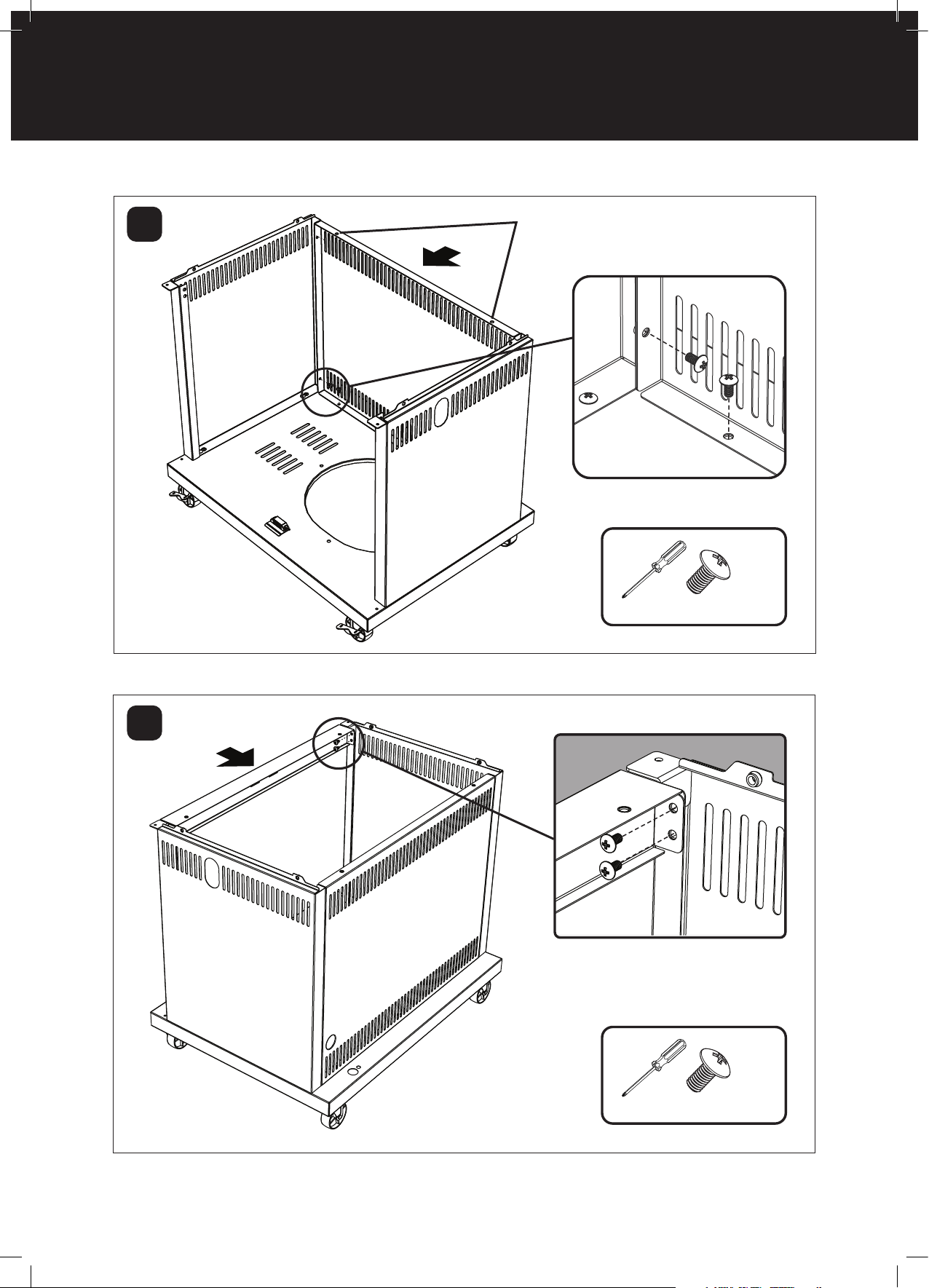

x 2
3
4
Large head M6x12mm
Large head M6x12mm
Fit screws but do not tighten
to position subsequent screws
more easily
Fit screws but do not tighten
to position subsequent screws
more easily

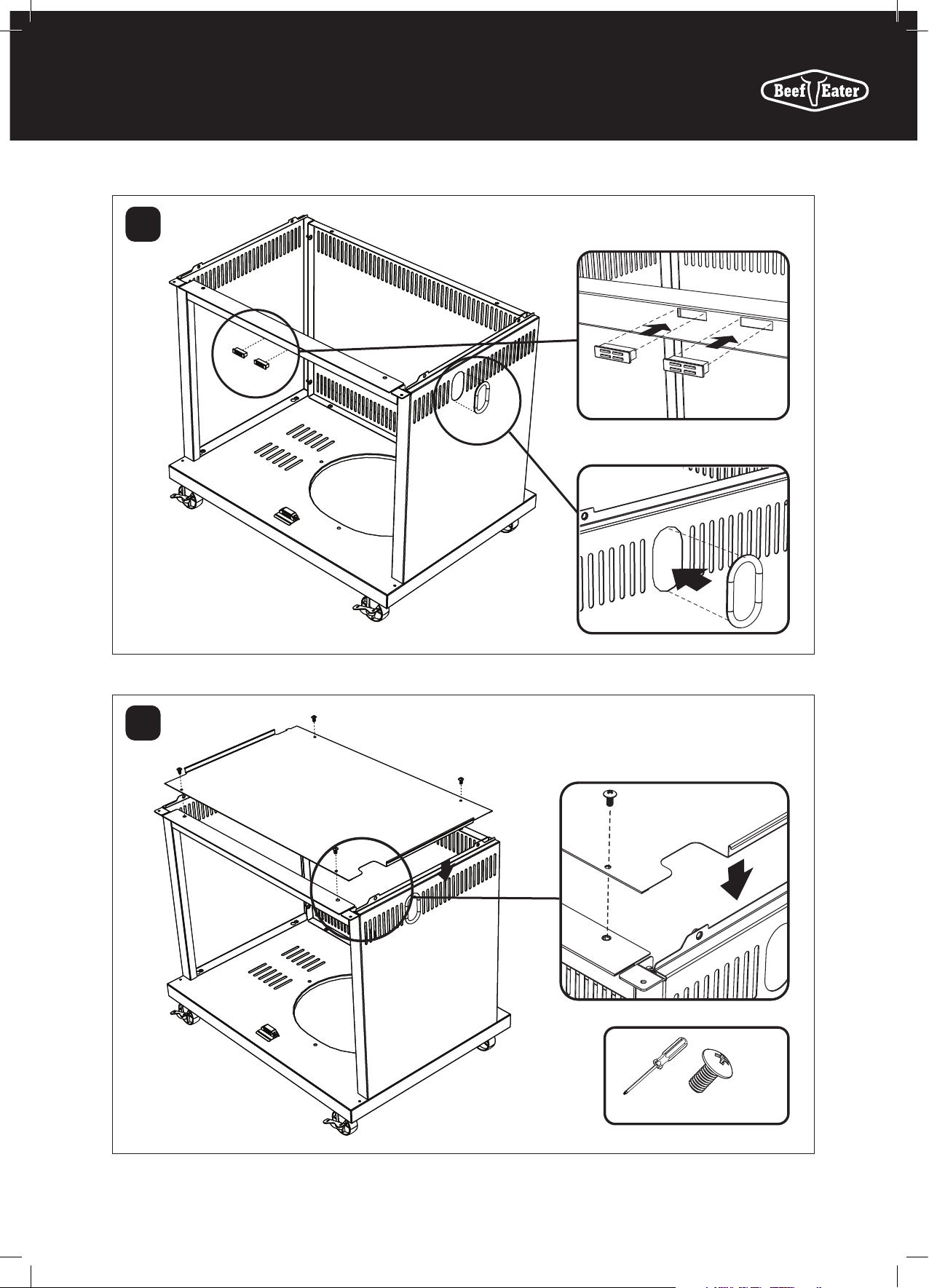

ASSEMBLING THE BARBECUE12
ASSEMBLING THE BARBECUE
x 7
x 4
5
6
Large head M6x12mm
Large head M6x12mm
Fit screws but do not tighten
to position subsequent screws
more easily
Screw holes indicate the top
Tighten all screws to
secure front, rear and
side panels

13ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
x 4
7
8
Large head M6x12mm
Ensure the flange (protruding rim) of the
separation panel engages both the left and right
hand side panels, before screwing in.
Clip magnets in place
Fit Grommet to Right Side Panel

ASSEMBLING THE BARBECUE14
ASSEMBLING THE BARBECUE
9
1 2 3
4
First fit lower door pin into the hole on the base
assembly. Then depress the upper door pin with your
finger, line up with the hole above on the separator
panel, and release to allow the pin into the hole.
Attach handles
to doors with
screws
(M4 x 8mm) x 4
M4x8mm

15ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
10 Ensure Gas Regulator Transport Retaining Tie is removed,
so Regulator can be fed through notch as shown
x 4 x 4
2x LHS 2x RHS
M6x20

ASSEMBLING THE BARBECUE16
ASSEMBLING THE BARBECUE
13
12
11
x 2
x 2
x 2
x 2
1x LHS, 1x RHS 1x LHS, 1x RHS
2x LHS 2x RHS
x 2
1x LHS
x
y
z
M0223787 001 nutsert (M6 NUTSERT.11)
M0223787 001 nutsert (M6 NUTSERT.12)
M0225232 001 bolt (M6 X 12 SCREW.1)
M0225232 001 bolt (M6 X 12 SCREW.2)
M0225232 001 bolt (M6 X 12 SCREW.3)
M0225232 001 bolt (M6 X 12 SCREW.4)
M0225232 001 bolt (M6 X 12 SCREW.5)
M0225232 001 bolt (M6 X 12 SCREW.6)
M0225232 001 bolt (M6 X 12 SCREW.7)
M0225232 001 bolt (M6 X 12 SCREW.8)
M0225232 001 bolt (M6 X 12 SCREW.9)
M0225232 001 bolt (M6 X 12 SCREW.10)
M0225232 001 bolt (M6 X 12 SCREW.11)
M0225232 001 bolt (M6 X 12 SCREW.12)
M0375109 001 screw (#8 X 13 SCREW.1)
M0375109 001 screw (#8 X 13 SCREW.2)
M0375109 001 screw (#8 X 13 SCREW.3)
M0375109 001 screw (#8 X 13 SCREW.4)
M0375109 001 screw (#8 X 13 SCREW.5)
M0375109 001 screw (#8 X 13 SCREW.6)
M0296394 001 bush (BUSH HOOD PIVOT.1)
M0296394 001 bush (BUSH HOOD PIVOT.2)
M0381348 001 bumper (BUMP STOP.1)
M0381348 001 bumper (BUMP STOP.2)
M0381348 001 bumper (BUMP STOP.3)
M0381348 001 bumper (BUMP STOP.4)
M0383974 001 channel (CROSS LIGHT TUBE.1)
M0383974 001 channel (CROSS LIGHT TUBE.2)
M0383974 001 channel (CROSS LIGHT TUBE.3)
M0303158 001 panel (FLAME TAMER.01)
M0303158 001 panel (FLAME TAMER.02)
M0303158 001 panel (FLAME TAMER.03)
M0303158 001 panel (FLAME TAMER.04)
M0297352 001 bottle (9KG GAS BOTTLE .1)
M0322178 001 hose (SEMI RIGID HOSE GAS BOTTLE.1)
M0330802 001 adapter (ADAPTOR.1)
M0388553 001 assembly (HOSE & REGULATOR.1)
Applications
M6x12
M6x12
1x RHS

17ASSEMBLING THE BARBECUE
ASSEMBLING THE BARBECUE
15
14
TIPS & INFORMATION
IMPORTANT
Remove plastic film
if fitted

17
18
19
ASSEMBLING THE BARBECUE18
ASSEMBLING THE BARBECUE

19ASSEMBLING THE BARBECUE
CONNECTING THE SIDE BURNER
2
1
3
x
y
z
M0225232 001 bolt (SCREW M6 X 12.3)
M0225232 001 bolt (SCREW M6 X 12.4)
M0227910 001 bottle (9KG GAS BOTTLE.1)
M0413168 001 hose (HOSE GAS BOTTLE TO SIDE BURNER.1)
M0413381 001 hose (HOSE MANIFOLD TO SIDE BURNER.1)
Constraints
Applications
B
A
A
Then connect it to the side burner like
this (the 90 degree elbow must be on
outside as pictured on left):
Connect the gas hose and regulator
assembly (A) to the side burner
connection using 2 spanners.
For models without side burner and side table, do not disconnect the gas hose and skip steps 1-4 on page 19
VIEW FROM REAR
VIEW FROM REAR
When connecting to side burner, remove
the regulator assy hose (A) as pictured
below left: 
Connect the gas hose (B) to the
remaining connection on the side
burner using 2 spanners.
Gas connection 3/8” SAE Flare with
5/8-18 UNF thread

20
CONNECTING THE SIDE BURNER
CONNECTING THE SIDE BURNER
4
5
B
Connect the other side of gas hose
(B) to the BBQ connection using 2
spanners.
WARNING
WARNING
To ensure gas tight connections,
complete the gas leak test procedure
before and after gas hose connection
and after every reconnection of the gas
cylinder. Failure to do so may result in
a fire or explosion.
Leak test procedure
• Ensure all gas valves are in the ‘OFF’ position.
• In a small container, mix a solution of water and detergent
or soap.
• After connection of the hose, turn on the gas supply at the
gas bottle.
• Using a brush apply the solution to all gas connection
points and look for bubbles forming.
• Bubbling will indicate a leak.
• Turn off the gas supply and re-tighten the joint.
Repeat the leak test.
• If the leak persists, turn off the gas at the bottle and contact
a licensed gas fitter to correct.
