Beko BEHPI 090 User manual

Split-type room
air conditioner
User Manual
EN
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning unit.
Make sure to save this manual for future
reference.
02M-8501003200-4920-01
BIVPI 090 BIVPI 091 BIVPI 120 BIVPI 121
BIVPI 180 BIVPI 181 BIVPI 240 BIVPI 241
BEVPI 090 BEVPI 091 BEVPI 120 BEVPI 121
BEVPI 180 BEVPI 181 BEVPI 240 BEVPI 241
BEHPI 090 BEHPI 091 BEHPI 120 BEHPI 121
BEHPI 180 BEHPI 181 BEHPI 240 BEHPI 241

Please read this user manual rst!
Dear Customer,
Thank you for preferring a Beko product. We hope that you get the best results from
your product which has been manufactured with high quality and state-of-the-art
technology. Therefore, please read this entire user manual and all other accompanying
documents carefully before using the product and keep it as a reference for future
use. If you handover the product to someone else, give the user manual as well.
Follow all warnings and information in the user manual.
Meanings of the symbols
Following symbols are used in the various section of this manual:
This product has been produced in environmentally friendly, modern facilities
Complies with the WEEE Regulation. Does not contain PCB.
C
Important information or useful
hints about usage.
A
Warning for hazardous
situations with regard to life
and property.
Warning to actions that must
never perform.
B
Warning for electric shock.
Warning for hot surfaces.
Do not cover it.
This symbol shows that the
operation manual should be
read carefully.
This symbol shows that a
service personnel should be
handling this equipment with
reference to the installation
manual.
This symbol
shows that this
appliance used
a flammable
refrigerant. If
the refrigerant
is leaked and
exposed to an
external ignition
source, there is a
risk of fire.

Split-type room air conditioner / User Manual 3 / 28 EN
1 Safety instructions 4
2 Unit specifications and features 7
2.1 Unit parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.2 Achieving optimal performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.3 Inverter split type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.4 Fixed-speed type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.5 Other features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Manual operation (without remote) 14
3.1 How to operate your unit without the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Care and maintenance 15
4.1 Cleaning your indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Cleaning your air filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Air filter reminders (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.3.1 Air filter cleaning reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.3.2 Air filter replacement reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4.4 Maintenance – long periods of non-use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.5 Maintenance – pre-season inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5 Troubleshooting 20
5.1 Common issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6 European disposal guidelines 24
7 Installation instructions 25
7.1 F-Gas instruction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8 Specification 26
CONTENTS

4 / 28 EN Split-type room air conditioner / User Manual
WARNING:
Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of
other skilled personnel shall be carried out under the supervision
of the person competent in the use of flammable refrigerants.
For more details, please refer to the “Information on servicing" on
"INSTALLATION MANUAL " (This is only required for the unit adopts
R32/R290 Refrigerant)
Read safety precautions before installation
Incorrect installation due to ignoring instructions can
cause serious damage or injury.
The seriousness of potential damage or injuries is classified as
Warning.
Warning
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
Installation warnings
•Ask an authorized dealer to install this air conditioner. Inappropriate
installation may cause water leakage, electric shock, or fire.
•All repairs, maintenance and relocation of this unit must be
performed by an authorized service technician. Inappropriate
repairs can lead to serious injury or product failure.
1 Safety instructions

Split-type room air conditioner / User Manual 5 / 28 EN
Warnings for product use
•If an abnormal situation arises (like a burning smell), immediately
turn off the unit and pull the power plug. Call your dealer for
instructions to avoid electric shock, fire or injury.
•Do not insert fingers, rods or other objects into the air inlet or
outlet. This may cause injury, since the fan may be rotating at high
speeds.
•Do not use flammable sprays such as hair spray, lacquer or paint
near the unit. This may cause fire or combustion.
•Do not operate the air conditioner in places near or around
combustible gases. Emitted gas may collect around the unit and
cause explosion.
•Do not operate the air conditioner in a wet room (e.g., bathroom or
laundry room). This can cause electrical shock and cause the product
to deteriorate.
•Do not expose your body directly to cool air for a prolonged period
of time.
Electrical warnings
•Only use the specified power cord. If the power cord is damaged, it
must be replaced by the manufacturer or certified service agent.
•Keep power plug clean. Remove any dust or grime that accumulates
on or around the plug. Dirty plugs can cause fire or electric shock.
•Do not pull power cord to unplug unit. Hold the plug firmly and pull
it from the outlet. Pulling directly on the cord can damage it, which
can lead to fire or electric shock.
1 Safety instructions

6 / 28 EN Split-type room air conditioner / User Manual
1 Safety instructions
•Do not use an extension cord, manually extend the power cord, or
connect other appliances to the same outlet as the air conditioner.
Poor electrical connections, poor insulation, and insufficient voltage
can cause fire.
Cleaning and maintenance warnings
•Turn off the device and pull the plug before cleaning. Failure to do
so can cause electrical shock.
•Do not clean the air conditioner with excessive amounts of water.
•Do not clean the air conditioner with combustible cleaning agents.
Combustible cleaning agents can cause fire or deformation.
Warning
•If the air conditioner is used together with burners or other heating
devices, thoroughly ventilate the room to avoid oxygen deficiency.
•Turn off the air conditioner and unplug the unit if you are not going
to use it for a long time.
•Turn off and unplug the unit during storms.
•Make sure that water condensation can drain unhindered from the
unit.
•Do not operate the air conditioner with wet hands. This may cause
electric shock.
•Do not use device for any other purpose than its intended use.
•Do not climb onto or place objects on top of the outdoor unit.
•Do not allow the air conditioner to operate for long periods of time
with doors or windows open, or if the humidity is very high.

Split-type room air conditioner / User Manual 7 / 28 EN

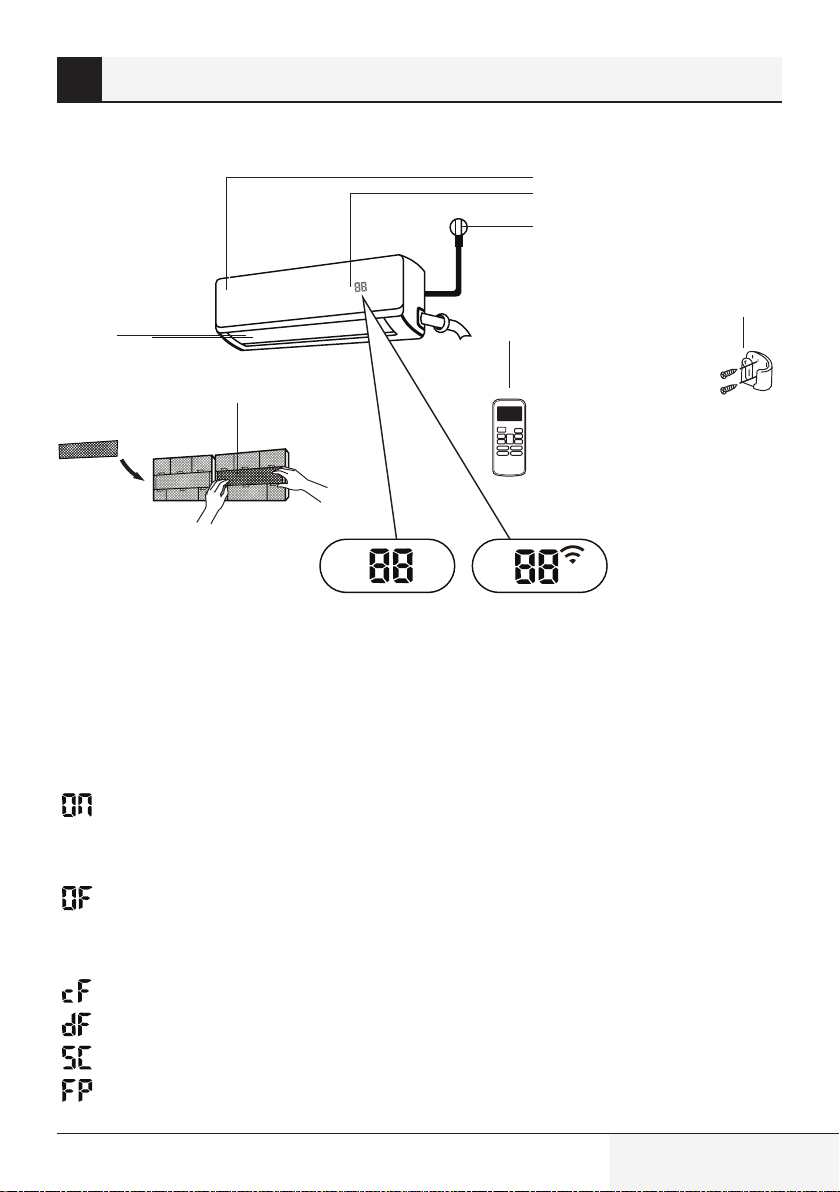

2.1 Unit parts
1
2
3
4
5
6
7
1. Front Panel
2. Display window
3. Power Cable (Some Units)
4. Remote control Holder (Some Units)
5. Remote Control
6. Functional Filter (On Front of Main Filter - Some Units)
7. Louver
Display code meanings
“ ” for 3 seconds when:
• TIMER ON is set
• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned on
“” for 3 seconds when:
• TIMER OFF is sett
• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned off
“” when anti-cold air feature is turned on
“” when defrosting
“” when unit is self-cleaning
“” when freeze protection is turned on
2 Unit specifications and features

8 / 28 EN Split-type room air conditioner / User Manual
2 Unit specifications and features
" " when wireless Control feature is activated (some units)
"" When ECO function(optional) is activated, the ' ' illuminates gradually one by one as -- --
--set temperature-- ...... in one second interval.
In Fan mode, the unit will display the room temperature.
In other modes, the unit will display your temperature setting.
C
Note: A guide on using the infrared remote is not included in this literature package.
2.2 Achieving optimal performance
Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following
temperature ranges. When your air conditioner is used outside of these ranges, certain safety
protection features will activate and cause the unit to perform less than optimally.
2.3 Inverter split type
COOL mode HEAT mode DRY mode
Room temperature 17°C - 32°C
(63°F - 90°F)
0°C - 30°C
(32°F - 86°F)
10°C - 32°C
(50°F - 90°F)
Outdoor temperature
0°C - 50°C
(32°F - 122°F)
-15°C - 30°C
(5°F - 86°F)
0°C - 50°C
(32°F - 122°F)
-15°C - 50°C
(5°F - 122°F)
(For models with
low temp. cooling
systems.)
0°C - 60°C
(32°F - 140°F)
(For special tropical
models)
0°C - 60°C
(32°F - 140°F)
(For special tropical
models)
For outdoor units with auxiliary electric heater
When outside temperature is below 0°C (32°F ), we strongly recommend keeping the unit plugged in
at all time to ensure smooth ongoing performance.

Split-type room air conditioner / User Manual 9 / 28 EN
2.4 Fixed-speed type
COOL mode HEAT mode DRY mode
Room
temperature 17° - 32°C (63° - 90°F) 0° - 30°C
(32° - 86°F)
10° - 32°C (50° - 90°F)
Outdoor
temperature
18° - 43°C (64° - 109°F)
-7° - 24°C
(19° - 75°F)
11° - 43°C (52° - 109°F)
-7° - 43°C (19° - 109°F)
(For models with low-temp
cooling systems)
18° - 43°C (64° - 109°F)
18° - 54°C (64° - 129°F)
(For special tropical models)
18° - 54°C (64° - 129°F)
(For special tropical models)

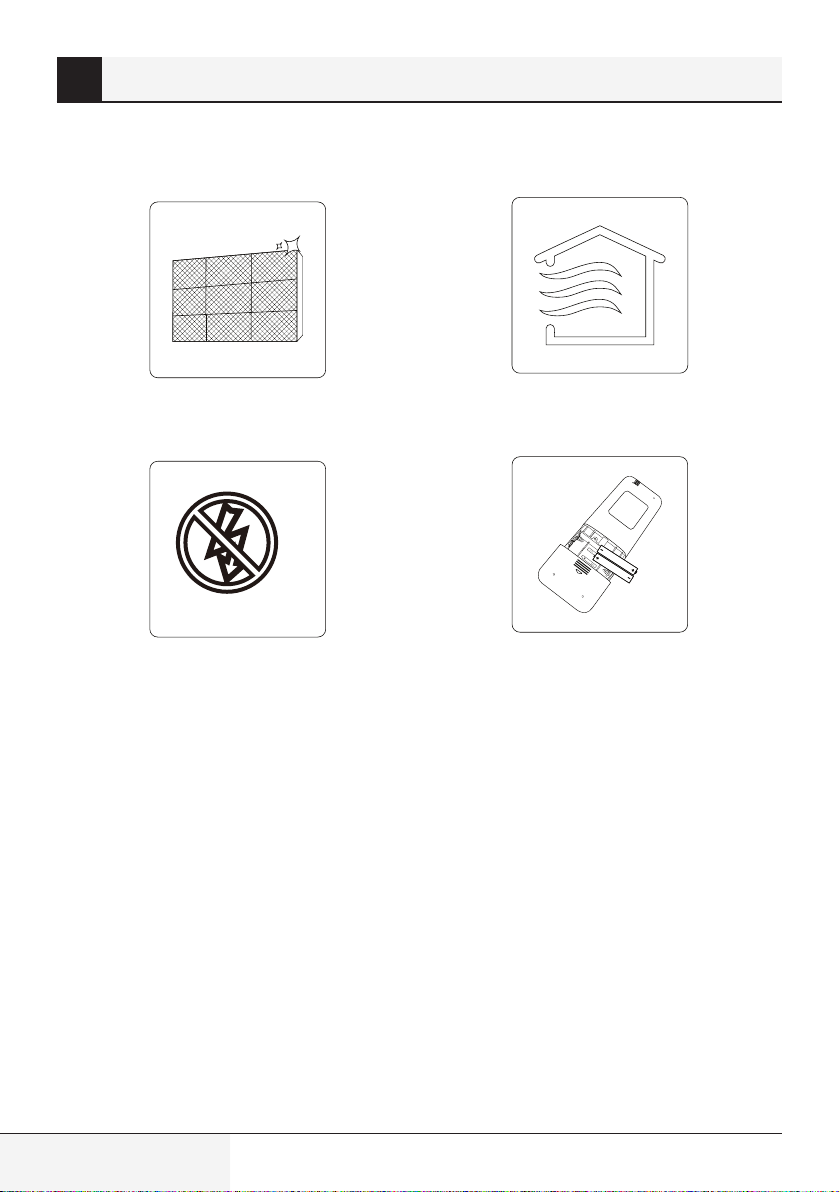

To further optimize the performance of your unit, do the following:
• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
• Regularly inspect and clean air filters.
For a detailed explanation of each function, refer to the Remote Control Manual.
2.5 Other features
• Auto-restart
If the unit loses power, it will automatically restart with the prior settings once power has been
restored.
• Anti-mildew (some units)
When turning off the unit from COOL, AUTO (COOL), or DRY modes, the air conditioner will continue
operate at very low power to dry up condensed water and prevent mildew growth.
• Wireless control (some units)
Wireless control allows you to control your air conditioner using your mobile phone and a Wireless
connection.
• Louver angle memory (some units)
When turning on your unit, the louver will automatically resume its former angle.
• Refrigerant leakage detection (some units)
The indoor unit will automatically display “EC” when it detects refrigerant leakage.
For a detailed explanation of your unit’s advanced functionality (such as TURBO mode and its self-
cleaning functions), refer to the Remote Control Manual.
2 Unit specifications and features

10 / 28 EN Split-type room air conditioner / User Manual
C
Note:
Illustrations in this manual are for explanatory purposes. The actual shape of your
indoor unit may be slightly different. The actual shape shall prevail.
•Setting angle of air flow
Setting vertical angle of air flow
While the unit is on, use the SWING/DIRECT button to set the direction (vertical angle) of airflow.
1. Press the SWING/DIRECT button once to activate the louver. Each time you press the button, it
will adjust the louver by 6°. Press the button until the direction you prefer is reached.
2. To make the louver swing up and down continuously, press and hold the SWING/DIRECT button
for 3 seconds. Press it again to stop the automatic function.
Setting horizontal angle of air flow
The horizontal angle of the airflow must be set manually. Grip the deflector rod (See Fig.B) and
manually adjust it to your preferred direction.
For some units, the horizontal angle of the airflow can be set by remote control. please refer to the
Remote Control Manual.
C
Note on louver angles:
When using COOL or DRY mode, do not set louver at too vertical an angle for long
periods of time. This can cause water to condense on the louver blade, which will drop
on your floor or furnishings. (See Fig.A)
When using COOL or HEAT mode, setting the louver at too vertical an angle can reduce
the performance of the unit due to restricted air flow.
Do not move louver by hand. This will cause the louver to become out of sync. If this
occurs, turn off the unit and unplug it for a few seconds, then restart the unit. This will
reset the louver.
2 Unit specifications and features

Splt-type room ar condtoner / User Manual 11 / 28 EN
Range
Fig. A
A
Warning
Do not keep louver at too vertcal an angle for long perods of tme. Ths
can cause water condensaton to drp on yur furnshngs.
A
Warning
Do not put your fingers in or near the blower and suction side of the unit.
The high-speed fan inside the unit may cause injury.
2 Unit specifications and features

12 / 28 EN Split-type room air conditioner / User Manual
Deflector rod
Fig. B
2 Unit specifications and features

Splt-type room ar condtoner / User Manual 13 / 28 EN
•Sleep operation
The SLEEP functon s used to decrease energy use whle you sleep (and don’t need the same
temperature settngs to stay comfortable). Ths functon can only be actvated va remote control.
Press the SLEEP button when you are ready to go to sleep. When n COOL mode, the unt wll ncrease
the temperature by 1°C (2°F) after 1 hour, and wll ncrease an addtonal 1°C (2°F) after another
hour. When n HEAT mode, the unt wll decrease the temperature by 1°C (2°F) after 1 hour, and wll
decrease an addtonal 1°C (2°F) after another hour.
It wll hold the new temperature for 5 hours, then the unt wll turn off automatcally.
C
Note: The SLEEP function is not available in FAN or DRY mode.
1hr 1hr
+/- 1 C/2 F +/- 1 C/2 F
SLEEP Operation
Set
temperature
7 hours
tmer off
Saving energy during sleep
2 Unit specifications and features

14 / 28 EN Splt-type room ar condtoner / User Manual
3.1 How to operate your unit without the remote control
In the event that your remote control fals to work, your unt can be operated manually wth the
MANUAL CONTROL button located on the ndoor unt. Note that manual operaton s not a long-term
soluton, and that operatng the unt wth your remote control s strongly recommended.
Before manual operation
Unt must be turned off before manual operaton.
To operate your unt manually:
1. Open the front panel of the ndoor unt.
2. Locate the MANUAL CONTROL button on the rght-hand sde of the unt.
3. Press the MANUAL CONTROL button one tme to actvate FORCED AUTO mode.
4. Press the MANUAL CONTROL button agan to actvate FORCED COOLING mode.
5. Press the MANUAL CONTROL button a thrd tme to turn the unt off.
6. Close the front panel.
A
Warning
The manual button is intended for testing purposes and emergency
operation only. Please do not use this function unless the remote is lost
and it is absolutely necessary. To restore regular operation, use the remote
control to activate the unit.

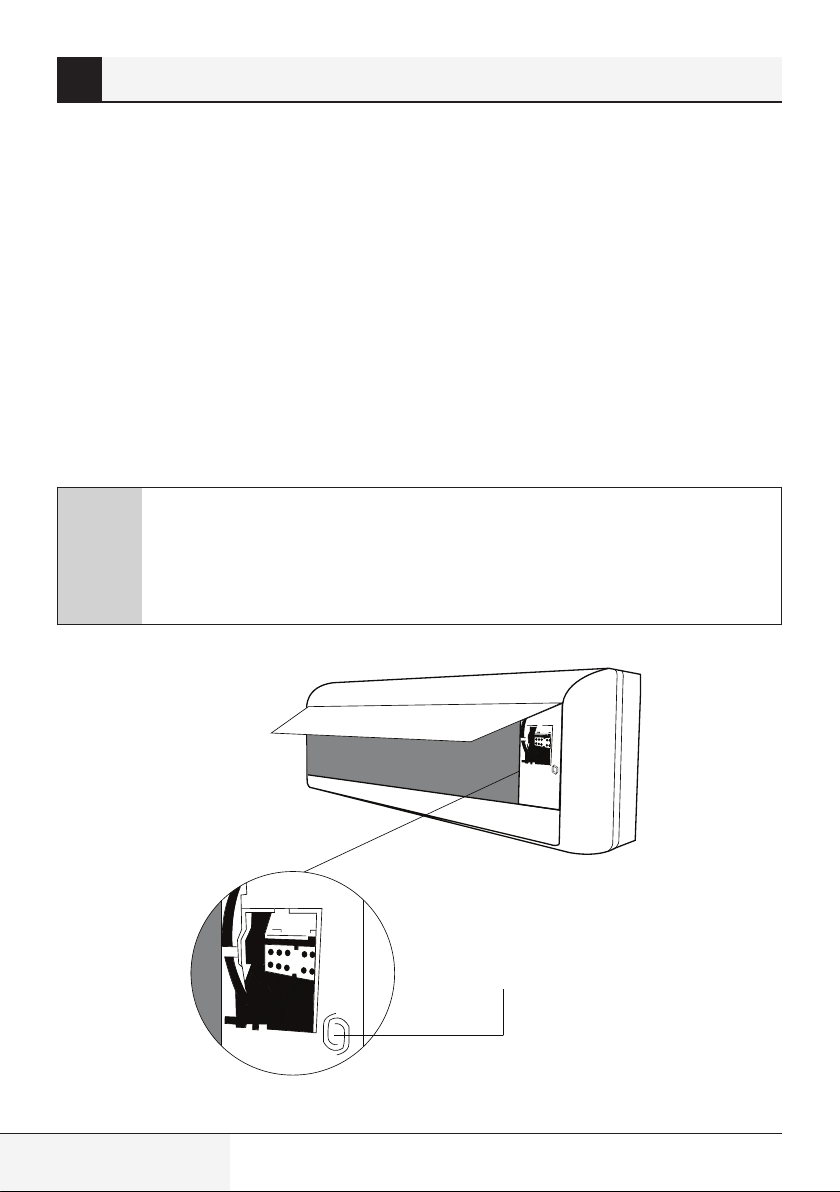

Manual control button
3 Manual operation (without remote)

Split-type room air conditioner / User Manual 15 / 28 EN
4.1 Cleaning your indoor unit
A
Before cleaning or maintenance
Always turn off your air conditioner system and disconnect its
power supply before cleaning or maintenance.
A
Warning
Only use a soft, dry cloth to wipe the unit clean. If the unit is especially
dirty, you can use a cloth soaked in warm water to wipe it clean.
• Do not use chemicals or chemically treated cloths to clean the unit.
• Do not use benzene, paint thinner, polishing powder or other solvents
to clean the unit. They can cause the plastic surface to crack or deform.
• Do not use water hotter than 40°C (104°F) to clean the front panel.
This can cause the panel to deform or become discolored.
4.2 Cleaning your air filter
A clogged air conditioner can reduce the cooling efficiency of your unit, and can also be bad for your
health. Make sure to clean the filter once every two weeks.
1. Lift the front panel of the indoor unit.
2. Grip the tab on the end of the filter, lift it up,then pull it towards yourself.
3. Now pull the filter out.
4. If your filter has a small air freshening filter, unclip it from the larger filter. Clean this air freshening
filter with a hand-held vacuum.
5. Clean the large air filter with warm, soapy water. Be sure to use a mild detergent.
6. Rinse the filter with fresh water, then shake off excess water.
7. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight.
8. When dry, re-clip the air freshening filter to the larger filter, then slide it back into the indoor unit.
9. Close the front panel of the indoor unit.
4 Care and maintenance

16 / 28 EN Split-type room air conditioner / User Manual
Filter Tabs
Remove air freshening filter from back of
larger filter (some units)
A
Warning
Do not touch air freshening (Plasma) filter for at least 10 minutes after
turning off the unit.
4 Care and maintenance

Split-type room air conditioner / User Manual 17 / 28 EN
A
Warning
• Before changing the filter or cleaning, turn off the unit and disconnect its
power supply.
• When removing filter, do not touch metal parts in the unit. The sharp
metal edges can cut you.
• Do not use water to clean the inside of the indoor unit. This can
destroy insulation and cause electrical shock.
• Do not expose filter to direct sunlight when drying. This can shrink the
filter.
4.3 Air filter reminders (optional)
4.3.1 Air filter cleaning reminder
After 240 hours of use, the display window on the indoor unit will flash “CL.” This is a reminder to clean
your filter. After 15 seconds, the unit will revert to its previous display.
To reset the reminder, press the LED button on your remote control 4 times, or press the MANUAL
CONTROL button 3 times. If you don’t reset the reminder, the “CL” indicator will flash again when you
restart the unit.
4.3.2 Air filter replacement reminder
After 2,880 hours of use, the display window on the indoor unit will flash “nF.” This is a reminder to
replace your filter. After 15 seconds, the unit will revert to its previous display.
To reset the reminder, press the LED button on your remote control 4 times, or press the MANUAL
CONTROL button 3 times. If you don’t reset the reminder, the “nF” indicator will flash again when you
restart the unit.
A
Warning
• Any maintenance and cleaning of outdoor unit should be performed by
an authorized dealer or licensed service provider.
• Any unit repairs should be performed by authorized dealer or licensed
service provider.
4 Care and maintenance

18 / 28 EN Split-type room air conditioner / User Manual
4.4 Maintenance – long periods of non-use
If you plan not to use your air conditioner for an extended period of time, do the following:
Clean all filters Turn on FAN function until unit dries out
completely
Turn off the unit and disconnect the power Remove batteries from remote control
4 Care and maintenance

Split-type room air conditioner / User Manual 19 / 28 EN
4.5 Maintenance – pre-season inspection
After long periods of non-use, or before periods of frequent use, do the following:
Check for damaged wires Clean all filters
Check for leaks Replace batteries
Make sure nothing is blocking all air inlets and outlets
4 Care and maintenance

20 / 28 EN Split-type room air conditioner / User Manual
C
Safety precautions
If ANY of the following conditions occurs, turn off your unit immediately!
• The power cord is damaged or abnormally warm
• You smell a burning odor
• The unit emits loud or abnormal sounds
• A power fuse blows or the circuit breaker frequently trips
• Water or other objects fall into or out of the unit
Do not attempt to fix these yourself! Contact authorized service provider
immediately!
5.1 Common issues
The following problems are not a malfunction and in most situations will not require repairs.
Issue Possible causes
Unit does not turn on
when pressing ON/
OFF button
The Unit has a 3-minute protection feature that prevents the unit from
overloading. The unit cannot be restarted within three minutes of being
turned off.
The unit changes
from COOL/HEAT
mode to FAN mode
The unit may change its setting to prevent frost from forming on the
unit. Once the temperature increases, the unit will start operating in the
previously selected mode again.
The set temperature has been reached, at which point the unit turns off
the compressor. The unit will continue operating when the temperature
fluctuates again.
The indoor unit emits
white mist In humid regions, a large temperature difference between the room’s
air and the conditioned air can cause white mist.
Both the indoor and
outdoor units emit
white mist
When the unit restarts in HEAT mode after defrosting, white mist may
be emitted due to moisture generated from the defrosting process.
The indoor unit
makes noises
A rushing air sound may occur when the louver resets its position.
A squeaking sound may occur after running the unit in HEAT mode due
to expansion and contraction of the unit’s plastic parts.
5 Troubleshooting
