Beko BDIN 091 User manual

Air conditioner
User Manual
EN SI
BDIN 090 BDIN 091 BDIN 120 BDIN 121
BDIN 180 BDIN 181 BDIN 240 BDIN 241

This product has been produced in environmentally friendly, modern facilities
Complies with the WEEE Regulation. Does not contain PCB.
Please read this user manual rst!
Dear Customer,
Thank you for preferrng a Beko product. We hope that you get the best results
from your product whch has been manufactured wth hgh qualty and state-of-
the-art technology. Therefore, please read ths entre user manual and all other
accompanyng documents carefully before usng the product and keep t as a
reference for future use. If you handover the product to someone else, gve the user
manual as well. Follow all warnngs and nformaton n the user manual.
Meanings of the symbols
Followng symbols are used n the varous secton of ths manual:
C
Important nformaton or
useful hnts about usage.
A
Warnng for hazardous
stuatons wth regard to lfe
and property.
Warnng to actons that must
never perform.
B
Warnng for electrc shock.
Warnng for danger of fre.
Warnng for hot surfaces.

Ar condtoner / User Manual 3 / 64 EN
1 Safety instructions 4
2 Preparaton before use 6
2.1 Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.2 Safeguardng the envronment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3 Safety precautons 8
4 Identfcaton of parts 10
4.1 Indoor unt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2 Outdoor unt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.3 Dsplay ntroducton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5 Mantenance 13
5.1 Front panel mantenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2 Ar flter mantenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Protecton 15
6.1 Operatng condton. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2 Nose polluton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.3 Features of protector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.4 Features of Heatng mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7 Troubleshootng 17
8 Installaton nstructons 19
8.1 Installaton dagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.2 Select the nstallaton locaton. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.3 Indoor unt nstallaton. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.4 Wrng dagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8.5 Outdoor unt nstallaton. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.6 Ar purgng . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.7 F-Gas nstructon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Contents

4 / 64 EN Ar condtoner / User Manual
• To guarantee the unit work normally, please read the manual
carefully before installation, and try to install strictly according to
this manual.
• Do not let air enter the refrigeration system or discharge refrigerant
when moving the air conditioner.
• Properly ground the air conditioner into the earth.
• Check the connecting cables and pipes carefully, make sure they are
correct and firm before connecting the power of the air conditioner.
• There must be an air-break switch.
• After installing, the consumer must operate the air conditioner
correctly according to this manual, keep a suitable storage for
maintenance and moving of the air conditioner in the future.
• Fuse of indoor unit: T 3.15A 250V.
• For 7k~12k models, fuse of outdoor unit: T 15A 250V or T 20A 250V.
• For 14k~18K models, fuse of outdoor unit: T 20A 250V.
• For 21K~30k models, fuse of outdoor unit: T 30A 250V.
• A residual current device (RCD) with the rating of above 10mA shall
be incorporated in the fixed wiring according to the national rule.
A
Warnng:
Risk of electric shock can cause injury or death:
Disconnect all remote electric power supplies before
servicing.
• The maximum length of the connecting pipe between the indoor
unit and outdoor unit should be less than 5 meters. It will affect
1 Safety instructions

Ar condtoner / User Manual 5 / 64 EN
the efficiency of the air conditioner if the distance longer than that
length.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
• The batteries in remote controller must be recycled or disposed of
properly. Disposal of Scrap Batteries --- Please discard the batteries
as sorted municipal waste at the accessible collection point.
• If the appliance is fixed wiring, the appliance must be fitted with
means for disconnection from the supply mains having a contact
separation in all poles that provide full disconnection under
overvoltage category III conditions, and these means must be
incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
• The appliance shall be installed in accordance with national wiring
regulations.
• The air conditioner must be installed by professional or qualified
persons.
• The appliance shall not be installed in the laundry.
1 Safety nstructons

6 / 64 EN Ar condtoner / User Manual
C
Note
• When charging refrigerant into the system, make sure to charge in liquid state, if the
refrigerant of the appliance is R410A. Otherwise, chemical composition of refrigerant
(R410A) inside the system may change and thus affect performance of the air
conditioner.
• According to the character of refrigerant (R410A, the value of GWP is 2088), the
pressure of the tube is very high, so be sure to be careful when you install and repair
the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
• The air conditioner must be installed by a professional engineer.
• The temperature of refrigerant circuit will be high, please keep the interconnection
cable away from the copper tube.
2.1 Preset
Before using the air conditioner, be sure to check and preset the following.
•Remote Control presetting
Each time after the remote control is replaced with new batteries or is energized, remote control auto
presetting heat pump. If the air conditioner you purchased is a Cooling Only one, heat pump remote
controller can also be used.
•Back-light function of Remote Control (optional)
Hold down any button on remote control to activate the back light. It automatically shuts off
10 seconds later.
CNote:
Back-light is an optional function.
•Auto Restart Presetting
The air conditioner has an Auto-Restart function.
2.2 Safeguarding the environment
This appliance is made of recyclable or re-usable material. Scrapping must be carried out in compliance
with local waste disposal regulations. Before scrapping it, make sure to cut off the mains cord so that
the appliance cannot be re-used.
For more detailed information on handling and recycling this product, contact your local authorities
who deal with the separate collection of rubbish or the shop where you bought the appliance.
2 Preparation before use

Ar condtoner / User Manual 7 / 64 EN
Scrapping of appliance
This appliance is marked according to the European Directive 2012/19/EC, Waste Electrical and
Electronic Equipment (WEEE).
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for
environmental safe recycling.
2 Preparaton before use

8 / 64 EN Ar condtoner / User Manual

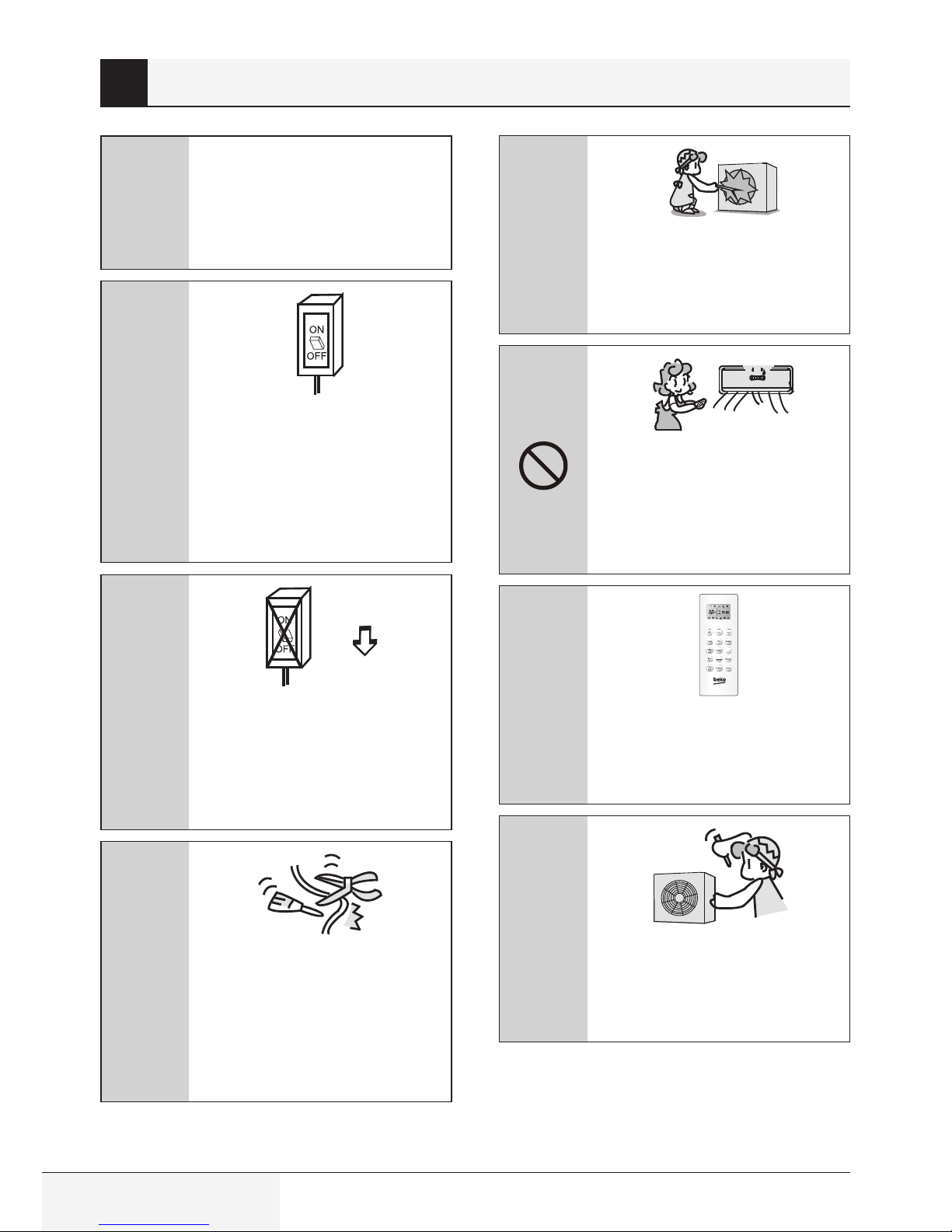

A
Use correct power supply in
accordance with the rating plate
requirement. Otherwise, serious
faults or hazard may occur or a
fire maybe break out.
A
Keep the power supply circuit
breaker or plug from dirt.
Connect the power supply cord
to it firmly and correctly, lest an
electric shock or a fire break out
due to insufficient contact.
A
Do not use the power supply
circuit breaker or pull off
the plug to turn it off during
operation. This may cause a fire
due to spark, etc.
A
Do not knit, pull or press the
power supply cord, lest the
power supply cord be broken. An
electric shock or fire is probably
caused by a broken power
supply cord.
A
Never insert a stick or similar
obstacle to the unit. Since the
fan rotates at high speed, this
may cause an injury.
It is harmful to your health if the
cool air reaches you for a long
time. It is advisable to let the
air flow be deflected to all the
room.
A
Zone
follow
Clock
Turn off the appliance by remote
control firstly before cutting
off power supply if malfunction
occurs.
C
Do not repair the appliance
by yourself. If this is done
incorrectly, it may cause an
electric shock, etc.
3 Safety precautions

Ar condtoner / User Manual 9 / 64 EN
Prevent the air flow from
reaching the gas burners and
stove.
Do not touch the operation
buttons when your hands are
wet.
C
Do not put any objects on the
outdoor unit.
It is the user's responsibility to
make the appliance be grounded
according to local codes or
ordinances by a licenced
technician.
3 Safety precautons

10 / 64 EN Ar condtoner / User Manual
4.1 Indoor unit
11
1
2
3
4
5
6
7
8
9
10
12
13
4.2Outdoor unit
4 Identification of parts
Zone
follow
Clock

Ar condtoner / User Manual 11 / 64 EN
1. Front Panel
2. Air Intake
3. Display Panel
4. Emergency Panel
5. Air Outlet
6. Vertical Adjustment Louver
7. Horizontal Adjustment Louver
8. Air Filter
9. Remote Controller
10. Air Intake
11. Pipes and Power Connection Cord
12. Drain Hose
C
Note: Condensate water drains at
Cooling or Dry operation.
13. Air Outlet
C
Note: The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner you have selected.
4.3Dsplay ntroducton
1
2
3
1. Temperature ndcator
Dsplay set temperature.
It shows FC after 200 hours of usage as remnder to clean the flter.
After flter cleanng press the flter reset button located on the ndoor unt behnd the front panel n
order to reset the dsplay. (optonal)
2. Runnng ndcator
It lghts up when the AC s runnng.
It flashes durng defrostng.
3. Sgnal Receptor
4 Identification of parts

12 / 64 EN Ar condtoner / User Manual
4 Identification of parts
4
4. Emergency button
On/Off: To let the AC run or stop by pressng the button.
C
Note: The symbols may be different from these models, but the functions are similar.

Ar condtoner / User Manual 13 / 64 EN
5.1 Front panel mantenance
1. Cut off the power supply Turn off the appliance first
before disconnecting from
power supply.
2.Grasp position "a" and pull outward to
remove the front panel.
3.Wipe with a soft and dry cloth.
Use soft moisture cloth to clean if the front
panel is very dirty. Use a dry and
soft cloth to
clean it.
4.Never use volatile substance such as
gasoline or polishing powder to clean
the appliance.
5.Never sprinkle water onto the indoor
unit Dangerous!
Electric
shock!
6.Reinstall and shut the front panel.
Reinstall and shut the front panel by pressing
position "b" downward.
bb
5 Maintenance

14 / 64 EN Ar condtoner / User Manual
5.2 Air filter maintenance
It is necessary to clean the air filter after using it for about 200 hours.
Clean it as follows:
1. Stop the appliance and remove the air
filter.
1. Open the front panel.
2. Press the handle of the filter gently from
the front.
3. Grasp the handle and slide out the filter.
1
23
2.Clean and reinstall the air filter.
If the dirt is conspicuous, wash it with a solution
of detergent in lukewarm water. After cleaning,
dry well in shade.
3.Close the front panel again.
C
Note: Clean the ar flter every
two weeks f the ar condtoner
operates n an extremely dusty
envronment.
5 Mantenance

Ar condtoner / User Manual 15 / 64 EN
6.1 Operating condition
The protective device maybe trip and stop the appliance in the cases listed below.
Heating
Outdoor air temperature is over 24°C
Outdoor air temperature is below -10°C
Room temperature is over 27°C
Cooling Outdoor air temperature is over *43°C
Room temperature is below 21°C
Dry Room temperature is below 18°C
* For Tropical (T3) Climate condition models, the temperature point is 55°C instead of 43°C.
The temperature of some products is allowed beyond the range. In specific situation, please consult
the merchant.
If the air conditioner runs in Cooling or Dry mode with door or window opened for a long time when
relative humidity is above 80%, dew may drip down from the outlet.
6.2Noise pollution
• Install the air conditioner at a place that can bear its weight in order to operate more quietly.
• Install the outdoor unit at a place where the air discharged and the operation noise would not annoy
your neighbors.
• Do not place any obstacles in front of the air outlet of the outdoor unit lest it increases the noise
level.
6.3Features of protector
1. The protective device will work at following cases.
• Restarting the unit at once after operation stops or changing mode during operation, you need to
wait 3 minutes.
• Connect to power supply and turn on the unit at once, it may start 20 seconds later.
2. If all operation has stopped, press On/Off button again to restart, Timer should be set again if it has
been canceled.
6 Protection

16 / 64 EN Ar condtoner / User Manual
6.4Features of Heating mode
Preheat
At the beginning of the Heating operation, the airflow from the indoor unit is discharged 2-5 minutes
later.
Defrost
In Heating operation the appliance will defrost (de-ice) automatically to raise efficiency. This
procedure usually lasts 2-10 minutes. During defrosting, fans stop operation.
After defrosting completes, it returns to Heating mode automatically.
C
Note: Heating is NOT available for cooling only air conditioner models.
6 Protecton

Ar condtoner / User Manual 17 / 64 EN

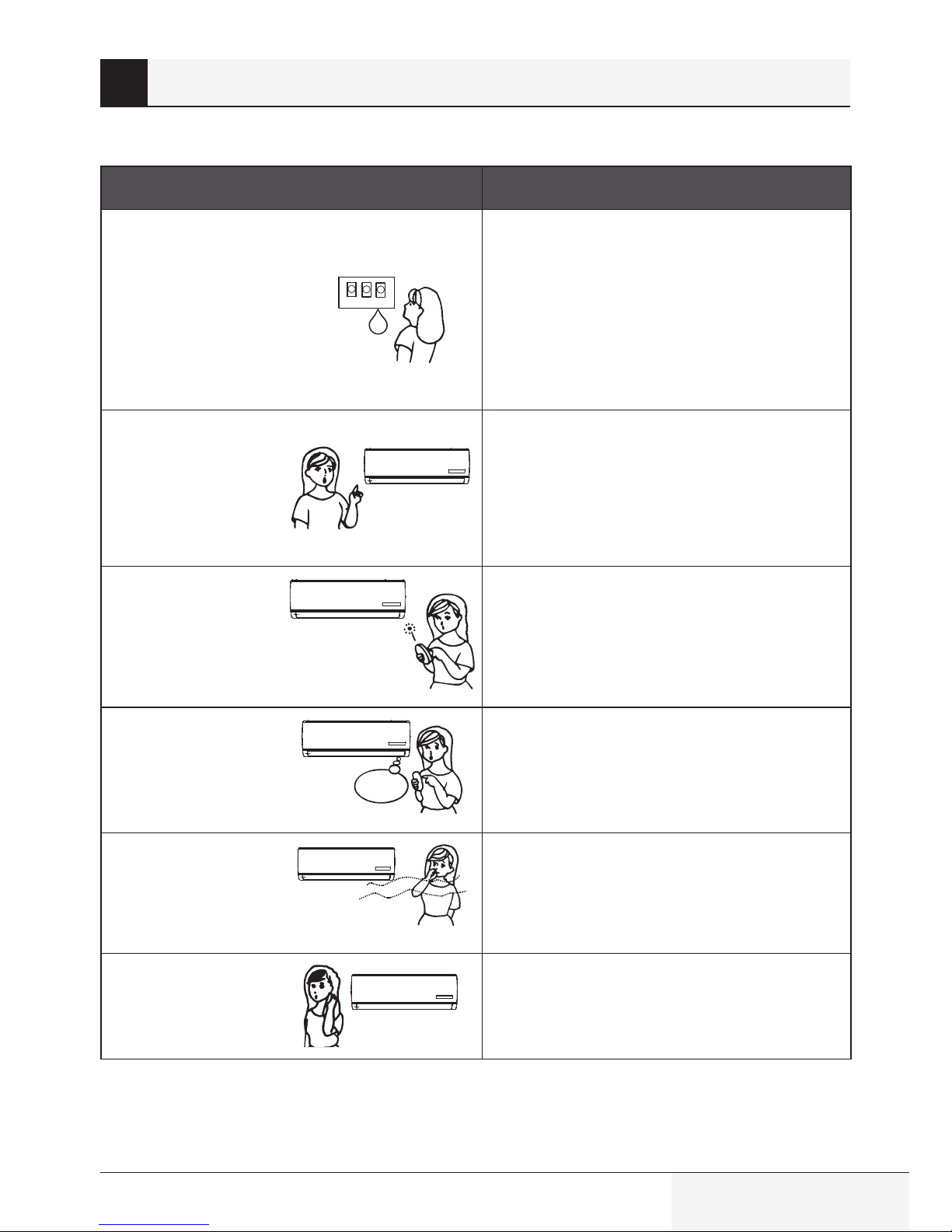

The following cases may not always be a malfunction, please check it before asking for service.
Trouble Analysis
Does not run
• If the protector trip or fuse is blown, please
wait 3 minutes and start again. The protector
device may be preventing unit from working.
• The batteries in the remote control may be
dead.
• Check to see if the appliance is properly
plugged in.
No cooling or heating
air
• Is the air filter dirty?
• Are the intakes and outlets of the air
conditioner blocked?
• Is the temperature set properly?
• Are doors or windows open?
Ineffective control
• If there is strong interference (from excessive
static electricity discharge or power supply
voltage abnormality), the appliance may
operate abnormally. Disconnect the power
supply and connect back 2-3 seconds later.
Does not operate
immediately don't run
• Changing mode during operation, 3 minutes
will delay.
Peculiar odor
• This odor may come from another source
such as furniture, cigarette etc, which is
sucked in the unit and blows out with the air.
A sound of flowing
water
• Caused by the flow of refrigerant in the air
conditioner. Not a cause for concern.
• Sound of defrosting during heating mode.
7 Troubleshooting

18 / 64 EN Ar condtoner / User Manual
Trouble Analysis
Cracking sound is
heard
• The sound may be generated by the
expansion or contraction of the front panel
due to change of temperature.
Spraying mist from
the outlet
• Mist appears when the air in the room
becomes very cold. This is because of the cool
air discharged from the indoor unit during
Cooling or Dry modes.
The compressor indicator lights on constantly,
running indicator flashes and indoor fan stops.
• The unit is shifting from heating mode to
defrost. The indicator will light off and return
to heating mode.
7 Troubleshootng

Ar condtoner / User Manual 19 / 64 EN
8.1 Installation diagram
Distance from ceiling should
be over 200mm.
Distance from wall
should be over 50mm
Distance from the wall
should be over 50mm
Air intake distance from the wall
should be over 250mm
ar outlet dstance from the wall
should be over 500mm
over 250mm
Air intake distance from the
wall should be over 250mm
Distance from floor should be
over 2500mm.
Distance from ceiling should
be over 200mm.
Distance from wall
should be over 50mm
Distance from the wall
should be over 50mm
Air intake distance from the wall
should be over 250mm
ar outlet dstance from the wall
should be over 500mm
Air intake distance from the
wall should be over 250mm
Distance from floor should be
over 2500mm.
8 Installation instructions

20 / 64 EN Ar condtoner / User Manual
C
Note:
• Above figure is only a simple presentation of the unit, it may not match the external
appearance of the unit you purchased.
• Installation must be performed in accordance with the national wiring standards by
authorized personnel only.
8.2Select the installation location
Location for installing indoor unit
• Where there is no obstacle near the air outlet and air can
be easily blown to every corner.
• Where piping and wall hole can be easily arranged.
• Keep the required space from the unit to the ceiling and
wall according to the installation diagram on previous page.
• Where the air filter can be easily removed.
• Keep the unit and remote controller 1m or more apart from
television, radio etc.
• Keep as far as possible from fluorescent lamps.
• Do not put anything near the air inlet to obstruct it from air
absorption.
• Install on a wall that is strong enough to bear the weight of
the unit.
• Install in a place that will not increase operation noise and
vibration.
• Keep away from direct sunlight and heating sources. Do not
place flammable materials or combustion apparatuses on
top of the unit.
Indoor unit
Pipe length is
15 meters Max.
Height should be
less than 5m
Outdoor unit
8 Installaton nstructons
