Belkin F1DV008 User manual

En
ExpandView™ CAT5
Quick Installation Guide
F1DV108Aea








Fr
De
Nl
Es
It
P75110ea_F1DV108Aea_QIG.indb 1 25/1/06 9:05:52 am

P75110ea_F1DV108Aea_QIG.indb 2 25/1/06 9:05:53 am

ExpandView™ CAT5
Quick Installation Guide
F1DV108Aea








En
P75110ea_F1DV108Aea_QIG.indb 3 25/1/06 9:05:55 am

Intoduction
1. What is the ExpandView™ CAT5? ............................................................. 1
Overview
2. The multi-functional ExpandView™ CAT5 ................................................. 2
3. The ExpandView™ CAT5 ........................................................................... 3
Installation
4. Expanding the ExpandView™ CAT5 .......................................................... 5
5. Pre-installation instructions ...................................................................... 5
6. The ExpandView™ CAT5 cables ................................................................ 5
The Remote Video cable .......................................................................... 6
Connecting the CAT5 cables .................................................................... 6
Power supply ............................................................................................ 6
Configuration
7. The ExpandView™ CAT5 configuration for a CBT application .................. 7
8. ExpandView™ CAT5 detailed connections ................................................ 8
9. The ExpandView™ CAT5 configuration without remote computers ......... 9
10. Operating the ExpandView™ CAT5 ......................................................... 10
Technical Specifications
Technical Specifications ............................................................................. 11
TABLE OF CONTENTS
P75110ea_F1DV108Aea_QIG.indb 4 25/1/06 9:05:55 am

1
1. What is the ExpandView™ CAT5?
The ExpandView™ CAT5 from Belkin broadcasts real-time high-resolution video
signals to hundreds of remote display monitors.
The ExpandView™ CAT5 consists of the following:
• Broadcaster + Control Unit
• Line Splitters to expand the system
• Remote module that connect to each remote monitor/computer
• Dual Remote module connects 2 monitors to the system
CAT5 UTP or FTP cables connect the ExpandView™ CAT5.
The Remote units can be up to 110m/360ft away from the Broadcaster.
This Quick Installation Guide illustrates the ExpandView™ CAT5
and explains how to install and operate it.
INTRODUCTION
P75110ea_F1DV108Aea_QIG.indb 1 25/1/06 9:05:55 am

2
2. The multi-functional ExpandView™ CAT5
You can use the ExpandView™ CAT5 in the following ways:
(A) Without the Control Unit
The ExpandView™ CAT5 constantly broadcasts a computer screen to all
remote monitors.
(B) With the Control Unit
• Broadcast a computer screen to all remote monitors
• Darken all remote screens
• Release the remote screens to allow local monitor viewing (when remote
computers are connected).
The screen dark function is useful when carrying out maintenance, changing
the broadcast program or in a classroom environment to grab students’
attention.
With both applications broadcast the video up to resolutions
of 1600 x 1200 @ 75Hz depending on the cable length.
OVERVIEW
P75110ea_F1DV108Aea_QIG.indb 2 25/1/06 9:05:55 am

3
3. The ExpandView™ CAT5
The figures below illustrate the Broadcaster module, Line Splitter, Remote
module and Dual Remote module.
OVERVIEW
Power
Connector System Cables Monitor
ExpandView CAT5
Control Unit Video Cable
Power
Connector System Cables
System cable from Broadcaster or
previus Line Splitter
Broadcaster Module
Linesplitter
P75110ea_F1DV108Aea_QIG.indb 3 25/1/06 9:05:56 am

4
OVERVIEW
Video
Cable System Cables Picture adjuster
SIDE A SIDE B
To monitors
Dual Remote
Module
To monitors
Remote Module
Dual Remote Module
Monitor
System
Cables
P75110ea_F1DV108Aea_QIG.indb 4 25/1/06 9:05:56 am

5
INSTALLATION
4. Expanding the ExpandView™ CAT5
You can expand the ExpandView™ CAT5 to 512 Remote modules by having
2 levels of Line Splitters. Level 1 Line Splitters can have 8 Remote modules or
Line Splitters connected. Level 2 Line Splitters can have 8 Remote modules
connected. (See page 7).
5. Pre-installation instructions
Note! In the ExpandView™ CAT5 the CAT5 UTP or FTP cables carry electrical
power. Therefore do NOT connect them to any other device. Place cables
away from fluorescent lights, air conditioners and machines
that are likely to generate electrical noise.
6. The ExpandView™ CAT5 VGA video cables
The Video cable is illustrated below. Connect the cable as explained.
To Computer’s
Video Card To Broadcaster’s or Remote’s Video
In port
Broadcaster & Remote Video cable
P75110ea_F1DV108Aea_QIG.indb 5 25/1/06 9:05:57 am

6
The Remote Video cable
The Remote Video cable is only used with the Remote module when the
Dongle is connected to a computer.
Connecting the CAT5 cables
Please note! Connect the CAT5 cables to the Broadcaster and Line Splitter
modules when the modules are powered off. We recommend that you
connect the CAT5 cables BEFORE connecting the power supply.
Power supply
Connect the Broadcaster and Line Splitters to the power supply with the
12 VDC, 2A from the AC/DC adapter provided. The Remote modules and
the Dual Remote module receive 12 VDC, 160 mA via the CAT5 cables
from the Broadcaster or Line Splitter.
INSTALLATION
P75110ea_F1DV108Aea_QIG.indb 6 25/1/06 9:05:57 am

7
7. The ExpandView™ CAT5 configuration for a Computer Based
Training application
The figure below illustrates the ExpandView™ CAT5 configuration with the
ExpandView™ CAT5 Control Unit and the optional remote computers.
The Dual Remote module has no VGA input and is therefore not suitable
for CBT applications.
CONFIGURATION
Control
Unit
Broadcaster Module
Video cable
Broadcaster
Computer
Remote
Computer
Remote
Computer
Remote
Computer
Video cable
Video cable
Video cable
Remote
module
Remote
module
Remote
module
CAT5 cables
to Remotes or
Line Splitters
CAT5 cables
to Remotes or
Line Splitters
CAT5 cables
to Remotes
CAT5 cables
to Remotes
Level 2
Level 1Line
Splitter
Line
Splitter
P75110ea_F1DV108Aea_QIG.indb 7 25/1/06 9:05:59 am

8
8. ExpandView™ CAT5 detailed connections
The figure below illustrates the detailed connections of the ExpandView™ CAT5.
CONFIGURATION
Control
Unit
Broadcaster
Module
Broadcaster
Computer
Remote
Computer
Video cable
Video cable
Remote
module
CAT5 cables
to Remotes or
Line Splitters
CAT5 cables
to Remotes or
Line Splitters
CAT5 cables
to Remotes
CAT5 cables
to Remotes
Line
Splitter
Line
Splitter
CAT5 cables
to Remotes or
Line Splitters
CAT5 cables
to Remotes or
Line Splitters
P75110ea_F1DV108Aea_QIG.indb 8 25/1/06 9:06:03 am

9
CAT5 cables to
Broadcaster or
Line Splitters
Dual
Remote
module
9. The ExpandView™ CAT5 configuration without remote computers
The figure below illustrates the ExpandView™ CAT5 configuration without
optional computers connected to the Remote modules and the Dual Remote
module. Connect the Broadcaster and Line Splitters as in figure 1.
Figure 2 illustrates the detailed connections of the Remote module.
CONFIGURATION
Broadcaster
Computer
Broadcaster Module
Line
Splitter
Line
Splitter
Video cable
Remote
module
Dual
Remote
module
Remote
module
CAT5 cables
to Remotes
CAT5 cables
to Remotes or
Line Splitters
CAT5 cables
to Remotes or
Line Splitters
Control
Unit
Dual Remote Module
Instead of the Remote module,
use the Dual Remote Module
to connect 2 screens to the
Broadcaster or Line Splitter
via CAT5 cable. The 2 screens
display the images broadcast
by the Broadcaster computer.
Remote Module
Remote
module
CAT5 cables to Broadcaster
or Line Splitters
Figure 1
Figure 2
Figure 3
P75110ea_F1DV108Aea_QIG.indb 9 25/1/06 9:06:09 am

10
10. Operating the ExpandView™ CAT5
Once connected, the ExpandView™ CAT5 broadcasts to all remote monitors.

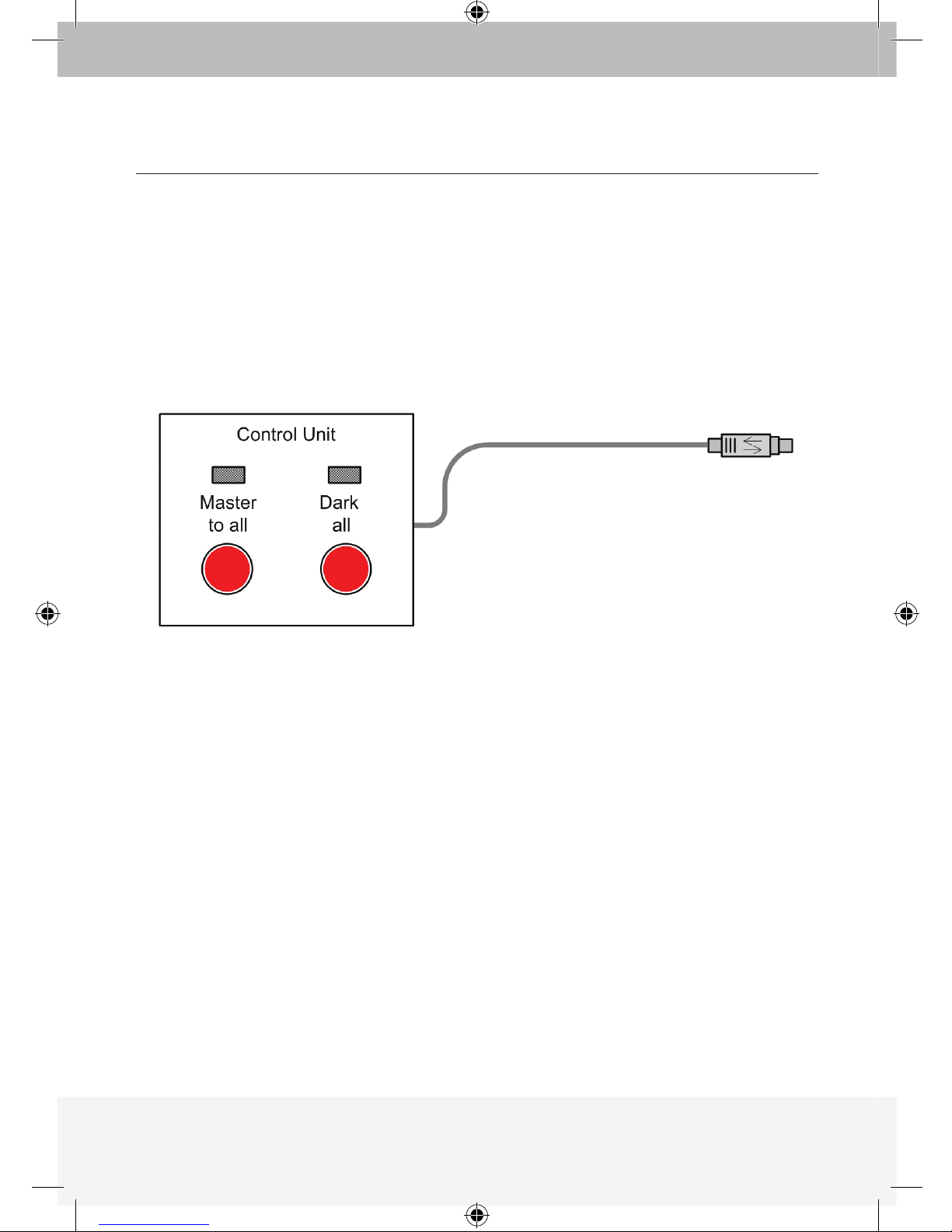

The Control Unit
The Control Unit is illustrated below
With the ExpandView™ CAT5 Control Unit carry out the following functions:
Master to all
Press the Master to all button to send the broadcaster’s screen
to all remote monitors. The LED above the button lights up.
Press the button again to release the remote monitors.
Dark all
Press the Dark all button to darken all remote screens.
The LED above the button lights up.
Press the button again to release the remote screens.
11. Adjusting the picture quality
Use a small screwdriver to turn the Picture adjuster on the Remote module to
adjust the picture quality.
CONFIGURATION
To Broadcaster’s
Control port
P75110ea_F1DV108Aea_QIG.indb 10 25/1/06 9:06:09 am

11
SYSTEM
Resolution Up to 1600x1200 @ 75 Hz
System cable CAT5 UTP or FTP 2x4x24
AWG Solid Wire Conductor cable
Max distance 110m/360ft
Input/Output Video Signals Analog signal red, green, blue 0.7v p-p 75 Ohm
Sync. TTL compatible
Horizontal/Vertical Sync. Polarity Positive/Negative
Operating temperature 0ºC to 40ºC/32ºF to 104ºF
Storage temperature -40ºC to 70ºC/-40ºC to 158ºF
Humidity 80% non condensing relative humidity
Warranty 3 Years
BROADCASTER
MODULE LINE SPLITTER REMOTE MODULE
Cables & Connectors VGA In - HDD15M System In - RJ45 System In - RJ45
VGA Out - HDD15F System Out - RJ45 CPU VGA - HDD15M
System Out - 8 Ports
RJ45 Screen - HDD15F
Control - MiniDin8F
Dimensions 175 x 96 x 42mm/
0.57 x 0.38 x 0.14ft 118 x 96 x 42mm/ 0.39 x 0.38 x 0.14ft 78 x 62 x 23mm/ 0.31 x 0.26 x 0.07ft
Power supply External Power
Adapter 12VDC 2A External Power Adapter 12VDC 2A From previous unit through CAT5 cable
DUAL REMOTE MODULE
Cables
& Connectors System In - RJ45
Screen x 2 - HDD15F
Power
supply From previous unit
through CAT5 cable
TECHNICAL SPECIFICATIONS
P75110ea_F1DV108Aea_QIG.indb 11 25/1/06 9:06:09 am

P75110ea
© 2006 Belkin Corporation. All rights reserved. All trade names
are registered trademarks of respective manufacturers listed.
Belkin Ltd.
Express Business Park
Shipton Way, Rushden
NN10 6GL, United Kingdom
[phone]
[phone] fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk
The Netherlands
[phone]
[phone] fax
Belkin GmbH
Hanebergstraße 2
80637 Munich
Germany
[phone]
[phone] fax
Belkin SAS
130 rue de Silly
92100 Boulogne-Billancourt
France
[phone]
[phone] fax
Belkin Nordic
Knarrarnäsgatan 7
164 40 Kista
Sweden
[phone]
[phone] fax
Belkin Iberia
Avda. Cerro del Aguila 3
28700 San Sebastián de los Reyes
Spain
[phone]
[phone] fax
Belkin Tech Support
Europe: 00 800 223 55 460
ExpandView™ CAT5
P75110ea_F1DV108Aea_QIG.indb 12 25/1/06 9:06:10 am

ExpandView™ CAT5
Guide d’Installation Rapide
F1DV108Aea








Fr
P75110ea_F1DV108Aea_QIG.indb 13 25/1/06 9:06:12 am

Introduction
1. Qu’est-ce que l’ExpandView™ CAT5 ? ..................................................... 1
Présentation
2. L’ExpandView™ CAT5 multifonctions ........................................................ 2
3. L’ExpandView™ CAT5 ................................................................................ 3
Installation
4. Déploiement de l’ExpandView™ CAT5 ...................................................... 5
5. Instructions de pré-installation ................................................................. 5
6. Les câbles de l’ExpandView™ CAT5 ......................................................... 5
Le câble Écran distant .............................................................................. 6
Branchement des câbles CAT5 ................................................................ 6
Alimentation .............................................................................................. 6
Configuration
7. Configuration de l’ExpandView™ CAT5 pour l’utilisation en FAO
(Formation Assistée par Ordinateur) ......................................................... 7
8. Détail des branchements de l’ExpandView™ CAT5 .................................. 8
9. Configuration de l’ExpandView™ CAT5 sans ordinateurs distants ........... 9
10. Déploiement de l’ExpandView™ CAT5 .................................................... 10
Caractéristiques techniques
Caractéristiques techniques ............................................................................ 11
TABLE DES MATIÈRES
P75110ea_F1DV108Aea_QIG.indb 14 25/1/06 9:06:12 am

1
1. Qu’est-ce que l’ExpandView™ CAT5 ?
L’ExpandView™ CAT5 de Belkin émet des signaux vidéo haute-résolution, en
temps réel, vers des centaines d’écrans distants.
L’ExpandView™ CAT5 comprend :
• Un Émetteur + une Unité de contrôle
• Des Séparateurs de ligne pour déployer le système
• Un Module distant qui connecte chacun des moniteurs/ordinateurs distants
• Un Module distant double qui connecte deux moniteurs au système
Des câbles UTP ou FTP CAT5 relient l’ExpandView™ CAT5.
Les Unités distantes peuvent se trouver jusqu’à 110 m/360 pi de l’Émetteur.
Ce Guide d’installation rapide vous décrit l’ExpandView™ CAT5
et vous explique comment l’installer et le faire fonctionner.
INTRODUCTION
P75110ea_F1DV108Aea_QIG.indb 1 25/1/06 9:06:12 am

2
2. L’ExpandView™ CAT5 multifonctions
Vous pouvez utiliser l’ExpandView™ CAT5 de plusieurs façons :
(A) Sans l’Unité de contrôle
L’ExpandView™ CAT5 envoie en permanence un affichage d’écran à tous les
moniteurs distants.
(B) Avec l’Unité de contrôle
• Pour envoyer un affichage d’écran à tous les moniteurs distants
• Pour assombrir tous les écrans distants
• Pour libérer tous les écrans distants et leur permettre d’afficher l’écran local
(lorsque les ordinateurs distants sont connectés).
La fonctionnalité d’écran noir s’avère très utile pour les opérations de
maintenance, la modification du programme d’émission ou pour capter
l’attention des élèves en environnement éducatif.
Dans les deux contextes, vous émettez de la vidéo à une résolution pouvant
aller jusqu’à 1 600 x 1 200 à 75 Hz, en fonction de la longueur du câble.
PRÉSENTATION
P75110ea_F1DV108Aea_QIG.indb 2 25/1/06 9:06:12 am
