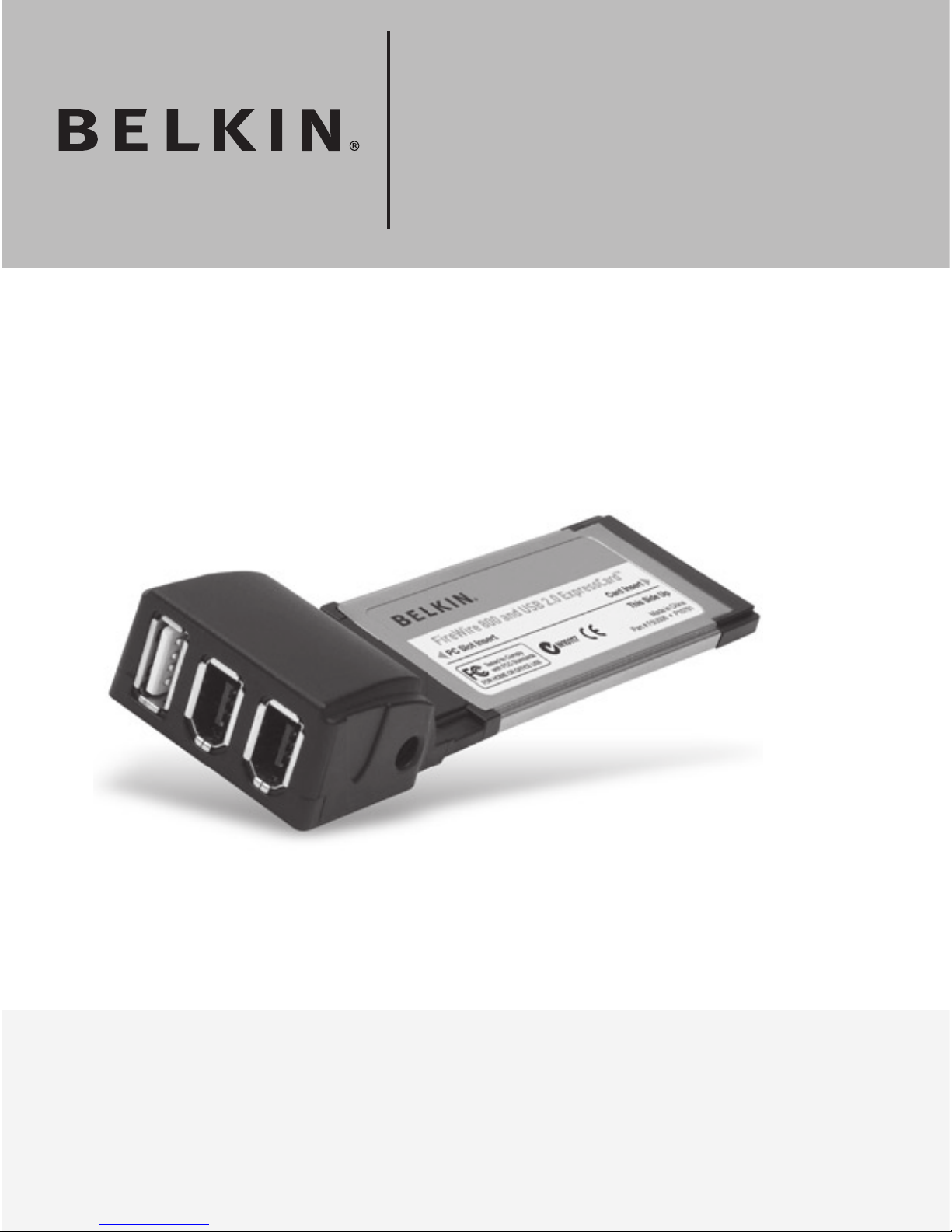

USB 2.0 and FireWire
ExpressCard™
F5U506ea
Add 1 USB 2.0 port and 2 FireWire® ports to your
notebook computer using ExpressCard technology
Ajoutez un port USB 2.0 et deux ports FireWire® à votre
ordinateur portable grâce à la technologie ExpressCard
Ein USB 2.0-Port und zwei FireWire®-Ports für Notebooks
mit ExpressCard-Technologie
Breid uw notebook uit met een USB 2.0-poort en
twee FireWire® 800-poorten die gebruik maken van
ExpressCard-technologie
Añada 1 puerto USB 2.0 y 2 puertos FireWire® a su ordenador
portátil utilizando la tecnología ExpressCard
Per aggiungere al laptop una porta USB 2.0 e due porte
FireWire® utilizzando la tecnologia ExpressCard
User Manual, Manuel de l’utilisateur, Benutzerhandbuch,
Handleiding, Manual del usuario, Manuale d’uso

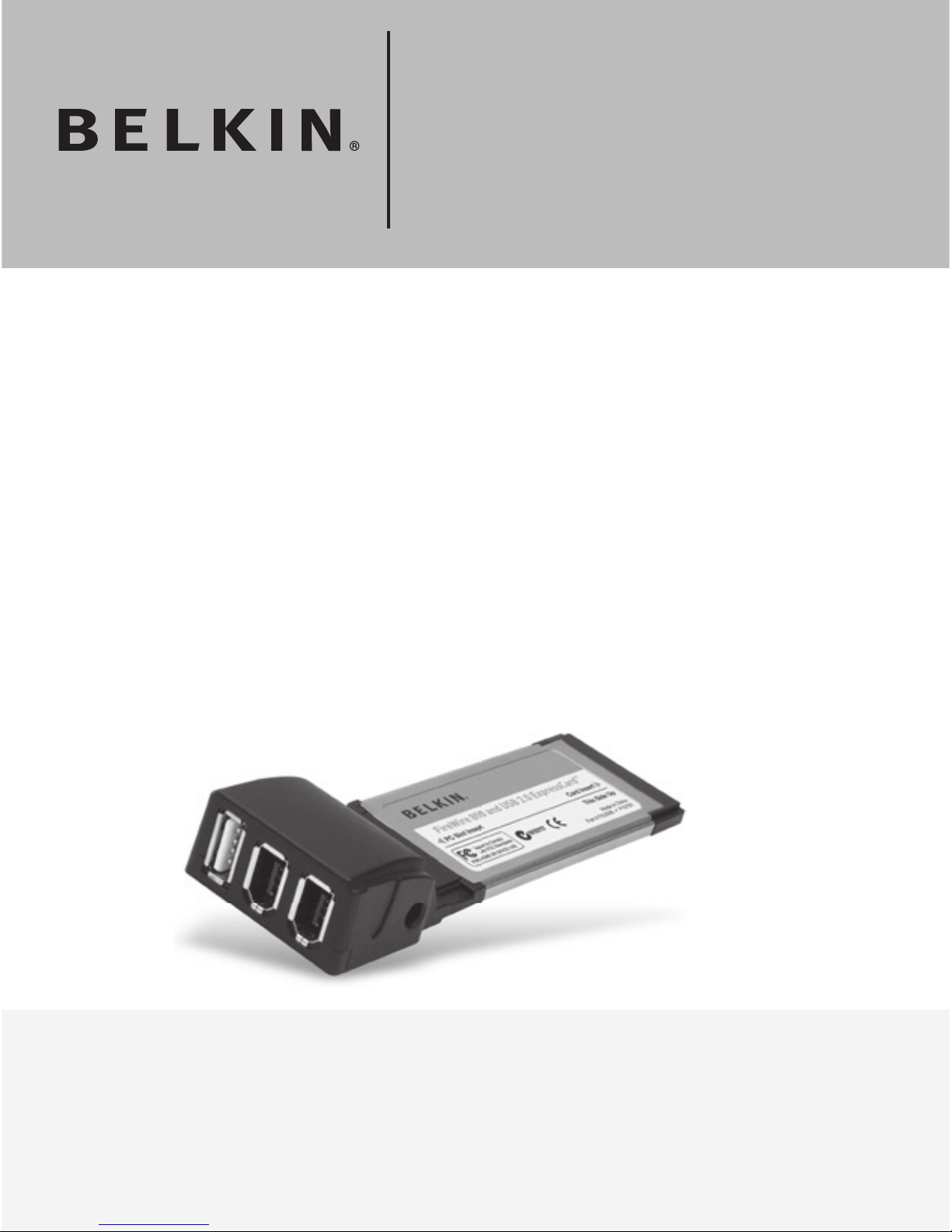

USB 2.0 and FireWire
ExpressCard™
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
User Manual
F5U506ea
Add 1 USB 2.0 port and 2 FireWire® ports to your
notebook computer using ExpressCard technology

4
1. Introduction ................................................................... 5
Specifications ............................................................. 6
System Requirements ................................................ 7
Package Contents ...................................................... 7
2. Hardware Installation ................................................... 8
3. Verifying Proper Installation ........................................ 9
4. Troubleshooting .....................................................10-11
5. Information ............................................................12-13
Table of Contents
5

5
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
Congratulations and thank you for purchasing the USB 2.0
and FireWire ExpressCard from Belkin. This ExpressCard
offers notebook users a fast and convenient way to add
a USB and FireWire port that can take advantage of the
increased bandwidth and features the new ExpressCard I/O
interconnection standard delivers.
Why ExpressCard?
ExpressCard, the standard destined to replace CardBus,
quadruples your computing bandwidth. This results in
faster music downloads, smoother streaming video, and
lightning-fast access to mass-storage devices.
The ExpressCard provides the perfect solution for
simultaneously streaming movies and downloading video
from your camcorder to your hard drive—without risking
that your computer will freeze, crash, or slow to a trickle.
ExpressCard future-proofs your computer with technology
so advanced that it exceeds the processing speed of many
devices currently on the market. This means that installing
the ExpressCard now assures you of device-upgrade
expansion room for many years to come.
Please carefully review this User Manual so that you can
take full advantage of all the capabilities the Belkin USB 2.0
and FireWire ExpressCard offers.
Introduction
5

6
Introduction
Specifications
• Meets PCI Express® Base Specification Revision 1.1
• Delivers single-lane (x1) PCI Express throughput
support rates of 2.5Gbps
• Complies with ExpressCard 34mm-wide module
specification
• Builds in 2 external, independent 6-pin FireWire 400 ports
• Supports 1394 Open Host Controller Interface (OHCI)
Specification 1.1
• Features IEEE 1394a-2000-compliant ports at 100-,
200-, and 400Mbps
• Complies with Universal Serial Bus specification
revision 2.0
• Builds in 1 external, independent USB 2.0
high-speed port
• Supports data-transfer rates of high-speed (480Mbps),
full-speed (12Mbps), and low-speed (1.5Mbps)
• Equips 1 DC jack for using power adapter to provide
12VDC power output
• Allows you to connect/disconnect devices without
powering down the system (hot-swappable)

7
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
System Requirements
• Windows® based notebook computer with available
ExpressCard slot
• Windows 2000, XP, Server 2003
Package Contents
• USB 2.0 and FireWire ExpressCard
• User Manual
Introduction

8
1. Locate your notebook’s ExpressCard slot(s).
2. With your notebook on, slide the ExpressCard into the
unused 34mm or 54mm ExpressCard bus slot.
Note: Do not plug any devices into the ExpressCard
until you have completely finished the driver
installation.
3. The “New Hardware Wizard” will launch and recognize
the ExpressCard.
4. Windows OS automatically installs the correct driver.
5. Installation is now complete and the ExpressCard is
ready to use.
Hardware Installation

9
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
Verifying Proper Installation
Check the “Windows Device Manager” to confirm that
your ExpressCard has been properly installed.
1. Right-click on “My Computer” and select “Manage”.
2. Select the “Device Manager” tab.
3. Click the (+) sign next to “IEEE1394 Bus host
controllers”. The “IEEE 1394 Bus host controllers” will
now include
one entry that reads “Texas Instruments OHCI Compliant
IEEE 1394 Host Controller”.
4. There will also be an entry under “Universal Serial Bus
Controllers”, which will include an entry that reads
“USB Root Hub”.

10
Troubleshooting
The ExpressCard and devices connected to the
computer do not work properly.
Please do the following:
1. Check that all the cables you are using are the correct
types, and that they are all securely connected.
2. Make sure all devices are powered on and connected to
the proper power supply and source.
3. Reconnect daisy-chained devices you may have
disconnected for installation. If reconnecting does not
clear up the problem, restart your computer.
4. Make sure you have properly installed the ExpressCard.
The computer did not detect the ExpressCard.
1. Make sure that the ExpressCard is correctly plugged
into the ExpressCard 34-/54mm slot; if not, plug in it
securely.
2. If the ExpressCard is plugged in correctly, see if its gold
connectors are clean; if not, clean the connector surface.
3. Follow the procedure on page 5 titled “Verifying Proper
Installation”. If the ExpressCard designation “Texas
Instruments OHCI Compliant IEEE 1394 Host Controller”
does not appear in the Device Manager, update your
computer BIOS to the latest version (contact your
computer manufacturer for details). If after updating
your BIOS, your computer still does not detect the
ExpressCard, contact your computer manufacturer
for advanced support for BIOS.

11
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
Troubleshooting
I cannot install the ExpressCard driver.
Ensure that your Microsoft® Windows operating system
is upgraded to the latest “Service Pack” (please check
the Microsoft website). It is highly recommended that you
update your system to Windows 2000 service pack 4,
Windows XP service pack 2, or Windows Server 2003
service pack 1 (or later).

12
Information
CE Declaration of Conformity
We, Belkin Corporation, declare under our sole responsibility that the
F5U506ea, to which this declaration relates, is in conformity with Generic
Emissions Standard EN55022:1998 Class B, EN50081-1, and with Generic
Immunity Standard EN50082-1:1992.
Belkin Corporation Limited Lifetime Product Warranty
What this warranty covers.
Belkin Corporation warrants to the original purchaser of this Belkin product
that the product shall be free of defects in design, assembly, material, or
workmanship.
What the period of coverage is.
Belkin Corporation warrants the Belkin product for the lifetime of the product.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge
(except for shipping charges for the product).
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to
Belkin Corporation for inspection upon Belkin’s request at the sole expense
of the purchaser, or if Belkin Corporation determines that the Belkin product
has been improperly installed, altered in any way, or tampered with. The
Belkin Product Warranty does not protect against acts of God (other than
lightning) such as flood, earthquake, war, vandalism, theft, normal-use wear
and tear, erosion, depletion, obsolescence, abuse, damage due to low voltage
disturbances (i.e. brownouts or sags), non-authorized program, or system
equipment modification or alteration.
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220,
declare under our sole responsibility that the product:
F5U506ea
to which this declaration relates:
Complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Statement

13
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
Information
How to get service.
To get service for your Belkin product you must take the following steps:
1. Check www.Belkin.com for your local technical support number and
contact us with the following information at hand:
Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on how to
forward your receipt and Belkin product and how to proceed with your claim.
Belkin Corporation reserves the right to review the damaged Belkin product. All
costs of shipping the Belkin product to Belkin Corporation for inspection shall
be borne solely by the purchaser. If Belkin determines, in its sole discretion, that
it is impractical to ship the damaged equipment to Belkin Corporation, Belkin
may designate, in its sole discretion, an equipment repair facility to inspect
and estimate the cost to repair such equipment. The cost, if any, of shipping
the equipment to and from such repair facility and of such estimate shall be
borne solely by the purchaser. Damaged equipment must remain available
for inspection until the claim is finalized. Whenever claims are settled, Belkin
Corporation reserves the right to be subrogated under any existing insurance
policies the purchaser may have.
How state law relates to the warranty.
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN
CORPORATION, THERE ARE NO OTHER WARRANTIES, EXPRESSED
OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE IMPLIED
WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY,
ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts,
so the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN CORPORATION BE LIABLE FOR INCIDENTAL,
SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES
SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING
OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other
rights, which may vary from state to state. Some states do not allow the
exclusion or limitation of incidental, consequential, or other damages, so the
above limitations may not apply to you.

USB 2.0 and FireWire
ExpressCard™
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
[phone]
[phone] fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
[phone]
[phone] fax
Belkin GmbH
Hanebergstrasse 2
80637 Munich, Germany
[phone]
[phone] fax
© 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of
respective manufacturers listed. FireWire is a trademark of Apple Computer, Inc., registered in the
U.S. and other countries. ExpressCard is a trademark of PCMCIA.
P75152ea
Belkin SAS
130 rue de Silly
92100 Boulogne-Billancourt, France
[phone]
[phone] fax
Belkin Iberia
Avda. Cerro del Aguila 3
28700 San Sebastián de los Reyes, Spain
[phone]
[phone] fax
Belkin Nordic
Knarrarnäsgatan 7
164 40 Kista, Sweden
[phone]
[phone] fax

Ajoutez un port USB 2.0 et deux ports
FireWire® à votre ordinateur portable
grâce à la technologie ExpressCard
15
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
Manuel de l’utilisateur
F5U506ea
ExpressCard™
USB 2.0 et FireWire

16
1. Introduction ................................................................. 17
Spécifications ........................................................... 18
Configuration requise ............................................... 19
Contenu de l’emballage ........................................... 19
2. Installation du matériel .............................................. 20
3. Vérification de l’installation ........................................ 21
4. Dépannage .............................................................22-23
5. Information ............................................................24-25
Table des matières
17

17
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
Félicitations et merci d’avoir choisi la Carte ExpressCard
USB2.0 et FireWire de Belkin. Cette carte ExpressCard
procure aux utilisateurs une façon simple et rapide
d’ajouter un port USB et un port FireWire et ainsi profiter
des fonctions et de la bande passante offertes par la
nouvelle norme de connectique entrée-sortie ExpressCard.
Pourquoi ExpressCard ?
ExpressCard, cette nouvelle norme qui remplacera la
norme CardBus, permet d’augmenter la bande passante
disponible, allant du simple au quadruple. Ceci permet de
télécharger des morceaux de musique plus rapidement, de
visionner des fichiers vidéo sans interruptions et d’accéder
à des périphériques de stockage de masse à la vitesse de
l’éclair.
La norme ExpressCard est la solution idéale pour le
vidéo en continu et le téléchargement à partir de votre
caméscope – simultanément – sans gel ni plantages
ni ordinateur qui roule à la vitesse d’une tortue. Avec
l’ExpressCard, vous êtes paré pour le futur : votre
ordinateur sera doté d’une technologie si évoluée qu’elle
dépasse la vitesse de traitement de la plupart des
dispositifs disponibles aujourd’hui. Si vous installez la carte
ExpressCard aujourd’hui, vous serez prêt à toute éventuelle
mise à niveau pour les années à venir.
Veuillez lire ce manuel de l’utilisateur en entier afin de
profiter pleinement de toutes les possibilitées que la Carte
ExpressCard USB et FireWire Belkin peut vous offrir.
Introduction
17

18
Introduction
Spécifications
• Conforme à la spécification de base PCI Express®
révision 1.1
• Débit PCI Express à une voie (x1) de 2,5 Gbps pris
en charge
• Conforme à la spécification de module ExpressCard
de 34 mm
• Comprend deux ports externes FireWire 400 à 6
broches indépendants
• Prise en charge de la norme Open Host Controller
Interface (OHCI) 1394 1.1
• Présente des ports compatibles IEEE 1394a-2000 à
100, 200 et 400 Mbps
• Compatible avec les spécifications Universal Serial
Bus 2.0
• Comprend 1 port externe USB 2.0 à haut débit
indépendant
• Prise en charge de débits de données de 480 Mbps (haut
débit), 12 Mbps (plein débit) et 1,5 Mbps (faible débit)
• Possède en outre une prise CC pour utilisation avec un
adaptateur de courant et fournir un courant de 12 VCC
• Vous permet de brancher/débrancher des périphériques
sans éteindre le système (à chaud)

19
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
Configuration requise
• Ordinateur portable Windows® avec un emplacement
ExpressCard disponible
• Windows 2000, XP, Server 2003
Contenu de l’emballage
• ExpressCard USB 2.0 et FireWire
• Manuel de l’utilisateur
Introduction

20
1. Repérez le ou les emplacement(s) ExpressCard de votre
ordinateur.
2. Pendant que votre ordinateur est allumé, glissez la carte
ExpressCard dans l’emplacement ExpressCard 34 mm
ou 54 mm.
Remarque : Ne branchez aucun périphérique
dans la carte ExpressCard avant d’avoir terminé
l’installation du pilote.
3. L’assistant d’ajout de nouveau matériel démarre. Celui-ci
reconnaît automatiquement la carte ExpressCard.
4. Windows installe automatiquement le pilote approprié.
5. L’installation est terminée. La carte ExpressCard est
prête à l’emploi.
Installation du matériel
