User Manual
F5D5730au
High-Speed
ADSL Modem
with USB and Ethernet
Connect your PC or network for
high-speed Internet access

TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Knowing your Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation Method 1 – Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Method 2 – USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Modem Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Annex A – Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Annex B – FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

1
INTRODUCTION
Thank you for purchasing the Belkin High-Speed ADSL Modem with USB and
Ethernet. This Modem will allow you to surf the Web and connect to some
popular game consoles.
Features
•RJ45 Ethernet interface support via crossover cable; USB interface support
•IEEE 802.3 standard 10/100Mbps compliance
•DHCP Server
•ANSI T1.413 Issue 2, ITU-T G.DMT (G.992.1), G.Lite (G.992.2) and
G.hs (G.994.1)
•IP Sharing via NAT routing function (Network Address Translation)
•NAT function for NetMeeting®, ICQ®, CU-SeeMe®, etc.
•PPPoE, PPPoA, Bridged and Routed IP (RFC 1493) Encapsulations
•Full ATM protocol support
•Multi-protocol support: IP, PPP, Transparent bridging, etc.
•Configuration, management, and firmware updates via Web
Browser Interface
•Two-level password protection for device management
•Flash memory for future firmware upgrades
•Simultaneous USB and Ethernet support
Package Contents
•Belkin High-Speed Modem with USB and Ethernet
•Power Adapter
•RJ45 Crossover Cable
•A–B USB Cable
•RJ11 Phone Cable
•CD

INTRODUCTION
2
System Requirements
PC running Windows® 98SE , Me, 2000, XP
CD-ROM drive (For USB Installation Only)
One free USB port (For USB Installation Only)
One RJ45 Ethernet port (Ethernet Installation Only)

3
KNOWING YOUR MODEM
(1)
(2)
Front of Modem
1. ADSL
ON ADSL Connected
OFF No ADSL Detected
Blinking Connecting/Handshaking
2. LAN
ON Ethernet Connected
OFF No Ethernet Connection
Blinking Data Transmitting

4
Back of Modem
KNOWING YOUR MODEM
Before You Start
Before you start to use your Modem you must have the following:
1. An active ADSL account and line with a user name and password.
2. IP address, DNS, and gateway settings from your ISP only if applicable.
3. At least one computer with either USB or Ethernet connection.
4. TCP/IP networking protocol installed on the computer (most computers have
this installed by default).
5. Microsoft® Internet Explorer 5.0 or Netscape® 4.5 or greater installed.
6. It may be necessary to disable any firewall or anti-virus software during
installation. It may prevent successful installation. This can be reactivated on
successful installation.
TIP: After plugging in the power cord, the Modem initialises and starts working
after 20 seconds.
TIP: If you push the Reset button, all the parameter settings will revert back to
factory default.
Ethernet USB
Reset
RJ11
Power

5
INSTALLATION
5

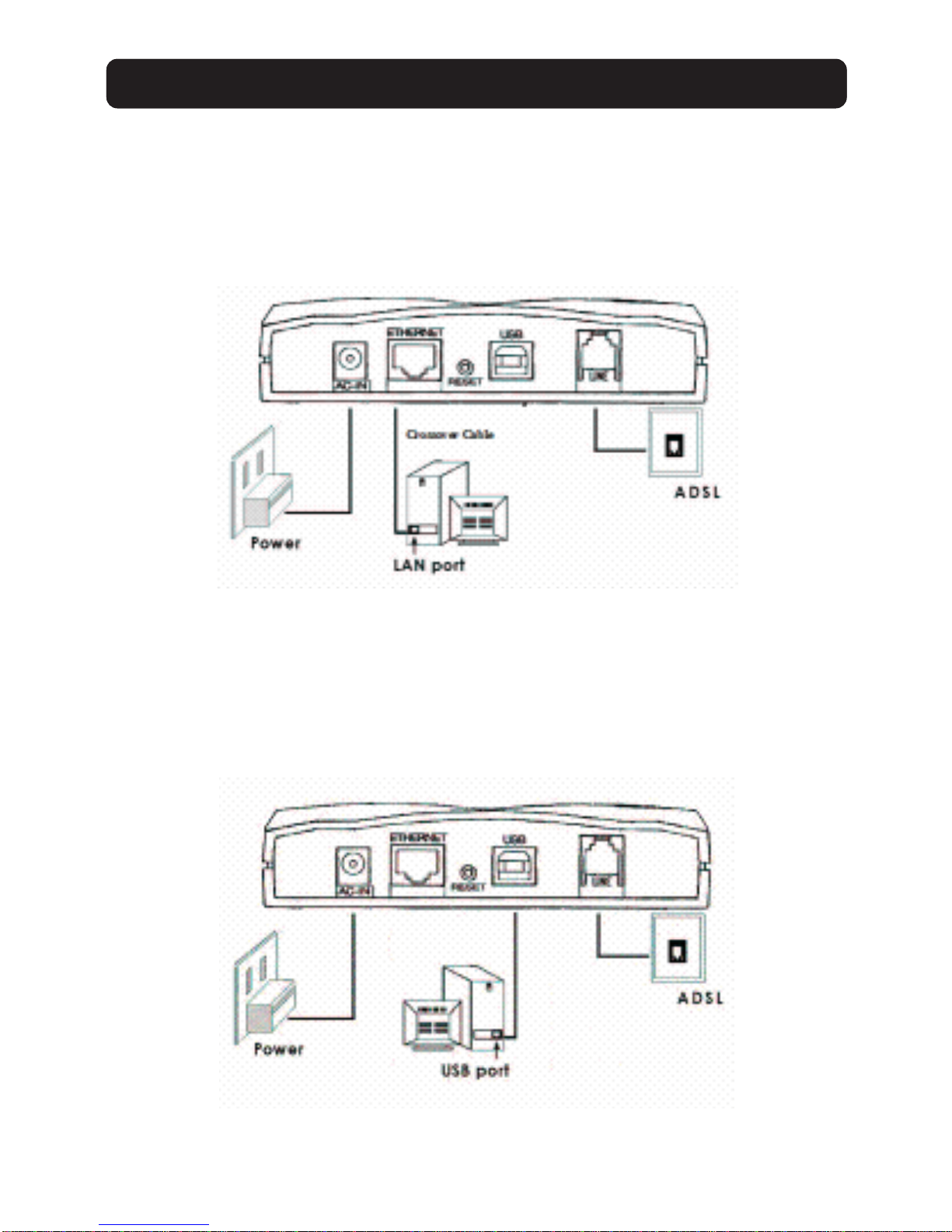

You can connect your equipment in one of two ways: via an Ethernet crossover
cable or a USB connection.
If you are connecting via an Ethernet crossover connection then follow the
diagram below and proceed to “Installation Method 1” on page 6.
If you have chosen to connect via a USB connection, make sure the computer
you are connecting to is switched off. Use the diagram below and then proceed
to “Installation Method 2” one page 6.

6
INSTALLATION
6
Installation Method 1 - Ethernet
1. Make sure that the computer that you are connecting to is powered off.
2. Connect one end of the Ethernet crossover cable to your Modem’s Ethernet
port; connect the other end to your computer’s Ethernet port.
3. Connect the RJ11 phone line provided for ADSL into the line socket in
the Modem.
4. Connect the power cord to the Modem and power on the Modem; wait 20
seconds for the Modem to initialise, then boot up your computer.

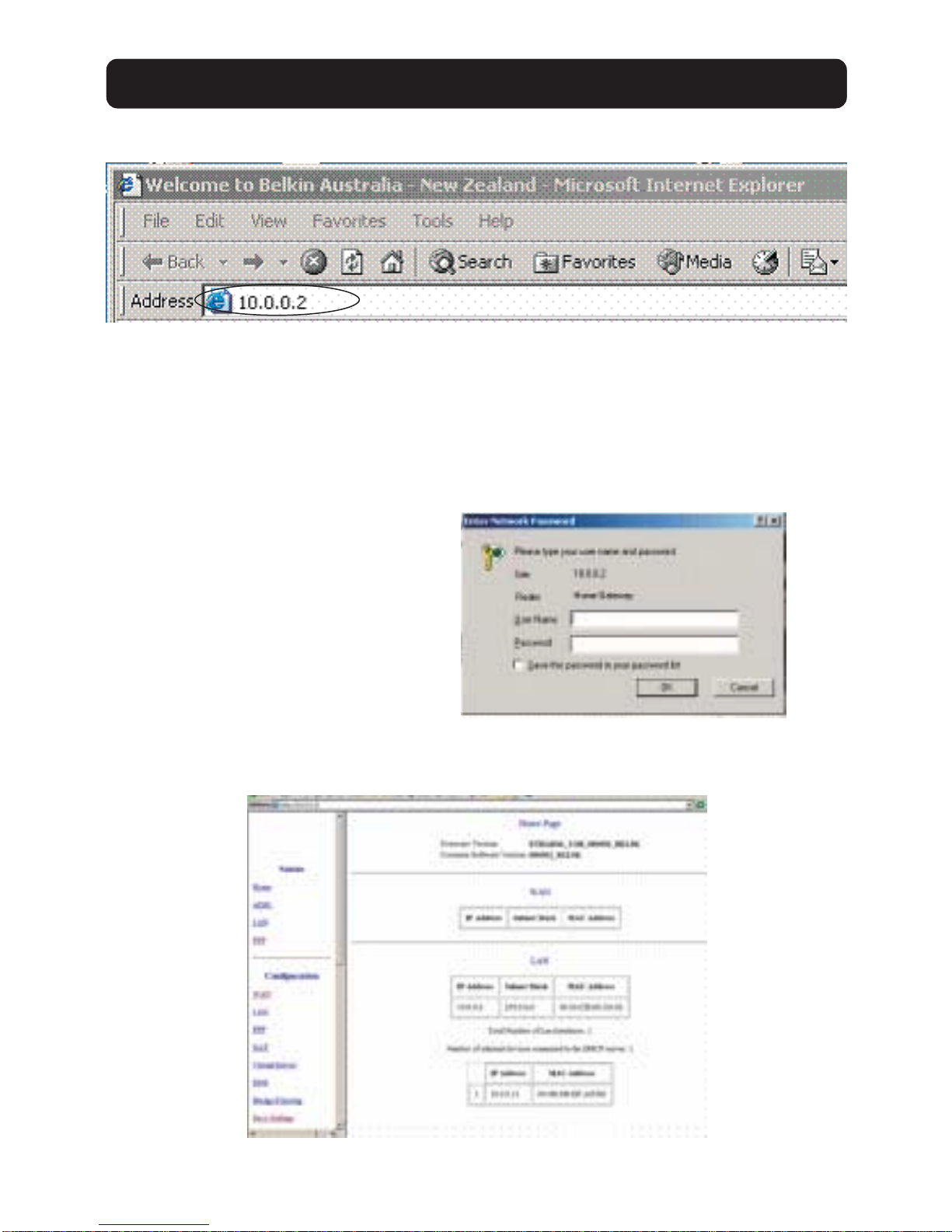

5. Open your web browser and type in the default IP address of the Modem to
the address bar—IP address: 10.0.0.2 (see image on the top of next page).
6. Proceed to “Modem Configuration” on page 7.
Installation Method 2 – USB
1. Make sure that the computer that you are connecting to is powered off.
2. Insert the rectangular end of a USB cable into a USB port on your PC.
3. Insert the square end of the USB cable into the USB port of the Modem.
4. Connect the RJ11 phone line provided for ADSL into the line socket in
the Modem.
5. Connect the power cord to the Modem and power on the Modem; wait 20
seconds for the Modem to initialise, then boot up your computer.
6. Your PC will automatically detect this Modem as “USB Net Card”.
7. Insert the bundled USB driver CD into the CD-ROM drive and follow the
on-screen instructions to install the USB Modem drivers.
8. After installation, the Modem will be installed as “USB Network Adapter”
within the Device Manager of Windows. You will be required to reboot your PC
before continuing.
9. Open your web browser and type in the default IP address of the Modem to
the address bar—IP address: 10.0.0.2 (see image on the top of the
next page).

7
INSTALLATION
Modem Configuration
Enter the default user name and password and click “OK”. If you do not see the
screen below then turn to “Annex A Problem 1”.
Default User Name: admin
Default Password: password
You will then be logged into the web interface of the Modem.

8
INSTALLATION
1. Click on “WAN” under the Configuration menu on the left-hand side of
the screen.
2. Your screen will look like this.

INSTALLATION
9
3. For New Zealand users, change the “VPI” to “0” and the “VCI” to “100”—by
default this is set to 8/35. Set the “ENCAPSULATION” to “PPPoA VC-Mux” —
the default is PPPoE LLC.
For Australian users, ensure the “VPI” is “8” and the “VCI” is “35” and the
“ENCAPSULATION” is “PPPoE LLC”. (By default this should already be set.)
4. Use the scroll bar on the right-hand side of your screen; scroll down so you
see the heading “PPP”.
5. Enter the following personal details as given to you by your ISP:
a. Service Name: Enter in the name of your ISP such as “xyz
Internet provider”.
b. Username: As given to you by your ADSL provider. For New Zealand Xtra
account holders, the user name always needs the extension “.xadsl” after
the normal user name, and should be entered in the form of an e-mail
address, e.g. [e-mail].
c. Password: As provided by your ADSL provider, remember that passwords
are case-sensitive.
d. Disconnect timeout: Leave as default “0”.
e. MRU: Should be left as default “1492”.
f. MTU: Leave as default “1492”.
g. MSS: Leave as default “1432”.

INSTALLATION
10
h. Authentication: Select “Auto”.
i. Automatic Reconnect: Should remain checked.
6. Scroll down to the bottom of the screen and you will see the following.
7. Click the “Submit” button to update the changes and then scroll back to the
bottom of the screen and then click on “Save Configuration”.
8. The screen will change and you will see the following. Click on “Submit” to
make the change to the Modem.
9. The Modem will restart and the LAN connection will be reestablished between
your PC and your Modem. You will see the following on your web browser.

INSTALLATION
11
10. When you see this screen, the Modem has rebooted and is ready to be
connected to ADSL.
11. On the left of the screen under the Status settings in your browser, click
on “PPP”.
You will then see the following.

INSTALLATION
12
12. Ensure that “Connect” is displayed in the drop-down window and then click
on the “Execute” button.
The Modem will initiate the connection to your ADSL provider and the screen
shot will look similar to this one once connected. Note that under the
“Status” column it will indicate “connected” once your ADSL connection
is running.
13. You can successfully close this browser window and open a new browser
window and surf the Internet.

ANNEX A – TROUBLESHOOTING
Problem
My Internet web browser would not display the login dialogue box when I typed
in the numbers “10.0.0.2”.
Solution
•Check that your browser address bar displays nothing except “10.0.0.2”.
•Check that your PC is configured to accept IP addresses dynamically by doing
the following:
Solution for Windows 98 and Me
1. Go to “Start / Settings / Control
Panel”. In the Control Panel,
double-click on “Network” and
choose the “Configuration” tab.
2. Select “TCP / IP”, or the name of
your Network Interface Card
(NIC) in your PC.
3. Click “Properties”.
4. Select the “IP Address” tab. In
this page, click “Obtain an IP
address automatically”.
5. Then select the “DNS
Configuration” tab.
13

ANNEX A – TROUBLESHOOTING
14
6. Select the “Disable DNS” radio button and click “OK” to finish
the configuration.
Solution for Windows 2000
1. Go to “Start / Settings / Control Panel”. In the Control Panel, double-click
on “Network and Dial-up Connections”.
2. Double-click “LAN Area Connection”.

ANNEX A – TROUBLESHOOTING
15
3. In the “LAN Area Connection Status” window, click “Properties”.
4. Select “Internet Protocol (TCP/IP)” and click “Properties”.

ANNEX A – TROUBLESHOOTING
16
5. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”. Click “OK” to finish the configuration.
Solution for Windows XP
1. Go to Control Panel on your computer and double-click
“Network Connections” and right-click your network connection
and select “Properties”.

ANNEX A – TROUBLESHOOTING
17
2. Highlight “Internet Protocol (TCP/IP)” and select “Properties”. If you do
not have TCP/IP displayed in the list then you will need to install TCP/IP
before proceeding.
3. Ensure that: “Obtain an IP address automatically” and “Obtain DNS server
address automatically” is selected and then hit “OK” twice.
