Belkin F5D7632uk4A User manual

User Manual
F5D7632uk4A
ADSL2+ Modem with
Wireless G Router

2

3
Table of Contents
1. Introduction 1
Product Features 1
Benefits of a Home Network 3
Advantages of a Belkin Wireless Network 3
2. Make Sure You Have the Following 4
Package Contents 4
System Requirements 4
Setup Assistant Software System Requirements 4
Internet Connection Settings 4
3 Knowing your Router 5
4 Connecting and Configuring your Router 8
Step 1A: Hardware Connections – Follow the Quick Installation
Guide (QIG) 8

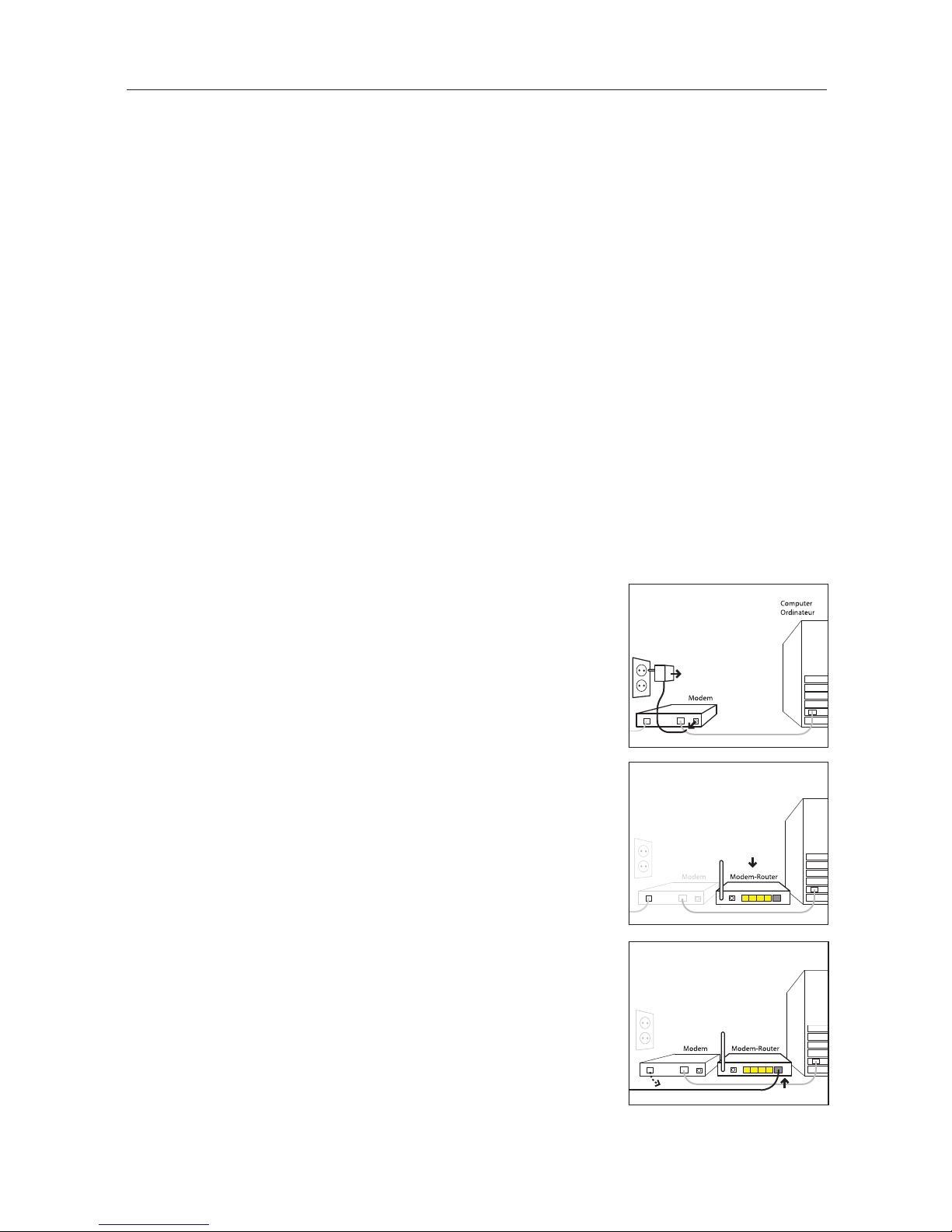

Step 1B: Replacing an Existing Modem or Modem Route 9

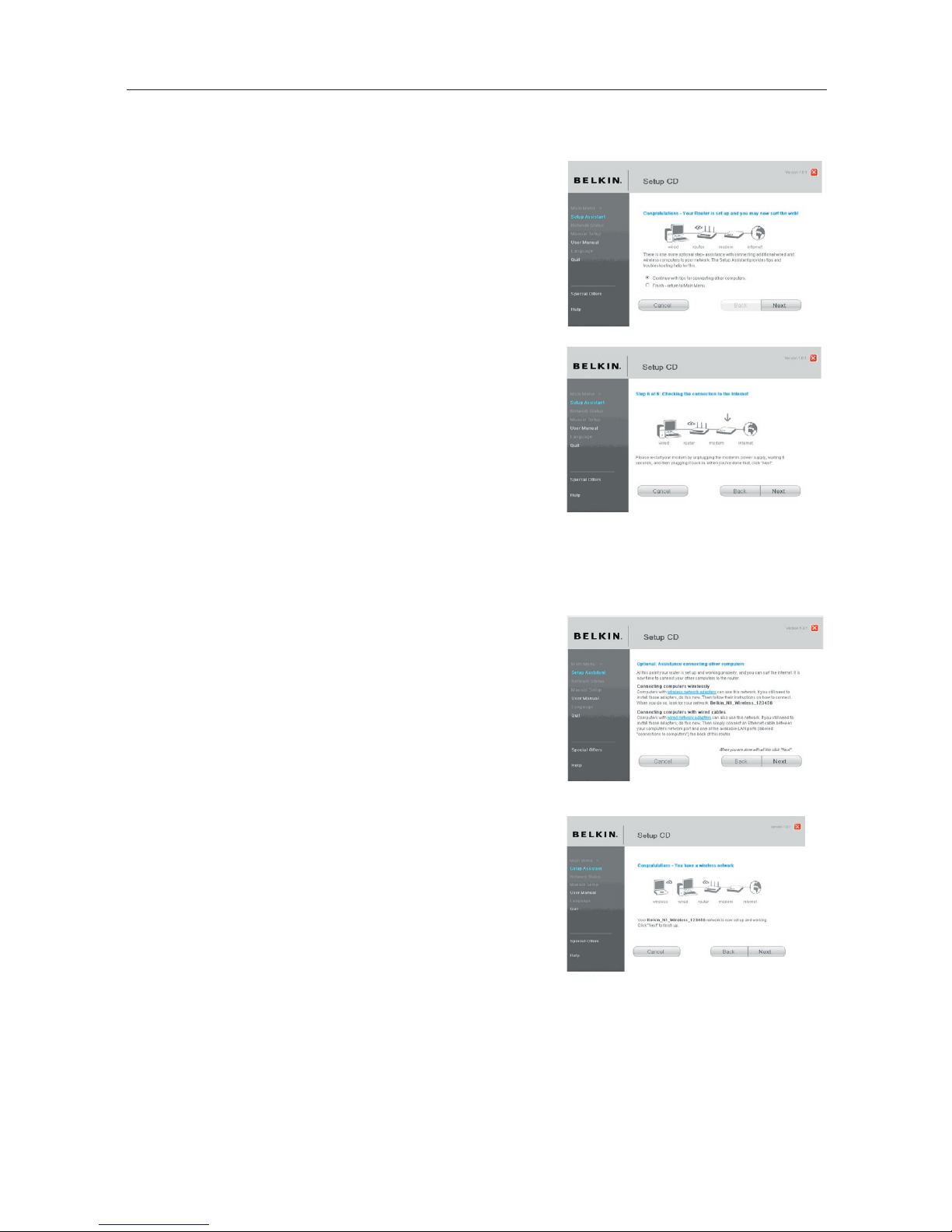

Step 2: Set Up the Router – Run the Setup Assistant Software 10
5. Manually Configuring your Router 13

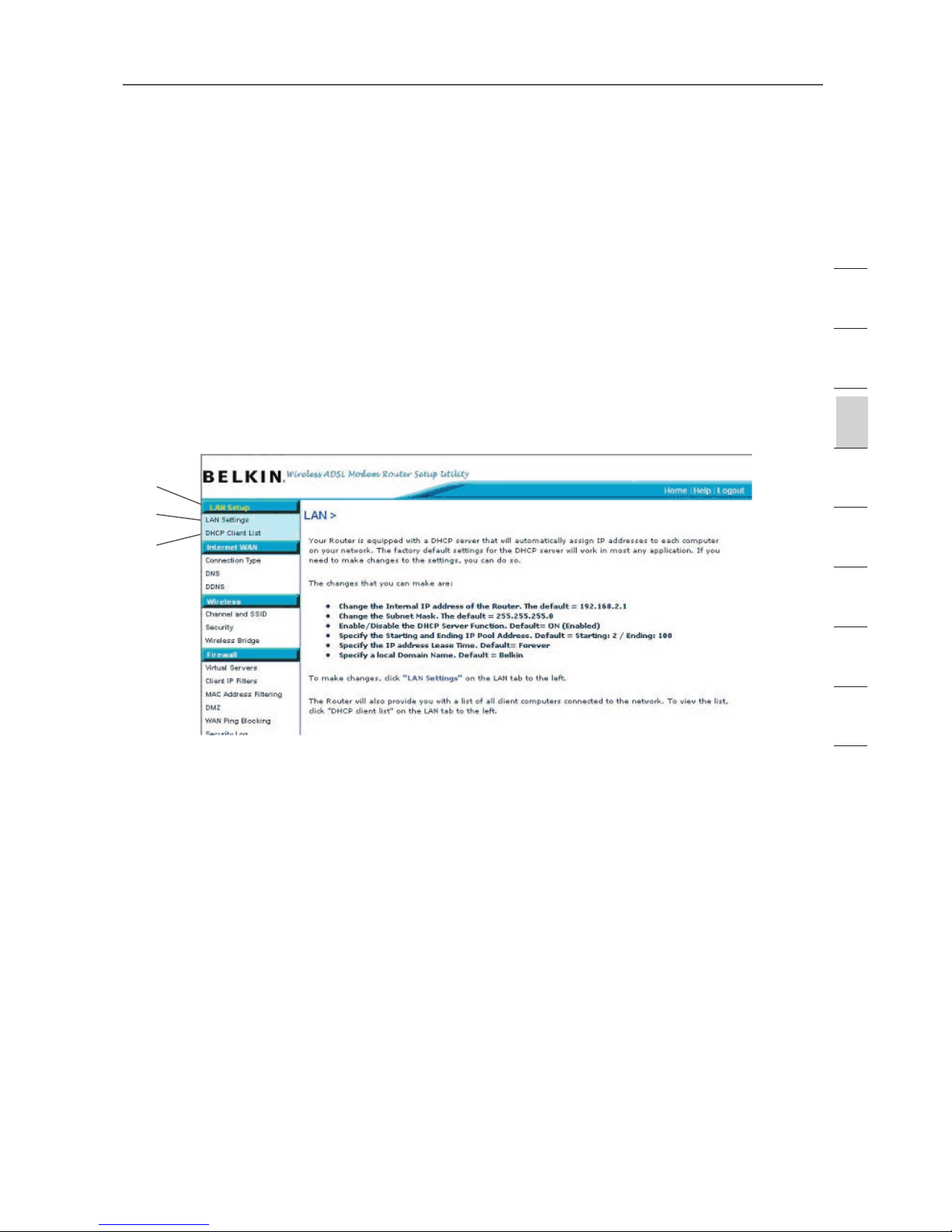

Understanding the Web-Based User Interface 13
Changing LAN Settings 15
DHCP Client List 16
Internet WAN 17
Connection Type 17
Wireless 23
Encryption/Security 25
Wireless Range Extension and Bridging 35
Firewall 37
Utilities 43
6. Manually Configuring Network Adapters 51
7. Recommended Web Browser Settings 55
8. Troubleshooting 57
9. Technical-Support Information 68
10. Appendixes 69
Appendix A: Glossary 69
Appendix B: Important Factors for Placement and Setup 74
11 Information 77

4

1
Introduction
2
1
3
4
5
6
7
8
9
10
section
11
Thank you for purchasing the Belkin ADSL2+ Modem with Wireless G Router (the
Router). In minutes you will be able to share your Internet connection and network
your computers with your new Router. The following is a list of features that make
your Router an ideal solution for your home or small office network. Please be sure
to read through this User Manual completely, and pay special attention to Appendix
B entitled “Important Factors for Placement and Setup”.
Product Features
Compatibility with both PCs and Mac® Computers
The Router supports a variety of networking environments including Mac OS® 8.x,
9.x, X v10.x, AppleTalk®, Linux®, Windows® 95, 98SE, Me, NT®, 2000, XP, Vista,
and others. You need an Internet browser and a network adapter that supports
TCP/IP (the standard language of the Internet).
Front-Panel LED Display
Lighted LEDs on the front of the Router indicate which functions are in operation.
You’ll know at-a-glance whether your Router is connected to the Internet.
This feature eliminates the need for advanced software and status-monitoring
procedures.
Web-Based Advanced User Interface
You can set up the Router’s advanced functions easily through your web browser,
without having to install additional software onto the computer. There are no disks
to install or keep track of and, best of all, you can make changes and perform setup
functions from any computer on the network quickly and easily.
Integrated 10/100 4-Port Switch
The Router has a built-in, 4-port network switch to allow your wired computers
to share printers, data and MP3 files, digital photos, and much more. The switch
features automatic detection so it will adjust to the speed of connected devices.
The switch will transfer data between computers and the Internet simultaneously
without interrupting or consuming resources.
Integrated 802.11g Wireless Access Point
802.11g is an exciting new wireless technology that achieves data rates up to
54Mbps, nearly five times faster than 802.11b.

2
2
Introduction
Built-In Dynamic Host Configuration Protocol (DHCP)
Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes for
the easiest possible connection of a network. The DHCP server will assign IP
addresses to each computer automatically so there is no need for a complicated
networking setup.
NAT IP Address Sharing
Your Router employs Network Address Translation (NAT) to share the single IP
address assigned to you by your Internet Service Provider while saving the cost of
adding additional IP addresses to your Internet service account.
SPI Firewall
Your Router is equipped with a firewall that will protect your network from a wide
array of common hacker attacks including IP Spoofing, Land Attack, Ping of Death
(PoD), Denial of Service (DoS), IP with zero length, Smurf Attack, TCP Null Scan,
SYN flood, UDP flooding, Tear Drop Attack, ICMP defect, RIP defect, and fragment
flooding.
MAC Address Filtering
For added security, you can set up a list of MAC addresses (unique client
identifiers) that are allowed access to your network. Every computer has its own
MAC address. Simply enter these MAC addresses into a list using the web-based
user interface and you can control access to your network.
Universal Plug-and-Play (UPnP) Compatibility
UPnP (Universal Plug-and-Play) is a technology that offers seamless operation of
voice messaging, video messaging, games, and other applications that are UPnP-
compliant.
Support for VPN Pass-Through
If you connect to your office network from home using a VPN connection, your
Router will allow your VPN-equipped computer to pass through the Router and to
your office network.

3
3
Introduction
2
1
3
4
5
6
7
8
9
10
section
11
Benefits of a Home Network
By following our simple setup instructions, you will be able to use your Belkin
home network to:
• Share one high-speed Internet connection with
all the computers in your home
• Share resources, such as files, and hard drives among
all the connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email, and chat
Advantages of a Belkin Wireless Network
Mobility — you’ll no longer need a dedicated “computer room”—now you can work
on a networked laptop or desktop computer anywhere within your wireless range
Easy installation — Belkin’s Setup Wizard makes setup simple
Flexibility — set up and access printers, computers, and other networking devices
from anywhere in your home
Easy Expansion — the wide range of Belkin networking products let you expand
your network to include devices such as printers and gaming consoles
No cabling required — you can spare the expense and hassle of retrofitting
Ethernet cabling throughout the home or office
Widespread industry acceptance — choose from a wide range of
interoperable networking products

4
4
Make Sure You Have the Following
Package Contents
• ADSL2+ Modem with Wireless G Router
• RJ11 Telephone Cord - Gray
• RJ45 Ethernet Networking Cable – Yellow
• ADSL Microfilter*
• Power Adapter
• User Manual and Belkin Setup Assistant Software on CD-ROM
*ADSL microfilter varies by country. If it’s not included, you will need to purchase one.
System Requirements
• An active ADSL service with a telephone wall jack for connecting the Router
• At least one computer with a Network Interface Card (NIC)
and Internet browser installed and correctly configured
• TCP/IP networking protocol installed on each computer connected to the Router
• No other DHCP server on your local network assigning
IP addresses to computers and devices
Setup Assistant Software System Requirements
• A PC running Windows® 2000, XP, or Vista™
• Minimum 500MHz processor and 128MB RAM
• Internet browser
Internet Connection Settings
The Setup Assistant contains a database of Internet Service Providers (ISPs) in
each country to help you set up your Router quickly. If your ISP is not on the
list, please collect the following information from your ISP before setting up the
Router:
• Internet connection protocol: (PPPoE, PPPoA, Dynamic IP, Static IP)
• Multiplexing method or Encapsulation: (LLC or VC MUX)
• Virtual circuit: VPI (Virtual Path Identifier) ______________________________
(a number between 0 and 255)
• VCI (Virtual Channel Identifier) ____________________________
(a number between 1 and 65535)
• For PPPoE and PPPoA users: ADSL account user name and
password _______________
• For static IP users: IP Address ___ . ___ . ___ . ___
Subnet Mask ___ . ___ . ___ . ___
Default Gateway Server ___ . ___ . ___ .
• IP address for Domain Name Server ___ . ___ . ___ . ___ (If given by your ISP)

5
5
Knowing your Router
2
1
3
4
5
6
7
8
9
10
section
11
The Router has been designed to be placed on a desktop. All of the cables exit
from the rear of the Router for better organization and utility. The LED indicators
are easily visible on the front of the Router to provide you with information about
network activity and status.

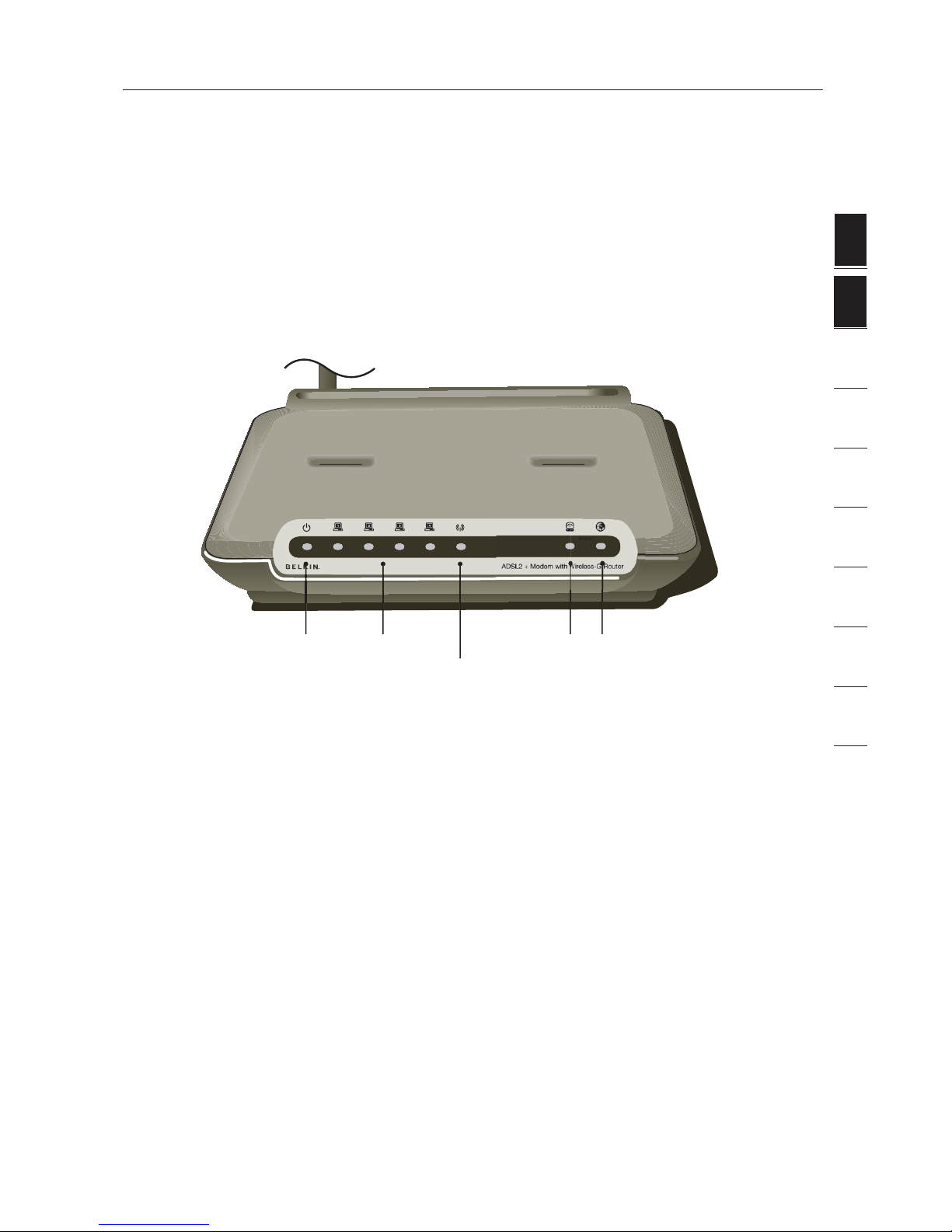

Front Panel
The following illustration shows the front panel of the Router:
LED Indicators
The Router is equipped with nine LEDs on the front panel as described in the
table on the next page (from left to right):
ADSL LED
Power LED LAN Status
LED (1-4)
Wireless LAN (WLAN)
Status LED
Internet LED

6
6
Knowing your Router
LED Color Status Description
ADSL
Green OFF Power off or ADSL line connection is physically
disconnected
Blinking Handshaking or training is in progress
Solid ADSL line connection is OK
Wireless
Green OFF Power off or no radio signal (WLAN card is not present or
fails to function)
Blinking Traffic is going through wireless LAN interface
Solid Wireless LAN interface ready to work
Internet
Green OFF No Internet connection
Blinking Transmitting or receiving data
Solid Connected to the Internet
LAN 1 to
LAN 4
Green OFF Power off or no Ethernet carrier is present
Blinking Ethernet carrier is present and user data is going through
Ethernet port
Solid Ethernet carrier is present
Power
Green OFF Power off
Solid Power on
   
 
   
 
   
 
-
LAN
   
 

7
7
Knowing your Router
2
1
3
4
5
6
7
8
9
10
section
11
Rear Panel
The following figure illustrates the rear panel of your Router.
Power Plug — Connect the included power supply to this inlet. Using the wrong
type of power adapter may cause damage to your Router.
Ethernet Ports —The Ethernet ports are RJ45, 10/100 auto-negotiation. The
ports are labeled 1 through 4. These ports correspond to the numbered LEDs
on the front of the Router. Connect your network-enabled computers or any
networking devices to one of these ports.
ADSL Line —This port is for connection to your ADSL line. Connect your ADSL
line to this port.
Reset Button —The “Reset” button is used in rare cases when the Router
may function improperly. Resetting the Router will restore the Router’s normal
operation while maintaining the programmed settings. You can also restore the
factory default settings by using the “Reset” button. Use the restore option in
instances where you may have forgotten your custom password.
a. Resetting the Router
Push and hold the “Reset” button for one second then release it. When the
“Power/Ready” light becomes solid again, the reset is complete.
b. Restoring the Factory Defaults
Press and hold the “Reset” button for 20 seconds then release it. When the
“Power/Ready” light becomes solid again, the restore is complete.
  


(8) (7)(9)(6)

8
8
Connecting and Configuring your Router
Setup Assistant
Belkin has provided Setup Assistant software to make installing your Router a simple
and easy task. You can use it to get your Router up and running in minutes. The Setup
Assistant requires that your Windows 2000, XP, or Vista™ computer be connected
directly to your ADSL and that the Internet connection is active and working at the
time of installation. If it is not, you must use the “Alternate Setup Method” section of
this User Manual to configure your Router. Additionally, if you are using an operating
system other than Windows 2000, XP, or Vista, or Mac OS X, you must use the
“Alternate Setup Method” section of this User Manual.
Step 1A: Hardware Connections – Follow the
Quick Installation Guide (QIG)
New Router Setup
Follow these steps if you are NOT replacing an existing modem. If you are replacing
an existing modem, skip to the next section, “Replacing an Existing Modem or
Modem Router”, starting on page 9.
1A.1 Unpack your new Router from
the box and place it next to your
computer. Raise the Router’s
antenna.
1A.2 Retrieve the yellow RJ45 cable that
was included with your Router. First,
connect one end to any yellow port
labeled “Wired Computers” on the
back of your Router. Then, connect
the other end to the networking
port on the back of your computer.
[Insert Ethernet logo]
1A.3 Retrieve the included gray RJ11
phone cord. Connect one end to the
gray port labeled “DSL” on the back
of your Router. Then, connect the
other end to your ADSL connection
(either a wall jack or an ADSL
splitter).
Note: Some ADSL connections require a
microfilter. Your ADSL provider can tell you
if you need one. Belkin includes a microfilter
in regions known to use them. To determine
if you need a microfilter, please refer to your
ADSL provider’s user manual.

9
9
Connecting and Configuring your Router
2
1
3
4
5
6
7
8
9
10
section
11
1A.4 Plug your Router’s power supply into the
black port labeled “Power” on the back of
your Router. Wait 20 seconds for the Router
to start up. Look at the display on the front
of the Router. Make sure the “Wired” and
“Modem-Router” icons are lit in green. If they
are not, recheck your connections.
Step 1B: Replacing an Existing Modem or Modem Router
Follow these steps if you currently have a modem or a modem router that you
will be replacing with your new Router.
1B.1 Unpack your new Router from the box and
place it next to your old modem. Raise the
Router’s antenna. Unplug your old modem’s
power cord.
1B.2 Locate the cable that connects your old
modem to your computer. Unplug that cable
from your old modem, and plug it into any
yellow port labeled “Wired Computers” on
the back of your new Router.
1B.3 Locate the cable that connects your old
modem to the ADSL wall jack. Unplug it from
your old modem and then connect it to the
gray port labeled “DSL” on the back of your
Router.
1B.4 Plug your Router’s power supply into the
black port labeled “Power” on the back of
your Router.
1B.5 Wait 20 seconds for the Router to start up.
Look at the display on the front of the Router.
Make sure the “ADSL” and “LAN” LEDs are
lit in green. If they are not, recheck your
connections.

10
10
Connecting and Configuring your Router
Step 2: Set Up the Router – Run the Setup Assistant Software
2.1 Shut down any programs that are running on your computer at this time.Turn
off any firewall or Internet-connection-sharing software on your computer.
2.2 Insert the CD into your computer. The
Setup Assistant will automatically appear
on your computer’s screen within 15
seconds. Click on “Go” to run the Setup
Assistant. Follow the instructions there.
IMPORTANT: Run the Setup Assistant from
the computer that is directly
connected to the Router from
Step 1A.2.
Note for Windows Users: If the Setup
Assistant does not start up automatically,
select your CD-ROM drive from “My
Computer” and double-click on the file
named “SetupAssistant” to start the Setup
Assistant.
2.3 Select Country. Select your country from
the drop-down box. Click “Begin” to
continue.
2.4 Confirmation Screen. Verify that you have
completed all QIG steps by checking the
box to the right of the arrow. Click “Next”
to continue.
2.5 Progress Screen Setup Assistant will show
you a progress screen each time a step in
the setup has been completed.
2.6 Checking Settings. The Setup Assistant
will now examine your computer’s network
settings and gather information needed to
complete the Router’s connection to the
Internet.

11
11
section
Connecting and Configuring your Router
2
1
3
4
5
6
7
8
9
10
11
2.7 Verifying Hardware Connections
The Setup Assistant will now verify your
hardware connection.
2.8 Naming your Wireless Network
The Setup Assistant will display the default
wireless network name or Service Set
Identifier (SSID). This is the name of your
wireless network to which your computers
or devices with wireless network adapters
will connect. You can either use the
default or change it to something unique.
Write down this name for future reference.
Click “Next” to continue.
2.9 Requesting Internet Account Info (if
needed)
If your Internet account requires a login
and password, you will be prompted with
a screen similar to the illustration below.
Select your country or ISP from the drop-
down boxes.
2.10 Configuring the Router
The Setup Assistant will now configure
your Router by sending data to the Router
and restarting it. Wait for the on-screen
instructions.
Note: Do not disconnect any cable or power
off the Router while the Router is rebooting.
Doing so will render your Router inoperable.
2.11 Checking Internet Connection
We are almost done. The Setup Assistant
will now check your connection to the
Internet.

12
12
Connecting and Configuring your Router
Congratulations
You have finished installing your new Belkin
Router. You will see the Congratulations
screen when your Router can connect to the
Internet. You can begin surfing by opening
your browser and going to any website.
You can use the Setup Assistant to set up
your other wired and wireless computers to
connect to the Internet by clicking “Next”. If
you decide to add computers to your Router
later, select “Exit the Assistant” and then click
“Next”.
Troubleshooting
If the Setup Assistant is not able to connect
to the Internet, you will see the following
screen. Follow the on-screen instructions to
go through the troubleshooting steps.
2.12 Optional: Assistance Connecting Other
Computers. This optional step will help
you to connect additional wired and
wireless computers to your network.
Follow the on-screen instructions.
Once you have verified that your other
wired and wireless computers are properly
connected, your network is set up and
working. You can now surf the Internet.
Click “Next” to take you back to the main
menu.

13
13
section
Manually Configuring your Router
2
1
3
4
5
6
7
8
9
10
11
Understanding the Web-Based User Interface
The home page shows you a quick view of the Router’s status and settings. All
advanced setup pages can be reached from this page.
Using Web-Based Manager
Once your host PC is properly configured, start your web browser and type the private
IP address of the Router into the URL field: “192.168.2.1” and then click “Enter”.
1. Quick-Navigation Links
You can go directly to any of the Router’s UI pages by clicking directly on
these links. The links are divided into logical categories and grouped by tabs to
make finding a particular setting easier to find. Clicking on the header of each
tab will show you a short description of the tab’s function.
2. Home Button
The “Home” button is available in every page of the UI. Pressing this button
will take you back to the home page.
3. Help Button
The “Help” button gives you access to the Router’s help pages. Help is also
available on many pages by clicking “more info” next to certain sections of
each page.
4. Login/Logout Button
This button enables you to log in and out of the Router with the press of one
button. When you are logged into the Router, this button will change to read
“Logout”. Logging into the Router will take you to a separate login page where
you will need to enter a password. When you are logged into the Router, you
can make changes to the settings. When you are finished making changes, you
can log out of the Router by clicking the “Logout” button. For more information
about logging into the Router, see the section called “Logging into the Router”.

14
14
Manually Configuring your Router
5. Internet Status Indicator
This indicator is visible in all pages of the Router, showing the connection
status of the Router. When the indicator says “connection OK” in GREEN,
the Router is connected to the Internet. When the Router is not connected to
the Internet, the indicator will read “no connection” in RED. The indicator is
automatically updated when you make changes to the settings of the Router.
6. LAN Settings
Shows you the settings of the Local Area Network (LAN) side of the
Router.Changes can be made to the settings by clicking the “LAN” “Quick
Navigation”link on the left side of the screen.
7. Features
Shows the status of the Router’s NAT, firewall, and wireless features. Changes
can be made to the settings by clicking on any one of the links or by clicking
the “Quick Navigation” links on the left side of the screen.
8. Internet Settings
Shows the settings of the Internet/WAN side of the Router that connects to
the Internet. Changes to any of these settings can be made by clicking on the
“Internet/WAN” “Quick Navigation” link on the left side of the screen.
9. Version Info
Shows the firmware version, boot-code version, hardware version, and serial
number of the Router.
10. Page Name
The page you are on can be identified by this name. This manual will
sometimes refer to pages by name. For instance, “LAN > LAN Settings” refers
to the “LAN Settings” page.

15
15
Manually Configuring your Router
Changing LAN Settings
All settings for the internal LAN setup of the Router can be viewed and changed
here.
LAN Settings
Clicking on the header of the LAN tab (A) will take you to the LAN tab’s header
page. A quick description of the functions can be found here. To view the settings
or make changes to any of the LAN settings, click on “LAN Settings” (B) or to view
the list of connected computers, click on “DHCP Client List” (C).
IP Address
The “IP address” is the internal IP address of the Router. The default IP address
is “192.168.2.1”. To access the advanced setup interface, type this IP address
into the address bar of your browser. This address can be changed if needed. To
change the IP address, type in the new IP address and click “Apply Changes”. The
IP address you choose should be a non-routable IP. Examples of a non-routable IP
are:
192.168.x.x (where x is anything between 0 and 255)
10.x.x.x (where x is anything between 0 and 255)
Subnet Mask
There is no need to change the subnet mask. This is a unique, advanced feature of
your Belkin Router.
(A)
(B)
(C)
section
2
1
3
4
5
6
7
8
9
10
11

16
16
Manually Configuring your Router
DHCP Server
The DHCP server function makes setting up a network very easy by assigning IP
addresses to each computer on the network automatically. The default setting is
“On”. The DHCP server can be turned OFF if necessary; however, in order to do so,
you must manually set a static IP address for each computer on your network. To
turn off the DHCP server, select “Off” and click “Apply Changes”.
IP Pool
The range of IP addresses set aside for dynamic assignment to the computers on
your network. If you want to change this number, you can do so by entering a new
starting and ending IP address and clicking on “Apply Changes”. The starting IP
address must be lower in number than the ending IP address.
Lease Time
The length of time the DHCP server will reserve the IP address for each computer.
We recommend that you leave the lease time set to “Forever”. The default setting
is “Forever”, meaning that any time a computer is assigned an IP address by the
DHCP server, the IP address will not change for that particular computer. Setting
lease times for shorter intervals such as one day or one hour frees IP addresses
after the specified period of time. This also means that a particular computer’s IP
address may change over time. If you have set any of the other advanced features
of the Router such as DMZ or client IP filters, these are dependent on the IP
address. For this reason, you will not want the IP address to change.
Local Domain Name
You can set a local domain name (network name) for your network. There is no
need to change this setting unless you have a specific advanced need to do so. You
can name the network anything you want such as “MY NETWORK”.
DHCP Client List
You can view a list of the computers, which are connected to your network. You are
able to view the IP address of the computer, the host name (name of the computer
in your network), and the MAC address of the computer’s network interface card
(NIC). Pressing the “Refresh” button will update the list. If there have been any
changes, the list will be updated.
