Thank you for purchasing the Belkin ADSL Modem with High-Speed
Mode Wireless G Router (the Router). In minutes you will be able to
share your Internet connection and network your computers with your
new Router. The following is a list of features that make your Router an
ideal solution for your home or small office network. Please be sure to
read through this User Manual completely, and pay special attention to
Appendix B entitled “Important Factors for Placement and Setup”.
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email, and chat
Advantages of a Wireless Network
Here are some of the advantages of setting up a Belkin Wireless
Network:
• Mobility – you’ll no longer need a dedicated “computer room”—
now you can work on a networked laptop or desktop computer
anywhere within your wireless range
• Easy installation – Belkin’s Easy Installation Wizard makes setup
simple
• Flexibility – set up and access printers, computers, and other
networking devices from anywhere in your home
• Easy Expansion – the wide range of Belkin networking products let
you expand your network to include devices such as printers and
gaming consoles
• No cabling required – you can spare the expense and hassle of
retrofitting Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range of
interoperable networking products.

32
Introduction
32
Introduction
Placement of your Wireless G Plus MIMO ADSL2+
Modem Router
Important Factors for Placement and Setup
Your wireless connection will be stronger the closer your computer is
to your Router. Typical indoor operating range for wireless devices is
between 100 and 200 feet.
In the same way, your wireless connection and performance will
degrade somewhat as the distance between your Router and
connected devices increases. This may or may not be noticeable to
you. As you move further from your Router, connection speed may
decrease. Factors that can weaken signals simply by getting in the way
of your network’s radio waves are metal appliances or obstructions,
and walls.
If you have concerns about your network’s performance that might
be related to range or obstruction factors, try moving the computer
to a position between five and 10 feet from the Router in order to see
if distance is the problem. If difficulties persist even at close range,
please contact Belkin Technical Support.
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at
its maximum effectiveness, this checklist may help.
1. Router Placement
Place your Router, the central connection point of your network, as
close as possible to the center of your wireless network devices. To
achieve the best wireless network coverage for your “wireless clients”
(i.e., computers enabled by Belkin Wireless Notebook Network Cards,
Wireless Desktop Network Cards, and Wireless USB Adapters):
• Ensure that your Router’s networking antennas are parallel to each
other, and are positioned vertically (toward the ceiling). If your
Router itself is positioned vertically, point the antennas as much as
possible in an upward direction.
• In multistory homes, place the Router on a floor that is as close
to the center of the home as possible. This may mean placing the
Router on an upper floor.
• Try not to place the Router near a cordless 2.4GHz phone.
The Router is designed to be placed on a desktop. All of the cables exit
from the rear of the Router for better organization and utility. The LED
indicators are easily visible on the front of the Router to provide you with
information about network activity and status.

3
Introduction
Introduction
3
Introduction
2
1
3
4
5
6
7
8
9
10
12
section
2. Avoid Obstacles and Interference
Avoid placing your Router near devices that may emit radio “noise,”
such as microwave ovens. Dense objects that can inhibit wireless
communication include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based UV tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path (between your
computers and Router).
3. Cordless Phones
If the performance of your wireless network is impaired after attending
to the above issues, and you have a cordless phone:
• Try moving cordless phones away from your Router and your
wireless-enabled computers.
• Unplug and remove the battery from any cordless phone that
operates on the 2.4GHz band (check manufacturer’s information).
If this fixes the problem, your phone may be interfering.
• If your phone supports channel selection, change the channel
on the phone to the farthest channel from your wireless network.
For example, change the phone to channel 1 and move your
Router to channel 11. See your phone’s user manual for detailed
instructions.
• If necessary, consider switching to a 900MHz or 5GHz cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours. Use the Site Survey
capabilities found in the Wireless Utility of your wireless adapter to
locate any other wireless networks that are available (see your wireless
adapter’s user manual), and move your Router and computers to a
channel as far away from other networks as possible.
• Experiment with more than one of the available channels, in
order to find the clearest connection and avoid interference from
neighboring cordless phones or other wireless devices.
• For Belkin wireless networking products, use the detailed Site
Survey and wireless channel information included with your
wireless network card. See your network card’s user guide for
more information.

54
Introduction
54
Introduction
These guidelines should allow you to cover the maximum possible area
with your Router. Should you need to cover an even wider area, we
suggest the Belkin Wireless Range Extender/Access Point.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and
are used where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect
remotely to an office network
• The “Bring Your Own Access” program from America Online (AOL),
which lets you use AOL through broadband provided by another
cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and password
to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The simplest
solution to avoid this is to simply reconnect by rerunning the VPN or
AOL software, or by re-logging into the secure website.
A second alternative is to change your computer’s power
management settings so it does not go to sleep; however, this may
not be appropriate for portable computers. To change your power
management setting under Windows, see the “Power Options” item in
the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs, and
AOL, please review the steps above to be sure you have addressed
these issues.
For more information regarding our networking products, visit our website
at www.belkin.com/networking or call Belkin Technical Support at:
USA: 877-736-5771
310-898-1100 ext. 2263
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
Europe: www.belkin.com/support

5
Product Overview
5
2
1
3
4
5
6
7
8
9
10
12
section
Product Features
Product Features
In minutes you will be able to share your Internet connection and
network your computers. The following is a list of features that make
your new Belkin Wireless G Plus MIMO ADSL2+ Modem Router an
ideal solution for your home or small office network.
Works with Both PCs and Mac® Computers
The Router supports a variety of networking environments including
Mac OS® 8.x, 9.x, X v10.x, Linux®, Windows® 98, Me, NT®, 2000, XP,
and Vista™, and others. All that is needed is an Internet browser and
a network adapter that supports TCP/IP (the standard language of the
Internet.
Web-Based Advanced User Interface
You can set up the Router’s advanced functions easily through your
web browser, without having to install additional software onto the
computer. There are no disks to install or keep track of and, best of all,
you can make changes and perform setup functions from any computer
on the network quickly and easily.
NAT IP Address Sharing
Your Router employs Network Address Translation (NAT) to share the
single IP address assigned to you by your Internet Service Provider
while saving the cost of adding IP addresses to your Internet service
account.
SPI Firewall
Your Router is equipped with a firewall that will protect your network
from a wide array of common hacker attacks including IP Spoofing,
Land Attack, Ping of Death (PoD), Denial of Service (DoS), IP with zero
length, Smurf Attack, TCP Null Scan, SYN flood, UDP flooding, Tear
Drop Attack, ICMP defect, RIP defect, and fragment flooding.
Integrated 10/100 4-Port Switch
The Router has a built-in, four-port network switch to allow your wired
computers to share printers, data and MP3 files, digital photos, and
much more. The switch features automatic detection so it will adjust to
the speed of connected devices. The switch will transfer data between
computers and the Internet simultaneously without interrupting or
consuming resources.

76
Product Overview
76
Product Overview
Universal Plug and Play (UPnP)
UPnP is a technology that offers seamless operation of voice
messaging, video messaging, games, and other applications that are
UPnP-compliant.
Support for VPN Pass-Through
If you connect to your office network from home using a VPN
connection, your Router will allow your VPN-equipped computer to
pass through the Router and to your office network.
Built-In Dynamic Host Configuration Protocol (DHCP)
Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes
for the easiest possible connection of a network. The DHCP server
will assign IP addresses to each computer automatically so there is no
need for a complicated networking setup.
Setup Assistant
The Setup Assistant, second generation of Belkin’s renowned Easy
Install Wizard, takes the guesswork out of setting up your Router. This
automatic software determines your network settings for you and sets
up the Router for connection to your Internet Service Provider (ISP). In
a matter of minutes, your Router will be up and running on the Internet.
Note: Setup Assistant software is compatible with Windows 2000 and
XP. If you are using another operating system, the Router can be set
up using the Alternate Setup Method described in this User Manual
(see page 22).
Integrated Wireless G Plus MIMO Access Point
Wireless G Plus MIMO is an exciting new wireless technology.
It employs MIMO (Multiple Input Multiple Output) smart-antenna
technology that achieves data rates above the standard 802.11g
throughput. Actual throughput is typically lower than the connected
data rate and will vary depending on your networking environment.
MAC-Address Filtering
For added security, you can set up a list of MAC addresses (unique
client identifiers) that are allowed access to your network. Every
computer has its own MAC address. Simply enter these MAC
addresses into a list using the Web-Based Advanced User Interface
and you can control access to your network.

7
Knowing your Router
7
section
2
1
3
4
5
6
7
8
9
10
12
Package Contents
• Belkin Wireless G Plus MIMO ADSL2+ Modem Router
• Quick Installation Guide
• Belkin Setup Assistant Software CD
• RJ11 Telephone Cord
• RJ45 Ethernet Networking Cable
• ADSL (Asymmetric Digital Subscriber Line) Microfilter*
• Power Supply
• User Manual in CD
*ADSL microfilter varies by country. If it’s not included, you will need to
purchase one.
System Requirements
• An active ADSL service with a telephone wall jack for connecting
the Router
• At least one computer with an installed network interface adapter
• TCP/IP networking protocol installed on each computer
• No other DHCP server on your local network assigning IP
addresses to computers and devices
• Internet browser
Setup Assistant Software System Requirements
• A PC running Windows® 2000 or XP
• Minimum 500MHz processor and 128MB RAM
• Internet browser
Internet Connection Settings
The Setup Assistant contains a database of Internet Service Providers
(ISPs) in each country to help you set up your Router quickly. If your
ISP is not on the list, please collect the following information from your
ISP before setting up the Router:
• Internet connection protocol: _________ (PPPoE, PPPoA, Dynamic
IP, Static IP)
• Multiplexing method or Encapsulation: _________ (LLC or VC MUX)

98
Knowing your Router
98
Knowing your Router
• Virtual circuit: VPI (Virtual Path Identifier) __________
(a number between 0 and 255)
• VCI (Virtual Channel Identifier) __________
(a number between 1 and 65535)
• For PPPoE and PPPoA users: ADSL account user name ________
and password _______________
• For static IP users: IP Address ___ . ___ . ___ . ___
Subnet Mask ___ . ___ . ___ . ___
Default Gateway Server ___ . ___ . ___ .
• IP address for Domain Name Server ___ . ___ . ___ . ___ (If given
by your ISP)
The Network Status Display
The Router has been designed to be placed on a desktop. All of the
cables exit from the rear of the Router for better organization and
utility. The Network Status Display is easily visible on the FRONT of
the Router to provide you with information about network activity
and status. See the Network Status Display Guide for more detailed
information.
Front Panel
1. Power LED
When you apply power to the Router or restart it, a short period of time
elapses while the Router boots up. When the Router has completely
booted up, the Power LED becomes a GREEN light, indicating the
Router is ready for use.
OFF Router is OFF
Green Router is ON
Red Router failed to start
(1) (4)
(3) (5)
(2)

9
Knowing your Router
9
section
2
1
3
4
5
6
7
8
9
10
12
2. LAN Status LEDs
These LAN Status LEDs are labeled 1–4 and correspond to the
numbered ports on the rear of the Router. When a computer is properly
connected to one of the LAN ports on the rear of the Router, the LED
will light. Solid GREEN means a computer or a network-enabled device
is connected. When information is being sent over the port, the LED
blinks rapidly. ORANGE indicates a 10Base-T connection.
3. WLAN Status LED
The WLAN Status LED is solid GREEN when you enable the wireless
LAN function. It flashes when the Router is transmitting or receiving
data wirelessly.
4. ADSL LED
The ADSL LED flashes GREEN during negotiation with your ISP. It stays
GREEN when the Router is connected properly to your ADSL service.
Orange Ethernet link is up and 10Base-T
device connected
Orange - blinking 10Base-T device is transmitting or
receiving data
Green Ethernet link is up and 100Base-T
device is connected
Green - blinking 100Base-T device is transmitting or
receiving data
Green WLAN is up and connected
Green - blinking Transmitting or receiving data
OFF No ADSL connection
Green - blinking Negotiating connection
Green ADSL link is up and connected

1110
Knowing your Router
1110
Knowing your Router
5. Internet LED
The Internet LED shows you when the Router is connected to the
Internet. When the LED is OFF, the Router is NOT connected to the
Internet. When the LED is solid GREEN, the Router is connected to
the Internet. When the LED is blinking, the Router is transmitting or
receiving data from the Internet.

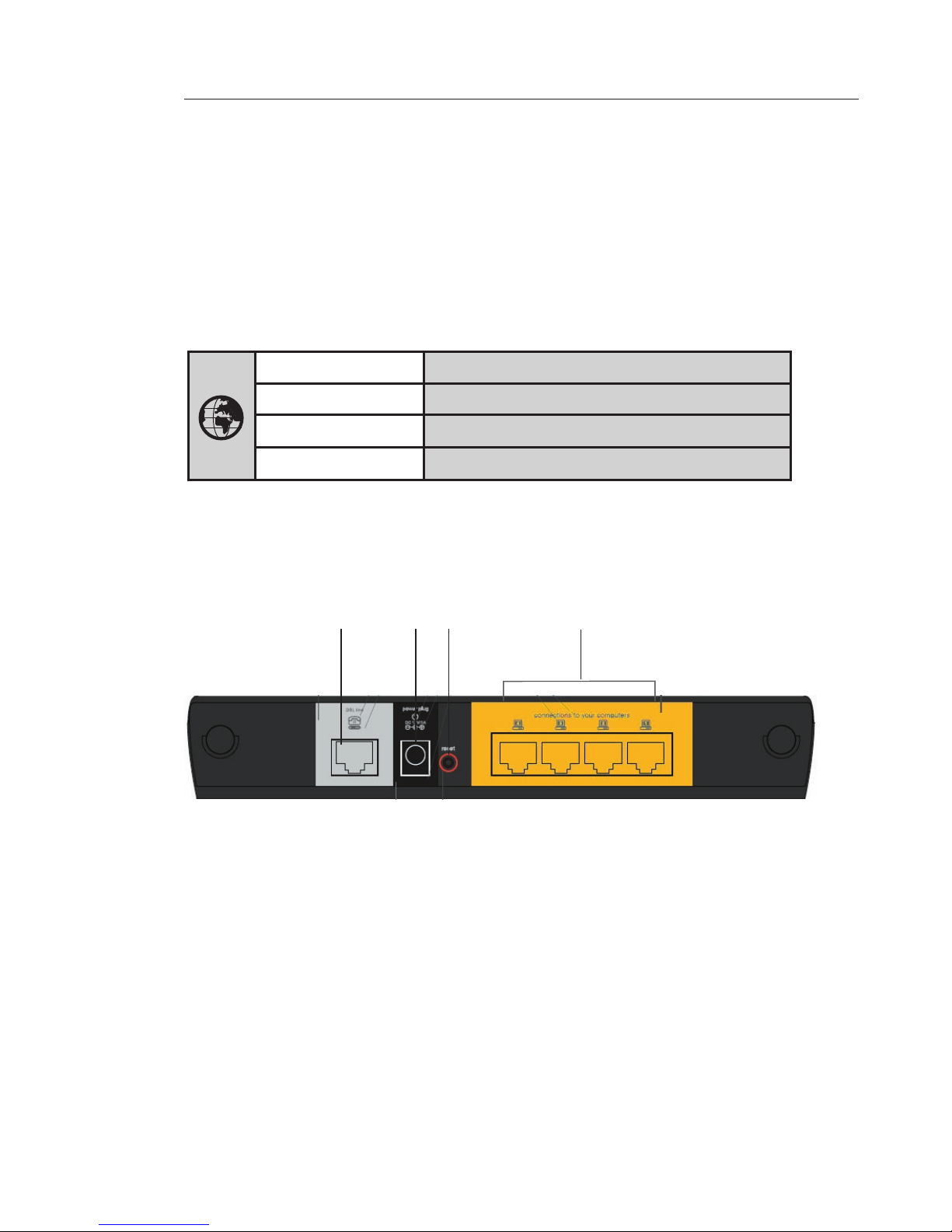

Back Panel
6. DSL Line
This port is for connection to your ADSL. Connect your ADSL to this
port.
7. Ethernet Ports
The Ethernet ports are RJ45, 10/100 auto-negotiation. The ports are
labeled 1 through 4. These ports correspond to the numbered LEDs on
the front of the Router. Connect your network-enabled computers or
any networking devices to one of these ports.
OFF No Internet connection
Green Connected to the Internet
Green - blinking Transmitting or receiving data
Red Failed to connect to the Internet
(7)
(8)(9)
(6)

11
Knowing your Router
11
section
2
1
3
4
5
6
7
8
9
10
12
8. Reset Button
The “Reset” button is used in rare cases when the Router may function
improperly. Resetting the Router will restore the Router’s normal
operation while maintaining the programmed settings. You can also
restore the factory default settings by using the “Reset” button. Use
the restore option in instances where you may have forgotten your
custom password.
a. Resetting the Router
Push and hold the “Reset” button for one second, then
release it. When the “Power/Ready” light becomes solid
again, the reset is complete.
b. Restoring the Factory Defaults
Press and hold the “Reset” button for at least five seconds,
then release it. When the “Power/Ready” light becomes solid
again, the restore is complete.
9. Power Plug
Connect the included DC power supply to this inlet. Using the wrong
type of power adapter may cause damage to your Router.

1312
Connecting and Configuring your Router
1312
Connecting and Configuring your Router
Verify the contents of your box. You should have the following:
• Belkin Wireless G Plus MIMO ADSL2+ Modem Router
• RJ11 Telephone Cord
• RJ45 Ethernet Networking Cable
• Power Supply
• Belkin Setup Assistant Software CD
• User Manual

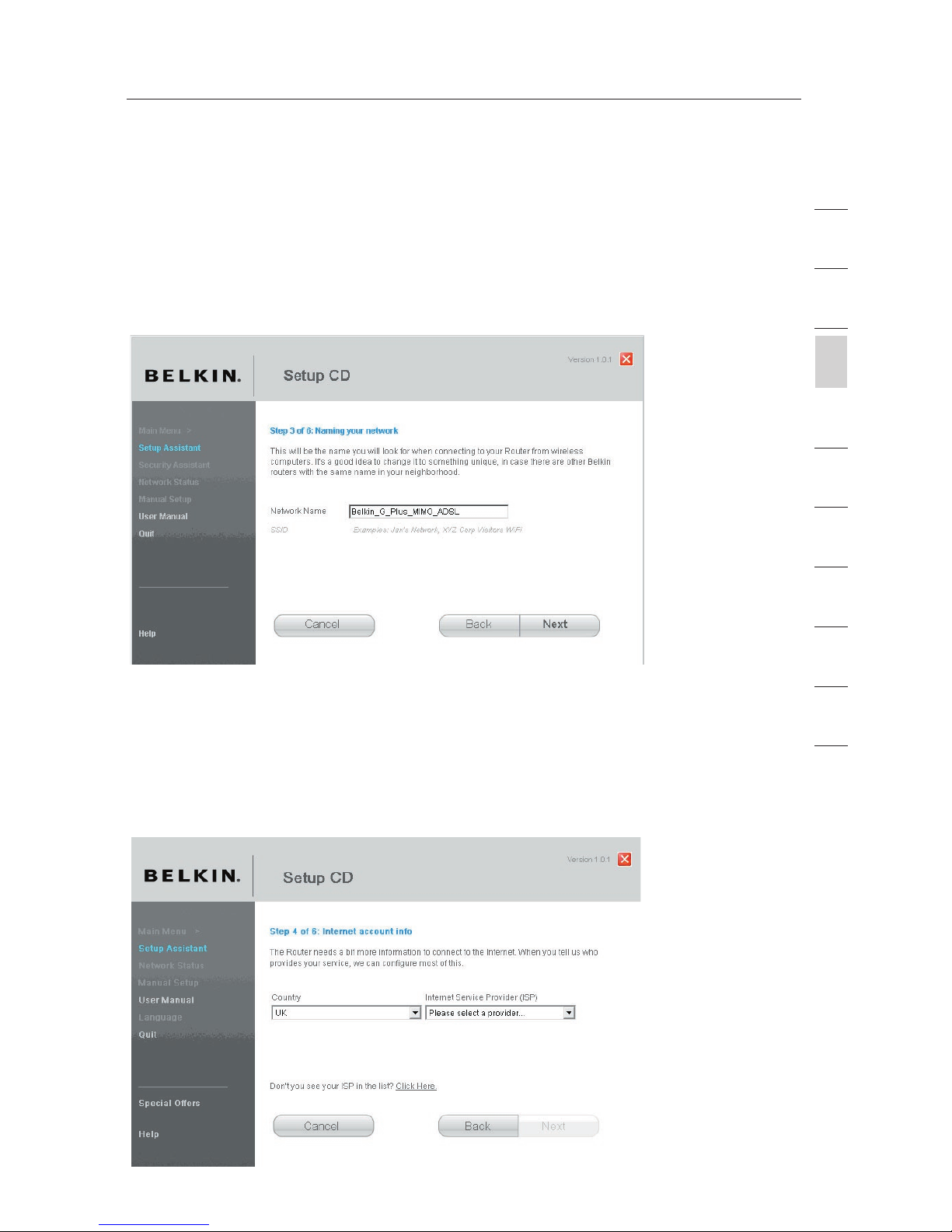

Setup Assistant
Belkin has provided our Setup Assistant software to make installing
your Router a simple and easy task. You can use it to get your
Router up and running in minutes. The Setup Assistant requires that
your Windows 2000 ,XP or Vista computer be connected directly to
your ADSL and that the Internet connection is active and working
at the time of installation. If it is not, you must use the “Alternate
Setup Method” section of this User Manual to configure your Router.
Additionally, if you are using an operating system other than Windows
2000,XP, or Mac OS X you must set up the Router using the “Alternate
Setup Method” section of this User Manual.
Step 1A: Hardware Connections – Follow the Quick Installation
Guide (QIG)
Brand-New Setup
Follow these steps if you are not replacing an existing modem. If you
are replacing an existing modem, skip to the next section, “Replacing
an Existing Modem or Modem Router”, starting on page 13
1A.1 Unpack your new Router from the box and place it next to your
computer. Raise the Router’s antennas.
1A.2 Retrieve the yellow RJ45 cable that was included with your
Router. First, connect one end to any yellow port labeled “Wired
Computers” on the back of your Router. Then, connect the other
end to the networking port on the back of your computer.
1A.3 Retrieve the included gray RJ11 phone cord. Connect one end
to the gray port labeled “DSL” on the back of your Router. Then
connect the other end to your ADSL connection (either a wall jack
or an ADSL splitter).

13
Connecting and Configuring your Router
13
section
2
1
3
4
5
6
7
8
9
10
12
Note: Some ADSL connections require a microfilter. Your ADSL provider
can tell you if you need one. Belkin includes a microfilter in regions
known to use them. You may or may not have received one in your box.
1A.4 Plug your Router’s power supply into the black port labeled
“Power” on the back of your Router . Wait 30 seconds for the
Router to start up. Look at the front panel of the Router. Make
sure one of the “LAN” and the “POWER” LED’s are both lit up. If
they are not, recheck your connections.
Step 1B: Replacing an Existing Modem or Modem Router
Follow these steps if you currently have a modem or a modem router
that you will be replacing with your new Router.
1B.1 Unpack your new Router from the box and place it next to
your old modem. Raise the Router’s antennas. Unplug your old
modem’s power cord.
1B.2 Locate the cable that connects your old modem to your
computer. Unplug that cable from your old modem, and plug it
into any yellow port labeled “Wired Computers” on the back of
your new Router.
1B.3 Locate the cable that connects your old modem to the ADSL wall
jack. Unplug it from your old modem and then connect it to the
gray port labeled “DSL” on the back of your Router.
1B.4 Plug your Router’s power supply into the black port labeled
“Power” on the back of your Router.
1B.5 Wait 30 seconds for the Router to start up. Look at the front
panel on the Router. Make sure one of the “LAN” and the
“POWER” icons are lit. If they are not, recheck your connections.
Step 2: Set Up the Router – Run the Setup Assistant Software
2.1 Shut down any programs that are running on your computer at this
time. Turn off any firewall or Internet-connection-sharing software
on your computer.
2.2 Insert the CD into your computer. The Setup Assistant will
automatically appear on your computer’s screen within 15
seconds. Click on “Go” to run the Setup Assistant. Follow the
instructions there.

1514
Connecting and Configuring your Router
1514
Connecting and Configuring your Router
Note for Windows Users: If the Setup Assistant does not start up
automatically, select your CD-ROM drive from “My Computer” and
double-click on the file named “SetupAssistant” to start the Setup
Assistant.
NOTE TO MAC® USERS: Double-click on the “Easy Install” icon to start
the Setup Assistant. Then, follow the prompts to complete the setup.
2.3 Select Country. Select your country from the drop-down box.
Click “Begin” to continue.

15
Connecting and Configuring your Router
15
section
2
1
3
4
5
6
7
8
9
10
12
2.4 Confirmation Screen. Verify that you have completed all QIG steps
by checking the box to the right of the arrow. Click “Next” to
continue.
2.5 Progress Screen. Setup Assistant will show you a progress screen
each time a step in the setup has been completed.

1716
Connecting and Configuring your Router
1716
Connecting and Configuring your Router
2.6 Checking Settings. The Setup Assistant will now examine your
computer’s network settings and gather information needed to
complete the Router’s connection to the Internet.
2.7 Verifying Hardware Connections. The Setup Assistant will now
verify your hardware connection.

17
Connecting and Configuring your Router
17
section
2
1
3
4
5
6
7
8
9
10
12
2.8 Naming your Wireless Network. The Setup Assistant will display the
default wireless network name or Service Set Identifier (SSID). This
is the name of your wireless network to which your computers or
devices with wireless network adapters will connect. You can either
use the default or change it to something unique. Write down this
name for future reference. Click “Next” to continue.
2.9 Requesting Internet Account Info (if needed). If your Internet
account requires a login and password, you will be prompted with
a screen similar to the illustration below. Select your country or ISP
from the drop-down boxes.

1918
Connecting and Configuring your Router
1918
Connecting and Configuring your Router
2.10 Configuring the Router. The Setup Assistant will now configure
your Router by sending data to the Router and restarting it. Wait
for the on-screen instructions.
Note: Do not disconnect any cable or power off the Router while the
Router is rebooting. Doing so will render your Router inoperable.
2.11 Checking Internet Connection. We are almost done. The Setup
Assistant will now check your connection to the Internet.
