Belkin F5D7230-4 User manual

i
Wireless Broadband Router
User Manual
No part of this publication may be reproduced in any form by any
means without the prior written permission. Other trademarks or
brand names mentioned herein are trademarks or registered
trademarks of their respective companies.
Jan 2003, Draft Version F/W:2.02.00

Wireless Broadband Router User Manual
ii
NOTE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection. This equipment generates, uses
and can radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.

Contents
Contents
1Introduction..................................................1
1.1 Overview........................................................................1
1.2 Features ........................................................................1
1.3 Package Contents .........................................................2
1.4 System Requirements ...................................................3
2Hardware Description & Installation.............5
2.1 Physical Outlook............................................................5
Front Panel..................................................................5
Rear Panel and Connectors........................................6
2.2 Hardware Connection....................................................7
Choosing a Place for the Router .................................7

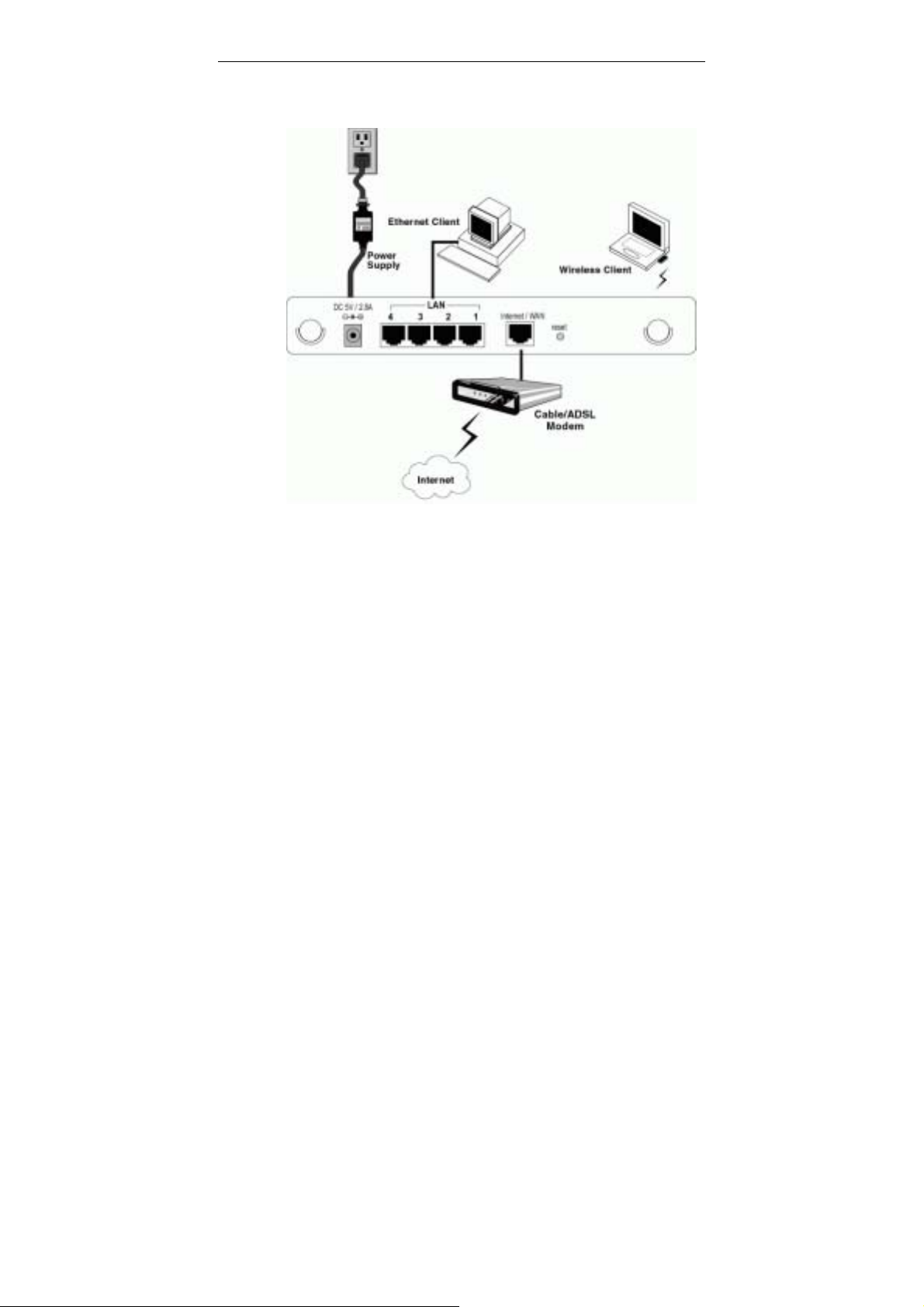

Connecting the Wireless Broadband Router...............7
3Setting Up Ethernet/WLAN Client..............11

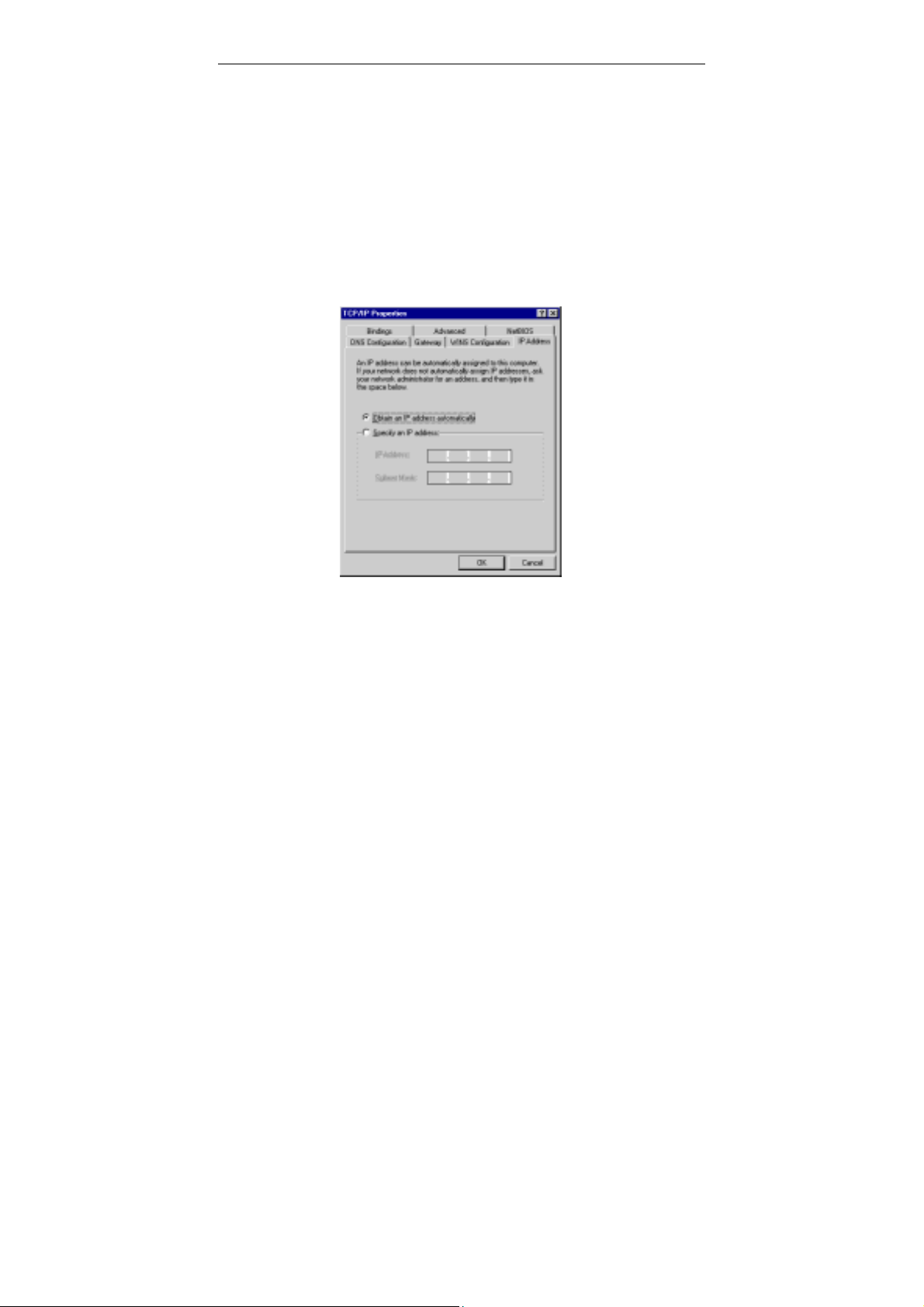

3.1 Setting up Ethernet Client............................................11
For Windows 98/ME..................................................12
For Windows NT .......................................................13
For Windows 2000 ....................................................14
3.2 Setting up Wireless Client............................................15
3.3 Checking Connection with the Router..........................16
4Web Configuration.....................................17
4.1 Accessing Web-Based Configuration Utility.................17
To enable Your Settings.............................................18
4.2 Viewing System Status ................................................19
4.3 Configuration for NAT Routing Mode...........................20
WAN Configuration for NAT Routing Mode ...............22
LAN Configuration for NAT Routing Mode.................27
Viewing Current DHCPAssignments.........................28
4.4 Configuration for Bridge Mode.....................................29

Wireless Broadband Router User Manual
iv
4.5 Wireless LAN (2.4G) Configuration..............................32
4.6 Filters...........................................................................37
Specifing Your IP Filter Rules....................................37
Filter Types................................................................38
Filter Scenario of the Wireles Broadband Router......39
Viewing Filter Log......................................................40
Other Firewall Settings..............................................40
4.7 Forwarding...................................................................42
Setting Up Forwarding Entries ..................................42
If you have a Web server on your network… ............43
4.8 Administration..............................................................45
5Specification...............................................49
5.1 Hardware.....................................................................49
5.2 Software ......................................................................50

v
Safety Instructions
Installing
• Use only the type of power source indicated on the
marking labels.
• Use only the power adapter supplied with the product.
• Do not overload wall outlet or extension cords as this may
increase the risk of electric shock or file. If the power cord
is frayed, replace it with a new one.
• Proper ventilation is necessary to prevent the product
overheating. Do not block or cover the slots and openings
on the device, which are intended for ventilation and
proper operation. It is recommended to mount the product
with a stack.
• Do not place the product near any source of heat or
expose it to direct sunshine.
• Do not expose the product to moisture. Never spill any
liquid on the product.
• Do not attempt to connect with any computer accessory or
electronic product without instructions from qualified
service personnel. This may result in risk of electronic
shock or file.
• Do not place this product on an unstable stand or table.
Using • Power off and unplug this product from the wall outlet
when it is not in use or before cleaning. Pay attention to
the temperature of the power adapter. The temperature
might be high.
• After powering off the product, power on the product at
least 15 seconds later.
• Do not block the ventilating openings of this product.
• When the product is expected to be not in use for a period
of time, unplug the power cord of the product to prevent it
from the damage of storm or sudden increases in rating.
Servicing

Wireless Broadband Router User Manual
vi
Do not attempt to disassemble or open covers of this unit yourself.
Nor should you attempt to service the product yourself, which may
void the user’s authority to operate it. Contact qualified service
personnel under the following conditions:
• If the power cord or plug is damaged or frayed.
• If liquid has been spilled into the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally when the
operating instructions are followed.
• If the product has been dropped or the cabinet has been
damaged.
• If the product exhibits a distinct change in performance.

vii
About This User Manual
For brevity, throughout this manual the “Wireless Broadband
Router” is referred to as “the router” or “the device” and following
terms or abbreviations are used interchangeably:
• Access Point-AP
• Wireless LAN-WLAN
• Ethernet network-LAN-network
This User Manual contains information on how to install and
configure your Wireless Broadband Router to get your network
started accessing the Internet. From now on, we will guide you
through the correct configuration steps to get your device up and
run.

1
1 Introduction
1.1 Overview
Thank you for choosing this Wireless Broadband Router. The
Wireless Broadband Route features a wireless Access Point, a
4-port LAN switch and a WAN port, which extends your existing
broadband Cable/ADSL connection. It allows the broadband
connection to be shared through either the IEEE 802.11g Access
Point feature or the 10/100Base-TX Ethernet switch, which also
eliminates the purchase of additional hub or switch. Now your
wired and wireless network are integrated to enjoy various
bandwidth-consuming applications over the Internet.
With the support of new emerged 802.11g standard, the Access
Point provides data transfer of up to 54 Mbps, up to 5 times faster
than 802.11b. Since 802.11g operates on the same frequency of
2.4 GHz as 802.11b, it is backwards compatible with existing Wi-Fi
devices. The benefit is that you can preserve the existing 802.11b
infrastructure while migrating to the new screaming fast 802.11g.
The integrated DHCP server automatically assigns IP addresses to
your LAN devices, and with the built-in Network Address
Translation (NAT) function, your LAN is protected against outside
intruders. The router can also be configured to filter internal access
to the Internet. It is designed to provide a reliable Internet access
solution for the corporate environment, the small office and the
home user.
1.2 Features
• One 10/100 Base-TX RJ-45 auto sensing and crossover
Ethernet WAN port for Broadband connection (Cable/DSL
or direct Ethernet)
• Four RJ-45 LAN ports for 10/100Base-TX auto sensing &
crossover Ethernet Switch LAN connection

Wireless Broadband Router User Manual
2
• 802.11g Wireless LAN
• Build-in two internal antenna for wireless technology
• PPPoE (PPP over Ethernet) Client with Keep
Alive/Connect On Demand Support
• PAP and CHAP Authentication
• DHCP Client
• MAC Address Cloning
• DHCP Server
• NAT
• Firewall Support
• Bridge Mode Support
• 802.1D Spanning Tree Bridging
• IP Filtering, IP Forwarding
• DMZ Hosting
• ASCII/HEX Format 64/128 Bit WEP Key for Wireless LAN
• Allow List for Wireless LAN
• VPN Support (IPSec Passthrough, and PPTP
Passthrough)
• Configurable through Web Browser via WAN/LAN
• Software Upgrade
• NTP/Manual System Clock
• Configuration Saving/Retrieving
• Event Log
1.3 Package Contents
Check the contents of the package against the pack contents
checklist below. If any of the items is missing, then contact the
dealer from whom the equipment was purchased.
• Wireless Broadband Router x1
• Power Adapter and Cord x1
• CD-ROM x1
• RJ-45 Ethernet Cable x1

1. Introduction
1.4 System Requirements
• Broadband Internet Connection using Cable/ADSL
modem for Internet connection
• One computer with 10/100Base-T Ethernet card and
TCP/IP protocol installed for initial setup
• Internet Explorer 5.0 or higher for Web configuration
• Requirement for each PC on the LAN:
－TCP/IP protocol installed

5
2 Hardware Description &
Installation
2.1 Physical Outlook
Front Panel
The following illustration shows the front panel of the Wireless
Broadband Router :
LED Indicators
The Wireless Broadband Router is equipped with eight LEDs on
the front panel as described in the table below (from left to right) :
LEDs Function Color Status Description
Off No power is supplied to the unit.
Power Green
Solid Power is connected to the unit.
Off WLAN interface is not initialized
properly.
On WLAN interface is initialized properly
and ready.
WLAN Wireless
Ready/
Activity
Green
Blinking Transmitting/receiving packets to/from
WLAN interface.
LAN 1-4 LAN port
Status Green (100 Mbps) Off Power is off or no Ethernet device is connected.

Wireless Broadband Router User Manual
6

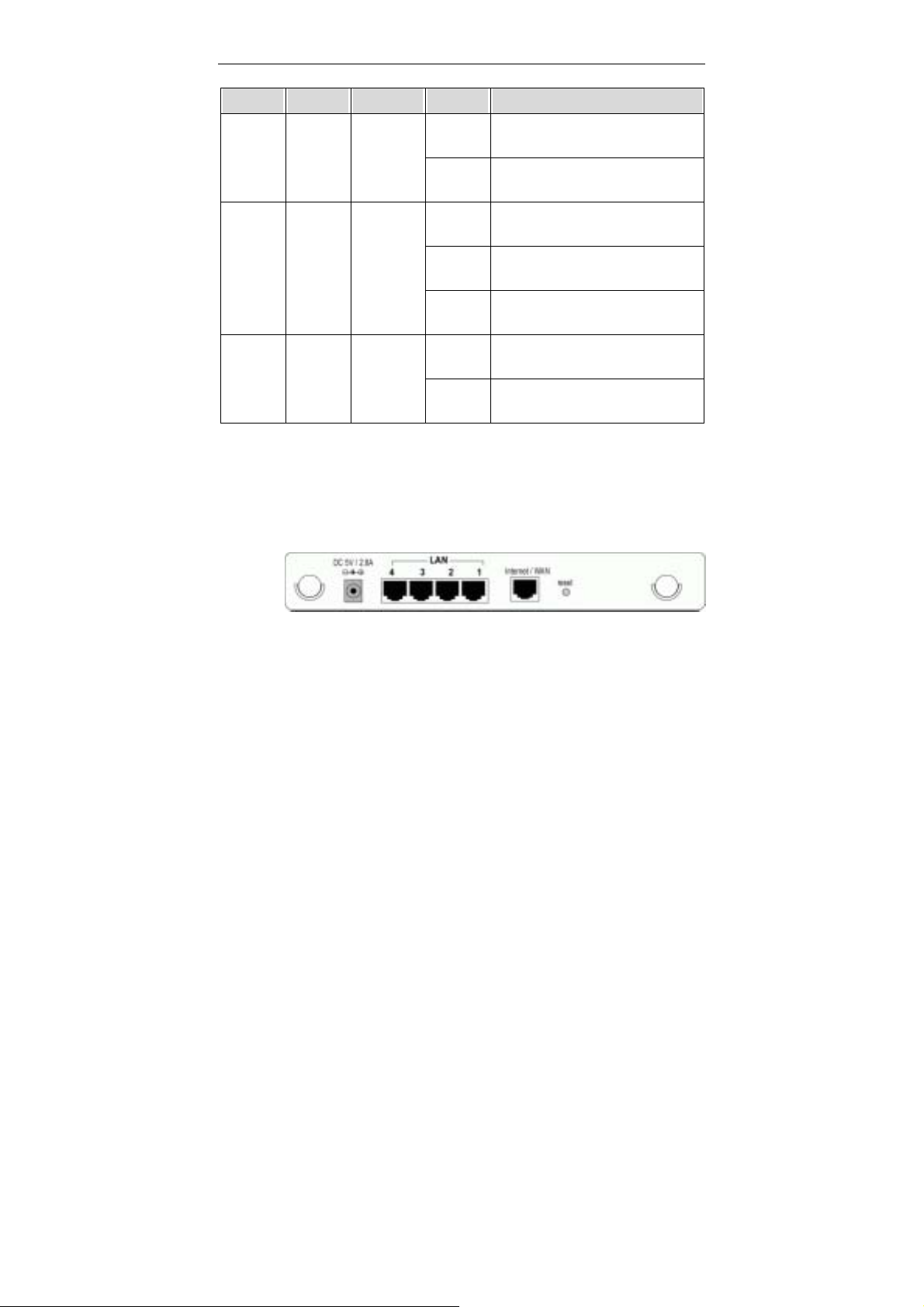

LEDs Function Color Status Description
Slowly
blinking Ethernet device is connected.Orange (10 Mbps)
Quickly
blinking Transmitting/receiving packets on the LAN port.
Off Power is off or no broadband device
is connected.
Slowly
blinking Broadband device is connected.
WAN WAN Port
Status Green
Quickly
blinking Transmitting/receiving packets on the WAN port.
Off Indicates the WAN port does not yet
obtain an IP address.
Connected Green
On Indicates the WAN port successfully
obtains an IP address.
Rear Panel and Connectors
The following figure illustrates the rear panel of your Wireless
Broadband Router.
• DC 5V/2.8A: Power connector
• LAN Ports 1-4: RJ-45 Connectors. Integrated 4-port
10/100BaseT switch. Connects to a hub, switch or
NIC-equipped PC in your network. The LAN ports support
Auto-MDIX feature which eliminates the need for
crossover cables.
• Internet / WAN: RJ-45 connector. Connects to the
Cable/ADSL Modem. The WAN port also supports
Auto-MDIX feature which eliminates the need for
crossover cables.
• Reset button

2. Hardware Description & Installation
To reset the device to factory defaults, insert a
straightened paperclip into the Reset hole to press the
button. Keep pressing and power cycle (off and on) the
device. Wait for at least 5 seconds to release the button.
Then wait for the device to finish booting.
If you want to restore your customized settings after loading
defaults, refer to “4.8 Administration” for more information.
2.2 Hardware Connection
Choosing a Place for the Router
• Place the device close to the power outlet for the cable to
reach it easily.
• Avoid placing the device in places where people may walk
on the cables. Also keep it away from direct sunshine or
heat sources.
• Place the device on a flat and stable stand.
Connecting the Wireless Broadband Router
Prior to connecting the hardware, make sure to power off your
Ethernet device, Cable/ADSL modem and Wireless Broadband
Router. Then follow the steps below to connect the related devices.
Step 1 Connecting Your PC to the LAN port.
Attach one end of the Ethernet cable with RJ-45
connectors to your hub, switch or a PC’s Ethernet port,
and the other end to one of the LAN ports of your
Wireless Broadband Router.
Step 2 Connecting Cable/ADSL Modem to the Internet/WAN
port.
Connect the Ethernet cable attaching to your Cable/ADSL
modem to the Internet/WAN port of your Wireless
Broadband Router.
Step 3 Connecting the power adapter.

Wireless Broadband Router User Manual
8
Connect the single DC output connector of the power
adapter to the power jack on the back of the Wireless
Broadband Router. Then connect the supplied power cord
to the power adapter and the other end to an AC outlet.
Step 4 Turn on the power switch.

2. Hardware Description & Installation
The figure below illustrates a connection diagram example:

11
3 Setting Up Ethernet/WLAN Client
To access the Wireless Broadband Router via Ethernet or wireless
network, you must properly configure the network settings of your
Ethernet or wireless client PC. As the Wireless Broadband Router
is configured with the default IP address of 192.168.1.1 and
subnet mask of 255.255.255.0, and its DHCP server is enabled
by default, you can configure your PC’s TCP/IP settings as one of
the following:
1. To use dynamic IP: Set your PC to be DHCP client to accept
the dynamic IP from the router.
2. To use static IP: Set the IP address as 192.168.1.x (x is
between 2 and 254), subnet mask as 255.255.255.0 and the
gateway as 192.168.1.1 to be on the same subnet with the
router.
This chapter describes how to configure your PC to be a DHCP
client for initial connection to the device. If you have modified the
router’s network setting, your LAN/WLAN clients should make
appropriate changes in order to make successful connection.
3.1 Setting up Ethernet Client
To access the Wireless Broadband Router via Ethernet, make sure
your PC is equipped with Ethernet network card and has
appropriate network card driver and TCP/IP installed.
Note:
1. If TCP/IP protocol is not installed on your PC, refer to Windows
documentations for installation instructions.
2. For initial verification, we suggest that you connect only one PC
directly to an Ethernet port on the Wireless Broadband Router, not
through a hub.

Wireless Broadband Router User Manual
12
For Windows 98/ME
Step 1 Click on the Start menu, point to Settings and click on
Control Panel.
Step 2 Double-click the Network icon.
Step 3 In the Network window, highlight TCP/IP protocol for your
NIC and click Properties.
Step 4 On the IP Address tab, select Obtain an IP address
automatically. Then click OK.
Step 5 If your network settings is changed, you will be prompted
with System Settings Change dialog box, click Yes to
restart your computer.
Checking/Renew IP Address under Windows 98/ME
The following steps help you verify if your network adapter gets an
IP address within the DHCP IP pool range (192.168.1.100 ~
192.168.1.150 by default) of the router. If not, you may need to
renew the IP information.
Step 1 From the Start menu, click Run to open the Run dialog
box.
Step 2 Enter winipcfg in the dialog box and then click OK.
