Belluscura X-PLOR User manual

X-PLOR Portable
Oxygen Concentrator
Live Life. Breathe Easy. Go X-PLO
2R.™
USERMANUAL
®

Table of Contents
X-PLOR Checklist . . . . . . . . . . . . . . . . . . . . . . . . 1
Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . 2
SECTION 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SECTION 2. Safety Information . . . . . . . . . . . . . . . . . . . . . . .4
Contraindications . . . . . . . . . . . . . . . . . . . . . 4
General Precautions . . . . . . . . . . . . . . . . . . .4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SECTION 3. Operating the X-PLOR . . . . . . . . . . . . . . . . . . . . . 7
Turning the X-PLOR ON & OFF . . . . . . . . . . . . 7
Audible Alarm . . . . . . . . . . . . . . . . . . . . . . . 8
Flow Setting . . . . . . . . . . . . . . . . . . . . . . . . 8
LCD Screen . . . . . . . . . . . . . . . . . . . . . . . . . 8
Air Intake & Exhaust . . . . . . . . . . . . . . . . . . .8
Carrying Bag . . . . . . . . . . . . . . . . . . . . . . . . 8
SECTION 4. Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . 9
Charging the Battery. . . . . . . . . . . . . . . . . . . 11
Steps to Connect & Disconnect the Battery . . . . 11
SECTION 5. User-Replaceable Cartridge . . . . . . . . . . . . . . . . .12
SECTION 6. Nasal Cannula . . . . . . . . . . . . . . . . . . . . . . . . . .14
SECTION 7. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .15
SECTION 8. Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

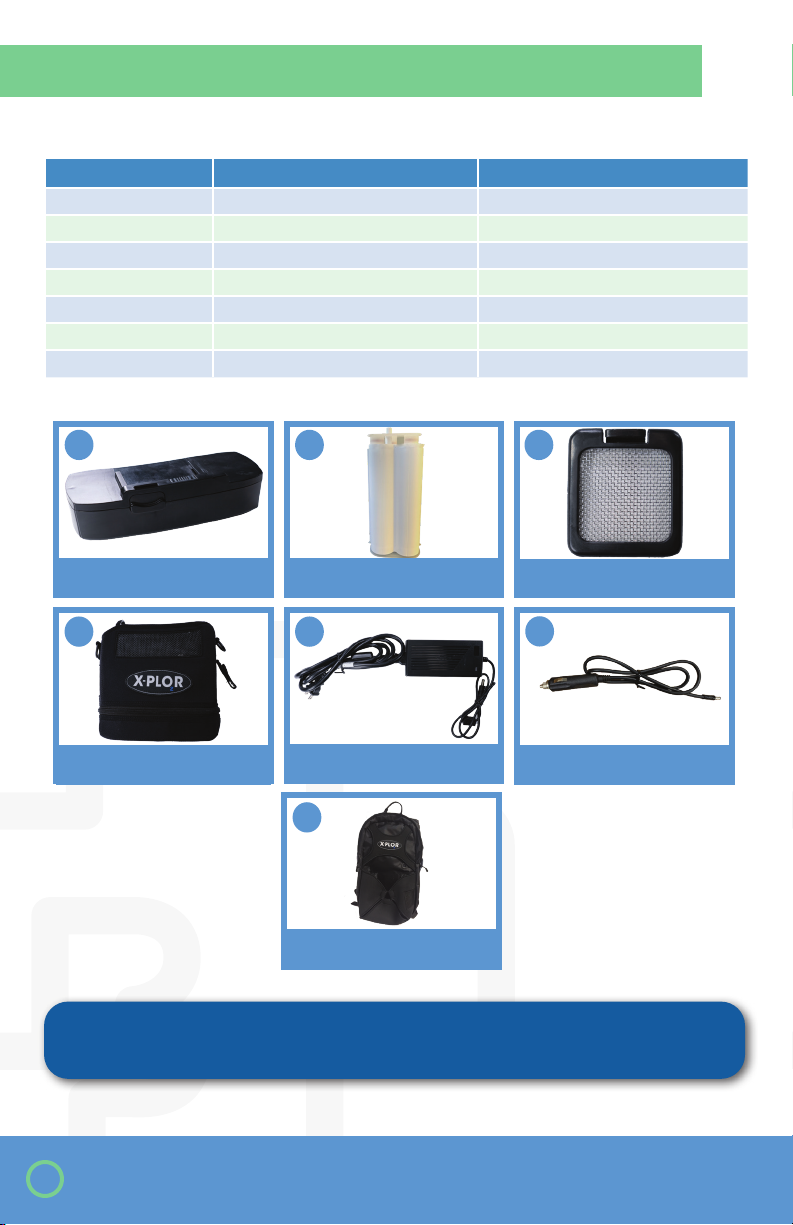

SECTION 9. Accessories & Replacement Parts . . . . . . . . . . . . .18
SECTION 10. Maintenance & Cleaning . . . . . . . . . . . . . . . . . . .19
SECTION 11. Labeling Symbols . . . . . . . . . . . . . . . . . . . . . . . .21
SECTION 12. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flow Settings & Pulse Volume . . . . . . . . . . . . 24
SECTION 13. Electromagnetic Interference . . . . . . . . . . . . . . . 25
SECTION 14. Traveling with the X-PLOR . . . . . . . . . . . . . . . . . 27

1
X-PLOR Quick Start Guide Checklist
WARNING: Do not use the X-PLOR or any accessory if they show any sign
of damage. Call your equipment provider for replacement.
IMPORTANT: While the box or packaging may look to have damage, such
as tears or dents, the device may still be in a usable condition.
If the X-PLOR or any accessory shows any sign of damage,
contact your equipment provider.

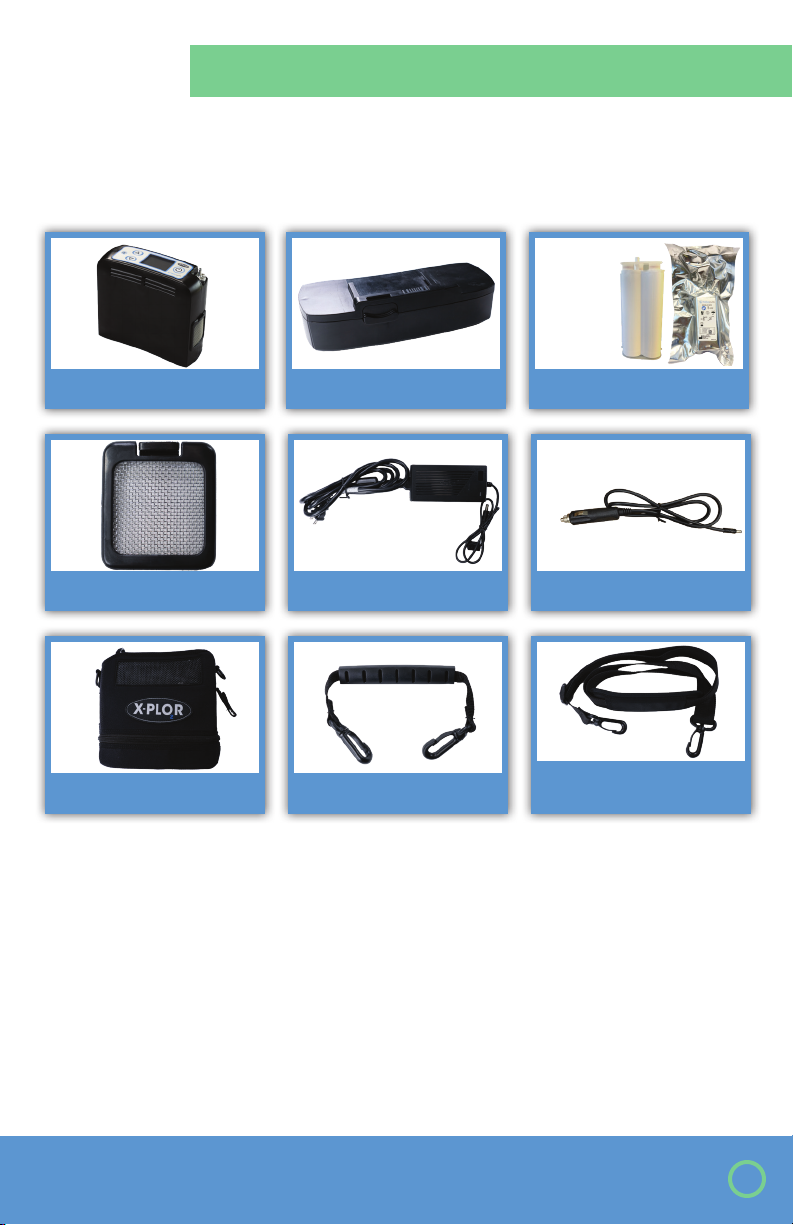

X-PLOR Unit 8-Cell Battery Cartridge
Air filter AC Power Supply DC Power Supply
Carry Bag Carry Bag Handle Carry Bag
Shoulder Strap
Ensure the following X-PLOR components have arrived
in your package:
Cartridge
found in
Mylar bag

2

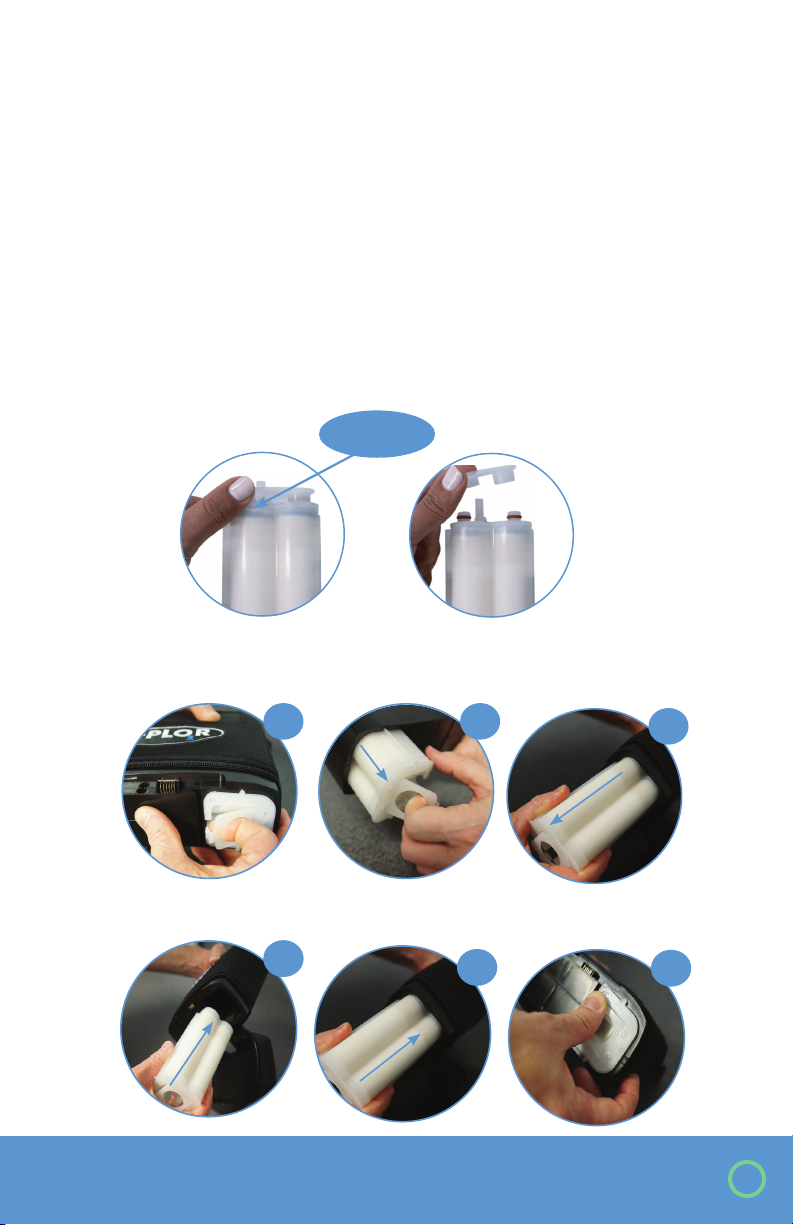

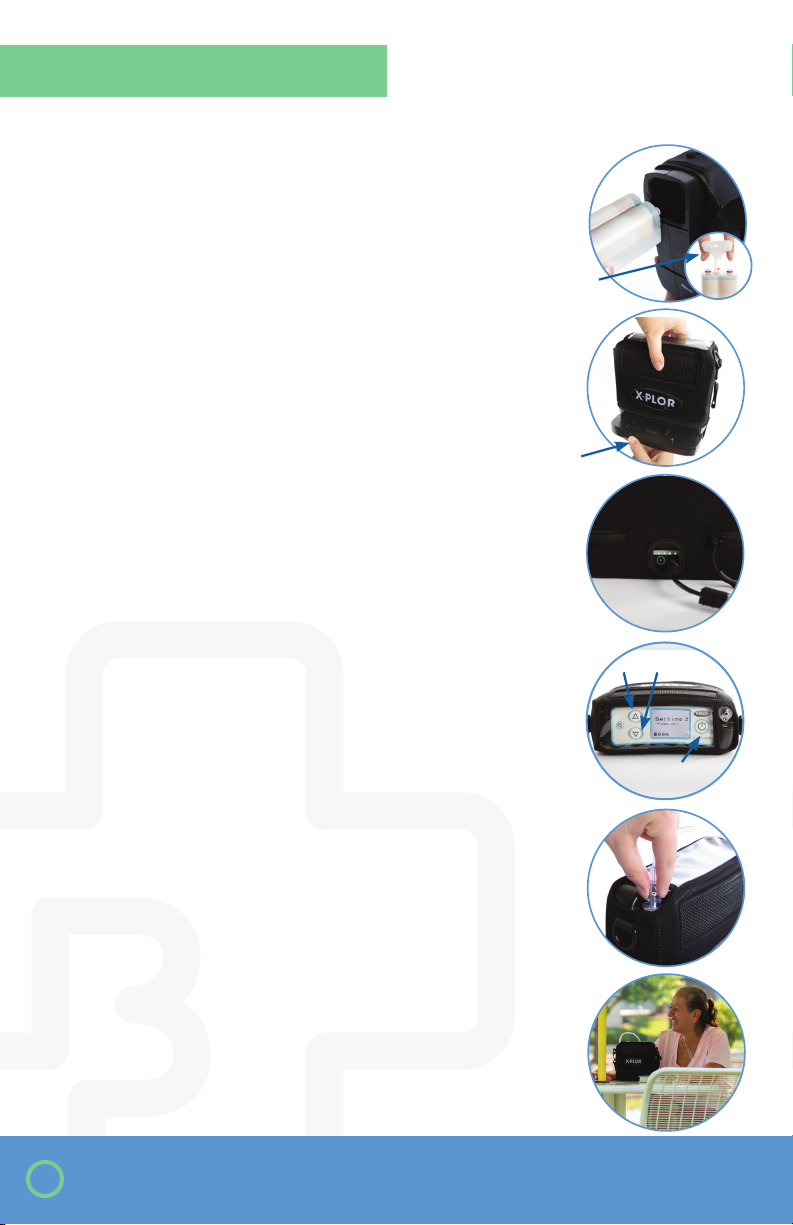

1. REMOVE DUST CAP & INSERT CARTRIDGE
• Remove cartridge from mylar bag.
• Remove the dust cap from the cartridge.
• Then insert the cartridge all the way into the unit so the handle
lays flat.
2. LOCATE THE BATTERY
• Insert your X-PLOR into the carry bag. When the X-PLOR is
correctly inserted into the bag, the LCD screen is seen through
the plastic window and the air intake and exhaust are aligned
with mesh panels.
• To attach the battery, slide it on until the latch is in the locked
position and zip the bag.
• To disconnect the battery, simply push the release latch down
and slide the battery towards you.
3. CHARGE THE BATTERY
• Place in a well-ventilated area to fully charge the battery before
using your X-PLOR, which can take up to 6 hours for an 8-cell
battery.
• To charge, insert the AC power connector into the battery’s
power receptacle and the other end into an electrical outlet.
4. TURN ON & SET OXYGEN FLOW
• When powered on, position the unit upright to warm-up
(warm-up time is less than 2 minutes.)
• Press the POWER button for 2 seconds to turn on your X-PLOR.
• Use the UP/DOWN ARROWS to set the oxygen flow level, as
specified in your oxygen prescription.

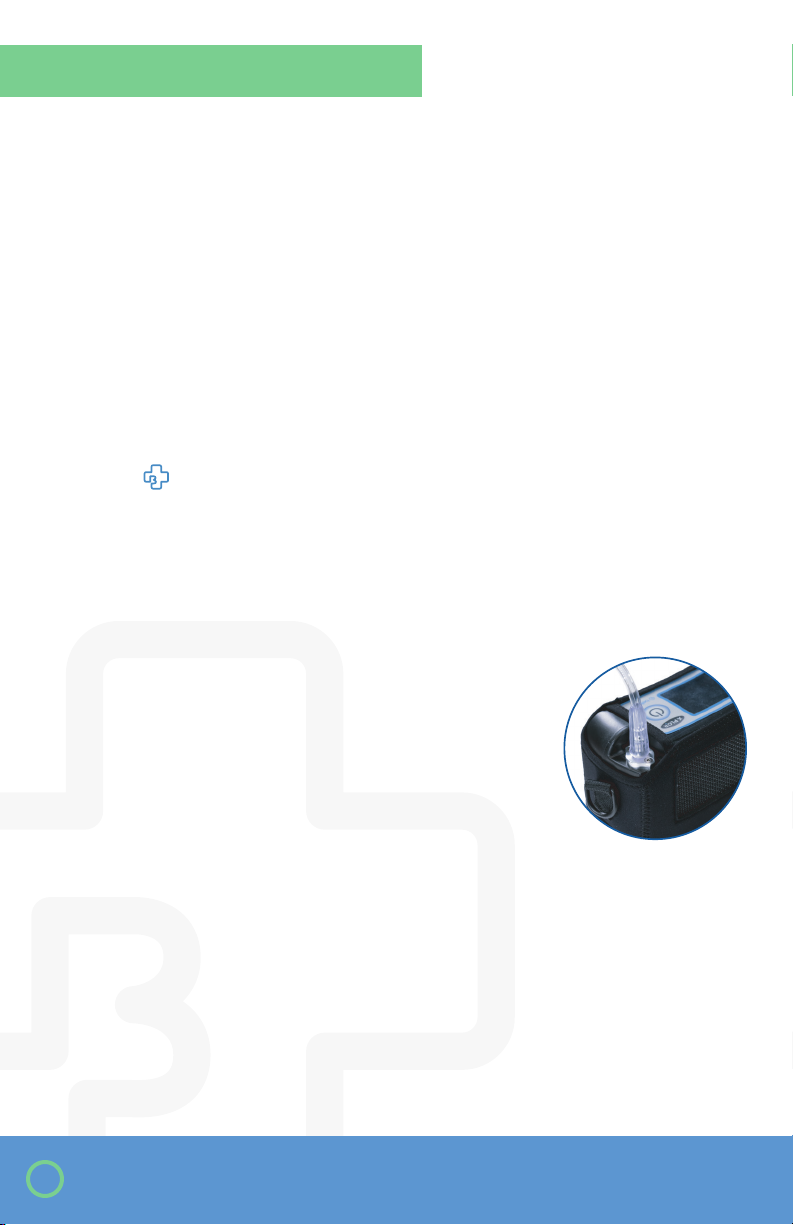

5. NASAL CANNULA
• Connect the nasal cannula to the oxygen output nozzle located
on top of the X-PLOR.
• Place the other end in your nostrils. Oxygen will be delivered
through the nasal cannula with each breath.
• Remember to breathe through your nose as normal.
6. GO X-PLOR
• Attach the shoulder strap and handle to your X-PLOR device
and enjoy your new found mobility!
POWER
UPDOWN ARROWS
RELEASE LATCH
REMOVE DUST CAP
It is quick and easy to get your X-PLOR started, but please read the entire User
Manual before using your X-PLOR. DO NOT TURN ON X-PLOR UNTIL STEP 4.
Quick Start Guide

3
1. Introduction
This user manual serves as a reference for users of the X-PLOR and should be read in its
entirety before operating the X-PLOR. The term “POC” (Portable Oxygen Concentrator)
may be used to refer to the X-PLOR. “Patient” and “User” are used interchangeably.
X-PLOR enables patients who need a POC to be treated at home according to a
clinician’s prescription.
Before using the X-PLOR for the first time, make sure the battery is fully charged.
This can take up to 6 hours for the 8-cell battery. The battery must be charged and
connected to the X-PLOR in order to operate the POC.
Please refer to the X-PLOR manual for detailed information regarding any warnings,
cautions, specifications, and additional information. We hope the manual answers all of
your questions, but if you still have questions, please call your equipment provider.
INTENDED USE
The X-PLOR is a transportable, software-monitored device designed to be used by
patients as a portable oxygen delivery system requiring high concentrations of oxygen
on a supplemental basis. It is small, portable, and is capable of continuous use in home,
institutional, travel, or mobile environments.
X-PLOR provides supplemental oxygen to patients with chronic pulmonary diseases,
such as COPD, and any patient requiring supplemental oxygen. X-PLOR is a pulse and
No Breath Detection (continuous flow) mode POC. X-PLOR is not intended for use in life
supporting or life sustaining situations or by patients who have had a tracheotomy. It
is a prescription only device, and designed for indoor and outdoor use. The prescribed
oxygen delivery setting should be periodically reassessed by healthcare provider.
X-PLOR Portable Oxygen Concentrator is not intended to be used:
• In life-supporting or life-sustaining situations
• In an operating or surgical environment
• In conjunction with flammable anesthetic or flammable materials
• With newborns, infants or pediatrics
INTENDED LIFE
The expected service life for the X-PLOR is 3 years. The service life of the replaceable
cartridge will depend on operating conditions. Replace the cartridge as needed, when
indicated by the alarm message (For more information on the Replaceable Cartridge
see Chapter 5). The battery has an expected life of 400 full charge/discharge cycles.

4
2. Safety Information
This section describes the warnings and cautions for the use of the X-PLOR. The following
guidelines apply to this document:
WARNING: Indicates possibility of serious adverse reactions & potential safety hazards.
CAUTION: Indicates possibility of damage to the equipment.
IMPORTANT: Statements calling attention to additional significant information about
the device.
WARNING: USA Federal law restricts the sale of this POC to the order of a physician.
May also be applicable in other countries.
WARNING: Availability of an alternate source of oxygen is recommended in case of
power outage or mechanical failure. Consult your equipment provider for
type of back-up system recommended.
WARNING: It is the responsibility of the patient to make back-up arrangements for
alternative oxygen supply when traveling. Belluscura®assumes no liability
for persons choosing not to adhere to manufacturer recommendations.
CONTRAINDICATIONS
WARNING: This POC is NOT INTENDED to be life sustaining or life supporting.
WARNING: Under certain circumstances, the use of non-prescribed oxygen therapy
can be hazardous. This POC and specific settings should be used only
when prescribed by a physician.
WARNING: Additional monitoring or attention may be required for geriatric or any
other patients using this device who are unable to hear or see alarms or
communicate discomfort. If the patient shows any signs of discomfort,
consult a physician immediately.
CAUTION: The X-PLOR is not designed or specified to be used in conjunction with
a humidifier, nebulizer, or to be connected to any other equipment. Do
not use this POC with a humidifier or nebulizer or connect it to any other
equipment. Doing so may impair the performance and could damage
the equipment. Do not modify the X-PLOR. Any modification to the
equipment may impair performance or damage equipment and will void
your warranty.
GENERAL PRECAUTIONS
WARNING: Smoking during oxygen therapy is dangerous and likely to result in
facial burns or death. DO NOT ALLOW SMOKING OR OPEN FLAMES
WITHIN THE SAME ROOM OF THE X-PLOR OR ANY OXYGEN CARRYING
ACCESSORIES.If you smoke, you must always turn the oxygen
concentrator off, remove the cannula and leave the room where either
the cannula or oxygen concentrator is located. If unable to leave the room,
you must wait 10 minutes after the flow of oxygen has been stopped.
WARNING: Do not submerge the X-PLOR or any of the accessories in liquid. Do not
expose to water, precipitation or allow any liquid to enter the enclosure.
Do not operate the POC while exposed to rain.
WARNING: Do not use oil, grease, or petroleum-based products on or near the X-PLOR
to avoid the risk of fire or burns. Use products that are oxygen compatible
when using or setting up near the X-PLOR .

5
WARNINGS
• The operator should read and understand this entire manual before using the
X-PLOR.
• The POC is not intended for life support. Where the prescribing healthcare
professional has determined that an interruption in the supply of oxygen, for any
reason, may have serious consequences to the user, an alternate source of oxygen
should be available for immediate use.
• Do not use the POC in the presence of a flammable anesthetic mixture in
combination with oxygen or air, in the presence of nitrous oxide, cleaning agents or
other chemical vapors.
• Do not use the POC in the presence of pollutants, smoke, or fumes.
• Do not use oil or grease on the POC, or its components as these substances when
combined with oxygen can greatly increase the potential for a fire hazard and
personal injury.
• Use only approved X-PLOR parts and accessories to avoid the risk of fire.
• Turn the POC off when not in use as concentrated oxygen makes
furnishings flammable.
• If you notice any of the following, discontinue use and contact your
equipment provider:
1. Unexplained changes in the performance of this device
2. Unusual or harsh sounds
3. Dropped or mishandled device or power supply
4. Water spilled into the enclosure
5. Broken enclosure
• Use only with the X-PLOR batteries, AC and DC power supplies and cords.
• Use of unauthorized parts and accessories could cause injury, invalidate the warranty,
or result in costly damage.
• Use of accessories other than those approved by Belluscura could result in increased
electromagnetic emissions or decreased electromagnetic immunity of X-PLOR.
Either of these results could affect operation of your unit.
• Only use a standard single lumen nasal cannual. Nasal cannula should be rated for 4
liters per minute, for example the Salter 16SOFT, to ensure proper patient usage and
oxygen output.
• Replace the cannula on a regular basis. Check with your POC distributor or clinician
to determine how often the cannula should be replaced. Always follow the cannula
manufacturer’s instructions for proper use.
• Repairs and adjustments must be performed by authorized X-PLOR service
personnel only. Unauthorized service could cause injury, invalidate the warranty, or
result in costly damage.
• Periodically inspect electrical cords, cables, and the power supplies for damage or
signs of wear. Discontinue use and replace if damaged.
• Be aware that the electrical cord or tubing could present a tripping or strangulation
hazard.
• To avoid electric shock, unplug the POC and remove the battery before servicing or
cleaning the POC. DO NOT immerse the POC in any fluids.
• Never drop or insert any object into any opening of the POC.

6
WARNINGS CONTINUED
• For proper operation, the POC requires unobstructed ventilation. Always make sure
any openings in the case are not obstructed by items which may impede ventilation.
Do not place the POC in a small closed space (such as a closet). The POC should not
be used adjacent to or stacked with other equipment. For more information, contact
your equipment provider.
• Do not obstruct air intake or exhaust when operating the POC. Blockage of air
circulation or proximity to a heat source may lead to internal heat buildup and
shutdown or damage to the POC.
• Do not use an extension cord with the POC.
• Operation of the POC outside of the specified limits for temperature (41°F/5°C to
104°F/40°C) or altitude (10,000 /3048 m) is expected to have an adverse effect on
therapy.
• The settings of X-PLOR may not correspond with continuous flow oxygen.
• The settings of other models or brands of oxygen therapy equipment do not
correspond with the settings of the X-PLOR.
• Wind or strong drafts can adversely affect accurate delivery of oxygen therapy.
• This device produces enriched oxygen gas which accelerates combustion. DO NOT
ALLOW SMOKING OR OPEN FLAMES within 10 feet of this device while in use.
• DO NOT USE in conjunction with other medical equipment or medical systems.
CAUTIONS
• When the POC is used in an automobile, disconnect it from the DC auto adapter
outlet when the automobile is turned off.
• Do not operate the POC in a non-running vehicle for an extended period of time, as
this may deplete the vehicle’s battery and prevent the vehicle from starting.
• Do not allow the POC to be connected to the auto outlet while starting the vehicle.
Wait until the vehicle starts before connecting the POC to the DC power outlet.
• All vehicles’ auxiliary power varies significantly; therefore rate of charging may vary.
• Do not connect the X-PLOR to a backup generator.
• Secure the POC when used in any moving vehicle.
• Turn off the POC before removing the battery. The POC cannot be operated without
the battery installed.
• Only use the supplied handle and shoulder strap to carry your device. With every use,
verify that the case, shoulder strap and handle are in good condition.
• Use X-PLOR within its carry bag for ease of use. The insulation in the carry bag will
keep the maximum surface temperature of the device for patient contact to less than
48˚C.
• NOTE: Additional warnings, cautions and notes are located throughout the manual.

7
3. Operating the X-PLOR
The X-PLOR offers pulse dose and a No Breath Detected Mode (continuous flow).
Pulse Dose Mode:
Pulse dose is designed to work with a patient’s inhaling and exhaling patterns. It senses
a change in air pressure and releases a pulse of air, also known as a bolus, through a
nasal cannula. Once a breath is detected, a breath icon (icon) will appear in the upper
left corner of the LCD screen. This icon will appear each time a breath is detected and a
pulse of oxygen is delivered.
Use the UP/DOWN buttons to set the oxygen flow level (1-3). In X-PLORATION MODE
(Setting 4), the X-PLOR will deliver 750ml/min via Pulse Dose Mode for 10 minutes before
reverting to Setting 3 (635ml/min).
No Breath Detected Mode (Continuous Flow):
If the X-PLOR does not detect a breath from the user for 45 seconds, a No Breath Detect
alarm icon will display and an alarm (beep) will sound. After another 45 seconds if a new
breath is not detected, the X-PLOR will go into No Breath Detected Mode (750ml/min
continuous flow) for 3 minutes before shutting down. To revert to the Pulse Dose Mode,
press the UP/DOWN button on the X-PLOR to exit No Breath Detected Mode.
OVERVIEW OF THE XPLOR
AIR INTAKE
EXHAUST
ALARM
LCD SCREEN
CANNULA CONNECTOR
POWER BUTTON
INCREASE FLOW SETTING
DECREASE
FLOW SETTING
BATTERY
CARTRIDGE IS LOCATED UNDER BATTERY
POWER BUTTON
TURNING ON THE X-PLOR
• PRESS and HOLD the POWER button for two seconds.
• While the X-PLOR is warming-up (total warm-up time is less than two minutes) the
X-PLOR logo will appear on the LCD screen. Ten seconds after power on, the Pulse
Setting, Battery, and Audible Alarm icons will appear on the LCD Screen with the
“Please wait” icon which will remain until warm-up is complete.
• X-PLOR should be operated in an upright position.
• After warm-up, proper operation of the X-PLOR is indicated by the delivery of
oxygen pulses in response to inhalation and the absence alarms.
TURNING OFF THE X-PLOR
• To turn off the X-PLOR, PRESS and HOLD the POWER button for two seconds.
• After holding the POWER button, the shutdown process will approximately take up
to 30 seconds.
IMPORTANT: If turned off at a specific flow setting, the X-PLOR will remain at that flow-
setting upon next start-up.

8
AUDIBLE ALARM BUTTON
• Pressing this button during an active alarm will acknowledge and mute the
audible alarm. This will not remove the visual icon on the POC display.
For more information on the Alarms see Chapter 8.
FLOW SETTING CONTROL BUTTONS
The X-PLOR now provides both Pulse Dose and No Breath Detected Mode to
provide oxygen when the user needs it most.
Pulse Dose:
To navigate through Settings 1-3 for Pulse Dose Mode, PRESS the UP/DOWN
button to reach the appropriate setting. The X-PLOR will provide a pulse of
oxygen once the unit is warmed up.
No Breath Detected Mode (Continuous Flow):
If the X-PLOR does not detect a breath from the user for 45 seconds, a No Breath
Detect alarm icon will display and an alarm (beep) will sound. After another
45 seconds if a new breath is not detected, the X-PLOR will go into No Breath
Detected Mode (750ml/min) for 3 minutes before shutting down. To revert to the
Pulse Dose Mode, press the UP/DOWN button on the X-PLOR to exit No Breath
Detected Mode.
LCD SCREEN
The LCD screen displays information regarding flow setting,
battery life, power status and alarms. The LCD screen has a
backlight that turns on and off automatically. The backlight will
automatically shut off after 10 seconds as a power-saving feature.
The backlight turns on:
• When the X-PLOR is turned on or shuts down.
• Automatically for any alarm indications. An audible signal
(Beep) will also indicate either a change in operating status
or a condition that may need a response.
• Any time when the POWER button is pressed briefly (Less than 2 seconds).
AIR INTAKE & EXHAUST
Place the X-PLOR in a well-ventilated location. Air intake and exhaust must not be
obstructed. Air intake is located on the front of the POC. Do not use the X-PLOR
without the air filter in place. Particles drawn into POC may damage the X-PLOR.
CARRYING BAG
The carrying bag provides protection and convenience. Always
use your X-PLOR in the supplied carrying bag, with the supplied
handle and/or shoulder strap. When the X-PLOR is correctly
inserted in the bag, the LCD screen is seen through the plastic
window and the air intake and exhaust are aligned with mesh
panels.

9
4. Battery
X-PLOR comes with an 8-cell lithium ion battery that powers the X-PLOR with or
without an external power supply connected. Fully charge the battery before using the
X-PLOR.
Charge the X-PLOR battery only with the power supplies provided with the X-PLOR.
To maximize battery life and run time, avoid letting the battery drain to empty. Always
check the battery level prior to use to ensure adequate charge level.
AC & DC POWER SUPPLIES
The AC power supply allows the X-PLOR to be powered on and the battery to be
charged from a standard 100-240 VAC, 50/60 Hz electrical outlet.
The DC power supply allows the X-PLOR to be powered and the battery to be charged
from a vehicle's standard 12 VDC outlet.
BATTERY LIFE
• Up to 4.5 hours of battery life with the 8-cell battery.
WARNING: Use only with Belluscura X-PLOR. Use only the power supply listed in the
manual. There is a risk of fire, burns, explosion, and release of toxic material if
the battery and the power supply are not used properly. Do not crush or heat
above 176˚F (80˚C). Do not short circuit or reverse polarity.

10
WARNING: Always have the battery connected to the X-PLOR. Without the
battery connected, the X-PLOR will not turn on.
WARNING: If loss of battery charge is imminent, ensure you have access to an
external AC or DC power source. Use of AC supply may cause surface
temperature to be hot to the touch. Use care in replacing cartridge
and battery pack. Cool system off before changing parts.
WARNING: When operating X-PLOR while it is connected to an external power
source, ensure that it is positioned so that it is not difficult to
disconnect the power source if the necessity arises.
CAUTION: The battery should be fully charged before the first time you use that
battery with the X-PLOR.
CAUTION: Only remove the battery when X-PLOR is turned off. Do not remove
the battery while the X-PLOR is operating.
IMPORTANT: The battery run time may vary based on the breathing rate, age of
battery, and environmental conditions. If the battery is near the end
of its life, you may experience shorter battery run times.
The following alarm messages are accompanied by a sound and a yellow
BATTERY INDICATOR ON LCD SCREEN
• When POC is turned on, the battery indicator will show the level of the battery charge .
• Each of the five horizontal yellow bars represents approximately 20% of the total
battery charge.
• When the X-PLOR is using an external AC or DC power supply, the icon will
appear on the LCD screen. If there is no icon, the battery is working without
external power.
MESSAGE DISPLAY & TEXT ICONS CONDITIONACTIONEXPLANATION
Battery low
Attach power source
The battery has less than 20% charge. Attach external
power or swap out with a charged battery.
Battery empty
Attach power source
POC has insufficient battery power to produce
oxygen. Attach external power supply, or if necessary
power off the POC and exchange the battery, then
restart.
Replace battery
Battery error has occurred. Stop using the battery
and switch to a new battery, connected to an external
power supply, if needed.

11

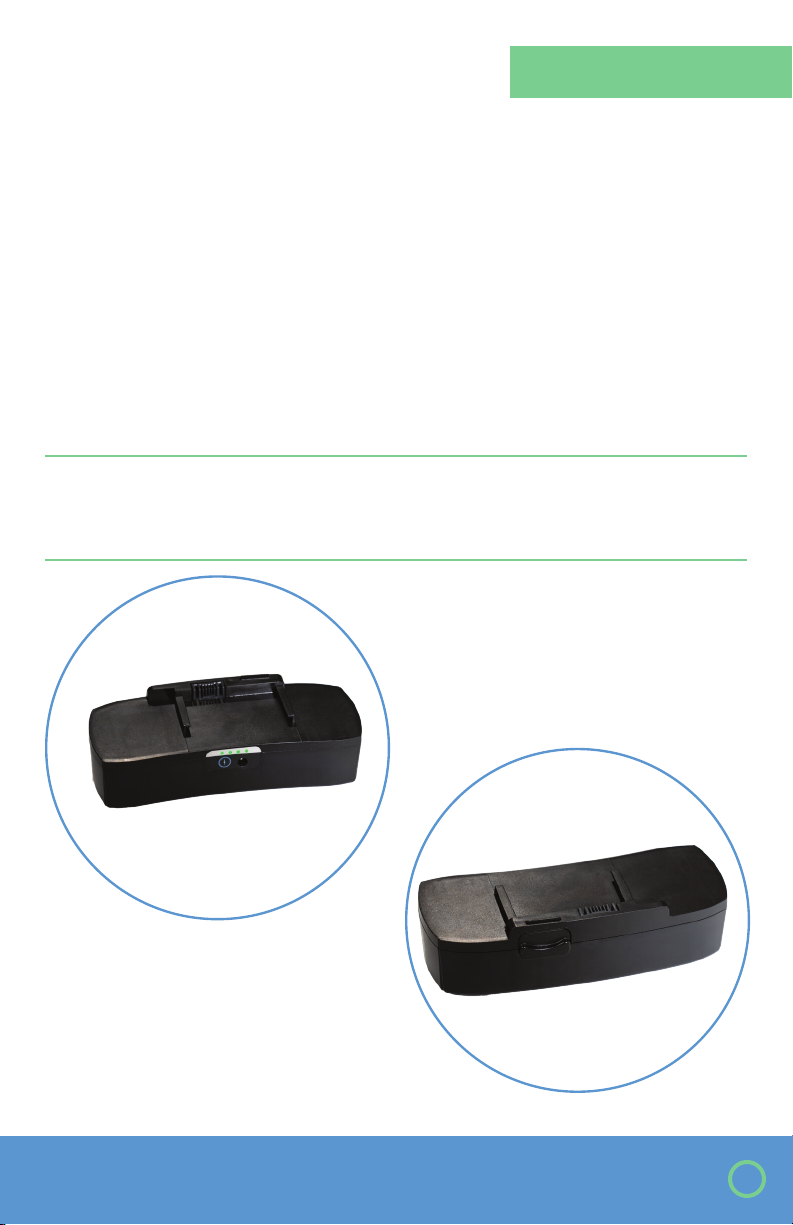

Connect the battery to the bottom of the X-PLOR by sliding the battery into place until the
latch returns to the locked position. To disconnect, push the release latch down and slide
the battery toward you.
Release latch
Secure latch
4
2
1
12
3
STEPS TO CONNECT
STEPS TO DISCONNECT
STEPS TO CHARGING THE BATTERY
1. Connect the power supply to the X-PLOR power receptacle
on the front of the battery. (Image 1)
2. Plug the other end of the AC power supply (Image 2) into a
power outlet, or start the car and plug in the DC (Image 3)
power supply into the car's DC outlet.
3. If the battery is connected to the X-PLOR, turn the POC on. If
POC is charging, this icon will be displayed on the LCD
screen.
4. If the battery is not connected to the X-PLOR, check the
indicator lights on the battery to ensure the battery is being
charged.
5. It could take the 8-cell up to 6 hours to attain full charge.
6. To check the battery charge, press the charge indicator
button on the battery. (Image 4)The battery charge level
is indicated by 4 green lights on the battery, each light
representing approximately 25% charge.
• The battery can be charged while connected to the
X-PLOR or while the battery is disconnected from the
X-PLOR.
• The battery can be charged by using either the AC or
DC power supply source provided.
STEPS TO CONNECT & DISCONNECT THE BATTERY
3
12 3

12

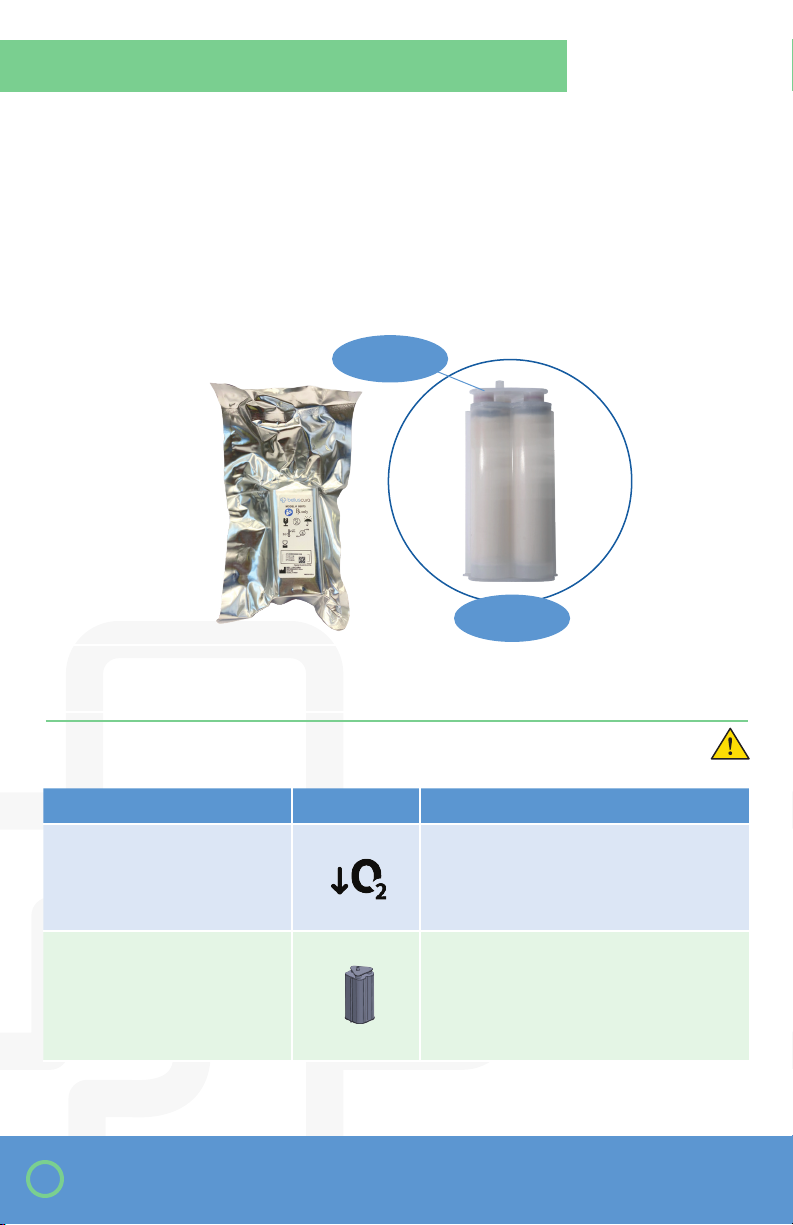

A cartridge will arrive in a Mylar bag in the box with your X-PLOR. You have to insert the
cartridge into the unit before using the X-PLOR. Do not remove the dust cap until it is
time to install the cartridge.
To insert the cartridge, first ensure the POC is powered off and then disconnect the
battery (See Chapter 4). Remove cartridge from mylar bag and then remove dust cap
from the top of the cartridge (See page 13). Push the cartridge top first into the unit
until it is fully inside and the handle lays flat (See page 13). Once the cartridge is in
place, reconnect the battery.
Over time cartridges, like a filter, can lose their effectiveness and need be to replaced.
The service life of a cartridge depends on the operating conditions, including oxygen
setting levels, the amount of time the POC is used, and environmental conditions, such
as high elevation or very dry climate.
CAUTION: Cartridge replacement instructions are only to be used when maintenance
is required and are not intended for practice purpose.
MESSAGE DISPLAY & TEXT ICONS CONDITIONACTIONEXPLANATION
Oxygen low
The cartridge is nearing the end of its service
life. Contact your equipment provider to
arrange for replacement.
Replace cartridge
Replace the cartridge as soon as possible.
Contact your equipment provider to arrange
for replacement. If replacing the cartridge
does not clear the alarm, then switch to a
backup source of oxygen and contact your
equipment provider.
DUST CAP
CARTRIDGE
5. User-Replaceable Cartridge
The following cartridge alarm messages are accompanied by a sound and a yellow

13
CARTRIDGE REPLACEMENT
1. Turn off the X-PLOR by pressing the power button to shut down the POC.
2. Remove the X-PLOR from the carrying bag, if applicable.
3. Remove the battery from the X-PLOR. (See chapter 4)
4. Place the X-PLOR on its side to access the underside of the POC. (See image 1)
5. Remove the cartridge by pulling on the handle. (See image 2)
6. Remove the cartridge completely from the X-PLOR and throw it away. (See image 3)
7. Remove cartridge from Mylar bag. The new cartridge has a dust cap on top. Remove
the dust cap. Make sure there is no dust or debris where the dust cap was located.
8. Insert new cartridge top first into the X-PLOR. Do not leave the cartridge ends
exposed; the cartridge should be inserted into the X-PLOR as soon the old cartridge is
removed. (See image 4)
9. Push the cartridge into the X-PLOR such that the cartridge is fully seated into the
X-PLOR. (See image 5)
10. The cartridge pull handle should lay flat once cartridge is secured. (See image 6)
11. Connect a charged battery to the X-PLOR.
12. Turn on the X-PLOR by pressing the power button for 2 seconds. Set the Flow Setting
to your prescribed setting and use normally.
DUST CAP
STEPS FOR CARTRIDGE REPLACEMENT
REMOVING CARTRIDGE
123
INSTALLING CARTRIDGE
456

14
One nasal cannula is included with the X-PLOR kit.
The proper placement and positioning of the nasal cannula in the nose is critical to the
consistent operation of the X-PLOR. The length of the cannula should not exceed 25 feet in
length. Tubing lengths greater than 25 feet may impede proper flow.
Take care that any hose lying on the floor is not trapped under heavy items or allowed to
kink. Ensure the tubing is not laid across the floor where it can be a tripping hazard.
Attaching the cannula:
1. Ensure the cannula is not being pinched or kinked to avoid a disruption of oxygen
flow.
2. Align the patient cannula to the oxygen output nozzle on the X-PLOR.
3. Install the cannula by pressing onto the nozzle. Press down to fully seal the connection
and test with a light pull.
4. While the system is running, squeeze the distal end of the nasal cannula and then you
will see
TM
displayed on the screen. Then release the cannula, allowing the bolus of
oxygen to release. Repeat the process several times to verify the flow of oxygen.
Positioning the nasal cannula on your face:
1. Position the nasal cannula with the nasal prongs facing upward and curved toward
the face.
2. Insert the two nasal prongs into the nostrils.
3. Wrap the headset loop up and over both ears or for alternative placement: Secure
headset loop behind your head.
4. Glide the bolo up under your chin.
5. Leave enough space to fit at least two fingers between the
bolo and chin.
6. Once the cannula is secured, breathe normally through your
nose. X-PLOR will detect a breath and deliver the oxygen
during inhalation.
6. Nasal Cannula

15
The table below lists common problems and corrective actions you can take. If you are
unable to resolve a problem, please contact your equipment provider.
7. Troubleshooting
PROBLEM POSSIBLE CAUSE WHAT YOU SHOULD DO
Device won’t
turn on
Battery charge is depleted
Use the AC or DC power cord to operate the
device (With the battery inserted) to recharge
the battery. If this does not resolve the problem,
contact your equipment provider.
Power button not
pressed long enough Press the power button for two seconds.
Switch is defective
Remove AC power cord if installed. Detach
battery. Discontinue use and contact your
equipment provider.
Device won’t
turn off
Power button not pressed
long enough Press the power button for two seconds.
Switch is defective
Remove AC power cord if installed. Detach
battery. Discontinue use and contact your
equipment provider.
Device will not
trigger a pulse of
oxygen
X-PLOR is not turned on Press the power for two seconds.
Cannula tubing is kinked
or twisted
Make sure the tubing is connected properly to
the oxygen outlet port, and that it is free of any
obstruction.
Alarm occurs
Device malfunction Contact your equipment provider.
The device needs your
attention
Review the Alarm Indicators and Screen
Symbols section for information about specific
alarms.

16

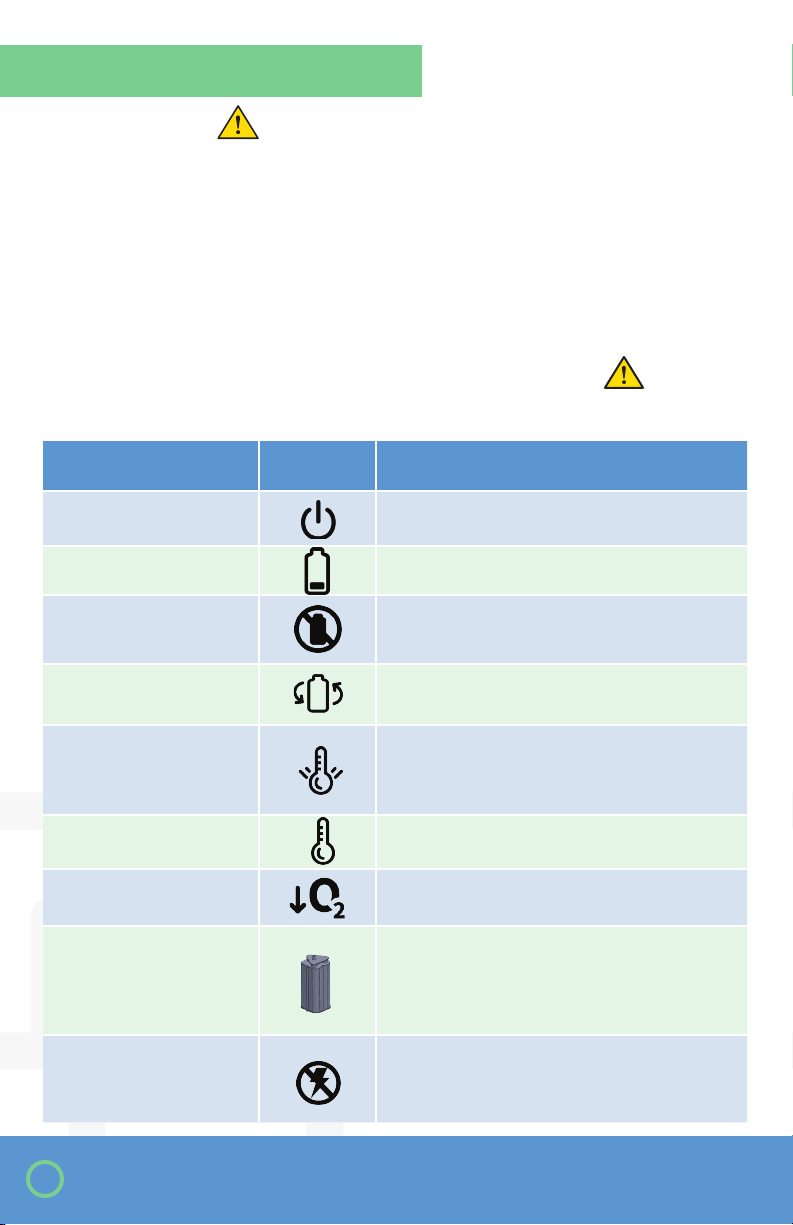

MESSAGE DISPLAY & TEXT ICONS CONDITIONACTIONEXPLANATION
Shutting down On/Off button has been pressed for two seconds.
POC is performing system shut down.
Battery low
Attach power source
The battery has less than 20% charge. Attach
external power or swap out with a charged battery.
Battery empty
Attach power source
POC has insufficient battery power to produce
oxygen. Attach external power supply, or if necessary
power off the POC and swap out with a charged
battery, then restart.
Replace battery
Battery error has occurred. Stop using the battery
and swap out with a charged battery, connected to
an external power supply, if needed.
System hot
POC temperature is too high. Ensure air intake and
outlet vents have clear access and particle filter are
clean. If the vents are not obstructed, the filter is
clean and this alarm condition does not clear, try
moving to a cooler environment.
System cold POC temperature is too cold. Try moving to a
warmer environment.
Oxygen low
The cartridge is nearing the end of its service life.
Contact your equipment provider to arrange for
replacement.
Replace cartridge
Replace the cartridge as soon as possible.
Contact your equipment provider to arrange for
replacement. If replacing the cartridge does not
clear the alarm, then switch to a backup source of
oxygen and contact your equipment provider.
External power failure
The POC is plugged in but is running on battery power
and is not charging. Switch external power supply or
exchange battery. If the problem persists contact your
equipment provider.
NOTIFICATIONS
The X-PLOR has only one type of alarm (an icon on the display combined with an audible
tone): that arises when monitored equipment functions indicate that the user’s attention
is required. Alarm notifications are audible at levels ranging from 65 dB(A) to 85 dB(A),
depending on the equipment condition and the user’s position. The maxium distance that
the user can move away from the POC is determined by the surrounding noise level.
ALARMS
X-PLOR monitors various parameters during operation and utilizes an intelligent alarm
system to indicate a malfunction of the POC. Mathematical algorithms and time delays are
used to reduce the probability of false alarms while still ensuring proper notification of an
alarm condition. All alarms are classified as Low Priority technical alarm condition.
The following alarm messages are accompanied by a sound and a yellow . If the
suggested procedures does not clear the alarm condition, switch to a backup source of
oxygen and contact your equipment provider.
8. Alarms

17
NOTE: When two alarm conditions occur at the same time, the corresponding icons will
cycle for 5 seconds on the display. If one of the alarm conditions requires the POC’s
shutdown, the icon for that condition will be displayed for 10 seconds before the
POC shuts down.
NOTE: When the audible alarm button is pressed to acknowledge and mute an alarm,
new alarm conditions will cancel the mute feature. The audible alarm button can
be used to mute and acknowledge additional alarms without removing the visual
alarm on the device.
INFORMATIONAL MESSAGES
The following information displays are not accompanied by any audible feedback, or any
visual change in the indicator lights.
MESSAGE DISPLAY & TEXT ICONS CONDITIONACTIONEXPLANATION
No breath detected
Check cannula
When the X-PLOR has not detected a breath for 45 seconds,
this alarm will alert the user. If the X-PLOR is left idle, the alarm
will continue for another 45 seconds before transitioning into
No Breath Detected Mode. The duration of the continuous
flow (no breath detected) will last up to 3 minutes. To dismiss
the alarm, check that the cannula is connected to the X-PLOR,
and that there are no kinks in the tubing. Once positioned
properly in your nose and connected to the X-PLOR, the alarm
should be dismissed by pressing the UP/DOWN button.
The
POC will automatically shut down. If the condition appears
to be corrected and the POC still shuts down, then switch
to a backup source of oxygen and contact your equipment
provider.
Sensor fail
The POC oxygen sensor has malfunctioned. The POC will
automatically shut down. Switch to a backup source of oxygen
and contact your equipment provider.
Oxygen delivery error
The POC has detected a mechanical or electrical problem
that prevents normal operation. The POC will shut itself down
automatically. Switch to a backup source of oxygen and
contact your equipment provider.
These alarms can result in the shutdown of the POC.
ICONS MEANING

X-PLOR logo is displayed at startup.
012345678910 11 12 13 14 15 16 17 18 19
0XXXXXXXXXXXXXXXXXXXX
1X X
2X X
3X X
4X X
5X X
6X X
7X X
8X X
9X X
10 X X
11 X X
12 X X
13
X X
14 XXXXXXXXXXXXXXXXXXXX
012345678910 11 12 13 14 15 16 17 18 19
0XXXXXXXXXXXXXXXXXXXX
1X X
2X
XXX m l / m i n X
3X X
4X X
5X X
6X X
7X X
8X X
9X X
10 X X
11 X X
12 XX
13
X X
14 XXXXXXXXXXXXXXXXXXXX
012345678910 11 12 13 14 15 16 17 18 19
0XXXXXXXXXXXXXXXXXXXX
1X X
2XXXX m l / m i n X
3X X
4XX
5X X
6X X
7X X
8X X
9X X
10 X X
11 X X
12 XX
13
X X
14 XXXXXXXXXXXXXXXXXXXX
X
X
X
%
X
X
X
X
%
X
Setting X Please wait
Displayed during warm up. “X” represents the selected flow setting (e.g., Setting 2).
Setting X Battery xx%
Default display when operating on battery power. “X” represents the selected
flow setting (e.g., Setting 2). “xx%" represents the approximate battery charge
remaining. 100% is fully charged.
TM
This icon appears when the POC detects inhalation.

18
X-PLOR accessories available to order:
TO REORDER CALL 877-GO-XPLOR OR
VISIT XPLOROXYGEN.COM
PICTURE # ACCESSORY NAME MODEL #
1 8-Cell Battery 50188
2 Cartridge 50073-1
3 Air filter 50351-1
4 Carry Bag 52191-1
5 AC Power Supply 53011-1
6 DC Power Supply 53021-1
7Backpack 52291-1
9. Accessories and Repleacement Parts
1 2 3
6
4 5
7
8-Cell Battery Cartridge Air filter
Carry Bag AC Power Supply DC Power Supply
Backpack
