Belmont Clesta II User manual

CLESTA II CHAIR (EURUS TYPE)
INSTALLATION INSTRUCTIONS

1 Safety Consideration
2 Cautions regarding installation
1-1 Risk Level Interpretation ............................................................ 3
1-2 Safety Precautions ..................................................................... 5
2-1 Precautions for installation ..........................................................6
4 Installation
4-1 Dimensions/Environmental Requirements ...................................8
4-1-1 Dimensions ..............................................................8
4-1-2 Environmental Requirements ....................................8
4-2 Necessary tools and supplied parts ............................................9
4-2-1 Necessary tools ........................................................9
4-2-2 Supplied parts ..........................................................9
4-3 Installation procedures .............................................................10
4-3-1 Installing the chair ...................................................10
4-3-2
Installing the seat, backrest, and other parts of the chair ...14
4-3-3 Attaching the cover ................................................18
3 Conditions for installation site
3-1 Capacity of power supply equipment to be used ........................7
3-2 Strength of the building required for installation ..........................7
Table of Contents
5 Flow Diagram/Wiring Diagram

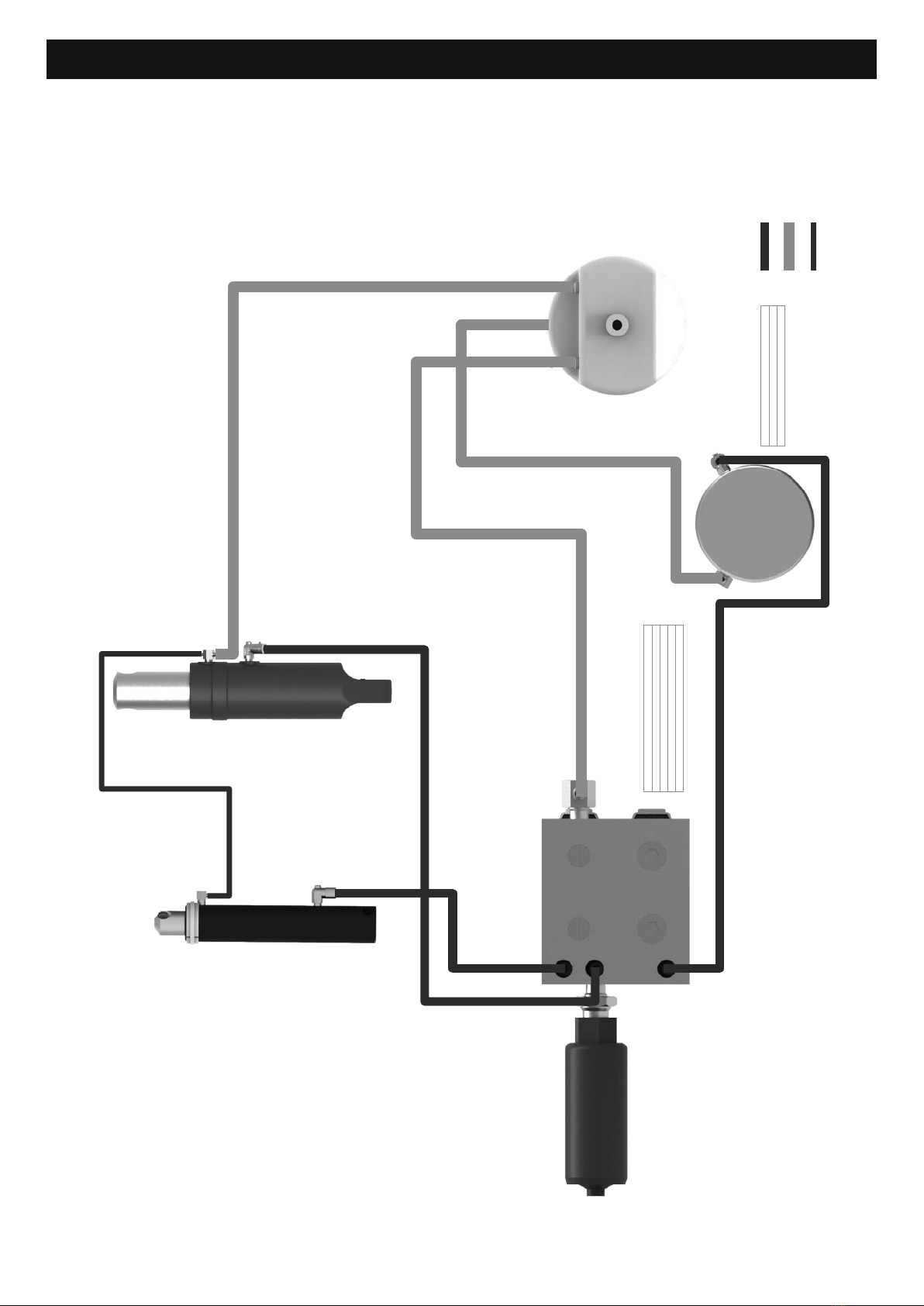

5-1 Flow Diagram ...........................................................................20
5-2 Wiring Diagram .........................................................................21
2

1 Safety Consideration
1-1 Risk Level Interpretation
CONTRAINDICATION
Precautions before use
Classification by degree of
harm or damage and urgency
Make sure to carefully read the Safety Precautions and Operat-
ing Precautions and use the product correctly.
Use of the product without regard to this indication will create
a hazardous condition that may result in death or serious
injury.
These precautions are intended to ensure the safe use of the
product and prevent harm or damage to users or other people.
According to the magnitude of harm and damage and the degree
of urgency, an incident that may be caused by misuse of the
product is classified into one of the following categories:
CONTRAINDICATION, WARNING, and CAUTION.
All of these categories are important for safety. Always follow the
instructions provided.
We assume no responsibility for any accident due to failure to
follow the Safety Precautions even in the event of harm or damage
to users or other persons.
In such case, users or other persons who use the product without
observing the Safety Precautions is responsible for any harm or
damage incurred.
The graphical symbols are explained in detail below.
Once you have fully understood this explanation, read the text.
Improper handling of the product without regard to this
indication will create a hazardous condition that may result in
death or serious injury.
Improper handling of the product without regard to this
indication will create a potentially hazardous condition that
may result in moderate or slight injury or property damage.
WARNING
CAUTION
3

1 Safety Consideration
The following graphical symbols are used to explain your
responsibilities for using the product safely:
Generally prohibited activity
Disassembly, repair or modification prohibited
Mandatory instructions for ordinary users
Graphical symbols for prohibited activity
Graphical symbol for mandatory instructions
4

1 Safety Consideration
Precautions regarding installation
Do not install the product near electromagnetic sources such as
communication facilities or elevators.
Malfunction of this product may occur in the presence of
electromagnetic interference waves.
Installing or transferring the
product
Precautions for installation
Make sure to place the product on a firm and flat floor.
Placing the equipment on a tilted floor (≥ 5°) may cause it to fall.
To avoid the risk of electric shock, this equipment must only be
connected to a supply mains with protective earth.
Failure or electric leak may result in electric shock.
Precautions for operating the chair
Before and during the chair operation, pay close attention to the
operation range (seat raising/lowering direction, backrest lower-
ing/raising direction), and ensure that the chair does not contact
any body parts,hands or feet, or objects. Body parts, hands or
feet, or objects may become caught in the chair, causing injury
or damage to peripheral devices.

Installing or transferring the
product
Installation
Installation Cautions on Installation Work
Metal or mechanical parts of this product may have sharp edges
or corners. Be careful to avoid injury to your hands and fingers
during installation work.
1-2 Safety Precautions
CONTRAINDICATION
WARNING
CAUTION
5

2-1 Precautions for installation
1. While carrying the chair, make sure to hold only the
designated parts. If not, it may lead to physical injury.
2. Confirm that the fixing bolts are tightened before carrying the
chair.
3. Take care not to topple the equipment during transportation.
4. Do not drop, hit, or give a shock to the product.
5. Do not connect a power supply other than the rated voltage.
6. Make sure to connect ground wires.
7. When all the installation procedures have been completed,
verify that each function works properly.
2 Cautions regarding installation
6

3-1 Capacity of power supply equipment to be used
1. The power supply specifications of the installation site should
be observed. Rated voltage and power supply input for each
CLESTA II CHAIR (EURUS TYPE) are following below.
The minimum capacity of power supply equipment should
have 1,500 VA and over.
3-2 Strength of the building required for installation
1. The floor strength of the building should be ≥ 4,900 N/m2.
2. As the floor material of the building, plywood with the thickness
of 25 mm as recommended by Takara Belmont, or a
composite material that combines plywood with the thickness
of 15 mm and particle board with the thickness of 20 mm,
should be used. Alternatively, a floor material with the strength
greater than the above should be used.
2. Be sure to connect grounding.
3 Conditions for installation site
Rated voltage
Power frquency
Power supply input
AC240V
50Hz
2.2A
AC230V
50Hz
2.0A
AC220V
50/60Hz
1.8A
AC120V
60Hz
3.6A
AC110V
60Hz
3.6A
7

4 Installation
4-1 Dimensions/Environmental Requirements

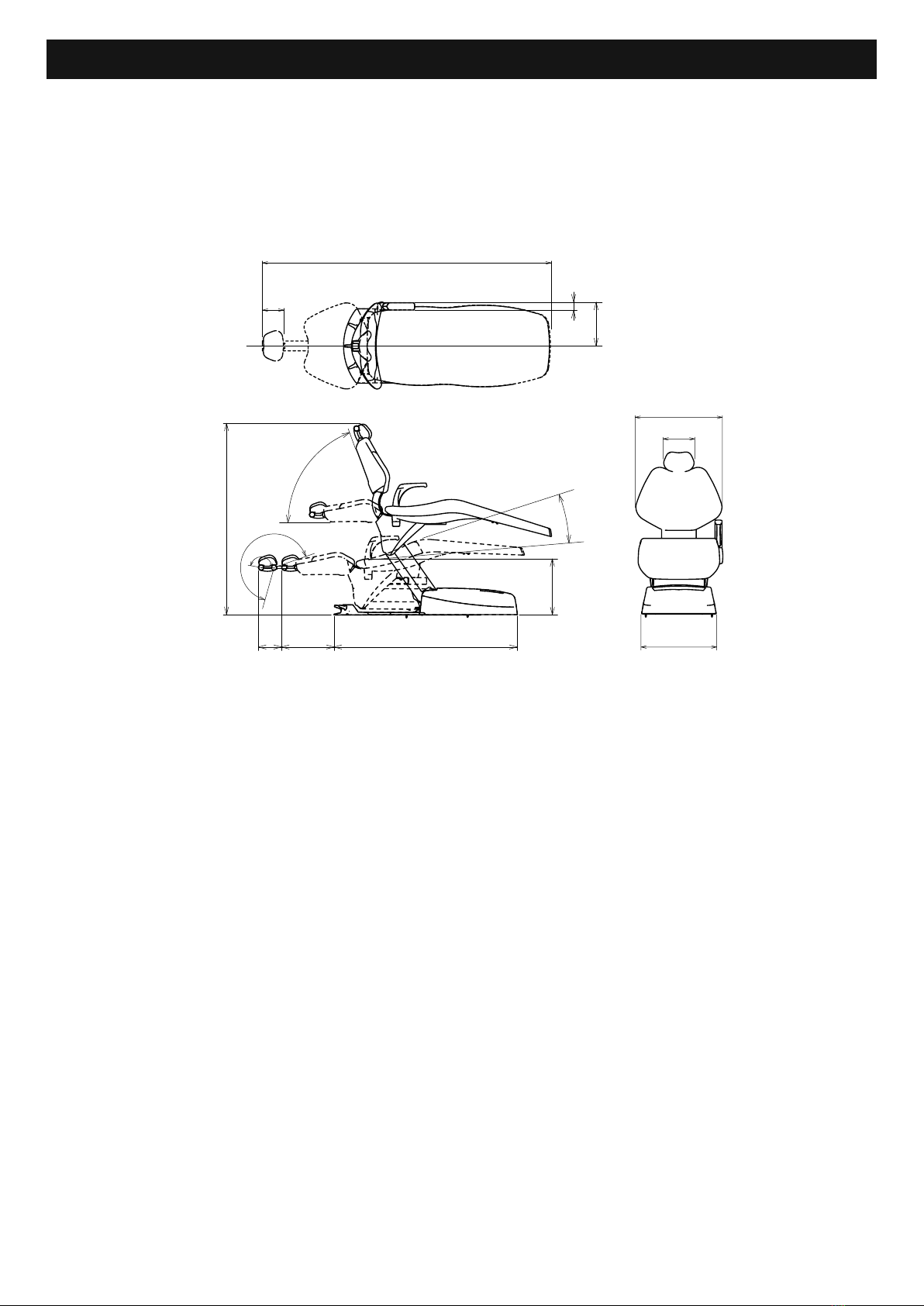

4-1-1 Dimensions
Unit: mm (Dimensional tolerance:±10%)
*Dimensions and specifications are subject
to change without notice.
4-1-2 Environmental Requirements
Usage environment Temperature 0°C to 40°C
Humidity 10% to 95%
Atmospheric pressure 700 to 1060 hPa
Transportation/storage Temperature −20°C to 70°C
environment Humidity 10% to 95%
Atmospheric pressure 700 to 1060 hPa
2010
170
50
300
210
518
600
1055〜1615
73°
5〜18°
435〜800
1380395
180
170°
235°
8

4 Installation
4-2 Necessary tools and supplied parts
4-2-1 Necessary tools
The table below shows the necessary tools for the installation of
this product.
1
2
3
4
5
Phillips screwdriver No. 1–3
Monkey wrench (Max. opening width: 29 mm)
6-piece double head open end wrench set (5.5–24 mm)
8-piece hex key wrench set (1.5–8 mm)
Level
1 for each
1
1
1
1
The table below shows the supplied parts included in each unit.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
No.
Hex head flange screw TP-A, M8 × 30, black
Hollow set screw, flat end, M10 × 10, SUS
Cap bolt, M6 × 20, black
Cap bolt, M6 × 45, black (only for the specification having right armrest (option))
Spacer, 6 × 30 (only for the specification having right armrest (option))
Spring (only for the specification having right armrest (option))
Flat washer, M6 × 11.5 × 0.8 (only for the specification having right armrest (option))
Clamp
Pump cover
Pump cover lid
Headrest unit
Headrest cover
Backrest cover
Base cover
Base cover lid
Stick switch
Flange cover lid (only for the specification having no right armrest (option))
Truss screw M4×8 white
Part name QTY.
No. Tool name QTY.
6
6
1
1
1
1
1
2
1
1
1
1
1
1
2
1
1
4
Chair [Contour chair type] (unit)
1
2
3
4
5
No.
Seat bottom cover (right)
Seat bottom cover (left)
Seat
Backrest
Headrest
Part name QTY.
1
1
1
1
1
Chair [Contour chair type] (cover parts)
4-2-2 Supplied parts
9

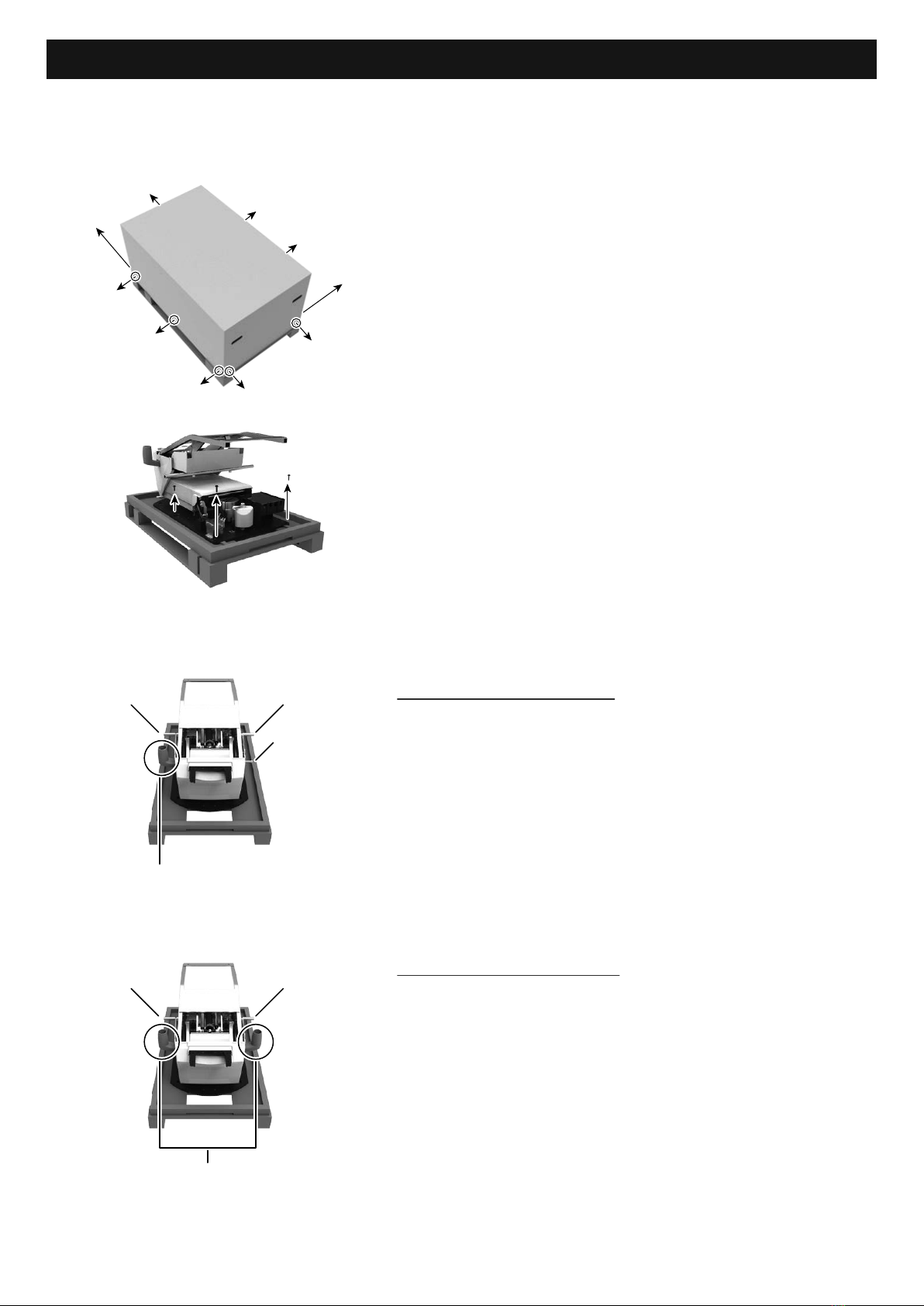

1. Unpack the carton of the chair.
Remove wood screws, M4 × 45, plated (10 pieces) for
packing.
2. Remove the chair from the skid.
Remove the hex head flange screw TP-A, M6 × 40 (3 pieces)
that fix the base and skid.
3. Place the chair at the approximate location.
Hold the following positions and lay down the chair.
For no right armrest (option):
Hold the carriage bar and the bottom of the armrest mounting
position on the left side, and hold the carriage bar and carriage
bar 2 on the right side.
For the right armrest (option):
Hold the carriage bar and the bottom of the armrest mounting
position on the right and left sides.
Carriage bar
Carriage bar 2
Carriage bar
Armrest mounting position
Carriage barCarriage bar
Armrest mounting position
4-3 Installation procedures
4-3-1 Installing the chair
4 Installation
10

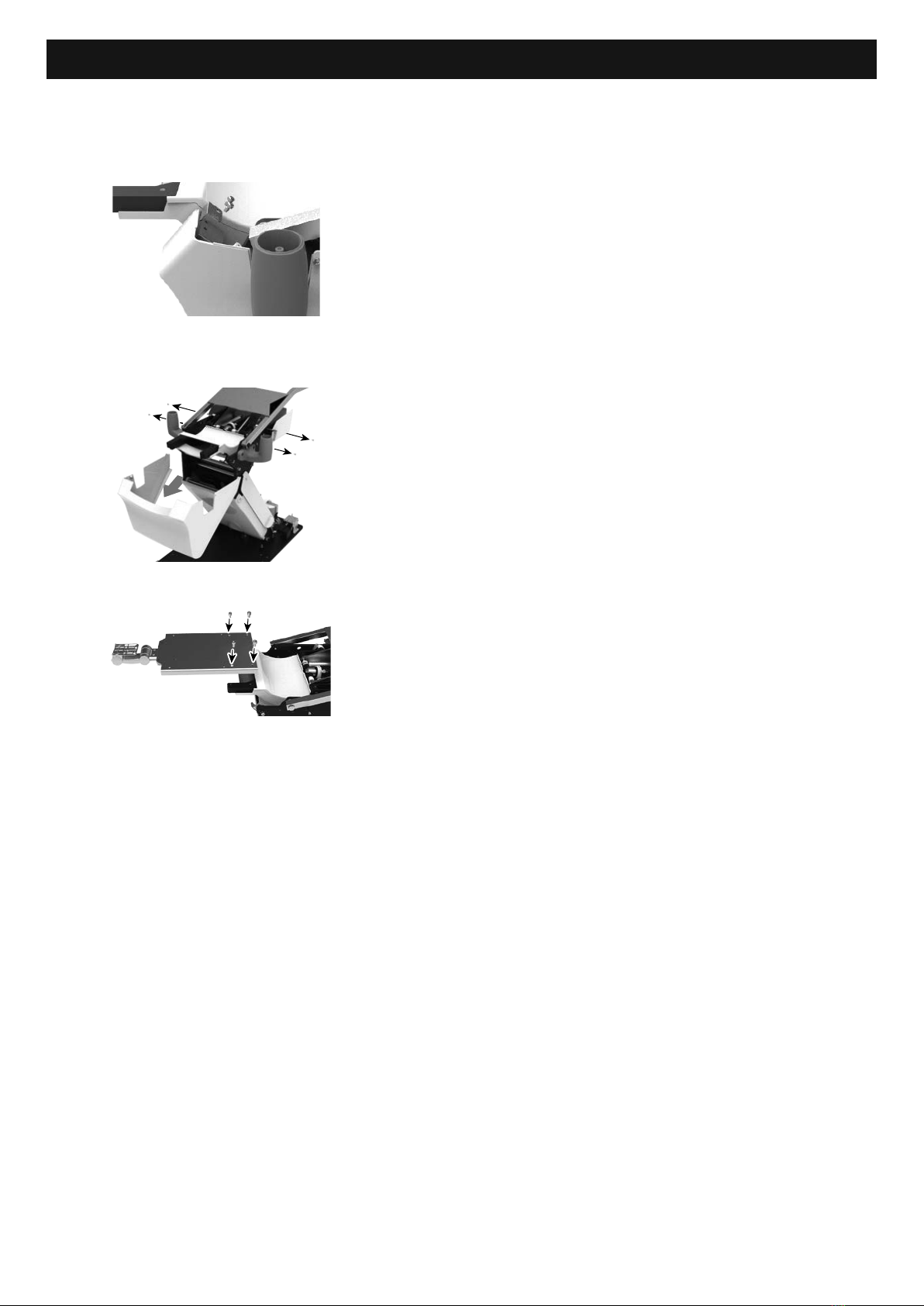

4. Remove the fixing bolts.
Remove the cap bolt, M10 × 30, plated (1 piece).
5. Remove the rubber plug of the oil tank.

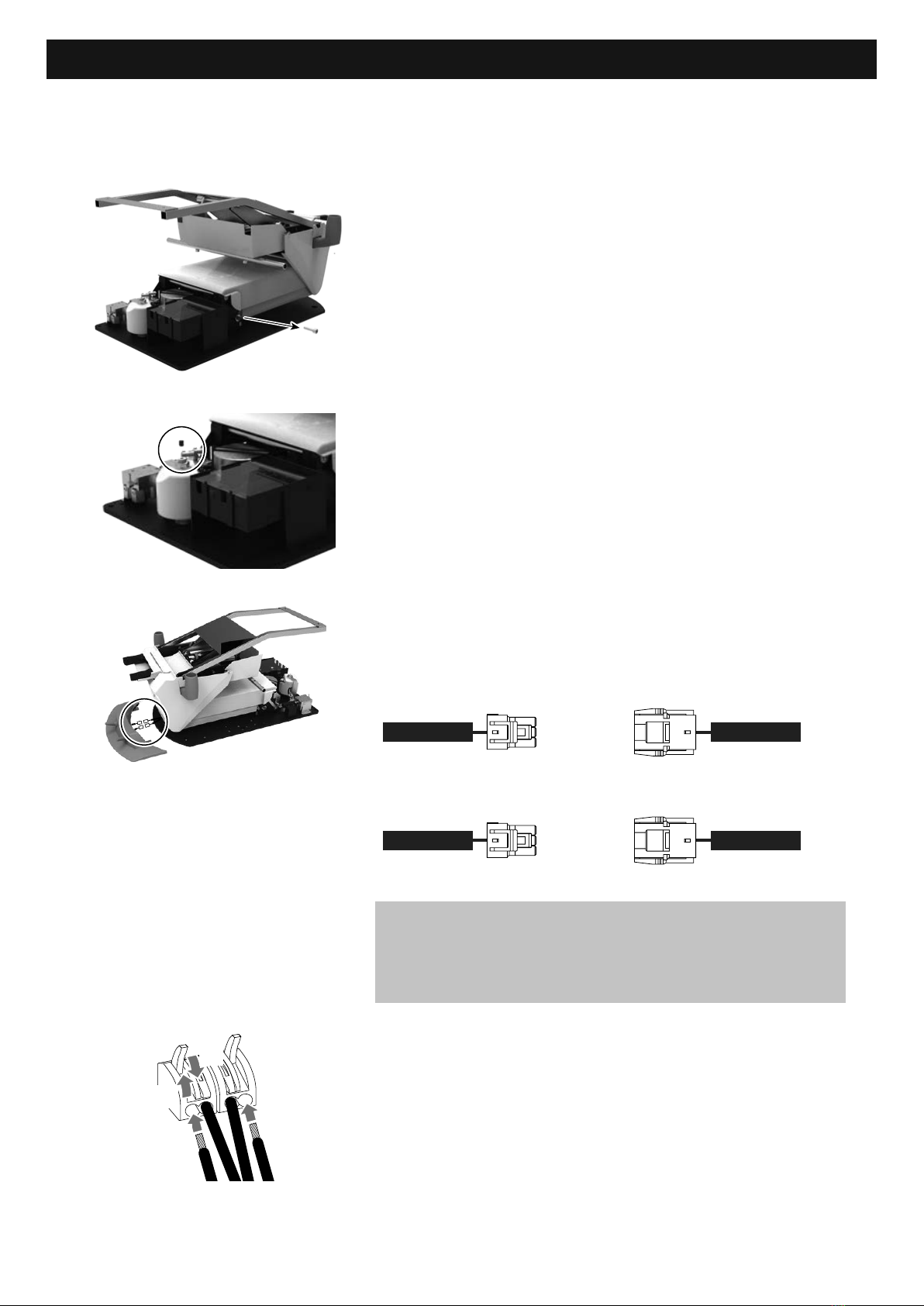

6. Attach the connector for the stick switch.
Attach the connector to the one that starts with same
number.
6P
1.Brown
2.Red
3.Orange
4.Yellow
5.-
6.Black
1.Brown
2.Red
3.Orange
4.Yellow
5.-
6.Green
6P
1.Gray
2.Green
3.Purple
4.Blue
5.-
6.Black
1.Brown
2.Red
3.Orange
4.Yellow
5.-
6.Green
Chair
Chair
Stick switch
Stick switch
[Stick switch for manual
operation cable]
[Stick switch for automatic
operation cable]
1 1
2E 2
4 Installation

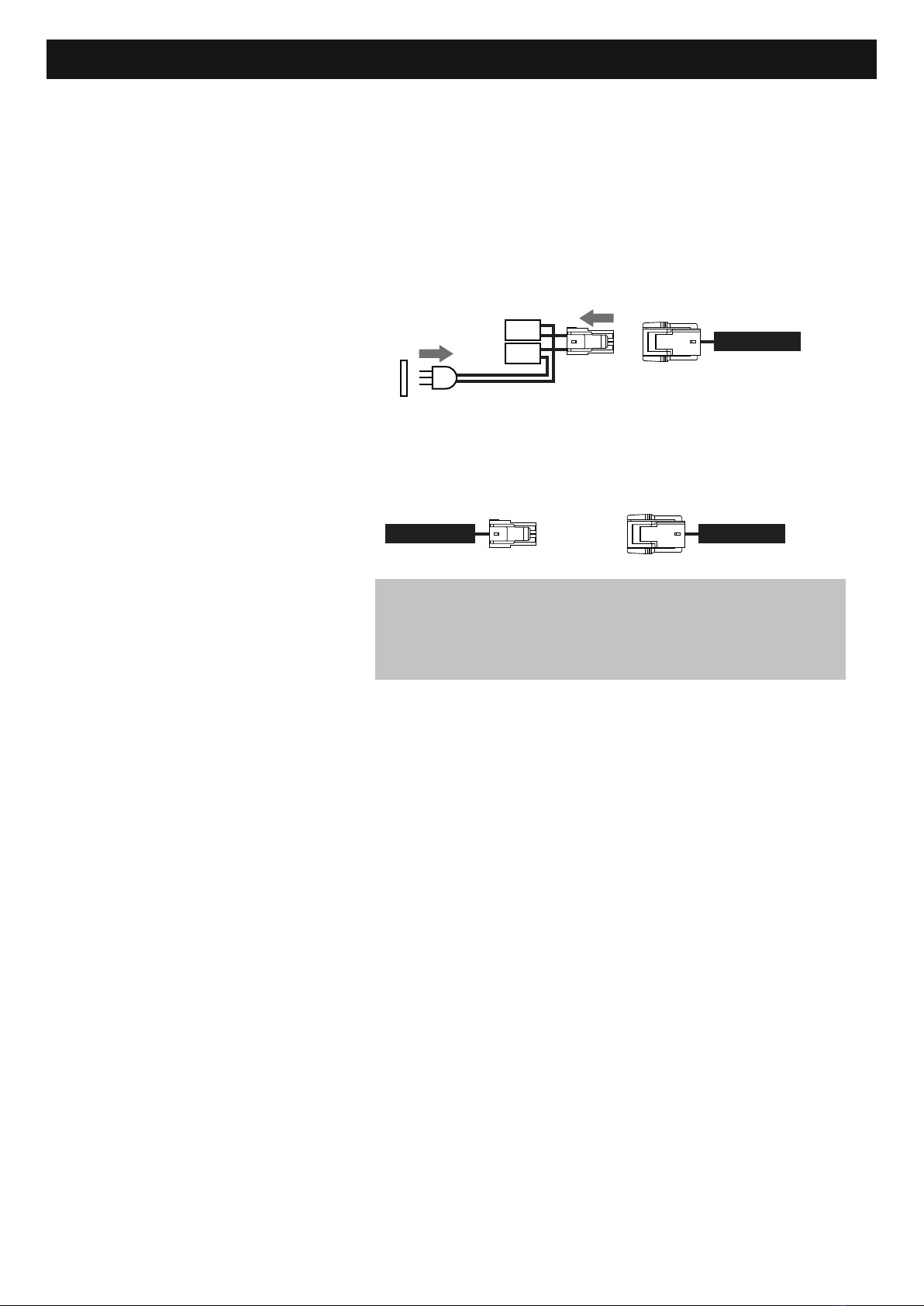

7. Connect the power supply cable to the terminal on
the power cable connector of the chair and insert
the power plug into a suitable power supply outlet.
Make sure to insert a connector until it clicks.
When disconnecting a plug, do not pull the cable but hold
the connector and pull it.
①
②
③
11

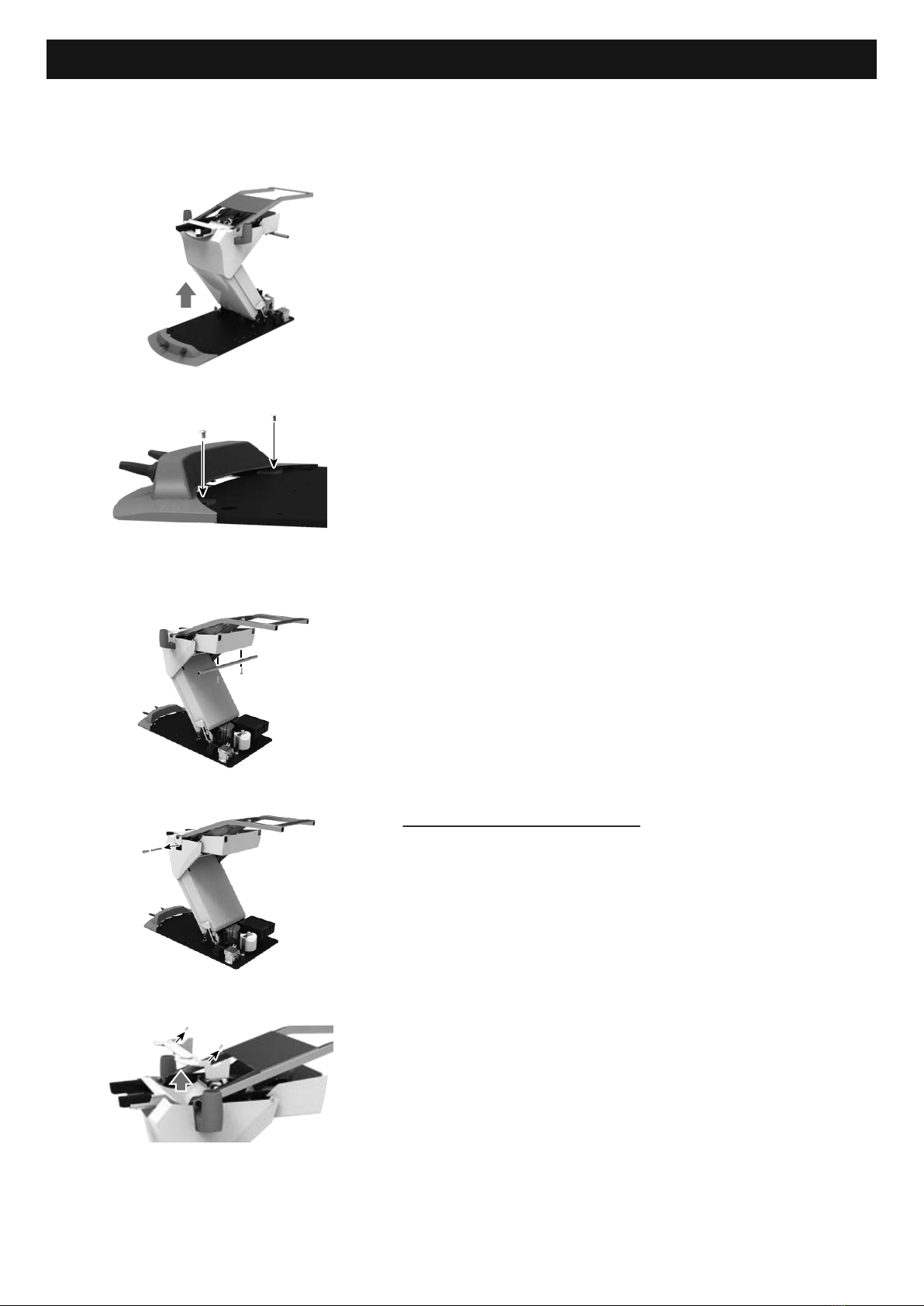

8. Tilt the stick switch for the chair manual operation up
to lift up the chair to its highest position.
9. Attach the stick switch.
Insert the connected connector into the switch, and fix the
switch with pan head screws, 2P, M5 × 10, plated
(2 pieces).
10. Remove the carriage bar.
Remove the cap bolts M10 × 30, plated (2 pieces).
For no right armrest (option):
Remove the carriage bar 2.
Remove the cap bolt, M12 × 150, plated (1 piece).

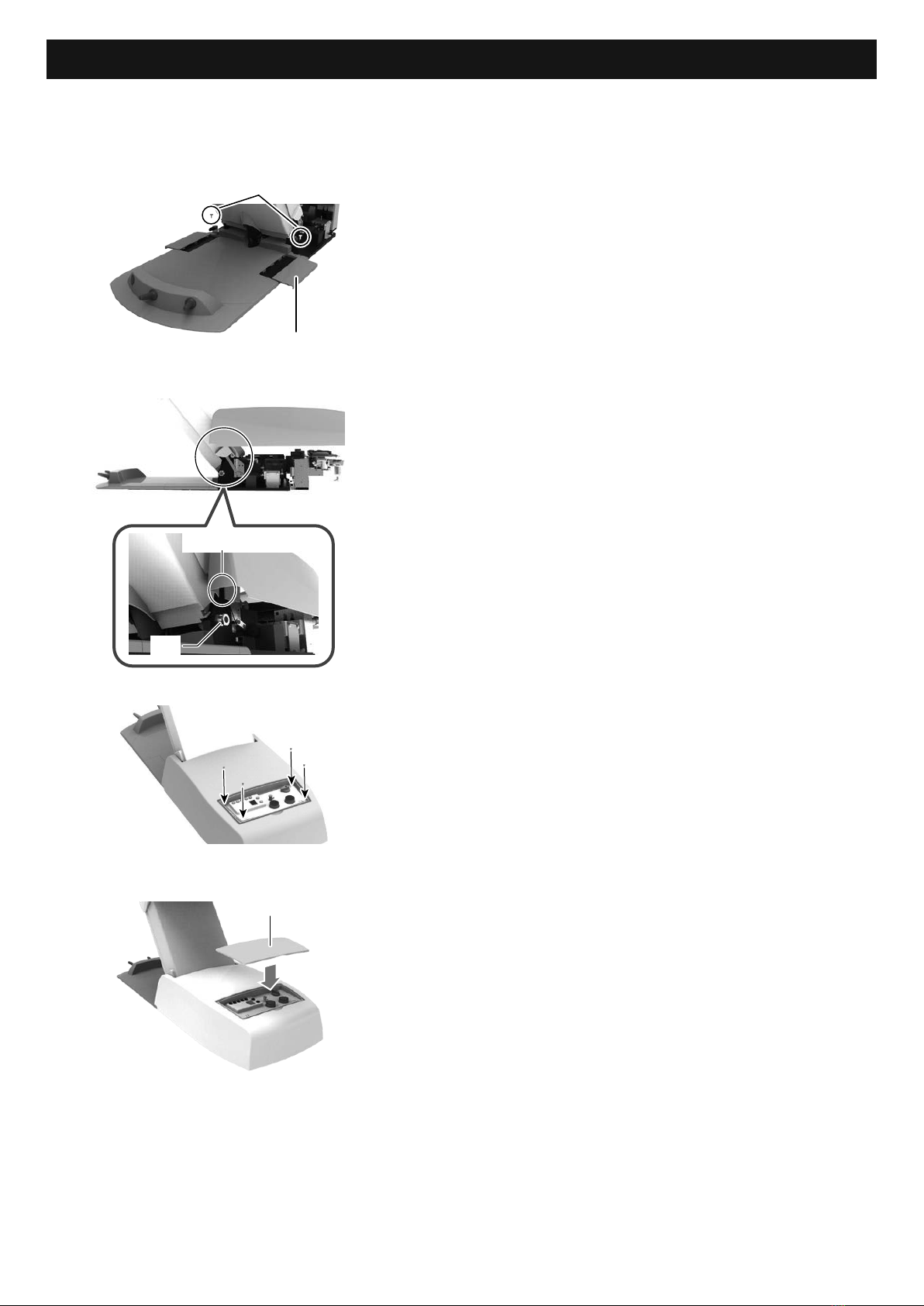

11. Remove the flange cover top.
Remove the pan head screws, 2P, M4 × 10, plated
(2 pieces).
4 Installation
12

4 Installation

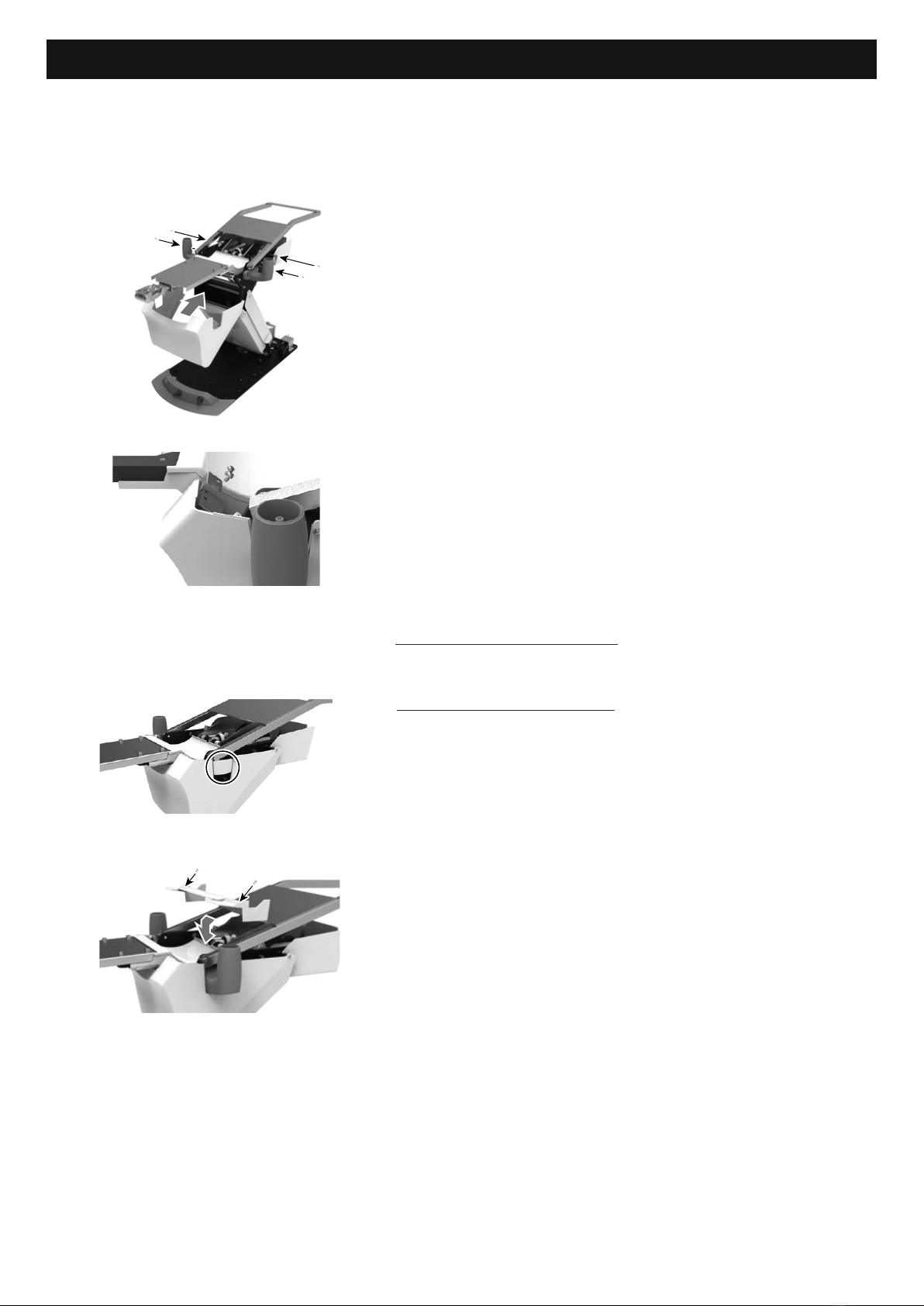

12. Remove the flange cover spacer (1 piece each on
right and left).
Remove the pan head screws 2P, M5 × 10, plated
(2 pieces each on right and left).
13. Remove the flange cover bottom.
Remove the truss screws, M4 × 6, white (4 pieces) and
remove the flange cover bottom by rotating it downward to
avoid hitting the armrest.
14. Attach the headrest unit.
Attach the headrest unit with cap bolts, M8 × 20, plated
(4 pieces).
Mount the CLESTA II unit on the chair, before installing the
seat, backrest, and other parts of the chair.
Refer to the Unit installation instructions.
After installation is completed, check all movement by
following the instructions for use.
13

1. Attach the flange cover bottom.
Fix the cover with truss screws, M4 × 6, white (4 pieces).
2. Attach the flange cover spacer (1 piece each on
right and left).
Fix the spacer with pan head screws, 2P, M5 × 10, plated
(2 pieces each on right and left).
3. For the right armrest (option):
Go to Procedure 4.
For no right armrest (option):
Attach the flange cover lid.
4. Attach the flange cover top.
Fix the cover with pan head screws, 2P, M4 × 10, plated
(2 pieces).
4 Installation
4-3-2 Installing the seat, backrest, and other parts
of the chair
14

4 Installation

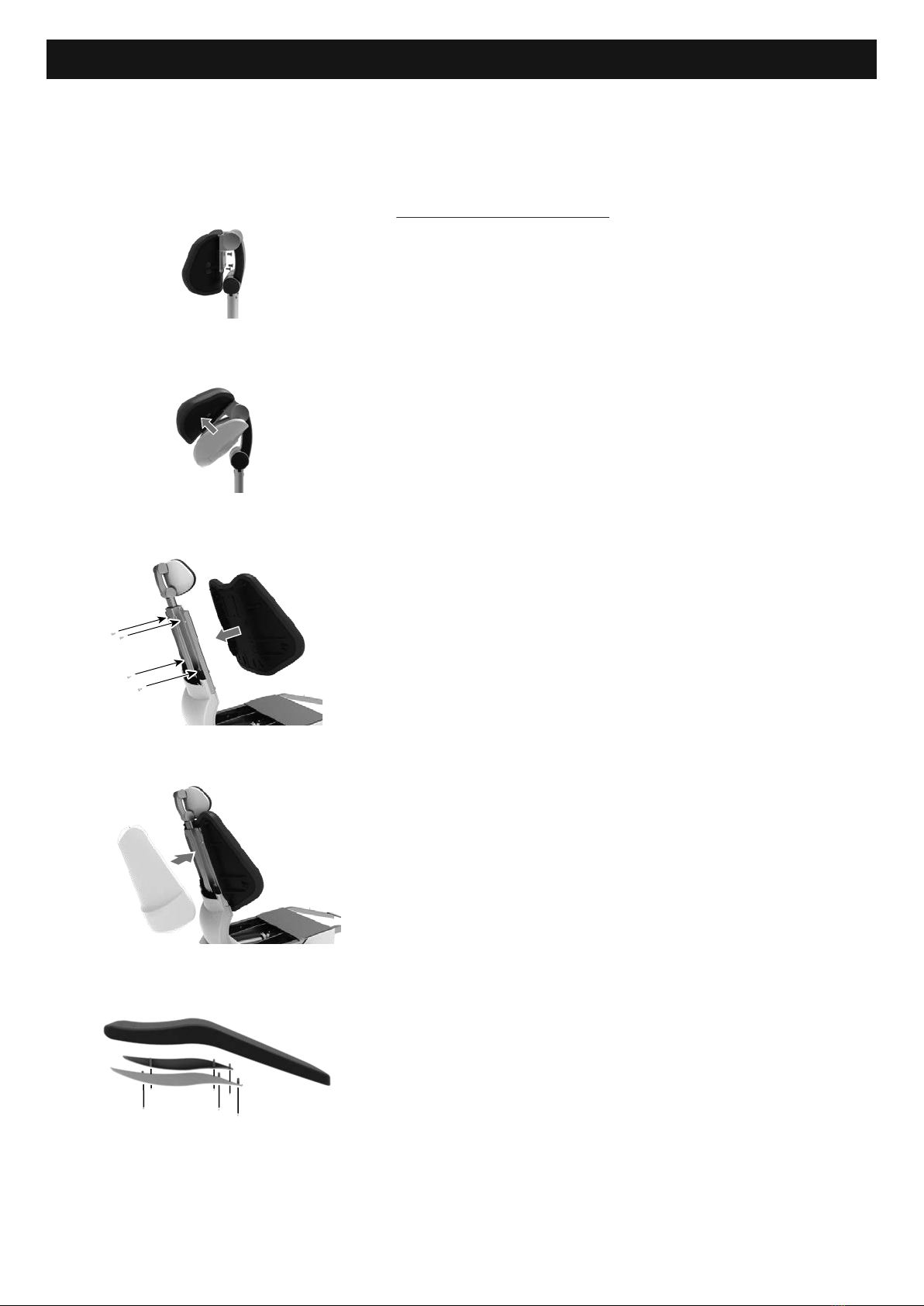

5. Attach the headrest.
For the manual headrest :
(1) Attach the headrest to the headrest unit.
Fix the headrest with the countersunk screws, M5 × 8,
plated (3 pieces).
(2) Attach the headrest cover.
Insert the catch of the headrest cover to the headrest.
6. Attach the backrest.
Fix the backrest with pan head screws, 2P, M5 × 10, plated,
(4 pieces).
7. Attach the backrest cover.
Insert the catch of the backrest cover to the backrest.
8. Attach the seat bottom covers (right and left) to the
seat.
Fix the covers with binding head screws, M4 × 15, plated
(6 pieces).
15

4 Installation

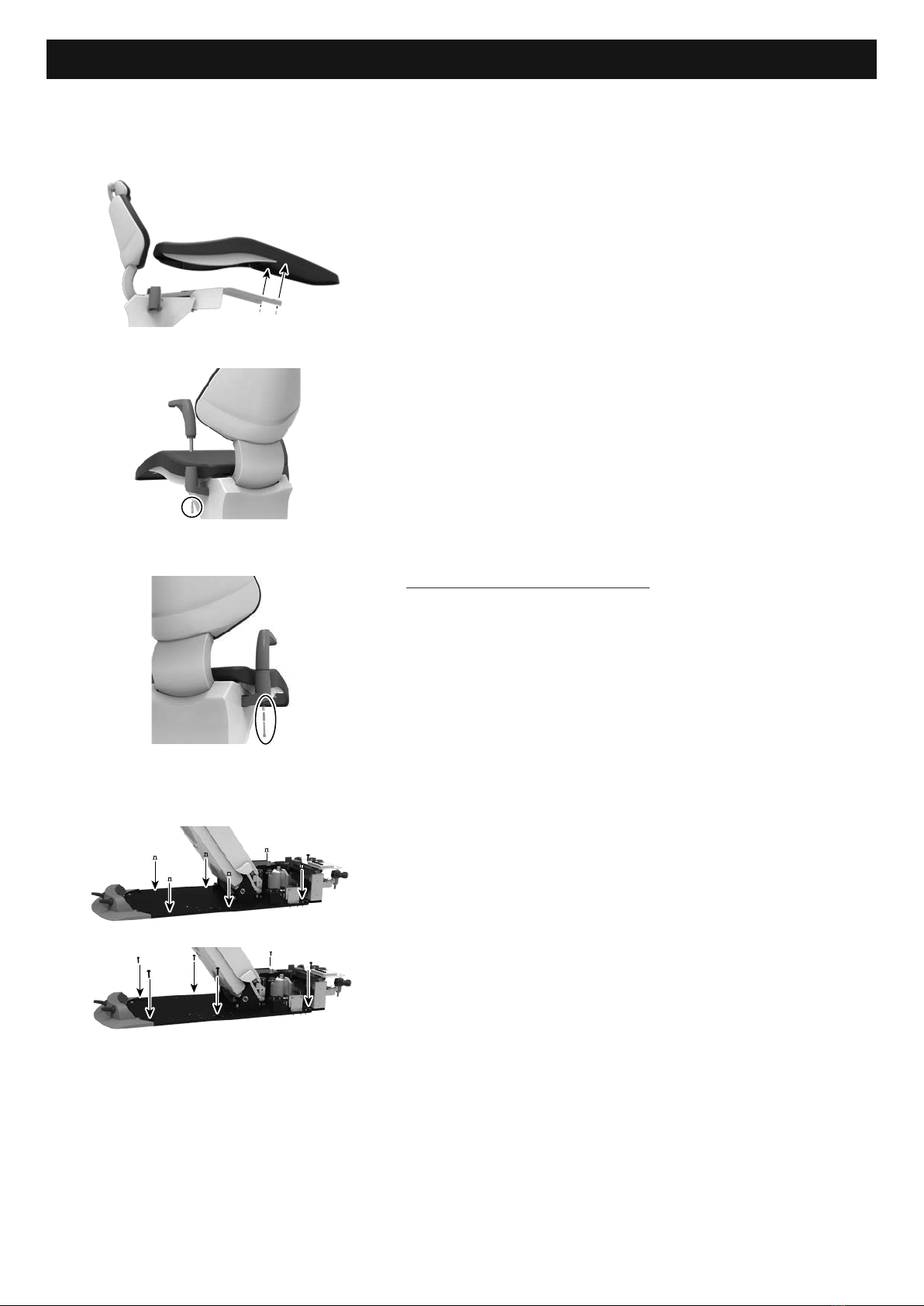

9. Attach the seat.
Hook the rear side of the seat to the seat frame and fix the
front side of the seat with pan head screws, 2P, M6 × 15,
plated, (2 pieces) and flat washers, 7 × 19 × 2.0 (2 pieces).
10. Attach the armrest (left side).
Insert the armrest (left side) and fix it with cap bolt,
M6 × 20, black (1 piece).
11. For the right armrest (option):
Insert the armrest (right) and fix it with the following:
Cap bolt, M6 × 45, black (1 piece)
Spacer, 6 × 30 (1 piece)
Spring (1 piece)
Flat washer, M6 × 11.5 × 0.8 (1 piece)
12. Fix the chair to the floor.
1) When necessary, adjust the level by using the attached
hollow set screws, M10×10, SUS (6 pieces).
Depends on the situation of the floor surface (e.g. hollow
set screws are sunk ), insert the metal plate between the
hollow set screws and floor, then adjust the level.
2) Fix the chair with hex head flange screw TP-A, M8 × 30,
black, (6 pieces).
16

4 Installation
14. Attach the connector of the power cable of the chair
to the appropriate connector in the junction box.
15. Insert the power plug of this product into a suitable
power supply outlet.
Make sure to insert a connector until it clicks.
When disconnecting a plug, do not pull the cable but hold
the connector and pull it.
1.Black
2.White
1.Black
2.White
PCB for chair
Junction box 2P
13. Disconnect the terminal block from the connector
of the power cable for the chair.
(1) Disconnect the power plug that connects the terminal
block from the power supply outlet.
(2) Disconnect the terminal block.
PCB for chair
Terminal block (2)
(1)
17

4 Installation

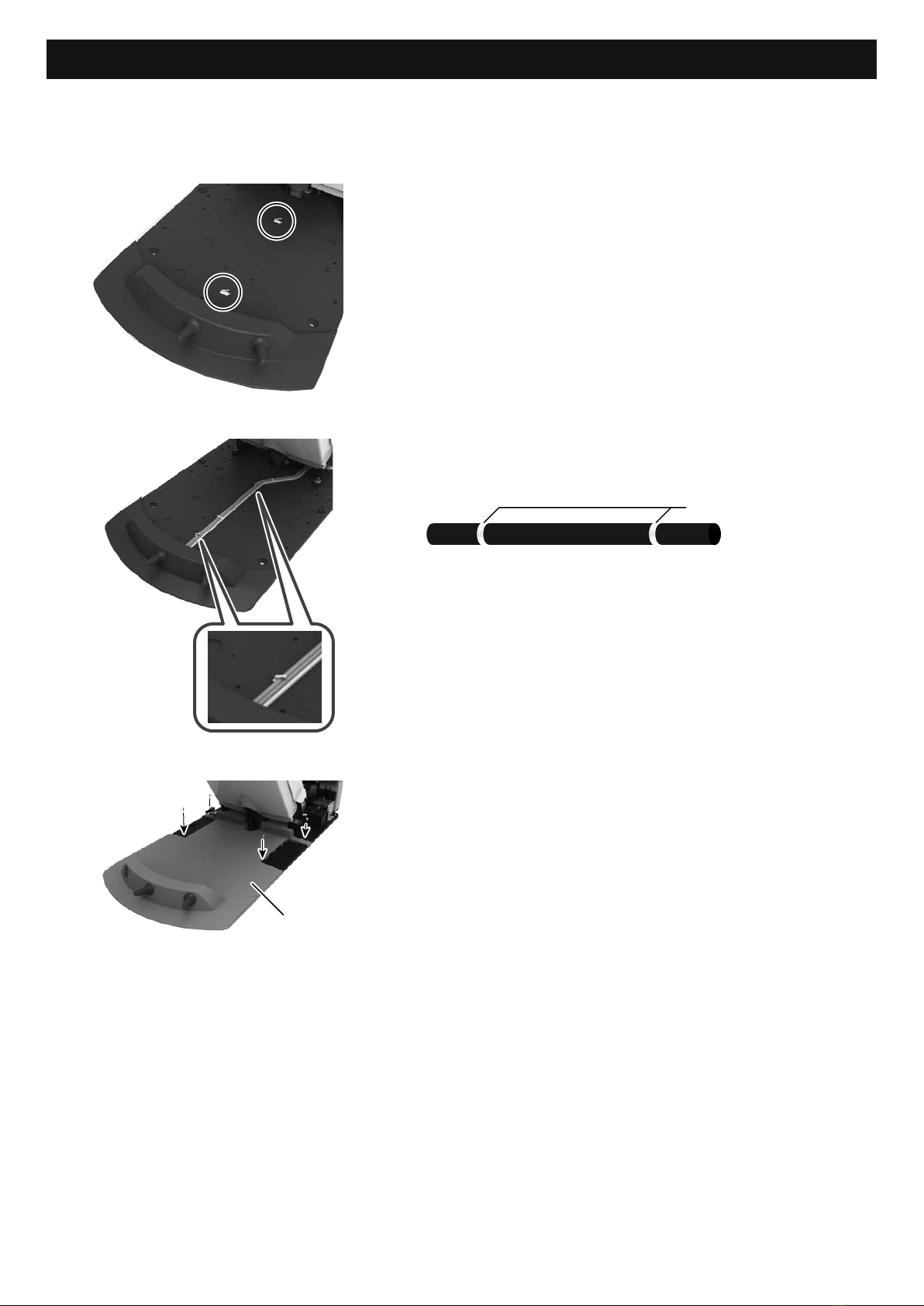

3. Attach the base cover.
Remove the following screws fixed temporarily on base,
and fix the base cover with the following screws.
Front side: Truss screws, M5 × 10, plated (2 pieces)
Back side: Truss screws, M4 × 10, plated (2 pieces)
Base cover
2. Clamp the stick switch cable (one cable only) at
the positions (2 places) of mark.
Mark
1. Attach the clamps (2 pieces) on the holes of base.
4-3-3 Attaching the cover
18

4 Installation
4. Attach the base cover lid.
If the base cover lid is difficult to attach, loosen the fixing
screws on the front side.
5. Attach the pump cover.
(1) Insert the U-shaped notch of the pump cover onto the
ditch of the nut on the chair link at both sides.
(2) Fix the pump cover with truss screws, M4 × 8, white
(4 pieces).
6. Attach the pump cover lid.
Pump cover lid
U-shaped notch
Nut
ベースカバー
Base cover lid
Fixing screw in front
19

5-1 Flow diagram
5 Flow Diagram/Wiring Diagram
FUEL HOSE AENL15**
FUEL HOSE AENL14**
FUEL HOSE AENL14**
HYRON HOSE AENL71**
HYRON HOSE AENL74**
REC CYL ASSY 1G06X4**
LIFT CYL ER 1G06XA**
HYRON HOSE AENL83**
HYRON TUBE X-55130
ACCUMULATOR DERR05*
OIL TANK
MOTOR
High pressure hose Low pressure hose Low pressure hose
P
AChair
down
Chair up Not Adjustable
Backrest recline
Backrest up Not Adjustable
B
R
VOLTAGE MOTOR CODE CONDENSER CODE 110-120V ANDS56** AATP26** 220-240V ANER60** AATP27**
VOLTAGE 4SOLENOID VALVE CODE 100V 50/60Hz,110V60Hz 1G06W4** 110 50Hz,115V 50/60Hz,120V 60Hz 1G0707** 220V 50/60Hz,230V 60Hz 1G0708** 230V 50Hz,240V 50/60Hz 1G0709**
20
