BenQ MK2442 User manual

English
Table of Contents i
Table of Contents
Section 1: Quick Start Guide.................................... 1
1. Please read these instructions .......................................2
What's in the Quick Start Guide? ............................................ 2
What's in the User Manual? ..................................................... 2
2. Package contents............................................................2
3. Select and prepare the installation location ................3
4. Installing the Base .........................................................4
5. Disconnecting the base and arm .................................5
6. Adjust the viewing angle ..............................................6
7. Connect the antenna cable............................................6
8. Connect the power cable................................................7
9. Activate the remote control .........................................8
Installing batteries .................................................................... 8
Battery safety notice ................................................................. 8
Using the remote control ........................................................ 9
10.Initialize your TV .........................................................10
11.View the TV programs .................................................10
Care and cleaning information..........................................11
What's next?........................................................................11
Section 2: User Manual ............................................ 12
Getting to know your TV...................................................13
Front view ................................................................................ 13

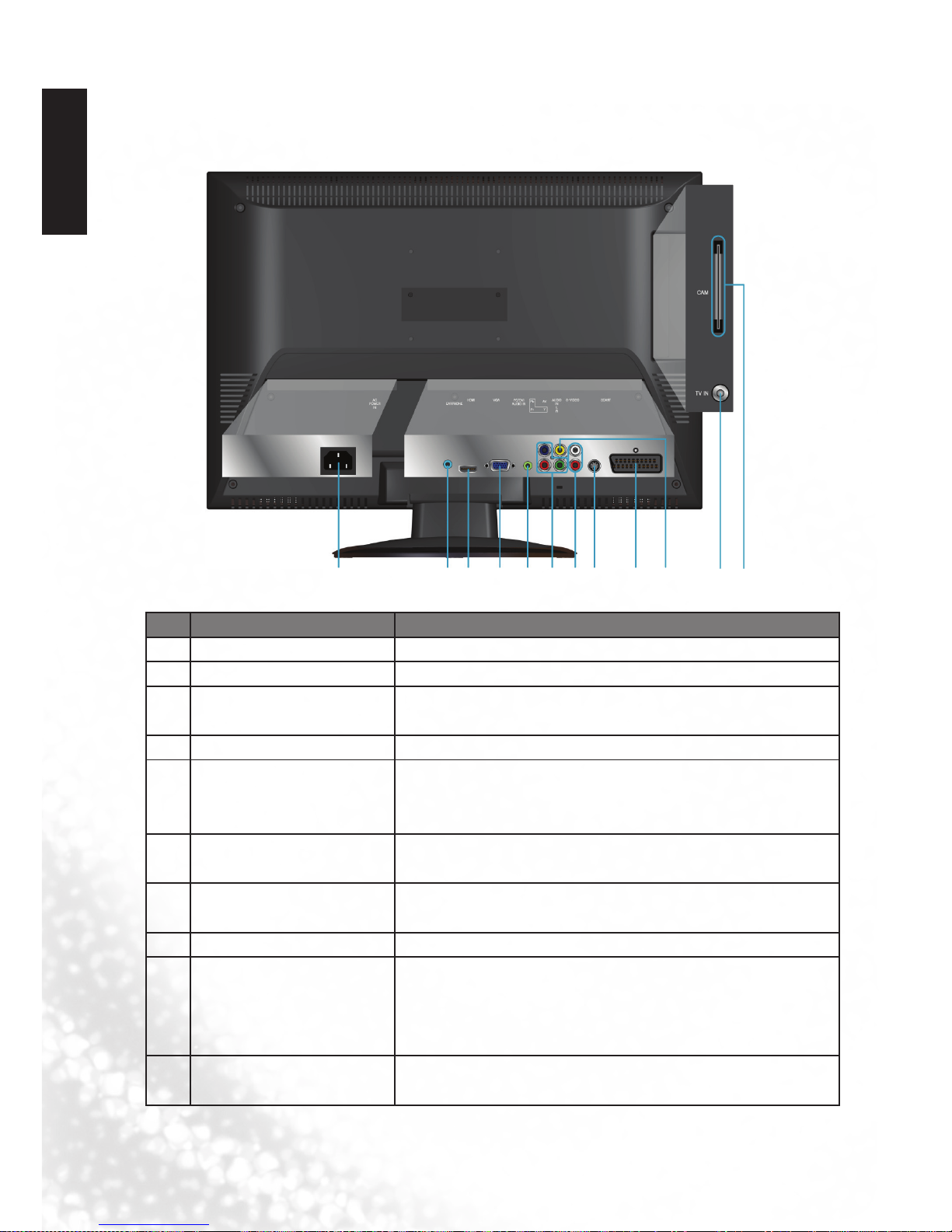

Rear view .................................................................................. 14
Getting to know the remote control .................................16

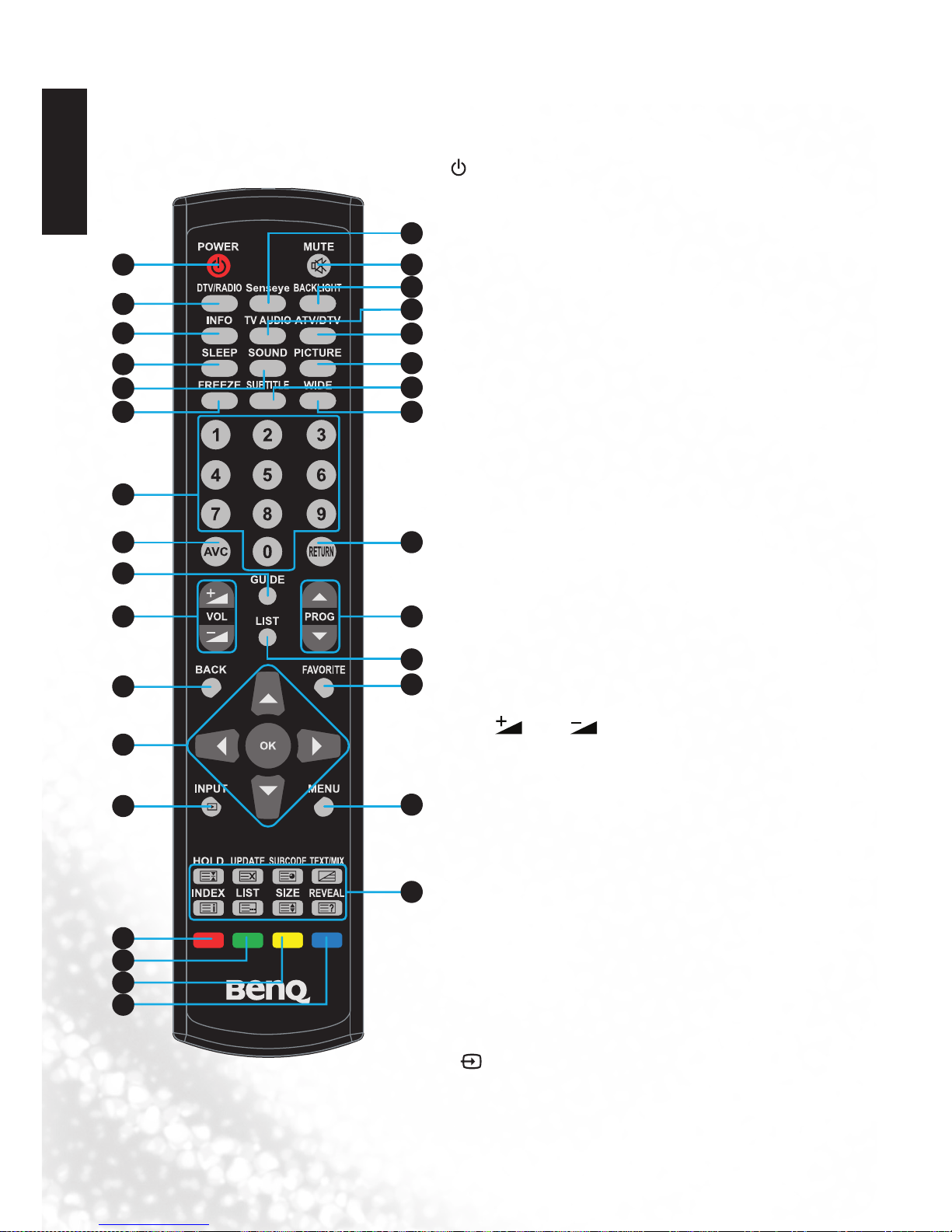

Remote control ......................................................................... 16
Using the remote control ..................................................19
Power on, off and standby........................................................ 19
Adjusting sound setting ........................................................... 19
Changing channels .................................................................. 20
Adjusting backlight .................................................................. 21
Adjusting aspect ratio .............................................................. 21
Using the Teletext function ...................................................... 23
Connecting video and audio signals .................................25
Input options ........................................................................... 25

English
ii Table of Contents
Connecting the Composite Video input ................................. 25
Connecting the SCART input.................................................. 26
Connecting the Component Video input .............................. 26
Connecting the S-Video input ................................................ 27
Connecting the PC input ......................................................... 27
Connecting the DVI input....................................................... 28
Connecting the HDMI input .................................................. 28
Connecting the headset audio output .................................... 29
OSD (On-Screen Display) menu.......................................30
OSD structure........................................................................... 30
Navigating the OSD menu....................................................... 32
Operations in the OSD menu.................................................. 32
PICTURE menu ....................................................................... 33
SOUND menu .......................................................................... 36
TIME menu .............................................................................. 37
OPTION menu......................................................................... 38
LOCK menu.............................................................................. 40
CHANNEL menu ..................................................................... 41
Connecting CI(Common Interface) card ............................... 42
Reference.............................................................................43
Disclaimer................................................................................. 43
Copyright.................................................................................. 43
Dimensions .............................................................................. 43
Specifications ........................................................................... 44
Supported PC (D-Sub/DVI) input signal resolutions............ 45
Supported Component Video input signal resolutions.......... 45
Supported HDMI input signal resolutions............................. 46
Setting up appropriate output resolution on PC ................... 46
Troubleshooting ....................................................................... 47

English
MK2442 LCD TV
Section 1: Quick Start Guide
Welcome

English
2 Section 1: Quick Start Guide
1. Please read these instructions
Congratulations. You have a state-of-the-art flat widescreen digital LCD TV which should
provide you with years of viewing pleasure. Please take a few minutes to read these quick
start instructions through before installing and using the TV.
What's in the Quick Start Guide?
Section 1 contains the Quick Start Guide which provides you with enough information to
setup the TV. This is section 1.
What's in the User Manual?
Section 2 contains the User Manual which details the features and functions of the TV,
and provides product specifications and troubleshooting information for your further
assistance. The User Manual also describes how to customise the TV settings so that you can
gain the best viewing experience possible to suit your preferences and viewing environment.
2. Package contents
Unpack the TV and check that all the following items are included:
 
The type of power cable supplied may differ from that illustrated, dependant upon your region of
purchase.
If any item is missing or damaged, contact your place of purchase immediately and notify
them of the discrepancy. Please keep the product documentation in a safe place for later
reference.

Dispose of packaging wisely:
  •Thecardboardcartoncanberecycled.
  •Donotleaveplasticbagswithinreachofyoungchildrenorbabies.
  •Checkthatyouhaven'tleftanaccessoryinsidethepackaging,beforeddiscarding.

For the primary safety of yourself and others, this TV should be handled with care to avoid damage to
it or to persons which come into contact with it.
All LCD screens have a very thin protective layer of glass which is liable to marking or
scratching, and cracking if struck or pressured. The liquid crystal substrate is also liable to
damage under excessive force or extreme temperatures. Please handle with care.
LCD TV (x1) Power cord (x1) VGA cable (x1)
AAA battery
(x2)
Quick Start Guide/
UserManual (x1)
Remote
control (x1)
Service
Information (x1)

English
Section 1: Quick Start Guide 3

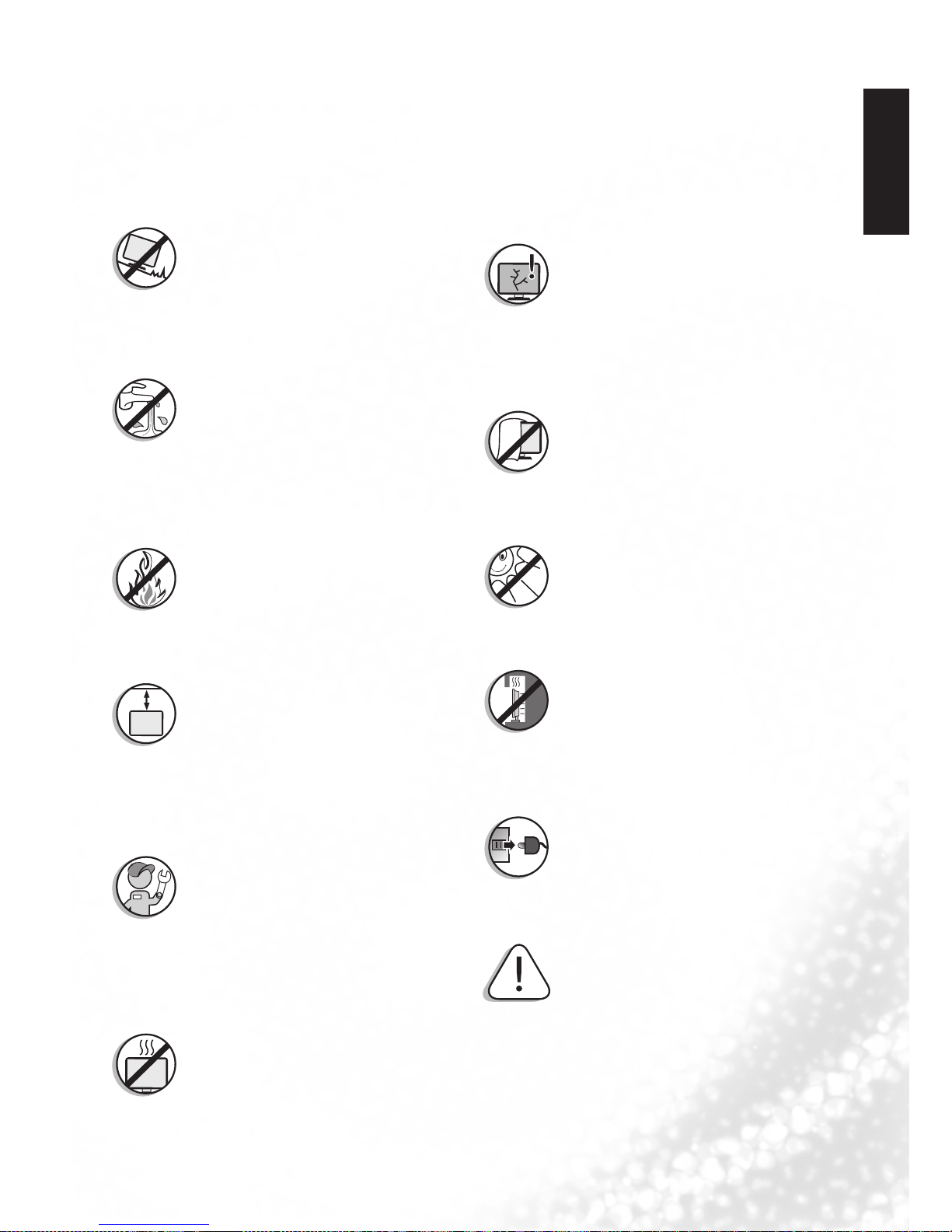

3. Select and prepare the installation location
In order to prevent potential dangers and prolong the service life of the TV, please observe
the following points when installing, operating and cleaning the TV.
Do NOT place the display on an
uneven, sloping or unstable surface
where it may fall and cause damage to
itself or others.
Have a qualified technician secure the
display where it is placed in case there
is an earthquake.
Do NOT place the display near water,
like a spa or pool, or in a position
which will allow the splashing or
spraying of water onto the display,
like in front of an open window where
rain water may enter.
Do NOT place the display near or
above sources of heat, such as
radiators, heaters, fuel stoves and
other heat-generating items
(including audio amplifiers).
Otherwise heat may cause damages
to the outer casing as well as the
components inside.
If wall mounting, allow appropriate
space on top for attaching the display
to the wall bracket.
If wall mounting, have a suitable
qualified and experienced
tradesperson mount it safely. Use
only a recommended display wall
bracket for this model display and
ensure that the mounting bracket
(optional accessory) is securely
screw fixed to the wall structure, and
not just the wall render, lining or
cladding. Ensure the bracket is level
horizontally. Do not glue the
bracket to the wall.
Do NOT place the display in an
enclosed place without allowing
for ventilation.
All Liquid Crystal Display (LCD)
screens have a very thin protective
layer of glass which is liable to
marking or scratching, and cracking
if struck or pressured.
The liquid crystal substrate is also
liable to damage under excessive
force or extreme temperatures.
Please handle with care.
Do NOT cover or block the vents
and openings while the display is
switched on, as the heat may
accumulate inside the display and
result in danger.
Do NOT place the display in direct
sun or where direct sun or spot
lighting will shine onto the display, as
the heat may damage the display and
the bright light will make viewing the
display more difficult than necessary.
If recessed into a wall opening, you
must leave appropriate free space
both top and bottom for mounting
and removing the display.
When installing the display, connect
the power cord to socket-outlet
which must be provided near the
display and easily accessible. If a fault
should occur during operation of the
unit, operate the disconnect device
to switch the power supply off, or
disconnect the power cord.
Observe all warnings and cautions as
labelled on the display.

English
4 Section 1: Quick Start Guide
4. Installing the Base
Important safety notes
Please pay attention to the following before installing:
  • Forsafetyreasons,itisrecommendedthattheinstallationbecarriedoutbyat
least two adult persons.
  • TheLCDpanelofthedisplayisextremelyfragileandsubjecttodamageseasily.
Avoid touching the LCD panel when installing or moving the display, and
take precautions not be let any objects come into contact with the panel. It is
recommended that you use a soft, clean and lint-free towel to protect the display
when installing.
  • Payattentiontothestabilityofthelocationwherethedisplaywillbeplaced.

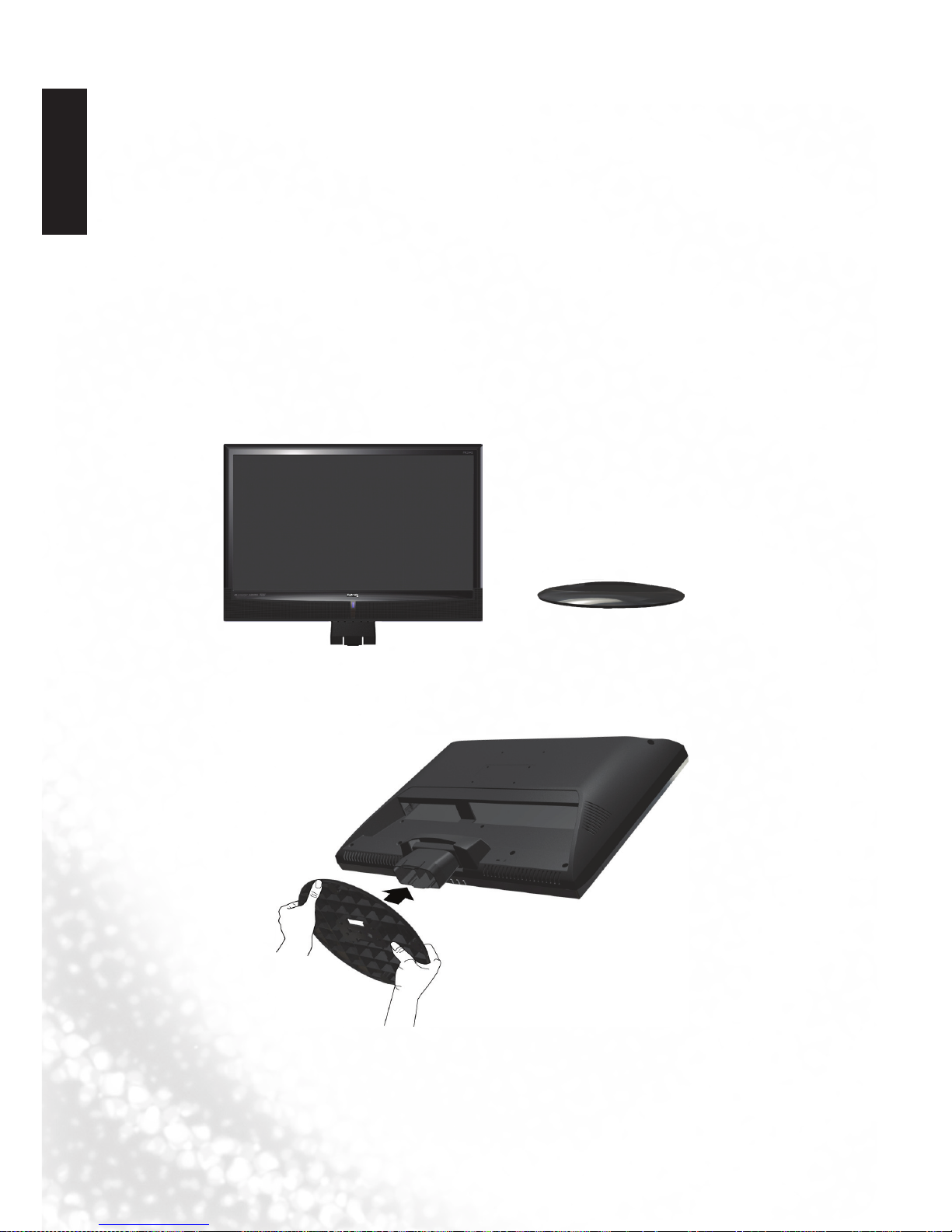

Follow the instructions below to install the TV stand:
Open the box, and make sure all necessary parts are in the box. The package
contains:
1. Cover an even stable surface with a soft cloth. Place the LCD TV unit face down
on the cloth. Fit the stand onto the bottom of the LCD TV unit as shown:
LCD TV
Stand
2. Then push until stand into the LCD TV’s stand socket.

English
Section 1: Quick Start Guide 5
5. Disconnecting the base and arm
1. Cover an even stable surface with a soft cloth. Place the LCD Display unit face down
on the cloth. Fit the stand onto the bottom of the LCD Display unit as shown:
2. Push inward the two inserts located under the stand base of the LCD Display, as
shown above by (2), to take the inserts apart from the base.
3. Remove the base from the arm, as shown above by (3).
4. Pull the hinge cover on the arm upward to remove it, as shown above by (4).
5. Remove the 4 screws from the hinge, then pull off the arm slowly, as shown below by
(5).
6. Removal of the arm from the stand base completed.

English
6 Section 1: Quick Start Guide
7. Connect the antenna cable
Connect a TV antenna cable fly-lead from your TV antenna system or Cable TV (CATV) to
the TV input on the TV. Check to make sure that the cable connection is firmly in place.
• ApoorqualityTVsignalwillproduceapoorpictureand/orsoundonyourTV.For
high quality picture and sound ,you will need a high quality TV signal.
Depending upon your location, for best TV signal reception, you should have a
properly aligned outdoor TV antenna system. If need be, consult a professional
antenna specialist.
6. Adjust the viewing angle
This display is equipped with a adjustable base. If necessary, turn the display screen to an
appropriate angle (maximum 20 degrees up and down) for more comfortable viewing.

English
Section 1: Quick Start Guide 7
8. Connect the power cable
1. Locate the power cable from the packaging, and plug the appropriate end into the AC
IN socket on the rear of the TV (as illustrated below).
2. Connect the other end into an appropriate wall power outlet, the TV will enter
standby mode and the power indicator (on the front lower center) will light up
orange.

 • Thetypeofpowercableplugandsocketillustratedmaydifferfromthetypeusedinyourregion.
  • Onlyuseanappropriatepowercableforyourregion.Neveruseapowercablewhichappears
damaged or frayed. Never change the plug type on a power cable. Be aware of total loading when
using extension cords or multiple outlet power boards.
WARNING:
This TV has been engineered and manufactured with the highest priority on safety, however,
IMPROPER HANDLING OR USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR
FIRE HAZARD. Please handle this TV with care. If damaged, turn off the power and unplug the
power cable from the TV. Transport the TV to your nearest BenQ authorised service centre for
repair.

English
8 Section 1: Quick Start Guide
9. Activate the remote control
Installing batteries
1. Turn the remote control to reveal its back side,
and open the lid of the battery compartment.
2. Insert the batteries (supplied) ensuring that the
positive and negative marked battery terminals
match the (+) and (-) marks in the battery
compartment. Note that these batteries are
provided for your convenience so that you can
operate the display straight away. You should
replace them as soon as possible.
3. Refit the lid of the battery compartment.
Battery safety notice
The use of the wrong type of batteries may cause chemical leaks and/or
explosion. Please note the following:
  • Alwaysensurethatthebatteriesareinsertedwiththepositiveandnegative
terminals in the correct direction as shown in the battery compartment.
  • Differenttypesofbatterieshavedifferentcharacteristics.Donotmixdifferent
types.
  • Donotmixoldandnewbatteries.Mixingoldandnewbatterieswillshorten
battery life and/or cause chemical leaks from the old batteries.
  • Whenbatteriesfailtofunction,replacethemimmediately.
  • Chemicalswhichleakfrombatteriesmaycauseskinirritation.Ifanychemical
matter seeps out of the batteries, wipe it up immediately using a dry cloth.
  • Duetovaryingstorageconditions,thebatterylifeforthebatteriesincludedwith
your TV may be shortened. Replace them within 3 months or as soon as you can
after initial use.

English
Section 1: Quick Start Guide 9
Using the remote control
1. Point and aim the top front of the remote
control directly at the display when pressing the
buttons.
2. The remote control must be held at an angle
within 30 degrees of the display's remote control
sensor window to function correctly. The
distance between the remote control and the
sensors should not exceed 5 meters.
3. Do not cover the sensor window on the front of
the display (below the power indicator lamp), or
place objects in front of it which will block the
direct lineof- sight between the remote control
and the sensor window on the display.

 • Donotlettheremotecontrolbecomewet,
or place it in humid environments (like
bathrooms.)
 • Iftheremotecontrolsensorwindowonthe
display is in direct sunlight or strong light, the
remote control may not operate properly. In this
situation, change the light source or readjust
the angle of your display, or operate the remote
control from a location closer to the remote
control sensor window on the display.

English
10 Section 1: Quick Start Guide
Before you can use your TV to view TV programs, you need to let it search for and tune
TV station programs appropriate to your region. This process only needs to be done when
the TV is newly installed, or whenever you install it in OSD menu for convenience of
operation.
1. When Language is highlighted, use the ◄or ►buttons to select the language dis-
played on the menu.
2. Press ▼button to select Auto Tuning and press the OK button.
3. Press ◄or ►to select the Country where you operate the TV, then select Start and
press OK. The Auto Tuning automatically creates a list of receivable channels. Press
the BACK button at any time to interrupt the memorization process. (The list cannot
be created if interrupted)
10. Initialize your TV
Press Power button on the remote control. the TV will turn on and the power indicator
will light up blue. When first turned on (and until tuned), the Initial Menu will display:
11. View the TV programs
• PressPROG▲or PROG▼on the remote control to sequentially cycle through
your TV channels.
 • Toselectasingle-ordouble-digitchannel,pressthecorrespondingchannel
selection buttons on the remote control. For example, to select channel 8, press 0
and 8 on the remote control.
 • PressVOL or VOL on the remote control to increase volume. The volume
indicator will increase in length as volume rises.
 • PressMuteontheremotecontroltoturnoffthesoundtemporarily.PressMute
once more, or press VOL or VOL to restore the sound level.
 • YoucanpressRETURN on the remote control to quickly return to the previous
viewed channel.

English
Section 1: Quick Start Guide 11
Care and cleaning information
• Alwaysturnoffthedisplayanddisconnectitfromthemainspowerbeforecleaning.
• DoNOTusecream,liquid,aerosolorspraycleaners.Useonlyaslightlydampwell
wrung-out (drip-free) and lint-free, clean soft cloth and lightly wipe the display.
If necessary, use a pH-neutral liquid dish-washing detergent diluted with water on a
separate clean lint-free cloth to remove oil or grease marks. Wipe over again with a
cleandry lint-free cloth to remove any smear marks.
• Undercloseexaminationandincertaincircumstances,youmaynoticethatafew
non-active pixels appear on the screen as a fixed point of colour. Please note that this
does not affect the performance of your product as it is usually not visible at normal
viewing distances.
• Ifthedisplayisnotgoingtobeusedforanextendedperiodoftime(likewhenyou
are going away for holidays), it should be switched off and unplugged from the wall
outlet. You should also consider removing the batteries from the remote control (as
they may leak)
• LCD(LiquidCrystalDisplay)screens,likeplasmaandconventionalCRT(Cathode
Ray Tube) screens, are also susceptible to ‘screen burn-in’ or ‘image retention’ which
can be found on the screen as visible fixed lines and shades and can’t be removed.
If the circumstance is caused due to improper use by the user (such as the left and
right straight lines occurred from displaying still pictures for long periods of time,
the channel logos, etc.), an appropriate service fee should be charged. To avoid such
permanent damage to the screen, it is advisable to take the following preventive
actions:
(1) Avoid displaying still (inactive) image s for more than two hours.
(2) Change the screen image aspect ratio from time to time.
(3) If it is necessary to display still images for a long time, lower the contrast and
brightness.
(4) The LCD monitor is designed for use in normal home environment, do not use
it in any other place, such as public places.
What's next?
You have reached the end of Section 1: Quick Start Guide. By now, you should have a
reasonable understanding of your new LCD TV and its controls, know how to install,
connect, turn on and how to care for and maintain it.
Should you wish to maximize your viewing experience pleasure, Section 2 of this
booklet contains the User Manual which describes how to customise the display
settings to suit your preferences and viewing environment. It details the features and
functions of the display and provides product specifications and troubleshooting
information for your further assistance.

English
MK2442 LCD TV
Section 2: User Manual
Welcome

English
Getting to know your TV 13
Getting to know your TV
Front view
No. Name Description
1 VOL +/- button
•Adjusts the volume level of the speakers.
•In the OSD menu, moves the selection highlight left or right or
changes settings.
2 MENU button Displays the OSD (On-Screen Display) menu if not visible, or
exits the current menu if displayed.
3Power/Standby
button Toggles the display between standby mode and on.
4 CH +/- button •Press these buttons to sequentially change channels.
•In the OSD menu, moves the selection highlight up or down.
5 ENTER button Select input source.
6Remote Control
Receiver
Receives command signals from the remote control. Do not
obstruct the sensor by placing any objects in front of it, which
will hinder the reception of signals.
7 Power Indicator •Lights up blue when the diaplay is powered on.
•Lights up orange when the diaplay is in standby mode.
1 2 3 4 5 6 7

English
14 Getting to know your TV
Rear view
No. Name Description
A AC Power Input Connect to a AC power source.
B Headphone Jack Connect to your headphones.
C HDMI Input Terminal Connect to the HDMI digital audio/video output or DVI
digital video output on digital video devices.
D VGA (PC Video Input) Connect to the RGB video (D-sub) output of PCs.
E PC/DVI Audio In
Connect to the audio output of PCs. This jack is used for
PC Audio input, when the picture input is connected to
VGA or DVI (via HDMI input) on the PC.
FYPbPr Component Video
Input
Connect to the Component video (Y Pb Pr) output of
video devices.
G Audio In L/R Connect to the left/right audio channel output of video
devices.
H S-VIDEO Input Connect to the S-Video output of video devices.
I SCART Input
Connect to external equipment with scart socket. This
scart input allows audio and CVBS/YC/RGB+CVBS.
RGB,S-VIDEO from an external devise to be shown on
your TV.
JAV Composite Video
Input
Connect to the Composite video (AV) output of video
devices.
A B C D E F G H I J K L

English
Getting to know your TV 15
No. Name Description
KRF Antenna / Cable TV
Input Connect to RF Cable or CATV cable.
L CAM Card Slot Plug the CAM Card into this slot.

English
16 Getting to know the remote control
1
22
23
25
24
26
2
3
4
8
6
7
12
11
10
13
15
21
5
9
20
18
14
19
27
30
29
28
31
16
17
1. POWER
Press this button to power the TV on or put it to the
standby mode.
2. DTV/RADIO
Digital TV function. Switch between DTV/RADIO
programs.
3. INFO
Press this button to display the input source
4. SLEEP
Press this button to set the automatic shut-off timer.
5. SOUND
To select sound mode from Standard, Music, Movie,
Sports, and User.
6. FREEZE
Press this button to freeze the image on the screen.
Press the button again to resume viewing in real time.
7. 0-9 Channel selection
Press these buttons to select the program you wish to
view.
8. AVC
The tuner contains automatic volume control circuitry
(AVC) to prevent converter overload.
9. GUIDE
Displays the Electronic Program Guide on the screen
in DTV mode. Pressing again to turn Guide off.
10. VOL / VOL
Press these buttons to raise or lower the volume level.
information.
11. BACK
In the OSD menu, press this button to return to the
previous menu page.
12. ▲/▼/◄/►/OK
•Press▲or ▼to change TV programs sequentially.
•Press◄or ►to adjust volume.
When the OSD (On-Screen Display) menu displays
on-screen:
•Press▲or ▼to select settings.
•Press◄or ►to adjust settings.
•PressOKtoexecuteselections,ortoenterasubmenu
you have selected.
13. INPUT
Press these buttons to sequentially change channels.
Getting to know the remote control
Remote Control

English
Getting to know the remote control 17
1
22
23
25
24
26
2
3
4
8
6
7
12
11
10
13
15
21
5
9
20
18
14
19
27
30
29
28
31
16
17
14. Red
Function key for teletext, program edit, or electric
program guide.
15. Green
Function key for teletext, program edit, or electric
program guide.
16. Yellow
Function key for teletext, program edit, or electric
program guide.
17. Blue
Function key for teletext, program edit, or electric
program guide.
18. Senseye
Press this button to display the senseye menu.
19. MUTE
Press this button to mute the sound output. Press it
again to restore the sound output.
20. BACKLIGHT
Press this button to adjust your desired screen
backlight level.
21. TV AUDIO
•SelectsoundmodulationinATV.
•SelectaudiolanguageinDTV.
22. ATV/DTV
Swap between ATV/DTV. Swap to the last TV source
when in other source.
23. PICTURE
Press this button to select a desired preset picture
mode: Standard, Mild, User, Dynamic.
24. SUBTITLE
•ATV:Switchbetweenavailablesubtitlelanguages.
•DTV:Displaysubtitlelanguageselectionbox.
25. WIDE
Press this button to adjust the screen image aspect
ratio.
26. RETURN
Press to toggle between the current channel and the
previous one.
27. PROG▼/▲
Press these buttons to sequentially change channels.
28. LIST
Display channel list.
