Joybee 720 (DA720)
Digital Audio Player
User’s Manual
Welcome

Copyright
All rights reserved. No part of this publication may be reproduced,
transmitted, recorded, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, elec-
tronic, mechanical, recording, photocopying, or otherwise, without the
prior permission of BenQ Corporation.
Disclaimer
No warranty or representation, either expressed or implied, shall BenQ
Corporation make with respect to the quality, accuracy or fitness for any
particular purpose of this document. The information in this document
is subject to change without notice. The content of this manual has been
checked and proofread prior to publication.
*Windows is the registered trademark of Microsoft Corpo-
ration. All trademarks or product names appearing in this
manual are registered property of their respective owners.
Important Information
FCC Compliance
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These lim-
its are designed to provide reasonable protection against harmful inter-
ference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following mea-
sures:
!Reorient or relocate the receiving antenna.
!Increase the separation between the equipment and receiver.
!Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
!Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would
void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

Cautions
!This digital audio player is a delicate electronic device, DO NOT
OPEN IT.
!Do not attempt to dissemble or modify any part of the device.
!Avoid shock or impact on the device.
!Keep the device away from water.
!Keep the device away from extreme temperatures, humidity, dust or
direct sunlight.
!Do not clean the device with chemical solvent. Clean device with a
cloth dampened with water.
!Use only adaptor and accessories approved by the manufacturer. War-
ranty voided if other adaptor or accessories are used, and danger may
occur.
!Avoid high volume which may damage hearing.
!BenQ Corporation assumes no responsibility for the loss of data due
to damage of device, repair of device and/or battery replacement.
Users are advised to back up all data on other storage device. Use of
device not in accordance with the instructions (such the cautions)
will void the warranty.
!Batteries may explode if disposed of in fire.
!Do not allow metal objects to contact the battery terminals.
!Do not short-circuit.
!Do not incinerate.

Table of Contents i
Table of Contents
Thank you for Using BenQ Joybee 720 Digital Audio
Player!............................................................................1
Introduction.......................................................................... 1
Package Contents.................................................................. 2
Minimum System Requirements ......................................... 3
Description and Functions of Different Parts ..................... 4
A Tour of the Joybee 720................................................... 4
Main Screen and Status Bar............................................... 7
The Joybee 720 Menu Tree................................................ 9
Getting Started..............................................................10
Charging the Battery........................................................... 10

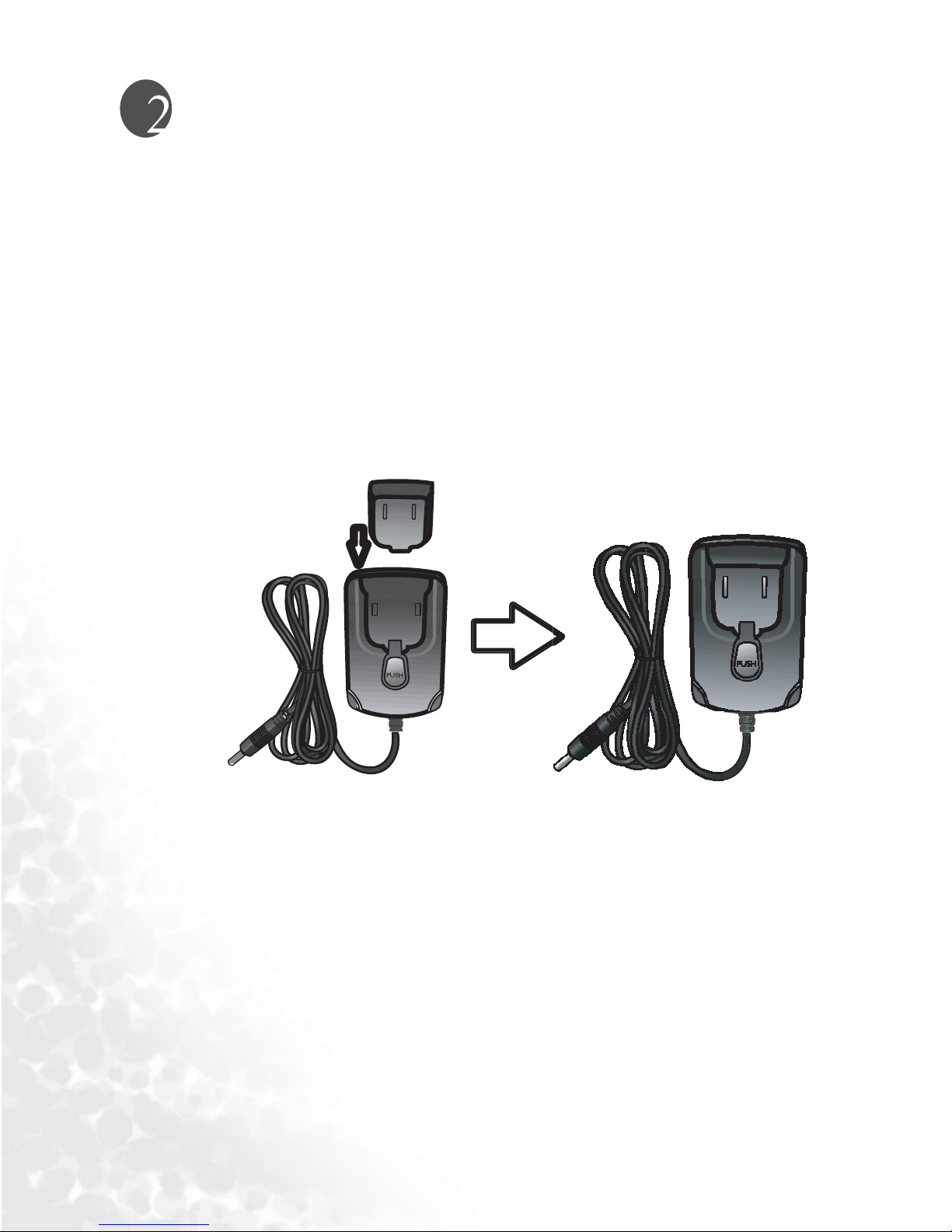

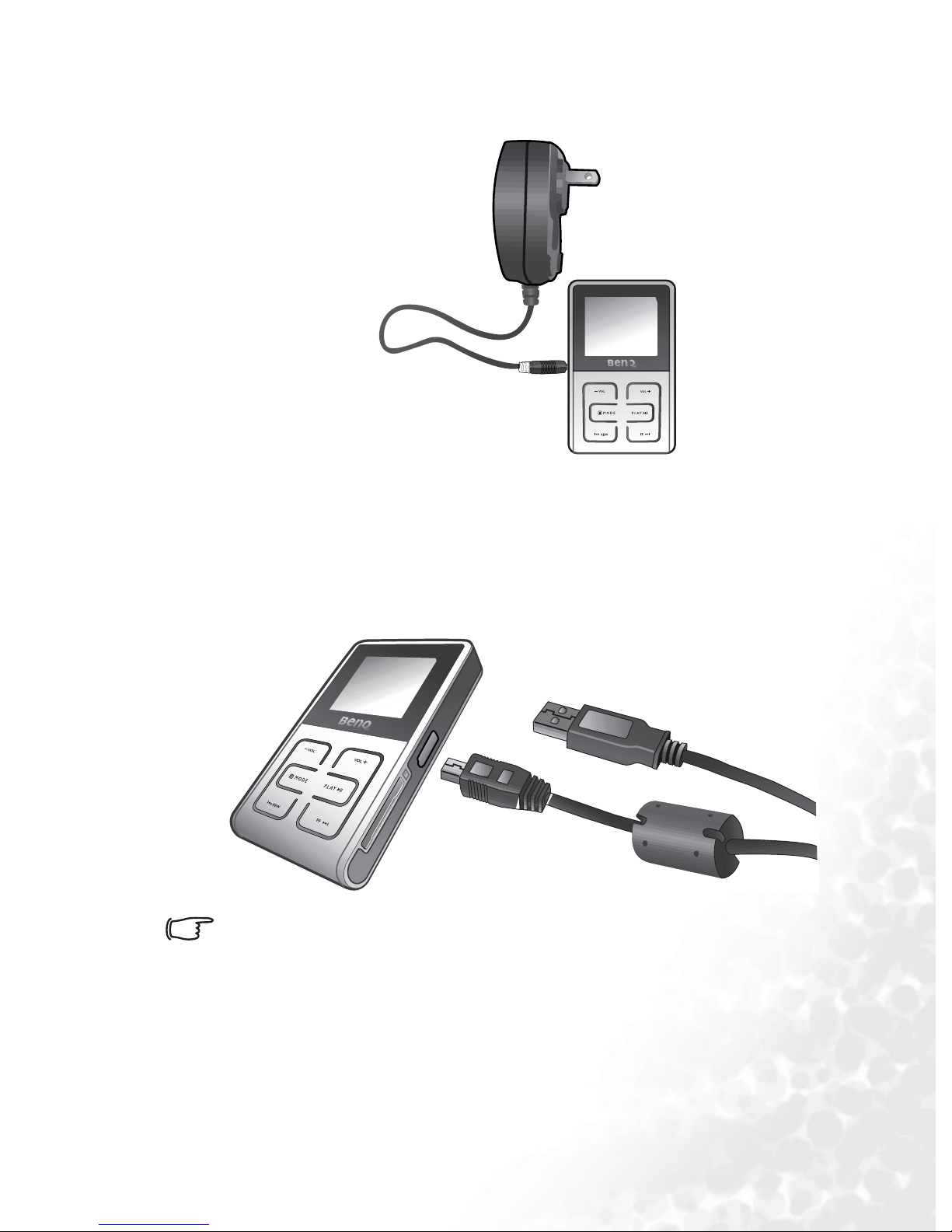

Charging with DC Adapter.............................................. 10
Charging with a USB Cable ............................................. 11
Installing Drivers and Software.......................................... 12
Operation of HDD Upgrade .............................................. 13
Using SD Card .................................................................... 14
Using BenQ Joybee 720 as Digital Audio Player.........15
Transferring Files to the Joybee 720................................... 15
Transferring Files with QMusic ...................................... 15
Transferring Data with Windows File Manager............. 15
Transferring Files by SD Card......................................... 16
Main Menu.......................................................................... 16
Launching to Main Menu................................................ 16
Playing a MP3/WMA File................................................... 17
Playing an Audio File....................................................... 17
Operating the Joybee 720 When a File is Being Played.. 17
Pause a Playing File ...................................................... 17
Fast Forward ................................................................. 17
Next File ........................................................................ 18

ii Table of Contents
Rewind ...........................................................................18
Previous File ..................................................................18
Stop ................................................................................18
Adjusting Volume .........................................................18
Showing the Playlist ......................................................18
Creating the Playlist ......................................................18
Using Hot Keys .............................................................19
Locking Buttons ............................................................20
Listening to FM Radio.........................................................20
Operating the Joybee 720 When Listening to FM Radio20
FM Tuner ......................................................................20
FM Preset ......................................................................21
Viewing Pictures with the Joybee 720 ................................22
Operating the Joybee 720 When Viewing Pictures........22
Viewing JPEG Files .......................................................22
Showing Slides ..............................................................23
Creating Slides ..............................................................23
Deleting Slides ...............................................................24
Editing Slides .................................................................24
Adding Background Music into Slides ........................25
Erasing Files in the Joybee 720............................................25
Erase Single Audio File.....................................................25
Erase All Audio Files.........................................................26
Erase All Files ....................................................................26
Other Setups ........................................................................27
Auto Power .......................................................................27
Play Options......................................................................27
Repeat-Shuffle ...............................................................27
Intro Off/On .................................................................28
Equalizer ........................................................................28
Slide-Show Repeat ........................................................29
Date-Time.........................................................................29
Contrast.............................................................................30
Backlight............................................................................30

Table of Contents iii
Multiple Language ........................................................... 30
System Info.......................................................................... 31
Refresh DB........................................................................... 31
Using QMusic...............................................................32
Overview of QMusic........................................................... 33
Adding Music to the Joybee 720 Using QMusic ............... 37
Adding Music from an Audio CD to the Joybee 720..... 38
Adding Files from a PC to the Joybee 720...................... 42
Updating the Joybee 720 Automatically with QMusic ..... 45
Deleting Files Using QMusic.............................................. 49
Using the Joybee 720 as USB Hard Disk .....................51
Connecting the Joybee 720 to a PC.................................... 51
Transferring Files ................................................................ 51
Transferring a File from the Joybee 720 to a PC ............ 51
Transferring a File from a PC to the Joybee 720 ............ 52
Disconnecting the Joybee 720 from a PC .......................... 53
Troubleshooting ...........................................................55
Service ...........................................................................56

iv Table of Contents

Thank you for Using BenQ Joybee 720 Digital Audio Player! 1
Thank you for Using BenQ Joybee
720 Digital Audio Player!
Introduction
Thank you for purchasing BenQ Joybee 720 Digital Audio
Player!
In this manual, you will find detailed descriptions and instruc-
tions of every function on the Joybee 720 and on QMusic as
well. Please read carefully in order to use these convenient
functions and enjoy high quality music with the Joybee 720.

2Thank you for Using BenQ Joybee 720 Digital Audio Player!
Package Contents
Please check the contents of your Joybee 720 Digital Audio
Player. Should any accessories be missing or damaged, please
contact your dealer immediately.
BenQ Joybee 720
Digital Audio Player
Power Adapter
*Appearance of product shall be subject to the product inside package
USB Cable
Earphones
Carrying Bag
CD-ROM
(emanual/
QMusic)
Warranty
Card
Quick Start
Guide

Thank you for Using BenQ Joybee 720 Digital Audio Player! 3
Minimum System Requirements
If you want to install QMusic on a PC to convert music on an
audio CD into MP3 files for use on the Joybee 720 or use the
Joybee 720 as a hard drive disk, your PC must comply with the
following requirements:
• OS: Microsoft Windows 2000/ME/XP (QMusic supports
Windows 2000/XP)
• CPU: Pentium 200MHz or faster
• I/O port: USB
• Device: CD-ROM
• Hard drive: 40MB or more space
• Memory: 32MB or more

4Thank you for Using BenQ Joybee 720 Digital Audio Player!
Description and Functions of Different Parts
A Tour of the Joybee 720
For the detailed description and function of different parts of
BenQ Joybee 720 Digital Audio Player, please check the fol-
lowing pictures and tables.
USB cable port with
cover
SD card slot
Right Side View LCD display
DC In jack
Earphone jack Strap
hole
Lock slider for power
On/ Off and lock
Left Side View
Top Vie w

Thank you for Using BenQ Joybee 720 Digital Audio Player! 5
The Front Panel
Description Functions
LCD Display …Displays current playing audio file data.
USB Cable Port …For connecting USB cable between the
Joybee 720 and PC. When PC is on, you
can also charge the Joybee 720 this way.
SD Card Slot …Insert SD card
DC In Jack …Allows you to use charger to recharge
the Joybee 720
Earphone Jack …For connection with earphones
Strap Hole …To attach a carrying strap
Lock Slider …Slide to power on/off the Joybee 720 or
to lock the buttons.
LCD Display

6Thank you for Using BenQ Joybee 720 Digital Audio Player!
Description Functions
…To decrease the volume while playing tracks.
…To increase the volume while playing tracks.
…Press to switch modes; or to confirm the
selection. Press and hold to exit the current
menu.
…While playing audio files, press to make
selections of EQ mode, Intro mode and
Repeat mode.
…Play the tracks. Press again to pause. Press
and hold to stop the playback.
…Press to save a new channel while searching
for a new one. Press to finish the selection
while setting modes.
…Press to confirm the selection while playing
audio files.
…To rewind the playing track. To scroll up the
menu.
…Press to select different modes while playing
audio files.
…To fast-forward the playing track. To scroll
down the menu.
…Press to select different modes while playing
audio files.

Thank you for Using BenQ Joybee 720 Digital Audio Player! 7
Main Screen and Status Bar
The bottom table shows the icons displayed on the screen and
their meanings.
Icon Description
Indicates audio file being scanned in forward
direction (Forward).
Indicates audio file is being scanned in reverse
direction (Rewind).
Indicates audio files is being paused.
Indicates audio files is being stopped.
Indicates EQ mode is off.
Indicates EQ mode as Pop.
Indicates EQ mode as Jazz.
Indicates EQ mode as Classical.
Indicates EQ mode as Rock.
Indicates EQ mode as My Own.
Indicates Intro mode is off.
Indicates Intro mode is on.
Indicates FM normal mode.
Indicates FM preset mode.
Indicates scanning FM frequency.
Indicates the normal playback mode, or repeat
mode is disabled.
Indicates single track repeat mode.
Indicates random mode.
Indicates random repeat mode.
Indicates battery status as half full.
Indicates battery status as charging.
Indicates photos in normal mode

8Thank you for Using BenQ Joybee 720 Digital Audio Player!
Indicates to rotate the photo
Indicates to zoom in or our the photo
Indicates keys are locked.
Icon Description

Thank you for Using BenQ Joybee 720 Digital Audio Player! 9
The Joybee 720 Menu Tree
Music Show Title
Show Album
Show Artist
Show Genre
Show Folder
Show Playlist
Create Playlist
Delete Playlist
Edit Playlist
Title/Album/Artist/Genre/Folder
FM FM Tuner
FM Preset
Photo Show JPEG File
Show Slide
Create Slide
Delete Slide
Edit Slide
Erase
File
Music
Music All
Delete All
Setup Auto Power
Play Option
Date-Time
Contrast
Backlight
Multiple Language
Never/1m/3m/5m/10m
Repeat-Shuffle Normal/Track/All/
Random
Intro On/Off
Equalizer EQ Off/Pop/Jazz/Clas-
sical/Rock/My Own
Slide-Show
Repeat No Repeat/Repeat All
Always/10s/30s/60s/120s
English/Simplfied Chinese/Tradi-
tional Chinese
System
Info.
Refresh
DB
Add Song/Delete Song

10 Getting Started...
Getting Started...
Charging the Battery
When the battery is fully charged, the Joybee 720 offers about
10 hours of continuous replay time for MP3 music. Of course,
the exact replay time is subject to the condition of battery,
operation frequency and the format of files being played.
There are two ways of charging the Joybee 720.
Charging with DC Adapter
1. Combine the two parts of charger together..

Getting Started... 11
2. Connect power adapter to a wall outlet. It takes around 4
hours to charge the Joybee 720 completely.
Charging with a USB Cable
Connect the Joybee 720 to a computer with the provided USB
cable. When charging by PC through a USB cable, please have
your PC on rather than in idle mode or off.
•Exact charging time differs according to battery status.
Please check the battery bars on the Joybee 720 display.
When charging completes, battery bar stops illuminating.
•The life of battery depends on the frequency of charge, and
the more frequently the battery is recharged, the shorter
the replay time of device will be. It is a normal phenomenon
and not a manufacturing defect of battery.
•Chargers might vary in different areas.

12 Getting Started...
Installing Drivers and Software
The software CD provides QMusic and the relevant software
for running QMusic.
1. Put the software CD that comes with the Joybee 720 in the
CD-ROM drive on your PC. The installation menu will dis-
play on the PC screen in a few seconds.
2. Click on the icon to install the corresponding software. Fol-
low the on-screen instructions to complete the installation.
If the installation menu does not show automatically on the
PC screen, open File Manager in Windows and locate the
‘autorun.exe’ file on the software CD. Double click the icon
to open the installation menu.
The table below shows each software and its content descrip-
tion on the Software CD.
Item Description
Install BenQ
QMusic
QMusic is a powerful music manager. It not
only allows you to play audio CD and MP3
files and to convert audio CD sound tracks
into MP3 formats, but also auto search CD
sound tracks database when your PC is con-
nected to the internet. With QMusic, you
can save your music files on the Joybee 720,
and organize and update the data stored on
the Joybee 720.
Please note that QMusic supports only Win-
dows 2000/XP. No CD burning function on
Windows 2000.
Install Win-
dows Media
Player
QMusic must work with Windows Media
Player 9. If you do not have it in your PC,
please install it first in order to run QMusic.
