BenQ SX920 User manual

The above numbers are approximate and may be slightly different from the actual measurements. Only the recommended
screen sizes are listed. If your screen size is not in the table above, please contact your dealer for assistance.

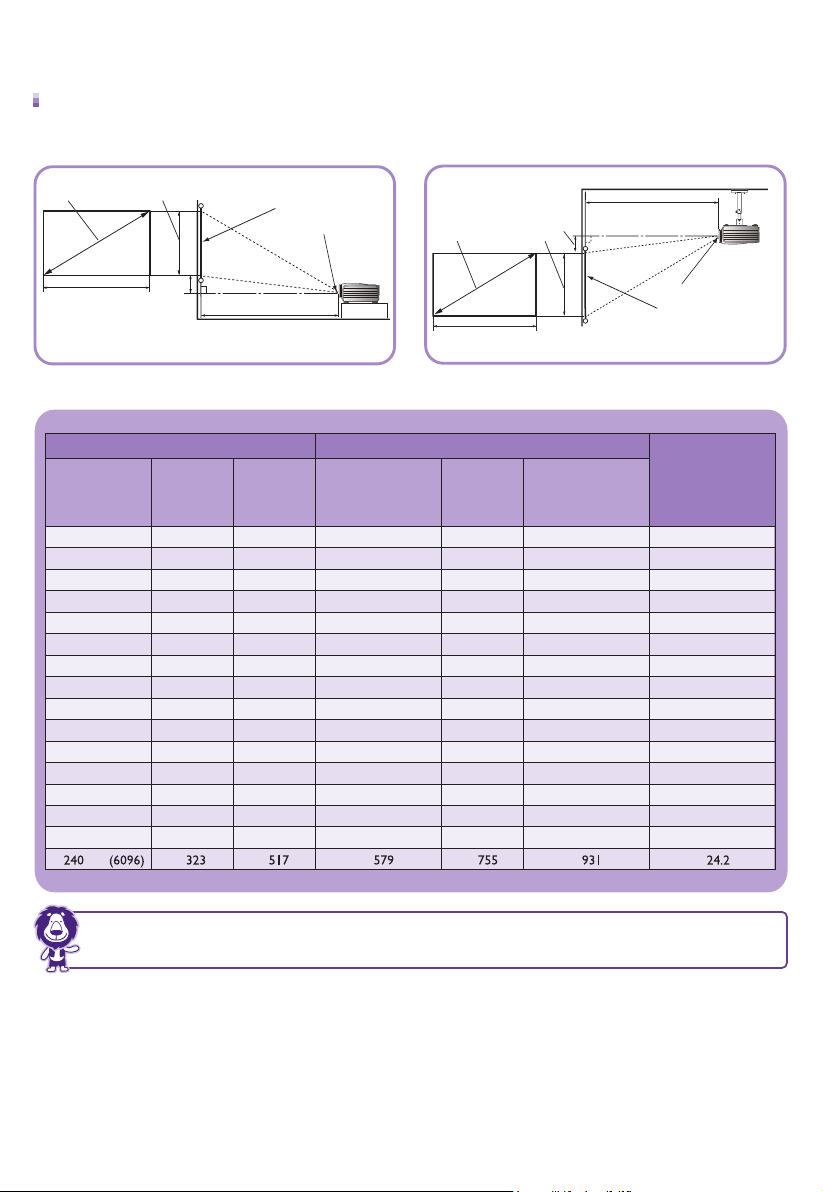

Projection dimensions
The screen aspect ratio is 16:10 and the projected picture is 16:10
SU922
Screen dimensions Projection distance <D> [cm]Lowest/
Highest lens
position <E>
[cm]
Diagonal
<A>
[inch (mm)]
Height
<B>
[cm]
Width
<C>
[cm]
Min distance Average Max distance
<A> <B>
<C> <E>
<D>
<F>
<G>
<B>
<A>
<C>
<F>
<G>
<D>
<E>
<F>: Screen <G>: Center of lens
60 (1524) 81 129 139180221 4.0
70 (1778) 94 151 162210258 4.7
80 (2032) 108 172 185240295 5.4
90 (2286) 121 194 208270332 6.1
100 (2540) 135 215 231300369 6.7
110 (2794) 148 237 254330406 7.4
120 (3048) 161 259 277360442 8.1
130 (3302) 175 280 300390479 8.8
140 (3556) 189 302 323420516 9.4
150 (3810) 202 323 34645055310.1
160 (4064) 215 345 36947959010.8
170 (4318) 229 366 39250962711.4
180 (4572) 242 388 41553966312.1
190 (4826) 256 409 43856970012.8
200 (5080) 269 431 46159973713.5

The above numbers are approximate and may be slightly different from the actual measurements. Only the recommended
screen sizes are listed. If your screen size is not in the table above, please contact your dealer for assistance.
Projection dimensions
The screen aspect ratio is 16:10 and the projected picture is 16:10
SW921
Screen dimensions Projection distance <D> [cm]Lowest/
Highest lens
position <E>
[cm]
Diagonal
<A>
[inch (mm)]
Height
<B>
[cm]
Width
<C>
[cm]
Min distance Average Max distance
<A> <B>
<C> <E>
<D>
<F>
<G>
<B>
<A>
<C>
<F>
<G>
<D>
<E>
<F>: Screen <G>: Center of lens
60 (1524) 81 129 145189233 6.1
70 (1778) 94 151 169221272 7.1
80 (2032) 108 172 193252311 8.1
90 (2286) 121 194 218283349 9.1
100 (2540) 135 215 24231538810.1
110 (2794) 148 237 26634642711.1
120 (3048) 162 259 29037846612.1
130 (3302) 175 279 31440950413.1
140 (3556) 189 302 33844154314.1
150 (3810) 202 323 36247258215.1
160 (4064) 215 345 38650462116.2
170 (4318) 229 366 41153566017.2
180 (4572) 242 388 43556669818.2
190 (4826) 256 409 45959873719.2
200 (5080) 269 431 48362977620.2

The above numbers are approximate and may be slightly different from the actual measurements. Only the recommended
screen sizes are listed. If your screen size is not in the table above, please contact your dealer for assistance.
Projection dimensions
The screen aspect ratio is 4:3 and the projected picture is 4:3
SX920
Screen dimensions Projection distance <D> [cm]Lowest/
Highest lens
position <E>
[cm]
Diagonal
<A>
[inch (mm)]
Height
<B>
[cm]
Width
<C>
[cm]
Min distance Average Max distance
<F>: Screen <G>: Center of lens
<A> <B>
<C> <E> <D>
<F>
<G>
<A>
<B>
<C>
<E>
<D>
<F>
<G>
60 (1524) 91 122 17222427513.7
70 (1778) 107 142 20126132016.0
80 (2032) 122 163 23029836618.3
90 (2286) 137 183 25833541220.6
100 (2540) 152 203 28737245822.9
110 (2794) 168 224 31640950325.1
120 (3048) 183 244 34444754927.4
130 (3302) 198 264 37348459529.7
140 (3556) 213 285 40252164132.0
150 (3810) 229 305 43055868634.3
160 (4064) 244 325 45959573236.6
170 (4318) 259 345 48863377838.9
180 (4572) 274 366 51667082341.1
190 (4826) 290 386 54570786943.4
200 (5080) 305 406 57374491545.7

2
1

X2

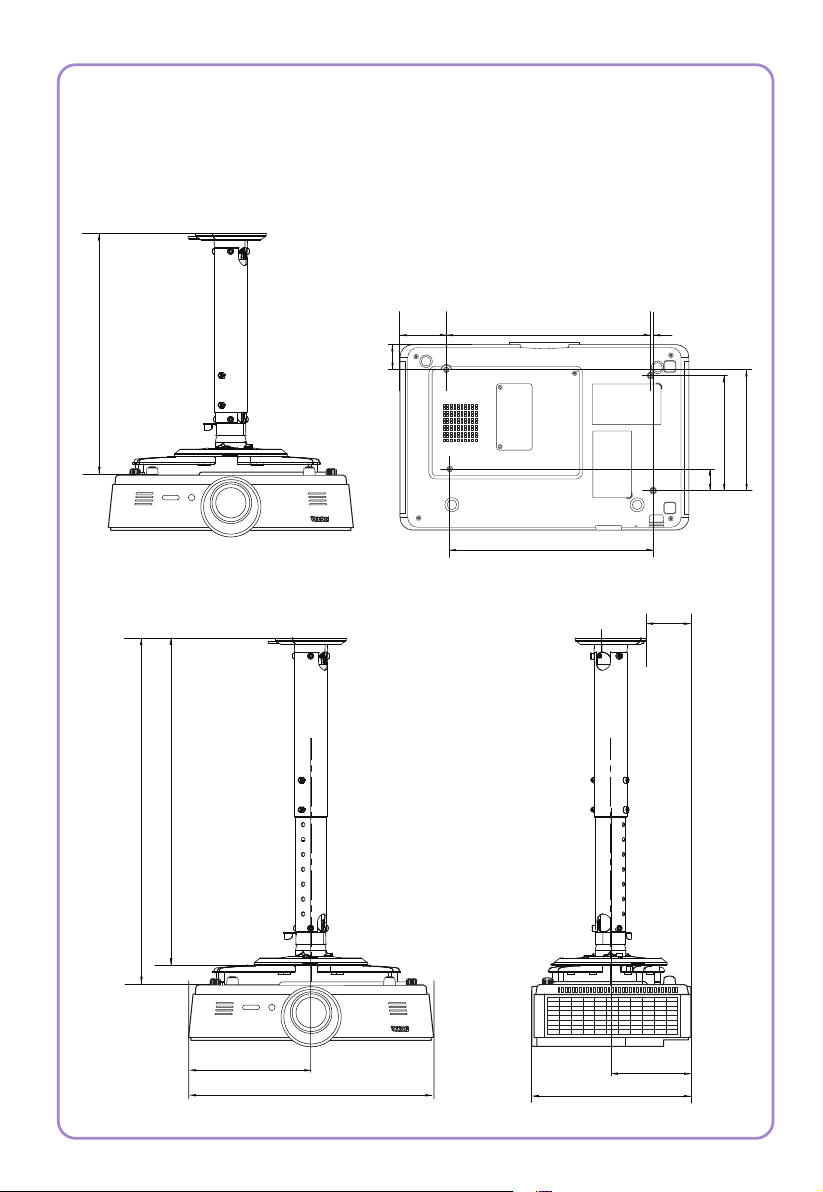

Ceiling mount screws: M5
(Max. L = 25 mm;
Min. L = 20 mm)
Unit: mm
205.94
411.88
135
267.5
75.53
549.7 582.7
407.7
289.7
291.2065.94
35.74
31
164.1
172.26
3.5

Table of contents
English ........................................................................................... 11
Français ......................................................................................... 12
Deutsch ......................................................................................... 13
Italiano ........................................................................................... 14
Español .......................................................................................... 15
Português ...................................................................................... 16
Svenska .......................................................................................... 17
Русский ........................................................................................ 18
Nederlands ................................................................................... 19
Polski .............................................................................................. 20
Türkçe ........................................................................................... 21
Čeština .......................................................................................... 22
繁體中文 ...................................................................................... 24
................................................................................................... 23
...................................................................................... 25
............................................................................................ 26
............................................................................................ 27
.............................................................................................. 28

11
All specifications are subject to change without notice.
Optical
Projection system Single-chip DLP™ system
Native resolution SX920: 0.55" DLP (1024 x768); SW921: 0.65" DLP
(1280 x800); SU922: 0.67" DLP (1920 x1200)
Lens F = 2.45 to 3.07, f = 15.78 to 25.12 mm
Projection screen size 60" to 240"
Lamp 370W
Electrical
Compatibility PC: SX920/SW921: 640 x 480 to 1600 x1200;
SU922: 640 x 480 to 1920 x1200
Video: NTSC, PAL, SECAM, YPbPr (480i/480p/576i/576p/
720p/1080i/1080p), HDTV (720p/1080i/1080p)
Color Space Ty p . = 6 0 % N T S C
Te r m i n a l s
Input Analog RGB: D-Sub 15-pin (female) x1
HDMI (V. 1.4a) x2
MHL (V 2.1) x 1 (shared with HDMI input)
S-Video: Mini DIN 4pin x 1
Component Video (Y/CB/CR, Y/PB/PR) x1 (shared with
RGB input)
Composite Video x1
RCA Audio x 1
PC Audio x 1
Microphone x 1
RJ45 LAN x1
Output Analog RGB: D-Sub 15-pin (female) x1
Audio out x1
Speaker: 10W x2
Control Serial Connector: RS232 9 pin (male)
USB: Type-A USB x 1; Mini B type USB x1
IR receiver x2
LAN x1 (RJ45)
12V DC Trigger x 1 (Max. 0.5 A)
General characteristics
Projector weight 4.9 kg (10.80 lbs)
Power VAC 100-240V, 6 A, 50-60Hz
Power consumption Max. 594 W; Standby < 0.5 W; Network Standby < 3 W
Operating temperature 0 °C to 40 °C (without condensation)
Operating humidity 10% - 90% (without condensation)
Specifications
(EN)
SU922_QSG.fm Page 11 Tuesday, May 26, 2015 1:56 PM

12
Toutes les caractéristiques peuvent être modifiées sans notification préalable.
Caractéristiques optiques
Système de projection Système à une puce DLP™
Puce DMD SX920: DLP 0,55" (1024 x768); SW921: DLP 0,65"
(1280 x800); SU922: DLP 0,67" (1920 x1200)
Objectif F = 2,45 à 3,07, f = 15,78 à 25,12 mm
Taille de l’écran de projection 60" à 240" (152 cm à 610 cm)
Lampe 370W
Caractéristiques électriques
Compatibilité PC : SX920/SW921: 640 x 480 à 1600 x1200;
SU922: 640 x 480 à 1920 x1200
Vidéo : NTSC, PAL, SECAM, YPbPr (480i/480p/576i/
576p/720p/1080i/1080p), HDTV (720p/1080i/1080p)
Espace couleur Typ. = 60% NTSC
Prises
Entrée RVB analogique : D-Sub 15 broches (femelle) x 1
HDMI (V. 1,4a) x2
MHL (V. 2,1) x 1 (partagé avec l’entrée HDMI)
S-Video : mini DIN à 4 broches x 1
Vidéo composantes (Y/ CB/CR, Y/PB/PR) x1 (partagé
avec entrée RVB)
Vidéo composite x1
Entrée audio RCA x1
Entrée audio PC x1
Microphone x 1
Réseau RJ45 x 1
Sortie RVB analogique : D-Sub 15 broches (femelle) x 1
Prise sortie audio
Haut-parleur : 10 W x2
Commande Connecteur série : RS232 à 9 broches (mâle)
USB: USB type mini B x 1; USB type A x 1
Récepteur IR x2
Réseau x1 (RJ45)
Déclencheur 12 V CC x 1 (max. 0,5 A)
Caractéristiques générales
Poids du projecteur 4,9 kg (10,80 lb)
Alim. 100 à 240 V AC, 6 A, 50/60 Hz
Consommation Max. 594 W ; veille < 0,5 W ; veille réseau < 3 W
Température de
fonctionnement
0°C à 40°C (sans condensation)
Humidité en fonctionnement 10% à 90% (sans condensation)
(FR)
Caractéristiques
SU922_QSG.fm Page 12 Tuesday, May 26, 2015 1:56 PM

13
Alle Daten können ohne Bekanntmachung geändert werden.
Optische Daten
Projektionssystem Einzel-Chip DLP™-System
DMD-Chip SX920: 0,55" DLP (1024 x768); SW921: 0,65" DLP (1280
x800); SU922: 0,67" DLP (1920 x1200)
Objektivlinse F = 2,45 bis 3,07; f = 15,78 bis 25,12 mm
Größe des Projektionsbilds 60" bis 240"
Lampe 370W
Elektrische Daten
Kompatibilität PC: SX920/SW921: 640 x 480 bis 1600 x 1200;
SU922: 640 x 480 bis 1920 x1200
Video: NTSC, PAL, SECAM, YPbPr (480i/480p/576i/
576p/720p/1080i/1080p), HDTV (720p/1080i/1080p)
Farbraum Ty p. = 6 0 % N T S C
Anschlüsse
Eingang Analog RGB: Eine 15-polige D-Sub-Buchse
HDMI (V. 1.4a) x2
MHL (V. 2.1) x 1 (geteilt mit HDMI Eingang)
S-Video: Mini DIN 4-polige x 1
Component-Video (Y/ CB/CR, Y/PB/PR) x1 (gemeinsam
benutzt mit RGB-Eingang)
Composite-Video x1
Cinch Audioeingang x1
PC Audioeingang x1
Mikrofon x 1
RJ45 LAN x 1
Ausgang Analog RGB: D-Sub 15-Pin (weiblich) x1
Audioausgang x1
Lautsprecher: 10W x2
Steuerung Serieller Anschluss: 9-poliger RS232 (Stecker)
USB: USB (Typ-A) x 1 ; USB (Mini B Typ) x1
IR-Empfänger x2
LAN x1 (RJ45)
12V DC Auslöser x 1 (Max. 0,5 A)
Allgemeine Eigenschaften
Gewicht des Projektors 4,9 kg (10,80 lbs)
Stromversorgung VAC 100-240V, 6 A, 50-60Hz
Stromverbrauch Max. 594 W; Standby < 0,5 W; Netzwerk Standby < 3 W
Betriebstemperatur 0°C bis 40°C (nicht kondensierend)
Betriebsluftfeuchtigkeit 10% bis -90% (nicht kondensierend)
Technische Daten
(DE)
SU922_QSG.fm Page 13 Tuesday, May 26, 2015 1:56 PM

14
Tutte le specifiche sono soggette a modifiche senza preavviso.
Parte ottica
Sistema di proiezione Sistema DLP™ a chip singolo
Chip DMD SX920: DLP da 0,55" (1024 x768); SW921: DLP da 0,65"
(1280 x800); SU922: DLP da 0,67" (1920 x1200)
Obiettivo F = da 2,45 a 3,07, f = da 15,78 a 25,12 mm
Dimensioni schermo di
proiezione
Da 60" a 240"
Lampada 370W
Parte elettrica
Compatibilità PC: SX920/SW921: 640 x 480 a 1600 x1200;
SU922: 640 x 480 a 1920 x1200
Video: NTSC, PAL, SECAM, YPbPr (480i/480p/576i/576p/
720p/1080i/1080p), HDTV (720p/1080i/1080p)
Spazio di colore Ty p . = 6 0 % N T S C
Te r m i n a l i
Input RGB analogico: D-Sub da 15-pin (femmina) x1
HDMI (V. 1.4a) x2
MHL (V. 2.1) x 1 (condiviso con l’ingresso HDMI)
S-Video: Mini DIN 4pin x 1
Component Video (Y/ CB/CR, Y/PB/PR) x1 (in condivisione
con input RGB)
Composite Video x1
Ingresso audio RCA x1
Ingresso audio PC x1
Microfono x 1
RJ45 LAN x 1
Uscita RGB analogico: D-Sub da 15-pin (femmina) x1
Audio out x1
Altoparlante 10W x2
Controllo Connettore seriale: RS232 a 9 pin (maschio)
USB: USB (tipo A) x 1; USB (Mini tipo B) x1
Ricevitore infrarossi x2
LAN x1 (RJ45)
Interruttore 12 V CC x 1 (massimo 0,5 A)
Caratteristiche generali
Peso del proiettore 4,9 kg (10,80 lbs)
Power VAC 100-240V, 6 A, 50-60Hz
Consumo energetico Max. 594 W; Standby < 0,5 W; Standby rete < 3 W
Temperatura operativa da 0°C a 40°C (senza condensa)
Umidità operativa da 10% a 90% (senza condensa)
(IT)
Specifiche tecniche
SU922_QSG.fm Page 14 Tuesday, May 26, 2015 1:56 PM

15
Todas las especificaciones están sujetas a cambio sin previo aviso.
Óptico
Sistema de proyección Sistema DLP™ de un solo chip
Chip DMD SX920: DLP 0,55 pulg. (1024 x768);
SW921: DLP 0,65 pulg. (1280 x800);
SU922: DLP 0,67 pulg. (1920 x1200)
Lente F = 2,45 a 3,07; f = 15,78 a 25,12 mm
Tamaño de la pantalla de
proyección
60 pulg. a 240 pulg.
Lámpara 370W
Especificaciones eléctricas
Compatibilidad PC: SX920/SW921: 640 x 480 a 1600 x1200;
SU922: 640 x 480 a 1920 x1200
Vídeo: NTSC, PAL, SECAM, YPbPr (480i/480p/
576i/576p/720p/1080i/1080p), HDTV (720p/1080i/
1080p)
Espacio de color Tip. = 60% NTSC
Te r m i n a l e s
Entrada RGB analógico: D-Sub de 15 patillas (hembra) x1
HDMI (V. 1.4a) x2
MHL (V. 2.1) x 1 (compartido con entrada HDMI)
S-Vídeo: Mini DIN de 4 patillas x 1
Componente de vídeo (Y/ CB/CR, Y/PB/PR) x1
(compartido con entrada RGB)
Vídeo compuesto x1
Entrada de audio RCA x1; Entrada de audio de PC
x1; Micrófono x 1
RJ45 LAN x 1
Salida RGB analógico: D-Sub de 15 patillas (hembra) x1
Salida de audio x1
Altavoz: 10W x2
Control Conector en serie: RS232 de 9 patillas(macho)
USB: USB (Tipo-A) x 1; USB (Tipo mini B) x1
Receptor IR x2
LAN x1 (RJ45)
Disparador de 12 V CC x 1 (máx. 0,5 A)
Características generales
Peso del proyector 4,9 kg (10,80 lbs)
Alimentación 100 -240 V de CA; 6 A, 50-60 Hz
Consumo de energía Máx. 594 W; en espera < 0,5 W; Espera red < 3 W
Temperatura de funcionamiento 0°C a 40°C (sin condensación)
Humedad de funcionamiento 10% - 90% (sin condensación)
Especificaciones
(ES)
SU922_QSG.fm Page 15 Tuesday, May 26, 2015 1:56 PM

16
Todas as especificações estão sujeitas a alteração sem aviso prévio.
Ópticas
Sistema de projecção Sistema Single-chip DLP™
Chip DMD SX920: 0,55" DLP (1024 x768); SW921: 0,65" DLP
(1280 x800); SU922: 0,67" DLP (1920 x1200)
Lente F = 2,45 a 3,07, f = 15,78 a 25,12 mm
Tamanho de ecrã de projecção 60" a 240"
Lâmpada 370 W
Eléctricas
Compatibilidade Computador: SX920/SW921: 640 x 480 a
1600 x1200; SU922: 640 x 480 a 1920 x1200
Video: NTSC, PAL, SECAM, YPbPr (480i/480p/576i/
576p/720p/1080i/1080p), HDTV (720p/1080i/1080p)
Espaço de Cor Tip. = 60% NTSC
Te r m i n a i s
Entrada RGB Analógico: D-sub 15 pinos (fêmea) x1
HDMI (V. 1.4a) x2
MHL (V. 2.1) x 1 (partilhado com entrada HDMI)
S-Video: Mini DIN 4 pinos x 1
Vídeo Componente (Y/ CB/CR, Y/PB/PR) x1
(partilhado com entrada RGB)
Entrada áudio RCA x1
Entrada áudio PC x1
Microfone x 1
RJ45 LAN x 1
Saída RGB Analógico: D-sub 15 pinos (fêmea) x1
Saída Áudio x1
Altifalante: 10 W x2
Controlo Conector de Série: RS232 9 pinos (macho)
USB: USB (Tipo A) x 1 ; USB (Tipo Mini B) x1
Receptor IR x2
LAN x1 (RJ45)
Interruptor 12 V DC x 1 (Máx. 0,5 A)
Características gerais
Peso do projector 4,9 kg (10,80 lbs)
Energia VAC 100-240V, 6 A, 50-60Hz
Consumo de energia Máx. 594 W; Em espera < 0,5 W; Suspensão em rede
< 3 W
Temperatura de funcionamento 0°C a 40°C (sem condensação)
Humidade de funcionamento 10% - 90% (sem condensação)
(PT)
Especificações
SU922_QSG.fm Page 16 Tuesday, May 26, 2015 1:56 PM

17
Alla specifikationer kan ändras utan föregående meddelande.
Optik
Projektorsystem DLP™-system med enkel krets
DMD-krets SX920: 0,55" DLP (1024 x468); SW921: 0,65" DLP (1280 x
800); SU922: 0,67" DLP (1920 x1200)
Lins F=2,45 till 3,07, f= 15,78 till 25,12 mm
Skärmstorlek 60" till 240"
Lampa 370W
El
Kompabilitet PC: SX920/SW921: 640 x 480 till 1600 x1200;
SU922: 640 x 480 till 1920 x1200
Video: NTSC, PAL, SECAM, YPbPr (480i/480p/576i/576p/
720p/1080i/1080p), HDTV (720p/1080i/1080p)
Färgområde Ty p . = 6 0 % N T S C
Kontakter
Ingångar Analog RGB: D-Sub (hona) med 15 stift x1
HDMI (V. 1.4a) x2
MHL (V. 2.1) x 1 (delar ingång med HDMI)
S-Video: Mini DIN 4-stift x 1
Komponentvideo (Y/CB/CR, Y/PB/PR) x1 (delad med RGB)
Kompositvideo x1
RCA-ljudingång x1
PC-ljudingång x1
Mikrofon x 1
RJ45 LAN x 1
Uttag Analog RGB: D-Sub (hona) med 15 stift x1
Ljudutgång x1
Högtalare: 10W x2
Kontroll Serieanslutning: RS232 9-stifts (hane)
USB: USB (Typ A) x 1 ; USB (Typ Mini B) x1
IR-mottagare x2
LAN x1 (RJ45)
12 V DC-utlösare x 1 (Max. 0,5 A)
Allmänna egenskaper
Projektorns vikt 4,9 kg (10,80 lbs)
Av/på VAC 100-240V, 6 A, 50-60Hz
Strömförbrukning Max. 594 W; Viloläge < 0,5 W; Nätverksviloläge < 3 W
Driftstemperatur 0°C till 40°C (icke-kondenserande)
Driftsfuktighet 10 - 90 % (icke-kondenserande)
Specifikationer
(SV)
SU922_QSG.fm Page 17 Tuesday, May 26, 2015 1:56 PM

18
Все характеристики могут быть изменены без предварительного уведомления.
Оптические характеристики
Система проектирования Система Single-chip DLP™
DMD чип SX920: 0.55" DLP (1024 x 768); SW921: 0.65" DLP
(1280 x 800); SU922: 0.67" DLP (1920 x 1200)
Объектив F = 2.45 - 3.07, f = 15.78 - 25.12 мм
Размер экрана проецирования 60" - 240"
Лампа 370 Вт
Электрические характеристики
Совместимость ПК: SX920/SW921: 640 x 480 - 1600 x 1200;
SU922: 640 x 480 - 1920 x 1200
Видео: NTSC, PAL, SECAM, YPbPr (480i/480p/576i/
576p/720p/1080i/1080p), HDTV (720p/1080i/1080p)
Цветовое пространство Тип. = 60% NTSC
Терминалы
Вход Аналоговый RGB 15-контактный D-sub (гнездо) x 1
HDMI (V. 1.4a) x 2
MHL (V. 2.1) x 1 (совместно со входом HDMI)
S-Video: 4-контактный разъем Mini DIN x 1
Компонентное видео (Y/CB/CR, Y/PB/PR) x 1
(вместе сRGB входом)
Композитное видеосигнал x 1
Аудиовход RCA x 1
Аудиовход ПК x 1
Микрофон x 1
RJ45 LAN x 1
Выход Аналоговый RGB 15-контактный D-sub (гнездо) x 1
Аудиовыход x 1
Динамик: 10 Вт x 2
Управление Последовательный разъем: RS232 9 контактный
(штырьковый)
USB: USB (тип A) x 1 ; USB (тип Mini B) x 1
ИК-приемник x 2
LAN x 1 (RJ45)
Переключатель 12 Вx 1 (макс. 0,5 A)
Общие характеристики
Вес проектора 4,9 кг (10,80 фунта)
Питание Вперем. тока 100-240В, 6 A, 50-60Гц
Энергопотребление Макс. 594 Вт; Режим ожидания < 0,5 Вт; режим
ожидания сети < 3 Вт
Рабочая температура 0 °C ~ 40 °C (без конденсации)
Рабочая влажность 10% ~ 90% (без конденсации)
(RU)
Технические характеристики
SU922_QSG.fm Page 18 Tuesday, May 26, 2015 1:56 PM

19
Alle specificaties kunnen zonder voorafgaande kennisgeving worden gewijzigd.
Optisch
Projectiesysteem Single-chip DLP™-systeem
DMD chip SX920: 0,55" DLP (1024 x768); SW921: 0,65" DLP
(1280 x800); SU922: 0,67" DLP (1920 x1200)
Lens F = 2,45 tot 3,07, f = 15,78 tot 25,12 mm
Geprojecteerde schermgrootte 60" tot 240"
Lamp 370W
Electrisch
Compatibiliteit PC: SX920/SW921: 640 x 480 tot 1600 x 1200;
SU922: 640 x 480 tot 1920 x1200
Video: NTSC, PAL, SECAM, YPbPr (480i/480p/576i/
576p/720p/1080i/1080p), HDTV (720p/1080i/1080p)
Kleurruimte Ty p . = 6 0 % N T S C
Aansluitingen
Ingangen Analoog RGB: D-sub 15-pin (contrastekker) x1
HDMI (V. 1.4a) x2
MHL (V. 2.1) x 1 (gedeeld met HDMI-ingang)
S-Video: Mini DIN 4-pin x 1
Component video (Y/CB/CR, Y/PB/PR) x1 (gedeeld
met RGB-ingang)
Composite video x1
Audio: RCA Audio-in x1; PC Audio-in x1
Microfoon x 1
RJ45 LAN x 1
Uitgang Analoog RGB: D-sub 15-pin (contrastekker) x1
Audio uit x1
Luidspreker: 10W x2
Bediening Seriële aansluiting: RS232 9-pin (male)
Usb: Usb (Type-A) x 1 ; Usb (mini B-type) x1
IR-ontvanger x2
LAN x1 (RJ45)
12 V gelijkspanningtrigger x 1 (max. 0,5 A)
Algemene kenmerken
Projectorgewicht 4,9 kg (10,80 lbs)
Energie VAC 100-240V, 6 A, 50-60Hz
Stroomverbruik Max. 594; stand-by < 0,5 W; netwerkstand-by < 3 W
Bedrijfstemperatuur 0°C tot 40°C (zonder condens)
Omgevingsvochtigheid 10% - 90% (zonder condens)
Specificaties
(NL)
SU922_QSG.fm Page 19 Tuesday, May 26, 2015 1:56 PM
