BENSHAW RSi SG Series User manual

2012 Benshaw Inc.
©
890046-00-01
Sensorless Vector
Variable Frequency Drive
RSi SG Series
Instruction Manual
7.5 to 40HP - 230V
7.5 to 700HP - 460V
7.5 to 150HP - 600V
Benshaw retains the right to change specifications and illustrations in text without prior notification. The contents of this document may
not be copied without the explicit permission of Benshaw.

ii
TRADEMARK NOTICE
Benshaw and are registered trademarks of Benshaw Incorporated.
Modbus is a registered trademark of Schneider Electric.
UL is a trademark of Underwriters Laboratories, Incorporated.

iii
SAFETY INSTRUCTIONS
To prevent injury and property damage, follow these instructions during the
installation and operation of the drive.
Incorrect operation due to ignoring these instructions may cause harm or
damage. The following symbols are used throughout the manual to highlight
important information.
DANGER
WARNING
CAUTION
This symbol indicates the possibility of
death or serious in
j
ur
y
.
This symbol indicates the possibility of
damage to the drive or other components.
This symbol indicates death or serious injury
can occur if you do not follow instructions.
■The meaning of each symbol in this manual and on your equipment is as
follows.
This is the safety alert symbol.
Read and follow instructions carefully to avoid a dangerous situation.
This symbol alerts the user to the presence of “dangerous voltage” inside the
p
roduct that might cause bodily harm or electric shock.
■This manual should be placed in a location where it can be accessed by users.
■This manual should be given to the person who actually uses the drive and is
responsible for its maintenance.

iv
WARNING
Do not remove the cover while power is applied or the unit is in operation.
Do not operate the drive with the front cover removed. Electric shock can occur due to
the exposed terminals and bus bars.
Do not remove the cover except for periodic inspections or wiring, even if the input
power is not applied. The capacitor bank may remain charged for some time even when
power is not applied.
Wiring and periodic inspections should be performed at least 10 minutes after
disconnecting the input power and after checking that the DC link voltage is discharged
with a meter (below 30VDC).
CAUTION
Install the drive on a non-flammable surface. Do not place flammable materials nearby.
Disconnect the input power if the drive has been damaged. Do not apply power to a
damaged drive or to a drive with parts missing.
Do not connect a resistance directly between the DC Bus terminals (P1 (or P2)) and N.
Doing so can result in overheating and damaging the resistor.
After shutting down or disconnecting the drive, the drive may be hot to the touch.
Verify that the power-up restart feature is off during servicing to prevent any
unexpected operation.
Do not allow lint, paper, wood chips, dust, metallic chips or other foreign material into
the drive.

v
OPERATING PRECAUTIONS
(1) Handling and installation
- The SG-series drive can be heavy. Lift according to the weight of the product. Use a hoist or a crane to
move and install the SG-series drive if necessary. Failure to do so may result in personal injury or damage
to the drive.
- Do not place heavy items on the drive. Do not stack the drive boxes higher than the number
recommended.
- Install the drive according to instructions specified in this manual.
- Check that the drive mounting orientation is correct.
- Do not drop the drive or subject it to hard impacts.
- Verify that the ground impedance is 100 ohms or less for 230 V Class drives and 10 ohms or less for 460V
class drives.
- Take protective measures against ESD (Electrostatic Discharge) before touching the PC boards during
inspection, installation, or repair.
- The drive is designed for use under the following environmental conditions:
Environment
Ambient temp. - 10 ~ 40 C (14F ~ 104F)
Relative
humidity 90% Relative Humidity or less (non-condensing)
Storage temp. - 20 ~ 65 C (-4F ~ 149F)
Location Protected from corrosive gas, combustible gas, oil mist or
dust. (Pollution Class 2 environment)
Altitude,
Vibration
Max. 3300 ft. (1000m) above sea level
Max. 5.9m/sec2(0.6G) or less
Atmospheric
pressure 10~15 PSI (70 ~ 106 kPa, 20.67 in Hg ~ 31.3 in Hg)
(2) Wiring
- Do not connect power factor correction capacitors, surge suppressors, or a RFI filter to the output of the
drive.
- The connection orientation of the motor output cables U, V, W will affect the direction of rotation of the
motor. Verify correct wiring before starting drive.
- Incorrect terminal wiring could result in drive and/or equipment damage.
- Reversing the polarity (+/-) of the Px and N terminals could damage the drive.
- Only authorized personnel familiar with Benshaw drives should perform wiring and inspections.
(3) Trial run
- Check all parameters during operation. Parameter values might require adjustment depending on the
application.
- Always apply voltage within the permissible range of each terminal as indicated in this manual. Otherwise,
drive damage may result.

vi
(4) Operation precautions
- When the Auto restart function is selected the drive will restart after a fault has occurred.
- The Stop key on the keypad is always active regardless of drive control (start/stop) methods set in
parameters DRV-03 and DRV-91.
- If Restart after Fault Reset (AFN-21) is set to “yes”, and a fault reset is made with the run command and/or
reference signal present, a sudden start will occur. Verify correct setting of this parameter and check that
the run command and/or reference signal is turned off in advance of resetting any faults.
- Do not modify the drive.
- Depending on the motor specifications and user ETH overload settings, the motor may not be protected by
electronic thermal function of drive.
- The operation of the drive is intended to be controlled by either keypad command or control input signals.
Do not use a magnetic contactor or any other device that routinely disconnects the drive and reconnects the
drive to the input supply power for the purpose of starting and stopping the motor.
- A noise filter may be installed to reduce the effect of electromagnetic interference. Consult factory for
more information.
- In cases withinput voltage unbalances, install an AC input reactor.
- Power Factor capacitors and generators may become overheated and damaged due to harmonics created by
the drive.
- Use an inverter duty rated motor or take measures to suppress the surge voltage at the motor with a dV/dT
filter or equivalent. A surge voltage attributable to wiring constant is generated at the motor terminals and
may deteriorate mtoor insulation.
- The drive can be set to operate a motor at high-speeds. Verify the speed capability of motor and machinery
prior to operating drive.
- Holding torque is not produced when using the DC-Brake function. Install separate equipment when
holding torque is required.
(5) Fault prevention precautions
- If required, provide a safety backup such as an emergency mechanical brake to prevent any hazardous
conditions if the drive fails during operation.
(6) Maintenance, inspection and parts replacement
- Do not Meggar (hi-pot or insulation resistance) test the power or control circuits of the drive.
- Refer to Chapter 7 for periodic inspection and parts replacement details.
(7) General instructions
Many of the diagrams and drawings in this instruction manual may show the drive covers removed. Prior to
operating the unit, be sure to restore covers and circuit protection according to specifications.

Table of Contents
vii
CHAPTER 1.BASIC INFORMATION 1-1
1.1USING THIS MANUAL 1-1
1.2GENERAL INFORMATION 1-1
1.3CONTACTING BENSHAW/CURTISS WRIGHT FLOW CONTROL CO. 1-2
1.4INSPECTION 1-3
1.4.1Drive Model Number 1-3
1.4.2Installation 1-3
1.4.3Wiring 1-3
1.5RECOMMENDED INSTALLATION 1-4
CHAPTER 2.DRIVE RATINGS AND SPECIFICATION 2-1
2.1RATINGS 230V (7.5~40 HP) 2-1
2.2RATINGS 460V (7.5~40 HP) 2-1
2.3RATINGS 460V (50~125HP) 2-2
2.4RATINGS 460V (150~700HP) 2-2
2.5RATINGS 575V (7.5~40HP) 2-3
2.6RATINGS 575V (50~125HP) 2-3
2.7RATINGS 575V (150 ~400 HP) 2-4
2.8GENERAL SPECIFICATION 2-5
2.9DIMENSIONS 2-7
CHAPTER 3.INSTALLATION 3-1
3.1INSTALLATION PRECAUTIONS 3-1
3.2WIRING 3-3
3.2.1Basic Wiring 3-3
3.2.2Wiring Input and Output Power Terminals 3-9
3.2.3Interference Suppression Measures 3-11
3.2.4Terminal Layout 3-13
3.2.5Wire Sizing and Terminal Lugs 3-14
3.2.6Control Circuit Wiring 3-15
3.2.7RS-485/Modbus-RTU Circuit Wiring 3-18
3.2.8Keypad Wiring 3-19
CHAPTER 4.OPERATION 4-1
4.1KEYPAD PROGRAMMING 4-1
4.1.1LCD Keypad 4-1
4.1.2Detailed Description 4-24-2
4.1.3Parameter Setting and Adjustment 4-3
4.1.4Parameter Groups 4-4
4.1.5Easy Start Operation 4-6
4.1.6Quickstart 1: Start / Stop and Speed Control via the Keypad 4-6
4.1.7Quickstart 2: Two Wire Start and Control via Speed Potentiometer 4-7
4.1.8Quickstart 3: Two Wire Start and Control via 4-20mA Analog Input 4-8

Table of Contents (continued)
viii
CHAPTER 5.PARAMETER LIST 5-1
5.1DRV (DRIVE GROUP)PARAMETER LIST 5-1
5.2FUN (FUNCTION GROUP)PARAMETER LIST 5-3
5.3AFN (ADVANCED FUNCTION GROUP)PARAMETER LIST 5-6
5.4I/O (INPUT/OUTPUT GROUP)PARAMETER LIST 5-10
5.5APP (APPLICATION GROUP)PARAMETER LIST 5-16
5.6EXT (4-20MAOUTPUT OPTION CARD)PARAMETER LIST 5-20
CHAPTER 6.PARAMETER DESCRIPTIONS 6-1
6.1DRIVE GROUP [DRV] 6-1
6.2FUNCTION GROUP [FUN] 6-9
6.3ADVANCED FUNCTION GROUP [AFN] 6-25
6.4INPUT/OUTPUT GROUP [I/O] 6-39
6.5APPLICATION GROUP [APP] 6-61
CHAPTER 7.TROUBLE SHOOTING & MAINTENANCE 7-1
7.1FAULT DISPLAY 7-1
7.2FAULT REMEDY 7-3
7.3TROUBLESHOOTING 7-6
7.4HOW TO CHECK POWER COMPONENTS 7-7
7.5MAINTENANCE 7-13
7.5.1Precautions 7-13
7.5.2Periodic Inspection Summary 7-13
7.5.3Periodic Inspection 7-14
7.5.4Parts Replacement 7-15
CHAPTER 8.OPTIONS 8-1
8.1AVAILABLE OPTIONS 8-1
8.1.1LCD Keypad 8-2
8.1.2Remote Keypad Cable 8-2
8.1.34 – 20 mA Output Option Card 8-2
8.1.4DeviceNet Communications Option Card 8-2
8.1.5Profibus Communications Option Card 8-3
8.1.6BACnet Communications Option Card 8-3
8.1.7LonWorks Communications Option Card 8-3
8.1.8Modbus TCP Option Card 8-3
8.1.9Dynamic Braking Unit 8-3
8.1.10Dynamic Braking Resistor(s) 8-6
8.1.11NEMA TYPE 1 Conduit Box 8-6

Table of Contents (continued)
ix
CHAPTER 9.RS485/MODBUS-RTU COMMUNICATION 9-1
9.1INTRODUCTION 9-1
9.1.1Features 9-1
9.1.2Connection Guide for Modbus-RTU Communication with PC, PLC and RS232/485 9-1
9.1.3Before Installation 9-1
9.2SPECIFICATION 9-2
9.2.1Performance Specification 9-2
9.2.2Hardware Specification 9-2
9.2.3Communication Specification 9-2
9.2.4Installation 9-2
9.2.5Communication Parameters 9-3
9.3OPERATION 9-3
9.3.1Operating Steps 9-3
9.4COMMUNICATION PROTOCOL (MODBUS-RTU) 9-4
9.5PARAMETER CODE LIST 9-5
9.5.1Common area address 0x0006 9-7
9.5.2SG operating status in Address E, Common area 9-8
9.6TROUBLESHOOTING 9-9
APPENDIX A- UL MARKING I
APPENDIX B- RELATED PARAMETERS III
APPENDIX C - DECLARATION OF CONFORMITY V

1-1
Chapter1. BasicInformation
1.1UsingThisManual
This manual is divided into 10 sections.
1) Basic Information
2) Drive Ratings and Specifications
3) Installation
4) Operation
5) Parameter Listing
6) Parameter Descriptions
7) Troubleshooting & Maintenance
8) Options
9) RS-485/Modbus-RTU Communications
10) Appendices
1.2GeneralInformation
Benshaw offers its customers the following:
Start-up services
On-site training services
Technical support
Detailed documentation
Replacement parts
NOTE: Information about products and services is available by contacting Benshaw. Refer to section 1.3, Contacting
Benshaw.
Start-Up Services
Benshaw technical field support personnel are available to do startup and conduct on-site training on the drive operations and
troubleshooting.
On-Site Training Services
Benshaw technical field support personnel are available to conduct on-site training on the operations and troubleshooting.
Technical Support
Benshaw technical support personnel are available (at no charge) to answer customer questions and provide technical support
over the telephone.
Documentation
Benshaw provides all customers with an RSi-SG Instruction Manual, Benshaw Publication #890046-00.
All RSi-SG drive documentation is available on-line at http://www.benshaw.cwfc.com.
Replacement Parts
Spare and replacement parts can be purchased from Benshaw. Contact Benshaw for more information.
Publication HistoryRefer to the Revision History located at the end of this manual.

Chapter 1 – Basic Information
1-2
1.3ContactingBenshaw/CurtissWrightFlowControlCo.
Information about Benshaw products and services is available by contacting Benshaw at one of the following
offices:
Benshaw Inc.,
Corporate Headquarters
615 Alpha Drive
Pittsburgh, PA 15238
Phone: [phone]
Fax: [phone]
Benshaw Canada Controls Inc.
550 Bright Street East
Listowel, Ontario N4W 3W3
Canada
Phone: [phone]
Fax: [phone]
Benshaw West
14715 North 78th Way, Suite 600
Scottsdale, AZ 85260
Phone: [phone]
Fax: [phone]
Visit the Curtiss Wright / Benshaw website: http://www.benshaw.cwfc.com
Technical support for the SG Series drive is available at no charge by contacting Benshaw’s customer service
department at one of the above telephone numbers. A service technician is available Monday through Friday
from 8:00 a.m. to 5:00 p.m. EST.
NOTE: An on-call technician is available after normal business hours and on weekends by calling Benshaw at
800-203-2416.
To help assure prompt and accurate service, please have the following information available when contacting
Benshaw:
Name of company
Telephone number where the caller can be contacted
Fax number of the caller (if available)
Benshaw product name
Benshaw model number
Benshaw serial number
Name of product distributor
Approximate date of purchase
System voltage
Voltage, full load current (FLA), and rated speed of motor attached to Benshaw product
A brief description of the application

Chapter 1 – Basic Information
1-3
1.4Inspection

Remove the drive from its packing and inspect its exterior for shipping damage. If damage is apparent
notify the Shipping agent and your Benshaw sales representative.
Remove the cover and inspect the drive for any apparent damage or foreign objects. Ensure that all
mounting hardware and terminal connection hardware is properly seated, securely fastened, and
undamaged.
Check the nameplate on the SG drive. Verify that the drive unit is the correct horsepower and input voltage
for the application.

1.4.1 DriveModelNumber

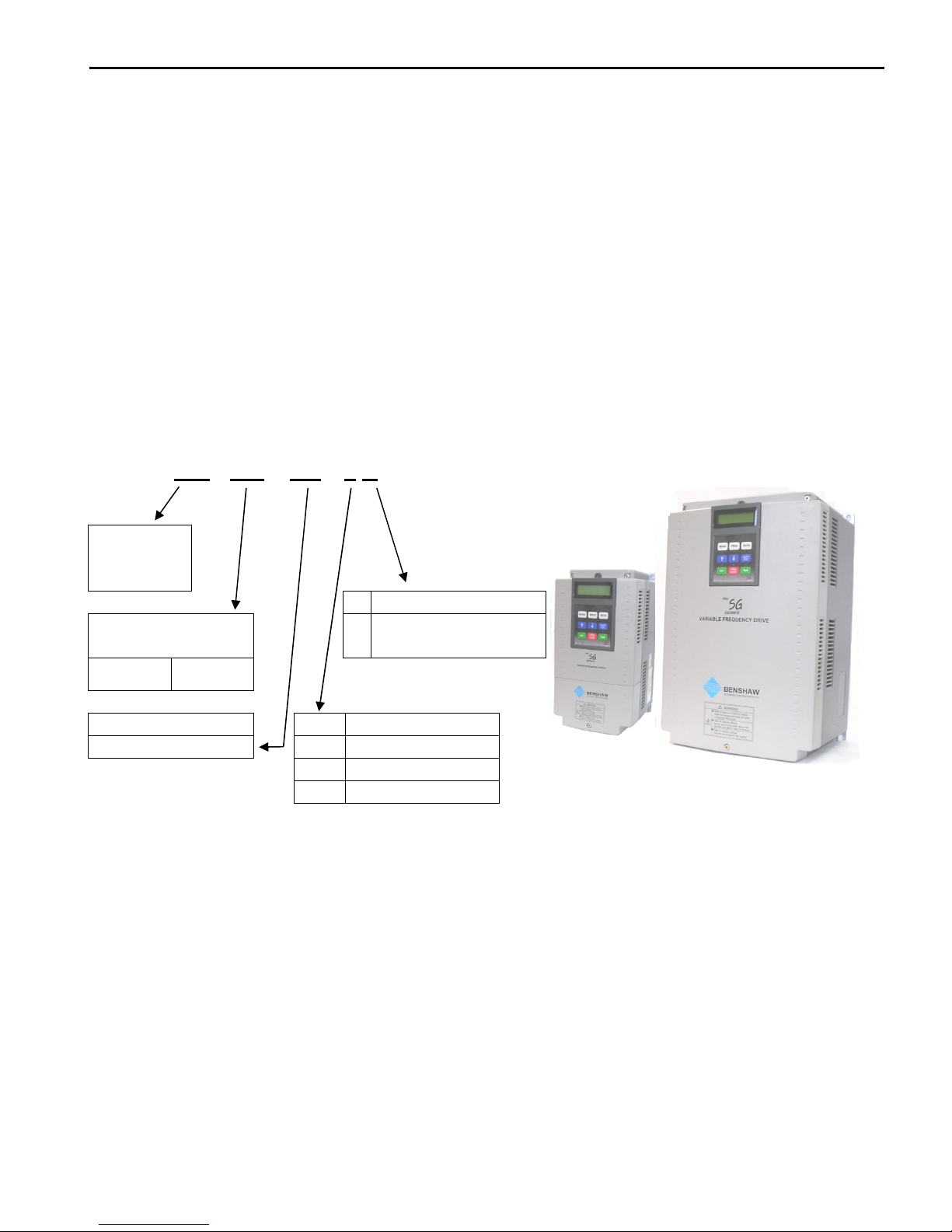

The numbering system of the drive is as shown below.
RSi - 007 - SG – 2 B
Benshaw
RediStart
Inverter
Enclosure Type
Motor HP rating B
_
NEMA 1 ≤125 HP
Open Chassis ≥150 HP
007-700 HP
Series Name Input Voltage
SG 2 200V – 240V class
4 380V – 480V class
6 525V – 600V class

1.4.2 Installation
To operate the drive reliably, install the drive in a proper location with the correct orientation and with the proper
clearances. Refer to Chapter 3, Installation.
1.4.3 Wiring
Connect the power supply, motor and control signals to the terminal blocks. Note that incorrect connections may
damage the drive and peripheral devices.

Chapter 1 – Basic Information
1-4
1.5RecommendedInstallation

❶AC Source
Supply
Use a grounded power source with a voltage within the
permissible range of drive input voltage rating. Ungrounded
power sources will cause nuisance tripping and/or damage to the
drive.
❷ Circuit Breaker
or Disconnect
Switch
Select Circuit Breaker and/or Disconnect Switch in accordance
with applicable national and local codes.
❸Fusing
(Recommended)
Select recommended fuses per instruction manual, Appendix A.
❹Inline Contactor
(Optional)
When installed, do not use for the purpose of starting or stopping
the drive.
❺AC Reactor
(Recommended)
An AC reactor is recommended to reduce transient currents and
voltages that could damage the drive. Reactors also help with
harmonic reduction and power factor improvement. A reactor
must be used when the KVA rating of the power source is 10
times greater than the KVA rating of the drive.
Installation and
Wiring
To reliably operate the drive, install the drive in the proper
orientation and with proper clearances. Incorrect terminal wiring
could result in equipment damage.
❻ DBU and DBR
Brake Unit (Module)
and Resistor
The addition of dynamic braking may be required for applications
that require rapid deceleration or are connected to high inertia
loads. In such applications, Over Voltage faults will occur unless
adequate dynamic braking is added.
❼ Output
Filter (Optional)
Output Reactor – Recommended with Non-Inverter Duty rated
motors. For lead lengths less than 300 feet. Minimizes drive over
current trips. Helps protect motor from over voltages and heating.
Reduces motor noise.
Long Lead Filter - for lead lengths >300 feet up to 1500 feet.
Reduces peak voltages at the motor.
Sine Wave Filter – for lead lengths greater than 1500 feet.
Provides sinusoidal wave form to motor, reduces motor noise,
vibration and heat.
Motor Connect to a suitably rated induction motor. Do not connect
power factor capacitors, surge arrestors or RFI/EMI filters to the
output side of the drive.
❶
❷
❸
❹
❺
❼
DBR
DBU
❻
Failure to follow the Recommended Installation Practices may void Warranty

2-1
Chapter2. DriveRatingsandSpecification
2.1Ratings230V(7.5~40HP)
2
3
0
V
RSi___SG-2B 007 010 015 020 025 030 040
Std. Duty VT
Motor Rating
(1)
[HP] 7.5 10 15 20 25 30 40
[kW] 5.5 7.5 11 15 18.5 22 30
[A] 24 32 46 60 74 88 115
Std. Duty CT
Motor Rating
(1)
[HP] 7.5 10 15 20 25 30 40
[kW] 5.5 7.5 11 15 18.5 22 30
[A] 22 29 42 55 67 80 105
Heavy Duty
CT Motor
Rating (1)
[HP] 5 7.5 10 15 20 25 30
[kW] 3.7 5.5 7.5 11 15 18.5 22
[A] 17 23 33 44 54 68 84
Output
Rating
Frequency 0.01 ~ 120 Hz
Voltage 200 ~ 240 V(2)
Input
Rating
Voltage 3200 ~ 240 V (-15% ~ +10 %)
Frequency 50/60 Hz (5 %)
Weight Lbs. 10.8 13.2 13.2 28.7 29.8 44.1 44.1
Kg 4.9 6 6 13 13.5 20 20
Protection degree IP20, UL Enclosed Type 1 for all ratings (provided with conduit box)
2.2Ratings460V(7.5~40HP)
4
6
0
V
RSi___SG-4B 7 10 15 20 25 30 40
Std. Duty
VT Motor
Rating (1)
[HP] 7.5 10 15 20 25 30 40
[kW] 5.5 7.5 11 15 18.5 22 30
[A] 12 16 24 30 39 45 61
Std. Duty
CT Motor
Rating (1)
[HP] 7.5 10 15 20 25 30 40
[kW] 5.5 7.5 11 15 18.5 22 30
[A] 11 14 22 27 35 41 55
Heavy
Duty CT
Motor
Rating (1)
[HP] 5 7.5 10 15 20 25 30
[kW] 3.7 5.5 7.5 11 15 18.5 22
[A] 8.8 12 16 22 28 34 44
Output
Rating
Frequency 0.01 ~ 120 Hz
Voltage 380 ~ 480 V (2)
Input
Rating
Voltage 3380 ~ 480 V (-15% ~ +10 %)
Frequency 50/60 Hz (5 %)
Weight Lbs. 10.8 13.2 13.2 27.6 28.7 44.1 44.1
Kg 4.9 6 6 12.5 13 20 20
Protection degree IP20, UL Enclosed Type 1 for all ratings

Chapter 2 – Drive Ratings and Specification
2-2
2.3Ratings460V(50~125HP)
4
6
0
V
RSi___SG-4B 050 060 075 100 125
Std. Duty
VT Motor
Rating (1)
[HP] 50 60 75 100 125
[kW] 37 45 55 75 90
[A] 75 91 110 152 183
Std. Duty
CT Motor
Rating (1)
[HP] 50 60 75 100 125
[kW] 37 45 55 75 90
[A] 68 83 100 139 167
Heavy Duty
CT Motor
Rating (1)
[HP] 40 50 60 75 100
[kW] 30 37 45 55 75
[A] 55 66 80 111 134
Output
Rating
Frequency 0.01 ~ 120 Hz
Voltage 380 ~ 480 V (2)
Input
Rating
Voltage 3380 ~ 480 V (-15% ~ +10 %)
Frequency 50/60 Hz (5 %)
Weight (3) Lbs. 59.5 59.5 64 92.6 94.8
Kg 27 27 29 42 43
Protection degree IP20, UL Enclosed Type 1 for all ratings (provided with conduit box)
2.4Ratings460V(150~700HP)
4
6
0
V
RSi___SG-4 150 200 250 350 400 500 600 700
Std. Duty
VT Motor
Rating (1)
[HP] 150 200 250 350 400 500 600 700
[kW] 110 132 160 220 280 315 375 450
[A] 223 264 325 432 547 613 731 877
Std. Duty
CT Motor
Rating (1)
[HP] 150 200 250 300 400 450 500 600
[kW] 90 110 132 160 220 280 315 375
[A] 204 242 302 396 501 562 670 804
Heavy Duty
CT Motor
Rating (1)
[HP] 125 150 200 250 300 350 400 500
[kW] 90 110 132 160 220 280 315 375
[A] 164 194 240 317 401 450 536 643
Output
Rating
Frequency 0.01 ~ 120 Hz
Voltage 380 ~ 480 V (2)
Input
Rating
Voltage 3380 ~ 480 V (-15% ~ +10 %)
Frequency 50/60 Hz (5 %)
Weight Lbs. 223 223 252 441 441 536 838 838
Kg 101 101 114 200 200 243 380 380
Protection degree IP00, UL Open Type for all ratings

Chapter 2 – Drive Ratings and Specification
2-3
2.5Ratings575V(7.5~40HP)
5
7
5
V
RSi___SG-6B 007 010 015 020 025 030 040
Std. Duty
VT Motor
Rating (1)
[HP] 7.5 10 15 20 25 30 40
[kW] 5.5 7.5 11 15 18.5 22 30
[A] 9 12 17 23 27 34 43
Std. Duty
CT Motor
Rating (1)
[HP] 7.5 10 15 20 25 30 40
[kW] 5.5 7.5 11 15 18.5 22 30
[A] 8.2 11 15.5 21 24.7 31 39
Heavy Duty
CT Motor
Rating (1)
[HP] 5 7.5 10 15 20 25 30
[kW] 3.7 5.5 7.5 11 15 18.5 22
[A] 6.6 9 12 17 19.8 25 31.5
Output
Rating
Frequency 0.01 ~ 120 Hz
Voltage 525 ~ 600 V(2)
Input
Rating
Voltage 3

525 ~ 600 V (-15% ~ +10 %)
Frequency 50/60 Hz (

5 %)
Weight Lbs. 14.4 15.5 15.5 25.8 25.8 41.7 41.7
Kg 6.5 7 7 11.7 11.7 18.9 18.9
Protection degree IP20, UL Enclosed Type 1 for all ratings
2.6Ratings575V(50~125HP)
5
7
5
V
RSi___SG-6B 050 060 075 100 125
Std. Duty
VT Motor
Rating (1)
[HP] 50 60 75 100 125
[kW] 37 45 55 75 90
[A] 55 64 80 104 128
Std. Duty
CT Motor
Rating (1)
[HP] 50 60 75 100 125
[kW] 37 45 55 75 90
[A] 50 58.6 73 95 117
Heavy
Duty CT
Motor
Rating (1)
[HP] 40 50 60 75 100
[kW] 30 37 45 55 75
[A] 43 55 64 80 104
Output
rating
Frequency 0.01 ~ 120 Hz
Voltage 525 ~ 600 V(2)
Input
Rating
Voltage 3

525 ~ 600 V (-15% ~ +10 %)
Frequency 50/60 Hz (

5 %)
Weight (3) Lbs. 70.65 70.65 70.65 101.5 101.5
Kg 32 32 32 46 46
Protection degree IP20, UL Enclosed Type 1 for all ratings (provided with conduit
box)

Chapter 2 – Drive Ratings and Specification
2-4
2.7Ratings575V(150~400HP)
5
7
5
V
RSi___SG-6 150 200 250 350 400
Std. Duty VT
Motor Rating (1)
[HP] 150 200 250 350 400
[kW] 110 132 160 220 280
[A] 150 200 242 333 424
Std. Duty CT
Motor Rating (1)
[HP] 150 200 250 350 400
[kW] 110 132 160 220 280
[A] 137 184 222 305 389
Heavy Duty CT
Motor Rating (1)
[HP] 125 150 150 250 300
[kW] 90 110 132 160 220
[A] 128 147 177 244 311
Output
rating
Frequency 0.01 ~ 120 Hz
Voltage 525 ~ 600 V(2)
Input
rating
Voltage 3525 ~ 600 V (-15% ~ +10 %)
Frequency 50/60 Hz (5 %)
Weight
Lbs. 223 255 255 450 450
Kg 101 116 116 204 204
Protection degree IP00, UL Open Type

Chapter 2 – Drive Ratings and Specification
2-5
2.8GeneralSpecification
Cooling method Forced air cooling
Short Circuit Rating
100KA, Suitable for use on a circuit capable of delivering not more than 100,000
A(rms) Symmetrical amperes when protected by a breaker or fuse with an
interrupt rating of not less than 100,000 A(rms).
Agency Approvals UL and cUL listed, CE marked
CONTROL
Control Method V/F, Sensorless Vector, Slip Compensation, Easy Start Selectable
Frequency Setting
Resolution
Digital Reference: 0.01 Hz (Below 100 Hz), 0.1 Hz (Over 100 Hz)
Analog Reference: 0.01 Hz / 60 Hz
Frequency Accuracy Digital: 0.01 % of Max. Output Frequency
Analog: 0.1 % of Max. Output Frequency
V/F Ratio Linear, Squared Pattern, User V/F
Overload Capacity 110% per 1 min VT standard duty, 120% per 1 min CT standard duty, 150% per
1 min heavy duty
Voltage Boost Manual Voltage Boost (0 ~ 15 % programmable), Auto Boost
OPERATION
Operation Method Keypad / Terminal / Communication Operation
Frequency Setting
(Isolated)
Analog: 0~12V, -12V~ +12V, 4~20mA or 0~20mA, Pulse, Ext-PID
Digital: Keypad
Input Signal (Isolated)
Start Signal Forward, Reverse
Multi-Step Max 18 Speeds can be set including Jog, Dwell via (4) Multi-Function Terminals
Acc/Dec Time
Pattern
0.1~ 6,000 sec.
Linear, U-Curve, S-Curve Selectable
Inverter Disable Interrupts the output of the drive.
Jog Jog operation
Fault Reset Trip status is reset when a fault indication is active.
Output signal
Operating Status
Relay Output contacts (Isolated). (4) Form A (Ax-Cx) - AC 250V, 1A.
Programmable to: Frequency Detection Level, Overload Alarm, Stall, Over
Voltage, Low Voltage, Inverter Overheat/Run/Stop/Steady/Ready, Inverter
Bypass, Speed Searching
Fault Output Relay Output contacts (Isolated).
Form C (3A, 3C, 3B) – AC 250V 1A, DC 30V 1A
Meter/Indicator Output Voltage: (2) 0~10VDC Outputs (Non-Isolated): Choose from: Output
Frequency, Output Current, Output Voltage, DC Link Voltage, Power (Watts).
Operation Functions
DC Braking, Frequency Limit, Frequency Jump, 2nd Function, Slip
Compensation, Reverse Rotation Prevention, Auto Restart, Inverter Bypass,
Auto-Tuning, PID Control, Flying Start, Safety Stop, Flux Braking, Low
Leakage, Pre-PID, Dual-PID, MMC, Easy Start, Pre-heater

Chapter 2 – Drive Ratings and Specification
2-6
GeneralSpecification(continued)
PROTECTION
Inverter Trips
Over Voltage, Low Voltage, Over Current, Ground Fault, Inverter Overheat,
Motor Overheat, Output Phase Open, Overload Protection, External Fault 1, 2,
Communication Error, Loss of Speed Command, Hardware Fault, Option Fault
Inverter Alarms Stall Prevention, Overload Alarm, Over Heat, Thermal Sensor Fault
Momentary
Power Loss
Below 8.3 msec: Continuous operation
Above 8.3 msec: Auto restart active (AFN-22)
Above 1 sec: Auto restart active (AFN-22) and for high inertia loads, Safety Stop
(FUN-28) set to “Yes”.
DISPLAY
Keypad
Operation
Information
Output Frequency, Output Current, Output Voltage, Frequency Set Value,
Operating Speed, DC Link Voltage, Integrating Wattmeter, Run-Time, Last Trip
Time
Trip
Information
Trip Indication when a fault occurs. Maximum of five (5) faults are log along
with the Last Trip Time.
ENVIRONMENT
Ambient Temperature -10 C (14F) ~ 40 C (104F) (Derate by 20% for use at 50C ambient)
Storage Temperature -20 C (-4F) ~ 65 C (149F)
Ambient Humidity Less Than 90 % RH Max. (Non-Condensing)
Altitude
Vibration
Below 3300ft (1000m), Derate 1% (drive current) for every 300ft above 3300 ft.
Below 5.9m/sec2(=0.6g)
Application Site Pollution degree 2, No Corrosive Gas, Combustible Gas, Oil Mist, or Dust
(1) Standard duty VT motor rating based on a 110% overload for 1 minute.
Standard duty CT motor rating based on a 120% overload for 1 minute.
Heavy Duty motor ratings based on a 150% overload for 1 minute.
Horsepower ratings based on 4-Pole motor specifications at 230V, 460V or 575V input voltages. Operation
at lower input voltages or with motors with 6 or more poles may require the use of a larger drive depending
on actual motor rating.
(2) Maximum output voltage will not exceed the input voltage. An output voltage less than the input voltage
may be programmed if necessary.
(3) The standard conduit box attachment adds 1.8kg (4 lbs.) to the weight of the drive.
