Lenze 9300 vector User manual

EDKVF93−05
.6v_
Ä.6v_ä
Information for the operator of the machine
9300 vector 250 ... 400 kW

EVF9381 ... EVF9383
Frequency inverter
efesotomasyon.com - Lenze

This documentation is valid for ...
... 9300 vector frequency inverters as of nameplate data:

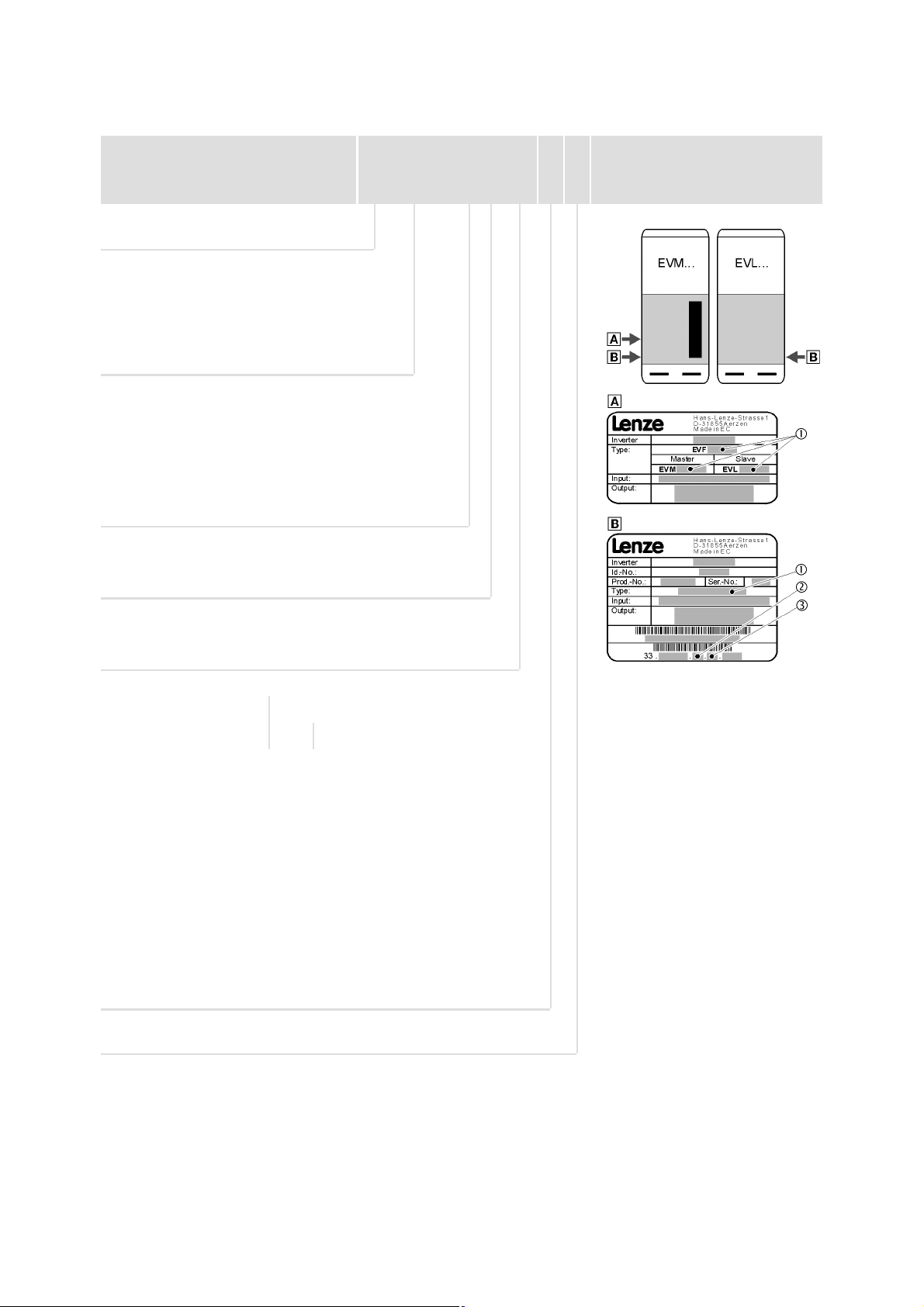

   Nameplate
Type EVF 93xx ˘ x V Vxx 1x 7x
EVF 93xx ˘ x V Vxx Vx 6x
Product series
EVF = Frequency inverter
EVM = Master of frequency inverter
EVL = Slave of frequency inverter
Type no. / rated power
400 V 500 V
9381 = 250 kW 315 kW
9382 = 315 kW 400 kW
9383 = 400 kW 500 kW
Type
E = Panel−mounted unit
Design
V = Vector−controlled frequency inverter
Variant
Integrated RFI filter A
Integrated brake transistor
– 400 V – –
V030 = 400 V ·–
V060 = 400 V – ·
V110 = 400 V ··
V210 = 400 V / 500 V – –
V240 = 400 V / 500 V ·–
V270 = 400 V / 500 V – ·
V300 = 400 V / 500 V ··
Hardware version
Software version
xx = Slave (no software version)
efesotomasyon.com - Lenze

Note!
This documentation contains all the information required by the machine operator to
run the drive controllers of the 9300 vector series installed in your machine/system.
You may make further use of the information contained in this documentation without
asking Lenze for permission if you do not change the contents.
0Fig. 0Tab. 0
Tip!
Current documentation and software updates concerning Lenze products can be found
on the Internet in the "Services & Downloads" area under
http://www.Lenze.com
© 2007 Lenze Drive Systems GmbH, Hans−Lenze−Straße 1, D−31855 Aerzen
We have compiled all information in this documentation with great care und have checked it with regard to compliance with
the hardware and software described. Nevertheless, we cannot entirely exclude deviations. We do not accept legal
responsibility or liability for damage possibly resulting therefrom. We will include necessary amendments in the subsequent
editions.
efesotomasyon.com - Lenze

5
1
5
1
1
5
E2E4E5391
34 28E1E32
33 7
K32 62
K31
GNDA1A2A3A4ST1ST25934763 LO HI
X4
X3
X1
X11
X8
X9
X10
X5
X6
01
+UGL1 L2 L3 BR1 BR2 U V W-UG +UGL1 L2 L3 PEPE BR1 BR2 U V W-UG
L1, L2, L3, PEL1, L2, L3, PE
U, V, WU, V, W
+UG, -UG+UG, -UG
BR1, BR2BR1, BR2


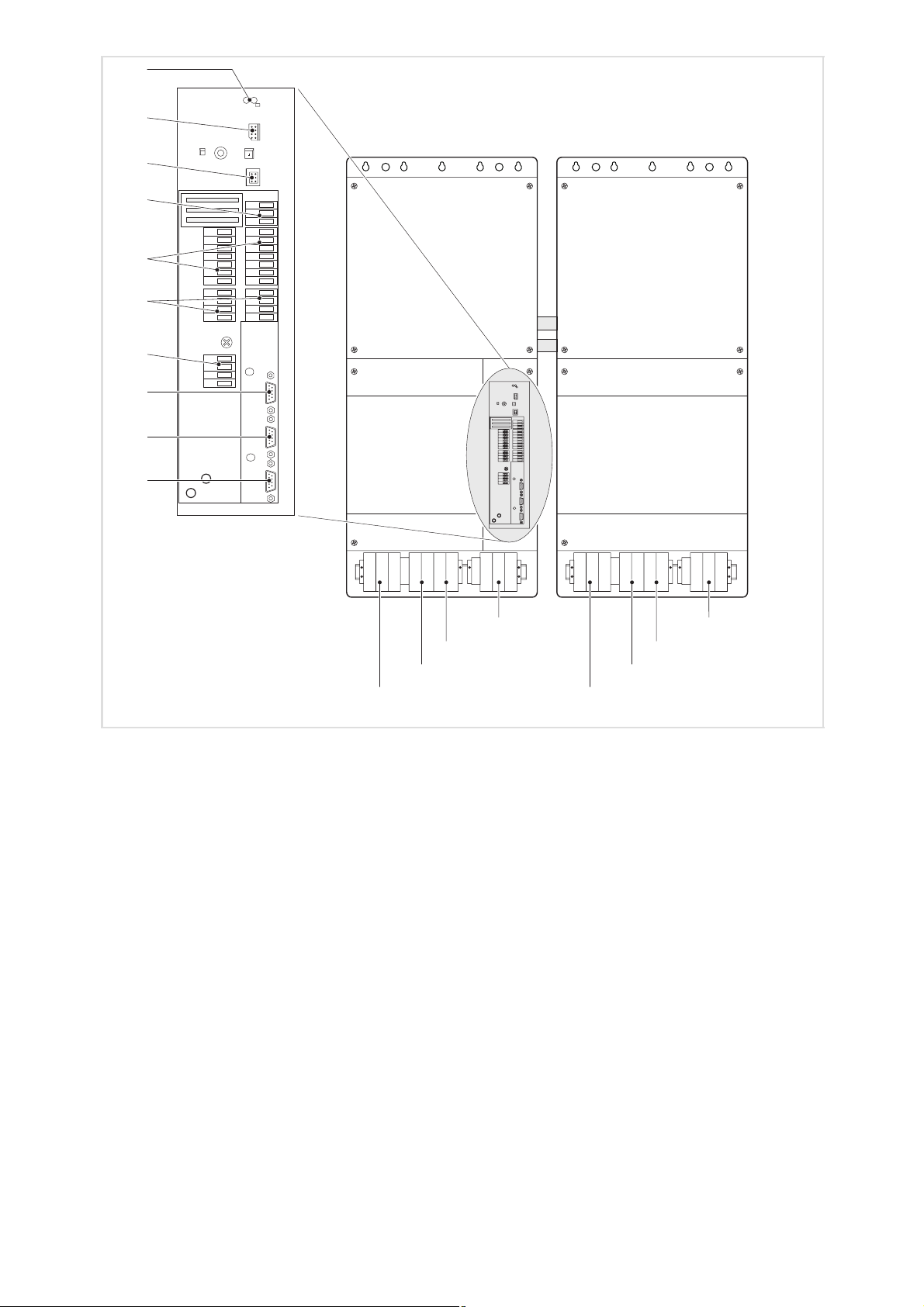

9300vec0181
efesotomasyon.com - Lenze

Key for overview
Position Description
9300 vector frequency inverter − master
9300 vector frequency inverter − slave
Connections and interfaces
Position Description
L1, L2, L3, PE Mains connection
+UG, −UG DC supply (only for the variants V210, V240, V270, V300)
BR1, BR2 Connection of brake resistor (only for the variants V210, V240, V270, V300)
U, V, W, PE Motor connection
X1 AIF interface (automation interface)
slot for communication module (e.g. keypad XT EMZ9371BC)
X3 Jumper for setting the analog input signal at X6/1, X6/2
X4 Terminal strip for connection of system bus (CAN)
X5 Terminal strips for connection of digital inputs and outputs
X6 Terminal strips for connection of analog inputs and outputs
X8 Sub−D connector (male) for connection of incremental encoder with TTL level or sin/cos encoder and KTY
thermal sensor of the motor
X9 Sub−D connector (male) for connection of digital frequency input signal
X10 Sub−D connector (female) for connection of digital frequency output signal
X11 Terminal strip for connection of relay output KSR for "safe standstill"
Status displays
Position LED red LED green Operating status
Off On Controller is enabled
On On Mains is switched on and automatic start is inhibited
Off Blinking slowly Controller is inhibited
Off On Motor data identification is active
Blinking quickly Off Undervoltage or overvoltage
Blinking slowly Off Active fault
efesotomasyon.com - Lenze

Contentsi
6 EDKVF93−05 EN 1.0
1 Safety instructions 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 General safety and application instructions for Lenze controllers 7. . . . . . . . . . . . .
1.2 Residual hazards 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Definition of notes used 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Parameter setting 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 Parameter setting with the XT EMZ9371BC keypad 12. . . . . . . . . . . . . . . . . . . . . . . .
2.1.1 General data and operating conditions 12. . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.2 Installation and commissioning 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.3 Display elements and function keys 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.4 Changing and saving parameters 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.5 Loading a parameter set 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.6 Transfering parameters to other standard devices 18. . . . . . . . . . . . . . . . .
2.1.7 Activating password protection 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.8 Diagnostics 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.9 Menu structure 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Troubleshooting and fault elimination 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Display of operating data, diagnostics 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1.1 Display of operating data 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1.2 Diagnostics 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Troubleshooting 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.1 Status display (LEDs on the controller) 26. . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.2 Fault analysis with the history buffer 27. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3 Drive behaviour in the event of faults 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4 Error elimination 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.1 Drive errors 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.2 Controller in clamp operation 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4.3 Fault messages on the keypad or in the parameter setting program
Global Drive Control 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5 Resetting error messages 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
efesotomasyon.com - Lenze

Safety instructions
General safety and application instructions for Lenze controllers
1
7
EDKVF93−05 EN 1.0
1 Safety instructions
1.1 General safety and application instructions for Lenze controllers
(According to: Low−Voltage Directive 73/23/EEC)
For you personal safety
Lenze controllers (frequency inverters, servo inverters, DC speed controllers) and the
accessory components can include live and rotating parts − depending on their type of
protection − during operation. Surfaces can be hot.
Unauthorised removal of the required cover, inappropriate use, incorrect installation or
operation, create the risk of severe injury to persons or damage to material assets.
High amounts of energy are released in the controller. Thus, it is required to always wear
a personal protective equipment (body protection, headgear, eye protection, ear
protection, hand guard).
All operations concerning transport, installation, and commissioning as well as
maintenance must be carried out by qualified, skilled personnel (IEC 364 and CENELEC HD
384 or DIN VDE 0100 and IEC report 664 or DIN VDE 0110 and national regulations for the
prevention of accidents must be observed).
According to this basic safety information, qualified, skilled personnel are persons who are
familiar with the assembly, installation, commissioning, and operation of the product and
who have the qualifications necessary for their occupation.
Application as directed
Drive controllers are components which are designed for installation in electrical systems
or machinery. They are not to be used as household appliances. They are intended
exclusively for professional and commercial purposes according to EN 61000−3−2.
When installing the controllers into machines, commissioning (i.e. starting of operation as
directed) is prohibited until it is proven that the machine complies with the regulations of
the EC Directive 98/37/EC (Machinery Directive); EN 60204 must be observed.
Commissioning (i.e. starting of operation as directed) is only allowed when there is
compliance with the EMC Directive (89/336/EEC).
The controllers meet the requirements of the Low−Voltage Directive 73/23/EEC. The
harmonised standard EN 61800−5−1 applies to the controllers.
The technical data and information on connection conditions must be obtained from the
nameplate and the documentation. They must be observed in any case.
Warning: The controllers can be used according to EN 61800−3 in drive systems of the
category C2. These products can cause radio interferences in residential areas. In this case,
special measures are required.
efesotomasyon.com - Lenze

Safety instructions
General safety and application instructions for Lenze controllers
1

8 EDKVF93−05 EN 1.0
Transport, storage
Please observe the notes on transport, storage and appropriate handling.
Observe the climatic conditions according the technical data.
Installation
The controllers must be installed and cooled according to the instructions given in the
corresponding documentation.
Ensure proper handling and avoid mechanical stress. Do not bend any components and do
not change any insulation distances during transport or handling. Do not touch any
electronic components and contacts.
Controllers contain electrostatically sensitive components, which can easily be damaged
by inappropriate handling. Do not damage or destroy any electrical components since this
might endanger your health!
Electrical connection
When working on live controllers, the valid national regulations for the prevention of
accidents (e.g. VBG 4) must be observed.
The electrical installation must be carried out according to the appropriate regulations
(e.g. cable cross−sections, fuses, PE connection). Additional information can be obtained
from the documentation.
The documentation contains information about installation in compliance with EMC
(shielding, earthing, filter arrangement, and cable installation). These notes must also be
observed for CE−marked controllers. The manufacturer of the system or machine is
responsible for ensuring compliance with the limit values demanded by the EMC
legislation. The controllers must be installed in housings (e.g. control cabinets) to comply
with the limit values for radio interferences valid at the site of installation. The housings
must enable an EMC−compliant installation. Make sure in particular that e.g. the control
cabinet doors have a circumferential metal connection to the housing. Reduce housing
openings and cutouts to a minimum.
Lenze controllers can cause a DC current in the protective conductor. If a residual current
device (RCD) is used as a protective means in the case of direct or indirect contact, only a
residual current device (RCD) of type B may be used on the current supply side of the
controller. Otherwise, another protective measure, such as separation from the
environment through double or reinforced insulation or disconnection from the mains by
means of a transformer must be used.
efesotomasyon.com - Lenze

Safety instructions
General safety and application instructions for Lenze controllers
1
9
EDKVF93−05 EN 1.0
Operation
If necessary, systems including controllers must be equipped with additional monitoring
and protection devices according to the valid safety regulations (e.g. law on technical
equipment, regulations for the prevention of accidents). The controller can be adapted to
your application. Please observe the corresponding information given in the
documentation.
After a controller has been disconnected from the voltage supply, all live components and
power connections must not be touched immediately because capacitors can still be
charged. Please observe the corresponding stickers on the controller.
All protection covers and doors must be shut during operation.
Note for UL approved systems with integrated controllers: UL warnings are notes that only
apply to UL systems. The documentation contains special information about UL.
Safety functions
Certain variants of the drive controller support safety functions (e.g. "safe torque off",
formerly "safe standstill") according to the requirements of Appendix I No. 1.2.7 of the EC
Machinery Directive 98/37/EC, EN 954−1 Category 3 and EN 1037. You must observe the
notes pertaining to the safety functions in the documentation for the variants.
Maintenance and servicing
The controllers do not require any maintenance if the prescribed conditions of operation
are observed.
If the ambient air is polluted, the cooling surfaces of the controller may become dirty or the
air vents of the controller may be obstructed. Therefore, clean the cooling surfaces and air
vents periodically under these operating conditions. Do not use sharp or pointed tools for
this purpose!
Waste disposal
Recycle metal and plastic materials. Ensure professional disposal of assembled PCBs.
The product−specific safety and application notes given in these instructions must be
observed!
efesotomasyon.com - Lenze

Safety instructions
Residual hazards
1

10 EDKVF93−05 EN 1.0
1.2 Residual hazards
Protection of persons
ƒBefore working on the controller, check that no voltage is applied to the power
terminals:
– The power terminals U, V, W, +UG, −UG, BR1, BR2 and 101 ... 104 remain live for at
least five minutes after disconnecting the mains.
– The power terminals L1, L2, L3, U, V, W, +UG, −UG, BR1, BR2 and 101 ... 104 remain
live with the motor stopped.
ƒThe leakage current to earth (PE) is > 3.5 mA. According to EN 50178 a fixed
installation is required.
ƒThe heatsink of the controller has an operating temperature of > 80 °C:
– Contact with the heatsink results in burns.
ƒIf you use the "flying−restart circuit" function (C0142 = 2, 3) for machines with a low
moment of inertia and minimum friction:
– After the controller is enabled at standstill, the motor can start briefly or change
briefly the direction of rotation since the flying restart process is executed at zero
speed as well.
ƒDuring parameter set transfer, the control terminals of the controller can have
undefined states!
– Therefore the plugs X5 and X6 must be pulled off before the transfer is executed.
This ensures that the controller is inhibited and all control terminals have the
specified "LOW" state.
Device protection
ƒFrequent mains switching (e.g. inching mode via mains contactor) can overload and
destroy the input current limitation of the controller.
– Thus, at least five minutes have to pass between two switch−on processes.
– In case of frequent, safety−related disconnections use the "safe torque off" safety
function (STO).
Motor protection
ƒCertain drive controller settings can overheat the connected motor:
– E. g. long−time operation of the DC injection brake.
– Long−time operation of self−ventilated motors at low speeds.
Protection of the machine/system
ƒDrives can reach dangerous overspeeds (e. g. setting of high output frequencies in
connection with motors and machines not suitable for this purpose):
– The drive controllers do not provide protection against such operating conditions.
For this purpose, use additional components.
efesotomasyon.com - Lenze

Safety instructions
Definition of notes used
1
11
EDKVF93−05 EN 1.0
1.3 Definition of notes used
The following pictographs and signal words are used in this documentation to indicate
dangers and important information:
Safety instructions
Structure of safety instructions:
Danger!
(characterises the type and severity of danger)
Note
(describes the danger and gives information about how to prevent dangerous
situations)
Pictograph and signal word Meaning
Danger!
Danger of personal injury through dangerous electrical voltage.
Reference to an imminent danger that may result in death or serious
personal injury if the corresponding measures are not taken.
Danger!
Danger of personal injury through a general source of danger.
Reference to an imminent danger that may result in death or serious
personal injury if the corresponding measures are not taken.
Stop!
Danger of property damage.
Reference to a possible danger that may result in property damage if the
corresponding measures are not taken.
Application notes
Pictograph and signal word Meaning
Note! Important note to ensure troublefree operation
Tip! Useful tip for simple handling
Reference to another documentation
efesotomasyon.com - Lenze

Parameter setting
Parameter setting with the XT EMZ9371BC keypad
General data and operating conditions
2
12 EDKVF93−05 EN 1.0
2 Parameter setting
2.1 Parameter setting with the XT EMZ9371BC keypad
Description
The keypad is available as an accessory. A full description of the keypad can be obtained
from the Instructions included in the keypad delivery.
Plugging in the keypad
It is possible to plug the keypad into the AIF interface or remove it during operation.
As soon as the keypad is supplied with voltage, it carries out a self−test. The keypad is ready
for operation if it is in display mode.

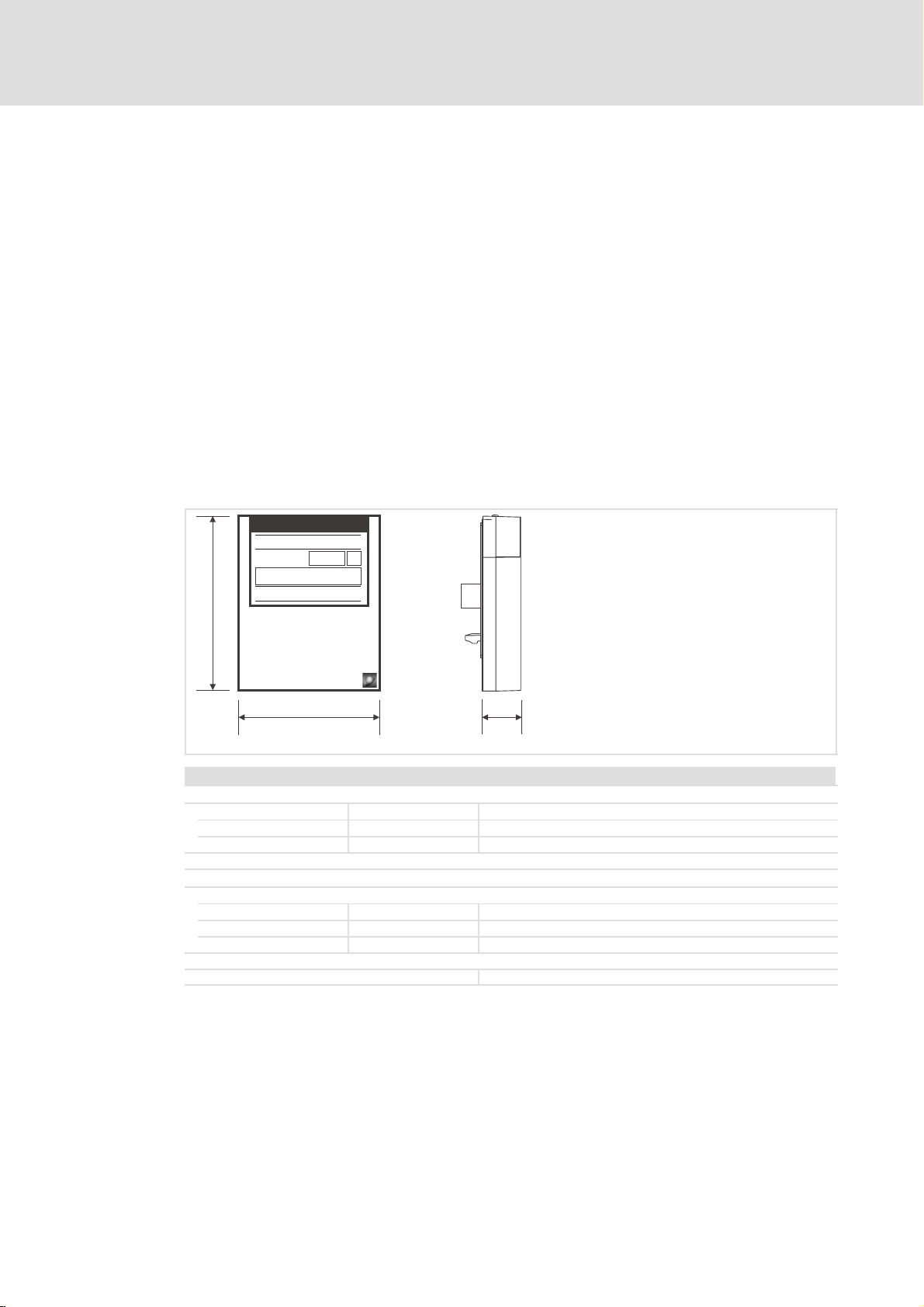

2.1.1 General data and operating conditions
YZ
y
z
T V
S U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
50.00_Hz
MCTRL-NOUT
0
b
ca
9371BC011
Feature Values
Dimensions
Width a 60 mm
Height b 73.5 mm
Depth c 15 mm
Environmental conditions
Climate
Storage IEC/EN 60721−3−1 1K3 (−25 ... +60 °C)
Transport IEC/EN 60721−3−2 2K3 (−25 ... +70 °C)
Operation IEC/EN 60721−3−3 3K3 (−10 ... +60 °C)
Enclosure IP 20
efesotomasyon.com - Lenze

Parameter setting
Parameter setting with the XT EMZ9371BC keypad
Installation and commissioning
2
13
EDKVF93−05 EN 1.0
2.1.2 Installation and commissioning

YZ
y
z
T
V
S
U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
50.00_Hz
MCTRL-NOUT
E82ZWLxxx
YZ
y
z
T V
S U
dABbc
p
SHPRG
Para
Code
Menu 0050 00
50.00_Hz
MCTRL-NOUT
E82ZBBXC
EMZ9371BC
YZ
y
z
T V
S U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
GLOBAL DRIVE
Init
YZ
y
z
T V
S U
d
0050
00
50.00 Hz
20 %
YZ
y
z
T V
S U
d
0050
00
50.00 Hz
20 %



dABbc 0
1
23
9371BC018

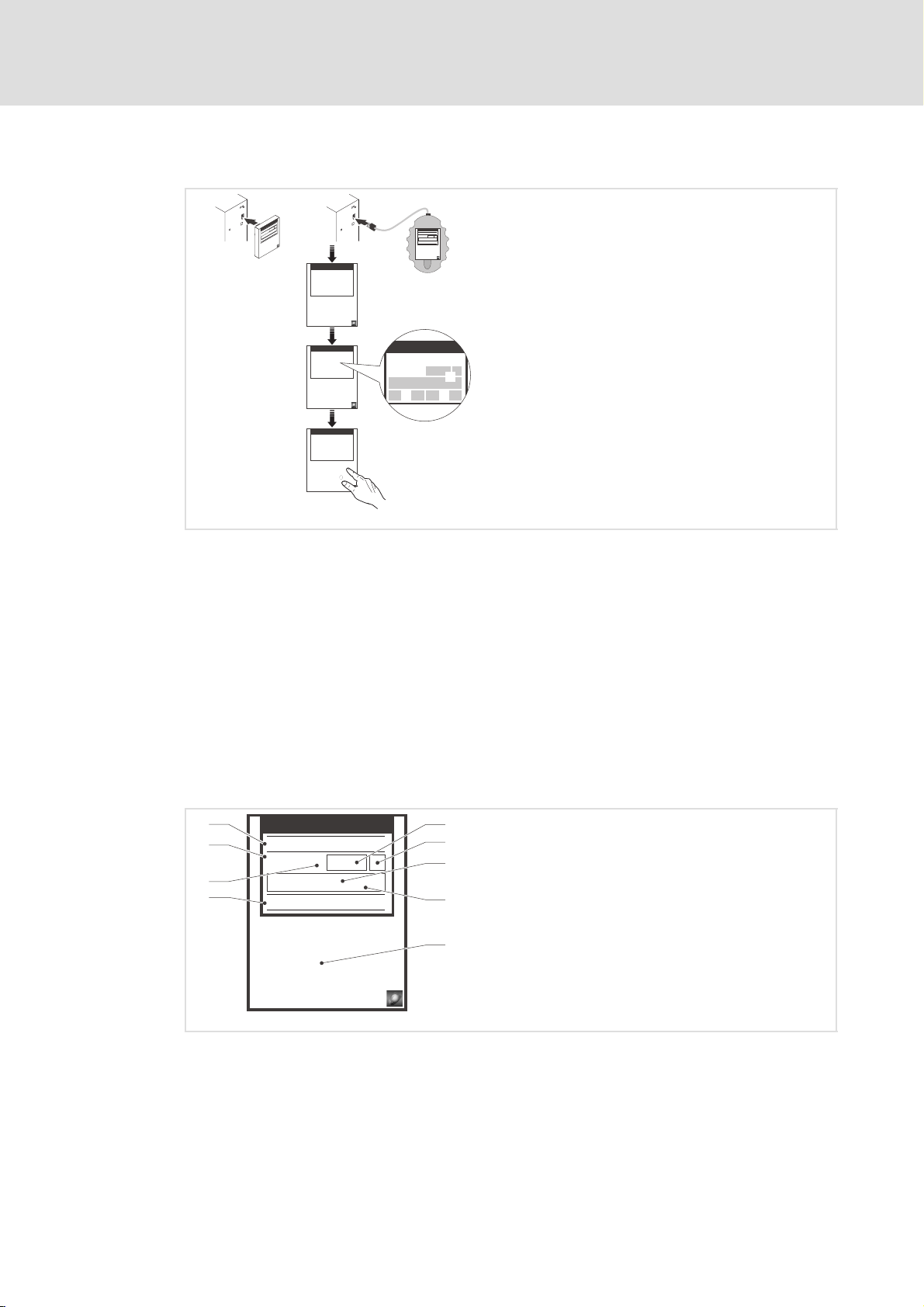

Fig.2−1 Installationand commissioning of XT EMZ9371BC keypad or E82ZBBXC diagnosis terminal
Connect keypad to the AIF interface on the front of the standard device.
The keypad can be connected/disconnected during operation.
As soon as the keypad is supplied with voltage, it carries out a short self−test.
The operation level indicates, when the keypad is ready for operation:
Current state of the standard device
Memory location 1 of the user menu (C0517):
Code number, subcode number, and current value
Active fault message or additional status message
Actual value in % of the status display defined in C0004
 must be pressed to leave the operation level
2.1.3 Display elements and function keys
YZ
y
z
T V
S U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
50.00_Hz
MCTRL-NOUT
0
1
3
4
5
6
7
8
2
9371BC002
Fig.2−2 Display elements and function keys of the XT EMZ9371BC keypad
efesotomasyon.com - Lenze

Parameter setting
Parameter setting with the XT EMZ9371BC keypad
Display elements and function keys
2
14 EDKVF93−05 EN 1.0
Displays
Display Meaning Explanation
Status displays of standard device
Ready for operation
Pulse inhibit is active Power outputs are inhibited
Set current limit is exceeded in motor or
generator mode
Speed controller 1 in its limitation Drive is torque−controlled
(Only active for operation with standard devices
of 9300 series)
Active fault
Parameter acceptance
Parameter is accepted immediately  Standard device operates immediately with the
new parameter value
SHPRG Parameter must be confirmed with 

Standard device operates with the new parameter
value after being confirmed
SHPRG When the controller is inhibited the
parameter must be confirmed with 

Standard device operates with the new parameter
value after the controller is re−enabled
None Display parameter Change is not possible
Active level
Menu Menu level is active Select main menu and submenus
Code Code level is active Select codes and subcodes
Para Parameter level is active Change parameters in the codes or subcodes
None Operating level is active Display operating parameters
Short text
Alphanumeric Contents of the menus, meaning of the
codes and parameters
In the operating level C0004 (in %) and
the active fault are displayed
Number
Menu level With active level:
Menu number
Only active for operation with standard devices of
8200 vector or 8200 motec series
Code level With active level:
Four−digit code number
Number
Menu level With active level:
Submenu number
Only active for operation with standard devices of
8200 vector or 8200 motec series
Code level With active level:
Two−digit subcode number
Parameter value
Parameter value with unit
Cursor
In the parameter level, the figure above the cursor
can be changed directly
Function keys
For description see the following table
efesotomasyon.com - Lenze

Parameter setting
Parameter setting with the XT EMZ9371BC keypad
Changing and saving parameters
2
15
EDKVF93−05 EN 1.0
Function keys
Note!
Key combinations with :
Press and keep it pressed, then press the second key in addition.
Key Function
Menu level Code level Parameter level Operating level
Change to the
parameter level
Change to the operating
level
Change to the code
level
 
Load predefined
configurations in the
menu "Short setup" 1)
Accept parameters
when SHPRG or
SHPRG is displayed


Change between menu
items Change of code number Change of figure above cursor
 
 
Quick change between
the menu items
Quick change of code
number
Quick change of figure
above cursor
Change between main menu, submenus and code
level
Cursor to the right
Cursor to the left
Cancel the function of key, the LED in the key is off
Inhibit controller, the LED in the key is lit
Reset the fault (TRIP
reset):
1. Remedy the cause of malfunction
2. Press 
3. Press 
1) Only active for operation with standard devices of 8200 vector or 8200 motec series
2.1.4 Changing and saving parameters
Note!
Your settings have an effect on the current parameters in the main memory.
You must save your settings in a parameter set for not losing them when
switching the mains!
If you need only one parameter set, save your settings in parameter set 1, since
the parameter set 1 is automatically loaded after mains connection.
Step Key
sequence
Action
1. Select the menu     Use the arrow keys to select the desired menu
2. Change to the code level Display of the first code in the menu
3. Select code or subcode   Display of the current parameter value
4. Change to the parameter level 
5. When SHPRG is displayed, inhibit the
controller
 1) The drive coasts
6. Change parameter
A  Move cursor below the figure to be changed
B  Change of figure
 
 
Quick change of figure
7. Accept the changed parameter
efesotomasyon.com - Lenze

Parameter setting
Parameter setting with the XT EMZ9371BC keypad
Changing and saving parameters
2
16 EDKVF93−05 EN 1.0
ActionKey
sequence
Step
Display of SHPRG or SHPRG    Confirm change to accept the parameter
Display "OK"
Display −The parameter has been accepted immediately
8. Enable the controller, if required  1) The drive runs again
9. Change to the code level
ADisplay of the operating level
BDisplay of the code with changed parameter
10. Change further parameters Restart the "loop" with step 1. or 3.
11. Save changed parameters
A    Select the code C0003 "PAR SAVE" in the menu
"Load/Store"
BChange to the parameter level
Display "0" and "READY"
Select the parameter set in which
the parameters are to be saved
permanently
CSave as parameter set 1:
ðSet "1" "Save PS1"
Save as parameter set 2:
ðSet "2" "Save PS2"
Save as parameter set 3:
ðSet "3" "Save PS3"
Save as parameter set 4:
ðSet "4" "Save PS4"
D  When "OK" is displayed, the settings are permanently
saved in the selected parameter set.
12. Change to the code level
ADisplay of the operating level
BDisplay of C0003 "PAR SAVE"
13. Set parameters for another parameter
set
Restart the "loop" with step 1. or 3.
1) The function of the key can be programmed:
C0469 = 1: Controller inhibit
C0469 = 2: Quick stop (Lenze setting)
efesotomasyon.com - Lenze

Parameter setting
Parameter setting with the XT EMZ9371BC keypad
Loading a parameter set
2
17
EDKVF93−05 EN 1.0
2.1.5 Loading a parameter set
The keypad serves to load a saved parameter set into the main memory when the controller
is inhibited. After the controller is enabled, it operates with the new parameters.
Danger!
ƒWhen a new parameter set is loaded, the controller is reinitialised and acts
as if it had been connected to the mains:
– System configurations and terminal assignments can be changed. Make
sure that your wiring and drive configuration comply with the settings of
the parameter set.
ƒOnly use terminal X5/28 as source for the controller inhibit! Otherwise the
drive may start in an uncontrolled way when switching over to another
parameter set.
Note!
ƒAfter switching on the supply voltage, the controller always loads parameter
set 1 into the main memory.
ƒIt is also possible to load other parameter sets into the main memory via the
digital inputs or bus commands.
Step Key
sequence
Action
1. Inhibit controller Terminal X5/28 = LOW
2. Load the saved parameter set into the
main memory
A    Select the code C0002 "PAR LOAD" in the menu
"Load/Store"
BChange to the parameter level
The active parameter set is displayed, e. g. display "0"
and "Load Default"
If you want to restore the delivery status, proceed with
D
Select the parameter set to be
loaded
CLoad parameter set 1:
ðSet "1" "Load PS1"
Load parameter set 2:
ðSet "2" "Load PS2"
Load parameter set 3:
ðSet "3" "Load PS3"
Load parameter set 4:
ðSet "4" "Load PS4"
D  "RDY" goes off. The parameter set is loaded completely
into the main memory if "RDY" is displayed again.
3. Change to the code level
ADisplay of the operating level
BDisplay of C0002 "PAR LOAD"
4. Enable controller Terminal X5/28 = HIGH
The drive is running with the settings of the loaded
parameter set
efesotomasyon.com - Lenze

Parameter setting
Parameter setting with the XT EMZ9371BC keypad
Transfering parameters to other standard devices
2
18 EDKVF93−05 EN 1.0
2.1.6 Transfering parameters to other standard devices
The keypad enables you to copy parameter settings from one standard device to another.
For this purpose use the "Load/Store" menu:
Danger!
During the transfer of the parameters from the keypad to the controller, the
control terminals may adopt undefined states!
For this reason it is imperative you disconnect connectors X5 and X6 from the
controller prior to the transfer. In this way you will ensure that the drive
controller is inhibited and all control terminals are in the defined "LOW" state.
Copying parameter sets from the standard device to the keypad
Note!
After the parameter sets are copied to the keypad XT (C0003 = 11), the
parameter set last loaded using C0002 is always activated.
So the actual parameters remain active also after copying:
ƒPrior to copying, save the actual parameters in the parameter set and load
this parameter set into the drive controller using C0002.
Step Key
sequence
Action
1. Connect keypad to controller 1
2. Inhibit controller Terminal X5/28 = LOW
The drive coasts.
3. On the "Load/Store" menu select
C0003
    On the "Load/Store" menu select code C0003 "PAR
SAVE" using the arrow keys.
4. Change to the parameter level Display "0" and "READY"
5. Copy all parameter sets to the keypad The settings stored in the keypad are overwritten.
Set "11" "Save extern"
6. Start copying   The "RDY" status display goes off. "BUSY" is indicated
as parameter value.
When "BUSY" goes off after approx. one minute, all
parameter sets have been copied to the keypad. The
"RDY" status display illuminates.
7. Change to the code level
ADisplay of the operating level
BDisplay of C0003 and "PAR SAVE"
8. Enable controller Terminal X5/28 = HIGH
9. Remove keypad from controller 1
efesotomasyon.com - Lenze

Parameter setting
Parameter setting with the XT EMZ9371BC keypad
Transfering parameters to other standard devices
2
19
EDKVF93−05 EN 1.0
Copying parameter sets from the keypad to the standard device
Step Key
sequence
Action
1. Connect keypad to controller 2
2. Inhibit controller Terminal X5/28 = LOW
The "IMP" status display illuminates.
The drive coasts
3. Disconnect connectors X5 and X6 All control terminals have the defined "LOW" state.
4. On the "Load/Store" menu select
C0002
    On the "Load/Store" menu select code C0002 "PAR
LOAD" using the arrow keys.
5. Change to the parameter level The active parameter set is displayed, e. g. display "0"
and "Load Default"
6. Select the correct copy function The settings stored in the controller are overwritten.
lCopy all available parameter sets to the
controller and save in non−volatile memory.
The parameters are not yet active after copying. Select
parameter set and load into main memory. !17
Set "20" "ext −> EEPROM"
lCopy individual parameter sets to main memory.
Copy parameter set 1:
ðSet "11" "Load ext PS1"
Copy parameter set 2:
ðSet "12" "Load ext PS2"
Copy parameter set 3:
ðSet "13" "Load ext PS3"
Copy parameter set 4:
ðSet "14" "Load ext PS4"
7. Start copying   The "RDY" status display goes off. "BUSY" is indicated
as parameter value.
When "BUSY" goes off, all selected parameter sets
have been copied to the controller. The "RDY" status
display illuminates.
8. Change to the code level
ADisplay of the operating level
BDisplay of C0002 and "PAR LOAD"
9. Save individually copied parameter
sets in non−volatile memory
    On the "Load/Store" menu select code C0003 "PAR
SAVE" using arrow keys and save contents of the main
memory in non−volatile memory.
10. Connect connectors X5 and X6
11. Enable controller Terminal X5/28 = HIGH
The drive runs with the new settings.
efesotomasyon.com - Lenze

Parameter setting
Parameter setting with the XT EMZ9371BC keypad
Activating password protection
2
20 EDKVF93−05 EN 1.0
2.1.7 Activating password protection
Note!
ƒIf the password protection is activated (C0094 = 1 ... 9999), you only have
free access to the user menu.
ƒTo access the other menus, you must enter the password. By this, the
password protection is annulled until you enter a new password.
ƒPlease observe that the password−protected parameters can be overwritten
as well when transferring the parameter sets to other standard devices. The
password is not transferred.
ƒDo not forget your password! If you have forgotten your password, it can
only be reset via a PC or a bus system!
Activate password protection
Step Key
sequence
Action
1. Select the "USER menu"     Change to the user menu using the arrow keys
2. Change to the code level Display of code C0051 "MCTRL−NACT"
3. Select C0094 Display of code C0094 "Password"
4. Change to the parameter level Display "0" = no password protection
5. Set password
ASelect password (1 ... 9999)
B  Confirm password
6. Change to the code level
ADisplay of the operating level
BDisplay of C0094 and "Password"
7. Change to the "USER menu"   
The password protection is active now.
You can only quit the user menu if you re−enter the password and confirm it with ".
Remove password protection
Step Key
sequence
Action
1. Change to the code level in the user
menu

2. Select C0094 Display of code C0094 "Password"
3. Change to the parameter level Display "9999" = password protection is active
4. Enter password
ASet valid password
B  Confirm
The password protection is deactivated by entering the
password once again.
5. Change to the code level
ADisplay of the operating level
BDisplay of C0094 and "Password"
The password protection is deactivated now. All menus can be accessed freely again.
efesotomasyon.com - Lenze
