Bentone B45-2 MF Technical specifications

Providing sustainable energy solutions worldwide
178 140 56-6 CR00619 2023-03-29
Installation- and maintenance instruction
B 45-2 MF
LMO24.255C2E
E 4N CK
Translation of the original instructions.

2Bentone
example Beispielexempel
352011030141
Designation
Type
Model
Serial no.
Motor supply
Main supply
MADE IN SWEDEN BY
LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar
BF 1 KS 76-24
BF 1
BF 1 KS 76-24
1234567
1~230V 1,0A 50Hz IP 20
Man.Year 2019
Cap. Min-Max
3
?
1
-sv
1. Manualer på övriga språk
2. www.bentone.com\
nedladdning
eller scanna QR-koden.
3. Skriv in brännarens
artikelnummer som  nns på
din
typskylt (se bild) och välj ditt
språk.
Detaljerad ecodesign
information kan laddas ner
på:
www.bentone.com/
ecodesign.
-en
1. Manuals in other languages
2. www.bentone.com\
download
or scan QR-code.
3. Enter the burner`s article
number on your data plate
(see picture) and select
language.
Detailed ecodesign
information can be
downloaded at:
www.bentone.com/
ecodesign.
-da
1. Manualer på andre sprog
2. www.bentone.com\
download eller scan QR-
koden.
3. Indtast brænderens
artikelnummer, der  ndes
på typeskiltet (se billede), og
vælg dit sprog.
Detaljerede oplysninger om
ecodesign kan downloades
på: www.bentone.com/
ecodesign.
-fr
1. Manuels dans d’autres
langues
2. www.bentone.com\
download
ou scannez le code QR.
3. Saisir le numéro d’article
du brûleur sur votre plaque
signalétique (consultez
l’illustration) et sélectionnez
la langue.
Des informations détaillées
sur l’écodesign peuvent être
téléchargées à l’adresse:
www.bentone.com/
ecodesign.
-de
1. Gebrauchsanweisungen in
anderen Sprachen
2. www.bentone.com\
download
oder scannen Sie den QR-
Code.
3. Geben Sie die
Artikelnummer des Brenners
auf Ihrem Typenschild ein,
(siehe Bild) und wählen Sie
die Sprache aus.
Detaillierte Informationen
zum Ecodesign können unter
www.bentone.com/ecodesign
heruntergeladen werden.
2

3Bentone
Table of contents
1. General Information............................................................4
1.1 Delivery inspection........................................................................ 4
1.2 Safety............................................................................................... 4
1.3 General requirements FAME/RME............................................. 6
2. Technical data.......................................................................7
2.1 Dimensions B 45-2 MF................................................................. 7
2.2 Burner installation ........................................................................ 7
2.3 Workingeld.................................................................................. 8
2.4 Settingfornozzleassemblyandairdamper ......................... 8
2.5 Technicalspecication ................................................................. 9
2.6 Settingofignitionelectrodesandbrakeplate ....................... 9
2.7 Recommendednozzleandpressure ........................................ 9
2.8 Oilgrades......................................................................................10
2.9 Nozzle for bio oils, 20-28 bar....................................................11
2.10 Nozzle for fossil oils, 22-28 bar................................................12
2.11 Components.................................................................................13
3. Electric equipment.............................................................15
3.1 Safety system ..............................................................................15
3.2 Wiringdiagram..........................................................................15
3.3 Function ........................................................................................16
3.4 Colourcodes................................................................................17
3.5 Faultcodes ...................................................................................17
4. Installation..........................................................................18
4.1 General instructions................................................................... 18
4.2 Inspectionandmaintenance....................................................18
4.3 Start-up .........................................................................................18
4.4 Preparing for installation...........................................................18
4.5 Oildistribution............................................................................. 18
4.6 Electrical connection ..................................................................19
5. Installation..........................................................................20
5.1 General instructions................................................................... 20
5.2 Inspectionandmaintenance....................................................20
5.3 Start-up .........................................................................................20
5.4 Delivery inspection......................................................................20
5.5 Preparing for installation...........................................................20
5.6 Oildistribution............................................................................. 21
5.7 Electrical connection ..................................................................21
6. Mounting ............................................................................22
6.1 Check oil line seals...................................................................... 22
7. Functional description.......................................................24
7.1 B45-2 MF 2-stage burner .......................................................... 24
4.2 Examples of basic settings........................................................21
4.3 Brakeplateadjustment ............................................................. 22
5.4 Settings Damper motor, 2-stage .............................................22
5.6 Return Oil Pressure Switch........................................................ 24
6. Preheater ............................................................................25
6.1 Technicaldata ..............................................................................25
6.2 Adjustmentofpreheateroperatingthermostat ..................26
7. Pump E4NC-1069................................................................27
7.1 Technicaldata ..............................................................................27
7.2 Components.................................................................................27
7.3 Oil connection..............................................................................27
7.4 Changingthelter...................................................................... 27
7.5 Function ........................................................................................28
7.6 Preheating pump ........................................................................28
8. Service .................................................................................29
8.1 BurnerServiceSchedule,Oil ....................................................29
8.2 Component replacement intervals..........................................29
8.3 Combustiondevice ..................................................................... 30
8.4 Airdamper....................................................................................31
8.5 Replacementofdampermotor ...............................................32
8.6 Replacement of oil pump .......................................................... 33
8.7 Replacement of preheaters ...................................................... 34
8.8 Replacement of preheater overheating protector...............35
8.9 Check oil line seals...................................................................... 36
8.10 Checkpressurepistonnozzleholderseals ........................... 36
8.11 Replacementofpressurepistonandseat............................. 37
8.12 Immersion heaters for extra preheating ............................... 38
8.13 Check/serviceoilpre-lter.........................................................40
7.9 Replacement of electrical components..................................34
8. Fault Location.....................................................................35
8.1 Burner will not start....................................................................35
8.2 Burner will not start after normal use....................................35
8.3 Delayedignition ..........................................................................36
8.4 Noise in pump .............................................................................36
8.5 Pump pressure ............................................................................ 37
9. Logofuegasanalysis.....................................................38

4Bentone
165 105 01-2 2021-12-07
1. General Information
The burner may only be used for its intended purpose in accordance with the
product’s technical data.
We reserve the right to make design changes and cannot be held liable for any
misprints or typographical errors.
Modifying the design or using accessories or components that have not been
approved by Enertech in writing is strictly prohibited.
This Installation and Maintenance manual:
• is to be regarded as part of the burner and must always be kept near
the installation site.
• must be read prior to installation.
• is intended for use by authorised personnel.
1.1 Delivery inspection
• Make sure everything is delivered and the goods have not been
damaged during transit.
Transport damage must be reported to the shipping company.
• If something is wrong with a delivery, report it to the supplier.
1.2 Safety
- before installation:
• Installation and work on the burner and associated system
components may only be carried out by persons who have undergone
relevant training.
• The product is packaged to prevent damage from occurring when
handled – Handle the product with care! Lifting equipment must be
used to lift larger packages.
• The products must be transported/stored on a level surface in a dry
environment, max. 80% relative humidity, no condensation.
Temperature -20 to +60 °C.
- installation:
• The burner must be installed in accordance with local regulations for
 re safety, electrical safety, and fuel distribution.
• The premises must comply with local regulations pertaining to use of
the burner, and must have adequate air supply.
• The installation site must be free of chemicals.
• Fire extinguisher with Class BE recommended.
• Make sure when installing the burner that there is enough space to
service the burner.
• The electrical installation must be professionally carried out in
accordance with current mains electricity regulations and in a
professional manner.
• Make sure that the burner is suitable for the application (see Technical
Data).
• All components must be installed without being bent, twisted or
subjected to mechanical or thermal forces that affect components.

5Bentone
• Care must be taken by the installer to ensure that no electrical cables
or fuel lines are pinched or otherwise damaged during installation or
service.
• Flame tubes, fan wheels and air dampers, for example, may contain
sharp edges.
- before  rst start:
• The burner must not be put into operation without proper safety and
protection devices.
• Permitted ambient temperature during operation -10 to +60 °C. Max.
80% relative humidity, no condensation.
• The surface temperature of the burner’s components may exceed
60 °C.
• Handle with caution – the burner has moving parts, and there is risk
of crushing injuries.
• Seal inspections must be performed during installation and servicing
to prevent leakage.
•  tting and installation work has been completed and approved.
• electrical installation has been correctly performed.
•  ue gas ducts and combustion air ducts are not blocked.
• all actuators and control and safety devices are in working order and
correctly set.
• If the boiler is equipped with an access hatch, this must be equipped
with a hatch opening switch connected to the burner’s safety system.
• When in operation, the burner’s noise level can exceed 85 dBA – use
hearing protection!
- Operation:
• Carry out all stipulated settings, service and inspection work within
the set time.
• If the oil burner control has a solid red light, contact your installer.

6Bentone
165 405 06 2021-12-07
1.3 General requirements FAME/RME
• The fuel must meet the requirements of standard EN 14214 for FAME.
• The fuel must be stored and used according to the manufacturer’s
instructions. It should typically be used within 6 months of
manufacture. Fuel that is allowed to age loses its oxidation stability
and produces aggressive constituents. These may cause oxidation
damage to components in the oil system. The fuel should be stored in
a cool and dark area.
• The RME tank must be made of metal or dark coloured plastics
approved for the fuel.
• Burners fuelled by FAME (RME) are – and must be – equipped with
parts designed for this fuel. This applies to oil-related parts such as
the pump, solenoid valve, oil lter and hoses.
• Oil hoses must be of high-quality uoride rubber or PTFE intended for
FAME/RME, and the hoses must be tted with re-retardant sleeves in
order to satisfy requirements according to EN-ISO 6806.
• The installation should be performed as a single-pipe system. Copper
should be avoided the fuel system since the fuel and copper have an
oxidising effect on each other.
• Annual cleaning and checking for the presence of water in the tank
should be done to avoid corrosion and microorganisms.

7Bentone
165 205 88-3
2. Technical data
The burner is intended for:
• Operation in installations according to EN 303 and EN 267.
When operating with a hot air boiler, the LMO24.255 or LMO44.255 control unit must be used.
Fuels:
• FAME/RME according to EN 14214.
• Fuel oil according to DIN 51603-1.
• Fuel oil A Bio 10 according to DIN 51603-6.
2.1 Dimensions B 45-2 MF
* Min. recommended distance to  oor.
A Ø B Ø C D E F G H I * J
246 220 134 585 375 347 265 248 513 200
B
I
H
G
F
E
D A
C
d1
d2
d3
d1d2d3
(135) 225 14 ø (200) 224-270
2.2 Burner installation
2.2.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner  ange.

8Bentone
2.3 Working eld
* Used lower caloric value of 10.00 kWh/kg for rapeseed
oil in accordance with DIN 51605:2010-10.
-1,0
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
50 100 150 200 250 300 350 400 450 500 550 600
mbar
kW
9.0-55.0 kg/h
90-570 kW
160303-226
2.4 Setting for nozzle assembly and air damper
!Do not exceed working
eld.
0
10
20
30
40
50
60
70
80
90
100
50 100 150 200 250 300 350 400 450 500 550 600
160303-227-2
kW
Air settings
Nozzle assembly
Scale
Burner output

9Bentone
Nozzle: 45° Solid/semisolid
60° Solid/semisolid
80° Solid/semisolid
Pump pressure: 10 bar (8-25 bar) depending on pump model
2.6 Setting of ignition electrodes and brake
plate
!*NB It is important that
the spark does not strike
against the brake plate
or nozzle.
2.7 Recommended nozzle and pressure
Because of the various boiler types with varying furnace geometries and
furnace loads, it is impossible to commit to a certain scattering angle or a
specic distribution pattern.
It should be noted that the scattering angle and distribution pattern changes
with pump pressure.
!Theburnerpumpisfactorysetat24barandtestoperated
usingRoadway80.
a
b
c
de
a b c d e
2.5-3.0 2.0 6.5-7.0 2.0 6.0
Measurements according to EN 15036-1:2006
Alt.1 The noise level of the burner can be reduced by equipping the burner with
silencer. Installation must be done so it does not prevent air supply to the
burner.
Alt.2 The burner’s noise level can be reduced by connecting the burner’s air
intake to the air duct that opens into an appropriate location. Installation
must be done so it does not prevent air supply to the burner.
2.5 Technical specication
B 45-2 MF
Main supply, Operating 1) 230V 1~ 5,1A 50Hz IP20
Main supply, Preheater 400V 3x10A
Max fuse rating, Operating 10A
Max fuse rating, Preheater 3xC10A
NOX-class 2
Noise level 87dBA
1) Preheater excluded.

10 Bentone
2.8 Oil grades
The burner is tested and approved for pure rapeseed oil that complies with
standard DIN 51605:2010-10.
The burner is designed to be able to burn oils with a higher viscosity, both
of biological and fossil origin. The maximum viscosity with which the burner
is tested is 75 mm²/s, 0–130°c. Another way of dening which kind of oil
the burner can handle is that the oil must be of such a nature that it can be
pumped by the burner pump at the temperature the oil has at the point of
access to the pump.
The burner, without the pump, is designed to withstand the more corrosive
environment often created by oils of biological origin.
The Suntec E1069 pump is NOT designed for aggressive oils.
The burner pump has a service life of approx. 3–5 years if the oil is of a grade
that complies with standard DIN 51605:2010-10. If oil of a different grade
is used, especially if the oil contains contaminants such as particles, press
residue, metal swarf etc., or has chemical aggression, the pump may be
expected to have a signicantly shorter service life.
The pump is considered to be a wearing part and is not covered by the
warranty.
Pressure at the pump inlet must be -0.30 to max 2.0 bar. If there is a noise
from the pump, the oil is not pumpable at the current temperature or ow.
A transport oil pump combined with preheater is then needed to supply the
burner’s pump with oil for trouble-free operation.
The oil distribution system must be designed with the required equipment
such as lters, transport oil pump, preheater and reduction valve to provide
trouble -free operation. Max lter size is 120 µm and the oil may need to be
ltered in several steps.
In the case of a standstill in which the oil can be expected to change structure,
for example aging or phase transitions due to temperature and storage, the
burner must be ushed with fuel oil after the standstill. This procedure ensures
a good start after standstill.
!Alteredstructureoftheoilcangiverisetoalteredviscosity,
pumpabiltyandignitability.Thiscancausethepump,valves
and nozzles to get blocked.

11Bentone
2.9 Nozzle for bio oils, 20-28 bar
Gph 20 22 24 26 28
kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW
1,00 4,9 49 5,2 51 5,4 53 5,6 56 5,8 58
1,50 7,4 73 7,7 77 8,1 80 8,4 84 8,7 87
2,00 9,8 98 10,3 103 10,8 107 11,2 112 11,6 116
2,50 12,3 122 12,9 128 13,5 134 14,0 140 14,5 145
3,00 14,8 147 15,5 154 16,2 161 16,8 168 17,5 174
3,50 17,2 172 18,0 180 18,9 188 19,6 196 20,4 203
4,00 19,7 196 20,6 206 21,5 215 22,4 224 23,3 232
4,50 22,1 221 23,2 232 24,2 242 25,2 252 26,2 261
5,00 24,6 245 25,8 257 26,9 269 28,0 280 29,1 290
5,50 27,0 270 28,4 283 29,6 296 30,8 308 32,0 320
6,00 29,5 295 30,9 309 32,3 323 33,6 336 34,9 349
6,50 32,0 319 33,5 335 35,0 350 36,4 364 37,8 378
7,00 34,4 344 36,1 361 37,7 377 39,2 392 40,7 407
7,50 36,9 368 38,7 386 40,4 404 42,0 420 43,6 436
8,00 39,3 393 41,3 412 43,1 430 44,9 448 46,5 465
8,50 41,8 418 43,8 438 45,8 457 47,7 476 49,5 494
9,00 44,3 442 46,4 464 48,5 484 50,5 504 52,4 523
9,50 46,7 467 49,0 489 51,2 511 53,3 532 55,3 552
10,00 49,2 491 51,6 515 53,9 538 56,1 560 58,2 581
10,50 51,6 516 54,1 541 56,6 565 58,9 588 61,1 610
11,00 54,1 540 56,7 567 59,3 592 61,7 616 64,0 640
11,50 56,5 565 59,3 593 61,9 619 64,5 644 66,9 669
12,00 59,0 590 61,9 618 64,6 646 67,3 672 69,8 698
Pump pressure, bar
Rapeseed oil compliant with DIN 51605:2010-10 Viscosity: 36.0 mm2/ s, at 40 °C Preheater 160 °C.

12 Bentone
2.10 Nozzle for fossil oils, 22-28 bar
Pump pressure, bar
The table applies to oil with a viscosity of 4.4 mm2/s at a density of 830 kg/m3.
Gph 22 24 26 28
kg/h kW kg/h kW kg/h kW kg/h kW
1,00 5,52 65,44 5,76 68,35 6 71,14 6,22 73,83
1,50 8,66 102,73 9,05 107,3 9,42 111,68 9,77 115,9
2,00 11,01 130,53 11,5 136,33 11,96 141,9 12,42 147,25
2,50 13,78 163,42 14,39 170,69 14,98 117,66 15,55 184,37
3,00 17,21 204,06 17,97 213,13 18,7 221,83 19,41 230,21
3,50 19,13 226,93 19,89 237,02 20,8 246,7 21,59 256,01
4,00 21,06 249,8 22 260,9 22,9 271,56 23,76 281,81
4,50 23,88 283,22 24,94 295,81 25,96 307,89 26,94 319,51
5,00 27,44 325,44 28,66 339,91 29,83 353,79 30,96 367,14
5,50 31 367,66 32,38 384 33,7 399,68 34,97 414,77
6,00 34,71 411,63 36,25 429,94 37,73 447,49 39,16 464,39
6,50 38,71 459,13 40,43 479,55 42,08 499,13 43,67 517,97
7,00 41,38 490,8 43,22 512,62 44,99 533,55 46,69 553,69
7,50 44,2 524,22 46,17 547,53 48,05 569,89 49,86 591,4
8,00 46,72 554,12 48,8 578,76 50,79 602,4 52,71 625,14
8,50 49,1 582,27 51,28 608,16 53,37 632,99 55,39 656,89
9,00 52,51 622,73 54,84 650,42 57,08 676,98 59,24 702,53
10,00 55,92 663,19 58,4 692,68 60,79 720,96 63,08 748,18
11,00 63,04 747,63 65,84 780,87 68,53 812,76 71,12 843,44
12,00 70,75 839,1 73,9 876,41 76,91 912,2 79,82 946,63

13Bentone
2.11 Components
8
32
36
11
2425
31
15 14 13 12 10
9
72 3 654
1
34
33
35
29
30
16
26
2120
22
1917 18
28
27 23
1. Indicator lamp, preheater ON
2. Nozzle assembly control
3. Scale, nozzle assembly control
4. Solenoid valve NC max. load
5. Solenoid valve NO min. load
6. Measuring nipple, fan pressure
7. Valve block
8. Flame tube
9. Burner  ange
10. Pressure outlet pump
11. Pump
12. Return pump
13. Pressure control pump
14. Inlet pump
15. Immersion heater, pump
16. Ignition electrodes
17. Valve needle
18. Spring pressure piston
19. Pressure piston max. load
20. Valve seat
21. Front nozzle holder
22. Pressure piston min. load
23. Air intake
24. Brake plate

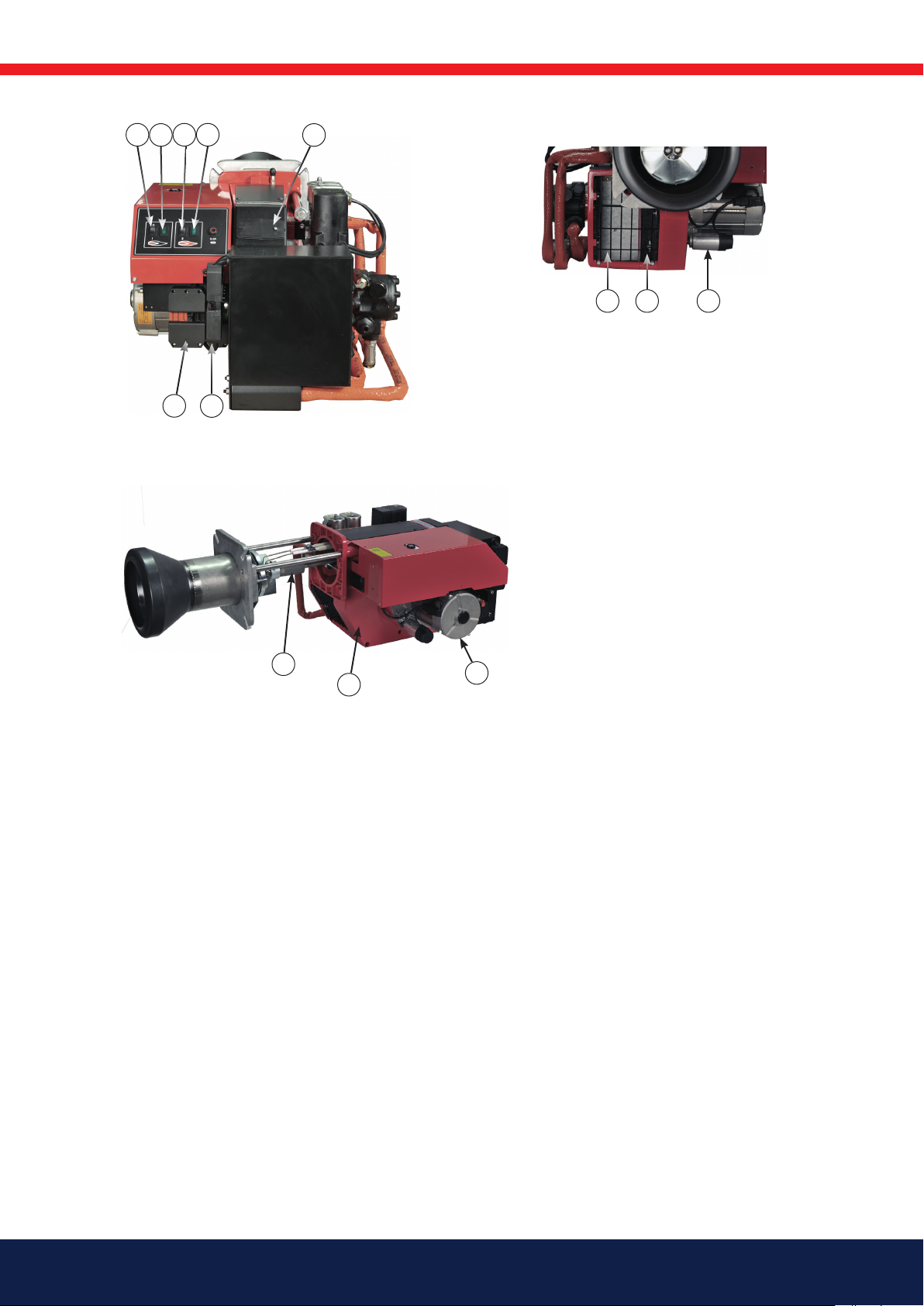

14 Bentone
4039
38
37 41
43 42
4544 46
48 47
23
25. Nozzle
26. Preheater
27. 5-pole Euro plug (feed preheater)
28. 4-pole Euro plug (control signal preheater)
29. Contactor for motor
30. Relay box
31. Ignition transformer
32. Fan wheel
33. Connecting pipe, valve block return
34. Connecting pipe, preheater valve block
35. Connecting pipe, pump preheater
36. Damper motor
37. Switch 0-I
38. Indicator, min. load
39. Switch I-II
40. Indicator lamp, maximum load
41. Inspection glass
42. 4-pole Euro plug (max. load)
43. 7-pole Euro plug (min. load feed)
44. Air damper
45. Air intake
46. Capacitor
47. Motor
48. Fan housing

15Bentone
E106300
165 205 76-2
3. Electric equipment
3.1 Safety system
The safety system (safety switch for hatches, doors, water level, pressure,
temperature and other safety devices) must be installed in the safety circuit in
accordance with current regulations for the system.
The cables of the safety system must be separated so that the outgoing signal
is not placed in the same cable as the incoming signal.
3.2 Wiring diagram
Bn Brown
Bu Blue
Gn Green
Ye Yellow
Gn/Ye Green/Yellow
Bk Black
Gy Grey
Rd Red
Wh White
Og Orange
Vt Violet

16 Bentone
3.2.1 Components
A1 Burner control
B1 Flame detector
E1 Preheater
F1 Operating fuse
H1 Lamp, low capacity
H2 Lamp, high capacity
H3 Alarm signal 230V
H4 indication preheater
K1 Contactor+Overload protection
K4 Directional relay
M1 Motor
M2 Damper Motor
S1 Operating switch
S2 Operating switch, stage 2
S3 Control thermostat
S4 Temperature limiter
S5 Micro switch for hinged door
S6 Control thermostat, stage 2
S7 Main switch
S10 Oil pressure switch, max/
lockout funktion
T1 Ignition transformer
Y1 Solenoid valve 1
Y2 Solenoid valve 2
X1 Connection terminal board
X2 Plug-in contact, boiler
X3 Plug-in contact, burner
X4 Plug-in contact, boiler
X5 Plug-in contact, stage 2, burner
X6 Plug-in contact, stage 2, boiler
X29 3-phase supply heater, burner
X30 3-phase supply preheater, boiler
X31 Preheater control, burner
X32 Preheater control, boiler
V1 Element 1
V2 Element 2
V3 Element 3
V4 Element 4
3.3 Function
1 Switch on operating switch and twin thermostat
A spark is formed. The air damper motor opens the damper to low load
position. The burner motor starts, the prepurge goes on till the prepurge
period expires and the solenoid valve 1 opens (2).
2. Solenoid valve 1 opens
Oil mist is formed and ignited. The photocell indicates a ame. The ignition
spark goes out after ame indication (see Technical data oil burner control).
3.
a
b
The safety time expires
If no ame is established before this time limit the control cuts out.
If for some reasons the ame disappears after this time limit, the burner will
make an attempt to re-start.
4 High/Low thermostat ON
The burner is in operating position and can now change between full load
and low load.
4-5 Operating position
If the burner operation is interrupted by means of the main switch or the
thermostat, a new start takes place when the conditions in accordance with
point 1 are fullled.
The oil burner control cuts out
A red lamp in the control is lit. Press the reset button and the burner re-
starts.
!Mains connection and
fuse in accordance with
local regulations.
3.3.1 Technical data
LMO14.113... LMO24.255...
15 s 25 s
16 s 26 s
3 s 5 s
< 10 s < 5 s
< 1 s < 1 s
< 1 s < 1 s
-5 - +60°C -20 - +60°C
45 µA dc 45 µA dc
5.5 µA dc 5.5 µA dc
160303-333
Preiginition time
Prepurge time
Postignition time
Safety lockout time
Reset time after lockout
Reaction time on  ame failure
Ambient temperature
Min detector current required (with  ame)
Max perm. detector current (without  ame)
Svart
-
+
QRB
12
11
Black Schwarz Noir
A1
DC μA

17Bentone
3.4 Colour codes
When the burner starts, three signal lights in the reset switch indicate the
normal sequence, as well as provide indication if something abnormal is
happening in accordance with the following table:
Preheater in operation Solid yellow
Ignition switched on Flashing yellow
Normal operation Solid green
Operation, poor ame signal Flashing green
Undervoltage Flashing yellow-red
Fault, alarm Solid red
False light Flashing red-green
Communication mode Fluttering red
3.5 Fault codes
When the red light for a blocked relay box comes on, you can get information
about what has caused the problem by pressing and holding the reset button
for 3 seconds.
The number of ashes below is repeated with a pause in between.
2 ashes No ame signal when safety time expires
4 ashes False light during start
7 ashes 3 x Losses of ame during operation
8 ashes Time-out for preheater *
10 ashes Incorrect wiring, internal fault or simultaneous occurrence of
two faults
* In order for this fault code to occur, the preheater shall not reach its
cut-off temperature within 10 mins. from switch on.
To return to normal operation: Press the reset button for 1 second.
If the reset button is instead kept pressed a second time for at least 3 seconds,
you can, via an interface, obtain the corresponding information on a computer
or ue gas analyser.
To return to normal operation: Press the reset button for 1 second.

18 Bentone
165 205 19-3
4. Installation
4.1 General instructions
Oil burners must be installed in accordance with local regulations. The installer
must therefore be knowledgeable of the regulations pertaining to oil and
combustion.
Only oil suitable for the burner must be used and then in combination with a
suitable oil lter installed before the burner’s oil pump.
If the burner is replacing an existing burner, ensure that the oil lter is
replaced or cleaned. Installation may only be performed by qualied
personnel.
Care should be taken by the installer to ensure that electrical cables and oil
lines are not pinched or otherwise damaged during installation or servicing.
4.2 Inspection and maintenance
The system must be maintained at the interval specied in the service
schedule. If the burner is in a dirty environment, service should be done at
more frequent intervals.
4.3 Start-up
In order to obtain the correct setting, a ue gas analysis and temperature
measurement must be carried out. Otherwise, there is a risk of soot build up,
poor eciency or condensation in the chimney. The system must be ne-tuned
at start-up. The temperature in the chimney at a depth of 0.5 m must be at
least 60 °C to prevent condensation.
4.4 Preparing for installation
Check that the burner’s dimensions and capacity range are suitable for the
relevant boiler. The power data on the rating plate refers to the burner’s
minimum and maximum power.
4.5 Oil distribution
In order to achieve good reliability, it is important that the oil distribution
system is designed correctly.
Take the following into account:
• Selection of pipe diameter, pipe length and height difference; see
Pump instruction.
• Pipelines are to be laid with the fewest possible number of glands.
• The pipes are to be laid so that the oil supply hoses are not subjected
to tensile stresses or become excessively bent when the burner is
swung out or removed for servicing.
• The oil lter should be installed so that the lter cartridge can easily
be replaced or cleaned.
• Parts in contact with oil must be selected in materials that are capable
of withstanding the medium’s physical properties.
• When installing oil hoses, check that the inlet and return hoses are
tted to the appropriate connection on the oil pump. The hoses must
be located so that they do not bend or become subject to tensile load.
• Bleed the oil system. The oil pump/oil preheater may be damaged if
run dry. The vacuum in the suction line should not fall below 0.3 bar
during start-up.
!Besuretollthe
burneroilsystem
before starting it for the
rsttime.
!Theoilltermustbe
installed before the
burner’s oil pump.

19Bentone
!Ifanyelectricalconnectionisusedotherthanthat
recommendedbyEnertech,theremaybeariskofdamageto
propertyandpersonalinjury.
4.6 Electrical connection
• Before work on the electrical connection, the current must be
disconnected so that the installation is isolated.
• Electrical connection must be done in accordance with the applicable
regulations.
• Burners must be connected to an all-pole switch.
• Connection must conform to the wiring diagram.
• Use appropriately sized fuses.

20 Bentone
165 405 34
4. Installation
4.1 General instructions
Oil burners must be installed in accordance with local regulations. The installer
must therefore be knowledgeable of the regulations pertaining to oil and
combustion.
Only oil suitable for the burner must be used and then in combination with a
suitable oil lter installed before the burner’s oil pump.
If the burner is replacing an existing burner, ensure that the oil lter is
replaced or cleaned. Installation may only be performed by qualied
personnel.
Care should be taken by the installer to ensure that electrical cables and oil
lines are not pinched or otherwise damaged during installation or servicing.
4.2 Inspection and maintenance
The system must be maintained at the interval specied in the service
schedule. If the burner is in a dirty environment, service should be done at
more frequent intervals.
4.3 Start-up
In order to obtain the correct setting, a ue gas analysis and temperature
measurement must be carried out. Otherwise, there is a risk of soot build up,
poor eciency or condensation in the chimney. The system must be ne-tuned
at start-up. The temperature in the chimney at a depth of 0.5 m must be at
least 60 °C to prevent condensation.
4.4 Delivery inspection
Make sure everything is delivered and the goods have not been damaged
during transit. If something is wrong with a delivery, report it to the supplier.
Transport damage must be reported to the shipping company.
4.5 Preparing for installation
Check that the burner’s dimensions and capacity range are suitable for the
relevant boiler. The power data on the rating plate refers to the burner’s
minimum and maximum power.
