Bergstrom eCoolPark 1.0 12V User manual

eCoolPark 1.0 12V –Ford Explorer
Developed by: Bergstrom Inc.
Updated 2/28/2023
Installation Manual
The information contained herein is proprietary to Bergstrom Inc and/or its subsidiaries shall not be
reproduced, copied, or disclosed in whole or in part, or used for manufacture or any other purpose,
without prior written permission of Bergstrom Inc. The only controlled version is that viewed
electronically on the designated Bergstrom intranet site.
2390 Blackhawk Road ● P.O. Box 6007 ● Rockford, IL 61125 ● www.nitesystem.com ● 1-866-204-8570

Introduction……………………………………...……………………0-3
Before You Start……………………………………….……………..0-5
Parts List…………………………………………………………..….0-9
Tools List……………………………………………………………0-12
Installation Procedures………………………………………………..1-1
Overview………………………………………………………...1-2
Disconnect Power Source and Reclaim OEM Refrigerant..…….1-3
Prepare and Loose Fit eCoolPark Unit..………………………...1-4
Run Hoses (loose)……...………………………………………..1-5
Identify OEM Refrigerant Tubing/Hoses and Install T Fittings...1-6
Fitting Assembly………………………………………………...1-7
Connect to Hoses………………………………...…………….1-10
Secure Hoses and Connect to Unit….…………………………1-12
Leak Check and Charge System……………………………….1-14
Checking for a Leak…………………………………………....1-15
Electrical Installation…………………….…………………………...2-1
Operating Instructions………………………………….……………..3-1
Troubleshooting………………………………..……………………..4-1
Appendix……………………………………………………………...5-1
Table of Contents

Introduction 0-3
Congratulations!
You have chosen the premier no-idle climate control system on the market today –the
eCoolPark 1.0 from Bergstrom Inc.
The eCoolPark 1.0 is a powerful 12 VDC system that keeps the cab compartment cool in hot
weather without having to idle the vehicle engine. This system is intended to provide no-idle
cooling for the cab. The system consists of an electrified compressor unit installed in the
trunk of the vehicle. The system integrates into the existing A/C hoses/tubes and utilizes the
existing evaporator and condenser. Check valves are used to isolate the eCoolPark system
from the OEM refrigeration system. It not only dramatically reduces fuel burned, but is also
extremely environmentally friendly.
The eCoolPark unit must remain upright at all times. The refrigerant inlet/outlet
at the bottom of the unit should be capped at all times.

Introduction 0-4
This specific set of instructions is intended for use only on a Ford
Explorer. For another vehicle’s instructions or for a universal set,
contact a Bergstrom employee or visit:
https://us.bergstrominc.com/nite-manuals-support/
A typical installation of the eCoolPark 1.0 system takes between 6 and 10 hours. This
manual contains step-by-step installation instructions and is divided into three main
sections:
•Installation Procedures
•Electrical Installation
•Operating Instructions
If relocation or reinstallation of any pre-installed equipment is necessary, please refer to the components
manufacturer’s instructions or safety guidelines for proper installation.
Before starting, we recommend the following to help
in the installation process:
1. Lay out all parts check to make sure
everything is included. You may have extra
hardware after the installation is complete. If
you are missing any parts, call 1-866-204-
8570.
2. Please keep the compressor unit in an upright
position at all times to prevent damage. If
unit has been tipped, place upright for 6 hours
prior to running.
3. Be sure you have all the required tools by
consulting the “Tools Required” tab.
4. Read through the installation manual before
beginning to understand the order of
installation.
5. Make sure all workers have proper lighting
throughout the install.
6. Make sure to wear proper safety equipment at
all times.

Picture Symbols
Observe all warning and caution notices posted
on equipment and in instructions and/or
manuals. Pay special attention to directives
prefixed by symbols and signals indicated as
“Warning”, “Caution”, and “Note”.
Do not disregard any of these alerts
Warning
This picture symbol with the remark “Warning”
refers to the risk of imminent danger and can be
vital to one’s health. The message will convey
what the hazards are, consequences of those
hazards, and/or how to avoid such injury. Under
certain circumstances, failure to comply with
these instructions can cause severe or life-
threatening impairment.
Caution
This picture symbol with the remark “Caution”
refers to a hazardous situation for a person
and/or the product. Failure to comply with these
instructions can cause bodily injuries to
yourself and/or others as well as damage to
machinery.
Note
This picture symbol with the remark “Note”
contains information for use and helpful tips to
assist an individual when repairing a specified
unit or vehicle.
Before You Start 0-5
Precautions
Installation, service, and repair of these units should be
solicited only by trained service technicians who are
acquainted with standard service instructions and
training material.
All equipment should be installed in accordance with
accepted principles and unit installation instructions.
Extreme caution should be observed when
troubleshooting electrical components. These messages
are for your protection and information. Failure to follow
these alerted messages may cause bodily injuries to
yourself and/or others as well as damages to the
specified unit.
Health, Safety, and Environmental Policy
Under any condition Bergstrom Inc. is committed to
protecting the health and safety of all working
individuals at or visiting our site. We strategize,
administer, conduct, and supervise our efforts in
agreement with best practice. Hence, we want to ensure
all workers have a clear understanding of their
accountabilities with that of the company.
Environmental Concerns
Public awareness of and education about the benefits of
using green technologies, coupled with energy
efficiency, has created renewed interest within the
HVAC industry.
When refrigerant is discarded attempt to reclaim and
recycle it. To preserve our environment, follow
appropriate rules and regulations when disposing of any
resources. It is under our obligation to put in place a
series of practices and procedures that, when taken
together, result in an environmental management system.
Disclaimer of Liability
Descriptions and specifications within this manual were
in effect at the time of production. Models and
specifications are subject to change.

Note
All equipment must be serviced by trained
professionals only.
R134a service equipment and/or vehicle air
conditioning systems should not be pressure or
leak tested with compressed air.
•Air conditioning system may consist of
R134a fluorescent dye to determine leak
detection. Examine with a high intensity
ultraviolet light system.
•Specified labels on unit will identify
systems that contain fluorescent dye.
Note
Follow the handling procedures listed below:
•Only use the specified PAG oil from a
sealed container. PAG 46, 100, and 150
•After use, immediately reseal containers
of oil.
•To avoid contamination, do not return
oil to original container once it has been
dispensed. Additionally, never combine
oil with other refrigerant oils.
•Do not allow PAG oil to come in
contact with styrofoam parts. In such
occurrences, damage may result.
•Do not allow PAG oil in contact with
vehicle paint. In such occurrences,
damage may result.
•In order to diminish the amount of
moisture that enters the system, any
connection in the refrigerant loop that is
open must be closed as soon as possible.
•It is recommended for components that
are replaced to have dust caps left in
place until the component is ready to be
installed in the refrigerant loop.
•Once components are removed from the
refrigerant loop they should have dust
caps in place as soon as possible in
order to limit and minimize moisture
intrusion.
Before You Start 0-6
Precautions for working with HFC134a
(R134a) Refrigerant and Polyalkylene Glycol
(PAG) Refrigerant Oil
Warning
•Do no breath A/C refrigerant, oil vapor, or mist.
Exposure may cause irritation to the eyes, nose,
and throat.
•Instances where there are accidental system
discharges; ventilate work area before resuming
service.
•For additional health and safety information,
contact the refrigerant and oil manufacturers.
Caution
•The air conditioning system uses HFC134a
(R134a) refrigerant and polyalkylene glycol
(PAG) refrigerant oil, which are not
compatible with CFC-12 (R12) refrigerant,
mineral oil, or PVE oil. If the refrigerants or
oils are mixed, the compressor may fail.
•Do not attempt to use R-12 servicing equipment.
Failure to follow this statement may result in
personal injury or equipment damages.
•Use service equipment that is only U.L listed and
certified in which meets the required standards of
SAE J2210 to remove HFC134a (R134a) from
the air condition system.
•Before testing, please authenticate the HFC134a
(R134a) refrigerant in the vehicle system and
recycling equipment / recovery tank are
contaminate free by using a refrigerant identifier.
Note
The air conditioning system is designed only for certain
polyalkylene glycol (PAG) refrigerant oil for HFC134a (R134a)
A/C systems and HFC134a (R134a) components. The only
recommended oil for this particular system is PAG oil (PAG 46,
100, and 150). The PAG oil is very hygroscopic, meaning it absorbs
water. Without appropriate sealing, the oil will become moisture
saturated and should not be used.

•When handling corrosion inhibitors and lubricating
oils avoid exposure to eyes and repeated contact to
skin for they may contain alkali. In case of contact,
immediately wash skin with soap and water. When
cases are severe, please contact a physician. Store
toxic products and substances out of reach of children.
•Naptha and Methyl Ethyl Ketone (MEK) are
flammable and hazardous materials and must be used
with attentiveness. Follow manufacture guidelines to
ensure safety when handling materials. Store toxic
products and substances out of reach of children.
•When operating on a vehicle be attentive and cautious
for hot parts on systems that have been turned off,
exhaust gas flow, and hot fluids in lines, tubs, and
compartments. Direct contact to skin may cause
severe burns.
•Always use tools that are in good working condition.
Service technicians must be trained and have proper
understanding on how to use the tools before
administering service.
•When replacing items use the same and/or equivalent
fastener part number at all times. Conversely, do not
use a fastener of reduced quality if replacement is
needed.
•To prevent bodily injury or harm do not perform any
repairs when impaired, fatigued or after consuming
alcohol or drugs that can impair one’s functioning.
•According to several states and federal agencies
within the United States of America it has been
evident that used engine oil can be carcinogenic,
causing reproductive toxicity. That being said, avoid
inhalation of vapors, ingestion, and prolonged contact
with used engine oil.
•Be mindful that liquefied petroleum gas is denser than
air and can accumulate near the floor, in slumps, and
low-lying area.
•Close the manual fuel valves prior to performing
maintenance and repairs and when storing the vehicle
inside.
•California Proposition 65 Warning –Diesel engine
exhaust and some of its constituents are known to the
state of California to cause cancer, birth defects, and
other reproductive harm. To request more information
regarding the chemical exposures that are the basis of
the warning, contact the manufacture of the product.
Before You Start 0-7
Important Safety Notices
Warning
Ill-advised practices, negligence, and/or ignoring warning
signs may cause death, personal injury, equipment or property
damages.
Before proceeding please read and understand all safety
precautions and warnings. The list as follows contains the
general safety provisions that must be followed.
Work areas should be dry, well lit, ventilated, and free of
clutter such as loose tools, parts, ignition sources and
hazardous substances. All personnel must be aware of
hazardous conditions that can coexist.
•Wear protective shoes when working. Opened toed
shoes are not allowed.
•Rotating parts can cause cuts, mutilation, or
strangulation. Be alert at all times when operating
machinery.
•When working, do not wear loose-fitting or torn
clothing. Additionally, do not wear jewelry. These are
hazards that may cause personal injury.
•Before beginning any repairs, disconnect the battery
(negative [-] cable) from both battery boxes and
discharge any capacitors.
•To prevent accidental engine starting disconnect the
air starting motor, if equipped.
•To prevent personal injury or harm to the specified
unit place a “do not operate” tag in the operator’s
compartment or on the controls.
•Before operating, allow the engine to cool.
•Always use blocks or proper stands to support the
vehicle or vehicle components before executing
service repairs. It is important that one does not
operate on anything that is supported only by lifting
jacks or a hoist.
•To reduce the probability of personal injury, use a
hoist or get assistance when lifting components that
weigh 23 kg [50 lbs.] or more. Make certain all lifting
devices such as chains, hooks, or slings are in good
condition and are of the correct load capacity.
Furthermore, all lifting devices must be positioned
correctly. When needed, always use a spreader bar.
Also, lifting hooks must not be side-loaded.

Before You Start 0-8
The eCoolPark Unit Must Remain Upright at All Times.
The refrigerant inlet/outlet at the bottom of the unit should
be capped at all times.

Parts List 0-9
Ford Explorer Kit - #1002386000
Part Number
Description
Quantity in Kit
1002904433
eCoolPark Unit 12V
1
1002694868
Kit, HVAC –Hose Routing
1
1002777315
Kit, HVAC –Spare Parts
1
1002698610
Kit, HVAC –eCool 1.0 M2
Mounting Bracket
1
514100
Washer - #10 –M5 Flat
2
600283
Screw, Self-Drill
12
650984
Fuse, 30 Amp ATC
1
1000021997
Fitting, #6 90 Fem o-ring
1
1000022005
Fitting, #8 90 Fem o-ring
1
610009
Nut, M10 x 1.5 Serrated THD Hex
2
1002349160
Sheet Metal Component –Top
Bracket
1
1002346508
Wire Harness –eCoolPark Main
Vehicle
1
1002368371
Wire Harness –eCoolPark
Ignition
1
1002385749
Weld-Assy –Lower Mount
1
1002609482
Wire Harness –OBDII CAN
Jumper
1
1002399500
Electrical Component, Misc –
Relay 898H IC
1002406632
Wire Harness –Explorer
Condenser
1
1002688919
Decal –eCoolPark Charge
2
1002783102
Fitting, Steel –CV to 6H
1
1002753993
Tube Assy, Steel –90 CV to 8H
1
1002907693
Fitting, Steel –Check Valve - 8
1
1002786080
Fitting, Steel –Discharge Tee
1
1002631959
Fitting, Steel –#14-14-8 T Splice
1
1002973160
Lubricant –PAG 46-H 4oz
1
1002974395
Cardboard - Template
1
1001260067
Hose, #6 Bulk 4890 Refrig
25 ft.
1001260070
Hose, #8 Bulk 4890 Refrig
25 ft.
For Missing Parts:
NITE Technical Service Line: 1-866-204-8570

Parts List 0-10
Electrical Kit - #1002407230
B223109
Fuse Holder
2
B360113
Tie - Plastic
50
520260
Grommet, Flexible
2
600283
Screw, Self-Drill
2
640377
Bag, 3 x inch Static
2
640378
Bag, Plain Plastic 12 x 12
1
651459
Iso-Relay, 12V
2
651462
Tubing Heat Shrink
6
670136
Terminal Ring 5/16 4 AWG
4
670137
Terminal Ring 3/8 4 AWG
2
1000174286
Fuse holder, Mega Bolt-on
1
1000230085
Fuse, 5A ATO
2
B223106
Fuse, 20A
1
1000247777
Terminal 3/8” Ring 14-16 AWG
Sealed
3
1000247778
Terminal 3/8” Ring 18-20 AWG
Sealed
4
1000247779
Butt Connector Step 14-16 to 18-
20
2
1001268553
Fuse, Mega 80A Red
1
1001268595
Terminal, Electric –12-10 Butt
Splice
1
1002404439
Electrical Comp, Micro2 Add-a-
Fuse
1
1002404448
Electrical Comp, Fuse, 5A Micro2
1
1002404450
Electrical Comp, Light, Indicator
1
1002618099
Switch –Rocker, eCoolPark –
12V
1
eCoolPark Electrical Service Kit - #10028739006 (Only 1 per upfitter needed)
1002519049
Printed Material Website Details
1
1002839003
120 Ohm Termination Resistor
2
1002839004
Peak USB Adaptor
1
1002839005
Wire Harness –eCoolPark Service
1
Refrigerant Hose Clamp Ratcheting Plyers (Only 1 per upfitter needed)
1001458325
Hose Crimp Plyers
1

•Electrical Tape
•Hose Cutters
•#4 Professional Grade Cable Crimpers
•Work Light
•Torque Wrench up to 150 in/lbs.
•U-barrel Crimpers
•Pop Rivet Gun
•Upholstery Tools
•Deutsch Crimpers
•Step Bit
•Refrigerant Hose Clamp Ratcheting
Plyers
•Refrigerant Machine or the Following:
oTank of Virgin R-134a
oRefrigerant Scale
oVacuum Pump
oGauge Set with Hoses
oRecovery Machine
This list is subject to change. Some tools may not be used.
Tools List 0-11
•Drill Bit Set
•Hole Saws (up to 2”)
•Electric/Air Drill
•Screwdrivers/Assorted Bits (Flat and
Phillips)
•Impact Gun
•Air Saw/Jigsaw (Sheet Metal/Steel
Cutting)
•Torx Head Bit Set (T20 and T25)
•Metric and SAE Wrenches
•1/4” and 3/8” Drive Ratchets
•Metric and SAE Socket Set
•Wire Cutters (up to 2/0)
•Terminal Crimpers
•Wire Strippers (up to 2/0)
•Heat Gun
•Razor Knife
•Painters Tape
•Snake Tool

Section 1
Installation Procedures
eCoolPark 1.0 12V
Ford Explorer
Installation Manual

Installation Procedures 1-2
The installation of this no-idle A/C system is done in several parts:
•The eCoolPark 1.0 unit includes a compressor, an ECU (electric control
unit), and a cooling fan. It is installed in the trunk of the vehicle.
•The OEM refrigerant lines of the vehicle are altered using “T” fittings and
hoses are run from the T’s to the eCoolPark unit.
•Electrical harnesses are routed between the eCoolPark unit, power source,
and driver compartment. Additionally, a harness is routed to jump in-
between the OEM condenser harness.
It is important that the technician completing this installation read through this
manual and plan out the steps forthcoming. Certain mistakes like cutting
hoses to short or drilling into refrigerant hoses can cause long installation
delays and/or component damage.
Hose Routing Preview
The following steps will provide a description of the procedure outlined above
in detail.
PLEASE READ!

Installation Procedures 1-3
1. Disconnect Power Source and Reclaim OEM Refrigerant
a. Disconnect the desired power source for the duration of the install. The vehicle main start battery
can remain connected.
b. Reclaim the existing refrigerant in the OEM system using a refrigerant machine or refrigerant
reclamation components.
c. Reclamation should be done by a Section 609 certified technician.
d. If a Robinair or refrigerant machine equivalent is not available, components needed include an
R-134a or R-1234yf recovery machine, a recovery tank, and a gauge set with SAE hoses.

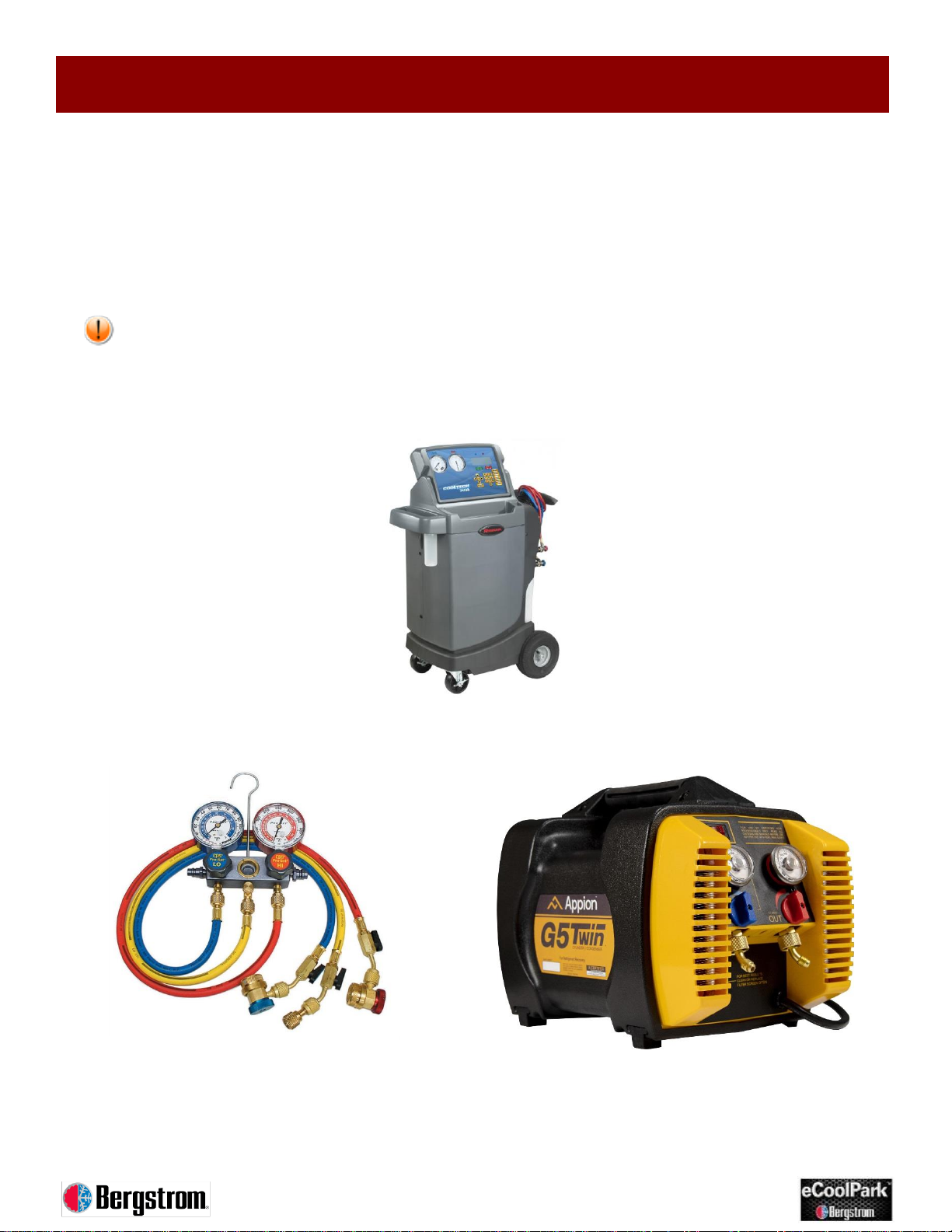

Figure 1.1: Robinair Machine
Figure 1.3: Recovery Machine
Figure 1.2: Gauge Set

Installation Procedures 1-4
2. Prepare and Loose Fit eCoolPark Unit
a. Install the 2 mounting feet on the cooling fan side of the eCoolPark unit using the provided 10-
32”screws. Additionally, install 1 more mounting foot on the bottom left corner of the unit.
b. Attach the lower support bracket to the unit using the provided nuts. Attach the upper support
bracket to the unit by removing the top right screw on the unit.
c. The unit will be installed in the driver side rear compartment shown in figure 1.4 and 1.5. The
plastic coverings in this location will have to be temporarily removed.
d. Pop out the grommet in the floor of the vehicle and enlarge the opening with an airsaw (enough
to fit 2 hose fittings, without rubbing, through the hole). Also remove the 2 bolts located in this
region (figure 1.7).
e. If needed, mark and remove the necessary portion of the OEM body seam sealer to allow the
eCoolPark unit to sit level. (figure 1.6)

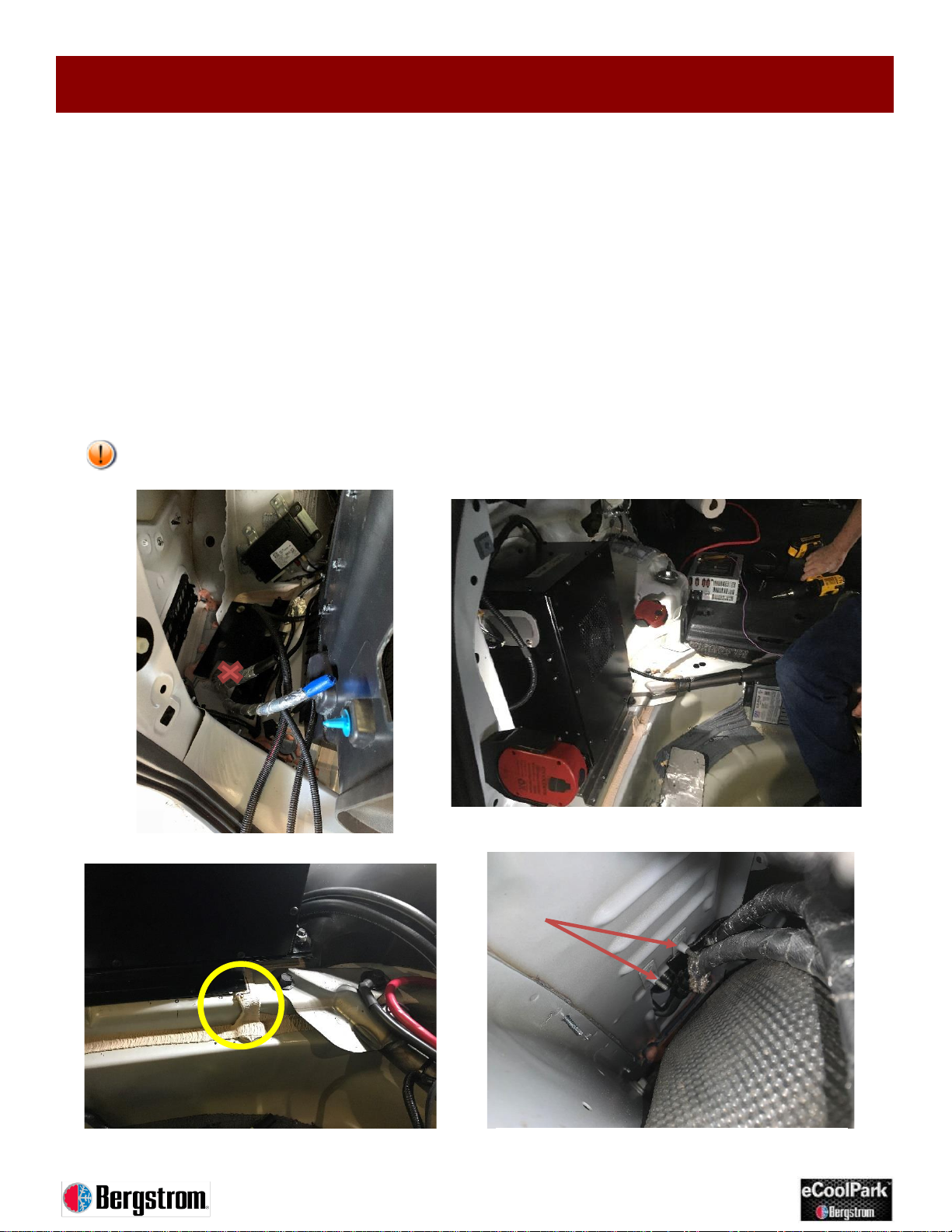

Figure 1.4: Floor of Unit Location
Figure 1.5: Left Rear Side Compartment w/ Unit Installed
Figure 1.6: Portion of Seam Sealer to Remove
Figure 1.7: Bolts that require removal

Installation Procedures 1-5
3. Run Hoses (loose)
a. Locate the position where the hoses will exit the interior of the vehicle (marked with X in figure
1.4).
b. Verify the opening is large enough for both hose fittings. If not, use an air saw to enlarge the
hole. Before drilling check for obstruction under the vehicle.
c. Locate the 2 different sized hoses in the kit and wrap the entirety of each hose separately with
heat shield tape (figure 1.9). Leave 1 foot of un-taped hose on each end. Tape the ends of the
hoses with masking or painters tape to avoid contamination.
d. Route the hoses from the unit, under the vehicle, over to the passenger side, and into the engine
bay. Securely zip tie the hoses to the existing A/C lines and leave the ends loose for now. Be
sure no hoses are rubbing against rough or sharp surfaces.
e. The hoses should be wrapped in heat shield tape completely in-between the unit and engine bay.
f. Vehicle technicians should identify the best way to route these hoses. Stay away from hot
components such as exhaust.

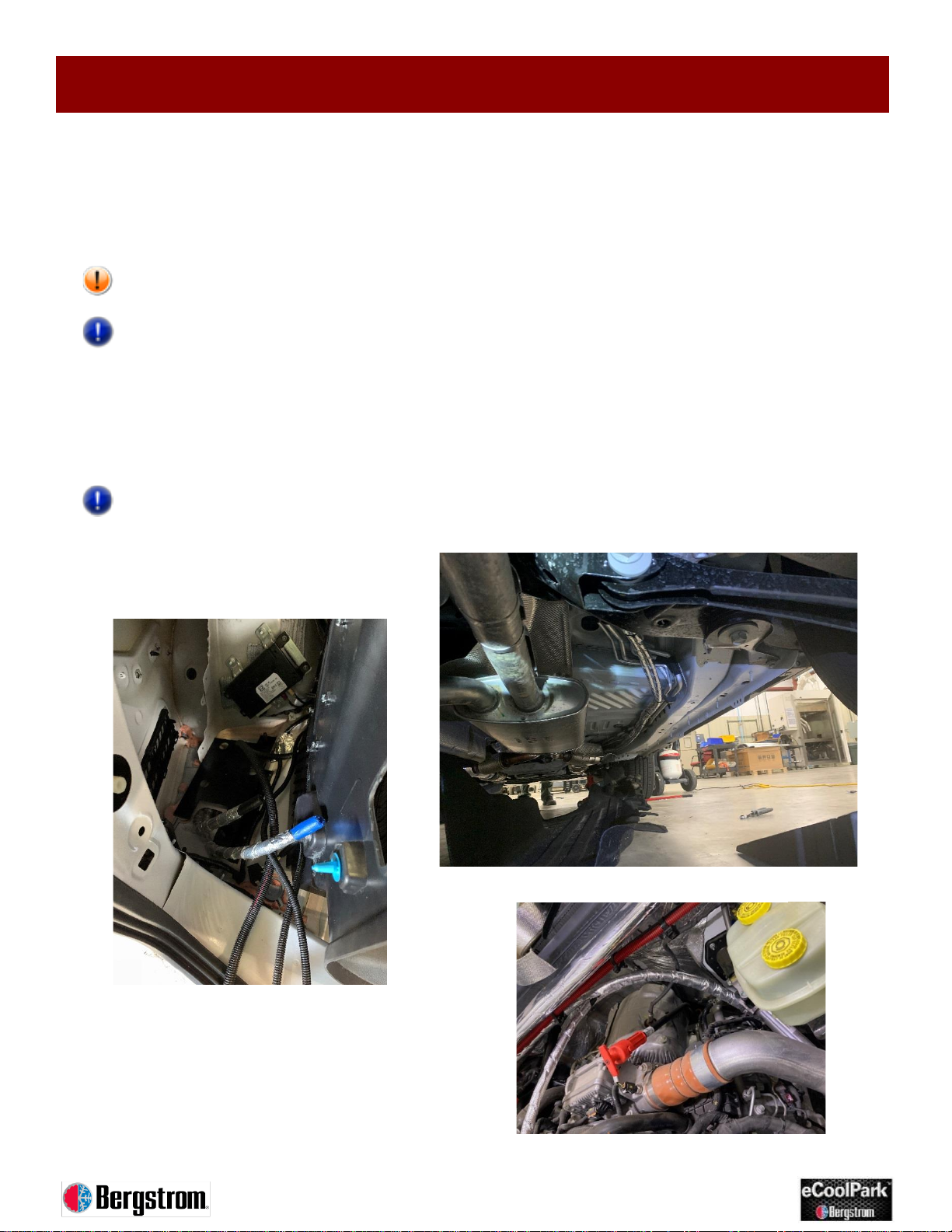

Figure 1.8: Location of Hose Routing Hole
Figure 1.9: Hoses Routed Under Vehicle
Figure 1.10: Hoses Routed into Engine Bay

Installation Procedures 1-6
4. Identify OEM Refrigerant Tubing/Hoses and Install T Fittings
a. Take a minute to study the schematic shown in figure 1.11. Note the T locations in which the
eCoolPark system uses to access the OEM refrigerant system.
b. Identify the refrigerant lines where the T’s will be inserted. These will be the compressor
discharge line (compressor to condenser) and the compressor suction line (TXV to compressor).
c. Confirm that the hose in the suction and discharge section of OEM hose is suitable for the
fittings provided in the Bergstrom kit. Hose should be Galaxy 4890 ¾ in. and 13/32 in. If not
labeled, measure the ID and OD and consult figure 1.16.
d. Assemble the discharge T and check valves per page 1-7. Remove the OEM discharge line by
loosening the nuts on the compressor and condenser connections. The OEM suction line can
stay inserted in the vehicle. Mockup the suction 14-14-8 T on the suction line (figure 1.12). The
discharge line will have a T hose fitting inserted in the hose section of the discharge line (figure
1.13).
The arrows on the check valves must point in the direction of flow

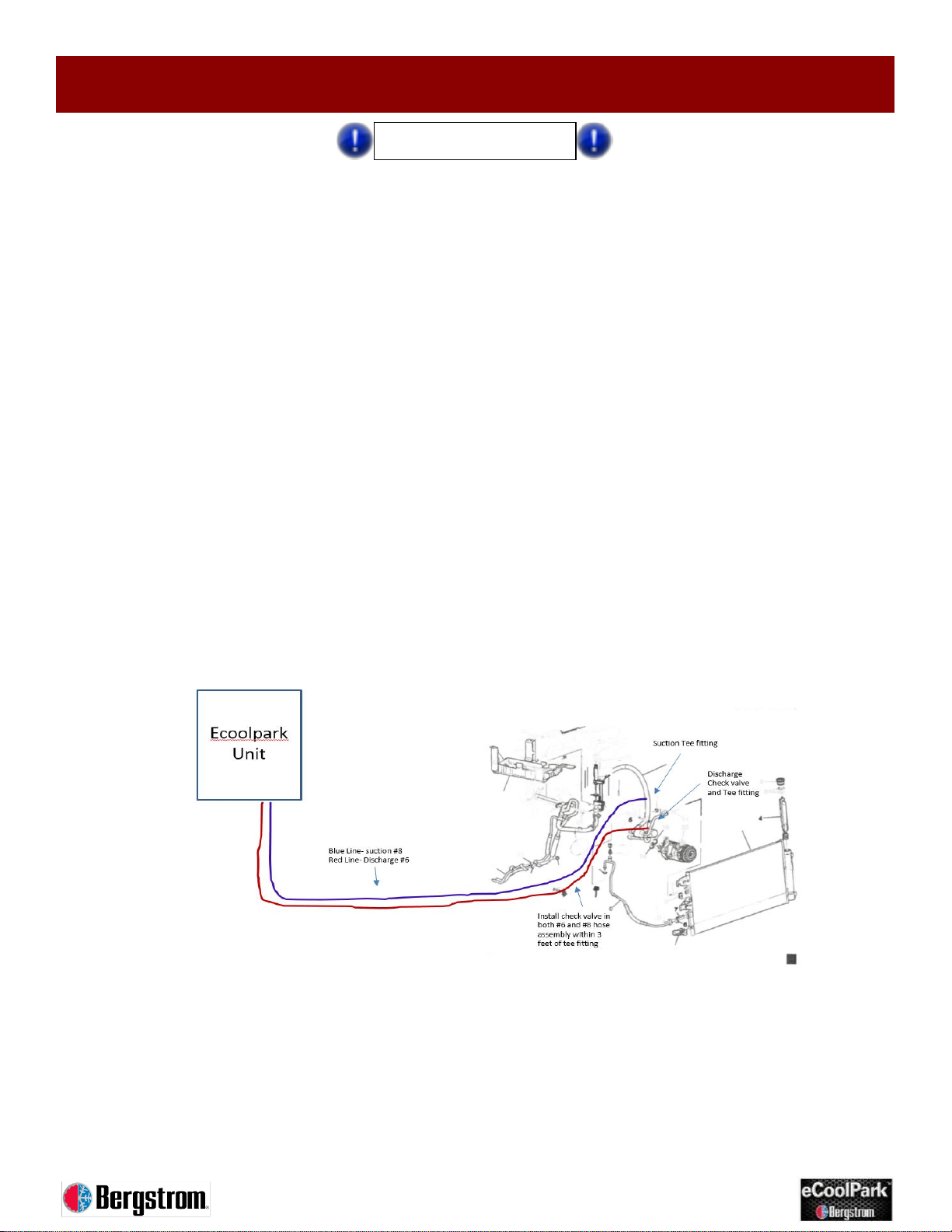

Figure 1.11: eCoolPark 1.0 Schematic

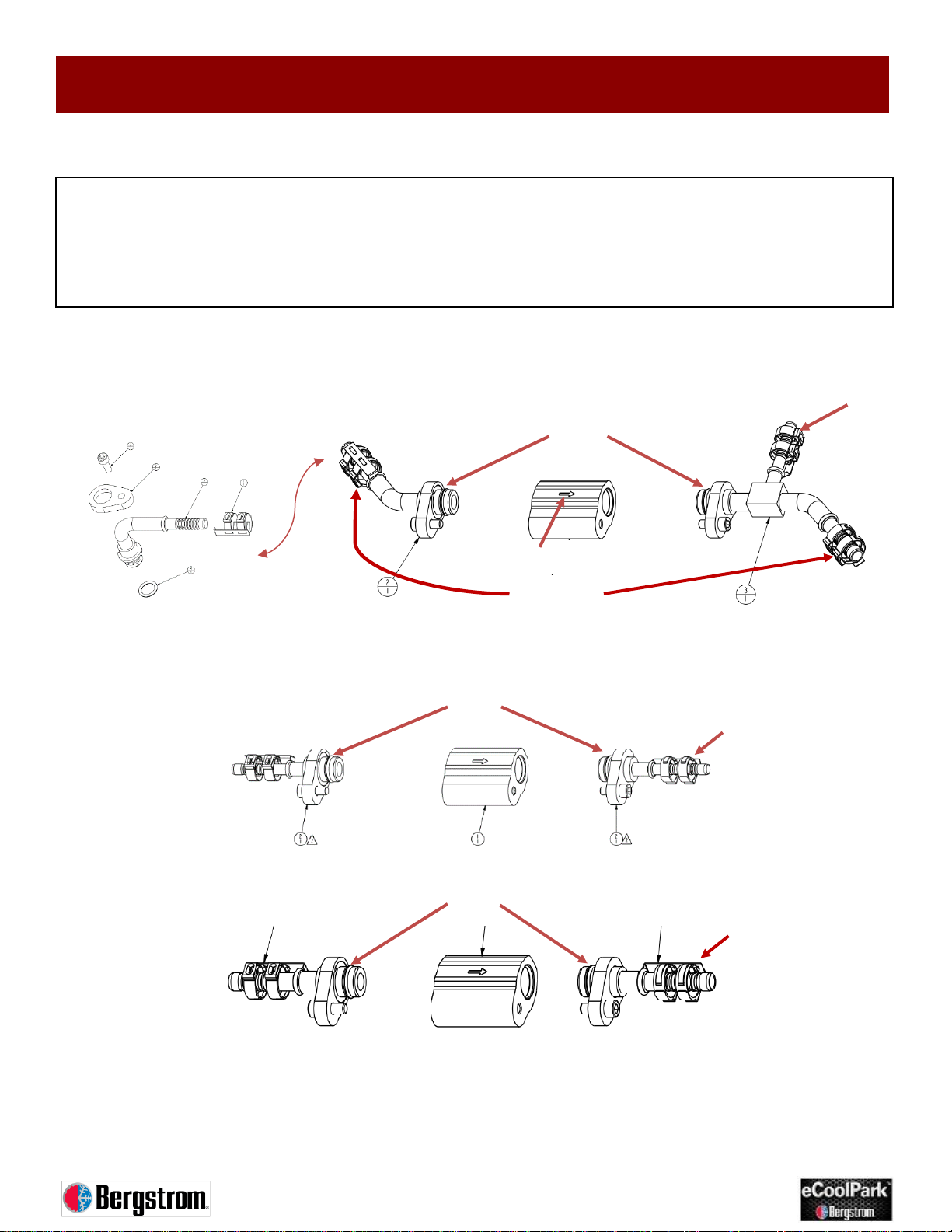

Assemble Discharge T Fitting and Check Valves
Installation Procedures 1-7
Assemble the discharge T fitting and check valves outside of the vehicle. All fittings are
bagged with required o-rings and hardware. Be sure to attach o-rings to check valve
fittings and add a small amount of oil to lubricate their assembly. Torque Allen bolts to
7 Nm (62 inch-lbs). Fittings will still rotate inside check valve assembly when tightened.
Discharge T
o-ring
Red clamp
Black clamp
Check Valves
o-ring
o-ring
Red clamp
Black clamp
High side check
valve (small
diameter hose)
Low side check
valve (larger
diameter hose)
Arrow towards T
In some cases, the 90-
degree fitting may work
better than the 45.

Installation Procedures 1-8
Suction Line
Discharge Line
Mockup the T fitting on the hose and use
a marker to mark the hose at the end of
the barb fitting. Cut the hose and insert
fitting into hose using oil lubricant.
Make sure to insert hose clamp before
attaching hose!!!
Cut the hose in the OEM discharge line
5 inches from the condenser port as
shown. Cut the hose 2 ¼ inches from the
compressor port as shown. Install the
assembly in the OEM discharge tubing
and reinstall in vehicle. !!!!Try cutting
the hose long at first and insert the entire
line into the vehicle to see how it fits.
Remove, cut more hose back, and insert
again until the entire line fits correctly.
The check valve will insert on the OEM
compressor side. Leave the eCoolPark
leg of the T fitting in an upwards
position, NOT DOWN.
Make sure to insert hose clamp before
attaching hose!!!
Figure 1.12: Suction Line T
Figure 1.13: Discharge Line Alteration

Installation Procedures 1-9
Check Valves
There are a total of 3 check vales inserted into the system. One is attached to the new
discharge T fitting and should have been inserted with the previous instruction. The other
two check valves are inserted into the hoses of the eCoolPark section using straight hose
fittings. Insert the 2 check valves in the eCoolPark hoses using the provided #6 & #8
straight check valve hose fittings. Page 1-7 shows the assembly with the correct color hose
clamps.
Insert the discharge check valve close to the T fitting (in the engine bay or close to it)
and the suction check valve close to the eCoolPark unit (near the eCoolPark
compressor unit). Arrows on check valves must point in direction of flow.
