BESAFE IZI COMFORT ISOFIX User manual

ECE R44/04
E
C
www.besafe.eu
6m
GB
Usermanual
Tested and Approved
ECE R44/04
Complies with revised
standard:
0+/1
ECER44/04
SEMI-UNIVERSALO-18KG
UNIVERSAL9-18KG
E
5
R 44 04201(SEMI-UNIVERSAL)
R 44 04202(UNIVERSAL)

2
Vital information 3
Preparing to install 4
REARWARD FACING Before installation 6
REARWARD FACING Installation 8
REARWARD FACING Warning: potential misuse 11
REARWARD FACING Removing 12
FORWARD FACING Installation 14
Sitting positions 18
Car seat protection 18
After an accident 19
Guarantee 19
Removing and refitting the cover 20
Important advice 22
Point of sale information 23
Thank you for choosing Besafe iZi Combi ISOfix.
Contents
It is important that you read this user manual BEFORE
installing your iZi Combi ISOfix. Incorrect installation could
endanger your child.
BeSafe advises that child seats should not be bought or
sold second-hand.
Second-hand car seats
!

3
Vital information
!iZi Combi ISOfix can be installed rearward-facing. In this-
position the car must be equipped with ISOfix anchorage
points. When iZi Combi ISOfix is installed forward facing, the
3-point-belt has to be used.
BeSafe iZi Combi ISOfix is approved in groups 0+ and 1,-
rearward-facing from 0-18 kg and group 1 forward-facing,
from 9-18 kg.
We recommend to use the seat as long as possible in the-
rearward facing installation.
iZi Combi ISOfix is not allowed to mount in front passenger-
seat with an activated airbag.
For children under 1 year and/or under 10 kg weight, we-
recommend that the most reclined sitting position is used.
We recommend that this seat is used only for children who-
can sit upright, so not younger than 6 months.
The floor support must always be used when it is installed-
rearward-facing in cars with ISOfix . When installing forward
facing the floor support and the front brace shall not be
used.
When installed with a 3-point-belt: Only suitable if the-
approved vehicles are fitted with 3-point-belts, approved to
UN/ECE Regulation No. 16 or other equivalent standards.
The harness must always be used when the child is in the-
seat.
Under the fabric cover we use EPS foam. Do not push or pull-
too hard against the foam, since you might damage the foam.

4
1. Internal harness
2. Harness adjustment
3. Front brace
4. Switch for ISOfix connectors
5. Lever for sleeping positions
6. Ratchet for front brace
7. ISOfix connectors
Crucial parts
Preparing to install
8. Release button for ISOfix connectors
7. ISOfix installation connectors
9. Plastic caps for the ISOfix connectors
10. Indicator for correct installation
11. Belt height adjuster
12. Floor support
13. Lockingbolt for floor support
14. Belt loop for the floor support
15. ISOfix anchorage (car)
7. ISOfix connector
16. ISOfix insertion clips

5
Too high Too low Correct
Click!
!
Heightadjustmentofharness system
Height can be adjusted by releasing
the height adjustment device on the back of
the iZi Combi ISOfix, place it in the correct
position and clicking it in. Twist and pull the
shoulder belts on the front side of the seat
until the belts are adjusted into the correct
position. Check the webbing has not become
twisted.
Position of the shoulder strap:
Check that the shoulder strap
slots are levelled with your child’s
shoulders.
You must adjust the shoulder belt of the harness to the
correct position for your child before installing the seat, as it
cannot be adjusted in the car. The harness must be fastened
and adjusted correctly at all times. Children should be
encouraged to remain within the harness system.
b
c
a
Lay the shoulder straps over the sides of the
iZi Combi ISOfix, before your child is seated.
Then place the straps over the shoulders of
your child and close the buckle; Click!
e
Position the pads on the shoulder straps over
the child’s shoulders. Place one hand on the
front of the car seat and pull the harness
adjustment strap towards you. Continue pulling
until the harness is a comfortable but firm fit.
f
Tighten the belts by pulling them towards
you and in this way straighten them out
inside the construction.
d
Pull out the shoulder belts while pressing the
button on the harness adjustment mechanism.

6
REARWARD FACING - Before installation
When mounting in the back
seat, push the front seat as
far forward as possible.
When mounting in the front
seat, adjust the backrest in
a upright position.
Find the ISOfix
anchorage points in the
car (15).
16
If your car is not epuipped
with ISOfix insertion clips (16),
insert these to make installation
easier.
You can find the ISOfix insertion
(16) clips under the base of your
iZi Combi ISOfix.
Clip the insertion clips into the
anchorage points.
!DO NOT use on a passenger seat fitted with activated
frontal airbags. AIRBAG

7
Remove the plastic
caps (9) from the ISOfix
connectors (7) by pressing
down the ISOfix release
button (8).
Use the ratchet (6) to adjust
the front brace to the inmost
position. The ratchet (6)
is used to adjust the front
brace in both directions.
Switch the knobs on the
ratchet to change direction.
The floor support (12)
must go through the belt
loop (14). The belt loop
must also be led into the
hook on the floor support.
Do not fasten the locking
bolt (13) yet.
Assemble the floor support
before you install the iZi
Combi ISOfix in your car.
Important: The belt loop
must be led into this hook
6
6
7
8
9
12

8
REARWARD FACING - installation in the car
!The BeSafe iZi Combi ISOfix can ONLY be installed rearward
facing in cars with ISOfix anchorage points.
!The BeSafe iZi Combi ISOfix must not be used in the
front passenger seat without deactivating the airbag.
2
3
1Place the seat into the car by
racing the seat with the front
brace first.
BeSafe iZi Combi ISOfix is installed the same way in the
front and back seat.
Push the floor support down
to the floor. The floor support
(12) must go through the belt
loop (14) and the belt loop
must be led into the hook
on the floor support. See
explanation in the chapter
“BEFORE INSTALLATION”.
Turn the seat into the right
position (with the front brace
against the backrest).

9
Click the ISOfix connectors in
the ISOfix anchorages.
Pull both ISOfix connectors (7)
as far out as possible.
4
5
The switch (4) then goes into
the lowest position and locks
the connectors (7).
Make sure that the two indica-
tors (10) are green, both in the
hole and on the inside of the
release gear.
6
Adjust the floor support (12)
so that it is in contact with the
floor of the vehicle.
Lock the floor support with the
lockingbolt (13).
7
4
7
10
13 12
7
Click

10
Adjust the front brace
outwards with the ratchet
(6). Continue tightening until
the brace is pressed well into
the backrest of the car seat.
Make sure all ISOfix indicators are green before you drive.
Make sure the floor support is fully pushed down
and locked when mounting rearward facing.
DO NOT use on a passenger seat fitted with
activated frontal airbags.
!
!
!
8
If possible, push the front seat backwards so that it is in
contact with the child seat. If it is not possible to obtain
contact with the child seat, push the backrest of the front
seat forward so that the distance between child seat and
backrest is minimum 25 cm.
Correct installation
AIRBAG
6

11
Warning: Potential misuse - REARWARD-FACING INSTALLATION
!NEVER USE iZi Combi ISOfix on a passenger
seat fitted with activated frontal airbag.
NEVER use BeSafe iZi Combi
ISOfix without the floor
support when mounting
rearward facing.
!
NEVER use BeSafe iZi Combi
ISOfix without tightening the
front brace when mounting
rearward facing.
!
ALWAYS make sure that
the indicator for correct
installation of the ISOfix
anchorages shows GREEN.
!

12
REARWARD FACING - Removing the iZi Combi ISOfix
13
If your iZi Combi ISOfix is
installed in the back seat,
push the front seat as far
forward as possible.
Adjust the backrest as far
backwards as possible, when
removing from the front
seat.
Use the front brace ratchet (6)
to adjust the front brace(3)
towards the iZi Combi ISOfix
base.
Remove the locking bolt (13)
from the floor support (12).
2
3
1
4Release the ISOfix connectors
by pressing the release
mechanism (8) on the ISOfix
installation connectors.
Now the indicator for right
installation (10) shows red
and not green.
8
6
3
12

13
5Push the switch (4) on each
side, and push the ISOfix
installation connectors (7)
into the base.
6Pull the iZi Combi ISOfix back
towards the front seat.
Turn the seat so you can
easily remove the seat.
Remove your iZi Combi
ISOfix from the car.
7Remove the insertion clips
(16) from the car seat. Place
them under the base of the
iZi Combi ISOfix.
4
7
16

14
FORWARD FACING - installation in the car
2
1
!The BeSafe iZi Combi ISOfix can ONLY be installed forward-
facing in cars with 3-point belt.
!The BeSafe iZi Combi ISOfix must not be used in the
front passenger seat without deactivating the airbag.
To mounting the BeSafe iZi Combi in forward-facing, remove
the front brace (3). Remove the lower part of the support leg.
Fit the black plastic plug, enclosed by purchase, to the end of
the support leg. This will protect the orginal car seat cover.
Open both belt clamps
(17) at each top side of
the iZi Combi.
Bend down the flap
on the seat cover. See
green arrow.
Position the BeSafe iZi Combi on the car seat.

15
Guide the shoulder belt
through the belt housings
(17)at the top of each side
of the child seat.
3Pull out the seat belt, place
the hip belt over the bottom
base of the iZi Combi.
Pull the hip belt over the
metal hook and fasten the
belt.
4
Press the iZi Combi well
into the car seat. First
tighten the hip belt, then
the shoulderbelt, starting
at the bottom.
5
Click!

16
Pull the shoulder belt through
both belt housings and close
the clamps. The seat belt is
now locked in position. It is
very important that the belt
clamps are properly locked.
6
Use the rachet lever (5) to
tighten the seat properly.
7
8Check that the iZi Combi is
firmly fixed, if not, repeat the
prosedure from the beginning.
Fold up the flap and tighten it.

17
!NEVER USE iZi Combi ISOfix on a passenger
seat fitted with activated frontal airbag.
NEVER use the forward facing installation before the
weight of the child is over 9 kg.
!
NEVER use the iZi Combi forward facing installation
without tighten the seat properly. Always check that
the iZi Combi is firmly fixed.
!

18
BeSafe iZi Combi ISOfix has 4
sitting positions.
The sitting positions can be
regulated by using the lever (5)
Sitting positions
Car seat protection
To avoid damage to the fabric of the car seat,
especially with leather car seats, protect your car
seat with a BeSafe protection cover.
5

19
After an accident
After an accident, the iZi Combi ISOfix must be replaced.
Although it may look undamaged, if you were to have
another accident, the iZi Combi ISOfix may not be able to
protect your child as well as it should.
Guarantee
All BeSafe products are carefully designed, manufactured
and tested. All of our BeSafe child safety seats are tested
periodically out of our continuous production in our test
laboratory. Furthermore they are tested by independent test
institutes.
Should this product prove faulty within 24 months of
purchase due to materials or manufacturing fault, except
covers and child safety belt, please return it to the original
place of puchase.
The guarantee is only valid when you use your seat
appropriately and with care. Please contact your dealer, he
will decide if the seat will be returned to the manufacturer
for repair. Replacement or return cannot be claimed. The
guarantee does not get extended through repair.
The guarantee expires:
·When there is no receipt.
·When defects are caused by wrong and improper use.
·When defects are caused by abuse, misuse or negligence.

20
Pay attention when you remove the cover, as fitting the cover
is done in the opposite way.
Removing and refitting the cover
Removing the cover
Never use the iZi Combi ISOfix without the cover. The
cover is part of the system and may only be replaced by
an original iZi Combi ISOfix cover.
ALWAYS use the child safety belt provided with the iZi
combi ISOfix.
!
!
When fitting the cover, start by hooking the hip belts to the
hooks in the bottom of the seat. Pull hard in the belts to
ensure that they are correctly installed.
To bring the cover under the rear part of the sidewall, turn it
inside out and guide it under the sidewall before straighten-
ing it out.
Refit the cover

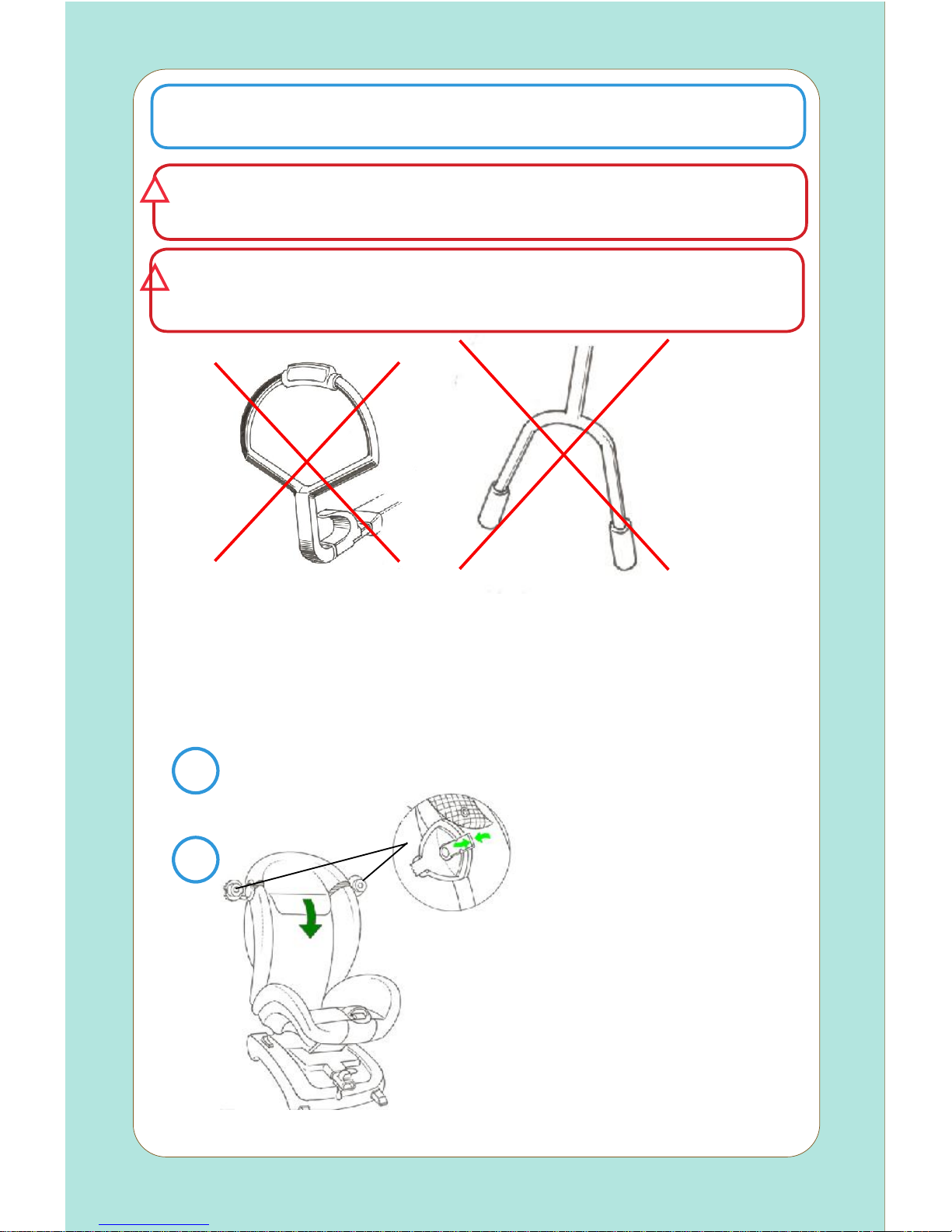

1
2
To remove the cover, the child
seat hip belt must be released
at both sides. See red arrow.
Race the seat part of the
cover and unhook both belts
from the metal hooks in
the bottom of the seat. The
cover can now be removed.
