SAND FILTER
OWNER’S MANUAL
SAFETY INSTRUCTIONS
WARNING
IMPORTANT SAFETY INSTRUCTIONS - READ AND
FOLLOW ALL SAFETY INSTRUCTIONS - SAVE THESE
INSTRUCTIONS
When installing and using this electrical equipment, basic safety
precautions should always be followed, including the following:
• The pump is to be supplied by an isolating transformer or
supplied through a residual current device (RCD)having a
rated residual operating current not exceeding 30 mA.
• The power source on the wall of building should keep more
than 4 m away from pool.
• The appliance must be supplied by earthed power source.
• RISK OF ELECTRIC SHOCK - The pump cannot be using
while people are inside the pool. Forbid the access of the pool
in case of damage of the sand filter.
• DO NOT BURY CORD. Locate cord to minimize abuse
from lawn mowers, hedge trimmers, and other equipment.
• To reduce the risk of electric shock, replace damaged cord
immediately.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Extension cords can’t be used.
• Risk of electric shock. Using the sand filter with an unmatched
electrical supply is dangerous and will permanently damage
the sand filter.
• Do not remove the grounding prong or modify the plug in ,
3
TO THE STORE
QUESTIONS? PROBLEMS?
MISSING PARTS?
For FAQ, Manuals, Videos Or
Spare Parts, Please Visit
bestwaycorp.com/support

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
anyway. Do not use adaptor plugs. Consult a qualified
electrician for any questions relating to validity of your plugs or
grounding.
• Handle the sand filter with care. Do not pull or carry the sand
filter by the power cord. Never pull a plug from the outlet by
yanking the power cord. Keep cord free from abrasions.
Sharp objects, oil, moving parts, and heat should never be
exposed to the sand filter.
• Always unplug this product from the electrical outlet before
removing, cleaning, servicing or making any adjustment to the
product.
• Don’t plug or unplug the appliance if hand is wet.
• Always unplug the appliance:
• On raining days
• Before cleaning or other maintenance
• Leave it unattended on holidays
• When the appliance will be not used for long time, such as in
the winter, the pool set should be disassembled and stored
indoor.
• CAUTION: Read the instruction before using the appliance
and installation/reassembly every time.
• Safekeeping the instruction. For reconstruction the pool set
every time, please always refer to the instructions.
• If instruction is missed, please contact with Bestway or search
it in website: www.bestwaycorp.com
• Electric installations should follow national wiring rules.
Consult a qualified electrician for any questions.
CAUTION: This sand filter is for use with storable pools only.
Do not use with permanently-installed pools. A storable pool is
constructed so that it is capable of being readily disassembled
for storage and reassembled to its original integrity. A
permanently-installed pool is constructed in or on the ground or
in a building such that it cannot be readily disassembled for
storage.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have ,
4

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision. (For EU market)
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the
appliance. (For market other than EU)
• Cleaning and user maintenance must be performed by an
adult above 18 years old who is familiar with the risk of electric
shock.
NOTES:
• Place the sand filter on solid, level ground. Ensure the sand
filter is at least 2 meters away from poolside. Keep distance as
far as possible.
• Pay attention to position pool and sand filter so adequate
ventilation, drainage, and access for maintenance is available.
Never place the sand filter in an area that may accumulate
water, or on a walking path with lots of foot traffic.
• It is necessary to have the plug accessible after installation of
the pool. The plug of the sand filter shall be at least 3.5 m
away from the pool.
• Atmospheric conditions may affect the performance and life
span of the sand filter; take adequate precautions to protect
the sand filter from unnecessary wear and tear that may occur
during periods of cold or hot weather and/or exposure to sun.
• Please examine and verify all sand filter components are
present before use. Notify Bestway at the customer service
address listed on this manual for any damaged or missing
parts at the time of purchase.
• It is imperative to change as soon as possible all deteriorated
parts. Only use parts approved by the manufacturer.
• Do not allow children or adults to lean or sit on the apparatus.
5

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
, • Do not add chemicals to the sand filter.
• When chemical products are used to clean the pool water, it is
recommended to respect a minimum filtration time to preserve
the health of swimmers which depends on compliance of
health regulation.
• Only the media provided or specified by the manufacturer is to
be used with product installation.
• It is essential to check that the suction openings are not
obstructed.
• It is advisable to stop the filtration during maintenance
operations on the filtration system.
• Regularly monitor the filter clogging level.
• A weekly check is recommended for backwashing or cleaning.
Minimum daily filtration operating time of 8 hours is
recommended to ensure clear pool water.
• It is essential to change any damaged element or set of
elements as soon as possible. Use only parts approved by
person responsible for placing the product on the market.
• All filters and filter media shall be inspected regularly to ensure
that there is not a build-up of detritus thus preventing good
filtration. The disposal of any used filter media should also be
in accordance with applicable regulations/legislation.
• Mind all the safety requirements and recommendations
described in the manual. In case of doubt on the pump or any
circulation devices, contact a qualified installer, or the
manufacturer/importer/distributor. The water circulation
installation shall comply with the European as well as
national/local regulations, especially when dealing with
electrical issues. Any change of valve position, pump size,
grille size can cause a change of the flow and the suction
velocity can be increased.
• This product is not intended for commercial use.
Please read the instruction manual carefully and
keep it for future reference.
SAVE THESE INSTRUCTIONS
6

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
Meaning of crossed-out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal
waste, use separate collection facilities. Contact your local
government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the
food chain, damage your health and well-being.
When replacing old appliances with new ones, the retailer is legally
obligated to take back your old appliance for disposals at least free of
charge.
PUMP DISPOSAL
PARTS REFERENCE OVERVIEW
Before assembling the sand filter, take a few minutes to
become familiar with all the sand filter parts.
Filter Diameter
Effective Fiter Area:
Max. Operating Pressure:
Working sand filter pressure:
Max. Water Temperature:
Sand:
Sand Size:
Sand Capacity:
270 mm
0.059 m
2
(0.635 ft
2
)
0.42 Bar(6 PSI)
<0.25 Bar(3.5 PSI)
35°C
Not included
#20 silica sand,0.45-0.85 mm
Approximately 8.5 kg
703 mm
311 mm
270 mm
SPECIFICATIONS
7

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
REF.NO
SPARE PART NO. A B
1
1 1
2 1 1
3 1 1
4 2 2
5 1 1
6 3 3
7 2 2
8
4 4
9 6 4
10 1 1
11 2 2
12 1 1
13 1 1
15 1 1
16 3 3
17 1 1
18
1 1
19 1 1
20
1 1
21
1 1
22 1 1
23 1 1
25 2 2
1 0
1 0
26
P61138ASS16
P03822
P03830
P03823
P03825
P03829
P03824
P6005ASS16
P6124ASS16
P6132ASS16
P03828
P03826
P03827(EU)/P00556(GB)
P6614ASS16
P6029ASS16
P6149ASS16
P6660ASS16
P6661ASS16
P6662ASS16
P6663ASS16
P6664ASS16
P6665ASS16
P6022ASS16
P61322ASS16
P61318ASS16
Assembly (You will need a screwdriver).
1. Carefully remove all components from the
package and check to ensure nothing is
damaged. If equipment is damaged,immediately
notify the retailer from where the equipment was
purchased.
2. The sand filter should be placed on solid, level
Ø8 mm
285 mm
8
1
2
3
4
5
6
7
8
9
10
12
13
11
15
16
17
18
19
20
21 23
25
9
22 8
26
(P61322) (P61318)
X2
A
X1 X1
X2
B

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
Load pool-grade filter sand/ Flowclear™ Polysphere .
NOTE: Use only special pool-grade filter sand, free of all limestone or clay: #20
Silica sand 0.45-0.85 mm, approximately one 8.5 kg bag should suffice. If you do
not use the recommended size filter sand, filtering performance will be reduced
and the sand filter may damaged, thereby voiding warranty.
NOTE: To avoid damaging the Skimmer when adding sand, pour some water into
the Bottom Tank to submerse the Skimmer on the Collector Hub.
NOTE: Sand/ Flowclear™ Polysphere not included.
NOTE: Use 28 g (0.06 lbs) Flowclear™ Polysphere to replace
1 kg (2.20 lbs) sand.
Connect to the pool
For 38 mm(1.5 in.) connection
MAX
MIN
#20
0.45-0.85 mm
C
C
C
C
ground, preferably a concrete slab. Position the sand filter so the Ports and
Control Valve are accessible for operation, servicing and winterizing.
3. EN60335-2-41 TEST standard requires the sand filter to be vertically fixed
on ground or a certain pedestal made of wood or concrete before use to
prevent the sand filter from accidentally falling. Fully assembled sand filter
will exceed 18 kg. The mounting holes should be 8 mm in diameter and
spaced 285 mm apart. Use two bolts and nuts with a maximum of 8 mm in
diameter to fasten the sand filter to the pedestal.
9

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
1
A
B
A
B
A
B
A
B
P61318
A
P61322
B
2
D
2
3
1
D
A
B
Garden hose (not
included)
For Drain, Backwash,
Rinse function
3
A
B
Before switching on, please read the manual carefully.
STOP
CONTROL VALVE OVERVIEWA
WARNING: To prevent equipment damage and possible
injury, always switch off sand filter before changing the
10
OPERATION

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
Control Valve function. Changing valve
positions while the pump is running can
damage the Control Valve, which may cause
personal injury or property damage.
How to Use the Control Valve:
Press down on the Control Valve handle and
rotate to desired function.

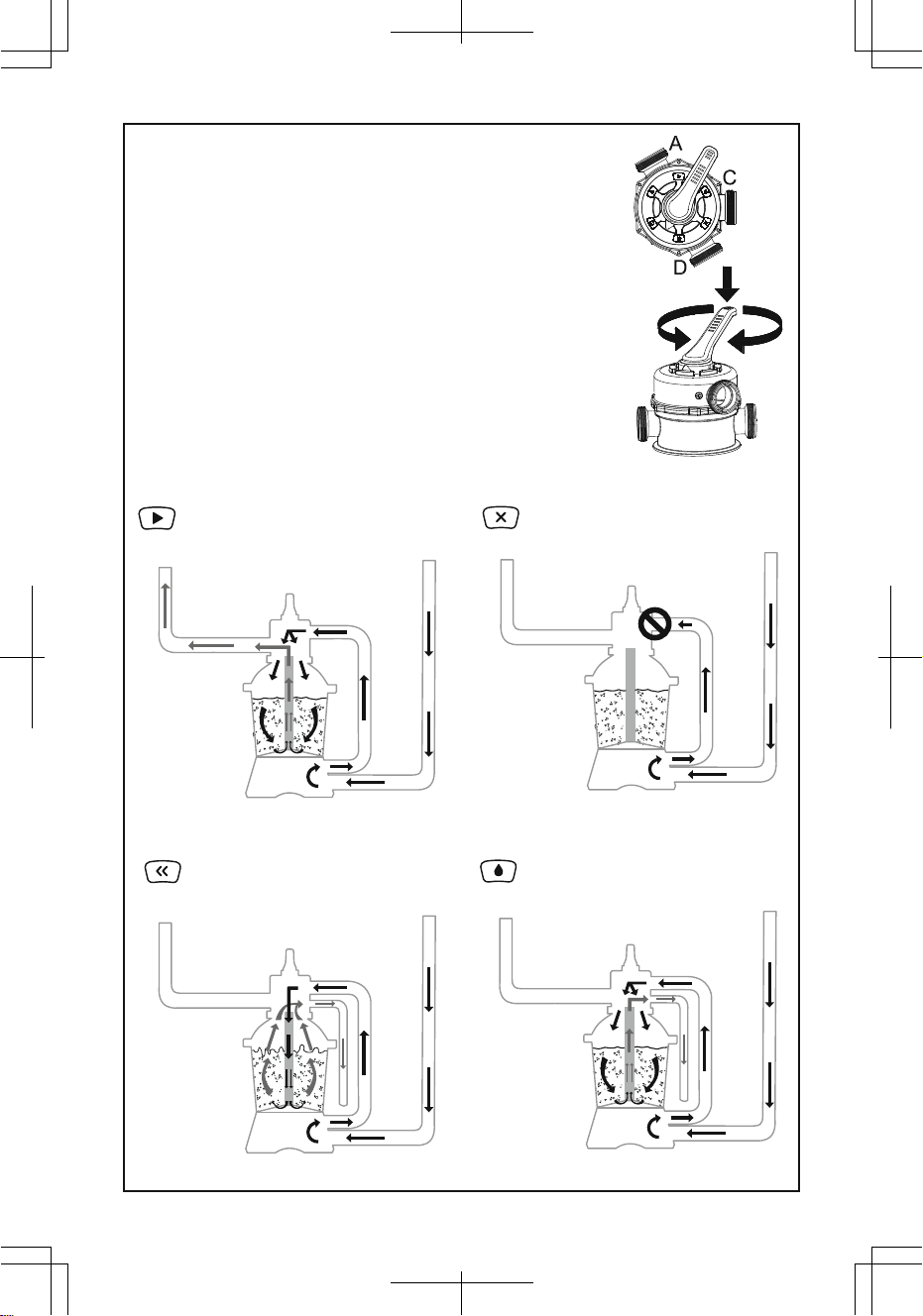

CONTROL VALVE FUNCTIONS
The Control valve is used to select 6 different
filter functions: Filter, Closed, Backwash,
Rinse, Drain and Circulate.
Filter: This function is used to filter
pool water and should be positioned
here 99% of the time. Water is
pumped through the sand filter, where
it is cleaned and returned to the pool.
B
C
C
A
Closed: This function stops
water flowing between the sand
filter and the pool.
B
C
C
A
Backwash: This function is
used to clean the sand bed; water is
pumped down through the Collector
Hub, upwards through the sand bed,
and deposited out of Port D.
D
B
C
C
A
Rinse: This function for initial startup,
cleaning, and sand bed leveling after
Backwash; water is pumped downwards
through the sand bed, up through the
Collector Hub and deposited out of the
valve Port D.
D
B
C
C
A
11

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
Drain: This function drains water
from the pool; another filter bypass
setting, water is pumped and deposited
out of Port D, instead of returning it to
the pool.
D
B
C
C
A
Circulate: This function circulates
pool water bypassing the sand filter; use
this function if the filter is broken to
collect debris in the Debris Screens.
D
B
C
C
A
NOTE:
• Be sure all provisions for wastewater disposal meet applicable local, state or
national codes. Do not discharge water where it will cause flooding or damage.
• When the Control Valve is set to the Backwash, Rinse, or Drain position, water
will discharge from Port D on the Control Valve.
• Do not switch on or operate the sand filter with the Control Valve set to the
Closed function or it will seriously damage the sand filter.
• Do not set the Control Valve between two functions, or it will lead to leaking.
• To avoid water leakage, screw the Port D Cap onto the Control Valve Port D
before operating the sand filter.
Air Release
Press down the control valve handle and wait untill the water flow
from Port D to release the air.
NOTE: It is important to repeat this operation every time you start
the pump after winterizing, maintenance and backwashing the sand
bed.
FIRST TIME USE INSTRUCTIONS
Backwash and Rinsing must be performed to prepare the pump for its first use and to
wash the sand.
CAUTION: DO NOT DRY RUN THE SAND FILTER
1. Press down on the Control Valve handle and rotate to the Backwash function.
2. Plug in and run the sand filter for 3-5 minutes, or until the water runs clear.
3. Switch off the sand filter and set the Control Valve to the Rinse function.
4. Switch on the sand filter and run the sand filter for 1 min. This circulates water backwards
through the sand filter and drains water out Port D.
5. Switch off the sand filter. Set the Control Valve to
the Closed function. Backwash Rinsing
12

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
NOTE: Pressure gauge is for maintenance purpose only, and the
pressure gauge value is just for reference, it should not be used as a
precision instrument.
NOTE: We recommend you clean the sand bed once a month or
less regularly depending on how often the pool is used. Do not clean
the sand too frequently.
1. Now the sand filter is ready for use. Set the
Control Valve to the Filter function.
NOTE: To prevent the risk of electrical shock dry
any excess water from yourself and the sand filter.
2. Switch on the sand filter to run it.
NOTE: The sand filter has now started its filtering
cycle. Check that water is returning to the pool
and take note of the filter pressure on Pressure
Gauge. Generally, the recommended sand filter pressure is less than
0.25 Bar (3.5 PSI) when it is running.
Sand Filter Maintenance
CAUTION: You must ensure the sand filter is
switched off and unplugged before any
maintenance begins or severe risk of injury or
death exists. As dirt builds up in the sand filter,
the pressure reading on Pressure Gauge will
increase. When the Pressure Gauge is 0.25 Bar
(3.5 PSI) or higher, or water flow to the pool is
too low, it is time to clean the sand. To clean the sand bed, follow all
instructions outlined previously in: Backwash and Rinsing.
6. Top up pool water if required.
IMPORTANT: This procedure removes water from the pool, which you’ll need to
replace.
Switch off the sand filter immediately if water levels near the pool’s Inlet and Outlet valves.
Cleaning the Strainer
1. Switch off the sand filter and set the Control
Valve to the Closed function.
2. Replace the Debris Screens with Stopper Plugs
to prevent water from escaping.
3. Remove the Strainer Cover by unscrewing it.
4. Take out the Strainer, remove any debris.
13

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
Lowering or Draining Pool Water
1. Switch off the sand filter and set Control Valve to the Drain
function.
2. Detach the Hose from the pool’s Port A and sand filter Port A and
attach to Port D.
NOTE: Remember to replace the Debris Screen with Stopper Plug
to prevent water from escaping.
3. Switch on the sand filter to run the filter and remove the pool
water.
WARNING: DO NOT DRY RUN THE SAND FILTER.
Winterizing
In areas that have freezing winter temperatures, pool equipment
must be winterized to protect against damage. Allowing water to
freeze will damage the sand filter and void warranty.
1. Backwash the sand filter.
2. Drain the pool according to the pool owner’s manual.
3. Disconnect the two Hoses from the pool and the sand filter.
4. Completely pour the sand out of the tank and dry all components.
5. Store the sand filter in a dry location out of child’s reach.
5. Put the Strainer back into position. Ensure the hole in the strainer
is aligned.
6. Ensure the Seal Ring is in place. Secure the Strainer Cover back.
7. Remove the Stopper Plugs and insert the Debris Screens.
NOTE: The Strainer must be emptied and cleaned periodically. A
dirty or blocked strainer will reduce the performance of the sand filter.
14

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-英
Problems Probable Causes Solutions
Sand is flowing
to the pool
- Sand is too small
- Move the control valve from
the backwash to the filter
function without stop the sand filter
- The level of the sand is too high
- The skimmer is broken
- Recommend 0.45 mm to 0.85 mm #20
silica sand
- Stop the sand filter every time set the
control valve
- Check if the level of the sand is
between the marked “MAX” and “ MIN”
on the collector hub
- Replace the skimmer
No water flow
Excessive filter
pressure
- Dirty filter
- Calcified sand bed
- Insufficient backwashing
- The pressure gauge is broken
- Backwash
- Inspect sand and change if
necessary
- Backwash until water runs clear
- Replace the pressure gauge
Control Valve
leaks from the
port D
Connectors leak
- Control Valve is set between two
functions
- The gasket is broken
- Set to one function
- Replace the gasket
- Washer of the connectors not in
place
- Washer of the connectors broken
- O-ring on the hose connection is
broken
- Loose Hoses
- Reposition the washer
- Replace the washer
- Replace the O-ring
- Tighten them
TROUBLESHOOTING
- Stopper plugs were not removed
- Air was not released
- The control valve is set to Closed
- The strainer is blocked
- Sand filter broken
- Remove the stopper plugs and
insert the debris screens
- Release the air
- Set to filter function
- Clean the strainer
- Call for service
15

FILTRO DE AREIA
MANUAL DO
PROPRIETÁRIO
INSTRUÇÕES DE SEGURANÇA
ATENÇÃO
INSTRUÇÕES DE SEGURANÇA IMPORTANTES LEIA E
SIGA TODAS AS INSTRUÇÕES DE SEGURANÇA.
303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-葡
Ao instalar e usar este equipamento elétrico, as precauções básicas
de segurança devem ser sempre seguidas, incluindo aquelas citadas
a seguir:
• A bomba deve ser equipada com um transformador isolante ou
alimentada através de um dispositivo de corrente residual (RCD)
com uma tensão de funcionamento residual classificada que não
exceda 30 mA.
• A fonte de alimentação na parede do edifício deve estar a mais de
4m de distância da piscina.
• O equipamento deve ser equipado com uma fonte de alimentação
com ligação a terra.
• RISCO DE CHOQUE ELÉTRICO - A bomba não pode ser
utilizada enquanto estiverem pessoas no interior da piscina. Proíba
o acesso à piscina caso o filtro de areia se encontre danificado.
• NÃO ENTERRAR O FIO. Coloque o fio de modo a evitar danos
causados por cortadores de gramas, aparadores e outros
equipamentos.
• Para reduzir o risco de choque elétrico, substitua imediatamente o
fio danificado.
• Se o fio de alimentação estiver danificado, ele deve ser substituído
pelo fabricante, pelo seu agente de serviço ou por pessoas
igualmente qualificadas de modo a evitar um dano.
• É proibido o uso de extensões de alimentação.
• Risco de choque elétrico. Usando o filtro de areia em uma fonte
16
PERGUNTAS? PROBLEMAS?
PARTES EM FALTA?
Para FAQ, Manuais, Vídeos Ou
Peças Sobresselentes, Por Favor Visite
bestwaycorp.com/support
À LOJA
Visite o canal da Bestway no
YouTube

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-葡
elétrica não correspondente é perigoso e danificará
permanentemente o filtro de areia.
• Não remova a ponta de aterramento ou modifique em qualquer
modo a tomada. Não use adaptadores de tomadas. Consulte um
eletricista qualificado para quaisquer assuntos relacionado às
tomadas ou aterramento.
• Manuseie o filtro de areia com cuidado. Não puxe ou carregue a
bomba pela corda do fio de alimentação. Nunca desligue o fio da
tomada dando um puxão na corda do fio de alimentação. Evite
abrasões no fio de alimentação. O filtro de areia não deve ser
exposto a objetos pontiagudos, óleo, peças em movimento e calor.
• Desligue sempre o produto da tomada de saída antes de remover,
limpar, fazer manutenção ou fazer qualquer ajuste ao produto.
• Não ligue ou desligue o equipamento com as mãos molhadas
• Desligue sempre o equipamento:
• em dias chuvosos
• antes de limpar ou realizar outro tipo de manutenção
• caso a deixe sem ser utilizada durante as férias
• Quando o aparelho não for utilizado durante um longo período de
tempo, como no inverno, o conjunto de piscina deve ser
desmontado e armazenado no interior.
• Cuidado: Leia as instruções antes de utilizar o aparelho e a cada
instalação/nova montagem.
• Instruções de armazenamento. Para reconstrução do conjunto de
piscina em cada situação consulte sempre as instruções.
• Caso as instruções estejam em falta, por favor contacte a Bestway
ou procure-o no website: www.bestwaycorp.com
• As instalações eléctricasdevem seguir as regras nacionais de
cablagem. Consulte um electricista qualificado para esclarecer
qualquer dúvida.
AVISO: Esta bomba deve ser usada somente para piscina
desmontáveis. Não a use com piscinas de alvenaria. Uma piscina
armazenável é construída de modo que possa ser facilmente
desmontada para armazenamento e montada novamente de
maneira integral. Uma piscina com instalação permanente é
construída em um terreno ou ao interno de um prédio, de modo que
não pode ser desmontada para armazenamento.
• Este equipamento pode ser usado por crianças de 8 anos de idade
17

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-葡
e superior e pessoas com capacidades físicas, sensoriais ou
mentais reduzidas ou falta de experiência e conhecimento caso
estes recebam supervisão ou instrução sobre o uso do
equipamento de forma segura e compreendam os ricos
envolvidos. As crianças não devem brincar com o aparelho. A
limpeza e manutenção por parte do utilizador não deve ser
realizada por crianças sem supervisão. (Para o mercado UE)
• Este aparelho não está concebido para ser utilizado por pessoas
(incluindo crianças) com capacidades físicas, sensoriais ou
mentais reduzidas ou falta de experiência e conhecimento, salvo
se providos de supervisão ou instrução referente ao uso do
aparelho por uma pessoa responsável pela sua segurança. As
crianças devem ser supervisionadas para garantir que não
brincam com o aparelho. (Para o Mercado externo à UE)
• A limpeza e manutenção devem ser realizadas por um adulto com
idade superior a 18 anos e que tenha consciência do risco de
choque eléctrico.
NOTA:
• Coloque o filtro de areia em um apoio sólido e nivelado. Favor
certificar-se que o filtro de areia está a pelo menos 2 metros
afastado da piscina.Mantenha a distância, tanto quanto possível.
• Preste AVISO ao posicionar a piscina e o filtro de areia de modo a
ter uma ventilação e drenagem adequadas e acesso disponível
para a limpeza. Nunca coloque o filtro de areia em uma área que
possa acumular água ou que os movimentos dentro da piscina
faça com que a água transborde.
• É necessário ter a tomada acessível após a instalação da piscina
A tomada do filtro de areia deve estar a pelo menos 3,5m
afastado da piscina.
• As condições atmosféricas podem afetar o desempenho e a vida
útil do filtro de areia; tome precauções adequadas para proteger o
filtro de areia do desgaste e usura desnecessários que podem
ocorrer em períodos de frio ou calor e/ou exposição ao sol.
• Por favor examine e verifique todos se todos componentes estão
presentes antes de usá-los. Notifique à Bestway, por meio dos
endereços de assistência ao cliente aqui elencados neste manual,
se houver peças danificados ou faltando no momento da compra.
• É fundamental que todos os componentes deteriorados sejam
18

303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-葡
substituídos o mais rápido possível. Utilize apenas componentes
aprovados pelo fabricante.
• Não permite que crianças ou adultos se apóie ou sentem no
aparato.
• Não adicione produtos químicos ao filtro de areia.
• Quando forem utilizados produtos químicos para limpar a água da
piscina, recomenda-se que respeite o tempo de filtragem mínima,
de acordo com as normas de saúde locais, para proteger a saúde
dos utilizadores.
• Apenas os meios fornecidos ou especificados pelo fabricante
devem ser utilizados na instalação do produto.
• É fundamental verificar se as aberturas de sucção não estão
obstruídas.
• É aconselhável parar a filtração durante as operações de
manutenção do sistema de filtração.
• Verifique regularmente o nível de entupimento do filtro.
• Recomenda-se uma verificação semanal para a retrolavagem e
limpeza. Recomenda-se um período mínimo diário de filtração de
8 horas, para garantir água límpida na piscina.
• É fundamental substituir qualquer elemento ou conjunto de
elementos danificados assim que possível. Utilize apenas
componentes aprovados pela pessoa responsável pela colocação
do produto no mercado.
• Todos os filtros e meios filtrantes devem ser inspeccionados
regularmente para garantir que não existe acumulação de detritos
que possam impedir uma boa filtração. A eliminação de qualquer
meio filtrante usado deve estar também de acordo com os
regulamentos/legislação aplicáveis.
• Preste atenção a todos os requisitos e recomendações de
segurança descritos no manual.
Em caso de dúvida relativamente à bomba ou qualquer dispositivo
de circulação, contacte um instalador qualificado ou o
fabricante/importador/distribuidor. A instalação de circulação de
água deve respeitar os regulamentos Europeus, assim como os
locais/nacionais, especialmente no referente a questões eléctricas.
Qualquer alteração na posição da válvula, no tamanho da bomba e
no tamanho da grelha pode provocar uma mudança do fluxo, e a
velocidade de sucção pode aumentar.
19

Significado do cesto de lixo marcado com uma cruz:
Não jogue as aparelhagens elétricas no lixo normal que
é recolhido, mas joque-o em cestas de coleta
apropriadas.
Contate o órgão governamental local para informações
apropriadas no que diz respeito aos sistemas de coleta
disponíveis.
Se as aparelhagens elétricas forem jogadas em um depósitos
ou descargas, substâncias perigosas podem vazar para os
lençóis freáticos e entrar na cadeia alimentar, causando
problemas à sua saúde e bem estar.
Ao substituir antigas aparelhagens com novas, o revendedor é
legalmente obrigado a retirar a velha aparelhagem para
eliminação sem custo adicional.
DESCARTE
303021216261_58515_14x21cm_800gal 欧规砂滤器说明书-葡
VISÃO GERAL DE REFERÊNCIA DAS PEÇAS
Antes de montar o filtro de areia, gaste alguns minutos para se
familiarizar bem com todas as peças do filtro de areia.
Diâmetro do filtro:
Área efetiva do filtro:
Máx. Pressão operacional:
Pressão de funcionamento
do filtro de areia:
Máx. Temperatura da água:
Areia:
Dimensão da Areia:
Capacidade da Areia:
270 mm
0.059 m2(0.635 ft2)
0.42 Bar (6 PSI)
<0.25 Bar (3.5 PSI)
35°C
Não incluída
Areia sílica #20, 0.45-0.85 mm.
Aproximadamente 8.5 kg
703 mm
311 mm
270 mm
ESPECIFICAÇÕES
20
• Este produto não é destinado para uso comercial.
Por favor leia cuidadosamente o manual de instruções e guarde
para referência futura.
GUARDE ESTAS INSTRUÇÕES
