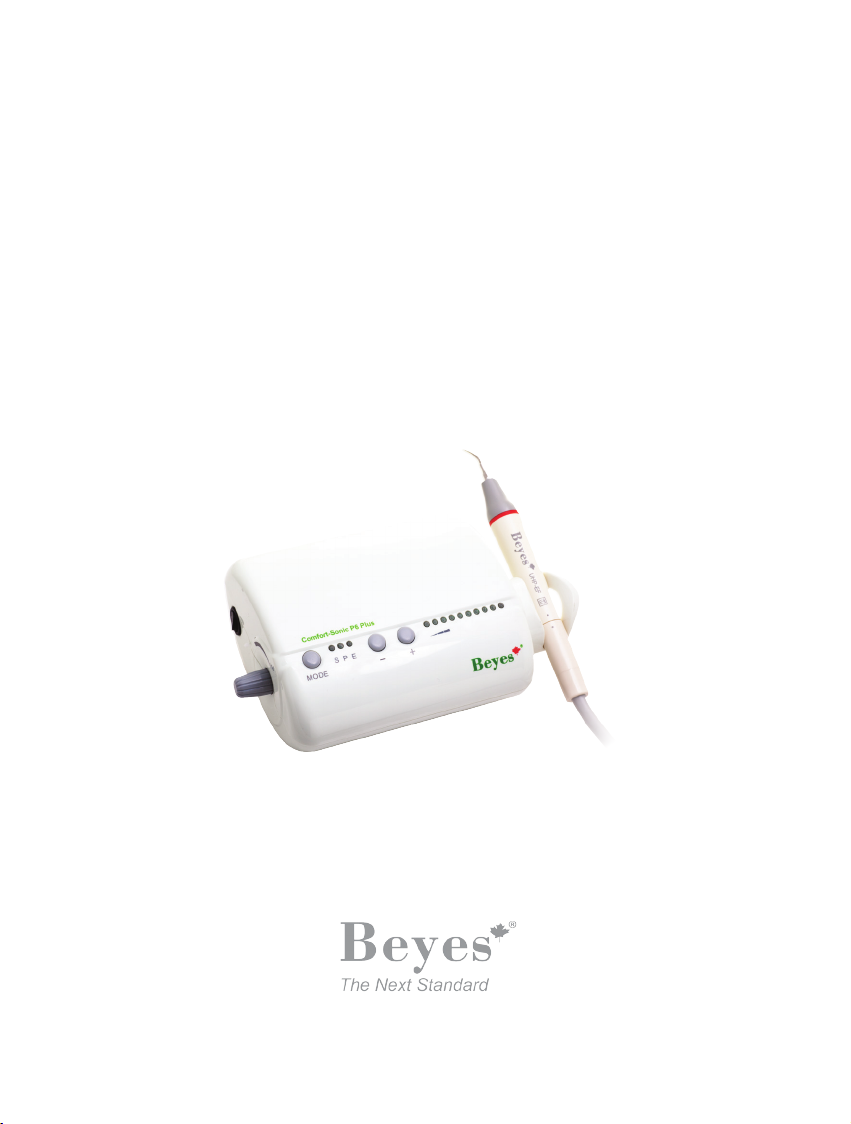

BEYES Comfort-Sonic P6 Plus User manual

Comfort-Sonic®
Ultrasonic Scaler
P6 Plus
Instruction for Use

2
Table of Contents
1. The installation and components of equipment
1.1 Introduction ....................................................................................... P3
1.2 Components ...................................................................................... P3
1.3 The main technical specications...................................................... P3-4
1.4 Installation of the main components.................................................. P4-7
2. Product function and operation
2.1 Scaling funtion................................................................................... P7-9
2.2 Endo function..................................................................................... P9
3. Sterilization and maintenance
3.1 Sterilization of detachable handpiece................................................ P9
3.2 Sterilization of scaling tips and endochuck........................................ P10
3.3 Serilization of torque wrench and edo wrench................................... P10
3.4 Cleaning of tips, endochuck, torque wrench and endo wrench......... P10
3.5 Sterilization and cleaning of LED lamp and Light pipe ...................... P10
3.6 Troubleshooting and notes................................................................ P10-12
4. Precaution
4.1 Notice when using equipment ........................................................... P12
4.2 Contraindication................................................................................. P12
4.3 Storage and maintenance ................................................................. P13
4.4 Transportation ................................................................................... P13
4.5 Working condition.............................................................................. P13
5. After service.................................................................................... P13
6. Symbol instruction ....................................................................... P13
7. Environmental Protection........................................................... P14
8. Manufactrurer’s rights ................................................................. P14
9. Warranty .......................................................................................... P14-15

3
1. The installation and components of equipment
1.1 Introduction
Beyes Dental Canada Inc. Is a professional manufacturer in researching , developing and
producing ultrasonic piezo scalers. This product is mainly used for teeth cleaning and is also
an indispensable equipment for tooth disease preventions and treatments. The new product
COMFORT-SONIC ultrasonic piezo scaler has scaling, perio, endo functions. It contains the
following features:
1.1.1. Optical handpiece, more convenient for clinical operation.
1.1.2. Automatic frequency tracking ensures that the machine always works on be the best
frequency and performs more steadily.
1.1.3. The handpiece is detachable and can be autoclaved to the temperature of the 135OC and the
pressure of 0.22Mpa.
1.1.4. Controlled by PC, easy operation and more efcient for scaling.
These features make COMFORT-SONIC become a new generation product in the world dental
market.
1.2 Components
1.2.1.The components of the machine are listed in the packing list.
The scaling tips and their accessories are not listed in this instruction manual completely. The detail
can be found in the instruction for tips and packing list attached to the machine.
1.2.2. Product performance and structure
Ultrasonic piezo scaler is composed of electro circuit, water way and ultrasonic transducer.
1.2.3. Scope of application
Ultrasonic piezo scaler COMFORT-SONIC is used for the dental calculus elimination and root canal
treatment.
1.3 The main technical specications
• Power supply Input: 220V to 240V~ 50Hz/60Hz 150mA
• Main unit input: 24V~50Hz/60Hz 1.3A
• Output primary tip Vibration excursion: ≤100μm
• Output half-excursion force: < 2N
• Output tip vibration frequency: 28kHz ±3kHz
• Output power: 3W to 20W
• Main unit fuse: T1.6AL 250V
• Adapter fuse:T0.5AL 250V
• Water pressure: 0.1bar to 5bar(0.01Mpa to 0.5 Mpa)

4
• Weight of main unit: 0.64kg
• Weight of adapter: 1kg
• Main unit volume: 196mmx134mmx80mm
• Operating mode : Continuous operation
• Type of protection against electric shock: Class II
• Degree of protection againest electric shock: Type BF applied part
• Applied part of the equipment: handpiece and tip
• Degree of protection against harmful ingress of water : Ordinary equipment(IPX0) Protection
degree against water(used on the foot switch):IPX1
• Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air or
with Oxygen or Nitrous Oxide: Equipment is not suitable for being used in the presence of a
ammable anesthetic mixture with air or with oxygen or nitrous oxide.
1.4 Installation of the main components
1.4.1.Installation and conection.

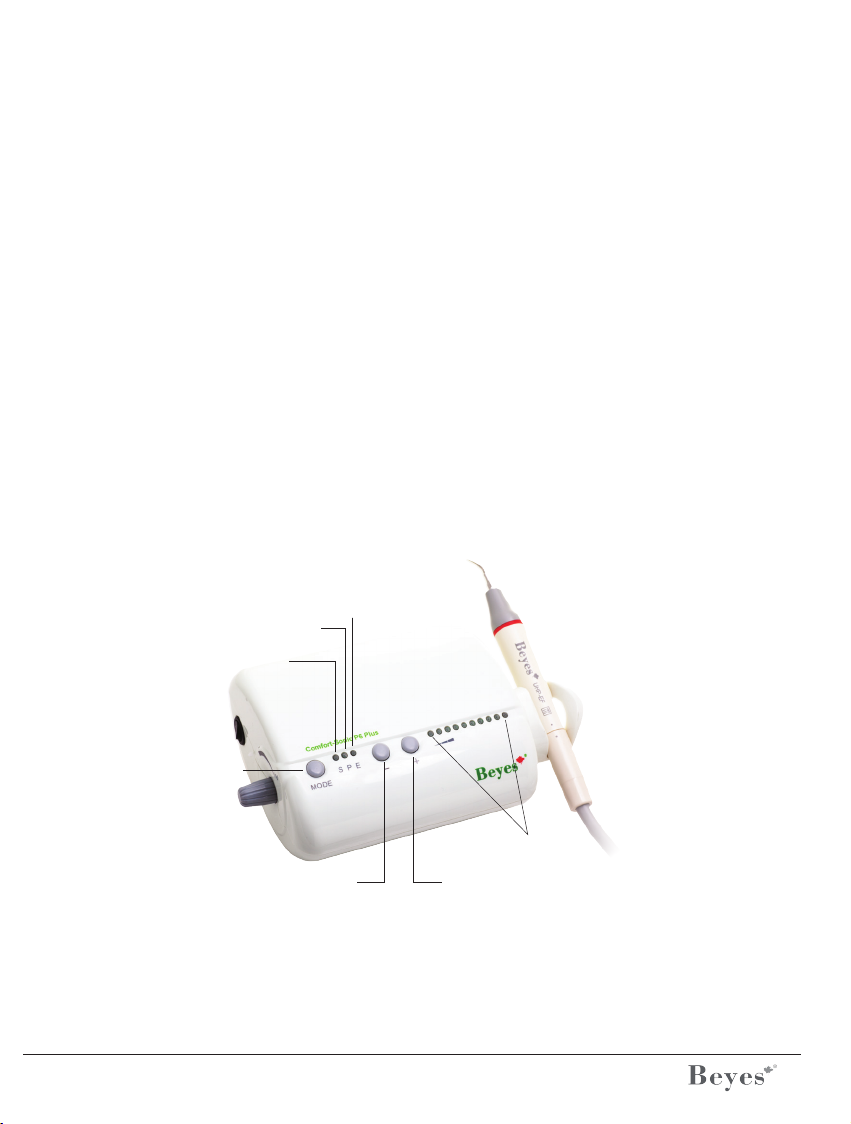

a) The components of the equipment are showed in picture 1 (a,b)
picture 1 (a)
Endo indicator
Perio indicator
Scaling indicator
Option switch
Decreasing power switch Increasing power switch
Power indicator

5

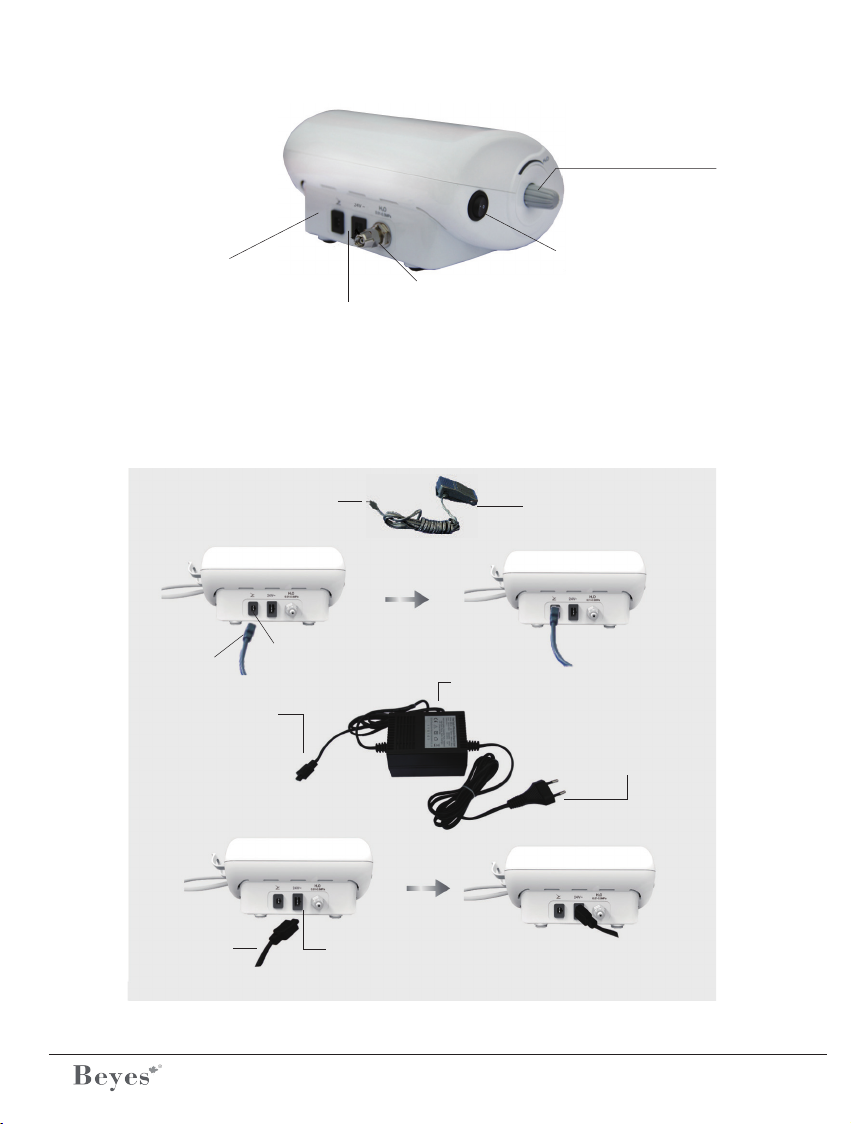

b) Sketch map for connection of foot switch, power supply and main unit are showed in picture 2
picture 2
picture 1 (b)
Socket for foot switch
Socket for power supply
Water entrance
Power switch
Water control knob
Plug of foot switch
Foot switch socket
Power supply
Power cord plug
Power cord plug Socket for power supply
Input voltage 220-240V~
Plug of foot switch
Foot switch

6

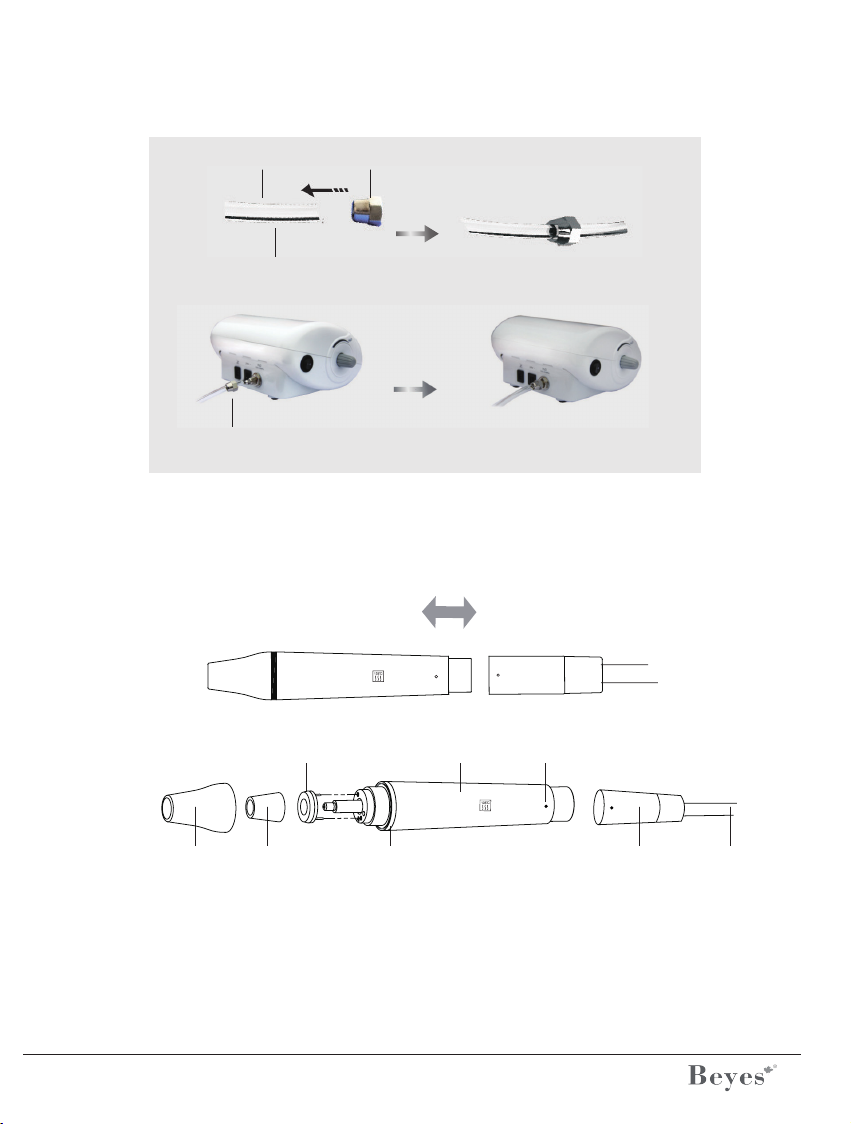

c) Sketch map for connection of water supply system are showed in picture 3
d) Sketch map for connection of detachable handpiece are showed in picture 4
e) Sketch map for how to install tip and endpchuck with wrench are showed in picture 5
LED lamp
Nipple Light pipe Handpiece
decorative ring
The connector
of cable
cable
Handpiece Index point
Connect pure water
Water pipe
Water entrance
Cap of connector
picture 3
picture 4

7
2. Product function and operation
2.1 Scaling funtion
2.1.1 Operation
• Open the packaging box, make sure that all the parts and accessories are completed according
to the packing list. Take the main unit out of the box and put it on a stable place.
• Turn the water control knob to the maximum based on symbols as shown in 3.5.2[note 1]
• Insert the plug of the foot switch to its socket (See picture 2).
• Connect one end of the water pipe to the water entrance , and the other end to the puried
water source (See picture 3)
• Screw the scaling tip tightly to the handpiece by torque wrench, then connect the handpiece
and the connector of cable correctly.
• Insert the plug of the power source to its socket, then get through to the power (See picture 2)
• Switch on the main unit , then the scaling indicator and the leading ve lights of power regulator
shine.
• Step on the foot switch, the tip begins to vibrate, and the LED lamp on the top of the handpiece
shines. Release the foot switch, the LED lamp keep shining for 10 seconds.
• Select a suitable scaling tip as you need, screw it on the handpiece tightly by the torque wrench
(See picture 5)
• The normal frequency is extremely high. Under the normal working state of scaling tips, a light
touch and a certain to-and-fro motion will elimianate the tartar without heating. Overexertion and
long-time lingering are forbidden.
• Vibrating intensity: Adjust the vibration intensity as you need, generally turn the knob to the
middle grade. According to patient’s different sensitivity and the rigidity of the gingival tartar,
adjust the vibration intensity during the clinical treatment.
picture 5

8
• Water volume adjust: Step on the foot switch, and the tip will begin to vibrate, then turn the
water control switch to form ne spray to cool down the handpiece and clean the teeth.
• The handpiece can be handled in the same gesture as a pen in hand.
• During the clinical treatment, be sure not to make the end of tip touch the teeth vertically
and not to make the tip overexert on the surface of the teeth in case of hurting the teeth and
damaging the tip
• After nishing operation, keep the machine working for 30 seconds on the water supply
condition in order to clean the handpiece and the scaling tip.
• Unscrew the scaling tip and pull out handpiece, then sterilize them.
Notice
Don’t pull the handpiece out when the foot switch is stepped on and the ultrasonic vibration is
produced from the machine.
2.1.2 Instruction for main components of detachable handpiece (See picture 4):
• Nipple: The nipple can be removed. You can screw out the nipple and clean the pole with
alcohol termly.
• Handpiece seal: The seal can’t be removed.
• Handpiece: The main part of the whole handpiece, can be autoclaved under the high
temperature and pressure.
• The connector of the cable: Connect the handpiece with the water source and power supply of
the main unit.
• LED lamp, Light pipe: Clean them with puried water and sterilize them under the high
temperature of 135 oC and high pressure of 0.22Mpa.
Notice
Keep dry when the detachable handpiece connects to the connector of the cable.

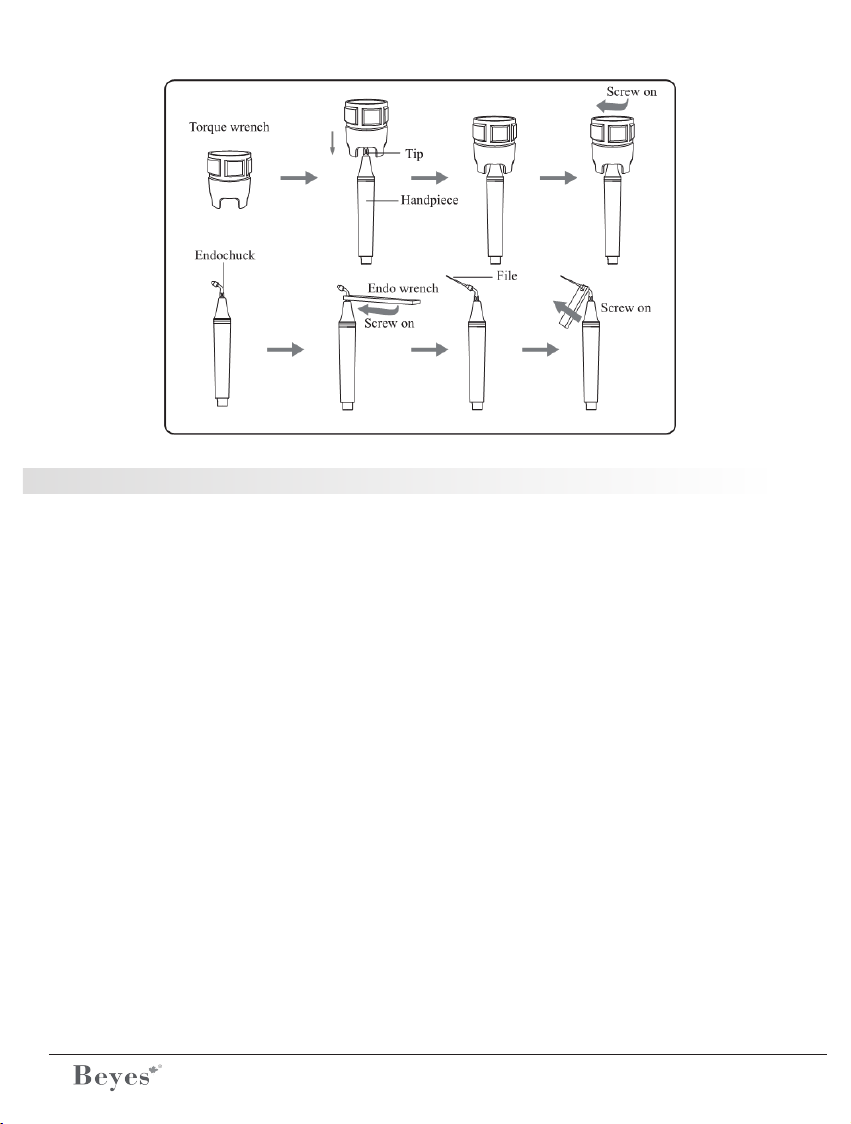

2.1.3 Instruction of torque wrench (See picture 5)
• The torque wrench’s structure is designed in special way which can control the strength of
the scaling tip’s installation properly and correctly. It also can guarantee the operator screw or
unscrew the scaling tip effectively and keep their hands away from being scratched.
• Operation
a. Take the scaling tip into the torque wrench as showed in picture 5.
b. Tip installation: Hold the handpiece, turn the tip toward direction as showed in gure 7 with
the torque wrench. Turn twice more circles when the tip stops, then the tip will be installed.
c. Tip’s uninstallation: Hold the handpiece, turn the wrench in anti-clockwise direction direction.
d. Serilize it in sterilizer after each treatment.
e. The torque wrench must be cooled down naturally after sterilization to avoid scald when
using for the next time.
f. Keep the torque wrench in a cool, dry and ventilated place and keep it clean.

9
2.2 Endo function
2.2.1. Usage process
• Fix endochuck to handpiece by endo wrench.
• Unscrew the screw cap on the endochuck.
• Put the ultrasonic le into the hole in the front of endochuck.
• Screw down the screw cap with endo wrench to tight up the ultrasonic le.
• Press option key, turn to endo function.
• When ultrasonic scaler turns into endo function, only the rst lead light will be on and the power
will be at the 1st grade. Put the ultrasonic le into the patient’s root canal slowly, step on the
foot switch, during the treatment, turn up the power gradually according to the needs.
2.2.2 Notice
• When xing endochuck, it must be screwed down.
• The screw cap on the endochuck must be screwed down.
• Don’t press it too much when the ultrasonic le is in root canal.
• Don’s step on the foot switch until the ultrasonic le is in root canal.
• The power ranged from the 1st to the 5th grades.
Notice
We are not responsible for any damage of the torque wrench directly or indirectly made by any
way in the above items.
3. Sterilization and maintenance
3.1 Sterilization of detachable handpiece
3.1.1 Autoclaved in high temperature/pressure:
• 121OC/1bar (0.1 Mpa)
• 135OC/2.2 bar (0.22Mpa)
• Pull out the handpiece and unscrew scaling tip and ensochuck after each operation.
• Pack the handpiece with sterile gauze or sterile bag before steriziling.
• Reuse handpiece after it cools naturally in case of scalding hand.
3.1.2 Notice
• Dry the cleaning liquid in the handpiece with compressed air before sterilization.
• Ensure that the scaling tip has been unscrewed from the handpiece and it could not be
sterilized with others.
• Please notice whether the outer part of the handpiece is damaged during the treatment or
sterilization, don’t smear any protective oil on the surface of handpiece.
• There are two waterproof “o” rings at the end of handpiece. Please lubricate them with dental
lube frequently, as sterilization and repeated pulling and inserting will reduce their life. Change
a new one onece it is damaged or worn excessively.

10

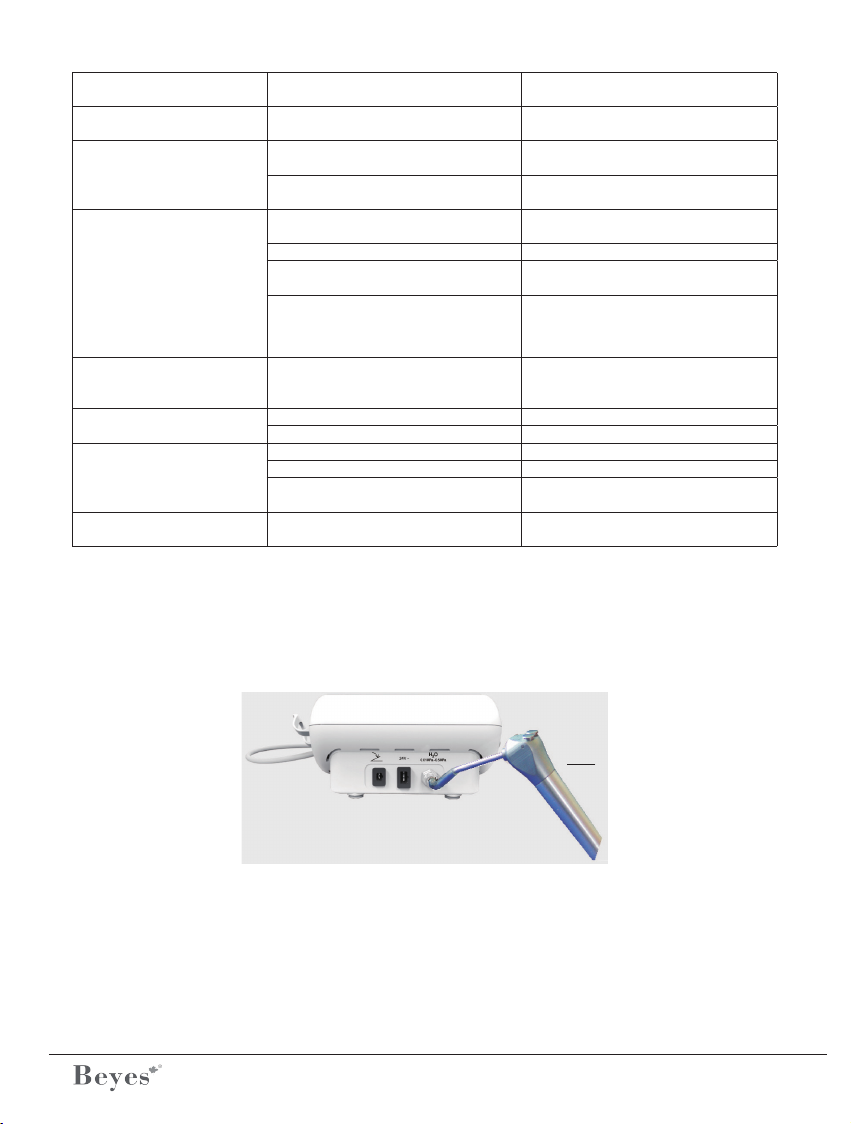

Fault Possible cause Soulutions
The scanling tip doesn’t
vibrate and there is no water
owing out when stepping
on the foot switch
The power pipe plug is in loosen
contact Make the pulg insert to the socket well
The foot switch is in loosen contact Insert the foot switch to its socket
tightly
The fuse in the main unit is broken Contact our dealers or us
The scaling tip doesn’t
vibrate but there is water
owing out when stepping
on the foot switch
The tip is in loosen contact Screw the tip on the handpice tightly
(see picture 5)
The connect plug between the
handpiece with the circuit board is in
loose contract.
Contact our dealers or us
Something wrong with the handpiece Send the handpice to our company
to repair
Something wrong with the cable Contact our dealer or us
The scaling tip vibrates
but there is no spray when
stepping on the foot switch
The water control switch is not on Turn on the water control switch [note
1]
There is impurity in the electric-
magnetic valve Contact our dealers or us
The watere system is blocked Clean the water pipe by multi-function
syringe[note 2]
3.6.1 Troubleshooting
• The following sterilizing methods are forbiden:
a. Putting handpiece into any liquid for boiling.
b. Dipping handpiece in disinfectors such as iodine, alcohol and glutaraldeyde.
c. Sterilizing handpiece into oven or microwave oven for baking.
3.2 Sterilization of scaling tips and endochuck.
All the scaling tips and endochuck can be autoclaved to 135OC.
3.3 Sterilization of torque wrench and edo wrench
• The torque wrench and endo wrench can be sterilized in high temperature and pressure.
• The following sterilization ways for torque wrench are forbiden:
a. Baise in liquor.
b. Dipping in iodine, alcohol or glutaradehyde.
c. Sterilizing in oven or microwave oven.
Notice
We are not responsible for any damage of the torque wrench directly or indirectly made by any
ways which indicated in above items.
3.4 Cleaning of tips, endochuck, torque wrench and endo wrench
The scaling tip, endochuck, torque wrench and endo wrench can be cleaned by ultrasonic cleaner.
3.5 Sterilization and cleaning of LED lamp and Light pipe
Clean the LED lamp and Light pipe with puried water and sterilize them under high temperature
and high pressure after every operation.
3.6 Troubleshooting and notes

11
There is still water owing
out after the power is off
There is impurity in the electric-
magnetic valve Contact our dealers or us
The handpiece generates
heat
The water control switch is in a low
setting
Turn the water control switch to a
higher grade[note2]
The amount of spouting
water is too little
The water pressure is not high
enough Make the water pressure higher
The water pipe is blocked Clean the water pipe by multi-function
syringe[note2]
The vibration of tip becomes
weak
The tip hasn’t been screwed on to the
handpiece tightly
Screw the tip on the handpiece tightly
(see picture 5)
The tip is loosen because of vibration Screw on the tip tightly (see picture 5)
The coupling between the handpiece
and the cable isn’t dry Dry it by the hot air
The tip is damaged[note 3] Change to a new tip
There is water seeping from
the coupling between the
handpiece and the cable
The waterproof “O” ring is damaged Change to a new “O” ring
The ultrasonic doesn’t
vibrate
The screw is loosen Tighten it
Endochuck is damaged Change to a new endochunck
LED light doesn't work
Poor contact Contact tightly
Something wrong with LED light Change a new one
LED lamp installed backwards Please install the "+" of the LED lamp
to the "+" of the handpiece
There is noise coming from
the endochuck The screw cap is loosen Tighten it
If the problem still can’t be solved, please contact with local dealer or manufacturer.
3.6.2 Notes
• [Note 1] Turn the water control switch can adjust the water volume according to the symbol.
• [Note 2] Clean the water pipe with the Multi-function syringe of the dental unit (see picture 6)
a. Cut the water pipe from a distance of 10cm to 20cm from the water entrance.
b. Turn on the electricity and get through to the power.
c. Connect the multi-function syringe of dental unit to the water pipe.
d. Disassemble the tip or handpiece
e. Step on the foot switch.
f. Turn on the switch of the multi-function syringe, press the water into the machine and the
impurity blocked in the water pipe can be eliminated.
Multi-function syringe
picture 6

12
4. Precaution
4.1 Notice when using equipments
4.1.1 Keep the scaler clean before and after operation.
4.1.2 The handpiece, scaling tip, torque wrench, endo wrench and endochuck must be sterilized
before each treatment.
4.1.3 Don’t screw or unscrew the scaling tip and endochuck when stepping on the foot switch.
4.1.4 The scaling tip must be fastened and there must be ne spray or dripped from the tip when
operating.
4.1.5 Change to a new one when the tip and ulrasonic le are damaged or worn excessively.
4.1.6 While scaler working, the heat of scaling tip will become higher if there is no water owing out.
Please keep the water ow smoothly.
4.1.7 Don’t twist the tip and endo chuck or rub them.
4.1.8 Don't use impure water source and be sure not use normal brine instead of pure water
source.
4.1.9 If using the water source without hydraulic pressure, the water surface should be one meter
higher than the head of patient.
4.1.10 Ensure the connector of handpiece and the socket of the cable are dry before installing the
handpiece.
4.1.11 Don’t pull the cable forcibly in case of the handpeice falling off the cable.
4.1.12 Don’t’ knock or rub the handpiece.
4.1.13 Please put the power plug into the socket easy to pull out, to make sure it can be pull out in
emergency.
4.1.14 The device can only be equipped with the special power supply of original manufacturer.
4.1.15 The power supply is NOT waterproof. Please keep it fry and away from the water.
4.1.16 After operating, turn off the power, then pull out the plug.
4.1.17 We are only responsible for the safety on the following conditions:
• The maintenance, repairment and modication are made by the manufacturer or the the
authorized dealer.
• The changed components are originated of “BEYES” and are operated according to instruction
manual.
4.1.18 The internal screw thread of the scaling tips produced by some maunactures is coarse, rusty
and collapsed. This will damage the external screw thread of the handpiece irretrievably. Please
use “BEYES” brand scaling tips.
4.2 Contraindication
4.2.1 The hemophilia disease patient is not allowed to use this equipment.
4.2.2 The patients or doctors with heart pacemaker are forbidden to use this equipment.
4.2.3 The patient with heart disease, pregnant women and children should be cautious with using
the equipment.
• [Note 3] If the scaling tip has been screwed on tightly and there is ne spray too, the following
phenomena show that the scaling tip is damaged:
a. The vibrating intensity and the water atomization degree become weak obviously.
b. During treatment, it produces the sound like "buzz" from the scaling tip.

13
4.3 Storage and maintenance
4.3.1 The equipment should be handled carfully and lightly. Be sure that it is far from the vibration ,
and install or keep in a cool, dry and ventilated place.
4.3.2 Don’t store the machine together with the articles that are combustible, poisonous, caustic,
and explosive.
4.3.3 This equipment should be stored in a room where th e relative humidity is ≤80%,
atmospheric pressure is 50kPa to 106kPa, and the temperature is -10OC to +50OC.
4.3.4 If it is has not been used a long time, please ensure the machine gets through to the power
and water once per month for ve minutes.
4.4 Transportation
4.4.1 Excessive impact and shake should be prevented in transportation. Lay it carefully and lightly
and don’t invert it.
4.4.2 Don’t put it together with dangerous goods during transportation.
4.4.3 Avoid solarization and getting wet in rain and snow during transportation.
4.5 Working condition
• Enironment temperature:50C to 400C
• Relative humidity: ≤80%
• Atmosphere pressure: 70kPa to 106kPa
5. After service
We offer one year’s free repair to the equipment according to the warranty card. The repair of the
equipment should be carried out by our professional technicians. We are not responsible for any

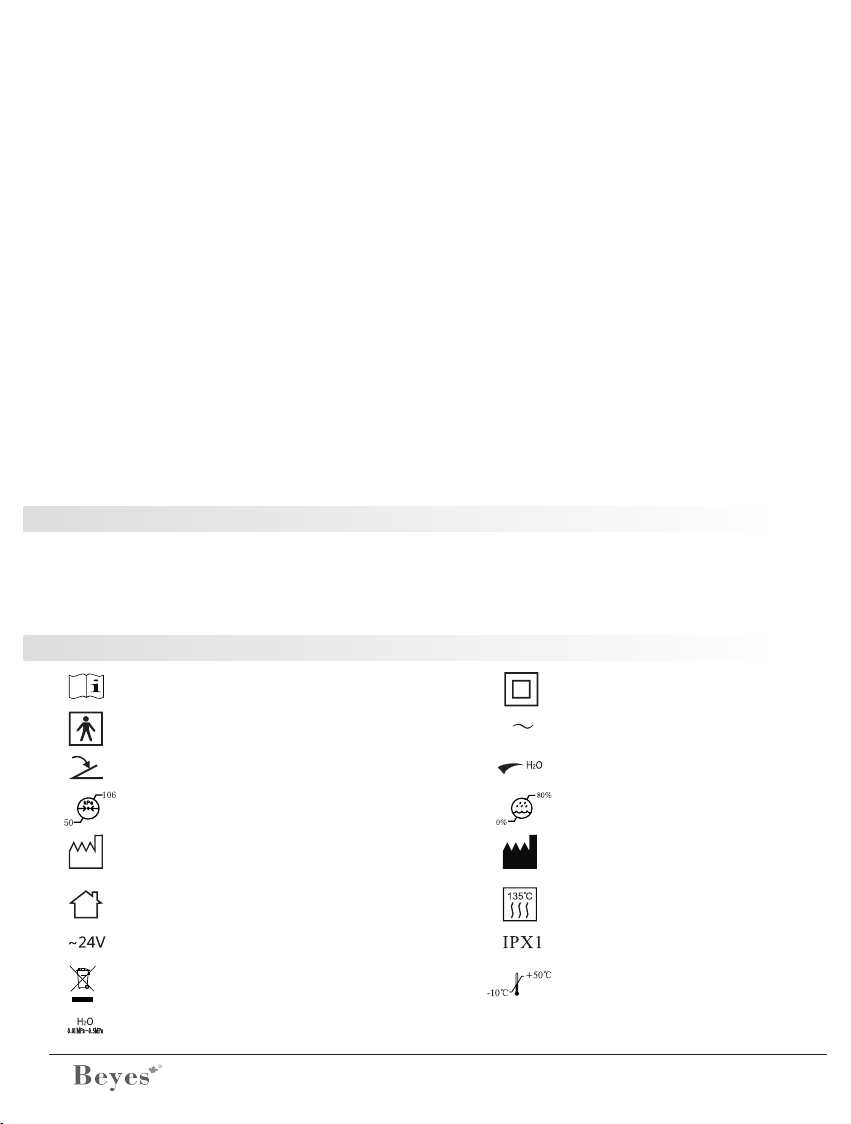

6. Symbol instruction
Consult the accompanying documents
Type BF applied part
Socket for the foot switch
Atmospheric pressure for storage
Date of manufacture
Used indoor only
24VAC power supply socket Anti-drip device
Temperature
Class II equipment
Alternating current
Ajustment for the water ow
Humidity Limitation
Manufacturer
Can be autoclaved
Water entrance pressure 0.01MPa to 0.5Mpa
Appliance compliance WEEE directive

14
7. Environmental Protection
There is no harmful factor in our product. You can deal with it based on the local law.
8. Manufactrurer’s rights
We reserve the rights to change the design of the equipment, the technique, ttings, the instruction
manual and the content of the original packing list at any time without notice. If there are some
differences between blueprint and real equipment, take the real equipment as the norm.
9. Beyes Limited Warranty Statement
9.1 SCOPE OF WARRANTY
BEYES Dental Canada Inc. ('BEYES') warrants to the original retail purchaser that it will be at
BEYES option to repair or replace components of the dental products manufactured by BEYES
(except for components not warranted under 'Exclusions') that are defective in material or
workmanship under normal use and service. BEYES’ obligation under this limited warranty is limited
to the repair or replacement of the applicable components.
This limited warranty shall only apply to defects that are reported to BEYES within the applicable
warranty period and which, upon examination by Beyes, prove to be defective. This warranty
extends only to the rst retail purchaser of a product and is not transferable or assignable.
Replacement components or products may be used and/or refurbished components or products,
provided they are of like quality and specications as new components or products.
9.2 APPLICABLE WARRANTY PERIOD
The applicable warranty period, measured from the date of invoice to the original user, shall be
warranted for a period of 12 months
9.3 EXCLUSIONS
This limited warranty does not cover and BEYES shall not be liable for the following;
(1) Defects, damage or other conditions caused, in whole or in part, by misuse, abuse, negligence,
alteration, accident, freight damage, negligent storage, tampering or failure to seek and obtain
repair or replacement in a timely manner;
(2) Products which are not installed, used, and properly cleaned and maintained as required or
recommended in the BEYES 'Installation' and/or 'Installation/User’s Manual' for the applicable
product, including the specied structural and operational environment conditions and electrical
power requirements;
(3) Products considered to be of a consumable or sterile nature;
(4) Accessories or parts not manufactured by BEYES;

15
(5) Charges by anyone for adjustments, repairs, replacement parts, installation or other work
performed upon or in connection with such products which are not expressly authorized in writing in
advance by BEYES;
(6) Costs and expenses of routine maintenance and cleaning;
(7) Representations and warranties made by any person or entity other than BEYES;
(8) Matching of color, grain or texture except to commercially acceptable standards;
(9) Changes in color caused by natural or articial light;
(10) Custom manufactured products;
(11) Alterations or modications to the product by any person or entity other than BEYES;
(12) Products that would otherwise by covered under Sections 1 and 2 of this limited warranty, but
are acquired: (i) from a person or entity that is not BEYES or one of its authorized dealers; or (ii)
from a BEYES dealer that is not authorized to sell the product at issue in the geographic territory
where the purchaser is located, or is not authorized to sell the product at issue within the medical,
animal health or dental market, as the case may be, in which purchaser intends to use the product.
9.4 EXCLUSIVE REMEDY; CONSEQUENTIAL DAMAGES DISCLAIMER
BEYES’ OBLIGATION UNDER THIS LIMITED WARRANTY IS THE REPAIR OR REPLACEMENT
OF DEFECTIVE PARTS. BEYES SHALL NOT BE LIABLE FOR AND HEREBY DISCLAIMS ANY
DIRECT, SPECIAL, INDIRECT, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES
OR DELAYS, INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS
OR INCOME, LOSS OF USE, DOWNTIME, COVER AND EMPLOYEE OR INDEPENDENT
CONTRACTOR WAGES, PAYMENTS AND BENEFITS.
9.5 WARRANTY DISCLAIMER
THIS LIMITED WARRANTY IS BEYES ONLY WARRANTY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. BEYES MAKES NO IMPLIED WARRANTIES OF ANY
KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
OF DEFECTIVE PARTS.

Printed in Canada
ENI014R2
Federal law restricts this device to sale by or on the order of a dentist, physician, or any other practitioner
licensed by the law of the states in which he or she practices to use or order the use of this device.
!
0197
Beyes Dental Canada Inc.
23-595 Middleeld Road
Toronto, Ontario, M1V 3S2
Canada
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.beyes.ca
Lotus NL B.V.
Koningin Julianaplein 10, Ie Verd,
2595AA, The Hague,
Netherlands
Tel: [phone] (English)
[phone] (Dutch)
