BH BLADEZ MASTER MAG User manual

OWNER’S MANUAL
BH FITNESS | 620 N. 2nd Street, St. Charles, MO 63301
p.636-487-0050 | www.BHFitnessUSA.com | www.BHFitnessCanada.ca
Important: Read all instructions carefully before using this product.
Register your product warranty online at: www.BHFitnessUSA.com.
Retain this owner’s manual for future reference.

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
2 TM
TABLE OF CONTENTS
Title.........................Page
Congratulations ................02
Maintenance And Cleaning .......02
Safety Information ..............03
Exercise Instruction .............04
Training Guidelines .............05
Suggested Stretches ............09
Assembly Instructions ...........11
Exploded View Drawing ..........17
Parts List......................18
Console Overview...............19
French / Français...............21
CONGRATULATIONS
Congratulations on your purchase of
BH Fitness equipment. We hope you appreciate
the style, quality, and value that exercisers
around the world have come to expect from
BH Fitness.
If you have any questions, concerns or product
issues please call our Customer Service
Team at 1-866-325-2339 or email us at
[e-mail].
Carefully read through the instructions
contained in this manual. They provide you with
important information about assembly, safety,
tness and use of the machine. Please
read ALL the safety information contained on
the following page.
MAINTENANCE AND CLEANING
Care has been taken to assure that your
equipment has been properly adjusted and
lubricated at the factory. It is not recommended
that the user attempt service on the internal
components. Instead, seek service from an
authorized service center. However, you may
clean the outer surface. Use a soft cloth,
dampened with warm water. Do not use aerosol
sprays or pump bottles as they may deposit
sediments upon the console surface. The use
of harsh chemicals will destroy the protective
coating and cause a static build-up that may
damage the some of the components.
TM

3
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TM
SAFETY INFORMATION
PRECAUTIONS
This equipment has been designed and constructed to provide maximum safety.
Nevertheless, certain precautions should be taken when using exercise equipment. Read
the whole manual before assembling and using the machine. Please observe the following
safety precautions:
1. Keep children and pets away from this equipment at all times. DO NOT leave them
unsupervised in the room where the machine is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using this
machine STOP the exercise. SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the machine on a level and solid surface. Adjust the feet for stability.
4. Keep your hands away from any of the joints and moving parts.
5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get
caught in the machine. Always wear athletic shoes when using the machine and tie the
laces securely.
6. This machine must only be used for the purposes described in this manual. DO NOT use
accessories that are not recommended by BH Fitness. Read manual prior to use and
follow all warnings and instructions.
7. Do not place sharp objects near the machine.
8. Any person with physical or coordination limitations should not use the machine without
the assistance of a qualied person or doctor. Misuse of this machine may result in
serious injury.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the machine if it is not working correctly.
11. Before using the machine, thoroughly inspect the equipment for proper assembly.
12. Keep a perimeter of 3 feet (1 meter) around the machine before operating the
equipment.
13. Use only authorized and trained technicians if a repair is needed.
14. Please follow the advice for correct training, as detailed in the Training Guidelines.
15. Use only the tools provided to assemble this machine.
16. Replace warning labels if damaged, illegible or removed.
17. This machine was designed for a maximum user weight of 300 lbs (136 kgs)
18. The machine can only be used by one person at a time.
CAUTION: Consult your doctor before beginning to use the machine or any exercise
program. Read all of the instructions before using any exercise equipment.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
4 TM
Use of the machine offers various benets; it can improve tness, muscle tone and
when used in conjunction with a calorie controlled diet, it can help you lose weight.
1. Consult your doctor before starting any exercise program. It is advisable to
undergo a complete physical examination.
2. Work at the recommended exercise level. Do not over exert yourself.
3. If you feel any pain or discomfort, stop exercising immediately and consult
your doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose
clothing; do not wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Get on the equipment slowly and securely.
7. Select the program or workout option that is most closely aligned with your
workout interests.
8. Start slowly and work your way up to a comfortable pace.
9. Be sure to cool down after your workout.
EXERCISE INSTRUCTION

5
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TM
TRAINING GUIDELINES
Exercise is one of the most important factors in the overall health of an individual. Listed
among its benets are:
• Increased capacity for physical work (strength endurance)
• Increased cardiovascular (heart and arteries/veins) and respiratory efciency
• Decreased risk of coronary heart disease
• Changes in body metabolism, e.g. losing weight
• Delaying the physiological effects of age
• Reduction in stress, increase in self-condence, etc.
There are several components of physical tness and each is dened below.
STRENGTH
The capacity of a muscle to exert a force against resistance. Strength contributes to power
and speed.
MUSCULAR ENDURANCE
The capacity to exert a force repeatedly over a period of time, e.g. it is the muscular
endurance of your legs to carry you 10 km without stopping.
FLEXIBILITY
The range of motion of your joints. Improving exibility involves the stretching of muscles and
tendons to maintain or increase suppleness, and it provides increased resistance to muscle
injury or soreness.
CARDIO-RESPIRATORY ENDURANCE
The most essential component of physical tness. It is the efcient functioning of the heart
and lungs.
AEROBIC FITNESS
Is an exercise of relatively low intensity and long duration, which depends primarily on the
aerobic energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the
body's metabolic or energy-generating process. Many types of exercise are aerobic, and by
denition are performed at moderate levels of intensity for extended periods of time.
ANAEROBIC TRAINING
Is an exercise intense enough to trigger anaerobic metabolism. This means “without oxygen”
and is the output of energy when the oxygen supply is insufcient to meet the body’s long
term energy demands. (For example, a 100 meter sprint.)

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
6 TM
TRAINING GUIDELINES
OXYGEN UPTAKE
The effort that you can exert over a prolonged period of time is limited by your ability to
deliver oxygen to the working muscles. Regular vigorous exercise produces a training effect
that can increase your aerobic capacity by as much as 20 to 30%. An increased VO2 Max
indicates an increased ability of the heart to pump blood, of the lungs to ventilate oxygen,
and of the muscles to take up oxygen.
THE TRAINING THRESHOLD
This is the minimum level of exercise which is required to produce signicant improvements
in any physical tness parameter.
OVERLOAD
This is where you exercise above your comfort level. The intensity, duration and frequency of
exercise should be above the training threshold and should be gradually increased as the
body adapts to the increasing demands. As your tness level improves, the training threshold
should rise. Working through your program and gradually increasing the overload factor is
important.
PROGRESSION
As you become more t, a higher intensity of exercise is required to create an overload and
therefore provide continued improvement.
SPECIFICS
Different forms of exercise produce different results. The type of exercise that is carried out
is specic to the muscle groups being used and to the energy source involved. There is little
transfer of the effects of exercise, i.e. from strength training to cardiovascular tness. That is
why it is important to have an exercise program tailored to your specic needs.
REVERSIBILITY
If you stop exercising or do not do your program often enough, you will lose the benets you
have gained. Regular workouts are the key to success.
WARM-UP
Every exercise program should start with a warm-up where the body is prepared for the
effort to come. It should be gentle and preferably use the muscles group to be involved
later. Stretching should be included in both your warm-up and cool down, and should be
performed after 3-5 minutes of low intensity aerobic activity or calisthenic type exercise.
WARM DOWN OR COOL DOWN
This involves a gradual decrease in the intensity of the exercise session. Following exercise,
a large supply of blood remains in the working muscles. If it is not returned promptly to the
central circulation, pooling of blood may occur in the muscles.

7
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TM
TRAINING GUIDELINES
HEART RATE
As you exercise, your heart rate increases. This is often used as a measure of the required
intensity of an exercise. You need to exercise hard enough to condition your circulatory
system, and increase your pulse rate, but not enough to strain your heart.
Your initial level of tness is important when developing an exercise program. Depending on
the individual, when starting an exercise program, you can achieve good training results with
a heart rate of 110-120 beats per minute (BPM). If you are more t, you will need a higher
threshold of stimulation.
To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70%
of your maximum heart rate. If you nd this is too easy, you may want to increase it, but it is
better to lean on the conservative side.
As a rule of thumb, your maximum heart rate is calculated by subtracting your age from 220.
As you increase in age, your heart, like other muscles, loses some of its efciency. Some of
this loss can be won back as tness improves.
HOW TO CALCULATE YOUR HEART RATE
Immediately after exercising, take your heart rate by applying two ngers to your wrist or
carotid artery in the neck. Count the beats for ten seconds. Multiply the number of beats
times 6 to calculate your current heart rate in BPM (beats per minute). Ten seconds is long
enough for accuracy. Since heart rate slows as you recover, a count longer than ten seconds
isn’t as accurate.
The following tables are guides for target heart rate per beginning tness and above average
tness levels based on your age.
BEGINER FITNESS LEVEL
AGE GROUP 25 30 35 40 45 50 55 60 65
10 Second Count 23 22 22 21 20 19 19 18 18
Heart Rate In Beats Per Minute 138 132 132 126 120 114 114 108 108
ABOVE AVERAGE FITNESS LEVEL
AGE GROUP 25 30 35 40 45 50 55 60 65
10 Second Count 26 26 25 24 23 22 22 21 20
Heart Rate In Beats Per Minute 156 156 150 144 138 132 132 126 120
Don’t push yourself too hard to reach the gures on this table. It can be very uncomfortable
if you over exercise. Let it happen naturally as you work through your program. Remember,
the target is a guide, not a rule, a little above or below is just ne.
Don’t be concerned with day to day variations in your pulse rate. Being under pressure or not
enough sleep can affect it. Your pulse rate is a guide, don’t become obsessed with it.

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
8 TM
TRAINING GUIDELINES
MUSCLE SORENESS
For the rst week or so, muscle soreness may be the only indication you have that you
are on an exercise program. This, of course, does depend on your overall tness level. A
conrmation that you are on the correct program is a very slight soreness in most major
muscle groups. This is quite normal and will disappear in a matter of days.
If you experience major discomfort, you may be on a program that is too advanced, or you
have increased your program too rapidly.
If you experience pain during or after exercise, your body is telling you something. Stop
exercising and consult your doctor.
WHAT TO WEAR
Wear clothing that will not restrict your movement in any way while exercising. Clothes should
be light enough to allow the body to cool. Excessive clothing that causes you to perspire more
than you normally would gives you no advantage. The extra weight you lose is body uid and
will be replaced with the next glass of water you drink. Always wear a pair of athletic shoes.
BREATHING DURING EXERCISE
Do not hold your breath while exercising. Breathe normally as much as possible.
Remember, breathing involves the intake and distribution of oxygen, which feeds the
working muscles.
REST PERIODS
Once you start your exercise program, you should continue through to the end. Do not
break off halfway through and then restart at the same place later on without going
through the warm-up stage again. The rest period required between exercises may vary
from person to person.

9
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TM
SUGGESTED STRETCHES
HEAD ROLLS
Rotate your head to the right for one count while feeling the
stretch up the left side of your neck. Next, rotate your head back
for one count, stretching your chin to the ceiling. Rotate your head
to the left for one count, and nally, drop your head to your chest
for one count.
SHOULDER LIFTS
Lift your left shoulder up toward your ear for one count. Then
lift your right shoulder up for one count as you lower your left
shoulder.
SIDE STRETCHES
Open your arms to the side and continue lifting them until they are
over your head. Reach your left arm as far upward as you can for
one count. Feel the stretch up your left side. Repeat this action
with your right arm.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach behind you and
pull your left foot up. Bring your heel as close to your buttocks as
possible. Hold for 15 counts and repeat with right foot up.

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
10 TM
SUGGESTED STRETCHES
INNER THIGH STRETCH
Sit with the soles of your feet together with your knees
pointing outward. Pull your feet as close into your groin as
possible. Gently push your knees towards the oor. Hold for
15 counts.
TOE TOUCHES
Slowly bend forward from your waist, letting your back and
shoulders relax as you stretch toward your toes. Reach down
as far as you can and hold for 15 counts.
HAMSTRING STRETCHES
Sit with your right leg extended. Rest the soles of your left
foot against your right inner thigh. Stretch toward your toes
as far as possible. Hold for 15 counts. Relax and then
repeat with left leg extended.
CALF/ACHILLES STRETCHES
Lean against a wall with your right leg in front of the left and
your arms forward. Keep your left leg straight and the right
foot on the oor; then bend the right leg and lean forward by
moving your hip toward the wall. Hold, then repeat on the
other side for 15 counts.

11
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TM
ASSEMBLY INSTRUCTIONS

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
12 TM
STEP 1
ATTACH FRONT AND REAR STABILIZERS
Remove the shipping supports (metal tubes attached with 2 screws) -under the front and rear
stabilizers with supplied Allen wrench. Discard the supports and screws.
Attach the front stabilizer (8) and rear stabilizer (7) under the main frame (1) with 4 button
head hex socket bolts (34) and 4 at washers (33) using the supplied Allen wrench. (Figure 1.)
STEP 2
ATTACH THE ANTI-PERSPIRATION COVER
Remove the 4 Philips screws (87) from the frame and attach the anti-perspiration
cover (88) to frame with the same Philips screws using supplied combination wrench/
screwdriver. (Figure 2.)
ASSEMBLY INSTRUCTIONS
Figure 2
Figure 1

13
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TM
STEP 3

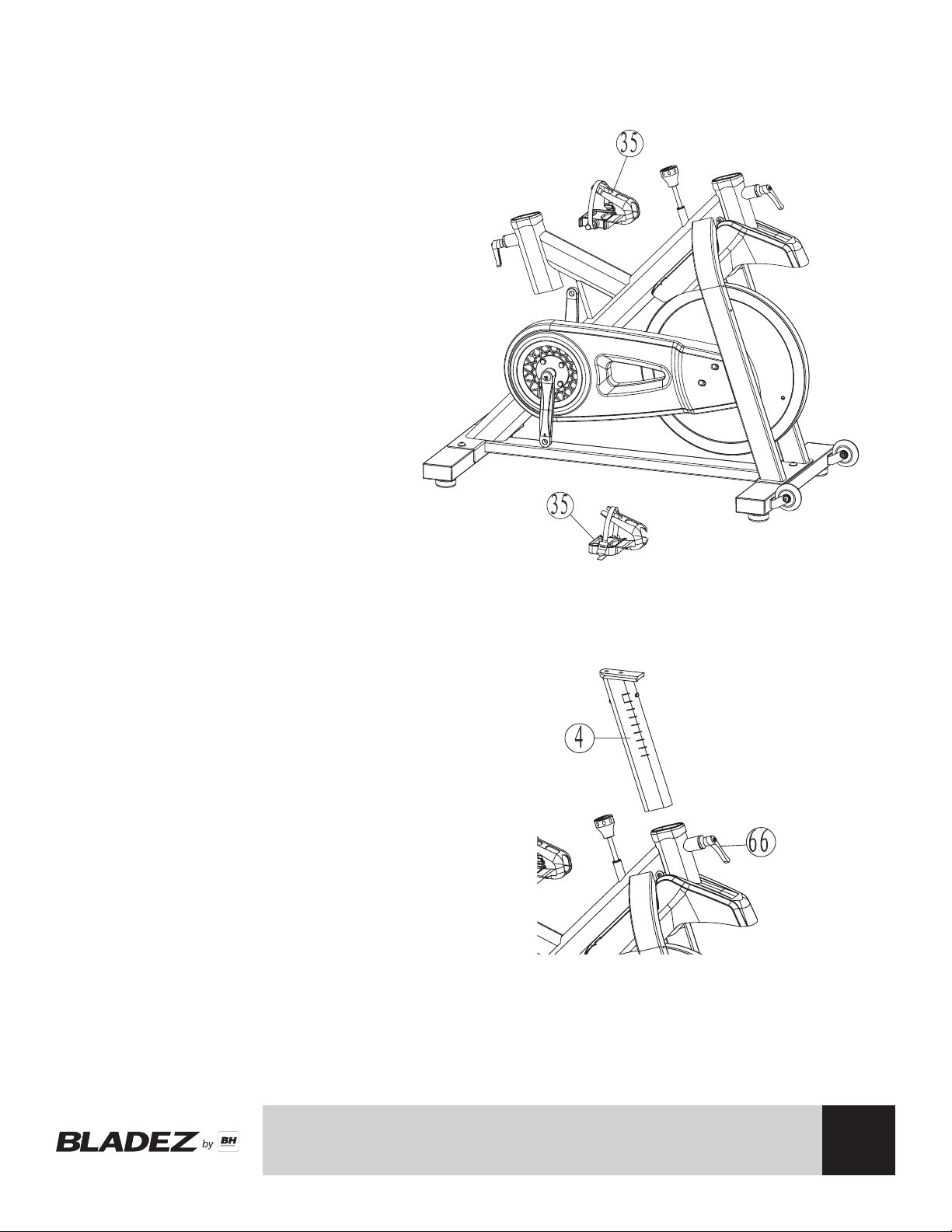

INSTALL PEDALS
Install the left pedal (35-L) onto the left
crank arm by turning the pedal axle in a
counter-clockwise direction using supplied
15mm wrench. Install the right pedal
(35-R) onto right crank arm by turning the
pedal axle in a clockwise direction using
supplied 15mm wrench. (Figure 3.)
STEP 4
INSTALL THE HANDLEBAR POST
Slide the handlebar post (4) into the housing
of the main frame (1.) Install and tighten
quick handle (66) to secure the handlebar
post. (Figure 4.)
ASSEMBLY INSTRUCTIONS
Figure 3
Figure 4

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
14 TM
STEP 5
INSTALL THE HANDLEBAR
Attach the handlebar (5) to the
handlebar post (4) and tighten in with
the ratcheting quick handle (66) and
thick at washer (31.) (Figure 5)
STEP 6
INSTALL THE SEAT POST
Slide the seat post (2) into the housing on the main frame. Install and tighten the
quick handle (66) to secure the seat post. (Figure 6.)
ASSEMBLY INSTRUCTIONS
Figure 5
Figure 6

15
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TM
STEP 7
INSTALL THE SEAT
Loosen the pop pin (23) and then pull down on the pop pin to insert the seat slider (3)
into the seat post (2.) Re-tighten the pop pin. Install the seat (22) onto the seat slider and
tighten seat clamp with provided 13mm wrench. (Figure 7.)
STEP 8
INSTALL THE CONSOLE
Remove the 2 Philips screws (72) from handle
bar then install the console mount (81) onto the
handlebar (5) with the same 2 Philips screws.
Remove the battery cover off of the computer
console (80) and insert included batteries.
Reinstall battery cover. Remove the Phillips
screw (82) on the back of the computer and
slide the computer onto the computer mount.
Secure the computer console to the computer
mount using previously removed Philips
screw. Connect the upper sensor cable (83)
to the back of the computer. (Figure 8.)
ASSEMBLY INSTRUCTIONS
Figure 7
Figure 8

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
16 TM
ASSEMBLY INSTRUCTIONS
STEP 9
INSTALL THE WATER BOTTLE HOLDER
Attach the water bottle holder (65) to the frame with counter-sink
phillips screw (72) and washer (70.) (Figure 9.)
Figure 9

17
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TM

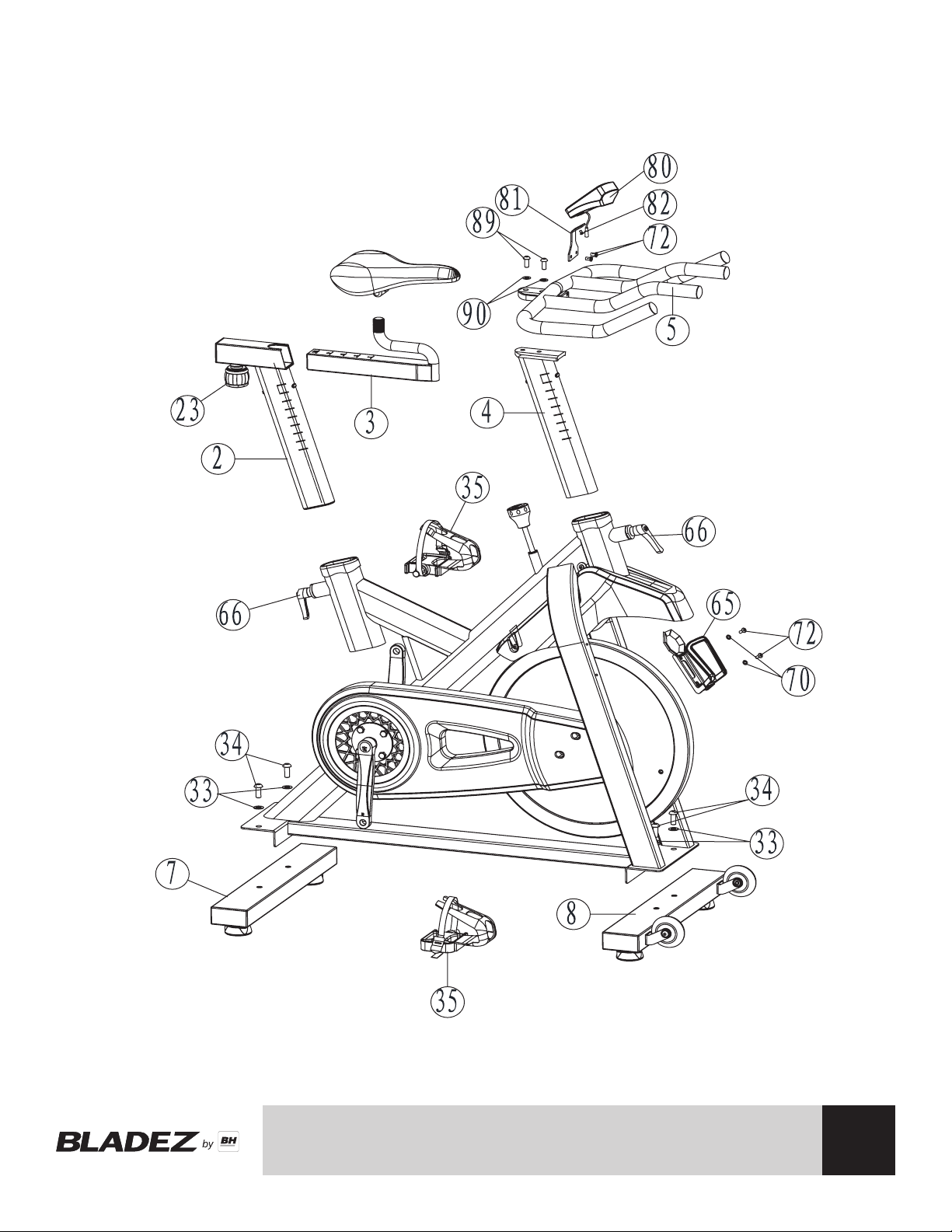

EXPLODED VIEW DRAWING

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
18 TM
PARTS LIST
To order replacement parts: provide your customer service representative with the product model number
and the part number located on the Parts List below, along with the quantity you require.
NO. DESCRIPTION QTY
1 Main Frame 1
2 Seat Post 1
3 Seat Slider 1
4 Handlebar Post 1
5 Handlebar 1
6 Cap Nut 1
7 Rear Stabilizer 1
8 Front Stabilizer 1
9 Tension Knob 1
10 Tension Bracket welding 1
11 Plastic Sleeve 1
12 R/L Crank 1 SET
13 Phillips Self-Tapping Screw 8
14 Chain Cover A 1
15 Chain Cover B 1
16 Base Leveler 4
17 Plastic Sheath-Inner Pipe (long) 1
18 Stabilizer Cap 4
19 Seat Slider Cap 1
20 Front Cover 1
21 Pulley 2
22 Seat 1
23 Pop Pin 1
24 Magnet 4
25 Brake Pad Holder 1
26 Plastic Mat-Chain Cover 2
27 Sheet Metal Screw Clip 1
28 Belt 1
29 Flat Washer 1
30 Axle Welding 1
31 Thick Flat Washer 1
32 Crank Cover 2
33 Flat Washer 4
34 Button Hex Socket Head Screw 4
35 Right & Left Pedal 1 SET
36 Flywheel 1
37 Flywheel Spindle 1
38 PK belt wheel 1
39 Sleeve 1
40 Tension Spring 1
41 Pully Flywheel-Front Drive 1
42 Rubber washer 2
43 Spring Slice 1
44 Bearing 6202 2
NO. DESCRIPTION QTY
45 Bearing 6004 2
46 Bearing 608 4
47 Brake Thread Rob 1
48 Retaining Ring 2
49 Hexagon Bolt 5
50 Inner hexagon hollow bolt 2
51 Brake Adjusting Nut 1
52 Washer 4
53 Inner Hexagon Flange Bolt 2
54 Cross Recessed Countersunk Bolt 2
55 Hexagon Thin Bolt 3
56 Retaining Ring 1
57 Hexagon Flange Bolt 1
58 Nylon nut 1
59 Countersink Philips Pan Head Screw 6
60 Hex Flat Round Head Bolt 2
61 Pedal House 2
62 String-Pedal 2
63 Plastic Sheath-Inner Pipe 2
64 Philips Recessed Pan Head Bolt 2
65 Water Bottle Holder 1
66 Quick Handle 3
67 Nylon nut 5
68 Brake tension spring 1
69 Inner Hexagon Flat Round Head Bolt 1
70 Washer 1
71 Cap Nut 1
72 Philips Screws 4
73 Inner Hexagon Flat Round Head Bolt 1
74 Washer 1
75 Outer Hexagon bolt 4
76 Inner Pipe Cap 2
77 Inner Screw Cap 2
78 Limited Bearing 2
79 Spring 2
80 Computer Console 1
81 Console Mount 1
82 Philips Bolt 1
83 Upper Sensor Cable 1
84 Lower Sensor Cable 1
85 Magnet 1
86 Brake Block 1
87 Philips Bolt 4
88 Anti-perspiration cover 1

19
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TM

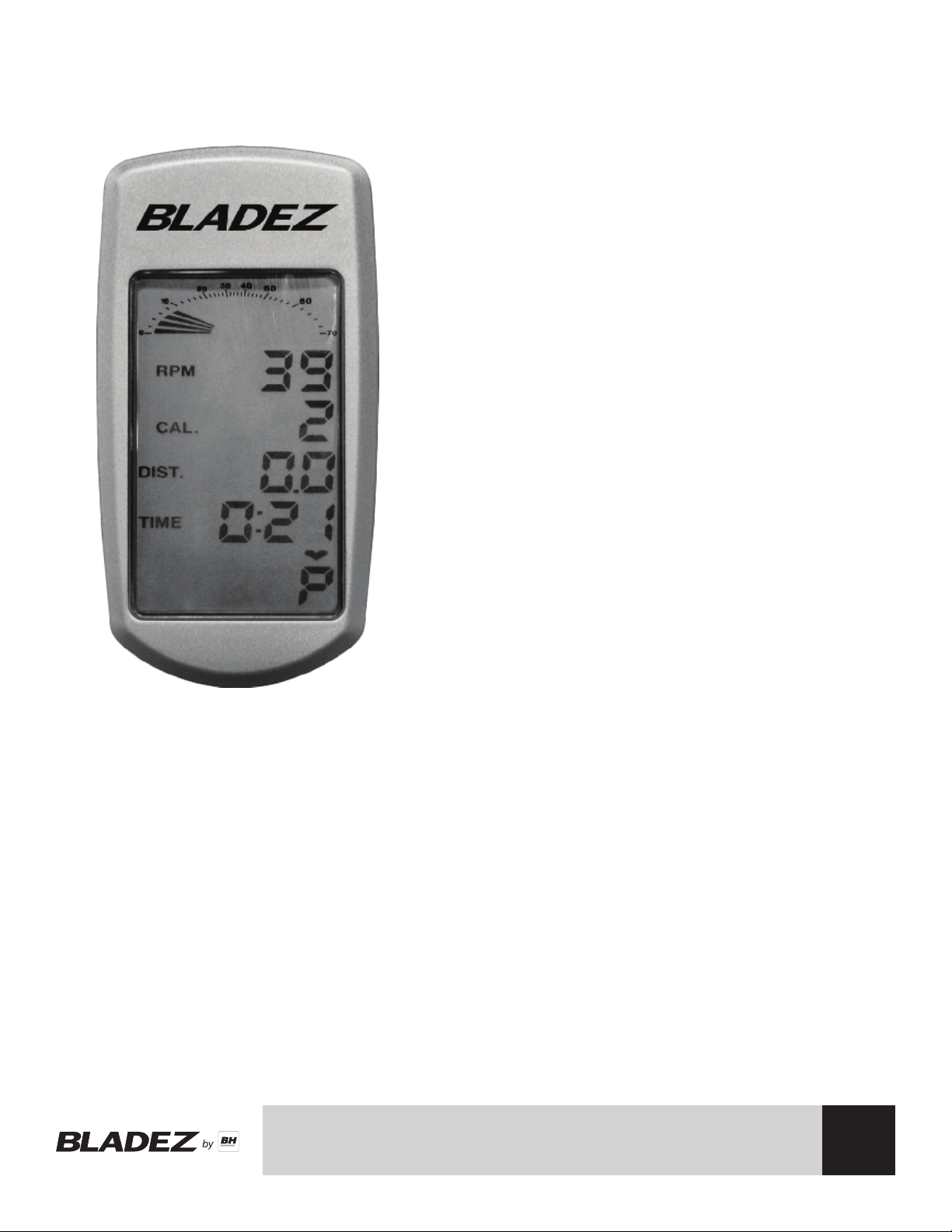

CONSOLE OVERVIEW
GENERAL:
This console has an LCD screen which displays; Speed,
RPM, Calories, Distance, Time and Pulse (optional).
POWER ON/OFF
The display will show all data upon pedaling. Once
pedaling stops, the LCD will blink, displaying the latest
data before pedaling stopped. The display will turn off
once pedaling has stopped for over 45 seconds.
MILES/KILOMETER SETTINGS
To change Mile/Kilometer setting please follow the steps
below:
1. Remove the back of the console
2. Remove the batteries
3. Locate the two small switches in the back of the
console
4. When switch “1” is set to the “ON” position, the unit is
in miles
5. To change to Kilometers ip the “2” switch to “ON”
and the “1” switch is “OFF” (or opposite to the “1”
switch)
6. Replace batteries
7. Replace back of console
DISPLAY DATA
1. SPEED - Located on top of the LCD display. Shows
current speed with pointer.
2. TIME - Shows total time of the workout. Range:
00:00~99:59 minutes.
3. RPM - Revolutions Per Minute. Range: 0~140. If
RPM exceeds 140, LCD will show "STOP" as a safety
reminder.
4. CALORIES - Shows calories consumed during workout.
Range: 000.0~999.9.
5. DISTANCE - Range: 0~999.9; Change increment: 0.1
miles.
6. PULSE - When using a compatible wireless heart rate
chest strap, the bottom of the LCD will show heart rate
(chest strap not included). Range: 60~ 240 BPM.

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
20 TM
BH North America Corporation
620 N. 2nd Street | St. Charles, MO 63301
Phone:[phone]; Toll Free: 866.325.2339
Web: www.BHFITNESSUSA.COM
Mon - Fri 8am - 5pm CST
FOR WARRANTY REPAIRS, PLEASE DO NOT TAKE YOUR MACHINE BACK
TO THE RETAIL STORE. CONTACT BH FITNESS FIRST.
