ANEM MKII
Amplified Noise Eliminating Module
Installation and Operating Manual
DSP Noise Cancellation Products from
bhi
1065-102D
Issue E
bhibhi
bhibhi
bhi
‘Noise Away’
Page 28
bhi Ltd
P.O Box 318
Burgess Hill
West Sussex
RH15 9NR
tel: [phone]
fax: [phone]
[email protected]
www.bhi-ltd.com
bhibhi
bhibhi
bhi
DSP Noise Cancellation Products from
bhi
DSP Noise Cancellation

ANEM Operating ManualANEM Operating Manual
Page 2
Copyright
This publication, including all photographs and
illustrations is protected under international
copyright laws, with all rights reserved. Neither
this manual, nor any of the material within, may
be copied or reproduced without the written
consent of bhi Ltd.
Disclaimer
The information in this document is subject to
change without notice. bhi Ltd. makes no
representations or warranties with respect to the
contents hereof and specifically disclaims any
implied warranties of merchantability or fitness for
any particular purpose. Furthermore, bhi Ltd.
reserves the right to revise this publication and to
make changes from time to time in the content
hereof without obligation of bhi Ltd. to notify any
person of such revision or changes.
Warning
The 3.5mm mono Audio Out socket provides
variable audio output for an external speaker
(4 or 8 ohm impedance) or mono earphones.
The audio level varies according to the volume
setting of the equipment that the ANEM is being
used with. When you plug mono earphones into the
Audio Out socket (stereo earphones can be used
with the bhi audio adapter ADP-S001), the SP-PH
Switch MUST BE set to the to “PH” position, to
prevent the possibility of injury to your ears.
Important Information
Page 27
NCH2
Noise Cancelling
Headphones
These headphones feed an in-
verted copy of the ambient noise
to cancel it out.
The headphones effectively re-
move noise such as blower noise,
ambient noise, jet engine noise
or music from another room.
The headphones are supplied
with an aircraft adapter, so you
can now listen to the film, or CD
player without all the jet engine
noise. Also supplied with carry
bag.
6. Other bhi products.
BBRP
Banner Badge
Applications
•ID badge
•Club badge
•Restaurants
•Receptions
•Gifts
•Stag and Hen nights
•DJs
•etc...
Get the message across
Easy to program using push
buttons on back: no cords, no
wires, no software needed. Enter
your message and watch it
scroll across.
What will yours say?
BBRP (Includes 2 CR2032
coin cells)
BBAT replacement CR2032
coin cell
6.5 Other products.

ANEM Operating ManualANEM Operating Manual Page 3
1. Introduction
1.1 ANEM module features 4
1.2 DSP noise cancellation 5
2. Module Overview
2.1 Whats in the box 6
2.2 Getting started 6
2.3 Mounting options 7
2.4 Connections 8
3. Module Operation
3.1 Keyboard 9
3.1.1 Power button 9
3.1.2 DSP level button 9
3.2 Set up 10
3.3 Demonstration modes 11
3.4 Noise reduction levels 13
3.5 Electrical characteristics 14
4. Technical Information
4.1 Module layout 18
4.2 Controls 19
4.3 Module set up 20
4.3.1 Overview 20
4.3.2 Suggested adjustment procedure 20
4.3.3 Changes to output load 21
4.3.4 Other signal considerations 21
4.4 Driving the module from a low signal source 22
5. Troubleshooting 23
6. Other bhi products 24
Contents
Page 26
6.4 Audio Adapters and Accessories.
Audio adapters:
ADP-P001 6.35mm plug - 3.5mm mono socket
ADP-P002 6.35mm plug - 3.5mm mono socket
ADP-P003 3.5mm stereo plug - 3.5mm mono socket
ADP-P004 Phono plug - 3.5mm mono socket
ADP-P005 2.5mm mono plug - 3.5mm mono socket
ADP-P006 2.5mm stereo plug - 3.5mm mono socket
ADP-P007 6.35mm stereo plug - 3.5mm stereo socket
ADP-P008 3.5mm stereo - aircraft adapter
ADP-S001 3.5mm mono socket - 3.5mm mono plug
ADP-S002 6.35mm socket - 3.5mm mono plug
ADP-S003 6.35mm stereo socket - 3.5mm mono plug
ADP-S004 2.5mm stereo socket - 3.5mm mono plug
ADP-S005 2.5mm mono socket - 3.5mm mono plug
Power adapters:
1030-UKPA 12V DC UK power adapter
1030-EUPA 12 VDC European adapter
1030-VEPL Fused vehicle power adapter
Audio leads:
ALD-001 1.2m 3.5mm - 3.5mm mono lead
ALD-002 2.5m 3.5mm - 3.5mm mono lead
ALD-003 phono -phono plug
ALD-004 3.5mm stereo plug - phono plug
ALD-005 3.5mm mono plug - phono plug
Allows connection of up to 6
pieces of equipment to one
bhi noise elimination speaker
or any other extension
speaker.
(Includes 2 free ALD001
3.5mm audio leads)
1042 Switch box
6. Other bhi products.

ANEM Operating ManualANEM Operating Manual
Page 4
1. Introduction.
1. Introduction.
The ANEM is suited to customers who prefer simple
controls and operation. It also offers a solution for those
customers who do not want to fit the NEDSP1062-KBD
amplified DSP module inside their existing extension
speaker.
The ANEM is easy to set up and its functions are
microprocessor controlled, enabling simple operation via
two pushbuttons: Power on/off audio bypass and DSP filter
on/off. 4 or 8 levels of noise cancellation are selectable
via the pushbuttons on power up, the last selected filter
level remaining in the memory when the unit is switched
off. The unit has a Headphone/speaker select switch
enabling the module to be used with an extension speaker
or a pair of mono headphones (Warning - Do not switch to
“SP” position whilst using headphones as this could
damage your hearing). The ANEM comes boxed with a
Fused DC power lead (2.1mm) and a 3.5mm mono plug
lead 1.2m long, plus full operating instructions. Audio
adapters are available to suit different connections, and
Velcro strips are provided for mounting the module in a
suitable position on your extension speaker or radio
equipment.
The ANEM is a compact, easy to use amplified DSP in-
line module, and simply connects in between the
communications equipment and extension speaker.
It is suitable for a wide range of applications, but is
particularly useful for improving voice quality in amateur
radio, removing unwanted noise and interference to give
much improved readability and speech intelligibility across
all bands.
Page 25
6.3 NEIM1031MKII In-line module.
6.4 NEIM1031 accessories.
6.5 DSP pcb modules.
LSPKR
20 Watt 4 ohm exten-
sion speaker for use with
the NEIM1031. Fitted
with a 3.5mm mono jack
plug.
1031-STAND
Clear Acrylic stand to
mount the NEIM1031.
The NEIM1031 can be
used horizontally or ver-
tically
6. Other bhi products.
DSP module range.
NEDSP1061- KBD: Low signal level module
controlled by single button
keyboard.
NEDSP1062 - KBD: Amplified DSP module
controlled by a 2 button
keyboard.
1030-UKPA UK DC power adapter
1030-EUPA European DC power adapter
Then NEIM1031MKII provides a flexible solution to noise reduction. It
features both amplified inputs and outputs, along with line level signal
processing. The unit also features an audio bypass when the unit is
switched off, so there is no need to disconnect when not in use.
Features:
•Fully adaptive noise cancellation 9 -35dB
•8 user selectable noise cancellation levels
•Mono earpiece socket
•Input sensitivity control
•Noise cancellation On/Off switch
•Line level in/out
•Input overload indication
•Power on/off with audio bypass.

ANEM Operating ManualANEM Operating Manual Page 5
1. Introduction.
Figure 1. Noise cancellation.
Original signal.
Speech with a lot of
background noise
Processed speech.
Speech with reduced
noise
Speech Noise Reduced noise
Features:
Noise reduction 9 – 35dB
Tone reduction 4 – 65 dB
Power supply 12 – 18 V dc
Input signal > 50mV
Output load 2.5W 8ohm
Current consumption 300mA
Audio bandwidth 50 – 4.3KHz
Dimensions (WxDxH) 100 x 60 x 40mm
4 or 8 filter levels (selectable)
Visual and audio indication of filter level
Audio bypass when switched off
Headphone/speaker switch
The bhi DSP processes the incoming signal and then
differentiates the speech from the noise. The unwanted
noise and interference is then attenuated to leave only
the speech. The following diagrams are taken from actual
audio signals and illustrate how the signal is being
processed.
1.2 DSP Noise cancellation.
Page 24
6. Other bhi products
6.1 NES10-2 MK3 Noise Eliminating Speaker.
6. Other bhi products.
Other noise cancellation products from bhi. Visit www.bhi-ltd.com
for more information:
Features:
•Fully adaptive noise cancellation 9 -35dB
•8 user selectable noise cancellation levels
•Mono earpiece socket
•Input sensitivity control
•Noise cancellation On/Off switch
•LED indication of power and noise cancellation
•12-24VDC operation
•On/Off audio bypass switch.
•Easy to install with adjustable mounting bracket
•2m audio lead
•Optional extras avaiable.
Amplified DSP noise cancellation speaker with
new rotary filtter select knob and increased
audio power.
6.2 DSPKR
Features:
•7 DSP filter levels 9 - 24dB
•12-18V DC operation
•Simple control of all functions
•sleep mode - Filter store function
•Volume control - Input level indicator
•Comes with 2m audio lead, Fused DC power lead & manual
Superb 10 Watt rms audio
DSP noise cancelling
speaker

ANEM Operating ManualANEM Operating Manual
Page 6
2. Module Overview.
2. Module Overview.
2.1 Whats in the box.
The ANEM is supplied with the following. Please check
that all of the items are present.
1 off ANEM MKII module
1 off Fused DC power lead
1 off 3.5mm mono leads
1 off Operating manual
4 off Self adhesive rubber feet
1 off Hook and eye fastener strip
2.2 Getting Started.
Power connector
12 - 15V dc 300mA
centre positive
Audio In
(from equipment)
Audio out
(to loudspeaker)
Power on/off
bypass button
DSP function
button
DSP function LED
Figure 2. Connectors
Figure 3. Controls

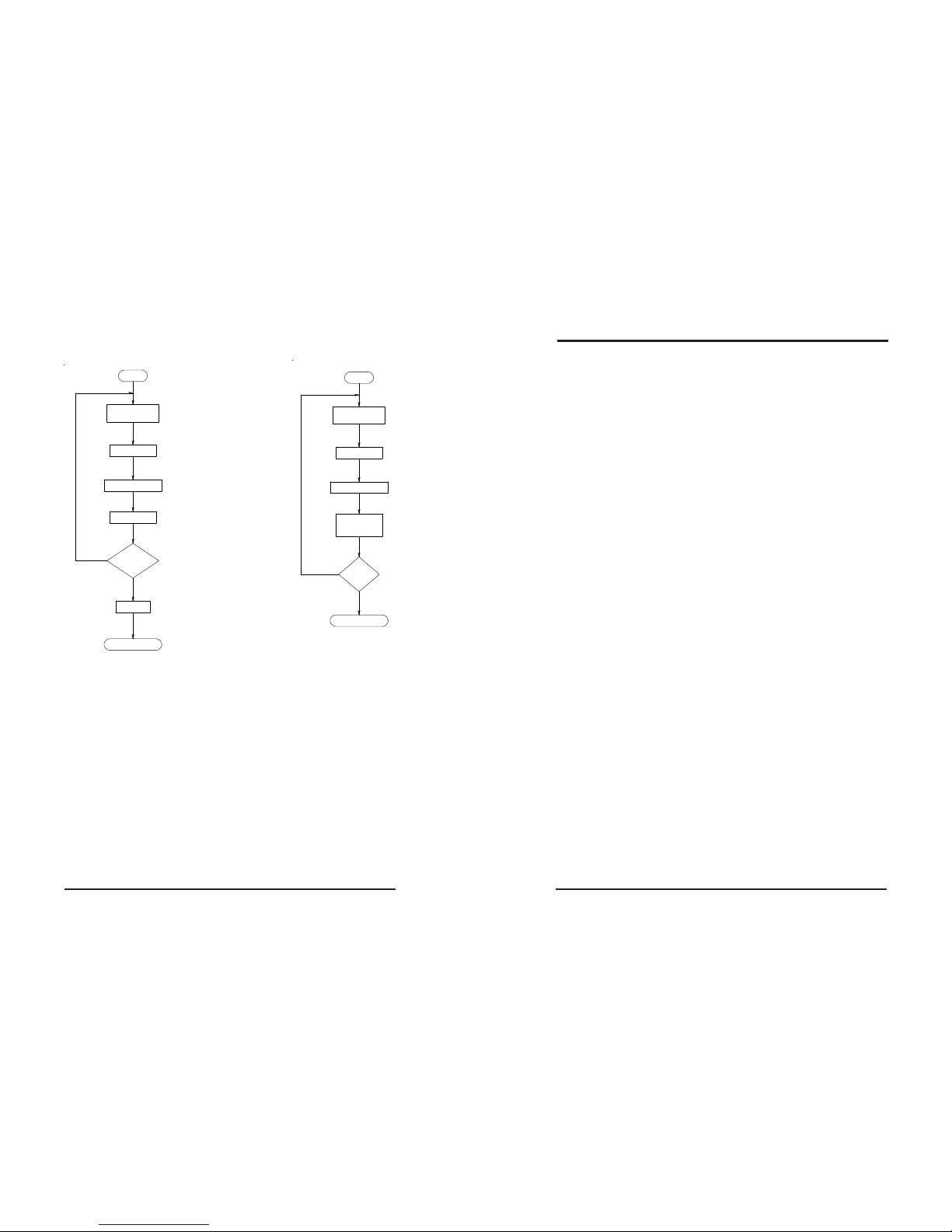

Page 23
Start
Increase input
level
Over load LED
illuminates?
No
Yes
Reduce input
so LED goes
out
Increase output
level P1
Sufficient
output volume?
Supply voltage
<13.8 Vdc
Input level
too low
Increase
supply
voltage
Finish
Yes
Disconnect
R6
(see section 3.3)
Over load LED
illuminates?
Add additional
amplification
NoYes
No No
Yes
5.2 Insuffucient output volume
5. Troubleshooting
Input
signal
Overload
LED on
Reduce input
level
Increase
output level
P1
Apply
audio signal
Increase input
signal
P2
No
Yes
No
Yes
Audio
out?
Finish
Start
Yes
No
5.1 No audio out
5. Troubleshooting.
Speaker/
Headphone switch
SP

ANEM Operating ManualANEM Operating Manual Page 7
2.3 Mounting options.
The ANEM can be used on the bench, or attached to your
loudspeaker using the velcro strips supplied.
For bench mounting attach the four rubber feet to the
bottom of the module as shown.
4 off rubber feet
fit over case screws
hook and eye fastener
strip
Mount it on the side... ..on the top..
..on the back.. ..or use it on the bench...
2. Module Overview.
Figure 4. Mounting options
If the module is going to be mounted on the loudspeaker
then attach the strip of hook and eye fastener as shown
below.
Page 22
Figure 17. Circuit modification for low power signal drive.
4.4 Driving from a low signal source.
Cut the
leg on this
resistor
22
W
OUT
12
Agnd
Agnd
9
10
Load
V
Audio
Input
R6
IN
11
Circuit
modification
Figure 16. Physical modification for low power signal
drive.
Note:
Wiring and
heatsink
omitted for
clarity.
4. Technical Information.
The input to the module has a low impedance. This is to
provide correct loading to any power circuits driving it. If
the module needs to be driven from a low power signal
then it must be modified in the following manner. The case
must first be removed, as described in section 4.2.

ANEM Operating ManualANEM Operating Manual
Page 8
+
-
Audio
Source ANEM
Audio
In
Audio
Out
Power
2.4 Connections.
The ANEM is connected in-line between the equipment
and the loudspeaker or headphones, as shown in the
following block diagram.
Connect the 3.5mm mono lead supplied to the extension
speaker socket of your equipment and the audio in socket
on the ANEM. Connect a loudspeaker or headphones to
the audio out socket on the ANEM. Warning: The 3.5mm
mono Audio Out socket provides variable audio output
for an external speaker (4 ohm - 8 ohm impedance) or
earphones. The audio level varies according to the
volume setting of the equipment that the ANEM is being
used with. When you plug mono earphones into the Audio
Out socket (stereo earphones can be used with the bhi
audio adapter ADP-S001), the SP-PH toggle switch
MUST BE set to the “PH” position, to prevent the
possibility of injury to your ears.
Look in section 6.4 for audio adapters to suit most
equipment and applications.
Connect the fused DC power lead to a power supply
capable of providing 12 - 18VDC @ 300mA. The centre
pin of the power connector is positive (the lead with the
white stripe is positive). If you require a separate power
supply then refer to section 6.4 for details.
The unit is now ready for use.
Figure 5. Block diagram
2. Module Overview.
Page 21
The ANEM requires a signal of 125mV rms or greater for
optimum performance. Signals lower than this may be used
but the noise cancellation performance will decrease, as
the signal levels drops. If the unit is used with low level
signals such as microphones, the signal will need
amplifying before applying it to the ANEM.
Due to the adaptive nature of the noise cancellation a
small delay may be heard when the audio signal
changes. For optimum performance provide the module
with a constant signal where possible.
When switching on the unit a small audio thump may be
heard in the loudspeaker or headphones.
Figure 15. Input circuit -
module powered down
22
W
OUT
12
Agnd
Agnd
9
10
V
Audio
Input
R6
IN
Load
11
The audio input to the
module is loaded at
22W. This load is
effectively connected
across the output load
when the unit is
switched off
(bypassed).
This will reduce the
impedance presented
to the audio source.
For example:
8W will reduce to 5.9W
4Wwill reduce to 3.4W
4.3.3 Change to output load.
4.3.4 Other signal considerations.
4. Technical Information.
Speaker or headphones

ANEM Operating ManualANEM Operating Manual Page 9
3. Module Operation.
3.1 Keyboard.
The keyboard has 2 buttons and a tricolour LED.
3.1.1 Power button.
The power button switches the module on and off. When
the module is off, the audio bypasses the module, so
the circuit will behave as if the module isn’t present.
Switching the power on routes the audio through the
module.
Note: If the power is on and the DSP is switched off, the
audio still passes through the DSP - but without any signal
processing.
A single press on the button switches the power on, and a
single press will switch it off. Also with the power connected
and the module switched off the circuit will draw 6mA.
3.1.2 DSP level button.
This button is used to set the following:
•DSP on/off
•DSP level
•4 or 8 levels of noise cancellation
•Demonstration modes
Power on/off
bypass button
DSP function
button
DSP function LED
3. Module Operation.
Figure 6. Controls
Page 20
4.3 Module setup.
4. Technical Information.
To obtain the best results from the noise reduction the
module should be set up to give optimum performance.
The input sensitivity control has a range of 0.70mW -
3W to provide 2W (W)output.
Under certain conditions, RF breakthrough can
sometimes occur. To minimize this, the input level (P2)
may need to be reduced or go to the FAQ page on the
bhi website and download the FAQ on RF breakthrough.
Under certain conditions the DSP can create a small
amount of noise, you should not be able to hear this
noise when a signal is applied to the module.
4.3.1 Overview.
The module is factory set but both the input and output levels
are adjustable on the module. This allows easy integration
into target systems. If you need to adjust the module follow
the instructions below.
Basic adjustment procedure.
Open the unit by carefully pulling both sides of the
bottom half outwards & easing the top half upwards.
Ensure that the pcb is clear for any adjustments.
Connect input source and output device.
Ensure the ANEM is switched off.
Set the audio source to a typical audio level.
Switch on the ANEM.
Adjust the input control (P2) until the overload LED
illuminates. Reduce the level by approx. 1/4 turn.
Adjust the output level (P1) to the desired level.
Hold down the DSP button and adjust the volume
of the sounder to suit using P3.
4.3.2 Suggested adjustment procedure:
SP
Speaker/
Headphone switch

ANEM Operating ManualANEM Operating Manual
Page 10
Power up
DSP button
pressed
2 tone sound
DSP button
pressed
2 tone sound
2 tone sound
Demonstration
2
Demonstration
1
No
Yes
No
Yes
No
Yes
DSP button
pressed
DSP button
pressed
2 tone sound
DSP button
pressed
Change
4 or 8 levels
Normal
operation
No
Yesbeep number
of DSP levels
Yes No
DSP button
pressed
Yes
No
3.2 Set up.
The following flow chart shows the functions of the DSP
button.
Releasing the DSP button
at this point the module
goes in to demonstration
mode 1
Keep the button down
until the desired level
has been reached, then
release the button. The
module will continously
scroll through 4 and 8
levels until the button is
released.
Figure 7. 4/8 level setting.
Holding down the DSP
button when switching on
causes the module to enter
the set up mode.
This is indicated by a 2
tone beep.
Releasing the DSP button
at this point the module
goes in to demonstration
mode 2
3. Module Operation.
Page 19
The input to the module is loaded at 22Wto provide a
dummy load to the preceding circuit. This can be removed
if required, such as using the module in applications
where the audio source is provided by a low level, low
power signal source. More information on this can be
found in section 3.3 in this operating manual.
If Vin is less than approx. 13.8V ensure the power supply
is well decoupled otherwise the power supply rejection
ratio will deteriorate. Best results are obtained in the
range of 13.8V - 16Vdc.
4.2 Controls.
The level controls provide adjustment for the audio levels
entering and leaving the module. The modules are factory
set to the maximum level.
Turning the potentiometers clock wise will decrease the
levels. These potentiometers do not have end stops, so
it is possible to set them in a position where the audio
will be lost.
Audible indication of operation is provided by an piezo
sounder. The volume of this sounder can be varied by
potentiometer P3. The sounder volume is independent
of the incoming audio volume.
4. Technical Information.

ANEM Operating ManualANEM Operating Manual Page 11
To listen to the demonstration modes, or change the
number of DSP levels it is necessary to put the module
into the set up mode.
To do this, ensure the module is Off. Press and hold the
DSP level button. Turn on the module and a 2 tone beep
will be heard indicating that the module is in the set up
mode.
Releasing the button after the first 2 tone beep will enter
demonstration mode 1.
Releasing after the second 2 tone beep will enter
demonstration mode 2.
Releasing after the third 2 tone beep will set the unit to
level 2 in the 4 level mode.
After the fourth beep, keep the button depressed. 4 beeps
will indicate 4 level mode and 8 beeps 8 levels. Release
the button to select the desired level mode.
The module will return to normal operation after this.
The colour of the LED will indicate the mode of operation,
red for 4 level and orange for 8 level.
edomPSDsleveL4sleveL8
FFODEREGNARO
NONEERGNEERG
Table 1. LED mode indication.
3. Module Operation.
Page 18
4.1 Module Layout.
Figure 14. ANEM PCB and controls
Input
level set
(P2)
Output
level set (P1)
Input overload
indicator LED
Audio
bypass
relay
Note:
Wiring and heatsink obmitted for
clarity
Sounder
volume (P3)
4. Technical Information.
The following diagram shows the internal layout of the
ANEM printed circuit board.
In order to access the printed circuit board the case needs
to be removed.
Carefully pull the sides of
the case outwards, until the
upper section can be
removed. When re-
assembling the module
enusre that none of the
wires become trapped in
the case halves.
Figure 13. ANEM case dis-assembly detail.
4. Technical Information.

ANEM Operating ManualANEM Operating Manual
Page 12
Start
Noise cancellation
On
Wait 1.5 Seconds
Noise cancellation off
Highest
Level?
Normal operation
No
Yes
Increase DSP
noise cancellation
level
Start
Noise cancellation off
Noise cancellation
On
Wait 3 Seconds
No
Yes
DSP button
pressed?
2 tone beep
Normal operation
Wait 3 Seconds
Demonstration 2.
The module switches
the noise cancellation
on for 3 seconds then
off for 3 seconds. This
is a good demonstra-
tion of the before and
after effects of remov-
ing the noise.
Demonstration 1.
The module switches the
noise cancellation on for 1.5
seconds, then off for 1.5
seconds. It will then move to
the next level and repeat the
process.
This mode is particularly
effective at demonstrating the
different DSP levels.
Alternatively pass a clean
audio signal through the
module to see hear how little
the DSP alters the speech.
Note:
To exit the demonstra-
tion modes hold down
the DSP button until a
2 tone beep is heard.
Figure 8.
Demonstration
modes.
3.3 Demonstration modes.
3. Module Operation.
Page 17
This page is left blank
4. Technical Information.

ANEM Operating ManualANEM Operating Manual Page 13
3.4 Noise reduction levels.
4 or 8 levels of noise reduction are available. The amount
of noise and tone reduction is shown in the table below.
leveL
)4(
leveL
)8( noitcudeRenoT noitcudeResioNetihW
1Bd4Bd9
12 Bd5Bd11
3Bd6Bd31
24 Bd8Bd51
5Bd61Bd71
36 Bd12Bd02
7Bd52Bd42
48 Bd56Bd53
Table 2. Tone and noise reduction levels.
The column marked level (4) shows the noise and tone
reduction when operating the module with 4 levels, and
the level (8) column for 8 levels.
Holding down the DSP select button will continuously
change the DSP level. When the desired level has been
reached, release the button. The module will retain this
level until it is changed.
The ANEM is factory set up and ready for use. If you are
using the module in an application which requires
adjustment. For the optimum performance refer to section
4 for more information.
3. Module Operation.
Page 16

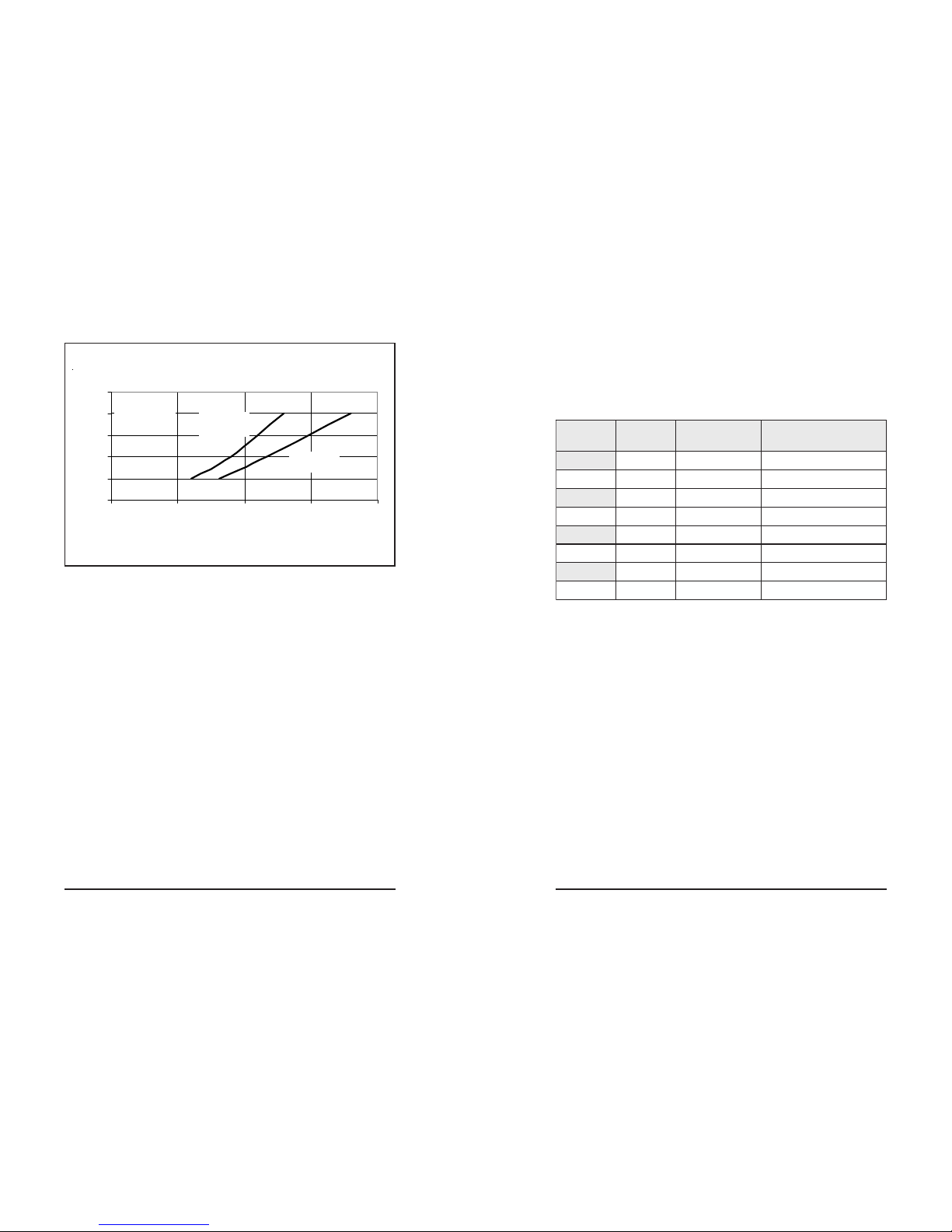

Figure 11. Sensitivity.
0
0.5
1
1.5
2
2.5
0 50 100 150 200
Input voltage (mV)
Output power (W)
RL = 8W
RL = 4W
VS= 16V
f = 1KHz
Section 4 contains information on adjusting the operation
of the ANEM. The module is supplied factory set and under
normal circumstances no further adjustment is necessary.
The following information is for guidance only and any
adjusments to the DSP circuit should only be carried out
by those who have a technical understanding of what they
are doing.
3. Module Operation.

ANEM Operating ManualANEM Operating Manual
Page 14
3.5 Electrical characteristics.
lobmySretemaraPsnoitidnoCtseT.niM.pyT.xaMstinU
V
s
egatlovylppuS216181V
qI
s
tnerructnecseiuQ
V
s
V21=
V
s
V61=
V
s
V81=
6.4
8.6
1.7
Am
qI
no
noPSDtnerructnecseiuQ
langisondaolon
V
s
V21=
V
s
V61=
V
s
V81=
341
061
161
Am
ELECTRICAL CHARACTERISTICS
(Vs=16V, Tamb= 25ii
ii
iC unless otherwise stated)
DC CHARACTERISTICS
AC CHARACTERISTICS
lobmySretemaraPsnoitidnoCtseT.niM.pyT.xaMstinU
P
o
rewoptuptuO
%01=d
zHK1=f
R
L
8= WW
W
WW
R
L
4= WW
W
WW
V21
61.1
7.1
V61V81
60.2
71.3
V
s
W
W
V
i
ytvitisnestupnI
4WW
W
WW daol
zHK1=f
P
O
W5.0=
P
O
W0.1=
P
O
W0.2=
06
09
031
Vm
V
i
ytvitisnestupnI
8WW
W
WW daol
zHK1=f
P
O
W5.0=
P
O
W0.1=
P
O
W0.2=
18
711
081
Vm
BesnopserycneuqerF
)Bd3-(
P
o
W1=
R
L
8= WW
W
WW 050034zH
dnoitrotsiD
zHK1=f
P
O
RW4.2-2.0=
L
8= WW
W
WW
P
O
RW4.2-2.0=
L
4= WW
W
WW
8.0
8.0
%
R
i
ecnatsisertupnI122232WW
W
WW
G
v
niagegatloVzHK1=f72Bd
nycneiciffE
zHK1=f
P
O
RW3=
L
4= WW
W
WW
P
O
RW2=
L
8= WW
W
WW
33
83
%
ANALOGUE CHARACTERISTICS
lobmySretemaraPsnoitidnoCtseTniMpyT.xaMstinU
T
d
yaledmetsyS 62Sm
Table 3. Electrical characteristics 1
3. Module Operation.
Page 15
-20
-15
-10
-5
0
5
0 1000 2000 3000 4000 5000 6000
Figure 9. Frequency response
Frequency (Hz)
Output (dB)
0
2
4
6
8
10
12
00.511.522.533.5
Figure 10. Distortion vs. Output power
Distortion
Output power (W)
VS= 16V
f = 1KHz RL = 8W
RL = 4W
RL = 8W
VS= 16V
P = 1W
-3dB
3. Module Operation.
