BHI Radio Mate User manual

Radio Mate Operating Instructions.Radio Mate Operating Instructions. Page 1
Radio Mate
Operating Instructions
bhibhi
bhibhi
bhi
Compact Keypad for
Yaesu FT-817, FT-857 and FT-897
1090-107D
Issue G
Page 16
bhibhi
bhibhi
bhi
Contact information:
bhi Ltd
P.O. Box 136
Bexhill on Sea
East Sussex
TN39 3WD
UK
tel: [phone]
fax: [phone]
[email protected]
www.bhi-ltd.co.uk
Radio Mate

Radio Mate Operating Instructions.Radio Mate Operating Instructions.
Page 2
Important Information
Copyright
This publication, including all photographs and illustrations is
protectedunderinternationalcopyrightlaws,withallrightsreserved.
Neither this manual, nor any of the material within, may be copied
or reproduced without the written consent of bhi Ltd.
Disclaimer
Theinformationinthisdocumentissubjecttochangewithoutnotice.
bhi Ltd. makes no representations or warranties with respect to the
contents hereof and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose. Furthermore,
bhi Ltd. reserves the right to revise this publication and to make
changes from time to time in the content hereof without obligation
of bhi Ltd. to notify any person of such revision or changes.
Page 15
1knaB2knaB
yromeM ycneuqerF )zHM( noitaludoM ycneuqerF )zHM( noitaludoM
1
2
3
4
5
6
7
8
9
0
1knaB2knaB
yromeM ycneuqerF )zHM( noitaludoM ycneuqerF )zHM( noitaludoM
1
2
3
4
5
6
7
8
9
0

Radio Mate Operating Instructions.Radio Mate Operating Instructions. Page 3
Table of contents
1. Setup 4
2. Memory function 5
3. Modulation 6
4. Direct frequency entry 7
5. VFO 8
6. Tune 8
7. Other bhi products 8
Appendix A
Blank frequency tables 14
Page 14
1knaB2knaB
yromeM ycneuqerF )zHM( noitaludoM ycneuqerF )zHM( noitaludoM
1
2
3
4
5
6
7
8
9
0
1knaB2knaB
yromeM ycneuqerF )zHM( noitaludoM ycneuqerF )zHM( noitaludoM
1
2
3
4
5
6
7
8
9
0
Appendix A - Blank frequency tables

Radio Mate Operating Instructions.Radio Mate Operating Instructions.
Page 4
1. Set up.
Connecting and setting up the Radio Mate. (See your radio user
manual for more information on setting up the CAT interface).
Turn radio OFF.
Turn the Radio Mate OFF using the switch located on right-
hand side of case.
Insert DIN plug on Radio Mate cable intoACC jack on FT-817
or the CAT/LINEAR jack on the FT-857/897 (Be very careful
not to bend the pins).
Turn the radio ON.
Radio-specific settings.
FT-817
Pressandholdfunctionbutton(F)foronesecond(two beeps)
to enter the Menu and then set Menu 14 [CAT Rate] to 9600
baud.
Press and hold function button (F) for one second to store
this setting.
FT-857 and FT-897
Pressand holdfunctionbutton (F) foronesecond (two beeps)
to enter Menu and then set Menu 020 to CAT, then set 019
[CAT Rate] to 9600 baud.
Press and hold function button (F) for one second to store
this setting.
The LED glowing RED indicates the Radio Mate is in Memory
Function mode. (See Section 2.)
Turn ON the Radio Mate.
The LED on the Radio Mate will glow RED and a beep should
be heard approximately 3 seconds after power up.
Page 13
NCH
Noise Cancelling
Headphones
These headphones feed an
inverted copy of the ambient
noise to cancel it out.
The headphones effectively
remove noise such as blower
noise, ambient noise, jet engine
noise or music from another
room.
BBRP
Banner Badge
Applications
•ID badge
•Club badge
•Restaurants
•Receptions
•Gifts
•Stag and Hen nights
•DJs
•etc...
Get the message across
Easy to program using push
buttons on back: no cords, no
wires,no softwareneeded.Enter
yourmessageandwatchitscroll
across.
What will yours say?
BBRP (Includes 2 CR2032
coin cells)
BBAT replacement CR2032
coin cell
The headphones are supplied
with an aircraft adapter, so you
can now listen to the
film, or CD player
without all the jet
engine noise. Also
supplied with carry
bag.

Radio Mate Operating Instructions.Radio Mate Operating Instructions. Page 5
2. Memory Function
Note:
Memory Bank Selection:
Twenty (20) memory locations are available to use as two Memory
Banks,eachcontainingten(10)memoriesnumbered0though9.When
the Mem keyispressed the LED illuminates RED. To select the First
Bank, simply press the Mem key and release it when you hear a
single beep. To select the Second Bank, simply press the Mem
key and release it when you hear two beeps. The Memory Bank
selected will remain as the selected Bank until you specifically
change it; however, it defaults to Memory Bank 1 on Power Up.
Storing a Memory:
Onceyou have selected a memorylocationintowhich you to store the
frequencyand mode, simply press the selectednumber key (0-9) until
a single beep is heard and then immediately release your finger
from the key. The LED will also flash once to indicate that the
current frequency and mode has been stored in the selected memory.
Be sure you have the desired Memory Bank selected.
The CATport remains powered on the FT-817, even when the radio
is switched off. It it advisable to switch the keypad off when the
radio isn’t in use.
To aid partially sighted and blind users, a small self adhesive rubber
bump is included and can be easily fixed between keys 5,6,8,9.
Recalling a Memory:
Simplypresstheselectednumberkey(0-9)and then quickly release
your finger from the key to recall the stored frequency and mode.
Page 12
Audio Adapters and Accessories.
Audio adapters:
ADP-P001 6.35mm plug - 3.5mm mono socket
ADP-P002 6.35mm plug - 3.5mm mono socket
ADP-P003 3.5mm stereo plug - 3.5mm mono socket
ADP-P004 Phono plug - 3.5mm mono socket
ADP-P005 2.5mm mono plug - 3.5mm mono socket
ADP-P006 2.5mm stereo plug - 3.5mm mono socket
ADP-P007 6.35mm stereo plug - 3.5mm stereo socket
ADP-P008 3.5mm stereo - aircraft adapter
ADP-S001 3.5mm mono socket - 3.5mm mono plug
ADP-S002 6.35mm socket - 3.5mm mono plug
ADP-S003 6.35mm stereo socket - 3.5mm mono plug
ADP-S004 2.5mm stereo socket - 3.5mm mono plug
ADP-S005 2.5mm mono socket - 3.5mm mono plug
Power adapters:
1030-UKPA 12V DC UK power adapter
1030-EUPA 12 VDC European adapter
1030-VEPL Fused vehicle power adapter
Audio leads:
ALD-001 1.2m 3.5mm - 3.5mm mono lead
ALD-002 2.5m 3.5mm - 3.5mm mono lead
ALD-003 phono -phono plug
ALD-004 3.5mm stereo plug - phono plug
ALD-005 3.5mm mono plug - phono plug

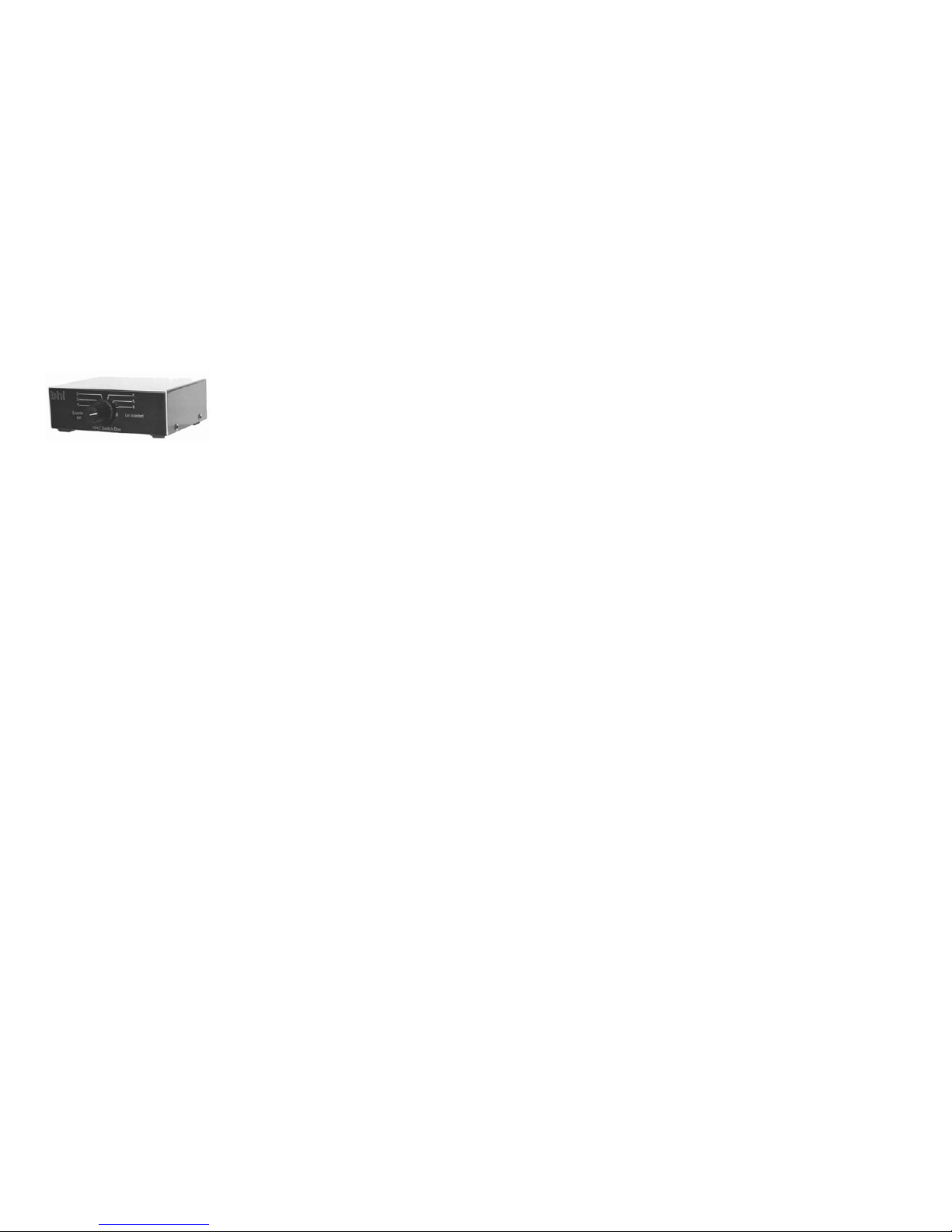

Allows connection of up to 6 pieces
of equipment to one bhi noise
elimination speaker or any other
extension speaker.
(Includes 2 free ALD001 3.5mm
audio leads)
1042 Switch Box

Radio Mate Operating Instructions.Radio Mate Operating Instructions.
Page 6
3. Modulation.
yromeM1knaB2knaB
)zHM(ycneuqerFnoitaludoM)zHM(ycneuqerFnoitaludoM
1058.1WC030.441WC
2035.3WC003.441WC
3006.3BSL057.441MF
403
0.7WC054.541MF
5080.7BSL574.541MF
6030.41WC005.541MF
7002.41BSU525.541MF
8040.81BSU055.541MF
9010.12BSU575.541MF
0005.82BSU057.541MF
In this mode the keypad will select an operating mode at the
single press of a button.
1 for USB
4 for LSB
7 for AM
2 for FM
5&0 for FMN
(not on FT817 it will lock up - battery removal required)
8 for PKT
3 for CW
6 for CWR
9 for DIG
The Radio Mate
memories can be
reset to the
generic
frequencies in the
table by switching
off the Radio Mate
power, then
switching it back
on again, holding
the “0” key down
whilst the LED is
green, until a beep is heard.
Pressing the appropriate button i.e. USB, AM, FM etc. will change
the radio over to that mode.
Press the Mod for Modulation mode. The LED will illuminate
YELLOW.
There are blank forms in Appendix Ato record your own
frequencies and modes.
Press:
Page 11
Packit Reference Book for the FT817
Wherever you are you can have at your finger tips
all the information you need to use the many
FT-817 features.
Other reference books.
Yellow book for VX7R
Yellow book for VX6R
Yellow book for VX5R
Yellow book for VX2R
FT817 cables.
6 pin Mini DIN - Data cable Order code: 6pin
8 pin Mini DIN - Accessory cable Order code: 8pin
Cigar lighter power lead Order code: FT817VEPL
Fused power lead Order code: FT817FPL

Radio Mate Operating Instructions.Radio Mate Operating Instructions. Page 7
4. Direct frequency input.
The operating frequency can be entered directly using the numeric
keypad. To enter the direct frequency input mode - press Dir, the
LED will illuminate GREEN.
Toillustratetheuseofthemodeisillustratedbytheexamplesbelow.
For example with the radio reading 145.500
to change to 145.400 press .4 Ent new reading is 145.400
Alternatively entering .400 would also give same result.
To change to 144.300
press 4.3 Ent new reading 144.300
(entering 4.300 would also give same result)
For example with radio reading 144.300
press 5.5 Ent and you are back to 145.500
entering .525 new reading
145.525
Note:
When entering 3 digits after the decimal point there is no need to
press the enter button on pressing the third digit a double beep is
heard and radio is automatically updated.
To go to HF
press 007 Ent new reading 7.525
press .010 new reading 7.010
entering 14 Ent new reading 14.010
To change from 14.010 to 3.500 you need to remove the 10 from the
14 this is done by using a leading zero.
enter 03.500 new reading 3.500
Page 10
Generic module to fit most transceivers/receivers. Specific
instructions cover installation into the following:
Yaesu FT817, FRG-100
Icom 706 MKII G
Icom 736/738
Kenwood TS50, TS440
Alinco DX-77
Realistic DX-934
Fit the bhi DSP noise cancellation in
your Transceiver. Features 4 filter
levels with visual and audio indication
Single button operation
labels and mounting hardware
NEDSP1061- KBD
Revive that old rig or
extension speaker with this
easy to fit DSP noise
cancellation module. The module
comes pre-wired with all the connections needed for operation, and
can be easily retrofitted into the loudspeaker path of many
transceivers, receivers & extension speakers. It has simple user
controls via two pushbuttons. Features: 4 or 8 filter levels with LED
& audio indication * Power on/off with audio bypass * 2 Watts output
* Power connector * Labels * Fused DC power lead & full fitting
instructions supplied, including guides for the Kenwood SP31 &
Yaesu SP8 extension speakers
NEDSP1062- KBD

Radio Mate Operating Instructions.Radio Mate Operating Instructions.
Page 8
5. VFO operation.
6. Tune function.

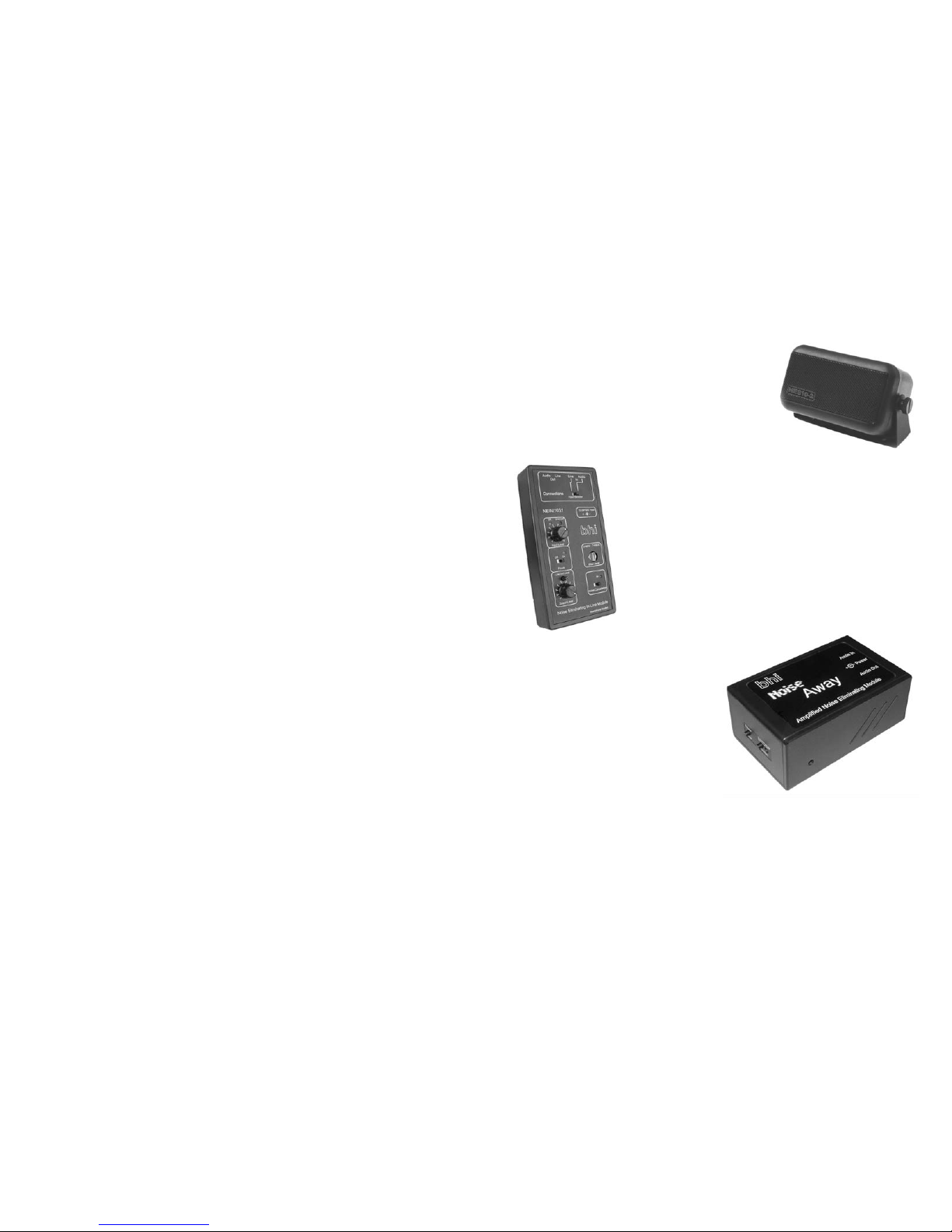

7. Other bhi Products.
bhi design and manufacture a range of Digital Signal Processing
(DSP) products to remove unwanted noise and interference leaving
only the speech. The amount of noise removed is dependant on the
filter level setting (65% - 98%). The resulting speech signal remains
virtually unaltered even when high levels of noise are present. If
thereis no noise present atall,thespeech passes throughunaltered.
The system is fully adaptive and adjusts itself continuously to
changing environmental conditions.
There are noise elimination speakers that fit into base station or
mobile environment, in-line modules that can be integrated into the
communications system, or PCB modules that can be retrofitted
internally into the equipment. The products work just as well in the
transmit or receive path.
VFO operation can be set as follows:
To swap VFOs A & B, A/B press the “.” (decimal) key
VFO A=B long press of the “.”(decimal) key
Split VFO mode by pressing the CLR key.
Pressing and holding the Ent key puts the Radio Mate into the tune
mode.
When in this mode, all the current modes of operation are read
from the radio and stored in the keypad. The radio is then put into
transmit mode for 10 seconds to tune an ATU. After the tune is
complete the radio is returned to its previous settings. If the tuning
operation completes after a few seconds, press the Ent key again
and the tune function will be stopped and the radio returned to its
previous settings.
Page 9
DSP noise cancellation built into a compact
speaker unit. The unit provides an easy to
install solution to noise reduction and easily
connects to the extension speaker socket or
headphone socket of your equipment.
Supplied with a fused power lead.
NES10-2 MKII Noise Eliminating speaker.
NEIM1031 In-line module.
TheNEIM1031 providesaflexiblesolution to noise
reduction and easily fits between your equipment
and speaker.
The unit is also equiped with line level inputs and
outputs, and a 3.5mm mono headphone socket.
Supplied with a fused power and audio lead.
ANEM Noise Away.
Easy to use, simply fits between your
equipment and extension speaker. Audio bypasses module when
the power is switched or removed. All the DSP functions are
controlled by a single button. The unit is compact and can be
mounted out of the way.
Supplied with hook and loop fastener, fused power cable and
audio lead.
1 - Plug in Audio
2 - Connect Loudspeaker
3 - Connect Power
New ANEM “Noise Away”
DSP Noise Cancelling as Easy
as 1-2-3
